◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11569 - FXZ/GXZ MALAYSIA EURO3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#132360) — 386 parça

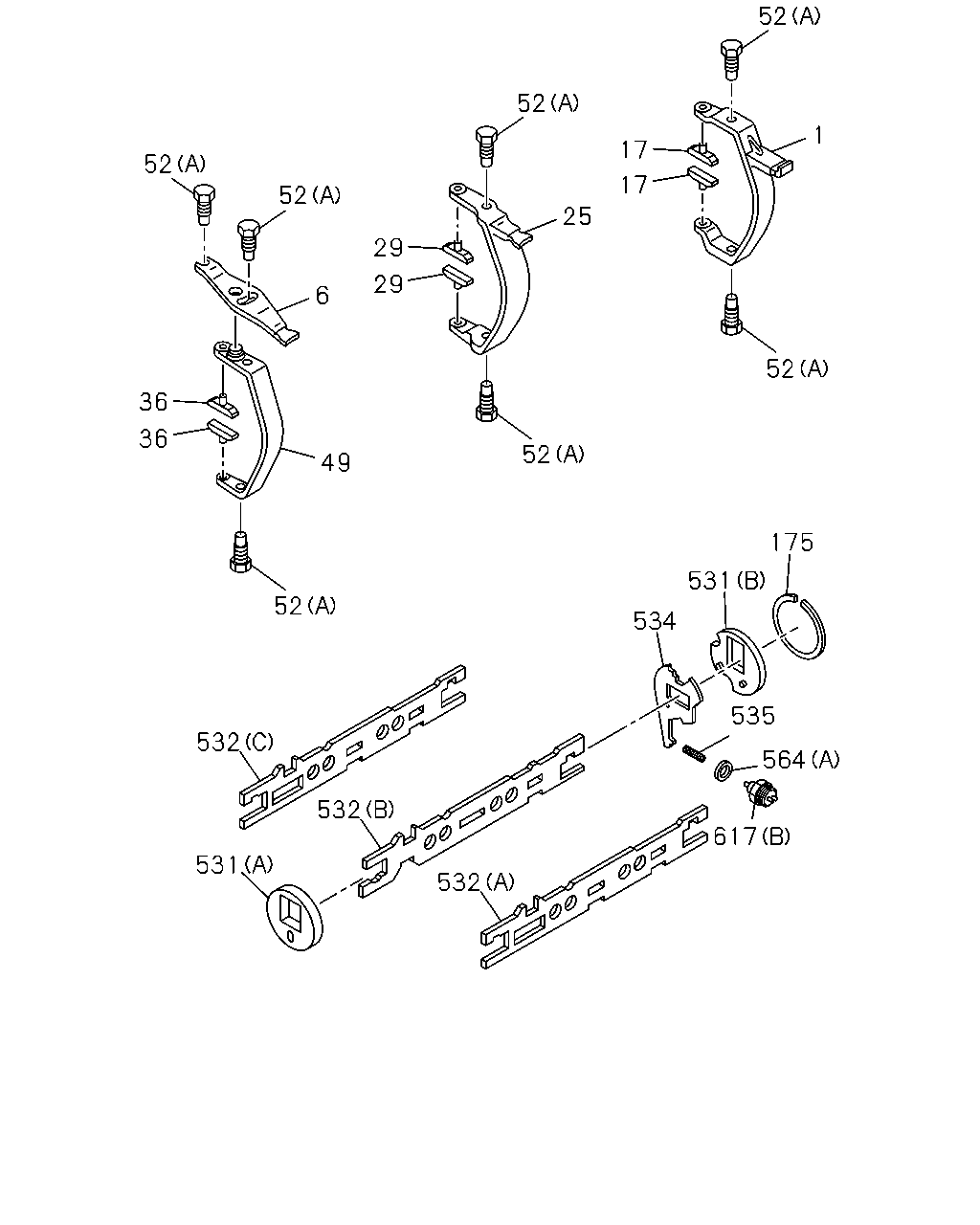

çizim 401364
52 1 17 52 17 25 52 29 29 6 52 52 36 36 49 52 175 531 534 535 564 617 532 532 531 532 52
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-657-0 01 1 1401-
6 LEVER; RELAY 1-33511-658-0 01 1 1401-
17 BLOCK; SHIFT,1ST & REV 1-33519-172-0 02 1 1401-
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1401-
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 1401-
36 BLOCK; SHIFT,4TH & 5TH 1-33519-170-0 02 1 1401-
49 ARM; SHIFT,4TH & 5TH 1-33511-640-0 01 1 1401-
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1401-
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1401-
175 RING; STOPPER,SHIFT LEVER 1-33539-103-0 01 1 1401-
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 1401-
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 1401-
532 PLATE; SHIFT FORK
(A) 		1-33531-492-0 01 1 1401-
532 PLATE; SHIFT FORK
(B) 		1-33531-493-0 01 1 1401-
532 PLATE; SHIFT FORK
(C) 		1-33531-494-0 01 1 1401-
534 LEVER; LOCK,SHIFT PLATE 1-33539-087-0 01 1 1401-
535 SPRING; LEVER 1-33539-049-0 01 1 1401-
564 SEAL; RING
(A) 		1-33549-578-0 01 1 1401-
564 SEAL; RING
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33119-249-0 02 1 1401-
564 SEAL; RING
SHIFT PATTERN SINGLE-H<EDY> (B) T=2.0 		1-82449-010-0 01 1 1401-
617 PLUG
(B) 		1-33539-109-0 01 1 1401-
617 PLUG
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33119-619-0 02 1 1401-
617 PLUG
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33119-619-0 01 1 1401-

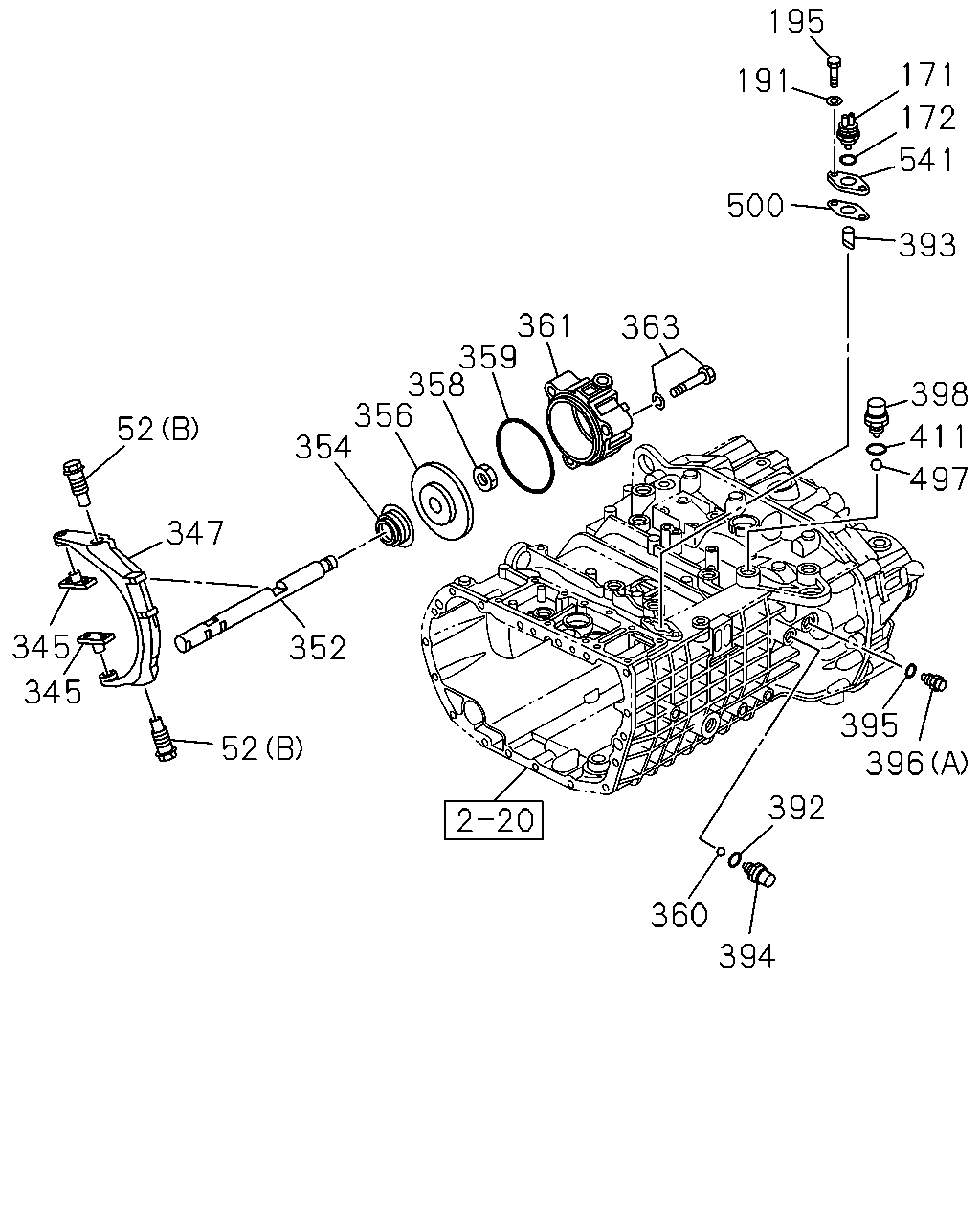

çizim 401374
171 195 191 500 172 541 393 398 411 497 395 396 392 360 394 52 352 347 345 345 52 354 356 358 359 361 363
BalonParca AdiParca NoAdetTipApplied Date
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1401-
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1401-
171 SWITCH; NEUTRAL
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-627-0 01 1 1401-
172 GASKET; NEUTRAL SW
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-249-0 01 1 1401-
191 WASHER; LK
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-583-0 02 1 1401-
195 BOLT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-593-0 02 1 1401-
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 1401-
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 1401-
352 ROD; SHIFT,RANGE CHANGE 1-33531-497-0 01 1 1401-
354 SEAL; AIR CYL 1-33519-045-0 01 1 1401-
356 PISTON; AIR CYL 1-33519-197-0 01 1 1401-
358 NUT; SHIFT ROD 1-33519-188-0 01 1 1401-
359 GASKET; AIR CYL 1-33519-093-0 01 1 1401-
360 BALL; AIR CYL 1-33119-252-0 01 1 1401-
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 1401-
363 BOLT; AIR CYL
M10X70 		1-33119-616-0 03 1 1401-
392 GASKET; PLUG & SW 1-33119-249-0 01 1 1401-
393 PIN; SW
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-298-0 01 1 1401-
394 SWITCH; RANGE CHANGE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-627-0 01 1 1401-
394 SWITCH; RANGE CHANGE
SHIFT PATTERN SINGLE-H<EDY> 		1-33119-587-0 01 1 1401-
395 GASKET; PLUNGER 1-33549-497-0 01 1 1401-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1401-
396 PLUNGER; SHIFT ROD
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33529-085-0 02 1 1401-
396 PLUNGER; SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33529-132-0 01 1 1401-
398 SWITCH; REV LAMP 1-38119-062-0 01 1 1401-
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 1401-
497 BALL; SWITCH 1-33119-252-0 01 1 1401-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-299-0 01 1 1401-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN SINGLE-H<EDY> 		1-33119-249-0 01 1 1401-
541 PLATE; SWITCH
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-300-0 01 1 1401-

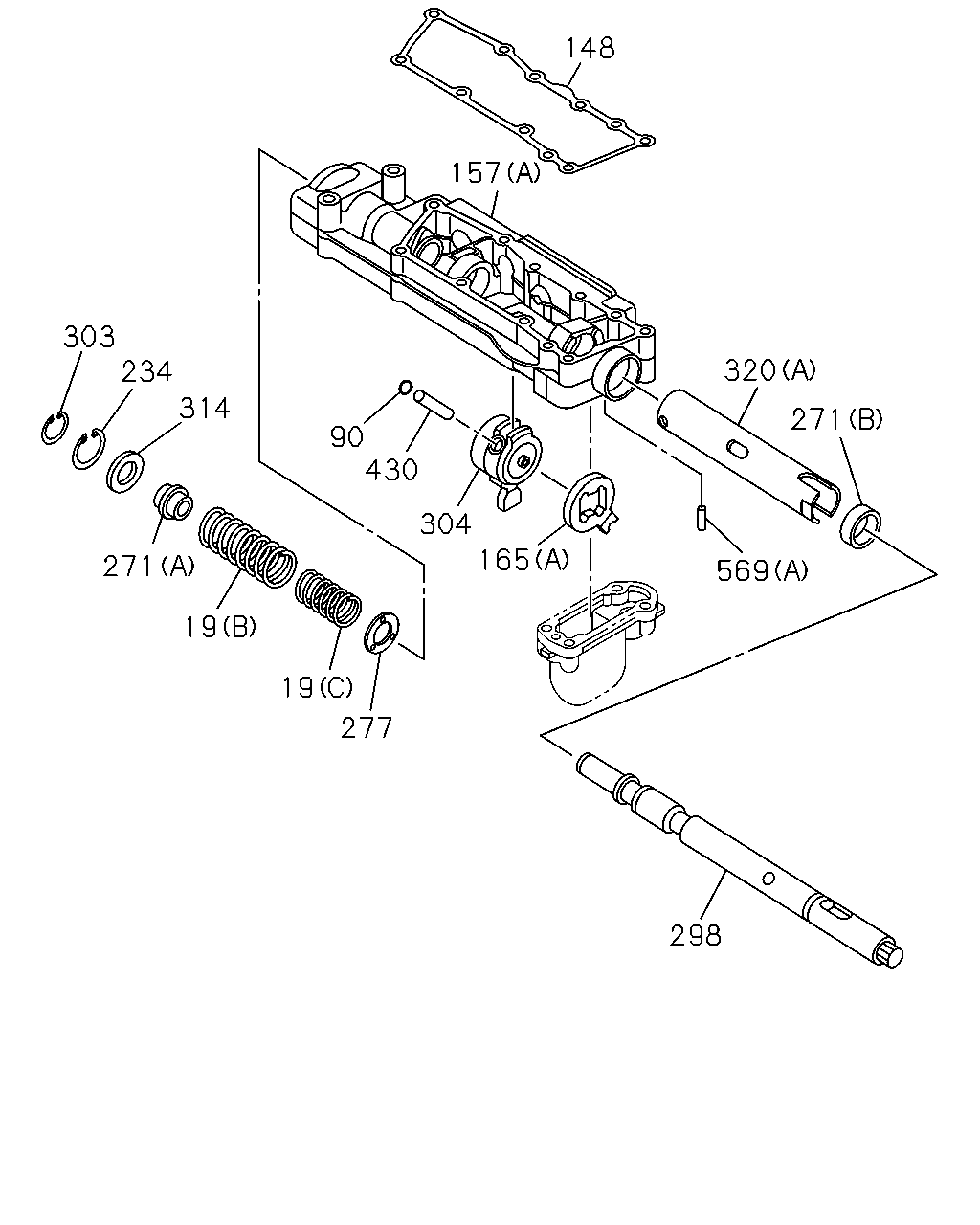

çizim 401375
148 157 90 314 234 303 271 19 19 277 165 304 430 320 271 569 298
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33539-028-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33539-030-0 02 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33539-092-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-221-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-022-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33539-027-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33539-098-0 01 1 1401-
90 RING; SNAP,SHIFT ROD
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-494-0 02 1 1401-
90 RING; SNAP,SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> 		1-33529-109-0 01 1 1401-
148 GASKET; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33542-064-0 01 1 1401-
148 GASKET; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> 		1-33544-056-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-570-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-604-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-445-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-612-0 01 1 1401-
165 LEVER; SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-488-0 01 1 1401-
165 LEVER; SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-489-0 01 1 1401-
165 LEVER; SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-603-0 01 1 1401-
165 LEVER; SHIFT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-533-0 01 1 1401-
234 RING; SNAP
SHIFT PATTERN SINGLE-H<EDY> 		1-44519-224-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-124-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-537-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-099-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-318-0 01 1 1401-
277 PLATE; SPRING SEAT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33539-107-0 02 1 1401-
277 PLATE; SPRING SEAT
SHIFT PATTERN SINGLE-H<EDY> 		1-33539-112-0 01 1 1401-
298 SHAFT; SHIFT LEVER
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33522-211-0 01 1 1401-
298 SHAFT; SHIFT LEVER
SHIFT PATTERN SINGLE-H<EDY> 		1-33522-207-0 01 1 1401-
303 RING; SNAP,SHAFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33539-040-0 02 1 1401-
303 RING; SNAP,SHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33539-101-0 01 1 1401-
304 BLOCK; SHIFT SHAFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-492-0 01 1 1401-
304 BLOCK; SHIFT SHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-532-0 01 1 1401-
314 WASHER; SHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33539-100-0 01 1 1401-
320 SHAFT; LEVER
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		8-98065-840-0 01 1 1401-
320 SHAFT; LEVER
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-447-0 01 1 1401-
320 SHAFT; LEVER
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33619-524-0 01 1 1401-
430 PIN; SPR,SHIFT ROD
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-493-0 01 1 1401-
430 PIN; SPR,SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-449-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33529-128-0 02 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33529-106-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-452-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33549-468-0 01 1 1401-

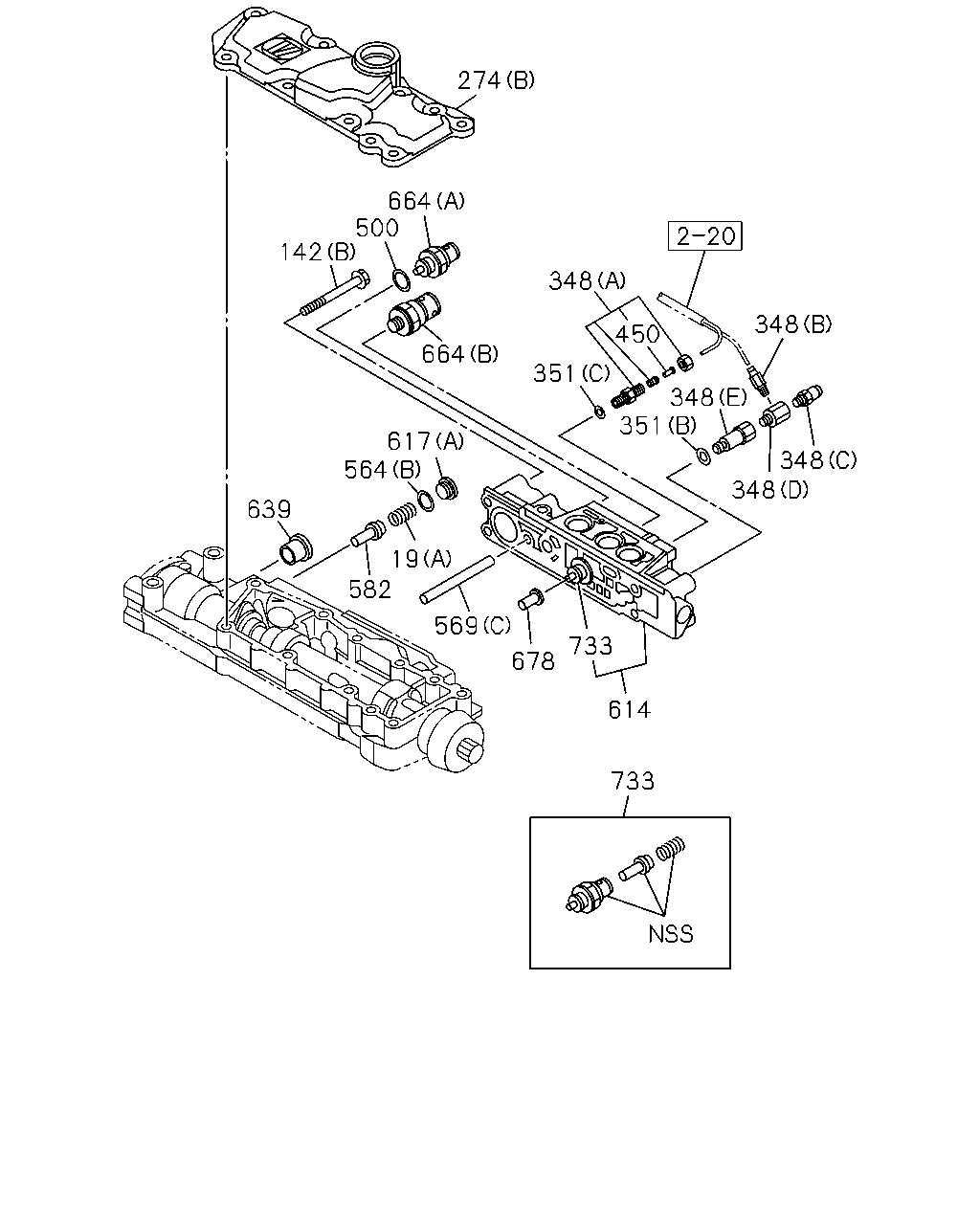

çizim 401383
274 664 500 142 348 348 348 450 351 351 348 348 733 678 569 19 582 639 564 617 664 614 733
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33539-028-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33539-030-0 02 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33539-092-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-221-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-022-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33539-027-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33539-098-0 01 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) M8X100 		1-33549-582-0 06 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) M8X75 		1-33549-584-0 02 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) M8X40 		1-33549-587-0 04 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) M8X80 		1-33549-614-0 17 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) M8X70 		1-33549-616-0 05 1 1401-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-579-0 01 1 1401-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-531-0 01 1 1401-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-535-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (A) M12 STRAIGHT 		1-09654-246-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-593-0 02 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-09660-466-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-09661-174-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-09661-481-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (D) 		8-94338-417-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (E) 		8-98068-125-0 01 1 1401-
351 GASKET; CONNECTOR
(B) ID=12.2 		1-09630-084-0 01 1 1401-1401
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-554-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-578-0 08 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-578-0 04 1 1401-
450 INSERT; SHIFT ARM
SHIFT PATTERN SINGLE-H<EDY> ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 1401-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-299-0 01 1 1401-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN SINGLE-H<EDY> 		1-33119-249-0 01 1 1401-
564 SEAL; RING
(A) 		1-33549-578-0 01 1 1401-
564 SEAL; RING
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33119-249-0 02 1 1401-
564 SEAL; RING
SHIFT PATTERN SINGLE-H<EDY> (B) T=2.0 		1-82449-010-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33529-128-0 02 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33529-106-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-452-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33549-468-0 01 1 1401-
582 BOLT; SPRING GUIDE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-487-0 02 1 1401-
582 BOLT; SPRING GUIDE
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-471-0 01 1 1401-
614 VALVE ASM
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-549-0 01 1 1401-
617 PLUG
(B) 		1-33539-109-0 01 1 1401-
617 PLUG
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33119-619-0 02 1 1401-
617 PLUG
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33119-619-0 01 1 1401-
639 CAP
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-576-0 01 1 1401-
664 SWITCH
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33119-587-0 01 1 1401-
664 SWITCH
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-470-0 01 1 1401-
678 TAPPET
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-466-0 01 1 1401-
733 REPAIR KIT
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-617-0 01 1 1401-

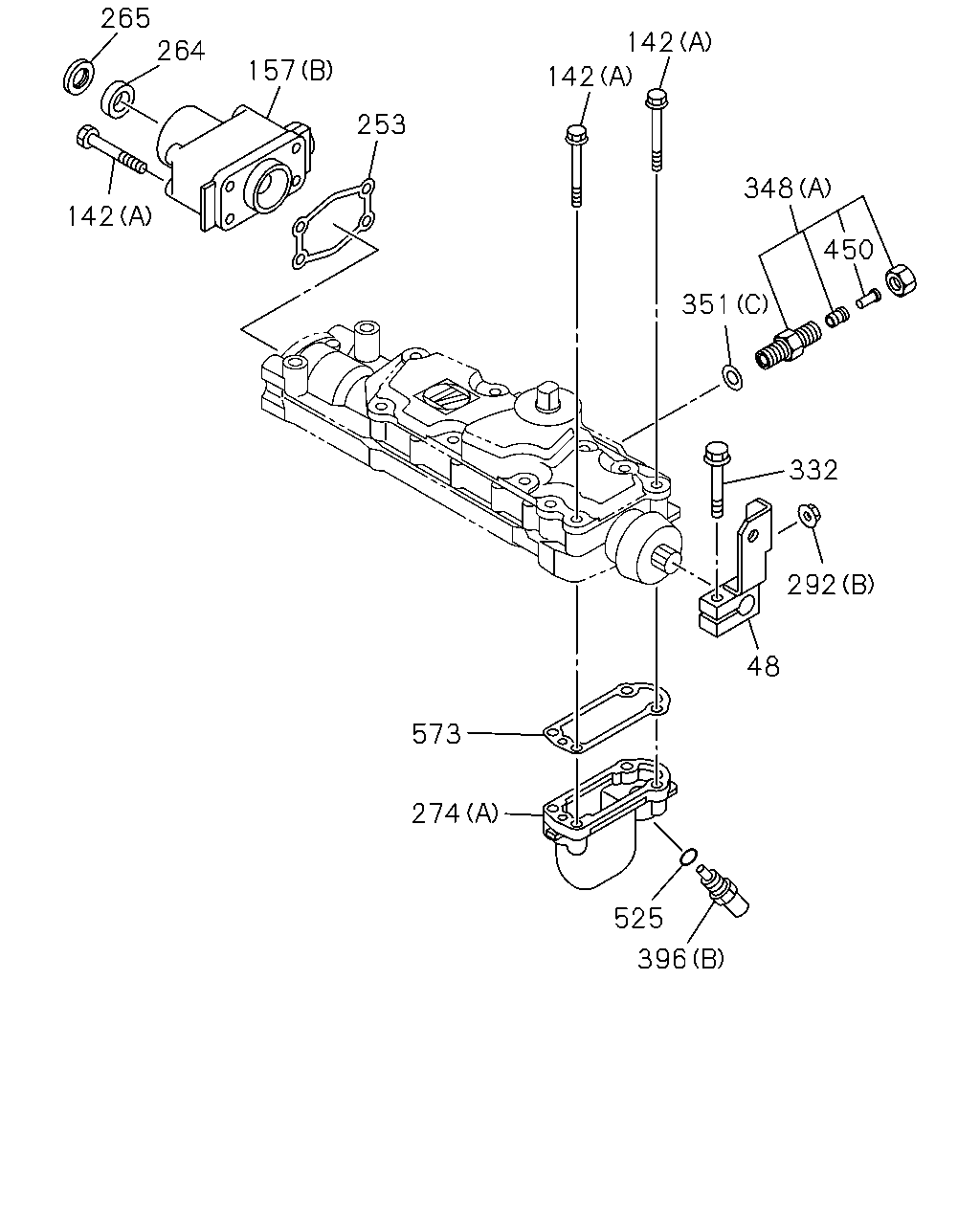

çizim 401385
265 157 264 253 142 142 142 348 450 351 332 292 48 573 274 525 396
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33651-661-1 01 1 1401-
48 LEVER; 4TH,SHIFT
SHIFT PATTERN SINGLE-H<EDY> 		8-98081-185-1 01 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) M8X100 		1-33549-582-0 06 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) M8X75 		1-33549-584-0 02 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) M8X40 		1-33549-587-0 04 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) M8X80 		1-33549-614-0 17 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) M8X70 		1-33549-616-0 05 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-570-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-604-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-445-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-612-0 01 1 1401-
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-054-0 01 1 1401-
264 SEAL; DUST,SHAFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-327-0 01 1 1401-
264 SEAL; DUST,SHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-119-0 01 1 1401-
265 SEAL; OIL,SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-328-0 01 1 1401-
265 SEAL; OIL,SHIFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-118-0 01 1 1401-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-579-0 01 1 1401-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-531-0 01 1 1401-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-535-0 01 1 1401-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1401-
292 NUT; LINK ROD
SHIFT PATTERN DOUBLE-H<EDZ> (A) M8 		0-91111-508-0 02 1 1401-
332 BOLT; 4TH,SHIFT LEVER
SHIFT PATTERN DOUBLE-H<EDZ> M8X40 FLANGE 		0-28650-840-0 01 1 1401-
332 BOLT; 4TH,SHIFT LEVER
SHIFT PATTERN SINGLE-H<EDY> M10X45 W/PL WASHER 		8-98038-710-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (A) M12 STRAIGHT 		1-09654-246-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-593-0 02 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-09660-466-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-09661-174-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-09661-481-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (D) 		8-94338-417-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (E) 		8-98068-125-0 01 1 1401-
351 GASKET; CONNECTOR
(B) ID=12.2 		1-09630-084-0 01 1 1401-1401
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-554-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-578-0 08 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-578-0 04 1 1401-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1401-
396 PLUNGER; SHIFT ROD
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33529-085-0 02 1 1401-
396 PLUNGER; SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33529-132-0 01 1 1401-
450 INSERT; SHIFT ARM
SHIFT PATTERN SINGLE-H<EDY> ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 1401-
525 RING; DETENT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-286-0 01 1 1401-
525 RING; DETENT
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-497-0 01 1 1401-
573 GASKET; SERVO UNIT
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-332-0 01 1 1401-
çizim 401387
321 320 433 317 315 317 433 319 323 505
BalonParca AdiParca NoAdetTipApplied Date
315 LEVER; SELECT
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98061-898-0 01 1 1401-
315 LEVER; SELECT
SHIFT PATTERN SINGLE-H<EDY> 		8-98087-673-0 01 1 1401-
317 BUSHING; LEVER 1-09330-119-0 02 1 1401-
319 BRACKET; SELECT LEVER
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98065-843-0 01 1 1401-
319 BRACKET; SELECT LEVER
SHIFT PATTERN SINGLE-H<EDY> 		1-33657-612-0 01 1 1401-
320 SHAFT; LEVER
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		8-98065-840-0 01 1 1401-
320 SHAFT; LEVER
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-447-0 01 1 1401-
320 SHAFT; LEVER
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33619-524-0 01 1 1401-
321 BOLT; BRKT,RELAY LEVER
M8X110 FLANGE 		0-28055-811-0 02 1 1401-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1401-
433 GASKET; BUSHING 1-09623-594-0 02 1 1401-
505 SPACER; BRKT
SHIFT PATTERN DOUBLE-H<EDZ> (B) ID=9 OD=18 T=5 		9-14149-173-0 01 1 1401-
505 SPACER; BRKT
SHIFT PATTERN DOUBLE-H<EDZ> (A) L=28 		9-83625-376-0 01 1 1401-
505 SPACER; BRKT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-11349-149-0 02 1 1401-

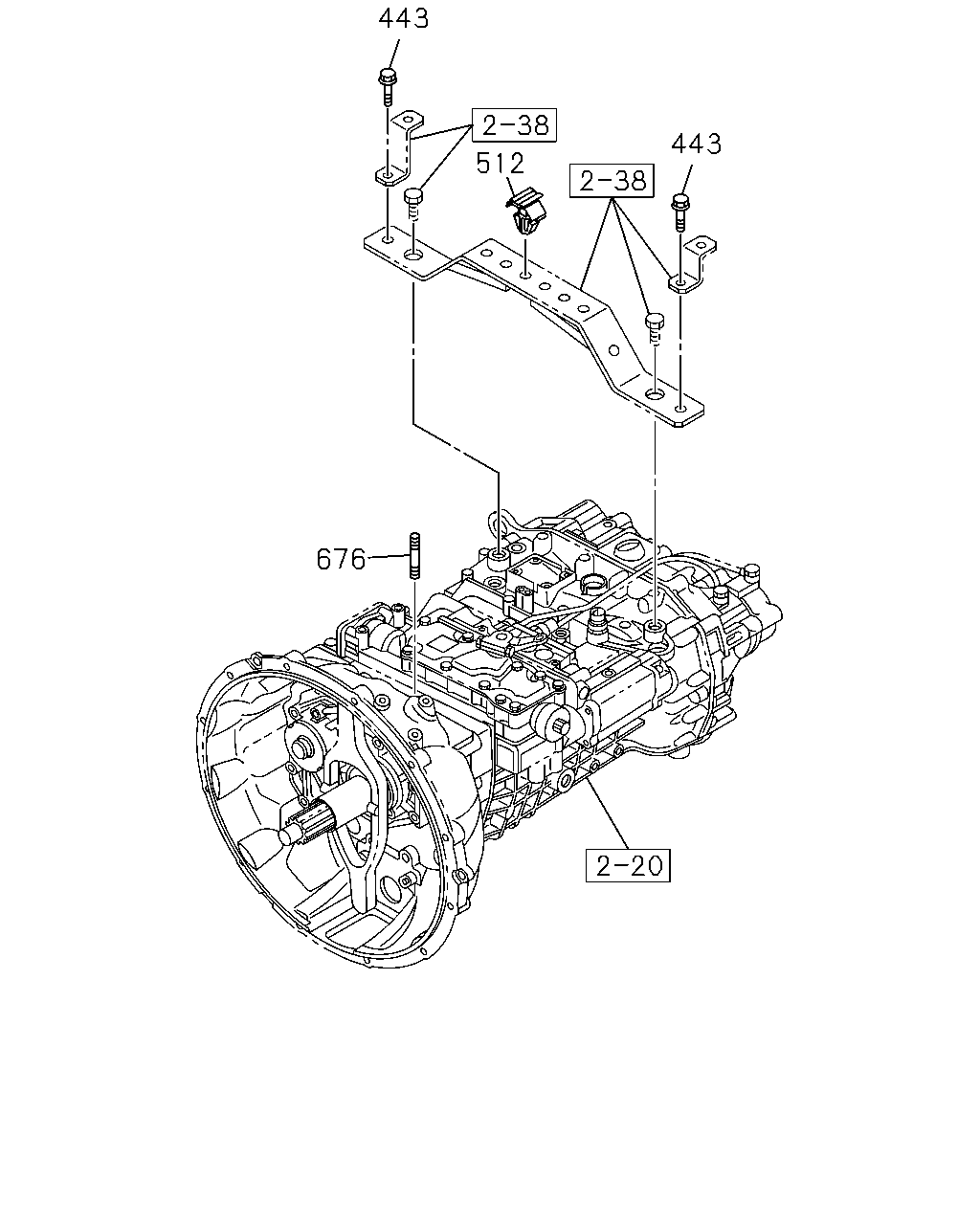

çizim 401389
443 443 512 676
BalonParca AdiParca NoAdetTipApplied Date
443 BOLT; CLIP
SHIFT PATTERN SINGLE-H<EDY> M8X20 FLANGE 		0-28650-820-0 02 1 1401-
512 CLIP; PIPE
SHIFT PATTERN DOUBLE-H<EDZ> OD=9 H=6 		1-09709-178-0 04 1 1401-
512 CLIP; PIPE
SHIFT PATTERN SINGLE-H<EDY> OD=9 H=6 		1-09709-178-0 05 1 1401-
676 STUD
SHIFT PATTERN SINGLE-H<EDY> M8X14,M8X14 L=33 		1-09300-058-1 01 1 1401-

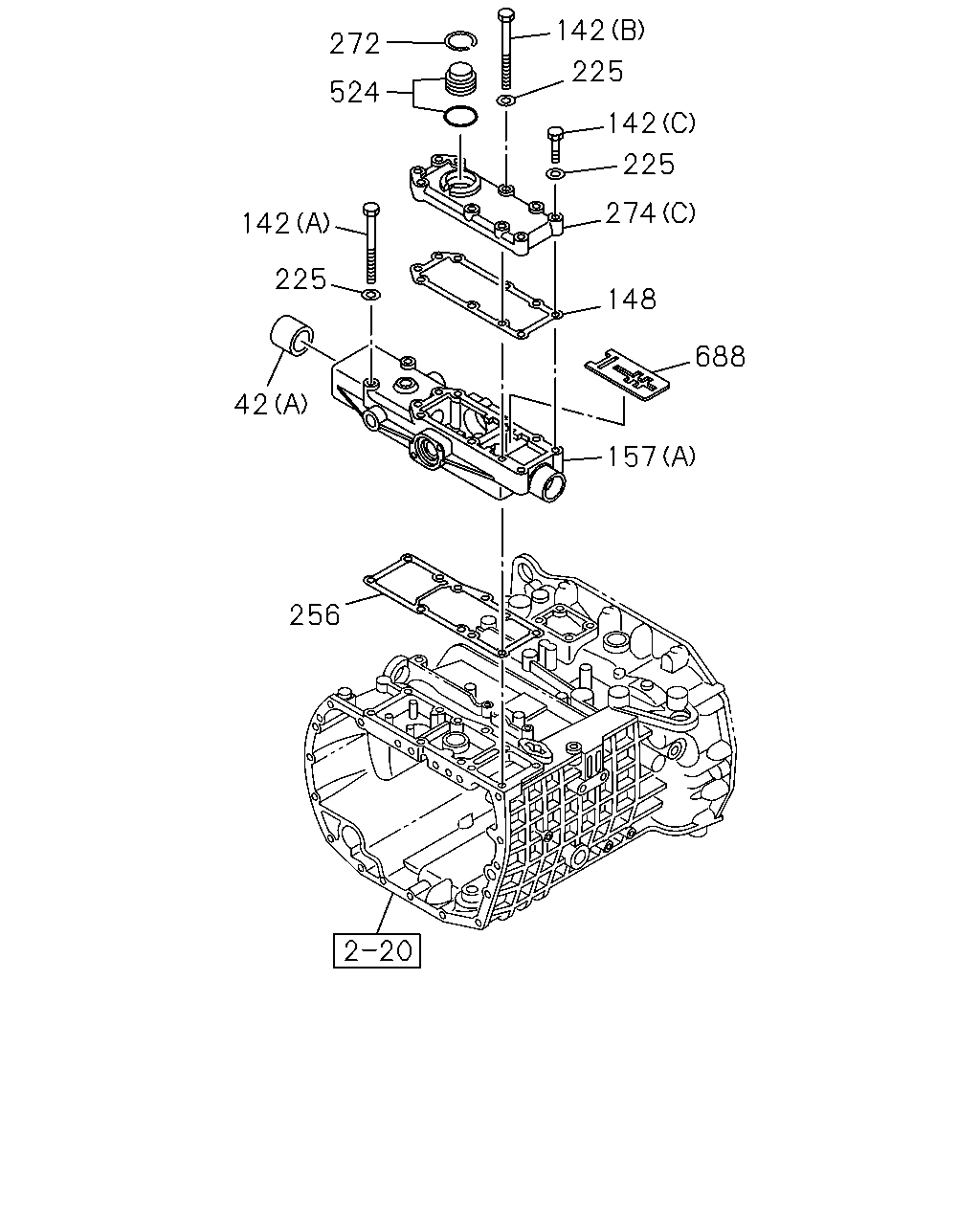

çizim 401392
272 524 142 225 142 225 274 148 688 157 142 225 42 256
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-538-0 01 1 1401-
42 CAP; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-589-0 01 1 1401-
42 CAP; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33549-548-0 01 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) M8X100 		1-33549-582-0 06 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) M8X75 		1-33549-584-0 02 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) M8X40 		1-33549-587-0 04 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) M8X80 		1-33549-614-0 17 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) M8X70 		1-33549-616-0 05 1 1401-
148 GASKET; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33542-064-0 01 1 1401-
148 GASKET; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> 		1-33544-056-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-570-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-604-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-445-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-612-0 01 1 1401-
225 WASHER; LK,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-583-0 14 1 1401-
256 GASKET; QUAD BOX TO TRANS CASE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33542-065-0 01 1 1401-
256 GASKET; QUAD BOX TO TRANS CASE
SHIFT PATTERN SINGLE-H<EDY> 		1-33542-062-0 01 1 1401-
272 RING; SNAP,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> 		1-44519-217-0 01 1 1401-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-579-0 01 1 1401-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-531-0 01 1 1401-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-535-0 01 1 1401-
524 DETENT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-501-0 01 1 1401-
688 SHIFT; INTERLOCK
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-572-0 01 1 1401-

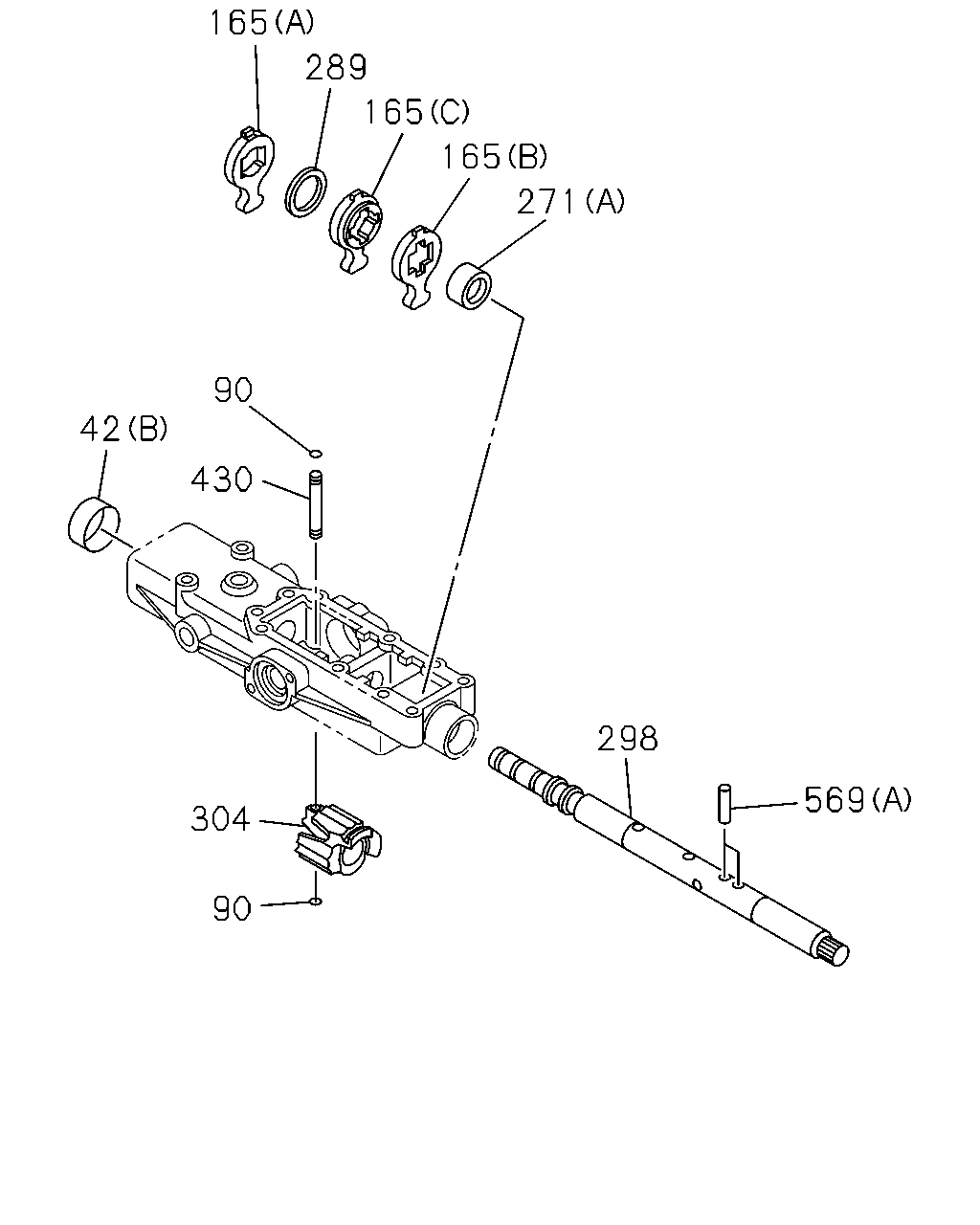

çizim 401393
165 289 165 165 271 90 42 430 304 90 298 569
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-538-0 01 1 1401-
42 CAP; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-589-0 01 1 1401-
42 CAP; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33549-548-0 01 1 1401-
90 RING; SNAP,SHIFT ROD
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-494-0 02 1 1401-
90 RING; SNAP,SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> 		1-33529-109-0 01 1 1401-
165 LEVER; SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-488-0 01 1 1401-
165 LEVER; SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-489-0 01 1 1401-
165 LEVER; SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-603-0 01 1 1401-
165 LEVER; SHIFT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-533-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-124-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-537-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-099-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-318-0 01 1 1401-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-491-0 01 1 1401-
298 SHAFT; SHIFT LEVER
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33522-211-0 01 1 1401-
298 SHAFT; SHIFT LEVER
SHIFT PATTERN SINGLE-H<EDY> 		1-33522-207-0 01 1 1401-
304 BLOCK; SHIFT SHAFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-492-0 01 1 1401-
304 BLOCK; SHIFT SHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-532-0 01 1 1401-
430 PIN; SPR,SHIFT ROD
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-493-0 01 1 1401-
430 PIN; SPR,SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-449-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33529-128-0 02 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33529-106-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-452-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33549-468-0 01 1 1401-

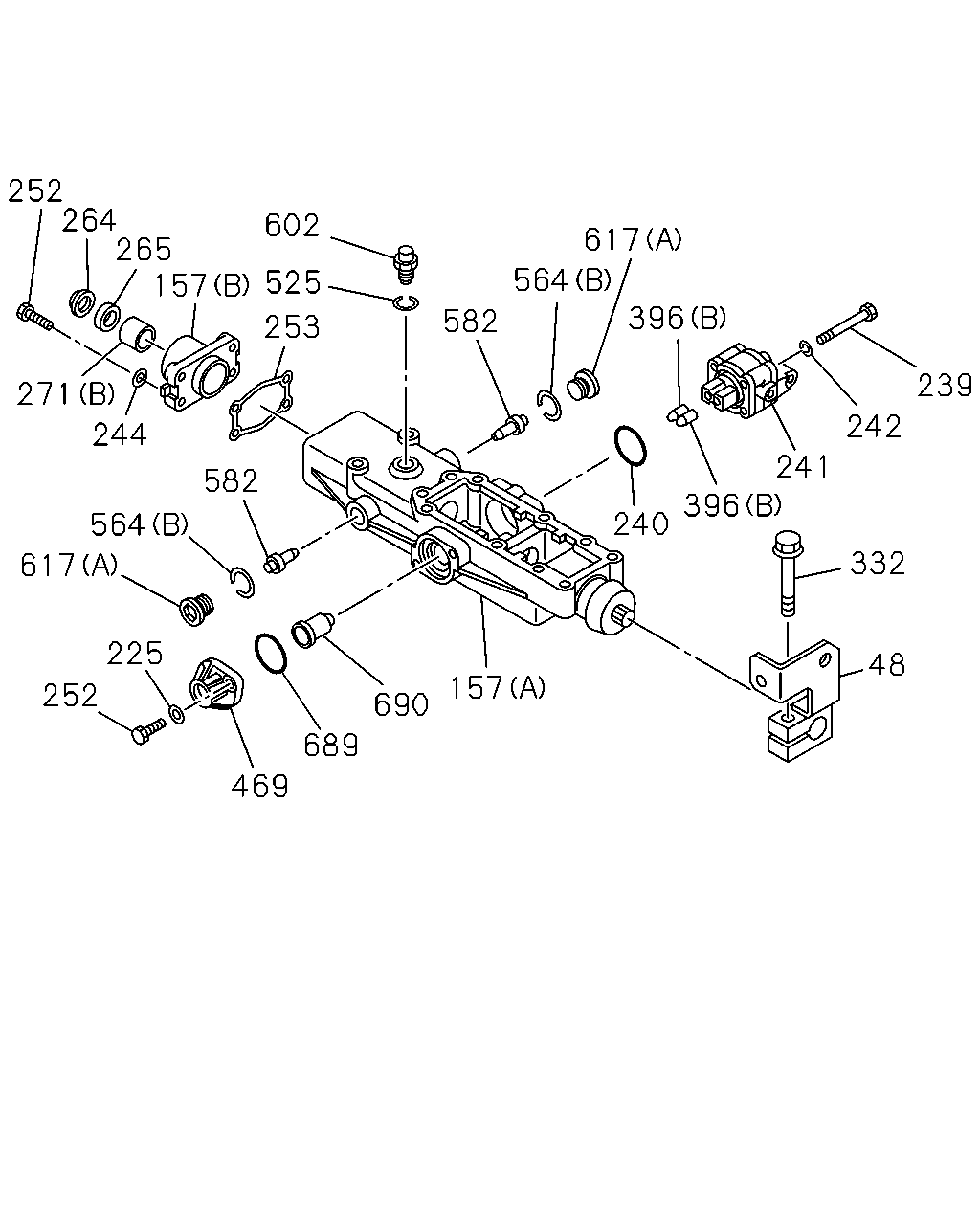

çizim 401395
617 564 582 602 525 157 265 264 252 253 244 271 582 564 617 225 252 469 689 690 157 240 396 241 242 239 332 48 396
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33651-661-1 01 1 1401-
48 LEVER; 4TH,SHIFT
SHIFT PATTERN SINGLE-H<EDY> 		8-98081-185-1 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-570-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-604-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-445-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-612-0 01 1 1401-
225 WASHER; LK,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-583-0 14 1 1401-
239 BOLT; CUT OFF VALVE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-585-0 04 1 1401-
240 GASKET; CUT OFF VALVE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-198-0 01 1 1401-
241 VALVE; CUT OFF
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-495-0 01 1 1401-
242 WASHER; CUT OFF VALVE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-583-0 04 1 1401-
244 WASHER; LK,COVER
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-583-0 04 1 1401-
252 BOLT; SIDE COVER
SHIFT PATTERN DOUBLE-H<EDZ> M8X30 		1-33549-581-0 02 1 1401-
252 BOLT; SIDE COVER
SHIFT PATTERN DOUBLE-H<EDZ> M8X35 		1-33549-586-0 04 1 1401-
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-054-0 01 1 1401-
264 SEAL; DUST,SHAFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-327-0 01 1 1401-
264 SEAL; DUST,SHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-119-0 01 1 1401-
265 SEAL; OIL,SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-328-0 01 1 1401-
265 SEAL; OIL,SHIFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-118-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-124-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-537-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-099-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-318-0 01 1 1401-
332 BOLT; 4TH,SHIFT LEVER
SHIFT PATTERN DOUBLE-H<EDZ> M8X40 FLANGE 		0-28650-840-0 01 1 1401-
332 BOLT; 4TH,SHIFT LEVER
SHIFT PATTERN SINGLE-H<EDY> M10X45 W/PL WASHER 		8-98038-710-0 01 1 1401-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1401-
396 PLUNGER; SHIFT ROD
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33529-085-0 02 1 1401-
396 PLUNGER; SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33529-132-0 01 1 1401-
469 COVER; SPRING,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-216-0 01 1 1401-
525 RING; DETENT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-286-0 01 1 1401-
525 RING; DETENT
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-497-0 01 1 1401-
564 SEAL; RING
(A) 		1-33549-578-0 01 1 1401-
564 SEAL; RING
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33119-249-0 02 1 1401-
564 SEAL; RING
SHIFT PATTERN SINGLE-H<EDY> (B) T=2.0 		1-82449-010-0 01 1 1401-
582 BOLT; SPRING GUIDE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-487-0 02 1 1401-
582 BOLT; SPRING GUIDE
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-471-0 01 1 1401-
602 PLUNGER; DETENT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-618-0 01 1 1401-
617 PLUG
(B) 		1-33539-109-0 01 1 1401-
617 PLUG
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33119-619-0 02 1 1401-
617 PLUG
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33119-619-0 01 1 1401-
689 GASKET; COVER
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33542-063-0 01 1 1401-
690 PIN; STOP
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-496-0 01 1 1401-

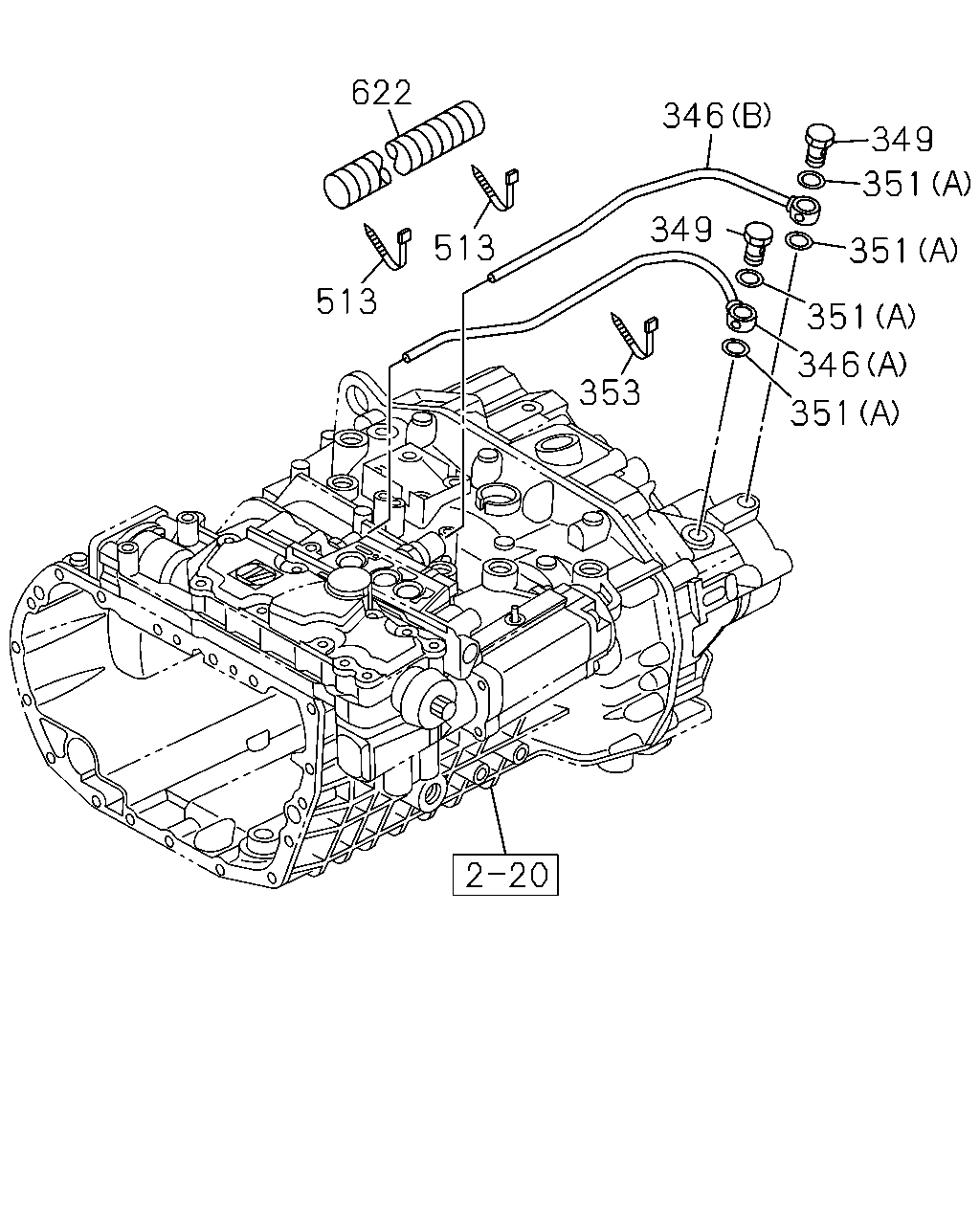

çizim 401397
346 622 513 513 353 349 349 351 351 351 346 351
BalonParca AdiParca NoAdetTipApplied Date
346 HOSE; AIR
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-598-0 01 1 1401-
346 HOSE; AIR
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-618-0 01 1 1401-
346 HOSE; AIR
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-473-0 01 1 1401-
346 HOSE; AIR
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-474-0 01 1 1401-
349 BOLT; EYE,AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> M14 		1-33549-592-0 04 1 1401-
349 BOLT; EYE,AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> M14 		1-33549-592-0 02 1 1401-
351 GASKET; CONNECTOR
(B) ID=12.2 		1-09630-084-0 01 1 1401-1401
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-554-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-578-0 08 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-578-0 04 1 1401-
353 CLIP; AIR HOSE 1-33549-530-0 02 1 1401-
513 CLIP; BAND
SHIFT PATTERN DOUBLE-H<EDZ> L=250 		5-09707-030-1 06 1 1401-
513 CLIP; BAND
SHIFT PATTERN SINGLE-H<EDY> L=250 		5-09707-030-1 05 1 1401-
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1401-
çizim 401399
353 622 353 346 513 349 351 351 348 351 578 351 349 351 348 351 241 351 351 349 346 349 351 348 351
BalonParca AdiParca NoAdetTipApplied Date
241 VALVE; CUT OFF
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-495-0 01 1 1401-
346 HOSE; AIR
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-598-0 01 1 1401-
346 HOSE; AIR
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-618-0 01 1 1401-
346 HOSE; AIR
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-473-0 01 1 1401-
346 HOSE; AIR
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-474-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (A) M12 STRAIGHT 		1-09654-246-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-593-0 02 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-09660-466-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-09661-174-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-09661-481-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (D) 		8-94338-417-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (E) 		8-98068-125-0 01 1 1401-
349 BOLT; EYE,AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> M14 		1-33549-592-0 04 1 1401-
349 BOLT; EYE,AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> M14 		1-33549-592-0 02 1 1401-
351 GASKET; CONNECTOR
(B) ID=12.2 		1-09630-084-0 01 1 1401-1401
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-554-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-578-0 08 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-578-0 04 1 1401-
353 CLIP; AIR HOSE 1-33549-530-0 02 1 1401-
513 CLIP; BAND
SHIFT PATTERN DOUBLE-H<EDZ> L=250 		5-09707-030-1 06 1 1401-
513 CLIP; BAND
SHIFT PATTERN SINGLE-H<EDY> L=250 		5-09707-030-1 05 1 1401-
578 CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-553-0 01 1 1401-
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1401-
çizim 401402
321 320 433 317 315 317 433 505 505 292 319 323 296 292 292 296 295 292 48
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33651-661-1 01 1 1401-
48 LEVER; 4TH,SHIFT
SHIFT PATTERN SINGLE-H<EDY> 		8-98081-185-1 01 1 1401-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1401-
292 NUT; LINK ROD
SHIFT PATTERN DOUBLE-H<EDZ> (A) M8 		0-91111-508-0 02 1 1401-
295 ROD; LINK,RELAY LEVER
SHIFT PATTERN DOUBLE-H<EDZ> M8 L=50 		9-08400-805-0 01 1 1401-
296 ROD END
SHIFT PATTERN DOUBLE-H<EDZ> L=45.5 		1-09760-118-1 02 1 1401-
315 LEVER; SELECT
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98061-898-0 01 1 1401-
315 LEVER; SELECT
SHIFT PATTERN SINGLE-H<EDY> 		8-98087-673-0 01 1 1401-
317 BUSHING; LEVER 1-09330-119-0 02 1 1401-
319 BRACKET; SELECT LEVER
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98065-843-0 01 1 1401-
319 BRACKET; SELECT LEVER
SHIFT PATTERN SINGLE-H<EDY> 		1-33657-612-0 01 1 1401-
320 SHAFT; LEVER
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		8-98065-840-0 01 1 1401-
320 SHAFT; LEVER
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-447-0 01 1 1401-
320 SHAFT; LEVER
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33619-524-0 01 1 1401-
321 BOLT; BRKT,RELAY LEVER
M8X110 FLANGE 		0-28055-811-0 02 1 1401-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1401-
433 GASKET; BUSHING 1-09623-594-0 02 1 1401-
505 SPACER; BRKT
SHIFT PATTERN DOUBLE-H<EDZ> (B) ID=9 OD=18 T=5 		9-14149-173-0 01 1 1401-
505 SPACER; BRKT
SHIFT PATTERN DOUBLE-H<EDZ> (A) L=28 		9-83625-376-0 01 1 1401-
505 SPACER; BRKT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-11349-149-0 02 1 1401-

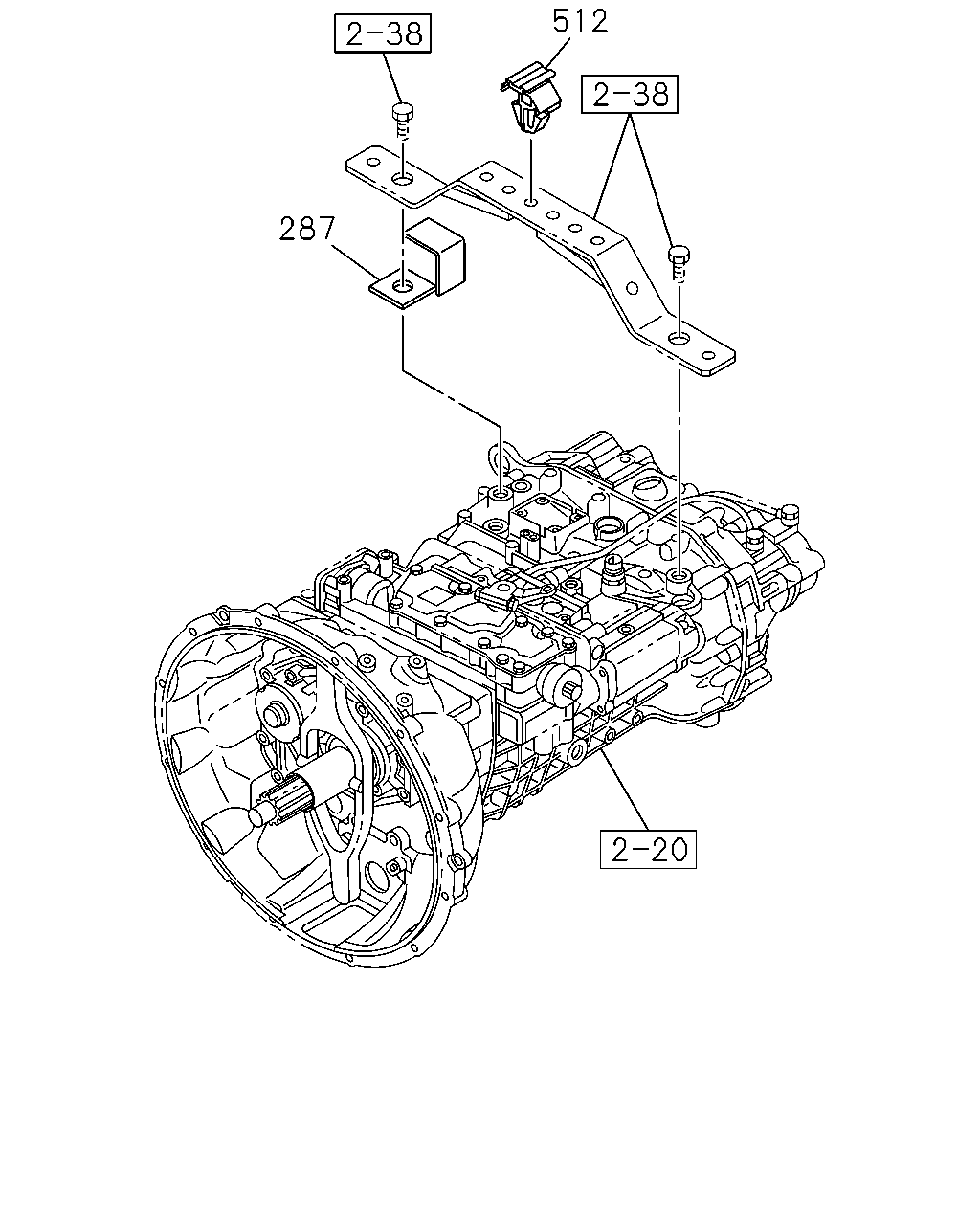

çizim 401696
512 287
BalonParca AdiParca NoAdetTipApplied Date
287 COVER; AIR BREATHER
SHIFT PATTERN DOUBLE-H<EDZ> 		1-34141-026-0 01 1 1401-
512 CLIP; PIPE
SHIFT PATTERN DOUBLE-H<EDZ> OD=9 H=6 		1-09709-178-0 04 1 1401-
512 CLIP; PIPE
SHIFT PATTERN SINGLE-H<EDY> OD=9 H=6 		1-09709-178-0 05 1 1401-

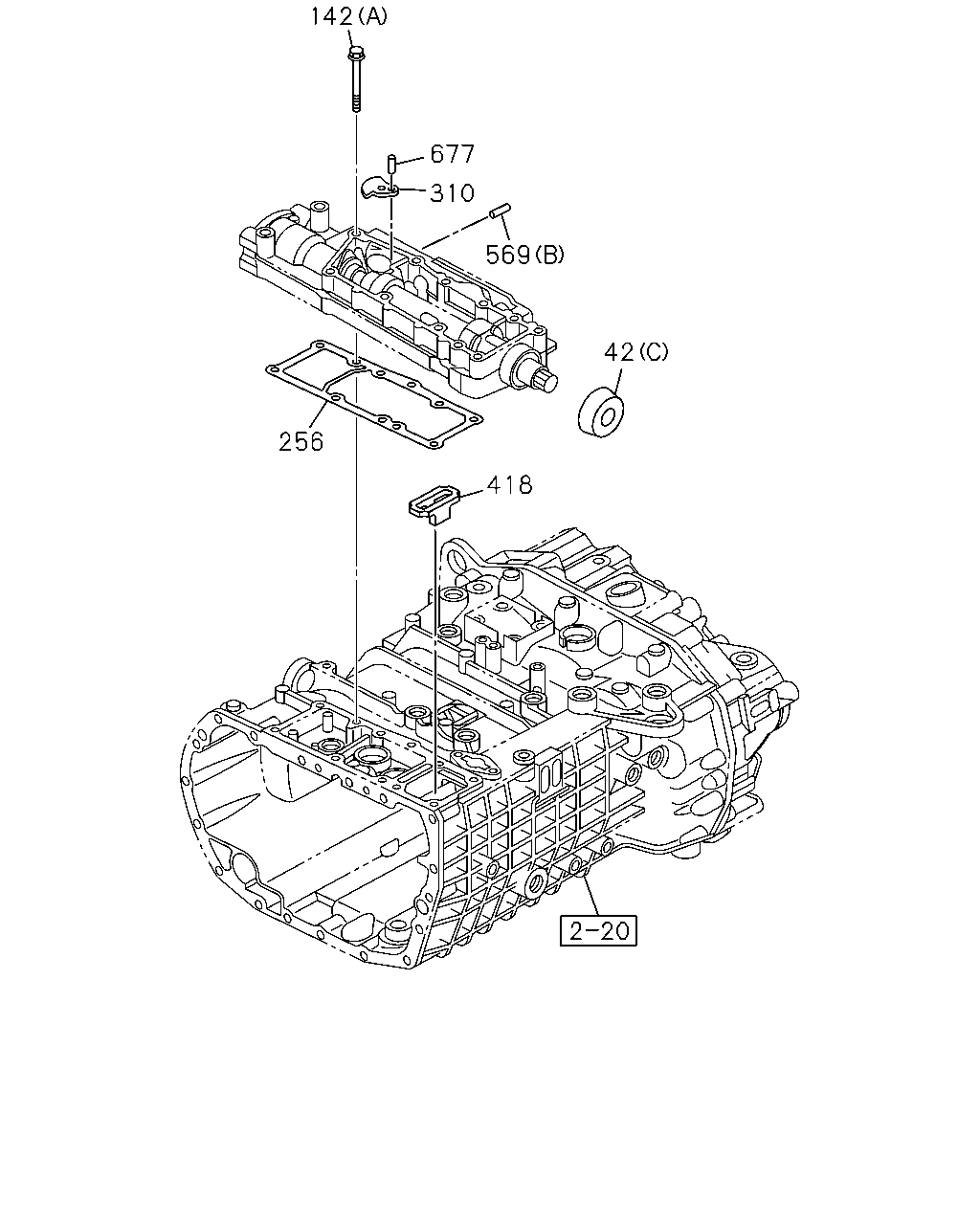

çizim 402152
142 677 310 569 42 418 256
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-538-0 01 1 1401-
42 CAP; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-589-0 01 1 1401-
42 CAP; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33549-548-0 01 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) M8X100 		1-33549-582-0 06 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) M8X75 		1-33549-584-0 02 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) M8X40 		1-33549-587-0 04 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) M8X80 		1-33549-614-0 17 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) M8X70 		1-33549-616-0 05 1 1401-
256 GASKET; QUAD BOX TO TRANS CASE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33542-065-0 01 1 1401-
256 GASKET; QUAD BOX TO TRANS CASE
SHIFT PATTERN SINGLE-H<EDY> 		1-33542-062-0 01 1 1401-
310 PLATE; LOCK,SHIFT LEVER
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-453-0 01 1 1401-
418 PIECE; DIST,QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-454-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33529-128-0 02 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33529-106-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-452-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33549-468-0 01 1 1401-
677 PIN; PLATE
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-452-0 01 1 1401-
çizim 402166
303 277 19 19 277 303 19 19 19
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33539-028-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33539-030-0 02 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33539-092-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-221-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-022-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33539-027-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33539-098-0 01 1 1401-
277 PLATE; SPRING SEAT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33539-107-0 02 1 1401-
277 PLATE; SPRING SEAT
SHIFT PATTERN SINGLE-H<EDY> 		1-33539-112-0 01 1 1401-
303 RING; SNAP,SHAFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33539-040-0 02 1 1401-
303 RING; SNAP,SHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33539-101-0 01 1 1401-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
