◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11569 - FXZ/GXZ MALAYSIA EURO3 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#132350) — 37 parça

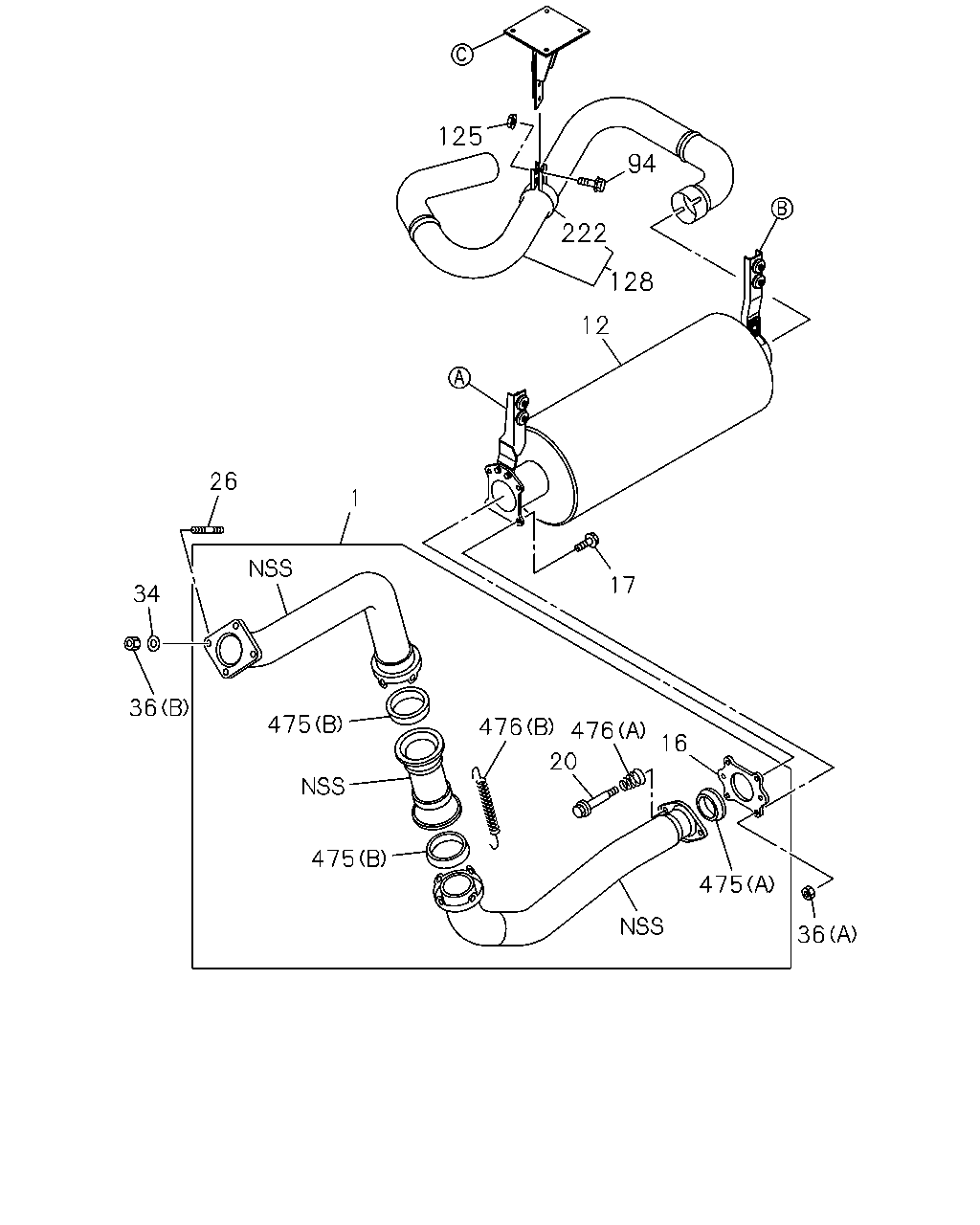

çizim 401294
125 222 128 12 94 17 16 476 476 475 475 36 34 26 1 475 36 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH 8-98055-105-0 01 1 1401- ● ●
12 SILENCER ASM; EXH 8-97647-300-0 01 1 1401- ● ●
16 FLANGE; EXH PIPE 1-22115-148-1 01 1 1401- ● ●
17 BOLT; EXH PIPE
M12X25 FLANGE 		1-09000-604-0 04 1 1401- ● ●
20 BOLT; FLANGE,EXH PIPE
M10X51.4 		8-94436-943-0 02 1 1401- ● ●
26 STUD; EXH MANIF
M12X125 L=145 		8-97617-265-0 04 1 1401-1402 ● ●
26 STUD; EXH MANIF
M12X125 L=145 		8-97648-063-0 04 1 1403- ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 		1-09556-020-0 04 1 1401- ● ●
36 NUT; EXH PIPE
(A) M12 		0-91110-512-0 04 1 1401- ● ●
36 NUT; EXH PIPE
(B) M12 		1-09400-131-0 04 1 1401- ● ●
94 BOLT; CLAMP
M8X40 FLANGE 		0-28650-840-0 04 1 1401- ● ●
125 NUT; CLAMP
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
128 PIPE; EXH,RR 8-98106-278-0 01 1 1401- ● ●
222 CLAMP; EXH PIPE
D=101.4 		1-22133-170-1 01 1 1401- ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
(A) OD=112 		1-22119-294-1 01 1 1401- ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
(B) OD=122 		1-22119-297-1 02 1 1401- ● ●
476 SPRING; VIBNON,EXH PIPE
(B) 		1-09583-248-0 04 1 1401- ● ●
476 SPRING; VIBNON,EXH PIPE
(A) 		8-94141-851-0 02 1 1401- ● ●
çizim 401320
70 75 72 24 59 75 81 116 56 8 44 81 75 62 75 70 116 75 72 24 59 75 81 94 89 105
BalonParca AdiParca NoAdetTipApplied Date A B
8 BRACKET; EXH PIPE 8-98106-287-0 01 1 1401- ● ●
24 COLLAR; DIST,CLAMP
(A) L=25 		1-14234-083-0 02 1 1401- ● ●
24 COLLAR; DIST,CLAMP
(B) L=22 		9-22159-024-0 02 1 1401- ● ●
44 BOLT; BRKT
M8X25 FLANGE 		0-28050-825-0 04 1 1401- ● ●
56 BRACKET; CLAMP,EXH PIPE 8-98106-290-0 01 1 1401- ● ●
59 BRACKET; EXH SILENCER,FRT
(A) 		8-97642-915-1 01 1 1401- ● ●
59 BRACKET; EXH SILENCER,FRT
(B) 		8-98055-106-0 01 1 1401- ● ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 1401- ● ●
70 BOLT; BRKT
(B) M10X60 		0-10856-060-0 02 1 1401- ● ●
70 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 01 1 1401- ● ●
72 WASHER; LK,BRKT
ID=10.2 		0-91510-810-0 04 1 1401- ● ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 10 1 1401- ● ●
81 NUT; BRKT
(B) M10 		0-91110-510-0 04 1 1401- ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1401- ● ●
89 CLAMP; EXH SILENCER,RR 8-97621-090-0 01 1 1401- ● ●
94 BOLT; CLAMP
M8X40 FLANGE 		0-28650-840-0 04 1 1401- ● ●
105 NUT; CLAMP
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
116 BOLT; BRKT
(A) M10X60 		0-10856-060-0 02 1 1401- ● ●
116 BOLT; BRKT
(B) M10X35 FLANGE 		0-28051-035-0 02 1 1401- ● ●
