◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11569 - FXZ/GXZ MALAYSIA EURO3 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#132348) — 31 parça

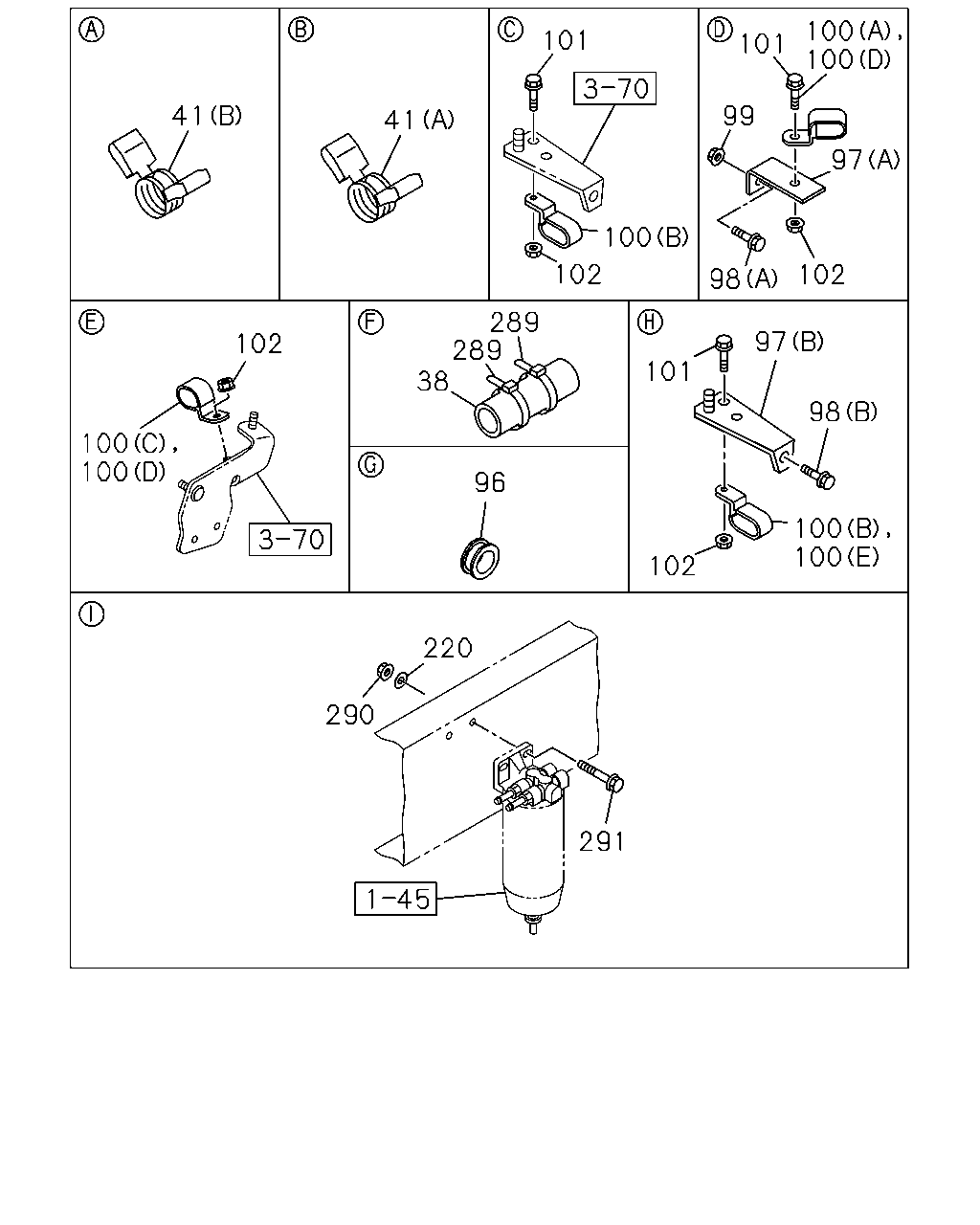

çizim 401283
41 41 101 100 102 101 99 98 100 100 97 102 102 100 100 289 289 38 96 97 101 98 102 100 100 220 290 291
BalonParca AdiParca NoAdetTipApplied Date A B
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1401- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 04 1 1401-1511 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=16 		8-94238-568-0 04 1 1512- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=19 		8-94238-569-0 02 1 1401- ● ●
96 GROMMET; PIPE,FUEL TANK
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1401-1511 ● ●
96 GROMMET; PIPE,FUEL TANK
ID=39 OD=45 T=19 		1-09332-077-0 01 1 1512- ● ●
97 BRACKET; CLIP
(A) L=68 		1-47475-525-0 01 1 1401- ● ●
97 BRACKET; CLIP
(B) 		8-97609-096-0 01 1 1401- ● ●
98 BOLT; BRKT,FUEL PIPE
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1401- ● ●
98 BOLT; BRKT,FUEL PIPE
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1401- ● ●
99 NUT; BRKT,CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
100 CLIP; FUEL PIPE
(A) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1401-1511 ● ●
100 CLIP; FUEL PIPE
(D) ID=19X35 H=17.5 L=22.5 		8-98202-740-0 02 1 1512- ● ●
100 CLIP; FUEL PIPE
(C) ID=19X32 H=17.5 L=22.5 		1-09701-315-0 01 1 1401-1511 ● ●
100 CLIP; FUEL PIPE
(E) ID=19X35 H=17.5 L=47.5 		8-98202-741-0 04 1 1512- ● ●
100 CLIP; FUEL PIPE
(B) ID=19X32 H=17.5 L=50.5 		1-09701-320-0 04 1 1401-1511 ● ●
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28650-820-0 05 1 1401- ● ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 06 1 1401- ● ●
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 02 1 1401- ● ●
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 04 1 1401- ● ●
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
291 BOLT; FILER TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 1401- ● ●

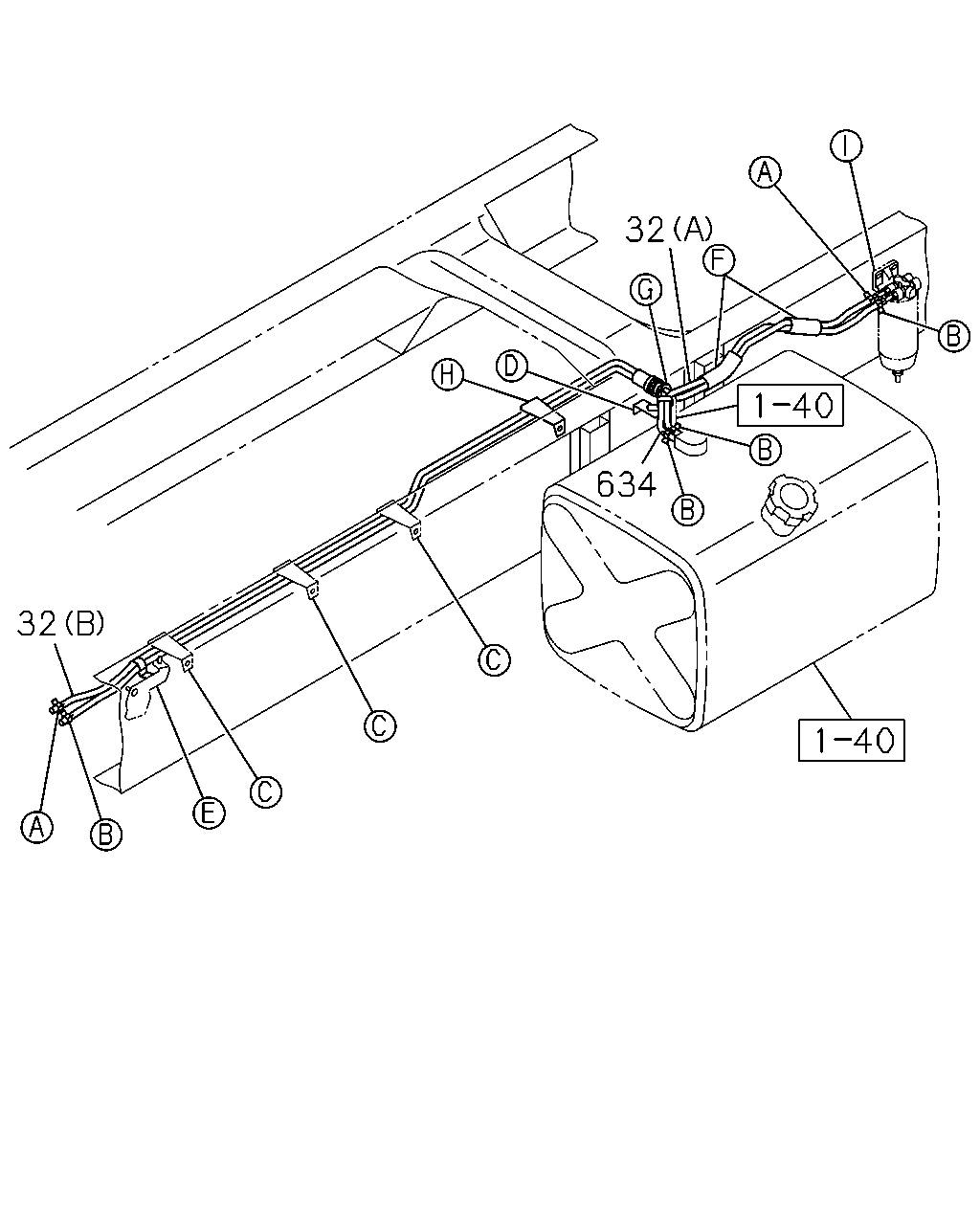

çizim 401284
32 32 634
BalonParca AdiParca NoAdetTipApplied Date A B
32 PIPE; DELIVERY,FUEL TANK
(A) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 1401-1511 ●
32 PIPE; DELIVERY,FUEL TANK
L=900 SERVICED BY L=3000 		0-01859-300-0 01 1 1512- ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=2400 SERVICED BY L=3000 		0-01262-300-0 01 1 1401-1511 ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=2150 SERVICED BY L=3000 		0-01859-300-0 01 1 1512- ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=960 SERVICED BY L=3000 		0-01260-300-0 01 1 1401-1511 ●
32 PIPE; DELIVERY,FUEL TANK
(A) SERVICED BY L=3000 		0-01859-300-0 01 1 1512- ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=2150 SERVICED BY L=3000 		0-01262-300-0 01 1 1401-1511 ●
634 HOSE; RUBBER RETURN
L=1800 SERVICED BY L=3000 		0-01260-300-0 01 1 1401-1511 ● ●
634 HOSE; RUBBER RETURN
L=1850 SERVICED BY L=3000 		0-01859-300-0 01 1 1512- ● ●
