Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11569 - FXZ/GXZ MALAYSIA EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

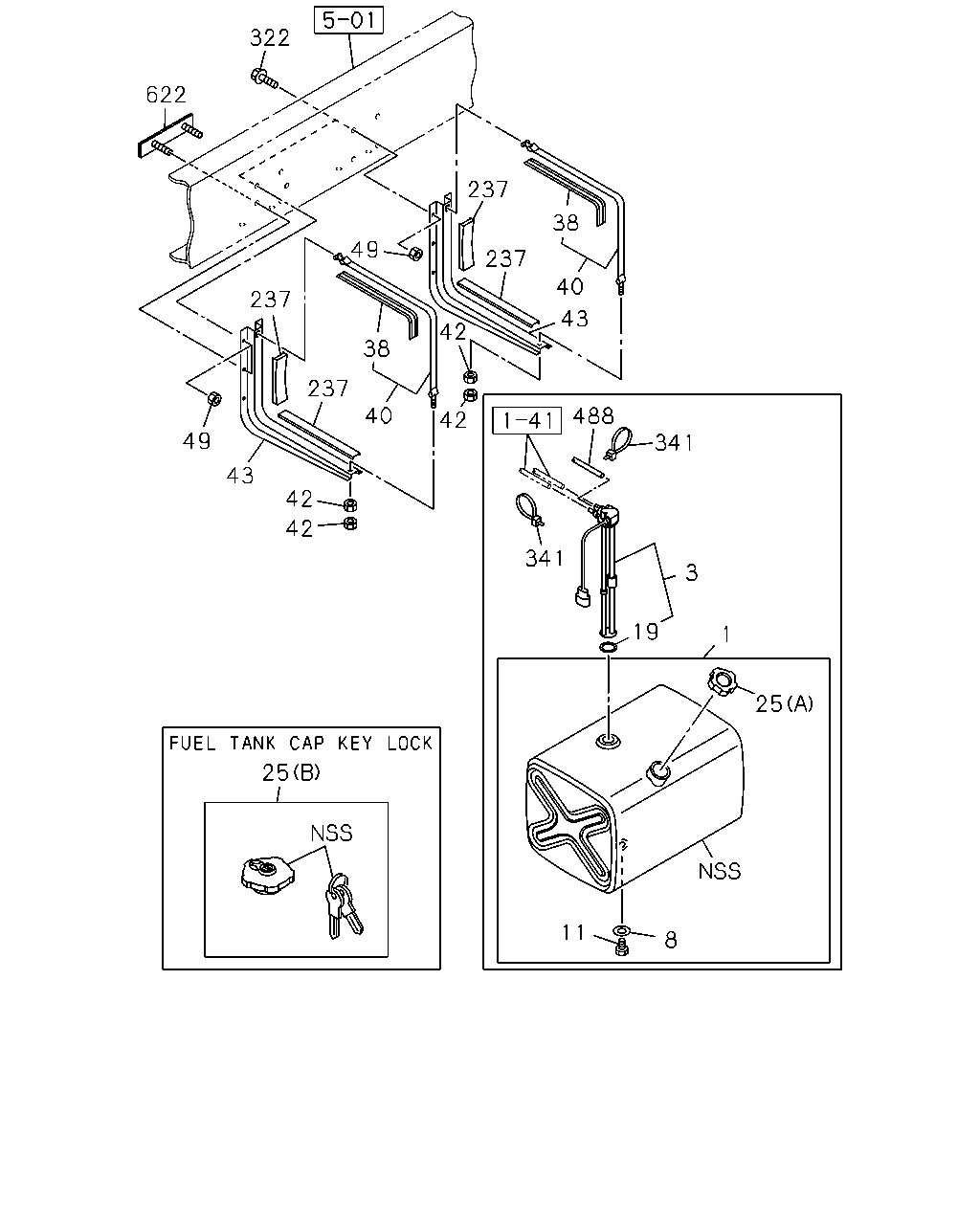

1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#132347) — 19 parça
Tümü
A - FGZ5MX
B - GGZ5MX
622
322
237
49
43
42
42
237
40
38
49
237
237
42
42
38
40
43
488
341
341
3
19
1
25
8
11
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; FUEL
1050X680X625 400L
1-87411-788-3
01
1
1401-
●
●
3
UNIT; FUEL TANK,SUB
8-98217-749-0
01
1
1401-
●
●
8
GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6
8-98030-453-0
01
1
1401-
●
●
11
PLUG; DRAIN,FUEL TANK
M18X12
0-92002-418-0
01
1
1401-
●
●
19
GASKET; FUEL TANK UNIT
ID=54.5
8-98299-580-0
01
1
1401-
●
●
25
CAP; FILLER,FUEL TANK
(B)
8-98108-595-0
01
1
1401-
●
●
25
CAP; FILLER,FUEL TANK
(A)
8-98182-306-0
01
1
1401-
●
●
38
INSULATION; SUPPORT BELT
L=1156
1-22553-039-1
02
1
1401-
●
●
40
BELT; SUPPORT,FUEL TANK
L=1210
8-98202-448-0
02
1
1401-
●
●
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
1401-
●
●
43
BRACKET; FUEL TANK
1-53461-525-1
02
1
1401-
●
43
BRACKET; FUEL TANK
8-97621-247-0
02
1
1401-
●
49
NUT; BRKT
M12
0-91110-512-0
08
1
1401-
●
●
237
GASKET; BRKT TO FUEL TANK
1-22553-037-1
04
1
1401-
●
●
322
BOLT; BRKT FIX
M12X40 FLANGE
0-28051-240-0
10
1
1401-
●
322
BOLT; BRKT FIX
M12X50 FLANGE
0-28051-250-0
10
1
1401-
●
341
CLIP; BAND,RUBBER HOSE
L=350
1-09707-183-0
02
1
1401-
●
●
488
HOSE; RUBBER
8-98134-936-0
01
1
1401-
●
●
622
STUD; BRACKET
1-53461-534-0
01
1
1401-
●
●
