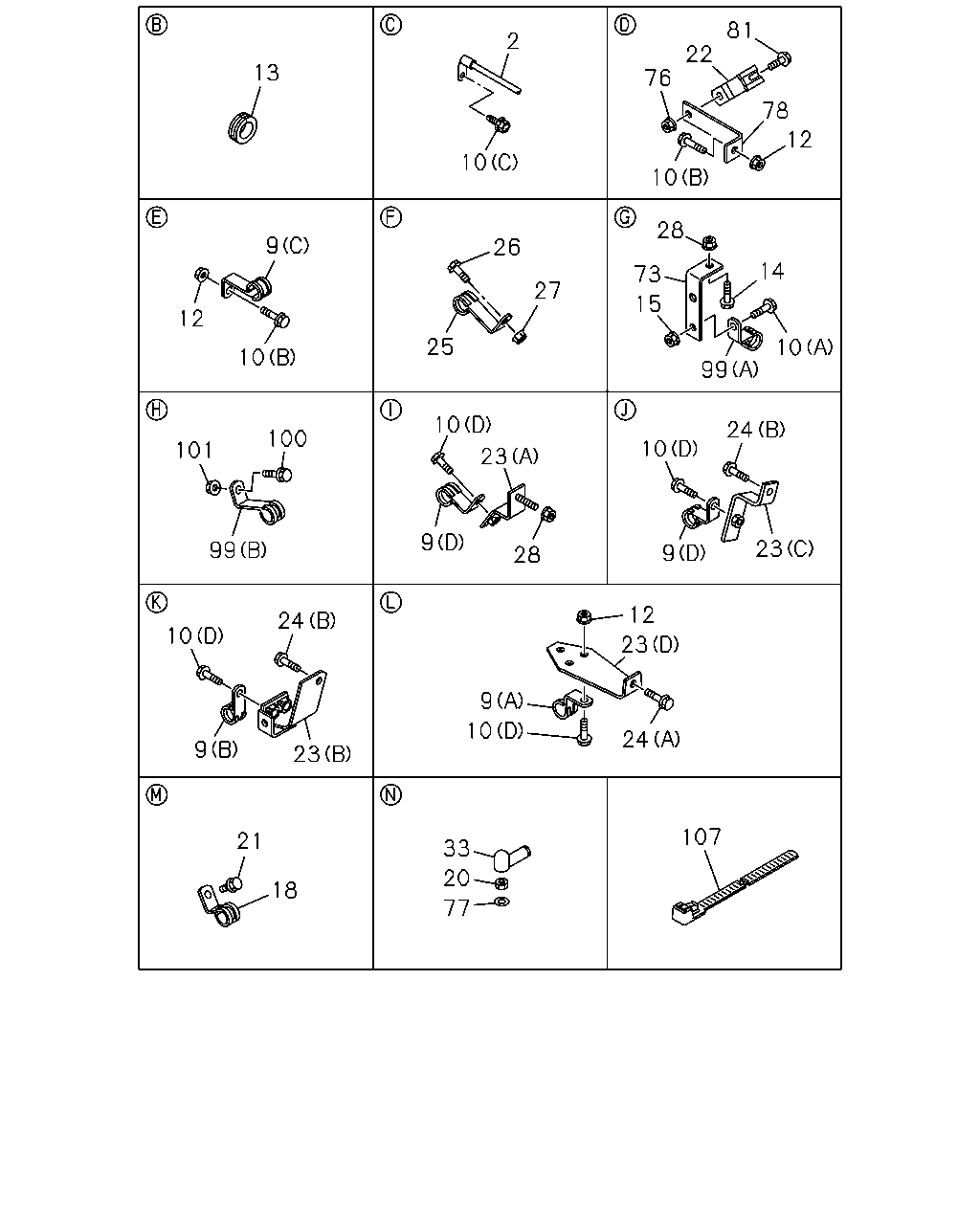

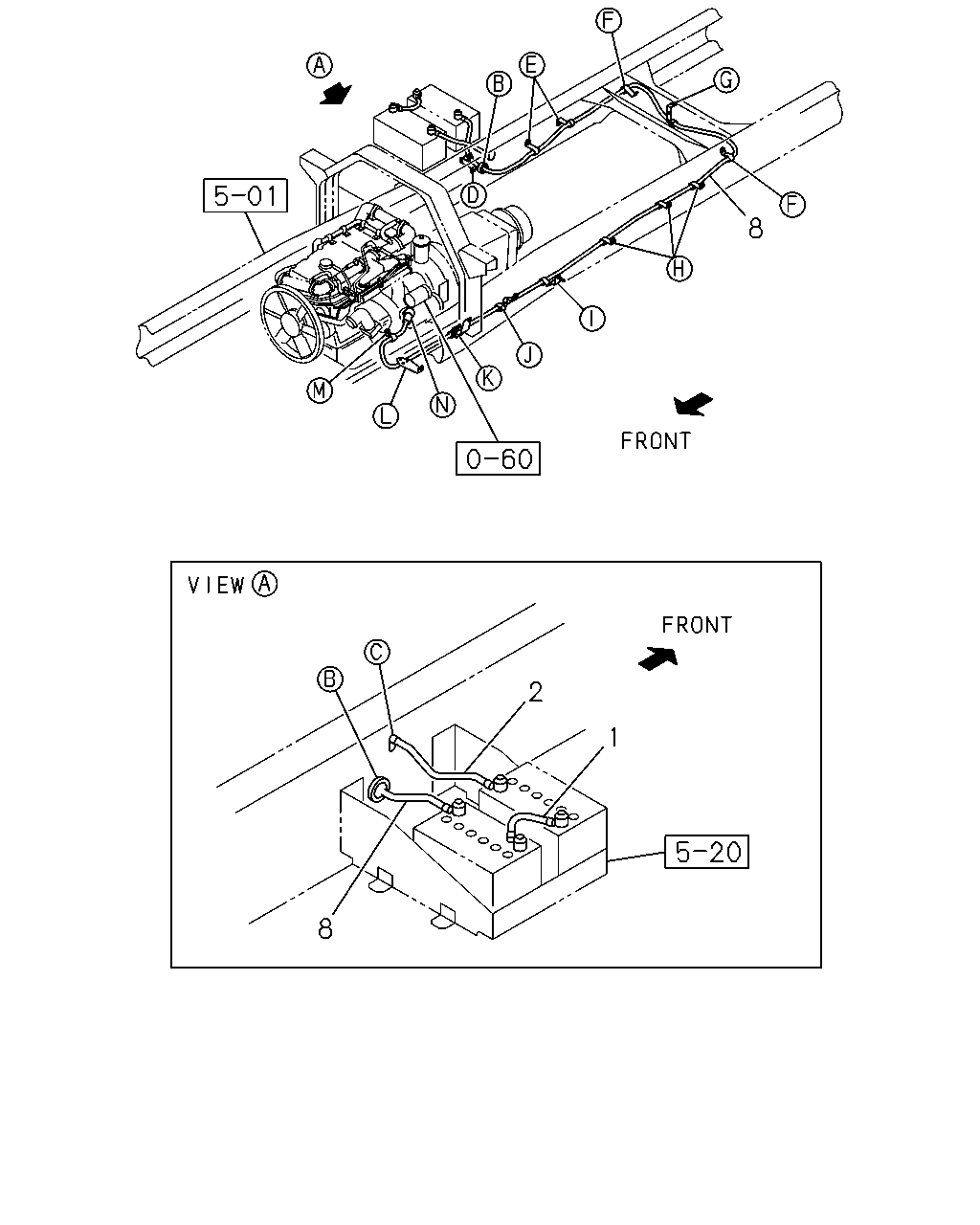

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#132337) — 50 parça

2 1 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY BATTERY 115E41L<8MA> L=265	1-82650-388-1	01	1	1401-	●	●
1	CABLE; BATTERY BATTERY 80D26L<TM1> L=265	8-98168-288-0	01	1	1401-	●	●
2	CABLE; BATTERY L=250	8-98105-795-0	01	1	1401-	●	●
8	CABLE; BATTERY,STARTER L=4630	8-98075-618-3	01	1	1401-	●	●

13 2 76 22 81 78 12 10 28 73 15 14 10 99 24 10 9 23 12 23 24 107 9 10 33 20 77 18 21 9 23 24 10 99 100 101 12 10 9 25 27 26 10 10 9 28 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CABLE; BATTERY L=250	8-98105-795-0	01	1	1401-	●	●
9	CLIP; BATTERY CABLE (C) ID=18 L=25 H=50	1-09701-096-0	03	1	1401-	●
9	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	1401-	●	●
9	CLIP; BATTERY CABLE (B) ID=18 L=28	1-09701-067-0	01	1	1401-	●	●
9	CLIP; BATTERY CABLE (D) ID=18 L=28 H=30	1-09701-110-0	02	1	1401-	●	●
9	CLIP; BATTERY CABLE (C) ID=18 L=25 H=50	1-09701-096-0	02	1	1401-		●
10	BOLT; BATTERY CABLE CLIP (B) M8X30 FLANGE	0-28650-830-0	03	1	1401-	●
10	BOLT; BATTERY CABLE CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	1401-	●	●
10	BOLT; BATTERY CABLE CLIP (C) M8X14 W/PL WASHER	8-98164-837-0	01	1	1401-	●	●
10	BOLT; BATTERY CABLE CLIP (D) M8X20 FLANGE	0-28650-820-0	04	1	1401-	●	●
10	BOLT; BATTERY CABLE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	1401-		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	1401-	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	03	1	1401-		●
13	GROMMET; BATTERY CABLE ID=39 OD=45 T=19	1-09332-077-0	01	1	1401-	●	●
14	BOLT; BRKT CLIP M8X35 FLANGE	0-28650-835-0	01	1	1401-	●	●
15	NUT; BRKT CLIP M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
15	NUT; BRKT CLIP M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
18	CLIP; BATTERY CABLE ID=20 H=23 L=27	1-09700-861-0	01	1	1401-	●	●
20	NUT; STARTER CABLE M10	8-98011-328-0	01	1	1401-	●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●
22	CLIP; BATTERY CABLE ID=18 L=28 H=30	1-09701-110-0	01	1	1401-	●	●
23	BRACKET; CABLE CLIP TO FRAME (B)	1-47471-215-1	01	1	1401-	●	●
23	BRACKET; CABLE CLIP TO FRAME (C) L=85 H=40	1-47476-676-0	01	1	1401-	●	●
23	BRACKET; CABLE CLIP TO FRAME (D)	1-47479-779-0	01	1	1401-	●	●
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98239-410-0	01	1	1401-	●	●
24	BOLT; BRKT TO FRAME (B) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
24	BOLT; BRKT TO FRAME (A) M8X30 FLANGE	0-28650-830-0	01	1	1401-	●	●
25	CLIP; BATTERY CABLE TO BRKT ID=18 L=25 H=50	1-09701-096-0	02	1	1401-	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X30 FLANGE	0-28650-830-0	02	1	1401-	●	●
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
33	CAP; INSULATOR	1-82699-431-0	01	1	1401-	●	●
73	BRACKET; BATTERY CABLE	1-47478-901-0	01	1	1401-1404	●	●
73	BRACKET; BATTERY CABLE	8-98259-391-0	01	1	1405-	●	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
77	WASHER; LK,STARTER CABLE ID=10.2	0-91510-810-0	01	1	1401-	●	●
78	BRACKET; CLIP BATTERY L=95	1-82699-085-0	01	1	1401-	●	●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●
99	CLIP; BATTERY CABLE (B) ID=18 L=25 H=50	1-09701-096-0	02	1	1401-	●
99	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	1401-	●	●
99	CLIP; BATTERY CABLE (B) ID=18 L=25 H=50	1-09701-096-0	03	1	1401-		●
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28650-825-0	03	1	1401-	●	●
100	BOLT; BATTERY CABLE CLIP M8X30 FLANGE	0-28650-830-0	01	1	1401-		●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	03	1	1401-	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	1401-		●
107	CLIP; BAND L=350	1-09707-183-0	01	1	1401-	●	●
