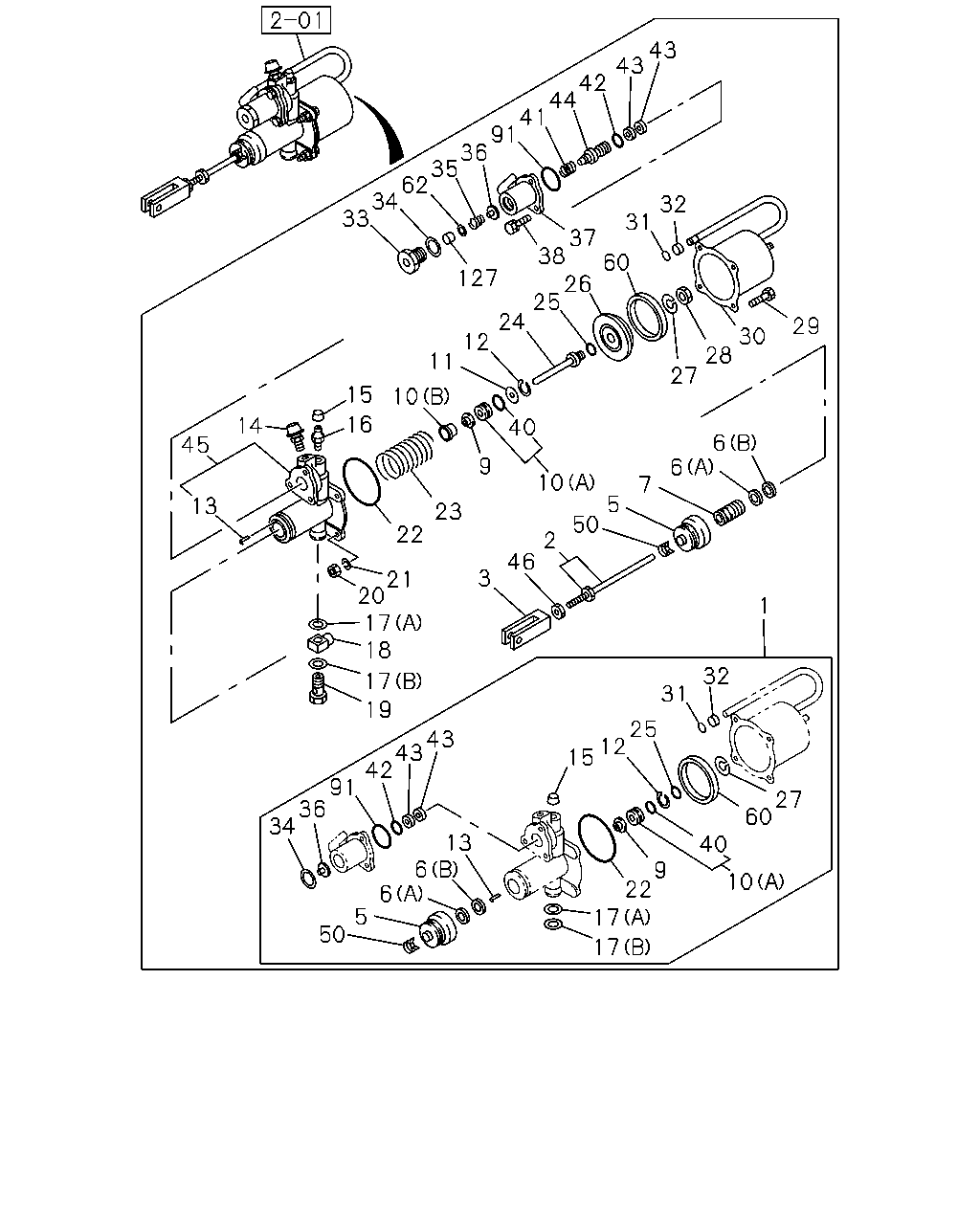

2-07A — CLUTCH BOOSTER; MINIPACK (#13232) — 64 parça

43 43 42 44 41 91 36 35 62 34 33 32 31 37 38 60 26 25 24 12 127 29 30 28 27 11 15 10 16 14 40 6 45 9 6 10 7 5 50 13 23 22 2 46 3 21 20 17 18 1 32 17 31 19 25 12 15 43 43 42 27 60 91 36 34 13 6 40 9 22 17 10 6 5 50 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	REPAIR KIT; CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31829-523-0	01	1	0105-	●	●
1	REPAIR KIT; CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31829-500-0	01	1	0105-	●	●
2	ROD; PUSH,CLU BOOSTER	1-31824-208-0	01	1	0105-0501	●	●
2	ROD; PUSH,CLU BOOSTER	1-31824-233-0	01	1	0502-	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	0105-	●	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-503-0	01	1	0105-	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	0105-	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	0105-	●	●
7	PISTON; CLU BOOSTER	1-31821-048-0	01	1	0105-	●	●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0105-	●	●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	0105-	●	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	0105-	●	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0105-	●	●
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	0105-	●	●
13	PIN; SPR	1-31829-109-0	01	1	0105-	●	●
14	COVER; EXH,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31829-564-0	01	1	0306-0501	●	●
14	COVER; EXH,CLU BOOSTER	1-31829-564-0	01	1	0502-	●	●
14	COVER; EXH,CLU BOOSTER	1-31829-365-0	01	1	0105-0305	●	●
14	COVER; EXH,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31829-365-0	01	1	0306-0501	●	●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0105-	●	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0105-	●	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0105-	●	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0105-	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0105-	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0105-	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	0105-	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	0105-	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-31829-281-0	01	1	0105-	●	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-350-0	01	1	0105-	●	●
24	ROD; PUSH,CLU BOOSTER	1-31824-158-0	01	1	0105-	●	●
25	GASKET; PUSH ROD,CLU BOOSTER	1-31829-277-0	01	1	0105-	●	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-072-0	01	1	0105-	●	●
27	SPRING; CLU BOOSTER	1-31829-291-0	01	1	0105-	●	●
28	NUT; PUSH ROD,CLU BOOSTER	1-31829-290-0	01	1	0105-	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	0105-	●	●
30	SHELL; CYL,CLU BOOSTER	1-31811-117-0	01	1	0105-	●	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	0105-	●	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	0105-	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	0105-	●	●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0105-	●	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	0105-	●	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0105-	●	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	0105-	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0105-	●	●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	0105-	●	●
41	SPRING; DIAPH,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31829-458-0	01	1	0105-0501	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-458-0	01	1	0502-	●	●
41	SPRING; DIAPH,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31829-288-0	01	1	0105-0501	●	●
42	GASKET; FITTING,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31829-123-0	01	1	0105-	●	●
42	GASKET; FITTING,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31829-148-0	01	1	0105-	●	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	0105-	●	●
44	PISTON; UPR VLV,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31821-082-0	01	1	0105-0305	●	●
44	PISTON; UPR VLV,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31821-089-0	01	1	0306-	●	●
44	PISTON; UPR VLV,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31821-058-0	01	1	0105-	●	●
45	PLATE; END,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31811-121-0	01	1	0105-0305	●	●
45	PLATE; END,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31811-138-0	01	1	0306-	●	●
45	PLATE; END,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31811-067-0	01	1	0105-	●	●
46	NUT; PUSH ROD,CLU BOOSTER	1-31824-126-0	02	1	0105-0501	●	●
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0502-	●	●
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-504-0	01	1	0105-	●	●
60	GASKET; SHELL,CLU BOOSTER	1-31829-454-0	01	1	0105-	●	●
62	RETAINER; POPPET	1-31829-489-0	01	1	0105-	●	●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0105-	●	●
127	FILTER; POPPET	1-31829-495-0	01	1	0105-	●	●
