Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#13231) — 243 parça

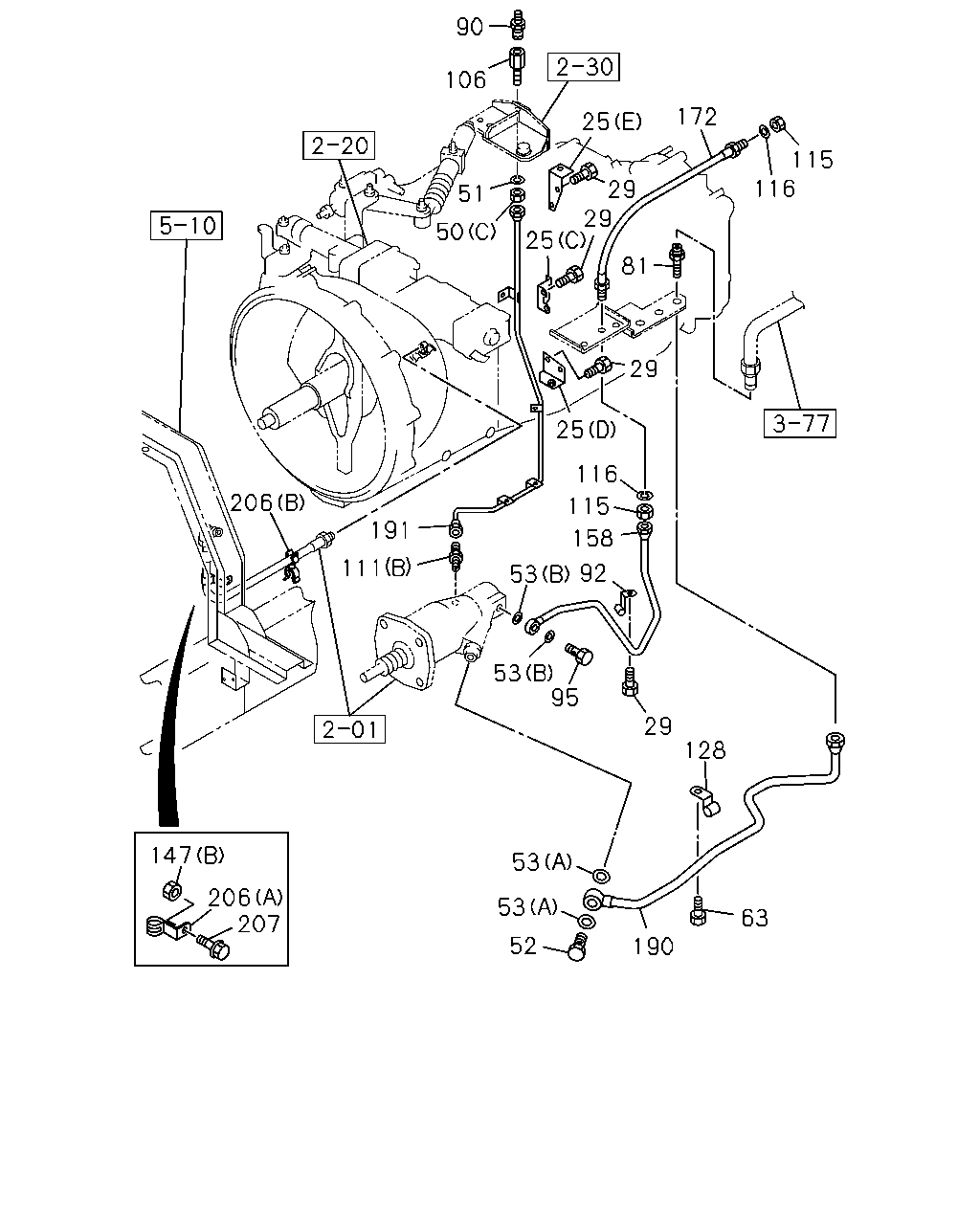

90 106 172 25 115 116 29 29 25 51 50 81 29 25 116 115 158 206 191 111 53 95 29 128 147 53 206 207 53 63 52 190 53 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47477-935-2	01	1	0105-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X16 FLANGE	0-28080-816-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X16 FLANGE	0-28080-816-0	02	1	0105-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	05	1	0105-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0105-
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) M20	9-99111-420-0	01	1	0105-
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (C) M12	9-09840-280-0	01	1	0105-
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-
51	WASHER; LK TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2	9-09150-512-0	01	1	0105-
52	BOLT; EYE,AIR PIPE ISUZU M/T<X9A> M14X27 FLANGE	1-09675-086-0	01	1	0105-
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M16X30	1-09675-026-0	01	1	0105-
53	GASKET; JOINT BOLT ISUZU M/T<X9A> ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16.2	1-09630-086-0	02	1	0105-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0105-
63	BOLT; CLIP,PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	01	1	0105-
81	UNION; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N)	1-09664-233-0	01	1	0105-
90	NIPPLE; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N)	1-31829-485-0	01	1	0105-
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=9 L=32	9-09524-865-0	01	1	0105-
95	BOLT; EYE,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M14X27 FLANGE	1-09675-086-0	01	1	0105-
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	01	1	0105-
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	01	1	0105-
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	01	1	0105-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N)	1-09654-384-0	01	1	0105-
111	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0105-
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M14	9-99111-414-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2	9-09150-514-0	01	1	0105-
128	CLIP; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=13	1-09701-030-1	01	1	0105-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0105-
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N)	1-49119-466-2	01	1	0105-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N) L=400	1-09364-263-0	01	1	0105-
190	PIPE; AIR,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N)	1-49119-465-1	01	1	0105-
191	PIPE; OIL,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N)	1-49163-427-0	01	1	0105-
206	CLIP; TUBE ZF M/T<X9E> (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0105-0107
206	CLIP; TUBE ZF M/T<X9E> (A) ID=18 L=50	1-09701-072-0	01	1	0108-
206	CLIP; TUBE ZF M/T<X9E> (B) ID=13 & 12	8-94178-797-0	01	1	0105-
206	CLIP; TUBE ZF M/T<X9E> (A) ID=13-18 L=14.5	1-09709-290-0	01	1	0108-
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0105-

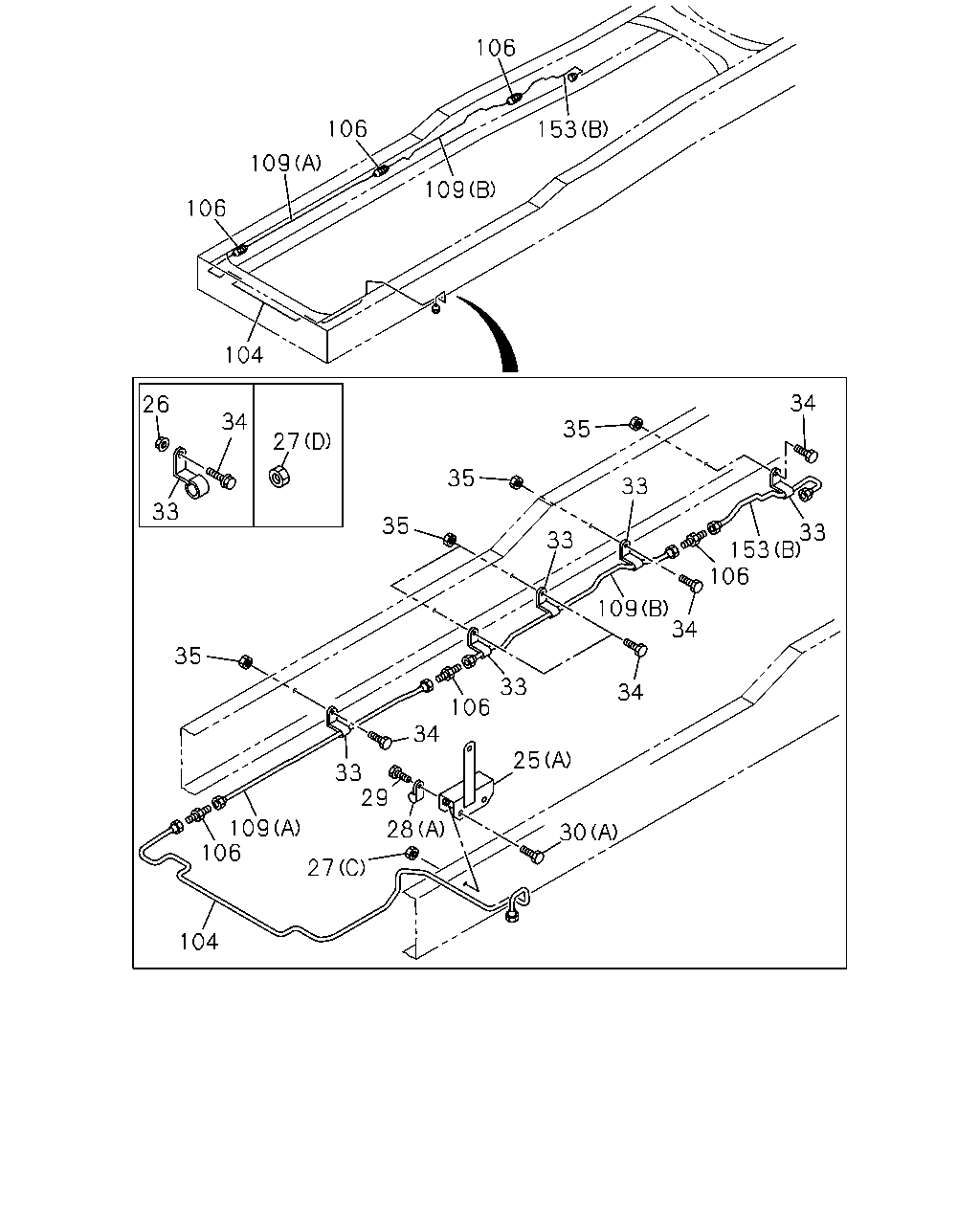

106 106 153 109 109 106 104 34 26 34 35 27 33 35 33 33 35 33 153 106 109 34 35 33 106 34 34 25 33 29 109 106 28 30 27 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47477-935-2	01	1	0105-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0105-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0105-
27	NUT; BRKT (D) M10 FLANGE	0-91150-210-0	02	1	0105-0305
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
28	CLIP; OIL PIPE (A) ID=9 L=20	9-09524-835-0	01	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X16 FLANGE	0-28080-816-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X16 FLANGE	0-28080-816-0	02	1	0105-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	05	1	0105-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-
30	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0105-
33	CLIP; OIL PIPE ISUZU M/T<X9A> ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	0105-
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	0105-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0105-
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	04	1	0105-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	0105-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	0105-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=1616 SERVICED BY L=1700	1-47426-391-0	01	1	0105-
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	01	1	0105-
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	01	1	0105-
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	01	1	0105-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N)	1-09654-384-0	01	1	0105-
109	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> (B) L=969 SERVICED BY L=970	1-47426-385-0	01	1	0105-
109	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> (A) L=1031 SERVICED BY L=1100	1-47426-387-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=490	1-47428-363-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (B) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (B)	1-49166-494-0	01	1	0112-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (B) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-

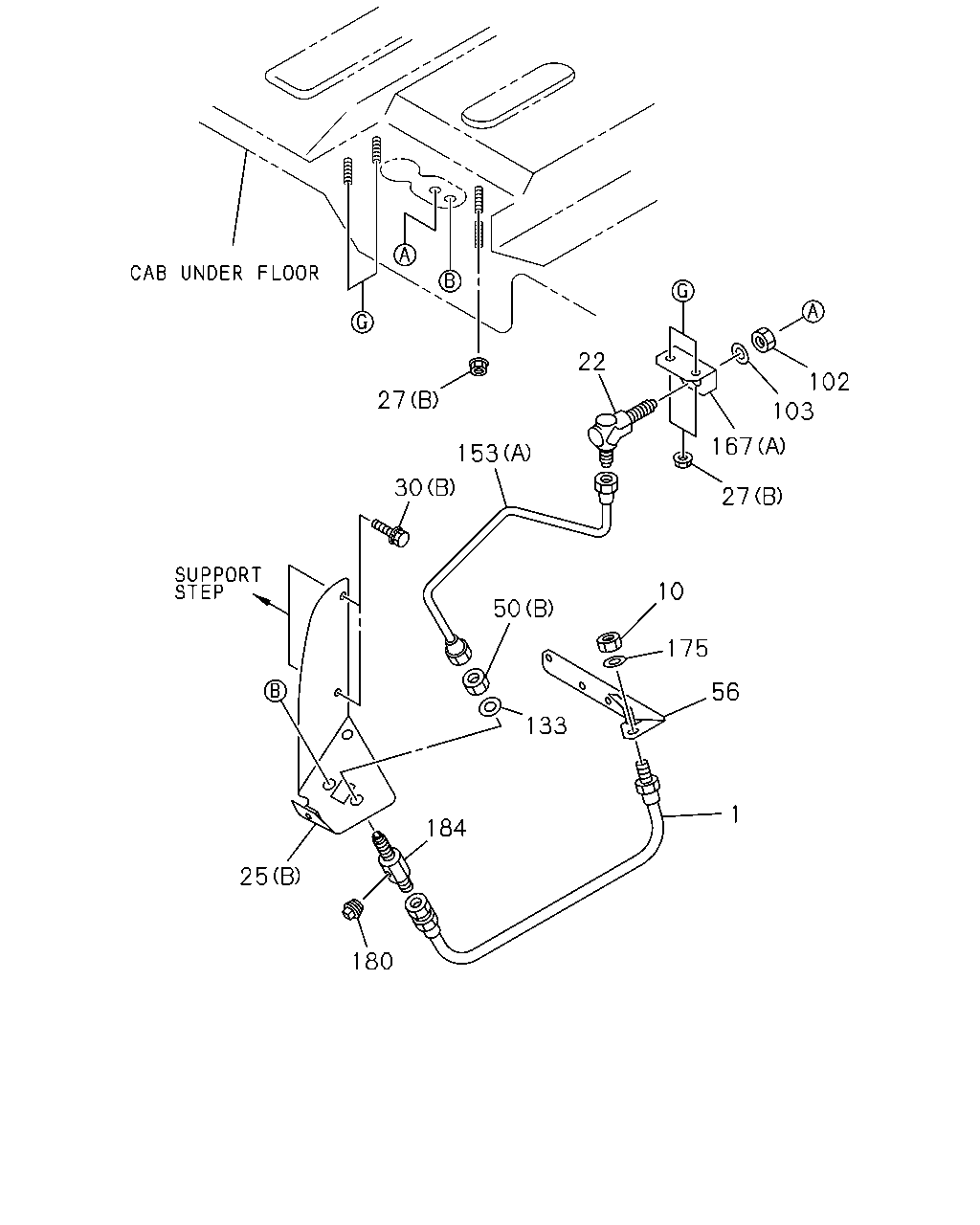

22 102 103 27 167 153 30 27 10 50 175 56 133 1 184 25 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0105-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0105-
25	BRACKET; OIL PIPE (A)	1-47477-935-2	01	1	0105-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0105-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0105-
27	NUT; BRKT (D) M10 FLANGE	0-91150-210-0	02	1	0105-0305
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-
30	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0105-
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) M20	9-99111-420-0	01	1	0105-
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (C) M12	9-09840-280-0	01	1	0105-
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	0105-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=490	1-47428-363-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (B) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (B)	1-49166-494-0	01	1	0112-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (B) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0105-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0105-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
180	PLUG; PIPE	9-09204-510-0	01	1	0105-
184	UNION; FLEX HOSE	1-09656-679-0	01	1	0105-

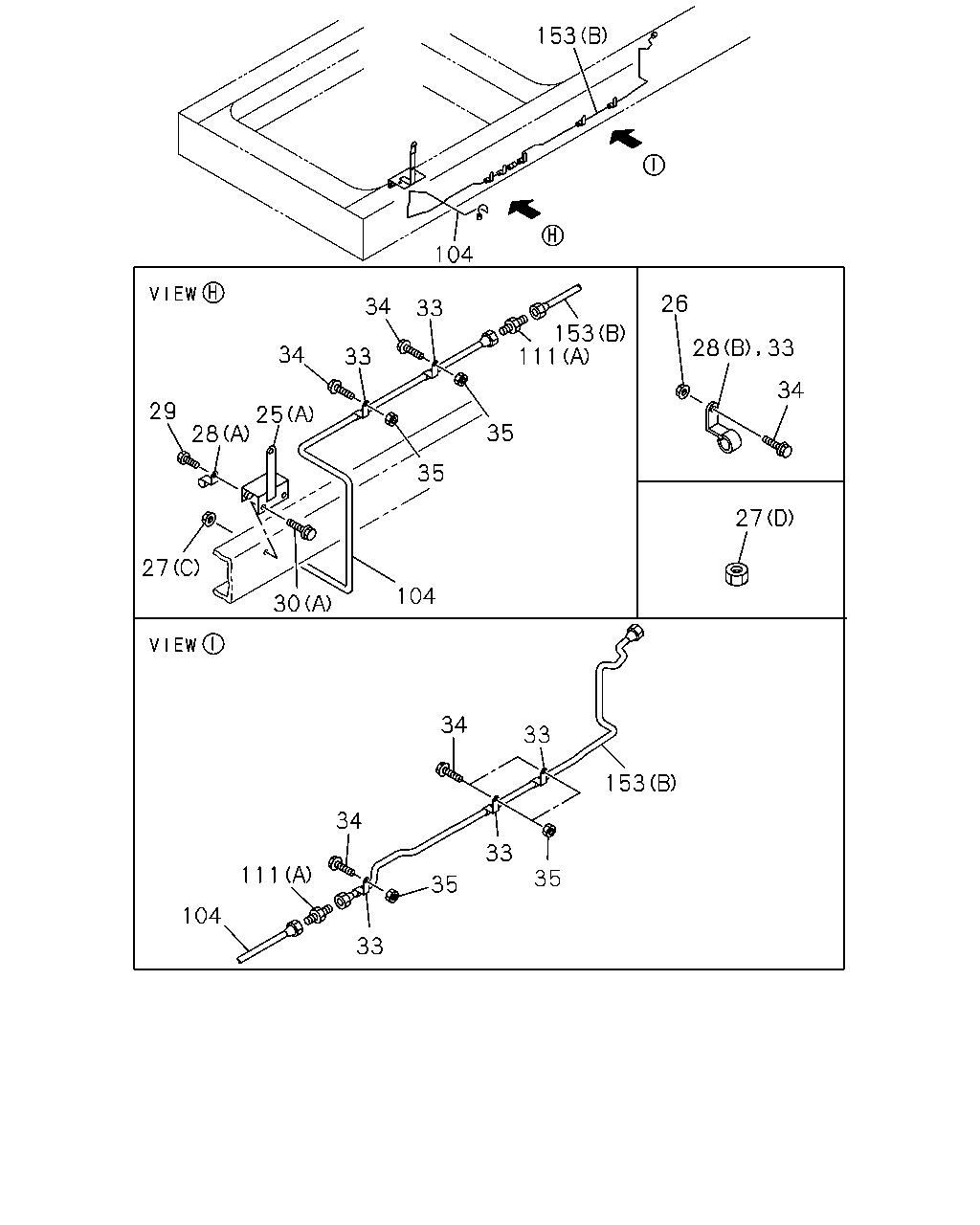

153 104 26 34 33 153 111 34 33 34 29 25 35 28 35 27 27 104 30 34 33 153 34 33 111 35 35 104 33 28 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47477-935-2	01	1	0105-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0105-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0105-
27	NUT; BRKT (D) M10 FLANGE	0-91150-210-0	02	1	0105-0305
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
28	CLIP; OIL PIPE (A) ID=9 L=20	9-09524-835-0	01	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X16 FLANGE	0-28080-816-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X16 FLANGE	0-28080-816-0	02	1	0105-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	05	1	0105-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-
30	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0105-
33	CLIP; OIL PIPE ISUZU M/T<X9A> ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	0105-
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	0105-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0105-
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	04	1	0105-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	0105-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	0105-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=1616 SERVICED BY L=1700	1-47426-391-0	01	1	0105-
111	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0105-
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=490	1-47428-363-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (B) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (B)	1-49166-494-0	01	1	0112-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (B) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-

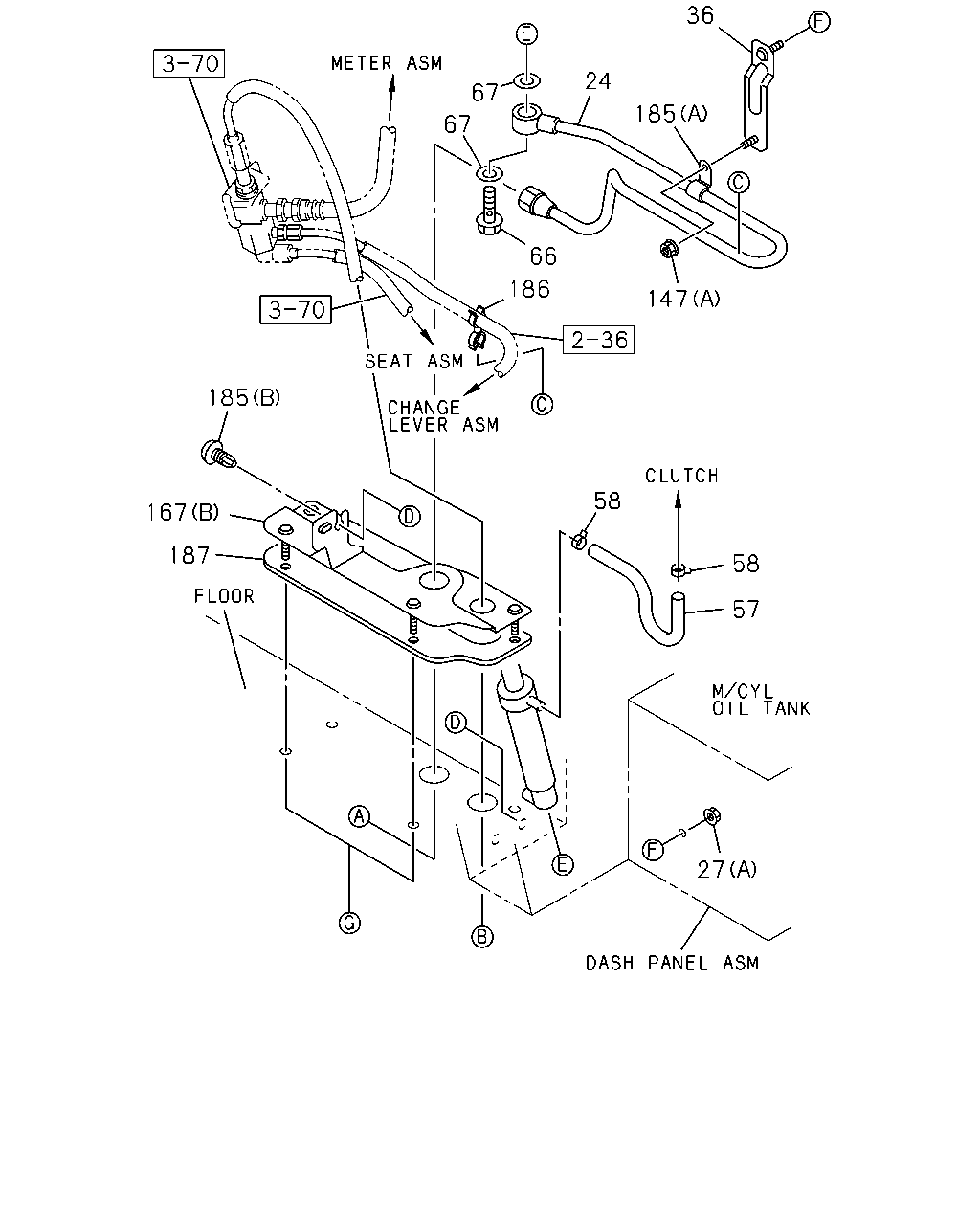

36 24 67 185 67 66 186 147 185 58 167 187 58 57 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION ISUZU M/T<X9A> L=621	1-47428-362-1	01	1	0105-
24	PIPE ASM; CLU,M/CYL TO UNION ZF M/T<X9E> L=628	1-47428-381-1	01	1	0105-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0105-
27	NUT; BRKT (D) M10 FLANGE	0-91150-210-0	02	1	0105-0305
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
36	BRACKET; CLIP	1-71117-191-1	01	1	0105-
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0105-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0105-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0105-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0105-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0105-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0105-
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	0105-
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	0105-0205
185	CLIP; BRKT (A) ID=11 L=16	9-09525-025-0	01	1	0206-
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-
187	SEAL; BRKT	1-71117-209-2	01	1	0105-

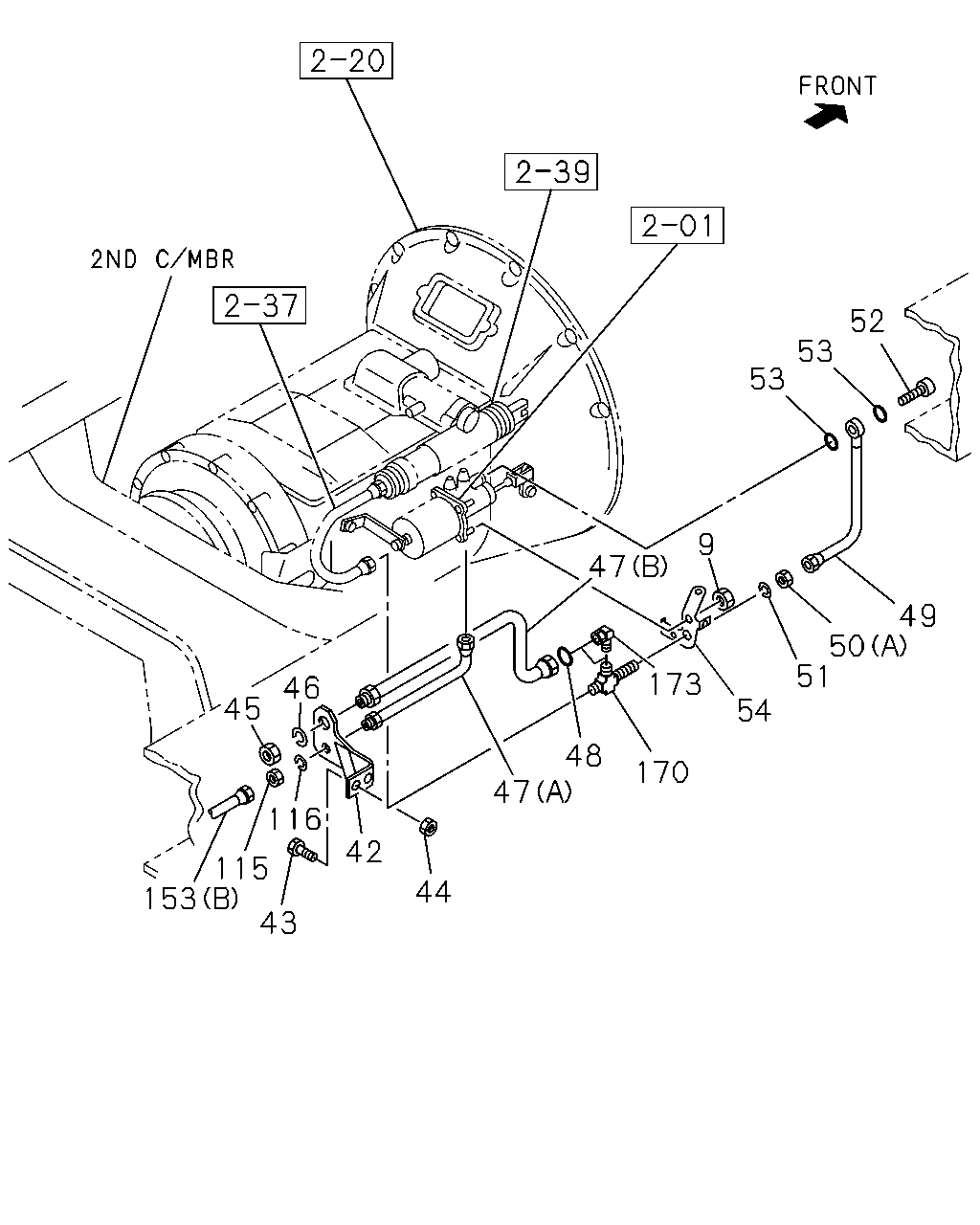

52 53 53 9 47 49 50 51 173 46 45 54 48 170 47 116 42 115 153 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE MJA7U M/T(X6G),MJA6A M/T(X6V) M10 FLANGE	0-91150-210-0	02	1	0105-
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A>	1-47477-546-1	01	1	0105-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0105-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0105-
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0105-
45	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	0105-
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-
46	WASHER; LK,FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	0105-
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=500	0-07806-500-1	01	1	0105-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> (B) L=550	1-09364-434-0	01	1	0105-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=600	0-07706-600-0	01	1	0105-
48	GASKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=10.2 OD=16.0	9-09571-410-0	01	1	0105-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> L=245	1-49117-733-0	01	1	0105-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=293	1-49117-734-0	01	1	0105-
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0105-
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) M20	9-99111-420-0	01	1	0105-
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (C) M12	9-09840-280-0	01	1	0105-
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-
51	WASHER; LK TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2	9-09150-512-0	01	1	0105-
52	BOLT; EYE,AIR PIPE ISUZU M/T<X9A> M14X27 FLANGE	1-09675-086-0	01	1	0105-
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M16X30	1-09675-026-0	01	1	0105-
53	GASKET; JOINT BOLT ISUZU M/T<X9A> ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16.2	1-09630-086-0	02	1	0105-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0105-
54	BRACKET; AIR,FLEX HOSE MJA7U M/T(X6G),MJA6A M/T(X6V)	1-47477-284-1	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M14	9-99111-414-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2	9-09150-514-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=490	1-47428-363-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (B) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (B)	1-49166-494-0	01	1	0112-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (B) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-
170	UNION; AIR PIPE ASSISTOR SHIFT CONTROL<WX8> MJA7 M/T<X9Q>,MJA6 M/T<X9S>	1-09656-640-0	01	1	0105-
173	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> MJA7 M/T<X9Q>,MJA6 M/T<X9S> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0105-

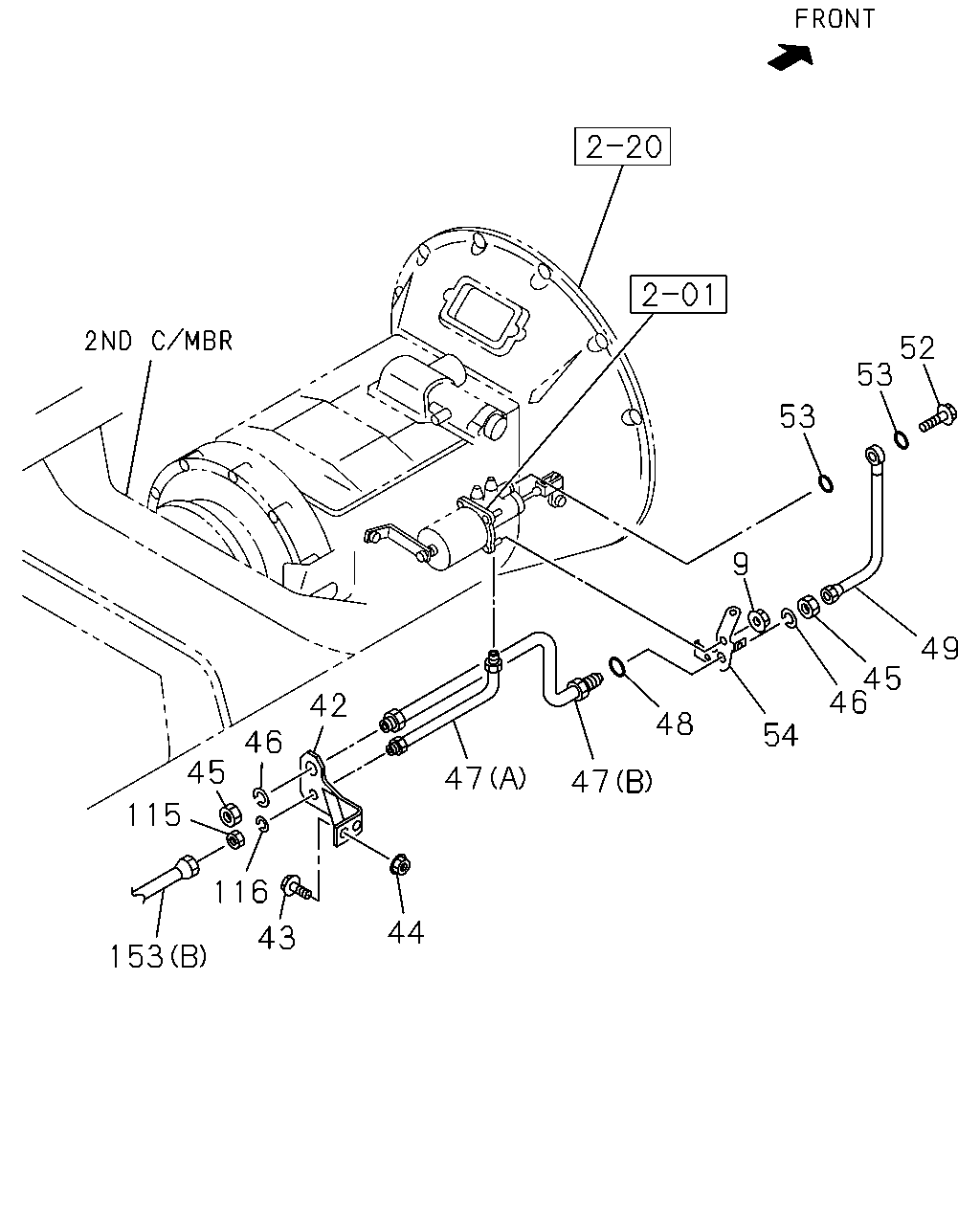

52 53 53 9 49 45 46 42 48 54 46 45 47 47 115 116 44 43 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE MJA7U M/T(X6G),MJA6A M/T(X6V) M10 FLANGE	0-91150-210-0	02	1	0105-
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A>	1-47477-546-1	01	1	0105-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0105-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0105-
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0105-
45	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	0105-
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-
46	WASHER; LK,FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	0105-
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=500	0-07806-500-1	01	1	0105-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> (B) L=550	1-09364-434-0	01	1	0105-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=600	0-07706-600-0	01	1	0105-
48	GASKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=10.2 OD=16.0	9-09571-410-0	01	1	0105-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> L=245	1-49117-733-0	01	1	0105-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=293	1-49117-734-0	01	1	0105-
52	BOLT; EYE,AIR PIPE ISUZU M/T<X9A> M14X27 FLANGE	1-09675-086-0	01	1	0105-
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M16X30	1-09675-026-0	01	1	0105-
53	GASKET; JOINT BOLT ISUZU M/T<X9A> ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16.2	1-09630-086-0	02	1	0105-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0105-
54	BRACKET; AIR,FLEX HOSE MJA7U M/T(X6G),MJA6A M/T(X6V)	1-47477-284-1	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M14	9-99111-414-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2	9-09150-514-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=490	1-47428-363-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (B) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (B)	1-49166-494-0	01	1	0112-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (B) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
