8-52 — PIPING; AIR CONDITIONING
(#132300) — 31 parça
◀

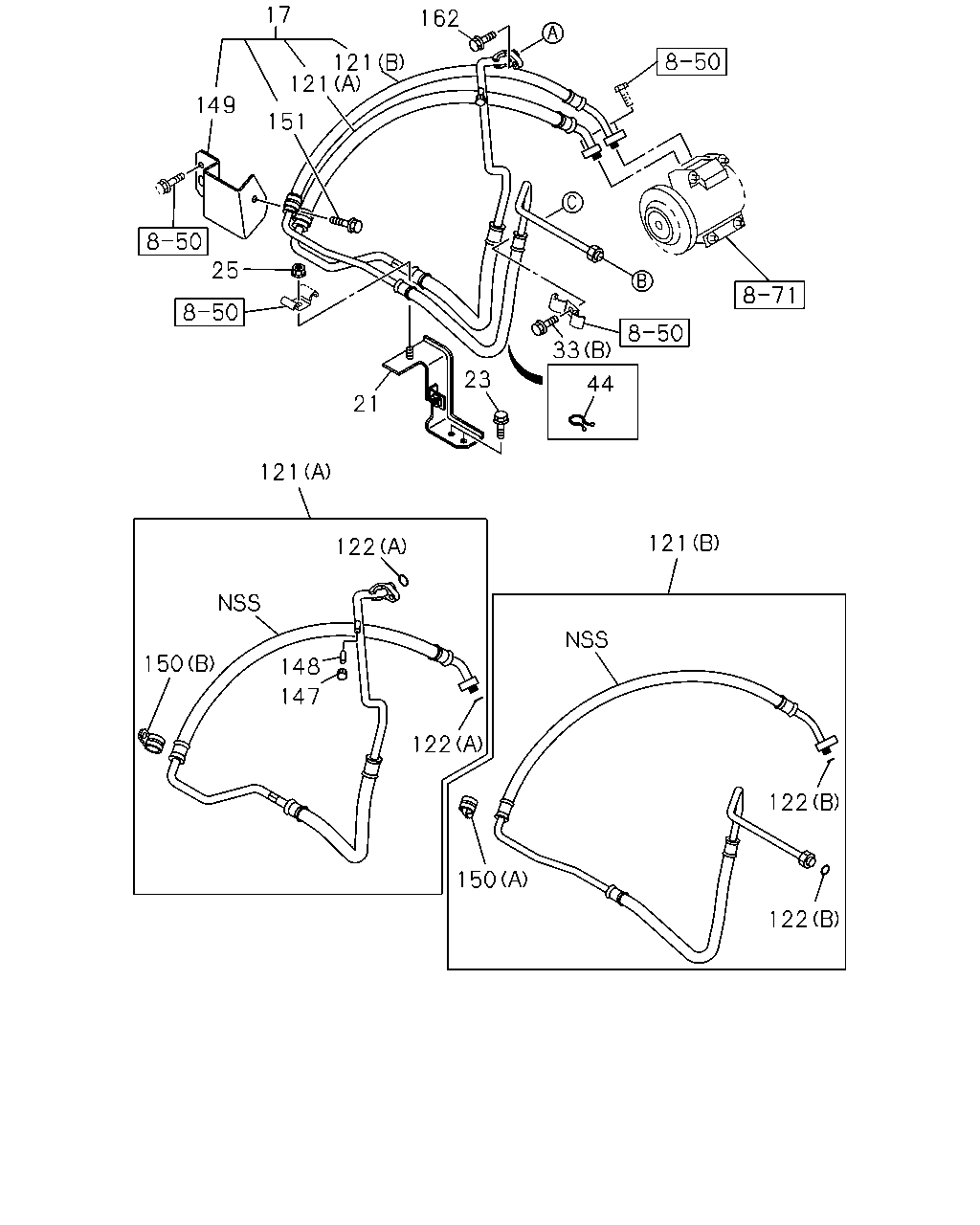

[852A] NO.1 (18 parça)
[852A] NO.2 (13 parça)
▶
121
122
150
122
122
148
147
150
121
21
23
33
44
162
121
121
151
149
25
17
122
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98111-523-0
01
1
1401-
21
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98114-846-0
01
1
1401-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE
0-28650-820-0
02
1
1401-
25
NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
1401-
33
BOLT; CLIP
(B) M8X20 FLANGE
0-28650-820-0
01
1
1401-
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 FLANGE
0-28650-616-0
02
1
1401-
44
CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=30
8-94315-423-0
01
1
1401-
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98052-619-1
01
1
1401-
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98052-620-1
01
1
1401-
122
GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7
8-97095-907-0
02
1
1401-
122
GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=14.5
8-97095-908-0
02
1
1401-
147
CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L
1-83539-331-0
01
1
1401-
148
VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-97095-909-0
01
1
1401-
149
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98055-465-0
01
1
1401-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83574-249-0
01
1
1401-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83574-264-0
01
1
1401-
151
BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE
1-83539-326-0
01
1
1401-
162
BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
01
1
1401-
174
116
158
27
27
33
12
202
156
171
116
158
33
27
158
116
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60)
8-98052-610-0
01
1
1401-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9 H=20 L=20
0-95207-308-0
01
1
1401-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=16 H=24 L=20
0-95207-315-0
01
1
1401-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.8 & 7.5
1-09709-182-0
01
1
1401-
33
BOLT; CLIP
(B) M8X20 FLANGE
0-28650-820-0
01
1
1401-
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 FLANGE
0-28650-616-0
02
1
1401-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4
8-97095-906-0
02
1
1401-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7
8-97095-907-0
01
1
1401-
156
VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98151-702-0
01
1
1401-
158
BOLT; PIPE FIX
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
03
1
1401-
171
CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H
8-97095-911-0
01
1
1401-
174
PIPE; COOLER,CONDENSER TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98041-330-0
01
1
1401-
202
SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83564-391-0
01
1
1401-
