Isuzu WW
▶
TRUCKS
▶
GXR
▶
11568 - GXR(MALAYSIA)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#132294) — 53 parça
◀
[825A] RELAY NO.2 (8 parça)
[825A] SWITCH NO.3 (10 parça)
[825A] RELAY NO.1 (1 parça)
[825A] RELAY NO.3 (2 parça)
[825A] SWITCH NO.4 (7 parça)
[825A] SWITCH NO.1 (10 parça)
[825A] SWITCH NO.2 (15 parça)
▶
317
610
99
12
164
610
595
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12

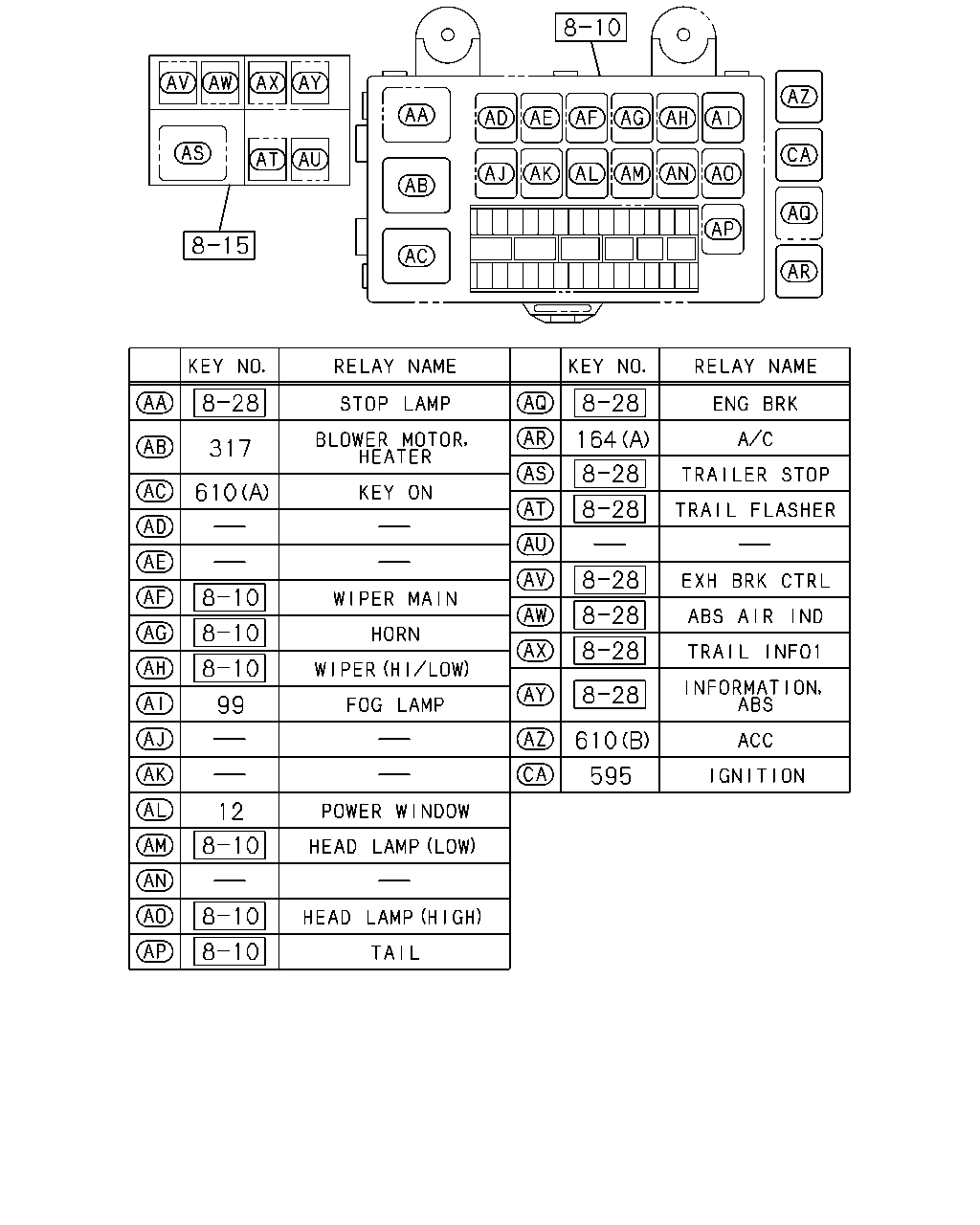

RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC
8-97173-035-1
01
1
1401-
99
RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC
8-97173-035-1
01
1
1401-
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC
8-97173-035-1
01
1
1401-
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1401-
317
RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1401-
595
RELAY; IGNITION
24V 10A PANASONIC
8-97173-035-1
01
1
1401-
610
RELAY; KEY ON
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1401-
610
RELAY; KEY ON
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1401-
237
257
29
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29

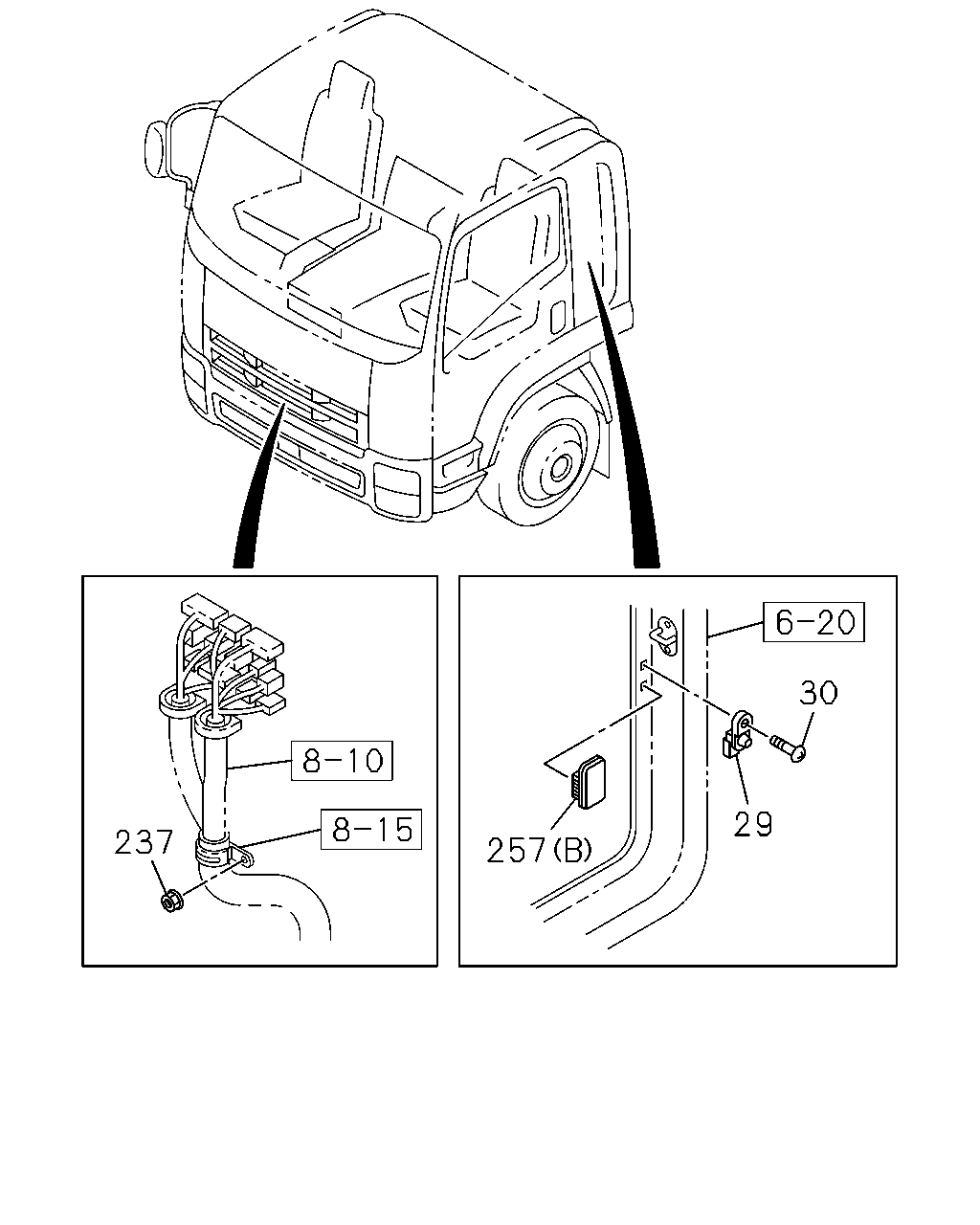

SWITCH; DOOR
BLACK
8-98022-211-0
01
1
1401-
30
SCREW; DOOR SW
M5X18
8-98047-201-0
01
1
1401-
237
NUT
M8 FLANGE
0-91180-108-0
04
1
1401-
257
COVER; HOLE,SW
(A)
8-98025-954-1
06
1
1401-1401
257
COVER; HOLE,SW
(A)
8-98025-954-1
05
1
1402-
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1401-
257
COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (A)
8-98025-954-1
01
1
1401-
257
COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (A)
8-98025-954-1
01
1
1401-
257
COVER; HOLE,SW
(C)
8-98029-914-1
01
1
1401-
257
COVER; HOLE,SW
(B)
8-98029-917-0
01
1
1401-
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39

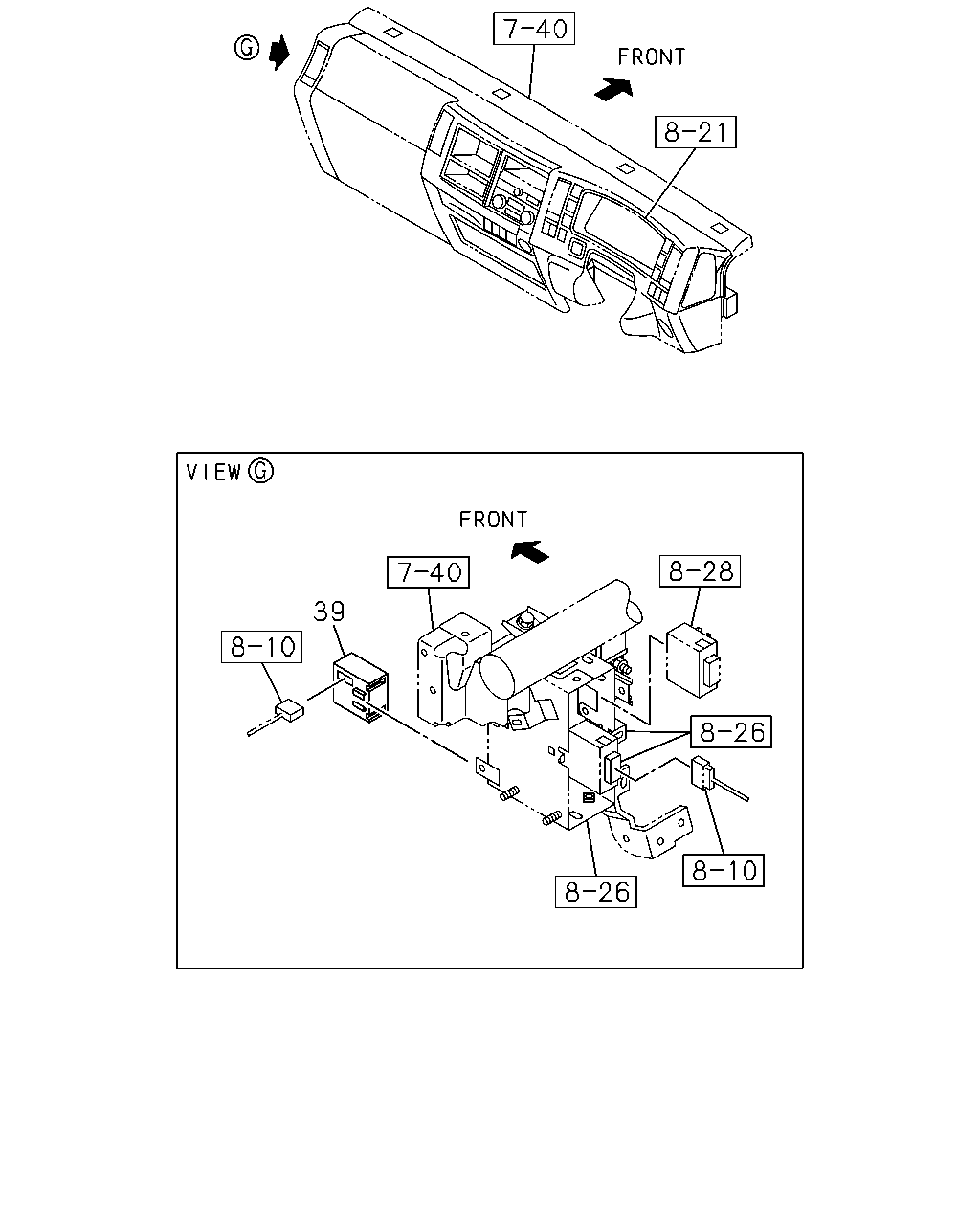

RELAY; DOOR LK
AUTO DOOR LOCK<AU4>
8-98060-789-0
01
1
1401-
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC
8-97173-035-1
01
1
1401-
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1401-
64
65
370
397
236
667
666
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
64

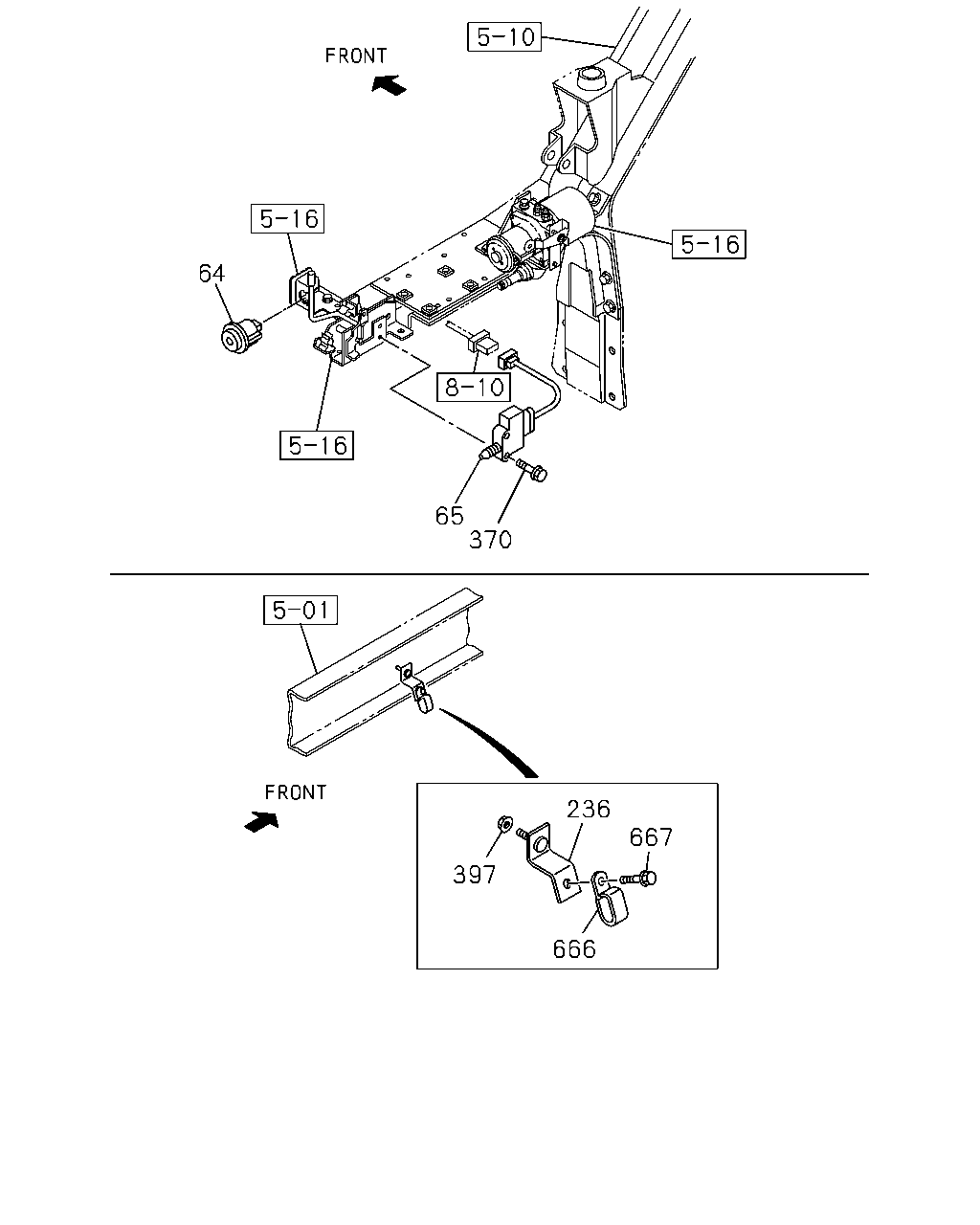

SWITCH; CAB TILT MAIN
1-82380-173-2
01
1
1401-
65
SWITCH; CAB TILT LK
STAMP NO
1-82380-172-1
01
1
1401-
236
BRACKET; AXLE HARNESS,RR
1-82698-614-0
01
1
1401-
370
BOLT; SW
M6X30 FLANGE
0-28650-630-0
02
1
1401-
397
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
01
1
1401-
666
CLIP; AXLE HARNESS
ID=11X2 L=16
0-95325-025-0
01
1
1401-
667
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1401-
1
3
21
8
8
263
10
263
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1

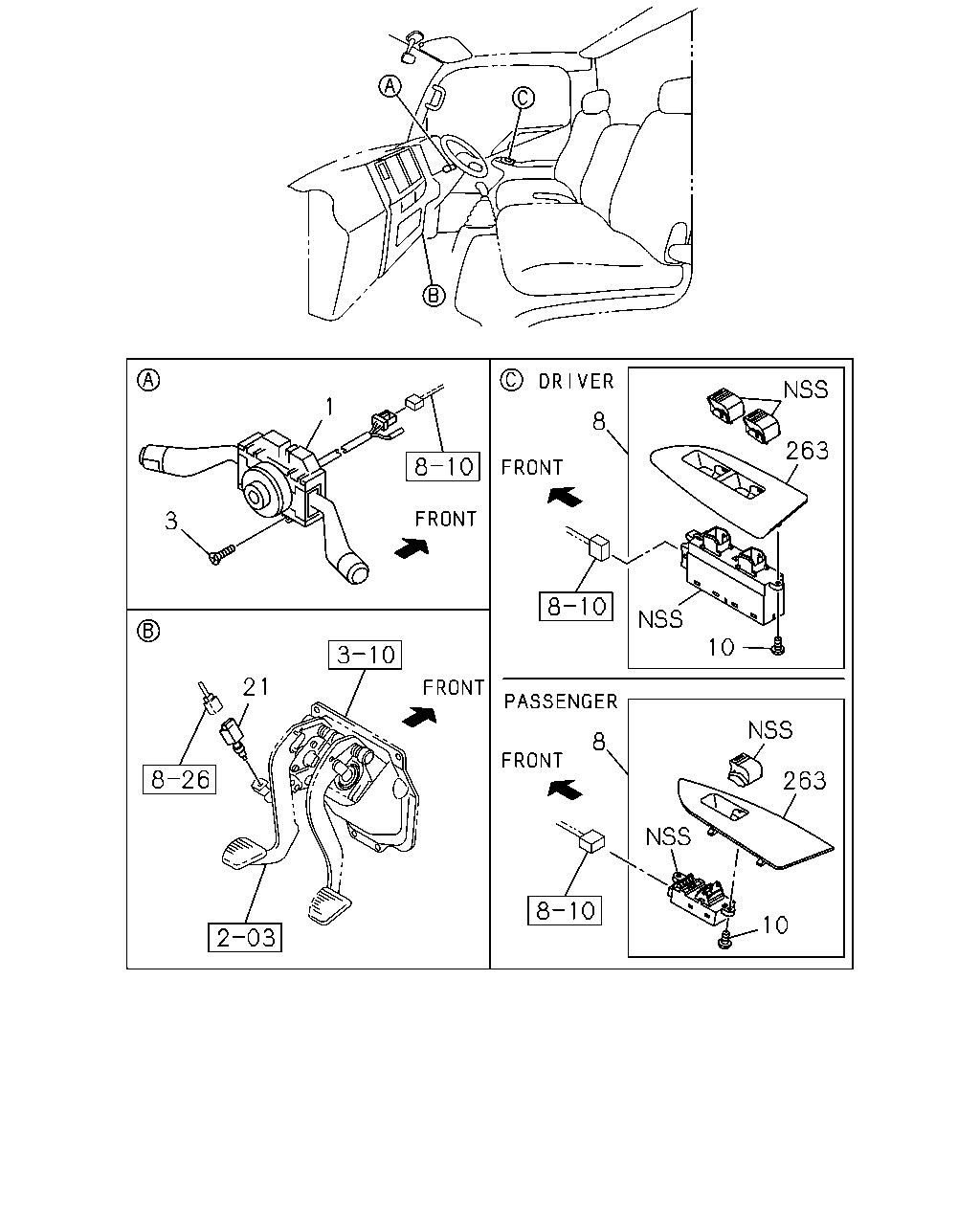

SWITCH; COMB
8-98243-704-0
01
1
1401-
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
1401-
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER
8-97387-034-2
01
1
1401-1509
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER
8-98298-750-0
01
1
1510-
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER
8-98159-543-0
01
1
1401-1509
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER
8-98316-415-0
01
1
1510-
10
SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32>
8-98153-865-0
03
1
1401-
21
SWITCH; CLU
8-97358-248-0
01
1
1401-
263
COVER; SW
POWER WINDOW FRT DOOR<A32> DRIVER
8-98153-836-0
01
1
1401-
263
COVER; SW
POWER WINDOW FRT DOOR<A32> PASSENGER
8-98153-841-0
01
1
1401-
249
77
372
257
104
253
257
96
360
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
77

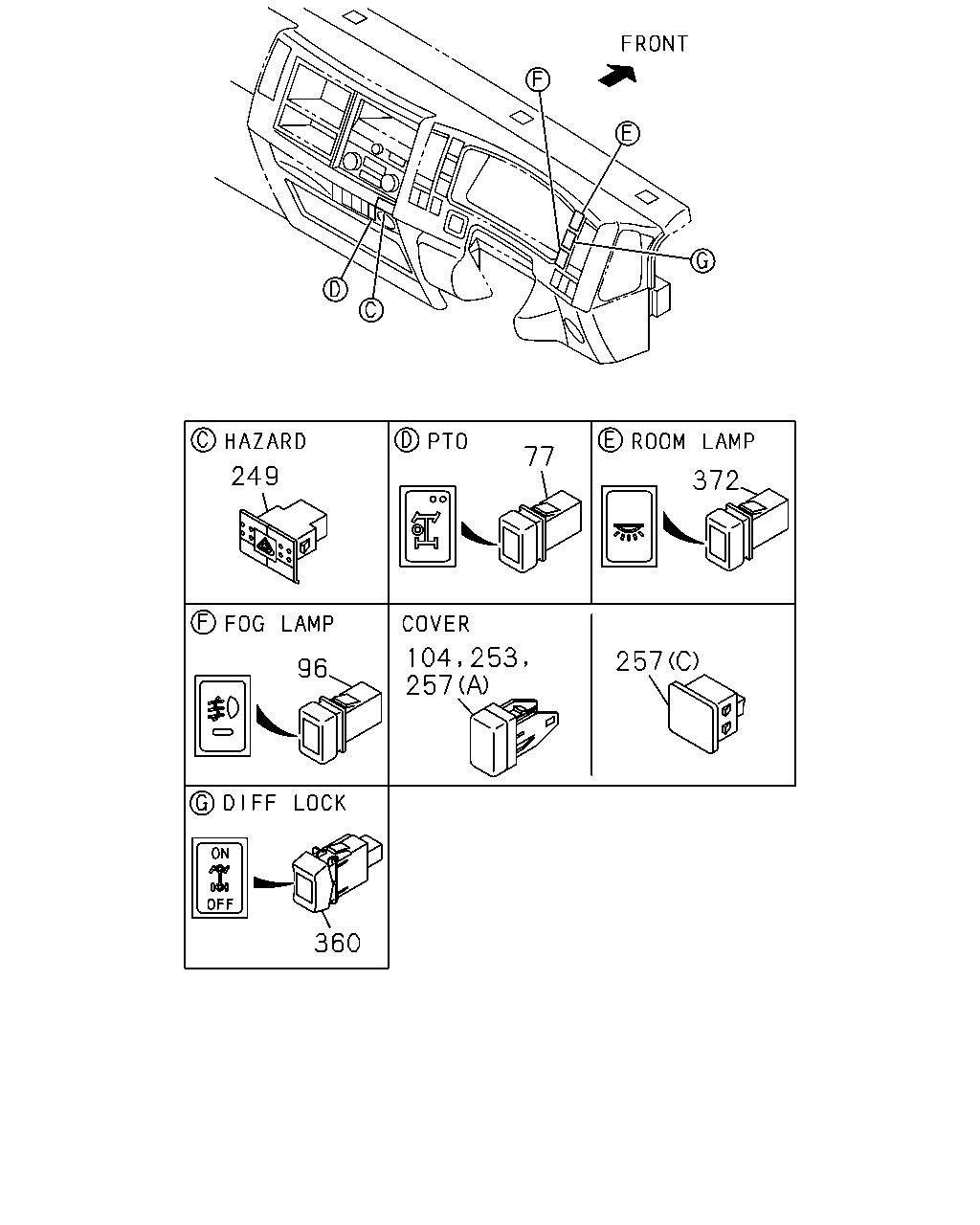

SWITCH; PTO
PTO ZF TRANS RR(BDM)
8-97386-993-4
01
1
1401-
96
SWITCH; FOG LAMP
FOG LAMP<T96>
8-97387-031-4
01
1
1401-
104
COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>
8-98025-954-1
01
1
1401-
249
SWITCH; HAZARD
8-97386-922-1
01
1
1401-
253
COVER; SW HOLE
8-98025-954-1
01
1
1401-
253
COVER; SW HOLE
8-98025-954-1
03
1
1401-
257
COVER; HOLE,SW
(A)
8-98025-954-1
06
1
1401-1401
257
COVER; HOLE,SW
(A)
8-98025-954-1
05
1
1402-
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1401-
257
COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (A)
8-98025-954-1
01
1
1401-
257
COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (A)
8-98025-954-1
01
1
1401-
257
COVER; HOLE,SW
(C)
8-98029-914-1
01
1
1401-
257
COVER; HOLE,SW
(B)
8-98029-917-0
01
1
1401-
360
SWITCH ASM; DIFF LK
8-97613-963-2
01
1
1402-
372
SWITCH; ROOM LAMP
FLUORESCENT LAMP<6UC>
8-97386-917-2
01
1
1401-
