Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#132291) — 391 parça

38 150 139 38 38 150 242 38 38 466 423 358 377 242 377 38 38 386 38 38 86 139 242 313 38 139 242 313 524 219 294 340 515 525 127 38 386

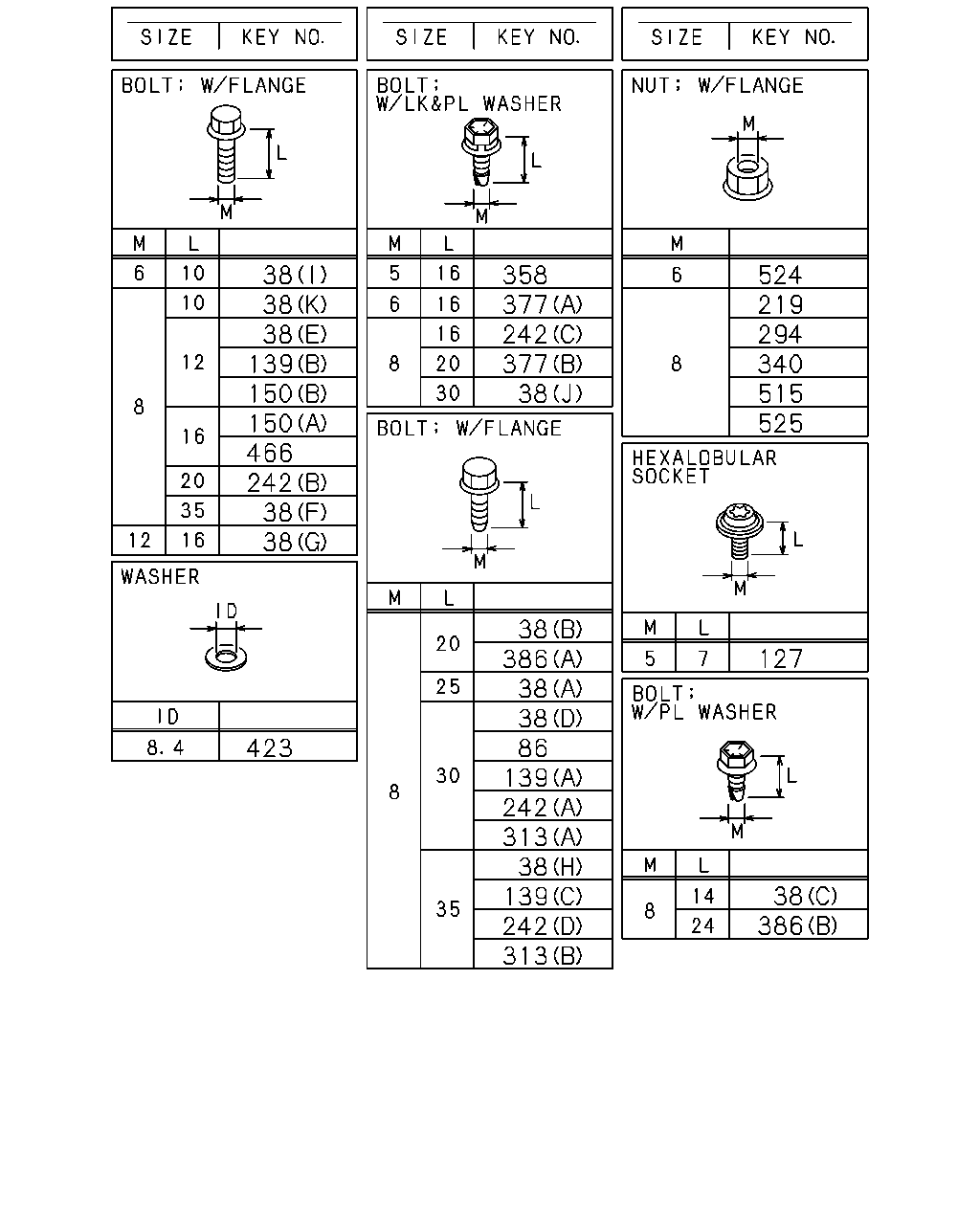

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS GENERATOR 24V90A(K44) (K) M8X10 FLANGE	0-28050-810-0	01	1	1401-
38	BOLT; CLIP,HARNESS EXC. GENERATOR 24V90A(K44) (I) M6X10 FLANGE	0-28050-610-0	01	1	1401-
38	BOLT; CLIP,HARNESS (E) M8X12 FLANGE	0-28050-812-0	02	1	1401-
38	BOLT; CLIP,HARNESS (F) M8X35 FLANGE	0-28050-835-0	01	1	1401-
38	BOLT; CLIP,HARNESS (F) M8X35 FLANGE	0-28050-835-0	03	1	1401-
38	BOLT; CLIP,HARNESS (G) M12X16 FLANGE	0-28051-216-0	01	1	1401-
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	02	1	1401-
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	08	1	1401-
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28650-825-0	03	1	1401-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	05	1	1401-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1401-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1401-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1401-
38	BOLT; CLIP,HARNESS (H) M8X35 FLANGE	0-28650-835-0	02	1	1401-
38	BOLT; CLIP,HARNESS (J) M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	1401-
38	BOLT; CLIP,HARNESS (C) M8X14 W/PL WASHER	8-98164-837-0	03	1	1401-
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1401-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1401-
139	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	01	1	1401-
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1401-
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1401-
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	08	1	1401-
139	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	01	1	1401-
150	BOLT; CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	1401-
150	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1401-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1401-
219	NUT M8 FLANGE	0-91180-108-0	07	1	1401-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1401-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1401-
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28050-820-0	01	1	1401-
242	BOLT; BRKT,HARNESS (A) M8X30 FLANGE	0-28650-830-0	01	1	1401-
242	BOLT; BRKT,HARNESS (D) M8X35 FLANGE	0-28650-835-0	01	1	1401-
242	BOLT; BRKT,HARNESS (C) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1401-
294	NUT M8 FLANGE	0-91180-108-0	02	1	1401-
294	NUT M8 FLANGE	0-91180-108-0	09	1	1401-
294	NUT M8 FLANGE	0-91180-108-0	01	1	1401-
294	NUT M8 FLANGE	0-91180-108-0	01	1	1401-
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	07	1	1401-
313	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	1401-
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91180-108-0	03	1	1401-
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1401-
377	BOLT; CAB EARTH (A) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1401-
377	BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1401-
386	BOLT; GRAND HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1401-
386	BOLT; GRAND HARNESS (B) M8X24 W/PL WASHER	8-98141-256-1	02	1	1401-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	03	1	1401-
466	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	1401-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1401-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1401-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1401-

16 142 16 16 206 16 16

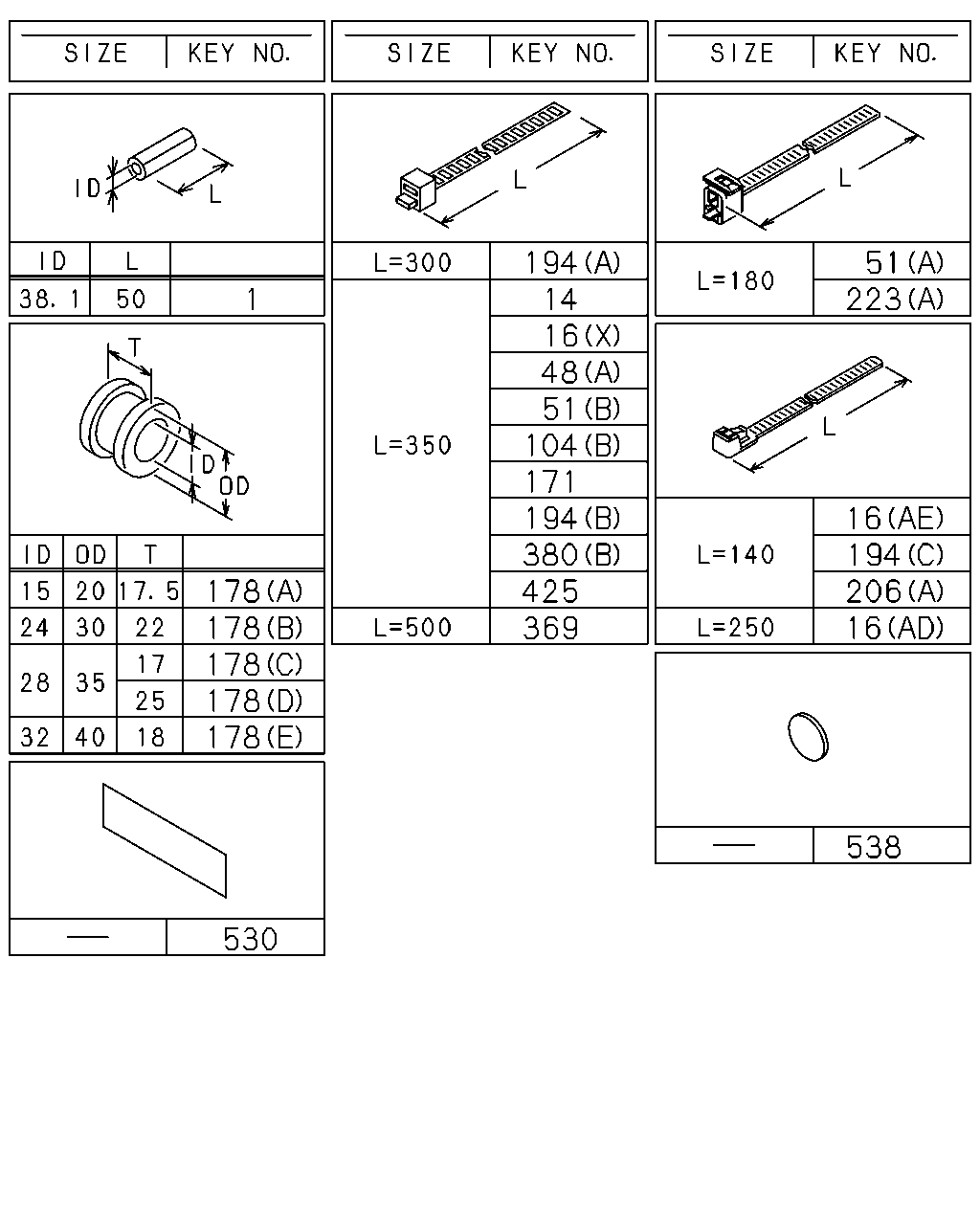

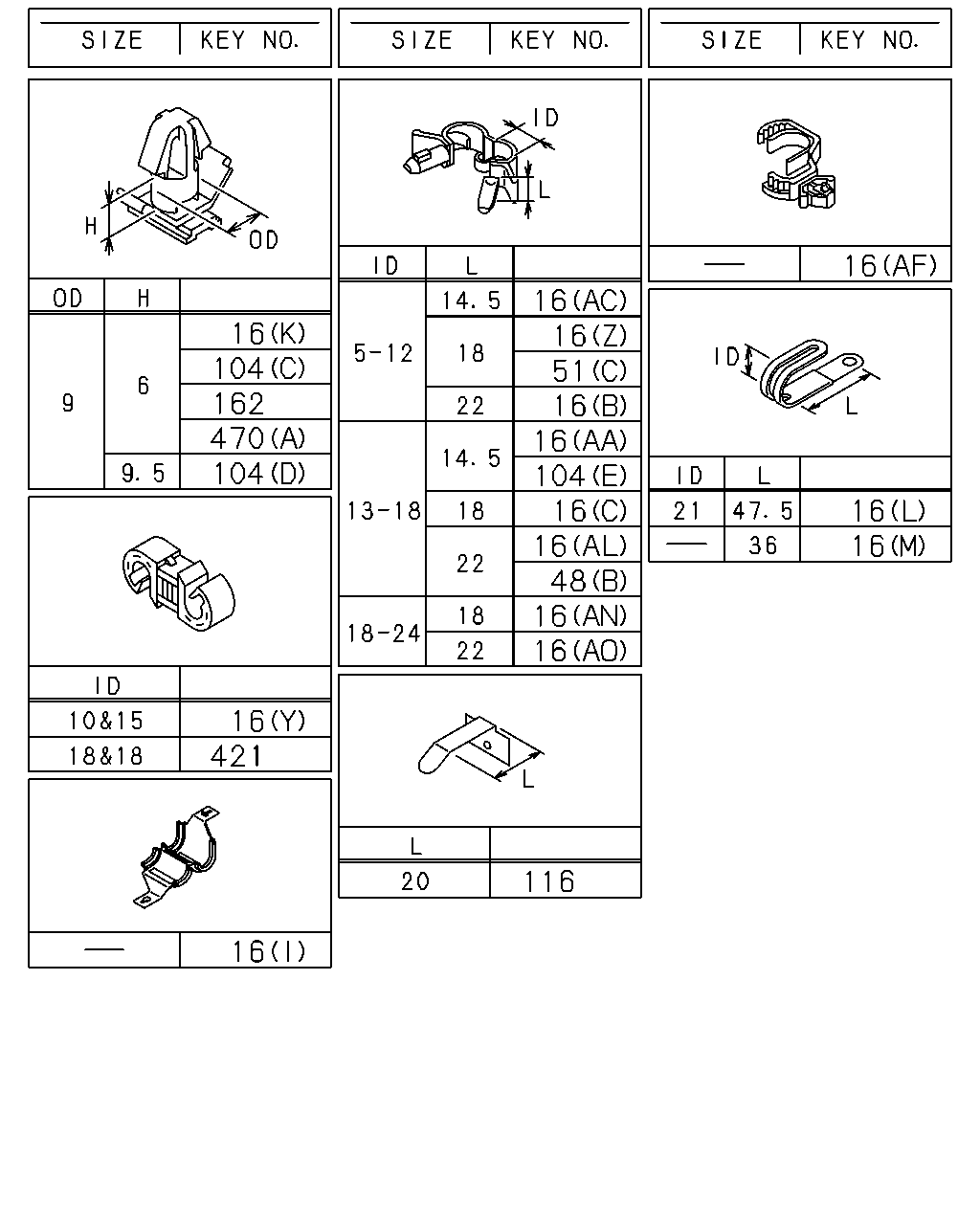

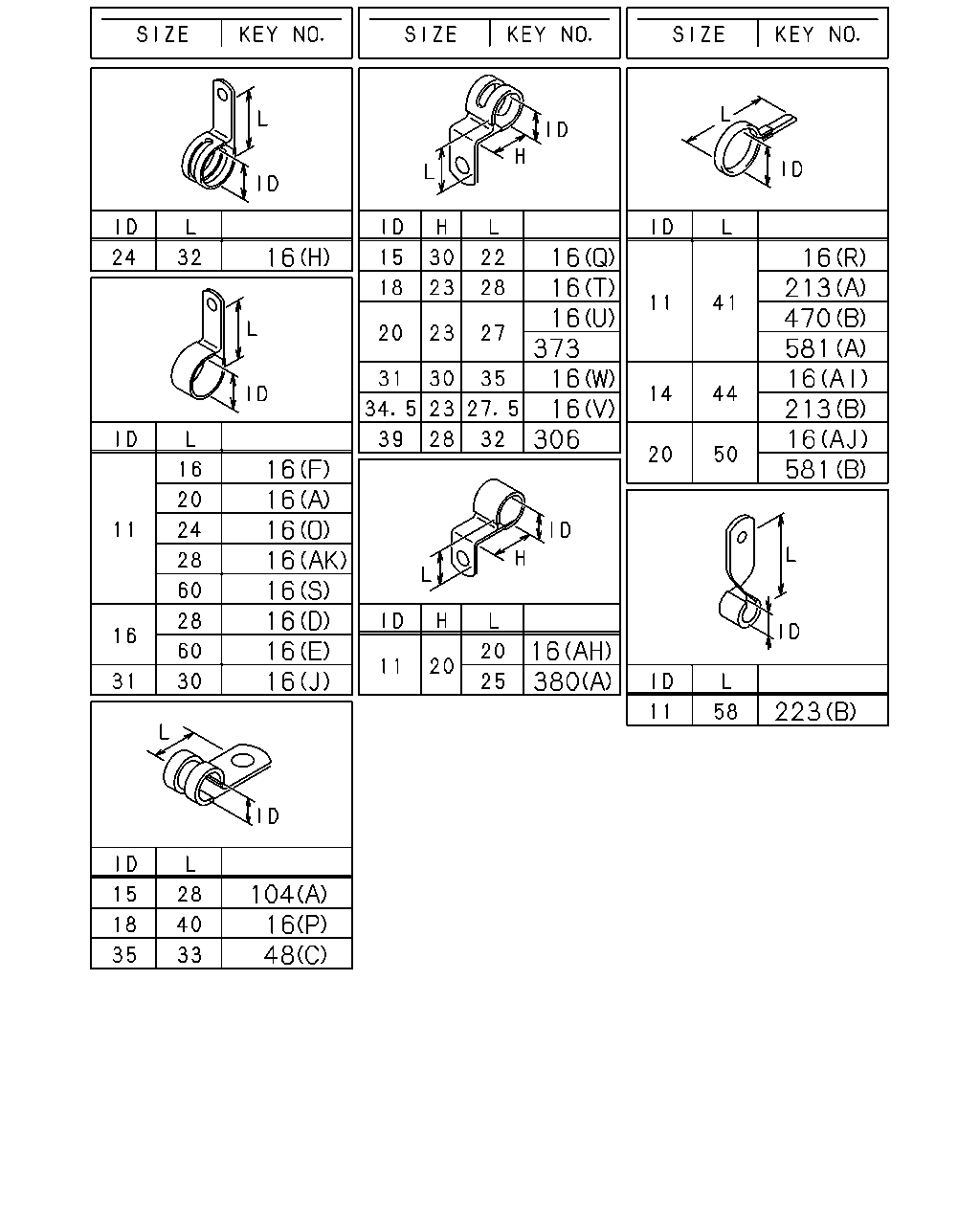

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	02	1	1401-
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1401-
16	CLIP; HARNESS (O) ID=11 L=24	0-95235-045-0	01	1	1401-
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1401-
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1401-
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1401-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1401-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1401-
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1401-
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1401-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1401-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1401-
16	CLIP; HARNESS (P) ID=18 L=40	1-09701-111-0	01	1	1401-
16	CLIP; HARNESS (Q) ID=15 L=22 H=30	1-09701-215-1	01	1	1401-
16	CLIP; HARNESS (G) L=175	1-09707-176-1	01	1	1401-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	05	1	1401-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1401-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1401-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1401-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1401-
16	CLIP; HARNESS EXC. FRAME RR OVER HANG SHOTENING<7QS> (X) L=350	1-09707-183-0	02	1	1401-
16	CLIP; HARNESS (I) W/SPONGE RUBBER	1-09709-150-0	01	1	1401-
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1401-
16	CLIP; HARNESS (Y) ID=10 & 15	1-09709-279-1	01	1	1401-
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	01	1	1401-
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1401-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1401-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1401-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	04	1	1401-
16	CLIP; HARNESS FRAME RR OVER HANG SHOTENING<7QS> (AD) L=250	5-09707-030-1	04	1	1401-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	01	1	1401-
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	02	1	1401-
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1401-
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1401-
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1401-
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1401-
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1401-
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1401-
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1401-
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1401-
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1401-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AM) L=155	8-97173-307-0	18	1	1401-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155	8-97173-307-0	18	1	1401-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (N) L=40.6	8-97229-357-0	02	1	1401-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (N) L=40.6	8-97229-357-0	02	1	1401-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AG)	8-98052-679-0	02	1	1401-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG)	8-98052-679-0	02	1	1401-
16	CLIP; HARNESS FRAME RR OVER HANG SHOTENING<7QS> (C) ID=13-18 L=18	1-09709-291-0	07	1	1401-
16	CLIP; HARNESS FRAME RR OVER HANG SHOTENING<7QS> (AL) ID=13-18 L=22	1-09709-292-0	01	1	1401-
16	CLIP; HARNESS EXC. FRAME RR OVER HANG SHOTENING<7QS> (C) ID=13-18 L=18	1-09709-291-0	01	1	1401-
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	01	1	1401-
16	CLIP; HARNESS EXC. FRAME RR OVER HANG SHOTENING<7QS> (AN) ID=18-24 L=18	1-09709-294-0	01	1	1401-
16	CLIP; HARNESS EXC. FRAME RR OVER HANG SHOTENING<7QS> (AO) ID=18-24 L=22	1-09709-295-0	01	1	1401-
16	CLIP; HARNESS EXC. FRAME RR OVER HANG SHOTENING<7QS> (AD) L=250	5-09707-030-1	02	1	1401-
16	CLIP; HARNESS HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1401-
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1401-
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (AK) ID=11 L=28	0-95235-055-0	01	1	1401-
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (S) ID=11 L=60	0-95235-096-0	02	1	1401-
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (D) ID=16 L=28	0-95235-556-0	01	1	1401-
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (E) ID=16 L=60	0-95235-596-0	02	1	1401-
142	CLIP; HARNESS,ENG L=170.3	8-97209-720-0	01	1	1401-
206	CLIP; FUEL TANK HARNESS (A) L=140	5-09707-031-1	02	1	1401-
206	CLIP; FUEL TANK HARNESS (B) ID=8.3 & 10	8-94176-792-0	01	1	1401-

211 312 375 335 335 375 375 600

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
211	BRACKET; AXLE HARNESS	8-97621-353-1	01	1	1401-
211	BRACKET; AXLE HARNESS	8-97621-352-1	01	1	1401-
312	BRACKET; CLIP HARNESS L=120	8-97619-440-0	01	1	1401-
335	BRACKET; CONNECTOR (A)	1-82698-167-0	01	1	1401-
335	BRACKET; CONNECTOR (B)	1-82698-358-0	01	1	1401-
375	BRACKET; AC GEN HARNESS CLIP (A) L=120 H=35	1-82698-088-0	01	1	1401-
375	BRACKET; AC GEN HARNESS CLIP (B)	1-82698-569-0	01	1	1401-
375	BRACKET; AC GEN HARNESS CLIP (C)	1-82698-583-1	01	1	1401-
600	PROTECTOR; HEAT	8-97608-456-0	01	1	1401-

16 16 16 16 16 16 16 16 16 104 16 48 16 16 16 373 16 16 306 16 380 16 213 470 581 16 213 16 581 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	02	1	1401-
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1401-
16	CLIP; HARNESS (O) ID=11 L=24	0-95235-045-0	01	1	1401-
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1401-
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1401-
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1401-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1401-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1401-
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1401-
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1401-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1401-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1401-
16	CLIP; HARNESS (P) ID=18 L=40	1-09701-111-0	01	1	1401-
16	CLIP; HARNESS (Q) ID=15 L=22 H=30	1-09701-215-1	01	1	1401-
16	CLIP; HARNESS (G) L=175	1-09707-176-1	01	1	1401-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	05	1	1401-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1401-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1401-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1401-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1401-
16	CLIP; HARNESS EXC. FRAME RR OVER HANG SHOTENING<7QS> (X) L=350	1-09707-183-0	02	1	1401-
16	CLIP; HARNESS (I) W/SPONGE RUBBER	1-09709-150-0	01	1	1401-
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1401-
16	CLIP; HARNESS (Y) ID=10 & 15	1-09709-279-1	01	1	1401-
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	01	1	1401-
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1401-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1401-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1401-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	04	1	1401-
16	CLIP; HARNESS FRAME RR OVER HANG SHOTENING<7QS> (AD) L=250	5-09707-030-1	04	1	1401-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	01	1	1401-
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	02	1	1401-
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1401-
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1401-
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1401-
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1401-
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1401-
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1401-
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1401-
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1401-
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1401-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AM) L=155	8-97173-307-0	18	1	1401-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155	8-97173-307-0	18	1	1401-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (N) L=40.6	8-97229-357-0	02	1	1401-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (N) L=40.6	8-97229-357-0	02	1	1401-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AG)	8-98052-679-0	02	1	1401-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG)	8-98052-679-0	02	1	1401-
16	CLIP; HARNESS FRAME RR OVER HANG SHOTENING<7QS> (C) ID=13-18 L=18	1-09709-291-0	07	1	1401-
16	CLIP; HARNESS FRAME RR OVER HANG SHOTENING<7QS> (AL) ID=13-18 L=22	1-09709-292-0	01	1	1401-
16	CLIP; HARNESS EXC. FRAME RR OVER HANG SHOTENING<7QS> (C) ID=13-18 L=18	1-09709-291-0	01	1	1401-
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	01	1	1401-
16	CLIP; HARNESS EXC. FRAME RR OVER HANG SHOTENING<7QS> (AN) ID=18-24 L=18	1-09709-294-0	01	1	1401-
16	CLIP; HARNESS EXC. FRAME RR OVER HANG SHOTENING<7QS> (AO) ID=18-24 L=22	1-09709-295-0	01	1	1401-
16	CLIP; HARNESS EXC. FRAME RR OVER HANG SHOTENING<7QS> (AD) L=250	5-09707-030-1	02	1	1401-
16	CLIP; HARNESS HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1401-
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1401-
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (AK) ID=11 L=28	0-95235-055-0	01	1	1401-
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (S) ID=11 L=60	0-95235-096-0	02	1	1401-
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (D) ID=16 L=28	0-95235-556-0	01	1	1401-
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (E) ID=16 L=60	0-95235-596-0	02	1	1401-
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1401-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1401-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	08	1	1401-
48	CLIP; FRAME HARNESS (B) ID=13-18 L=22	1-09709-292-0	01	1	1401-
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1401-
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1401-
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1401-
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1401-
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1401-
213	CLIP; END CROSS HARNESS FRAME RR OVER HANG SHOTENING<7QS> (A) ID=11 L=41	1-09700-403-0	03	1	1401-
213	CLIP; END CROSS HARNESS FRAME RR OVER HANG SHOTENING<7QS> (B) ID=14 L=44	9-09917-427-0	03	1	1401-
223	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	1401-
223	CLIP; AIR TANK HARNESS (B) ID=11 L=58	9-09917-135-2	01	1	1401-
306	CLIP; HARNESS,ELEC GOV ID=39 H=28 L=32	1-09701-263-0	03	1	1401-
373	CLIP; BAND,GEN HARNESS ID=20 H=23 L=27	1-09700-861-0	02	1	1401-
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1401-
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	01	1	1401-
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	02	1	1401-
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	1401-
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1401-
581	CLIP; HARNESS,REAR SUSP (A) ID=11 L=41	1-09700-403-0	01	1	1401-
581	CLIP; HARNESS,REAR SUSP (B) ID=20 L=50	9-09917-430-0	01	1	1401-
581	CLIP; HARNESS,REAR SUSP EXC. FRAME RR OVER HANG SHOTENING<7QS> (B) ID=20 L=50	9-09917-430-0	03	1	1401-

53 53 53 53 53 53 53 53 53 53 53 7 334

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1401-
53	BRACKET; HARNESS (E) L=82 B=20	1-47478-420-0	01	1	1401-1404
53	BRACKET; HARNESS (E) L=82 B=20	8-98259-390-0	01	1	1405-
53	BRACKET; HARNESS (F) L=65	1-47479-064-1	01	1	1401-
53	BRACKET; HARNESS (A)	1-47479-537-0	06	1	1401-
53	BRACKET; HARNESS (A)	1-47479-537-0	08	1	1401-
53	BRACKET; HARNESS (G)	1-82569-278-0	01	1	1401-
53	BRACKET; HARNESS (H) L=120 H=35	1-82698-088-0	01	1	1401-
53	BRACKET; HARNESS (J)	1-82698-514-0	01	1	1401-
53	BRACKET; HARNESS (B)	8-97611-413-0	01	1	1401-
53	BRACKET; HARNESS (K)	8-98052-458-0	01	1	1401-
53	BRACKET; HARNESS (C)	8-98078-801-0	01	1	1401-
53	BRACKET; HARNESS (D)	8-98102-490-0	01	1	1401-
53	BRACKET; HARNESS (I)	8-98124-778-0	01	1	1401-
334	BRACKET	1-47479-537-0	01	1	1401-

16 104 162 470 104 16 421 16 16 16 51 16 16 104 16 16 48 16 16 116 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	02	1	1401-
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1401-
16	CLIP; HARNESS (O) ID=11 L=24	0-95235-045-0	01	1	1401-
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1401-
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1401-
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1401-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1401-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1401-
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1401-
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1401-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1401-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1401-
16	CLIP; HARNESS (P) ID=18 L=40	1-09701-111-0	01	1	1401-
16	CLIP; HARNESS (Q) ID=15 L=22 H=30	1-09701-215-1	01	1	1401-
16	CLIP; HARNESS (G) L=175	1-09707-176-1	01	1	1401-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	05	1	1401-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1401-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1401-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1401-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1401-
16	CLIP; HARNESS EXC. FRAME RR OVER HANG SHOTENING<7QS> (X) L=350	1-09707-183-0	02	1	1401-
16	CLIP; HARNESS (I) W/SPONGE RUBBER	1-09709-150-0	01	1	1401-
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1401-
16	CLIP; HARNESS (Y) ID=10 & 15	1-09709-279-1	01	1	1401-
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	01	1	1401-
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1401-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1401-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1401-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	04	1	1401-
16	CLIP; HARNESS FRAME RR OVER HANG SHOTENING<7QS> (AD) L=250	5-09707-030-1	04	1	1401-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	01	1	1401-
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	02	1	1401-
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1401-
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1401-
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1401-
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1401-
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1401-
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1401-
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1401-
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1401-
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1401-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AM) L=155	8-97173-307-0	18	1	1401-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155	8-97173-307-0	18	1	1401-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (N) L=40.6	8-97229-357-0	02	1	1401-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (N) L=40.6	8-97229-357-0	02	1	1401-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AG)	8-98052-679-0	02	1	1401-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG)	8-98052-679-0	02	1	1401-
16	CLIP; HARNESS FRAME RR OVER HANG SHOTENING<7QS> (C) ID=13-18 L=18	1-09709-291-0	07	1	1401-
16	CLIP; HARNESS FRAME RR OVER HANG SHOTENING<7QS> (AL) ID=13-18 L=22	1-09709-292-0	01	1	1401-
16	CLIP; HARNESS EXC. FRAME RR OVER HANG SHOTENING<7QS> (C) ID=13-18 L=18	1-09709-291-0	01	1	1401-
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	01	1	1401-
16	CLIP; HARNESS EXC. FRAME RR OVER HANG SHOTENING<7QS> (AN) ID=18-24 L=18	1-09709-294-0	01	1	1401-
16	CLIP; HARNESS EXC. FRAME RR OVER HANG SHOTENING<7QS> (AO) ID=18-24 L=22	1-09709-295-0	01	1	1401-
16	CLIP; HARNESS EXC. FRAME RR OVER HANG SHOTENING<7QS> (AD) L=250	5-09707-030-1	02	1	1401-
16	CLIP; HARNESS HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1401-
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1401-
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (AK) ID=11 L=28	0-95235-055-0	01	1	1401-
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (S) ID=11 L=60	0-95235-096-0	02	1	1401-
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (D) ID=16 L=28	0-95235-556-0	01	1	1401-
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (E) ID=16 L=60	0-95235-596-0	02	1	1401-
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1401-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1401-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	08	1	1401-
48	CLIP; FRAME HARNESS (B) ID=13-18 L=22	1-09709-292-0	01	1	1401-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	1401-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350	1-09707-183-0	01	1	1401-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=5-12 L=18	1-09709-287-0	01	1	1401-
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1401-
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1401-
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1401-
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1401-
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1401-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1401-
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1401-
421	CLIP; FLOOR HARNESS ID=18 & 18	8-94323-068-0	02	1	1401-
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	1401-
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1401-

1 178 178 178 178 178 530 194 14 16 48 51 104 171 194 380 425 369 51 223 16 194 206 16 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) ID=38.1 L=50	5-09360-835-0	01	1	1401-
14	CLIP; BAND,HARNESS L=350	1-09707-183-0	02	1	1401-
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	02	1	1401-
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1401-
16	CLIP; HARNESS (O) ID=11 L=24	0-95235-045-0	01	1	1401-
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1401-
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1401-
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1401-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1401-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1401-
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1401-
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1401-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1401-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1401-
16	CLIP; HARNESS (P) ID=18 L=40	1-09701-111-0	01	1	1401-
16	CLIP; HARNESS (Q) ID=15 L=22 H=30	1-09701-215-1	01	1	1401-
16	CLIP; HARNESS (G) L=175	1-09707-176-1	01	1	1401-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	05	1	1401-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1401-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1401-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1401-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1401-
16	CLIP; HARNESS EXC. FRAME RR OVER HANG SHOTENING<7QS> (X) L=350	1-09707-183-0	02	1	1401-
16	CLIP; HARNESS (I) W/SPONGE RUBBER	1-09709-150-0	01	1	1401-
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1401-
16	CLIP; HARNESS (Y) ID=10 & 15	1-09709-279-1	01	1	1401-
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	01	1	1401-
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1401-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1401-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1401-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	04	1	1401-
16	CLIP; HARNESS FRAME RR OVER HANG SHOTENING<7QS> (AD) L=250	5-09707-030-1	04	1	1401-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	01	1	1401-
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	02	1	1401-
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1401-
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1401-
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1401-
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1401-
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1401-
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1401-
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1401-
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1401-
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1401-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AM) L=155	8-97173-307-0	18	1	1401-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155	8-97173-307-0	18	1	1401-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (N) L=40.6	8-97229-357-0	02	1	1401-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (N) L=40.6	8-97229-357-0	02	1	1401-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AG)	8-98052-679-0	02	1	1401-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG)	8-98052-679-0	02	1	1401-
16	CLIP; HARNESS FRAME RR OVER HANG SHOTENING<7QS> (C) ID=13-18 L=18	1-09709-291-0	07	1	1401-
16	CLIP; HARNESS FRAME RR OVER HANG SHOTENING<7QS> (AL) ID=13-18 L=22	1-09709-292-0	01	1	1401-
16	CLIP; HARNESS EXC. FRAME RR OVER HANG SHOTENING<7QS> (C) ID=13-18 L=18	1-09709-291-0	01	1	1401-
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	01	1	1401-
16	CLIP; HARNESS EXC. FRAME RR OVER HANG SHOTENING<7QS> (AN) ID=18-24 L=18	1-09709-294-0	01	1	1401-
16	CLIP; HARNESS EXC. FRAME RR OVER HANG SHOTENING<7QS> (AO) ID=18-24 L=22	1-09709-295-0	01	1	1401-
16	CLIP; HARNESS EXC. FRAME RR OVER HANG SHOTENING<7QS> (AD) L=250	5-09707-030-1	02	1	1401-
16	CLIP; HARNESS HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1401-
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1401-
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (AK) ID=11 L=28	0-95235-055-0	01	1	1401-
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (S) ID=11 L=60	0-95235-096-0	02	1	1401-
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (D) ID=16 L=28	0-95235-556-0	01	1	1401-
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (E) ID=16 L=60	0-95235-596-0	02	1	1401-
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1401-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1401-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	08	1	1401-
48	CLIP; FRAME HARNESS (B) ID=13-18 L=22	1-09709-292-0	01	1	1401-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	1401-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350	1-09707-183-0	01	1	1401-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=5-12 L=18	1-09709-287-0	01	1	1401-
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1401-
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1401-
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1401-
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1401-
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1401-
171	CLIP; STARTER HARNESS L=350	1-09707-183-0	03	1	1401-
178	GROMMET; HARNESS (D) ID=28 OD=35 T=25	1-09332-011-1	03	1	1401-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=22	1-09332-104-0	01	1	1401-
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1401-
178	GROMMET; HARNESS (E) ID=32 OD=40 T=18	1-09891-003-0	02	1	1401-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	02	1	1401-
194	CLIP; BAND (A) L=300	1-09707-001-1	02	1	1401-
194	CLIP; BAND (B) L=350	1-09707-183-0	06	1	1401-
194	CLIP; BAND (C) L=140	5-09707-031-1	02	1	1401-
206	CLIP; FUEL TANK HARNESS (A) L=140	5-09707-031-1	02	1	1401-
206	CLIP; FUEL TANK HARNESS (B) ID=8.3 & 10	8-94176-792-0	01	1	1401-
223	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	1401-
223	CLIP; AIR TANK HARNESS (B) ID=11 L=58	9-09917-135-2	01	1	1401-
369	CLIP; BAND EDS HARNESS L=500	1-09707-082-1	01	1	1401-
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1401-
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	01	1	1401-
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	02	1	1401-
425	CLIP; MODULATOR L=350	1-09707-183-0	04	1	1401-
530	SEAL; HARNESS 180X40	1-72498-019-1	23	1	1401-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1401-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
