Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#132284) — 271 parça

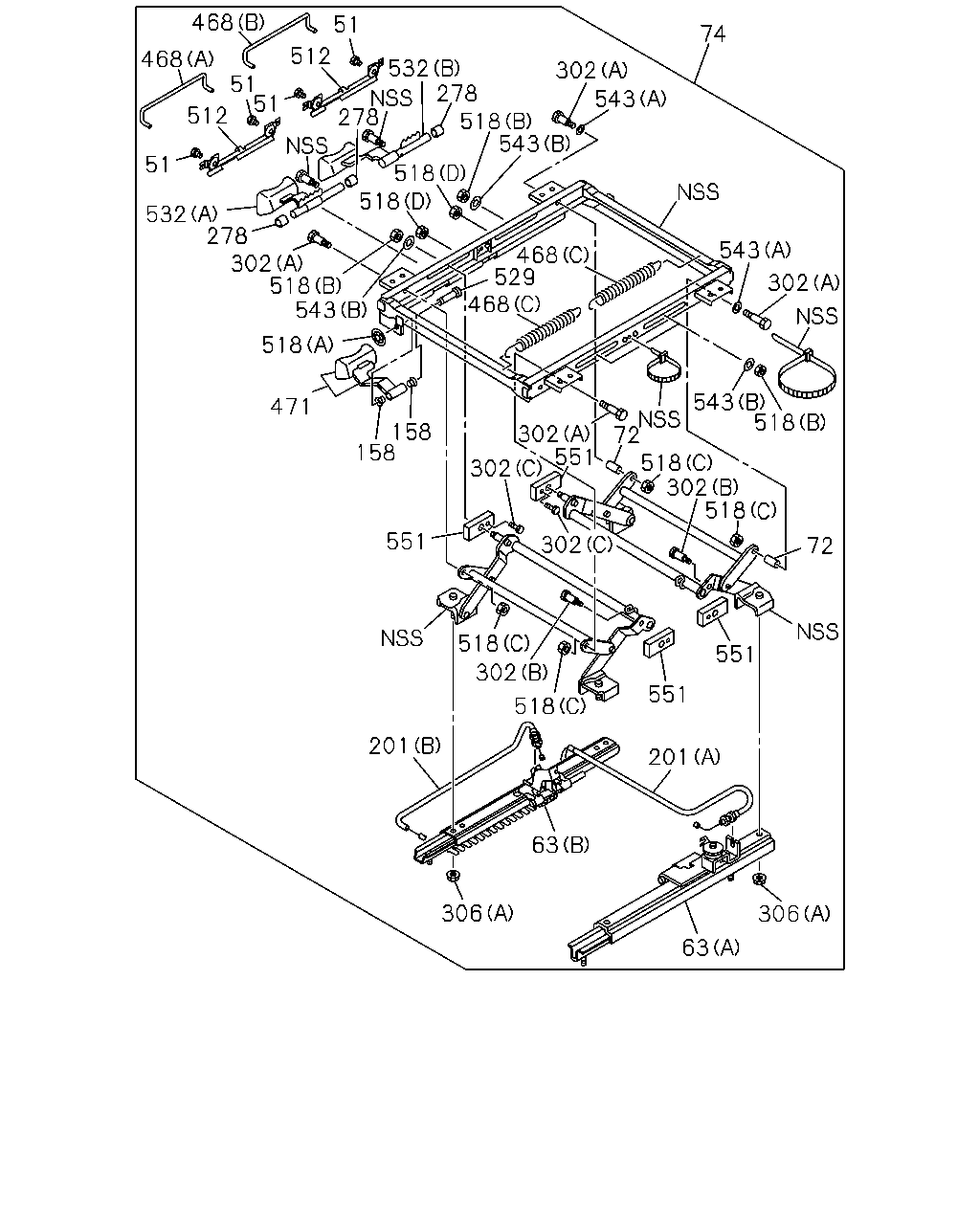

74 543 302 543 543 302 518 468 529 468 302 302 302 518 72 551 302 72 518 551 551 201 63 306 518 302 518 201 551 158 158 471 518 543 518 302 278 532 51 512 51 51 512 51 278 532 518 518 543 518 278 468 468 306 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-325-1	04	1	1401-1502
51	SCREW; COVER DELUXE SEAT(PQ8)	1-75518-325-1	04	1	1503-1509
51	SCREW; COVER	1-75518-325-1	04	1	1510-
63	ADJUSTER; SEAT SLIDE VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-199-1	01	1	1401-1502
63	ADJUSTER; SEAT SLIDE DELUXE SEAT(PQ8) (A)	1-75518-199-1	01	1	1503-1509
63	ADJUSTER; SEAT SLIDE (A)	1-75518-199-1	01	1	1510-
63	ADJUSTER; SEAT SLIDE VINYL SEAT(A83),DELUXE SEAT(PQ8) (B)	1-75518-323-0	01	1	1401-1502
63	ADJUSTER; SEAT SLIDE DELUXE SEAT(PQ8) (B)	1-75518-323-0	01	1	1503-1509
63	ADJUSTER; SEAT SLIDE (B)	1-75518-323-0	01	1	1510-
72	SPACER; SEAT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-334-1	02	1	1401-1502
72	SPACER; SEAT ADJ DELUXE SEAT(PQ8)	8-98291-668-0	02	1	1503-1509
72	SPACER; SEAT ADJ	8-98291-668-0	02	1	1510-
74	ADJUSTER; FRT SEAT,HEIGHT CONT VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98003-678-0	01	1	1401-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE SEAT(PQ8)	8-98291-640-0	01	1	1503-1509
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-640-0	01	1	1510-
158	BUSHING; LINK ARM VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-209-0	02	1	1401-1502
158	BUSHING; LINK ARM DELUXE SEAT(PQ8)	1-75518-209-0	02	1	1503-1509
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1510-
201	CABLE; ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) L=667	1-75518-288-0	01	1	1401-1502
201	CABLE; ADJ DELUXE SEAT(PQ8) (A) L=667	1-75518-288-0	01	1	1503-1509
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) L=605	1-75518-289-1	01	1	1401-1502
201	CABLE; ADJ DELUXE SEAT(PQ8) (B) L=605	1-75518-289-1	01	1	1503-1509
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1510-
278	COLLAR; FRT SEAT VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-244-0	03	1	1401-1502
278	COLLAR; FRT SEAT DELUXE SEAT(PQ8)	1-75518-244-0	03	1	1503-1509
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	1510-
302	BOLT; ADJ,HEIGHT CONT VINYL SEAT(A83),DELUXE SEAT(PQ8) (B)	1-75518-266-2	02	1	1401-1502
302	BOLT; ADJ,HEIGHT CONT DELUXE SEAT(PQ8) (B)	1-75518-266-2	02	1	1503-1509
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-266-2	02	1	1510-
302	BOLT; ADJ,HEIGHT CONT VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-270-1	04	1	1401-1502
302	BOLT; ADJ,HEIGHT CONT DELUXE SEAT(PQ8) (A)	8-98291-667-0	04	1	1503-1509
302	BOLT; ADJ,HEIGHT CONT (A)	8-98291-667-0	04	1	1510-
302	BOLT; ADJ,HEIGHT CONT VINYL SEAT(A83),DELUXE SEAT(PQ8) (C)	1-75518-336-1	02	1	1401-1502
302	BOLT; ADJ,HEIGHT CONT DELUXE SEAT(PQ8) (C)	1-75518-336-1	02	1	1503-1509
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-336-1	02	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1401-
306	NUT; SEAT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8 FLANGE	1-75538-207-0	06	1	1401-1502
306	NUT; SEAT ADJ DELUXE SEAT(PQ8) (A) M8 FLANGE	1-75538-207-0	06	1	1503-1509
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	06	1	1510-
468	SPRING; RETURN VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-206-0	01	1	1401-1502
468	SPRING; RETURN DELUXE SEAT(PQ8) (A)	1-75518-206-0	01	1	1503-1509
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN VINYL SEAT(A83),DELUXE SEAT(PQ8) (B)	1-75518-207-0	01	1	1401-1502
468	SPRING; RETURN DELUXE SEAT(PQ8) (B)	1-75518-207-0	01	1	1503-1509
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN VINYL SEAT(A83),DELUXE SEAT(PQ8) (C)	1-75518-208-0	02	1	1401-1502
468	SPRING; RETURN DELUXE SEAT(PQ8) (C)	1-75518-208-0	02	1	1503-1509
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1510-
468	SPRING; RETURN VINYL SEAT(A83),DELUXE SEAT(PQ8) (D)	1-75538-132-0	01	1	1401-1502
468	SPRING; RETURN DELUXE SEAT(PQ8) (D)	1-75538-132-0	01	1	1503-1509
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1510-
471	LEVER; SEAT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98107-869-0	01	1	1401-1502
471	LEVER; SEAT ADJ DELUXE SEAT(PQ8)	8-98107-869-0	01	1	1503-1509
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1510-
512	COVER; LEVER VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-243-1	02	1	1401-1502
512	COVER; LEVER DELUXE SEAT(PQ8)	1-75518-243-1	02	1	1503-1509
512	COVER; LEVER	1-75518-243-1	02	1	1510-
518	NUT; TILT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-263-0	01	1	1401-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (A)	1-75518-263-0	01	1	1503-1509
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) (C) M8	1-75518-264-0	04	1	1401-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (C) M8	1-75518-264-0	04	1	1503-1509
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) (E) M8 FLANGE	1-75538-207-0	04	1	1401-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (E) M8 FLANGE	1-75538-207-0	04	1	1503-1509
518	NUT; TILT ADJ (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) M6 LOCK NUT	5-09984-020-0	02	1	1401-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (D) M6 LOCK NUT	5-09984-020-0	02	1	1503-1509
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M8 FLANGE	8-94152-886-0	04	1	1401-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (B) M8 FLANGE	8-94152-886-0	04	1	1503-1509
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1510-
529	PIN; LINK VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-262-0	01	1	1401-1502
529	PIN; LINK DELUXE SEAT(PQ8)	1-75518-262-0	01	1	1503-1509
529	PIN; LINK	1-75518-262-0	01	1	1510-
532	LEVER ASM; TILT VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-203-0	01	1	1401-1502
532	LEVER ASM; TILT DELUXE SEAT(PQ8) (A)	1-75518-203-0	01	1	1503-1509
532	LEVER ASM; TILT (A)	1-75518-203-0	01	1	1510-
532	LEVER ASM; TILT VINYL SEAT(A83),DELUXE SEAT(PQ8) (B)	1-75518-204-1	01	1	1401-1502
532	LEVER ASM; TILT DELUXE SEAT(PQ8) (B)	1-75518-204-1	01	1	1503-1509
532	LEVER ASM; TILT (B)	1-75518-204-1	01	1	1510-
543	WASHER; HEIGHT ADJUSTER VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-335-0	02	1	1401-1502
543	WASHER; HEIGHT ADJUSTER DELUXE SEAT(PQ8) (A) ID=13 OD=19	8-98291-669-0	02	1	1503-1509
543	WASHER; HEIGHT ADJUSTER (A) ID=13 OD=19	8-98291-669-0	02	1	1510-
543	WASHER; HEIGHT ADJUSTER VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) ID=8.4	9-09160-508-0	04	1	1401-1502
543	WASHER; HEIGHT ADJUSTER DELUXE SEAT(PQ8) (B) ID=8.4	9-09160-508-0	04	1	1503-1509
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4	9-09160-508-0	04	1	1510-
551	SLIDER; HEIGHT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-265-0	04	1	1401-1502
551	SLIDER; HEIGHT ADJ DELUXE SEAT(PQ8)	1-75518-265-0	04	1	1503-1509
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	1510-

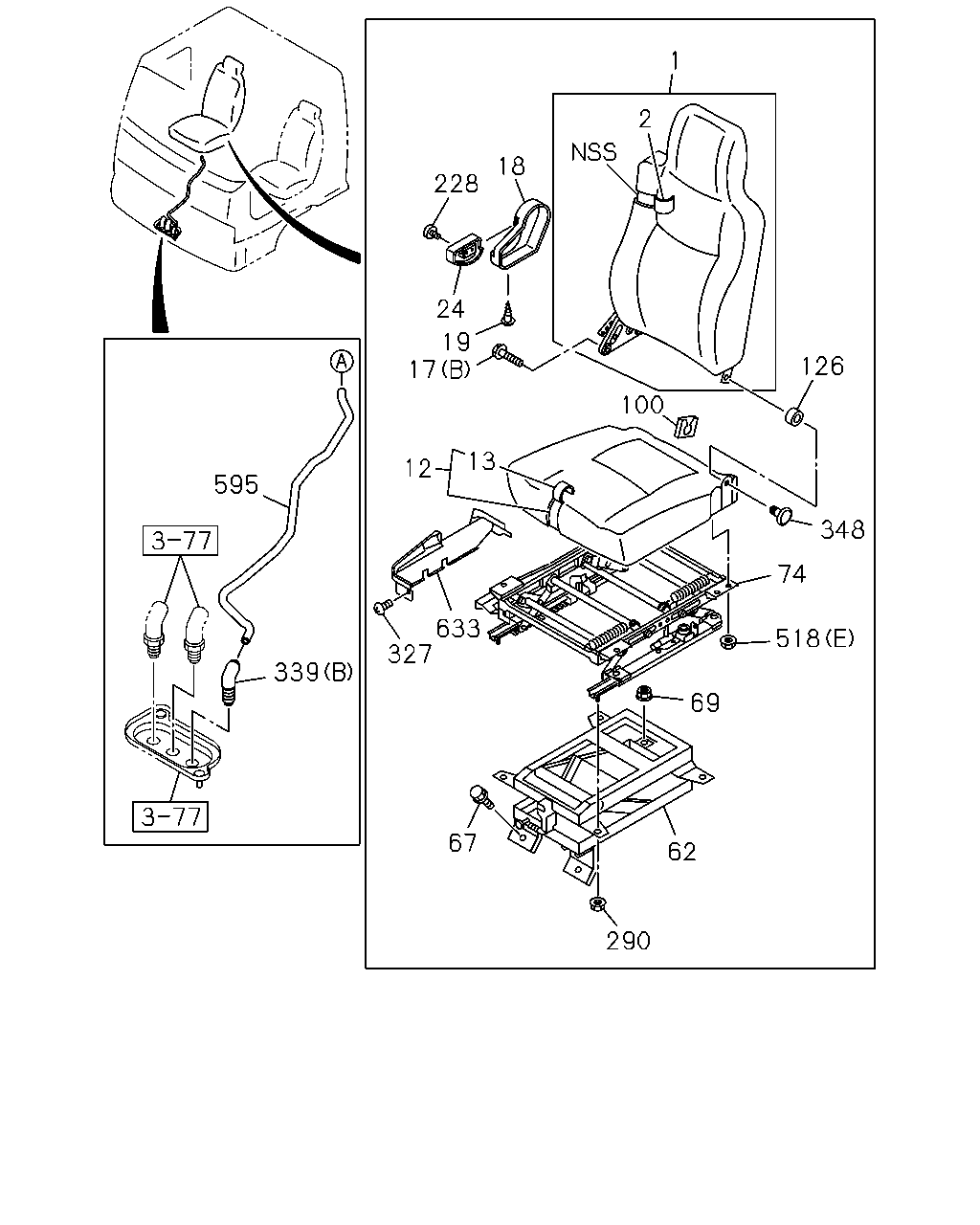

1 2 18 228 24 17 19 13 12 595 339 327 67 633 100 126 348 74 518 69 62 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97421-406-1	01	1	1401-1512
1	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97466-620-0	01	1	1601-
1	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97409-955-5	01	1	1401-1502
1	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97409-955-5	01	1	1510-1512
1	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97466-618-0	01	1	1601-
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8) DARK GRAY	8-97421-411-0	01	1	1401-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) DARK GRAY	8-97411-910-2	01	1	1401-1502
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) DARK GRAY	8-97411-910-2	01	1	1510-
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) DARK GRAY	8-97421-397-2	01	1	1401-1512
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) DARK GRAY	8-97466-610-0	01	1	1601-
12	CUSHION; SEAT,FRT VINYL SEAT(A83) DARK GRAY	8-97409-954-2	01	1	1401-1502
12	CUSHION; SEAT,FRT VINYL SEAT(A83) DARK GRAY	8-97409-954-2	01	1	1510-1512
12	CUSHION; SEAT,FRT VINYL SEAT(A83) DARK GRAY	8-97466-606-0	01	1	1601-
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8) DARK GRAY	8-97421-401-2	01	1	1401-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83) DARK GRAY	8-97411-909-1	01	1	1401-1502
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83) DARK GRAY	8-97411-909-1	01	1	1510-
17	BOLT; RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M10X20	8-98062-661-0	02	1	1401-1502
17	BOLT; RECLINING DELUXE SEAT(PQ8) (B) M10X20	8-98062-661-0	02	1	1503-1509
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8X20	8-98092-334-0	02	1	1401-
18	COVER; RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY	8-97409-332-0	01	1	1401-1502
18	COVER; RECLINING DELUXE SEAT(PQ8) GRAY	8-97409-332-0	01	1	1503-1509
18	COVER; RECLINING GRAY	8-97409-332-0	01	1	1510-
19	SCREW; COVER VINYL SEAT(A83),DELUXE SEAT(PQ8) M5	8-98062-663-0	01	1	1401-1502
19	SCREW; COVER DELUXE SEAT(PQ8) M5	8-98062-663-0	01	1	1503-1509
19	SCREW; COVER M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY	8-97409-333-0	01	1	1401-1502
24	KNOB; RECLINING,FRT,SEAT DELUXE SEAT(PQ8) GRAY	8-97409-333-0	01	1	1503-1509
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	1510-
62	DAMPER ASM; SEAT SUSP VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-183-8	01	1	1401-1403
62	DAMPER ASM; SEAT SUSP VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98261-448-0	01	1	1404-1502
62	DAMPER ASM; SEAT SUSP DELUXE SEAT(PQ8)	8-98261-448-0	01	1	1503-1509
62	DAMPER ASM; SEAT SUSP	8-98261-448-0	01	1	1510-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1401-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1401-
74	ADJUSTER; FRT SEAT,HEIGHT CONT VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98003-678-0	01	1	1401-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE SEAT(PQ8)	8-98291-640-0	01	1	1503-1509
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-640-0	01	1	1510-
100	COVER; HINGE VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98203-070-0	01	1	1401-1502
100	COVER; HINGE DELUXE SEAT(PQ8)	8-98203-070-0	01	1	1503-1509
100	COVER; HINGE	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE	8-98286-009-0	01	1	1601-
126	BUSHING; HINGE,RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98063-218-0	01	1	1401-1502
126	BUSHING; HINGE,RECLINING DELUXE SEAT(PQ8)	8-98063-218-0	01	1	1503-1509
126	BUSHING; HINGE,RECLINING	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING	8-98286-007-0	01	1	1601-
228	SCREW; KNOB VINYL SEAT(A83),DELUXE SEAT(PQ8) M4	8-98062-662-0	01	1	1401-1502
228	SCREW; KNOB DELUXE SEAT(PQ8) M4	8-98062-662-0	01	1	1503-1509
228	SCREW; KNOB M4	8-98062-662-0	01	1	1510-
290	NUT; ADJ TO SUSP VINYL SEAT(A83),DELUXE SEAT(PQ8) M8 FLANGE	1-75538-207-0	04	1	1401-1502
290	NUT; ADJ TO SUSP DELUXE SEAT(PQ8) M8 FLANGE	1-75538-207-0	04	1	1503-1509
290	NUT; ADJ TO SUSP M8 FLANGE	1-75538-207-0	04	1	1510-
327	CLIP; COVER ID=459	1-09987-273-0	01	1	1401-
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	1401-
339	UNION; DRIVER SEAT VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75538-131-3	01	1	1401-1502
339	UNION; DRIVER SEAT DELUXE SEAT(PQ8) (A)	1-75538-131-3	01	1	1503-1509
339	UNION; DRIVER SEAT (A)	1-75538-131-3	01	1	1510-
348	BOLT; HINGE,SEAT	8-98286-008-0	01	1	1601-
518	NUT; TILT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-263-0	01	1	1401-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (A)	1-75518-263-0	01	1	1503-1509
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) (C) M8	1-75518-264-0	04	1	1401-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (C) M8	1-75518-264-0	04	1	1503-1509
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) (E) M8 FLANGE	1-75538-207-0	04	1	1401-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (E) M8 FLANGE	1-75538-207-0	04	1	1503-1509
518	NUT; TILT ADJ (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) M6 LOCK NUT	5-09984-020-0	02	1	1401-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (D) M6 LOCK NUT	5-09984-020-0	02	1	1503-1509
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M8 FLANGE	8-94152-886-0	04	1	1401-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (B) M8 FLANGE	8-94152-886-0	04	1	1503-1509
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1510-
595	TUBE; NYLON	8-98067-762-0	01	1	1401-
633	COVER; ADJ,TILT VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY	8-97409-956-0	01	1	1401-1502
633	COVER; ADJ,TILT DELUXE SEAT(PQ8) GRAY	8-97409-956-0	01	1	1503-1509
633	COVER; ADJ,TILT GRAY	8-97409-956-0	01	1	1510-

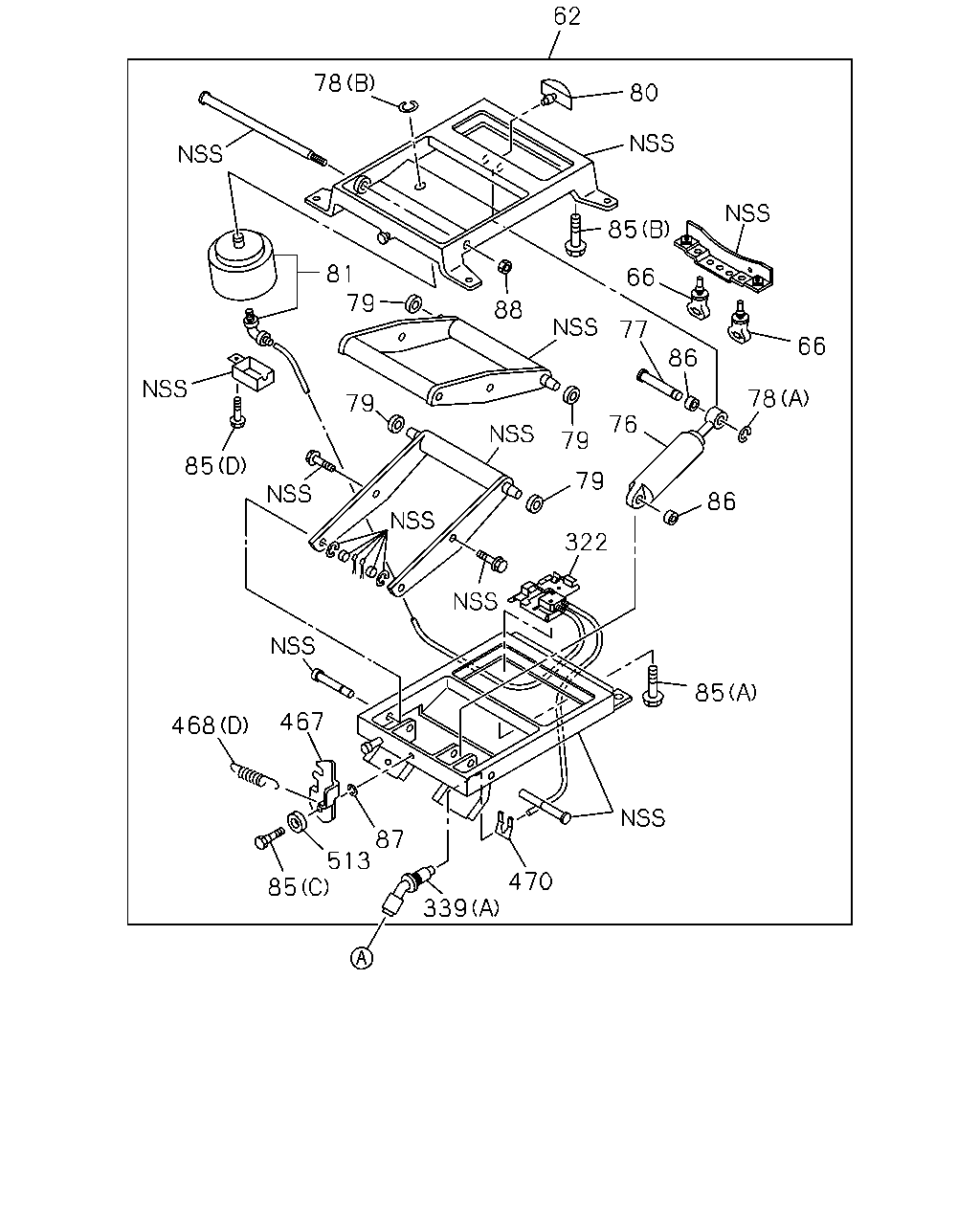

62 80 85 66 86 66 88 81 79 85 79 79 76 86 322 470 339 87 513 85 468 467 79 77 78 85 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-183-8	01	1	1401-1403
62	DAMPER ASM; SEAT SUSP VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98261-448-0	01	1	1404-1502
62	DAMPER ASM; SEAT SUSP DELUXE SEAT(PQ8)	8-98261-448-0	01	1	1503-1509
62	DAMPER ASM; SEAT SUSP	8-98261-448-0	01	1	1510-
66	RUBBER; LWR STOPPER VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-145-0	02	1	1401-1502
66	RUBBER; LWR STOPPER DELUXE SEAT(PQ8)	1-75538-145-0	02	1	1503-1509
66	RUBBER; LWR STOPPER	1-75538-145-0	02	1	1510-
76	DAMPER; AIR SUSP VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-139-0	01	1	1401-1502
76	DAMPER; AIR SUSP DELUXE SEAT(PQ8)	1-75538-139-0	01	1	1503-1509
76	DAMPER; AIR SUSP	1-75538-139-0	01	1	1510-
77	PIN; DAMPER VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-138-2	01	1	1401-1502
77	PIN; DAMPER DELUXE SEAT(PQ8)	1-75538-138-2	01	1	1503-1509
77	PIN; DAMPER	1-75538-138-2	01	1	1510-
78	RING; SNAP VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) ID=8	9-09185-408-0	01	1	1401-1502
78	RING; SNAP DELUXE SEAT(PQ8) (A) ID=8	9-09185-408-0	01	1	1503-1509
78	RING; SNAP (A) ID=8	9-09185-408-0	01	1	1510-
78	RING; SNAP VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) ID=15	9-09185-415-0	01	1	1401-1502
78	RING; SNAP DELUXE SEAT(PQ8) (B) ID=15	9-09185-415-0	01	1	1503-1509
78	RING; SNAP (B) ID=15	9-09185-415-0	01	1	1510-
79	ROLLER ASM; AIR SUSP VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-159-0	04	1	1401-1403
79	ROLLER ASM; AIR SUSP VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98261-489-0	04	1	1404-1502
79	ROLLER ASM; AIR SUSP DELUXE SEAT(PQ8)	8-98261-489-0	04	1	1503-1509
79	ROLLER ASM; AIR SUSP	8-98261-489-0	04	1	1510-
80	RUBBER; STOPPER VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-09987-123-0	01	1	1401-1502
80	RUBBER; STOPPER DELUXE SEAT(PQ8)	1-09987-123-0	01	1	1503-1509
80	RUBBER; STOPPER	1-09987-123-0	01	1	1510-
81	SPRING; AIR VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-151-2	01	1	1401-1401
81	SPRING; AIR VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98242-816-0	01	1	1401-1502
81	SPRING; AIR DELUXE SEAT(PQ8)	8-98242-816-0	01	1	1503-1509
81	SPRING; AIR	8-98242-816-0	01	1	1510-
85	BOLT; AIR SUSP VINYL SEAT(A83),DELUXE SEAT(PQ8) (C)	1-09980-577-1	01	1	1401-1502
85	BOLT; AIR SUSP DELUXE SEAT(PQ8) (C)	1-09980-577-1	01	1	1503-1509
85	BOLT; AIR SUSP (C)	1-09980-577-1	01	1	1510-
85	BOLT; AIR SUSP VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M6X12	1-75538-208-1	02	1	1401-1502
85	BOLT; AIR SUSP DELUXE SEAT(PQ8) (A) M6X12	1-75538-208-1	02	1	1503-1509
85	BOLT; AIR SUSP (A) M6X12	1-75538-208-1	02	1	1510-
85	BOLT; AIR SUSP VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1401-1401
85	BOLT; AIR SUSP VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-1502
85	BOLT; AIR SUSP DELUXE SEAT(PQ8) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1503-1509
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1510-
85	BOLT; AIR SUSP VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-1502
85	BOLT; AIR SUSP DELUXE SEAT(PQ8) (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1503-1509
85	BOLT; AIR SUSP (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1510-
86	BUSHING; GUIDE VINYL SEAT(A83),DELUXE SEAT(PQ8) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1401-1502
86	BUSHING; GUIDE DELUXE SEAT(PQ8) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1503-1509
86	BUSHING; GUIDE OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1510-
87	WASHER; AIR SUSP VINYL SEAT(A83),DELUXE SEAT(PQ8) ID=8.2	0-91510-508-0	01	1	1401-1502
87	WASHER; AIR SUSP DELUXE SEAT(PQ8) ID=8.2	0-91510-508-0	01	1	1503-1509
87	WASHER; AIR SUSP ID=8.2	0-91510-508-0	01	1	1510-
88	NUT; AIR SUSP VINYL SEAT(A83),DELUXE SEAT(PQ8) M10	1-75537-273-1	01	1	1401-1502
88	NUT; AIR SUSP DELUXE SEAT(PQ8) M10	1-75537-273-1	01	1	1503-1509
88	NUT; AIR SUSP M10	1-75537-273-1	01	1	1510-
322	VALVE; AIR SPRING VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-186-3	01	1	1401-1502
322	VALVE; AIR SPRING DELUXE SEAT(PQ8)	1-75538-186-3	01	1	1503-1509
322	VALVE; AIR SPRING	1-75538-186-3	01	1	1510-
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	1401-
339	UNION; DRIVER SEAT VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75538-131-3	01	1	1401-1502
339	UNION; DRIVER SEAT DELUXE SEAT(PQ8) (A)	1-75538-131-3	01	1	1503-1509
339	UNION; DRIVER SEAT (A)	1-75538-131-3	01	1	1510-
467	LEVER; LOCK VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-134-0	01	1	1401-1502
467	LEVER; LOCK DELUXE SEAT(PQ8)	1-75538-134-0	01	1	1503-1509
467	LEVER; LOCK	1-75538-134-0	01	1	1510-
468	SPRING; RETURN VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-206-0	01	1	1401-1502
468	SPRING; RETURN DELUXE SEAT(PQ8) (A)	1-75518-206-0	01	1	1503-1509
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN VINYL SEAT(A83),DELUXE SEAT(PQ8) (B)	1-75518-207-0	01	1	1401-1502
468	SPRING; RETURN DELUXE SEAT(PQ8) (B)	1-75518-207-0	01	1	1503-1509
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN VINYL SEAT(A83),DELUXE SEAT(PQ8) (C)	1-75518-208-0	02	1	1401-1502
468	SPRING; RETURN DELUXE SEAT(PQ8) (C)	1-75518-208-0	02	1	1503-1509
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1510-
468	SPRING; RETURN VINYL SEAT(A83),DELUXE SEAT(PQ8) (D)	1-75538-132-0	01	1	1401-1502
468	SPRING; RETURN DELUXE SEAT(PQ8) (D)	1-75538-132-0	01	1	1503-1509
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1510-
470	CLIP; HOSE VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-137-0	01	1	1401-1502
470	CLIP; HOSE DELUXE SEAT(PQ8)	1-75538-137-0	01	1	1503-1509
470	CLIP; HOSE	1-75538-137-0	01	1	1510-
513	SPACER; LEVER VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-133-0	01	1	1401-1502
513	SPACER; LEVER DELUXE SEAT(PQ8)	1-75538-133-0	01	1	1503-1509
513	SPACER; LEVER	1-75538-133-0	01	1	1510-

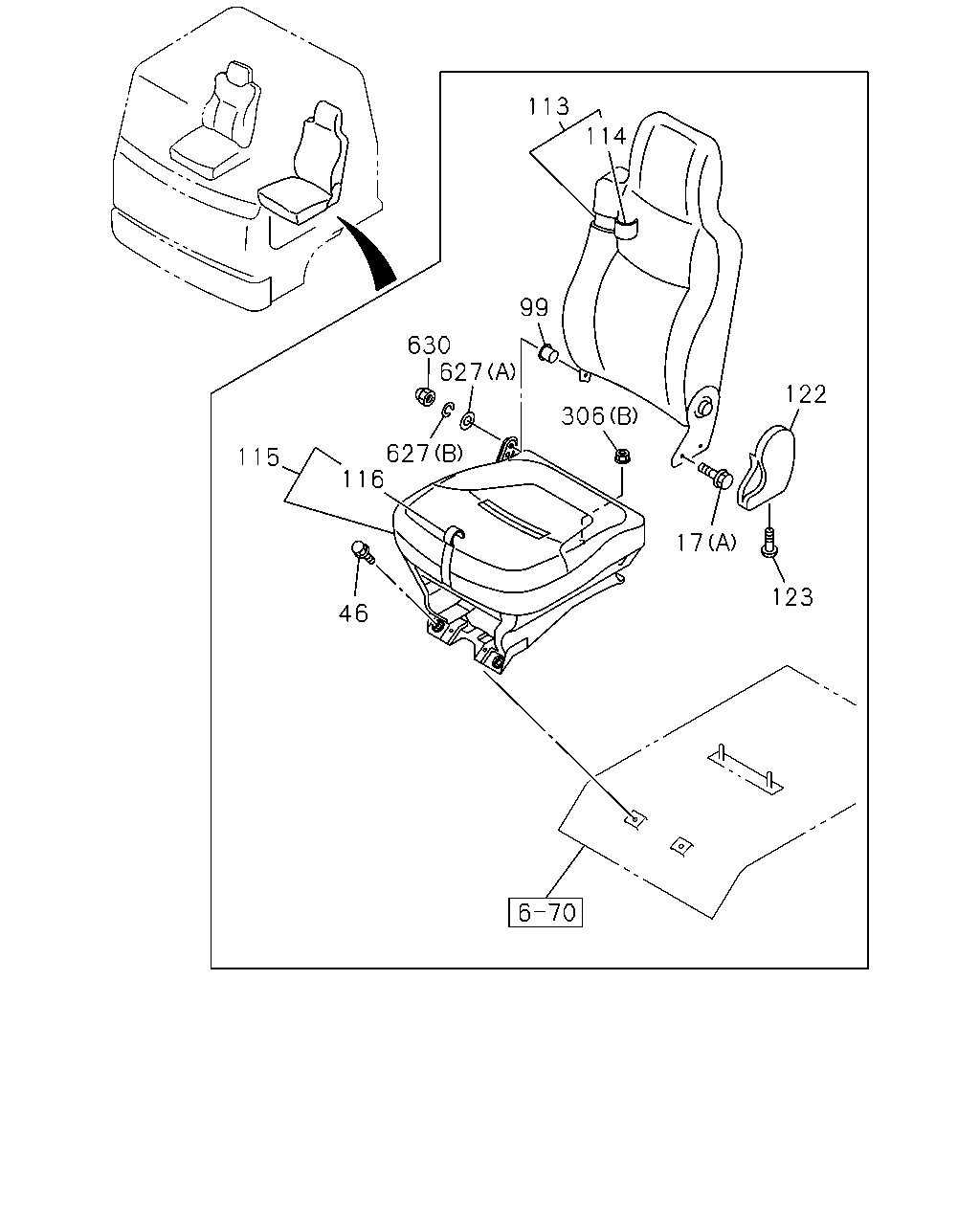

113 114 99 630 627 116 115 46 306 123 17 122 627

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M10X20	8-98062-661-0	02	1	1401-1502
17	BOLT; RECLINING DELUXE SEAT(PQ8) (B) M10X20	8-98062-661-0	02	1	1503-1509
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8X20	8-98092-334-0	02	1	1401-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1401-
99	BUSHING; SEAT BACK VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98112-751-0	01	1	1401-
113	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97421-422-0	01	1	1401-
113	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97409-966-1	01	1	1401-
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT(PQ8) DARK GRAY	8-97421-424-0	01	1	1401-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT(A83) DARK GRAY	8-97411-916-0	01	1	1401-
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97421-418-1	01	1	1401-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT(A83) DARK GRAY	8-97409-965-1	01	1	1401-
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT(PQ8) DARK GRAY	8-97421-420-0	01	1	1401-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT(A83) DARK GRAY	8-97411-915-0	01	1	1401-
122	COVER; ADJ,RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY	8-97409-967-0	01	1	1401-
123	SCREW; COVER,RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) M5	8-98070-026-0	01	1	1401-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1401-
306	NUT; SEAT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8 FLANGE	1-75538-207-0	06	1	1401-1502
306	NUT; SEAT ADJ DELUXE SEAT(PQ8) (A) M8 FLANGE	1-75538-207-0	06	1	1503-1509
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	06	1	1510-
627	WASHER; FRT SEAT VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	8-98063-223-0	01	1	1401-
627	WASHER; FRT SEAT VINYL SEAT(A83),DELUXE SEAT(PQ8) (B)	8-98063-224-0	01	1	1401-
630	NUT; CAP VINYL SEAT(A83),DELUXE SEAT(PQ8) M8	8-98063-225-0	01	1	1401-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
