7-20 — MIRROR AND MIRROR STAY (#132278) — 79 parça

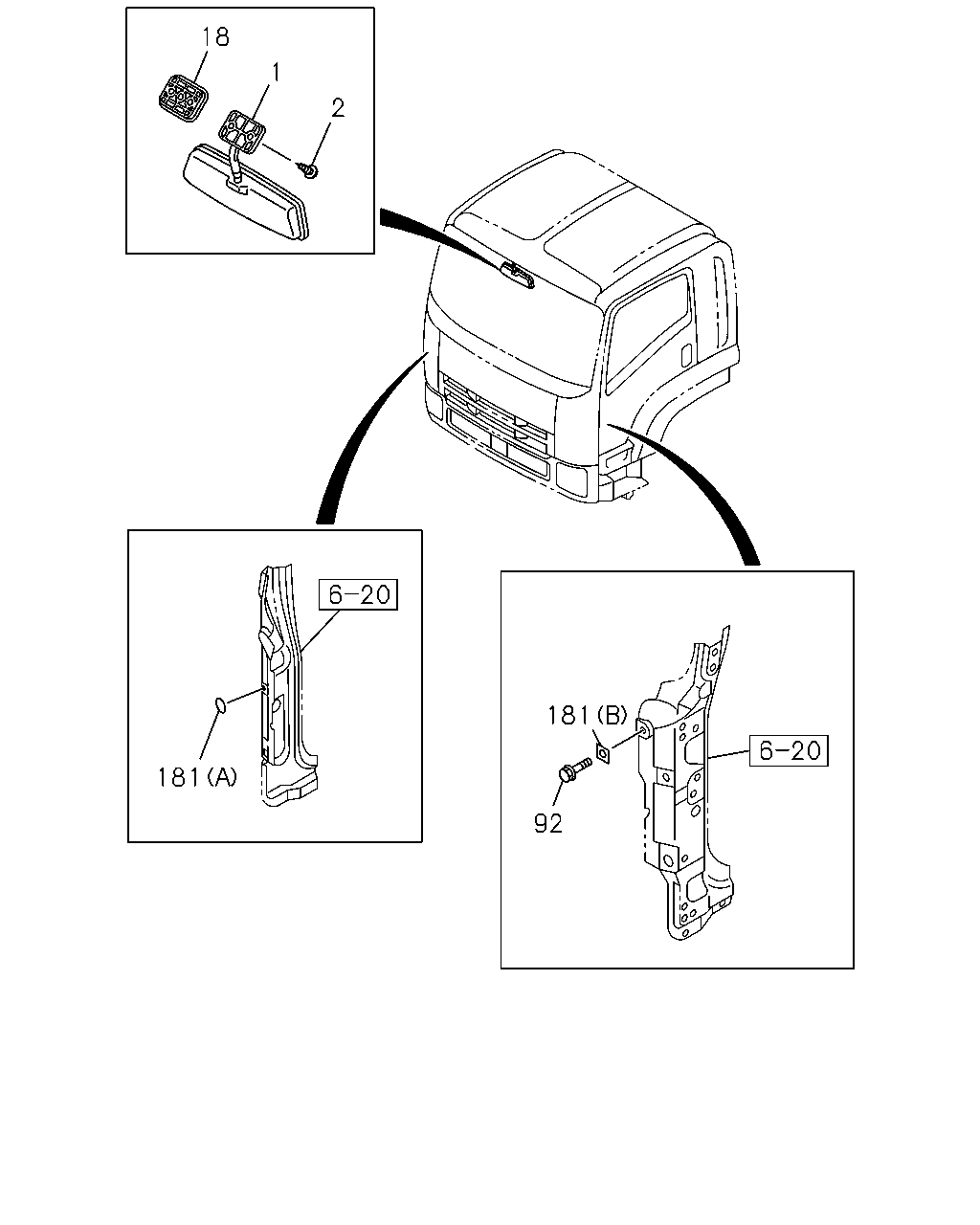

çizim 401831
18 2 1 181 181 92
BalonParca AdiParca NoAdetTipApplied Date
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1401-
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1401-
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1401-
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1401-
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1401-
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1401-

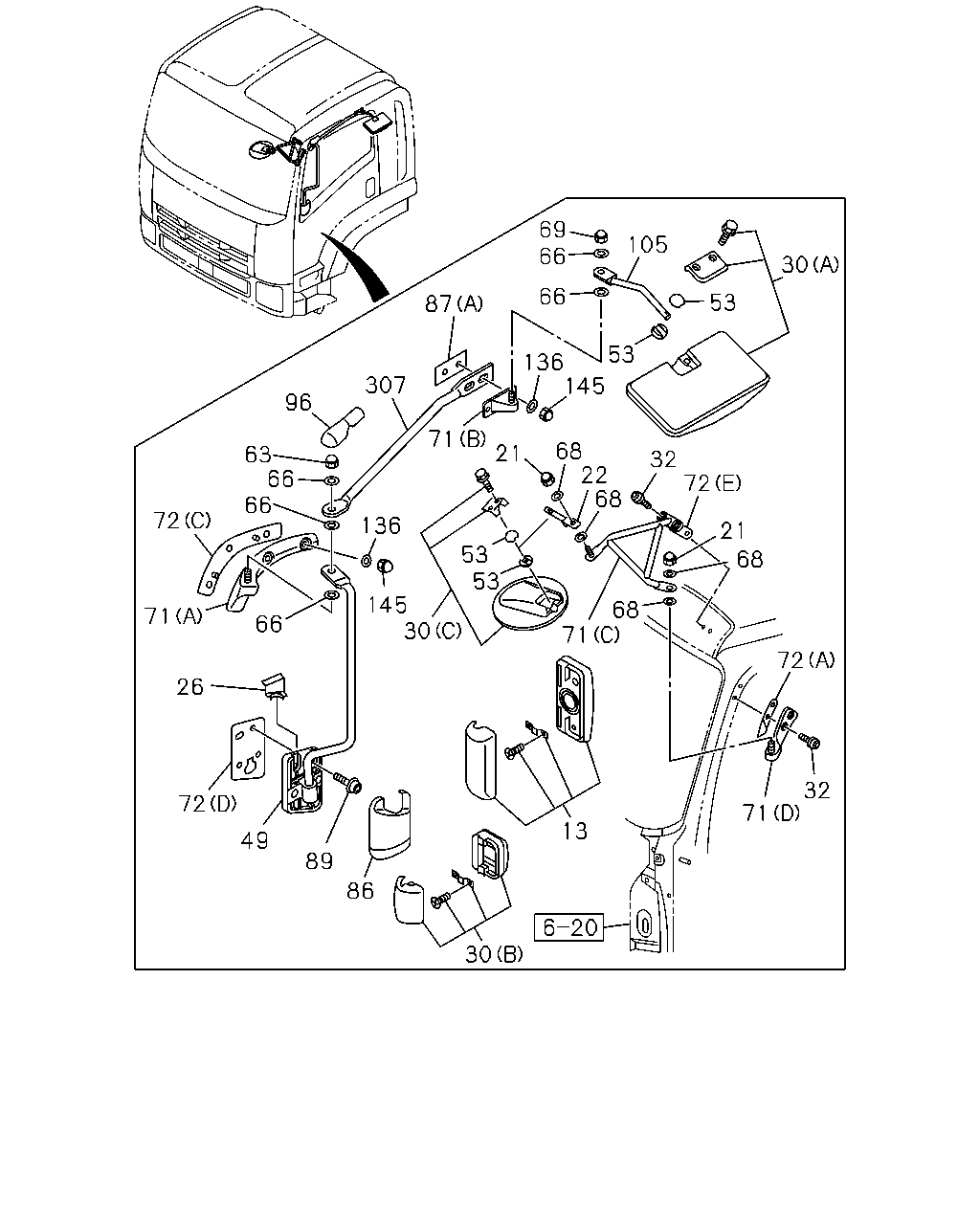

çizim 402090
30 86 89 49 72 26 71 66 72 66 66 63 96 307 87 13 30 145 136 71 21 53 53 71 71 32 72 68 21 72 32 68 68 22 68 136 145 53 53 30 105 69 66 66
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-992-1 01 1 1401-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-991-1 01 1 1401-
21 NUT; MIRROR
M10 CAP NUT 		1-09984-134-0 02 1 1401-
22 STAY; OUTSIDE MIRROR 8-98092-493-0 01 1 1401-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1401-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1401-
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1401-
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1401-
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1401-1504
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505-
32 SCREW; UNDER MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 04 1 1401-
49 STAY; MIRROR SIDE 8-98166-195-0 01 1 1401-
49 STAY; MIRROR SIDE 8-98166-194-0 01 1 1401-
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 04 1 1401-
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1401-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 08 1 1401-
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1401-
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 1401-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1401-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1401-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1401-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98092-492-3 01 1 1401-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1401-
72 SHEET
(C) 		8-98031-797-0 01 1 1401-
72 SHEET
(E) 		8-98060-245-1 01 1 1401-
72 SHEET
(A) 		8-98064-776-0 01 1 1401-
72 SHEET
(D) 		8-98116-605-0 01 1 1401-
72 SHEET
(B) 		8-98031-796-0 01 1 1401-
72 SHEET
(D) 		8-98116-604-0 01 1 1401-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1401-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1401-
87 SPACER
(A) 		8-98063-786-0 02 1 1401-
87 SPACER
(B) 		8-98063-789-0 01 1 1401-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1401-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1401-
105 STAY; SUB UNDER MIRROR 8-98080-109-2 01 1 1401-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1401-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1401-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1401-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1401-

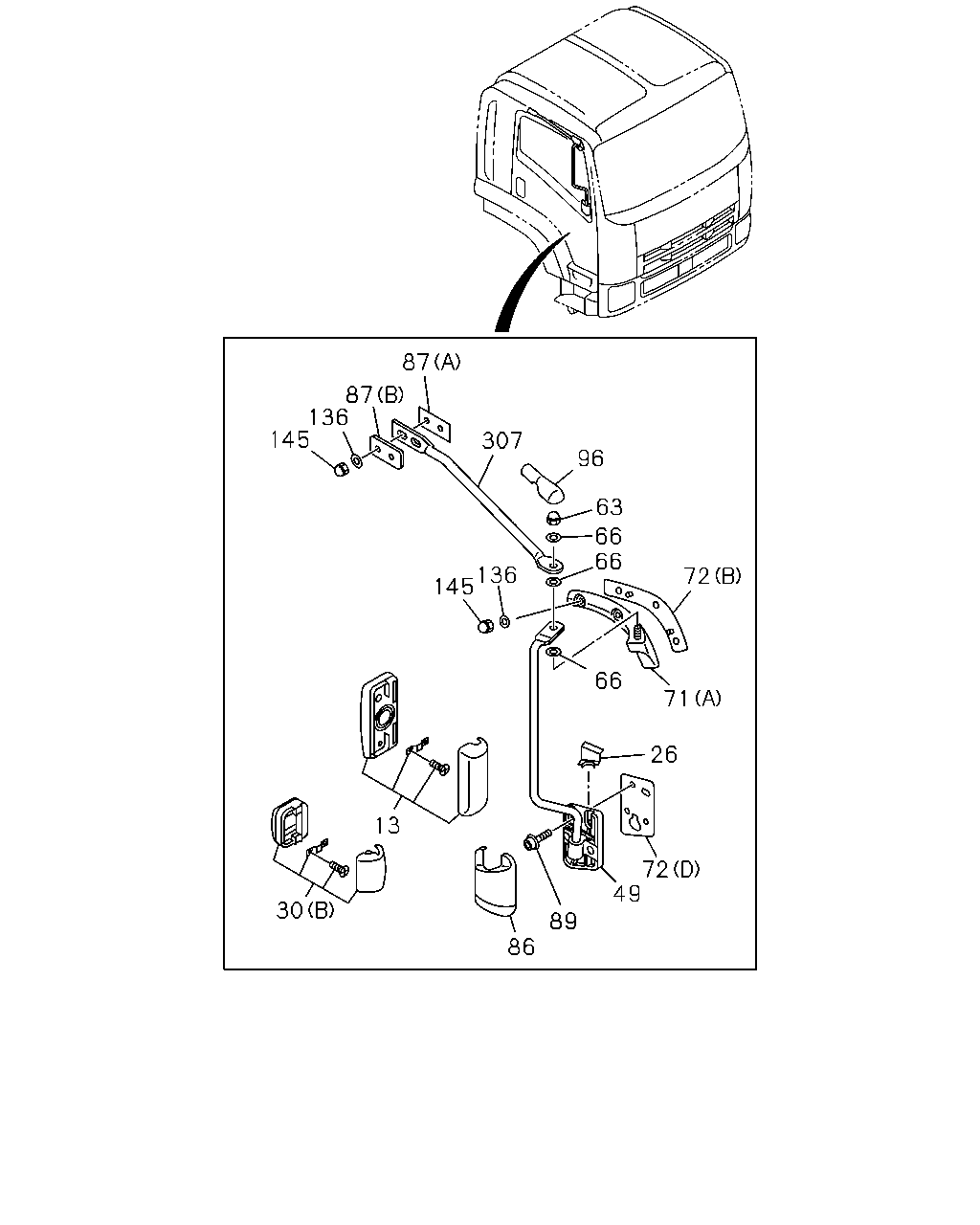

çizim 402278
30 13 145 136 145 136 87 87 307 96 63 66 66 72 66 71 26 72 49 89 86
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-992-1 01 1 1401-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-991-1 01 1 1401-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1401-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1401-
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1401-
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1401-
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1401-1504
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505-
49 STAY; MIRROR SIDE 8-98166-195-0 01 1 1401-
49 STAY; MIRROR SIDE 8-98166-194-0 01 1 1401-
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1401-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 08 1 1401-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1401-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1401-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1401-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98092-492-3 01 1 1401-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1401-
72 SHEET
(C) 		8-98031-797-0 01 1 1401-
72 SHEET
(E) 		8-98060-245-1 01 1 1401-
72 SHEET
(A) 		8-98064-776-0 01 1 1401-
72 SHEET
(D) 		8-98116-605-0 01 1 1401-
72 SHEET
(B) 		8-98031-796-0 01 1 1401-
72 SHEET
(D) 		8-98116-604-0 01 1 1401-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1401-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1401-
87 SPACER
(A) 		8-98063-786-0 02 1 1401-
87 SPACER
(B) 		8-98063-789-0 01 1 1401-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1401-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1401-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1401-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1401-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1401-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1401-
