6-20 — SIDE PANEL AND STEP (#132259) — 67 parça

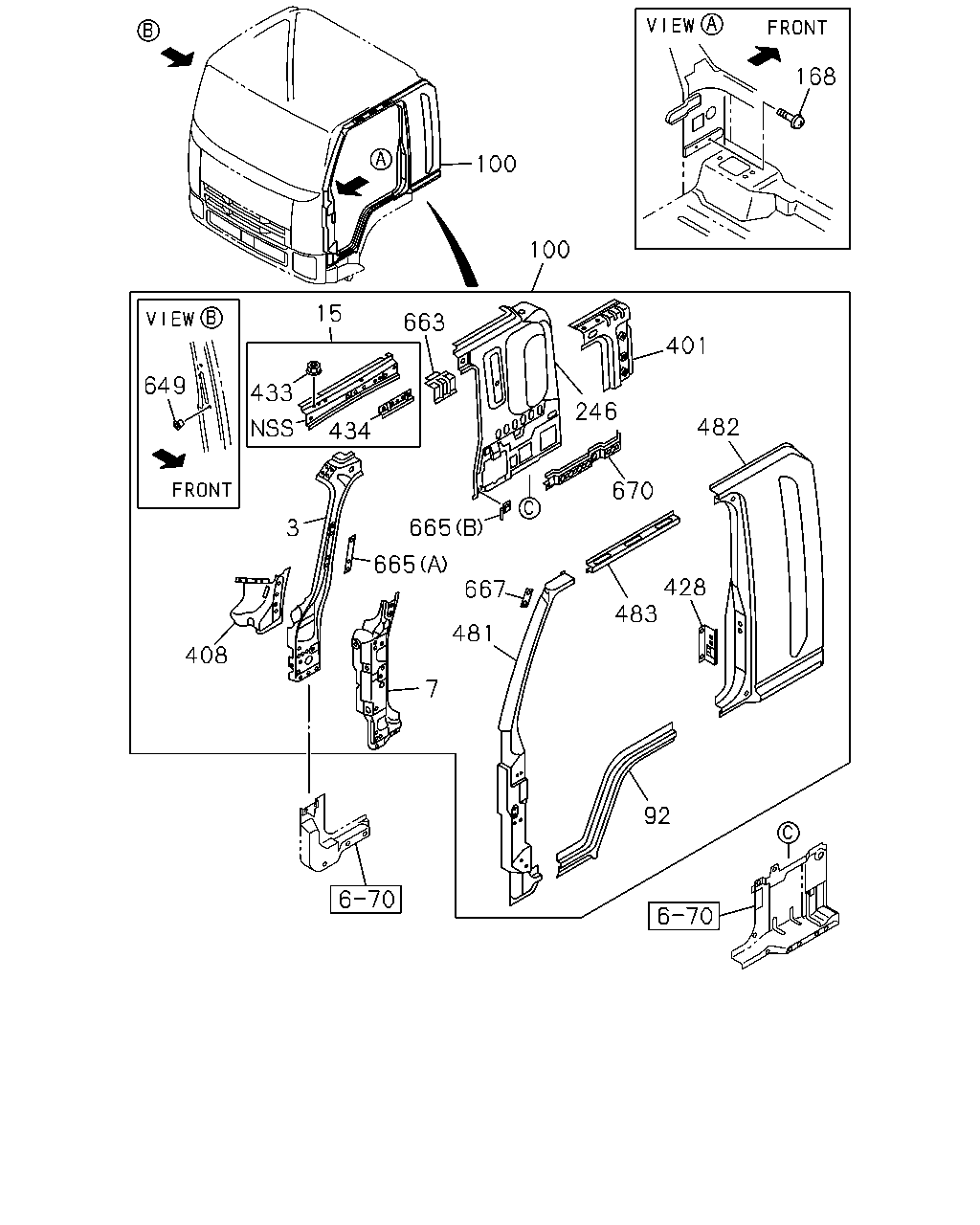

çizim 402272
482 401 100 100 663 15 433 649 3 665 434 665 481 7 670 246 428 483 408 92 667 168
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1401-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1401-
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1401-
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1401-
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1401-
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1401-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1401-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1401-
100 PANEL ASM; BODY SIDE 8-97586-073-9 01 1 1401-
100 PANEL ASM; BODY SIDE 8-98122-095-1 01 1 1401-
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1401-
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1401-
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1401-
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1401-
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1401-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1401-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1401-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1401-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1401-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1401-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1401-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1401-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1401-
481 PANEL; SIDE FRT PILLAR 8-98055-453-0 01 1 1401-
481 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 1401-
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1401-
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1401-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1401-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1401-
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1401-
663 BRACKET; AIR 8-97585-208-2 01 1 1401-
663 BRACKET; AIR 8-97585-207-2 01 1 1401-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1401-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1401-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1401-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1401-
667 BRACKET; MIRROR 8-98109-948-0 01 1 1401-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1401-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1401-

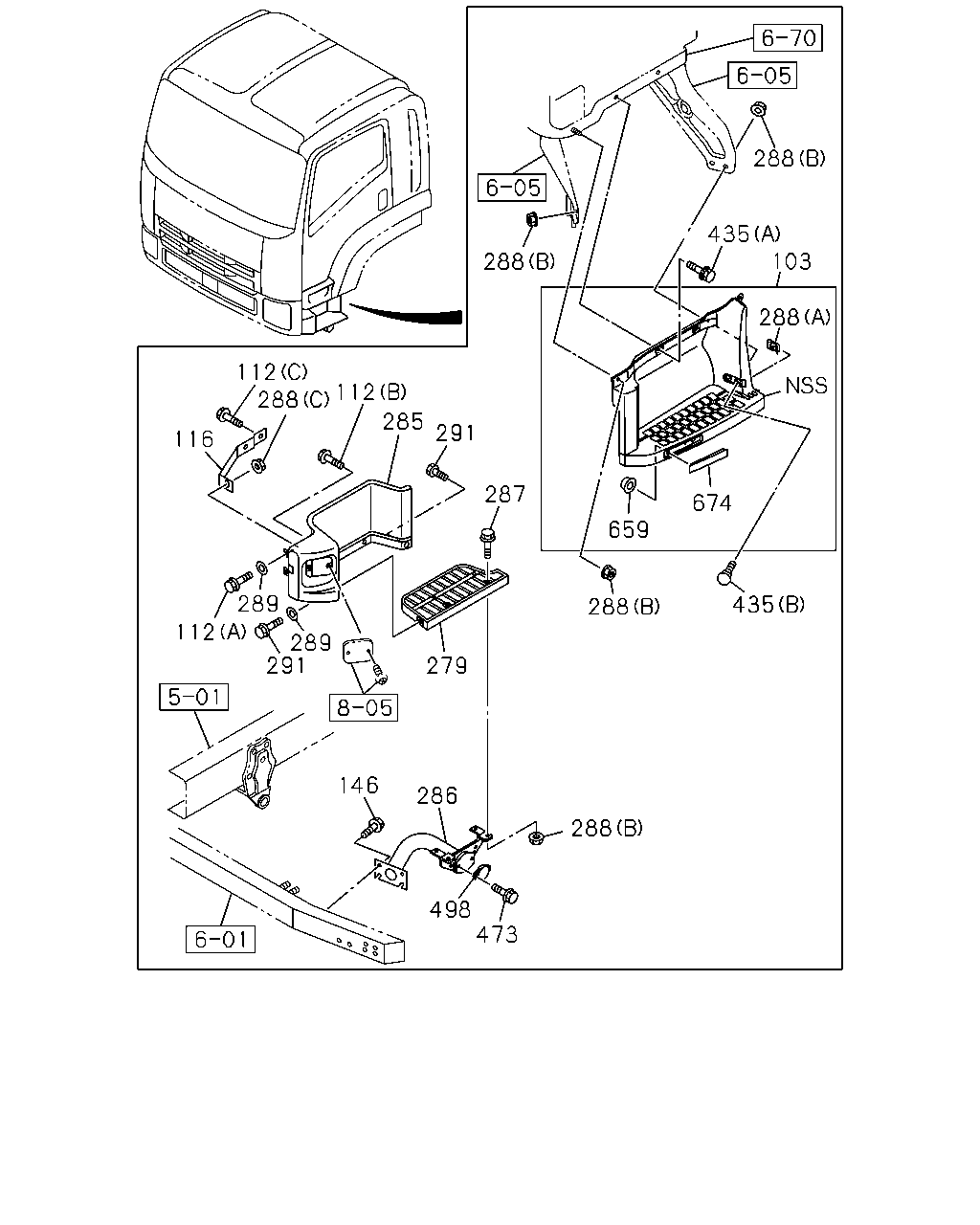

çizim 402316
435 288 659 674 288 103 435 288 288 291 287 279 286 146 498 473 288 291 112 289 289 285 112 288 112 116
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98069-977-2 01 1 1401-
103 PLATE; STEP 8-98069-976-2 01 1 1401-
112 BOLT; 1ST STEP
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1401-
112 BOLT; 1ST STEP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1401-
112 BOLT; 1ST STEP
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1401-
116 STAY; 1ST STEP,FRT 8-98196-756-0 02 1 1401-
146 BOLT; STEP BRKT
M12X30 FLANGE 		0-28051-230-0 08 1 1401-1504
146 BOLT; STEP BRKT
M12X40 FLANGE 		0-28051-240-0 08 1 1505-
279 BOARD; STEP 1ST 1-53414-181-0 01 1 1401-
279 BOARD; STEP 1ST 1-53414-180-0 01 1 1401-
285 PLATE; STEP,1ST STEP 8-98017-535-3 01 1 1401-
285 PLATE; STEP,1ST STEP 8-98017-536-3 01 1 1401-
286 STEP ASM; 1ST 8-98203-551-0 01 1 1401-
286 STEP ASM; 1ST 8-98203-550-0 01 1 1401-
287 BOLT; BOARD STEP
M8X35 FLANGE 		0-28650-835-0 08 1 1401-
288 NUT; STEP
(C) M6 FLANGE 		0-91180-106-0 02 1 1401-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 08 1 1401-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1401-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1401-
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 10 1 1401-
291 BOLT; STEP PLATE
M6X12 FLANGE 		0-28050-612-0 06 1 1401-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1401-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1401-
473 DRIP; SIDE
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 1401-
498 REFLECTOR 1-82290-011-1 02 1 1401-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1401-
674 COVER; REFLECTOR 8-98092-734-0 01 1 1401-
674 COVER; REFLECTOR 8-98092-733-0 01 1 1401-
