◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11568 - GXR(MALAYSIA)EURO3 ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#132249) — 82 parça

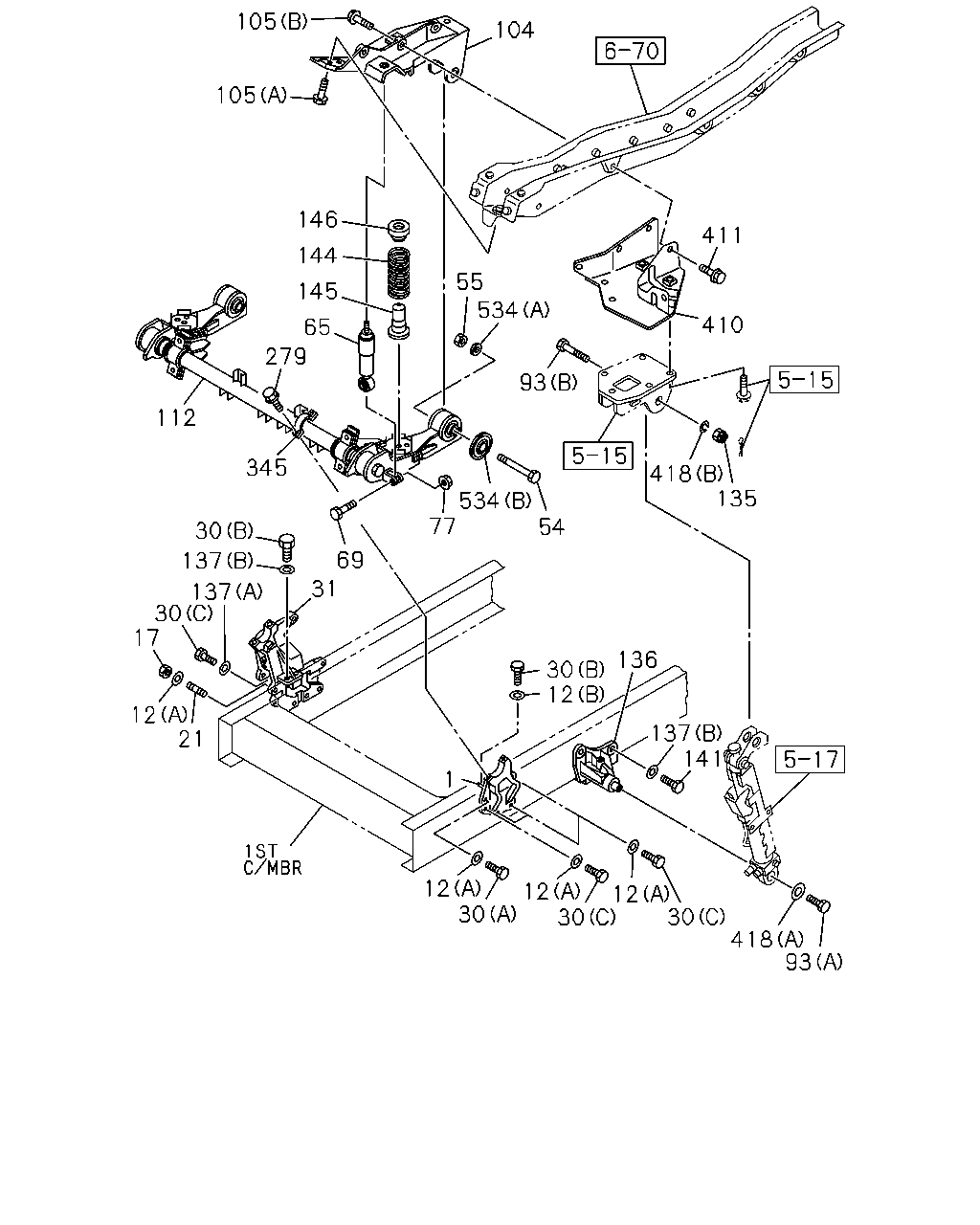

çizim 402003
105 104 105 146 144 145 55 65 279 112 345 30 137 137 30 17 12 21 69 31 77 534 93 534 411 410 418 135 30 136 12 137 141 12 1 30 12 30 12 30 418 93 54
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; CAB MTG 8-98054-826-0 01 1 1401-
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-316-0 06 1 1401-
12 WASHER; LK,BRKT
(B) ID=15 		8-98010-627-1 02 1 1401-
17 NUT; BRKT,CAB TILT
M16 		0-91110-516-0 01 1 1401-
21 STUD; BRKT,CAB TILT
M16X50 L=74 		1-09300-117-0 01 1 1401-
30 BOLT; CAB FRT FOOT
(B) M14X60 		0-20951-460-0 04 1 1401-
30 BOLT; CAB FRT FOOT
(C) M16X50 		0-20951-650-0 09 1 1401-
30 BOLT; CAB FRT FOOT
(A) M16X60 		0-20951-660-0 01 1 1401-
31 BRACKET; CAB 1-44226-181-0 01 1 1401-
54 BOLT; RUBBER
M18X90 		0-10856-890-0 02 1 1401-
55 NUT; RUBBER
M18 		0-91110-518-0 02 1 1401-
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1401-
69 BOLT; S/ABS,CAB FRT SUSPENSION
M12X60 		0-20801-260-0 02 1 1401-
77 NUT
M12 FLANGE 		0-91180-212-0 02 1 1401-
93 BOLT; PIN
(A) M10X30 		1-09000-283-0 01 1 1401-
93 BOLT; PIN
(B) M14X70 		1-53458-633-0 01 1 1401-
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-821-2 01 1 1401-
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-822-2 01 1 1401-
105 BOLT; BRKT TO CAB FRAME
(A) M12X35 FLANGE 		0-28651-235-0 06 1 1401-
105 BOLT; BRKT TO CAB FRAME
(B) M10X30 FLANGE 		0-28661-030-0 08 1 1401-
112 ARM ASM; LINK,CAB FRT SUSP 8-98100-381-0 01 1 1401-
135 NUT; PIN
M14 SLOTTED 		0-91116-514-0 01 1 1401-
136 BRACKET; OIL CYL 8-98054-835-0 01 1 1401-
137 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-316-0 05 1 1401-
137 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 02 1 1401-
137 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 04 1 1401-
141 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1401-
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-537-0 02 1 1401-
145 RUBBER; CUSHION,CAB FRT SUSPENSION 1-53366-139-0 02 1 1401-
146 SEAT; SPRING,CAB FRT SUSPENSION 1-53366-138-0 02 1 1401-
279 BOLT
M12X40 FLANGE 		0-28061-240-0 04 1 1401-1510
279 BOLT
M12X40 FLANGE 		8-98270-173-0 04 1 1511-
345 CAP; CAB 1-53458-336-3 02 1 1401-
410 REINFORCEMENT; CAB TILT 8-98054-960-3 01 1 1401-
411 BOLT; REINFORCEMENT
M8X20 FLANGE 		0-28650-820-0 03 1 1401-
411 BOLT; REINFORCEMENT
M10X30 FLANGE 		0-28661-030-0 02 1 1401-
418 WASHER; PL,PIN
(B) ID=14.2 		0-91510-814-0 01 1 1401-
418 WASHER; PL,PIN
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 1401-
534 WASHER; RUBBER
(A) ID=19 OD=30 		1-09503-279-0 02 1 1401-
534 WASHER; RUBBER
(B) ID=34.5 		1-53458-281-1 02 1 1401-

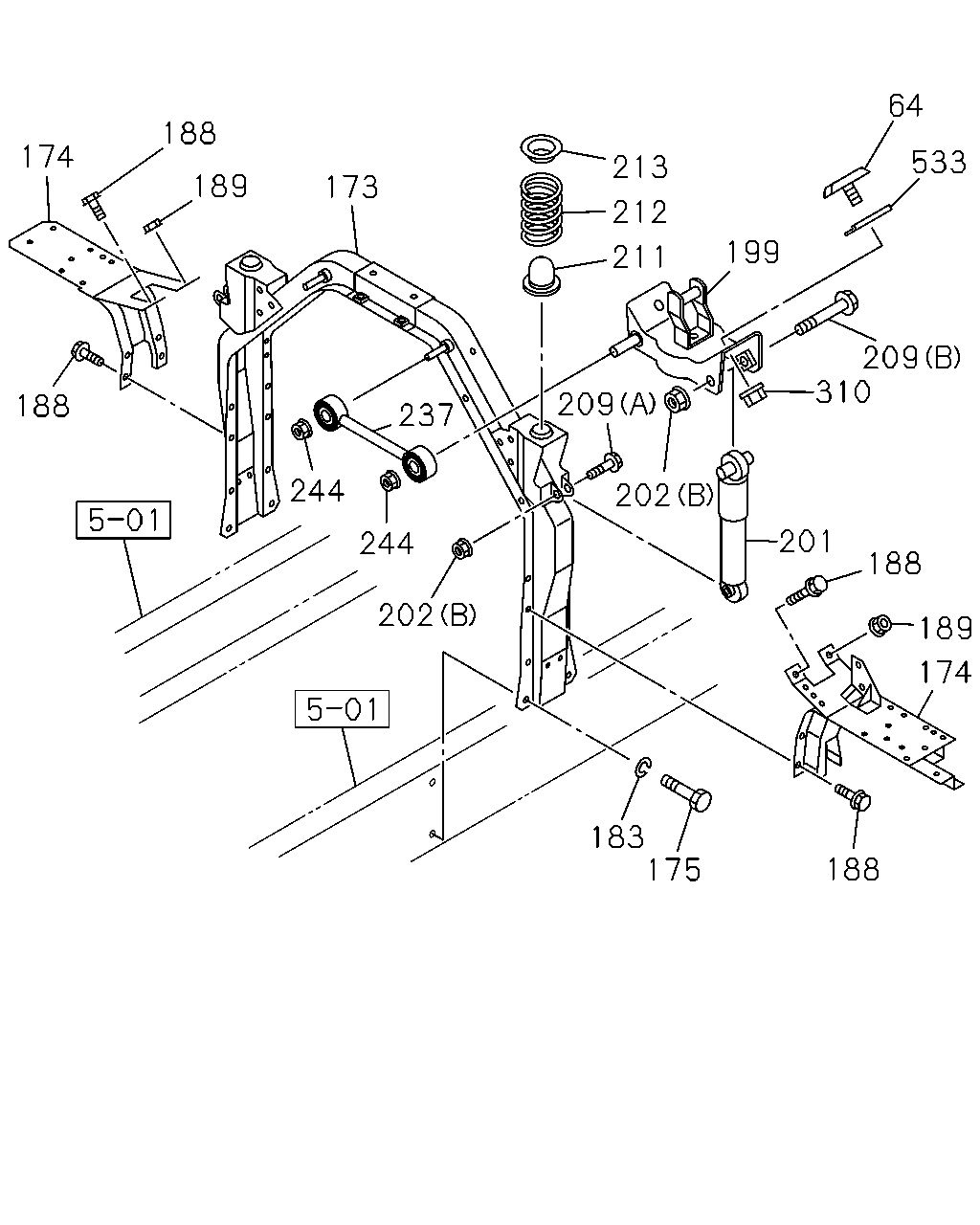

çizim 402181
174 188 244 237 244 202 209 173 189 188 213 211 212 533 64 199 310 201 189 174 188 183 175 202 188 209
BalonParca AdiParca NoAdetTipApplied Date
64 RUBBER; CUSHION 8-97113-340-0 04 1 1401-
173 MEMBER; CAB MTG RR 8-98054-836-3 01 1 1401-
174 OUTRIGGER 8-98054-839-2 01 1 1401-
174 OUTRIGGER 8-98054-838-1 01 1 1401-
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 1401-
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 1401-
188 BOLT; OUTRIGGER
M12X30 FLANGE 		0-28661-230-0 10 1 1401-
189 NUT; OUTRIGGER
M12 FLANGE 		0-91180-212-0 02 1 1401-
199 BRACKET; CAB RR MTG 8-98025-488-4 01 1 1401-
199 BRACKET; CAB RR MTG 8-98025-489-4 01 1 1401-1403
199 BRACKET; CAB RR MTG 8-98270-495-0 01 1 1404-
201 ABSORBER ASM; SHOCK,RR MTG 8-98022-450-0 02 1 1401-1401
201 ABSORBER ASM; SHOCK,RR MTG 8-98269-510-0 02 1 1402-
202 NUT; S/ABS
(A) M10 FLANGE 		0-91180-110-0 02 1 1401-
202 NUT; S/ABS
(B) M12 FLANGE 		0-91180-212-0 04 1 1401-
202 NUT; S/ABS
(C) M10 		9-09111-410-0 02 1 1401-
209 BOLT; S/ABS
(A) M12X60 FLANGE 		0-28051-260-0 02 1 1401-
209 BOLT; S/ABS
(B) M12X100 FLANGE 		0-28061-200-0 02 1 1401-
211 RUBBER; CUSHION,S/ABS 1-53366-144-0 02 1 1401-
212 SPRING; COIL 1-09580-398-1 02 1 1401-
213 SEAT; SPR,S/ABS 1-53366-062-2 02 1 1401-
237 ROD ASM; LATERAL 1-53459-585-2 02 1 1401-
244 NUT; LATERAL ROD
M16 FLANGE 		0-91180-216-0 04 1 1401-
310 NUT; CUSHION
M8 FLANGE 		0-91180-108-0 04 1 1401-
533 SPACER; MTG RUBBER 8-98100-388-0 04 1 1401-
çizim 402198
112 535 191 191 535 51 48 27 51 536 191 535 535 535 191 51 536 27 48 51 535 535 535 203 204 205 204 203 202 202 65
BalonParca AdiParca NoAdetTipApplied Date
27 BOLT; BUSHING
M18X120 		1-09000-442-1 02 1 1401-
48 WASHER; PL
ID=19 OD=30 		1-09503-279-0 02 1 1401-
51 BUSHING; RUBBER 1-53458-714-0 04 1 1401-
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1401-
112 ARM ASM; LINK,CAB FRT SUSP 8-98100-381-0 01 1 1401-
191 BOLT; BRKT FIX
M12X35 FLANGE 		0-28051-235-0 08 1 1401-
202 NUT; S/ABS
(A) M10 FLANGE 		0-91180-110-0 02 1 1401-
202 NUT; S/ABS
(B) M12 FLANGE 		0-91180-212-0 04 1 1401-
202 NUT; S/ABS
(C) M10 		9-09111-410-0 02 1 1401-
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 02 1 1401-
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1401-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 04 1 1401-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 02 1 1401-
535 BRACKET; LINK ARM
(A) 		8-98094-831-0 02 1 1401-
535 BRACKET; LINK ARM
(B) 		8-98094-832-0 02 1 1401-
535 BRACKET; LINK ARM
(C) 		8-98099-704-0 04 1 1401-
536 WASHER; SIDE
ID=34.5 		1-53458-281-1 02 1 1401-
