5-01 — FRAME AND OTHER PARTS
(#132248) — 49 parça
◀

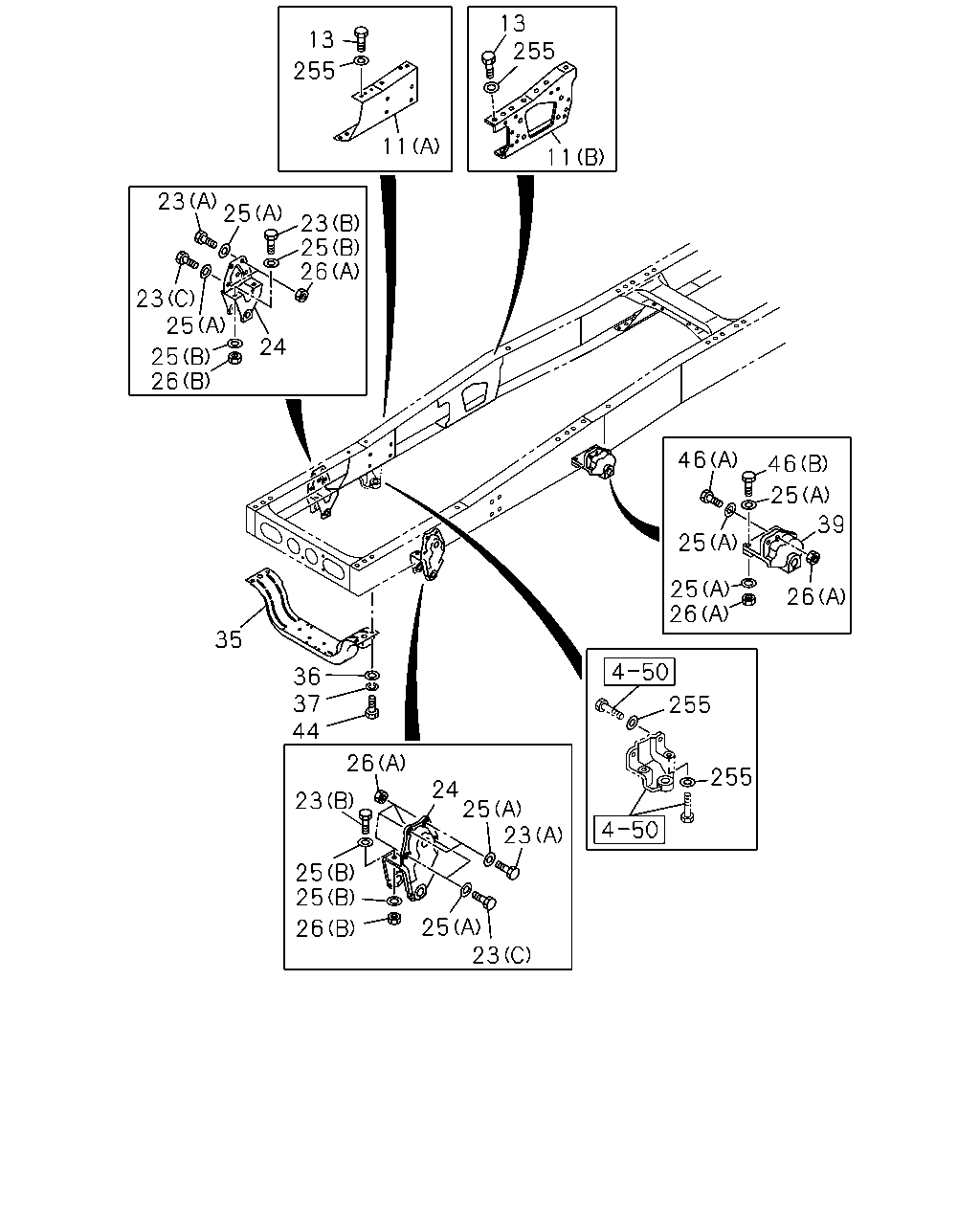

[501A] BRACKET;FRONT AND UNDER MEMBER (23 parça)

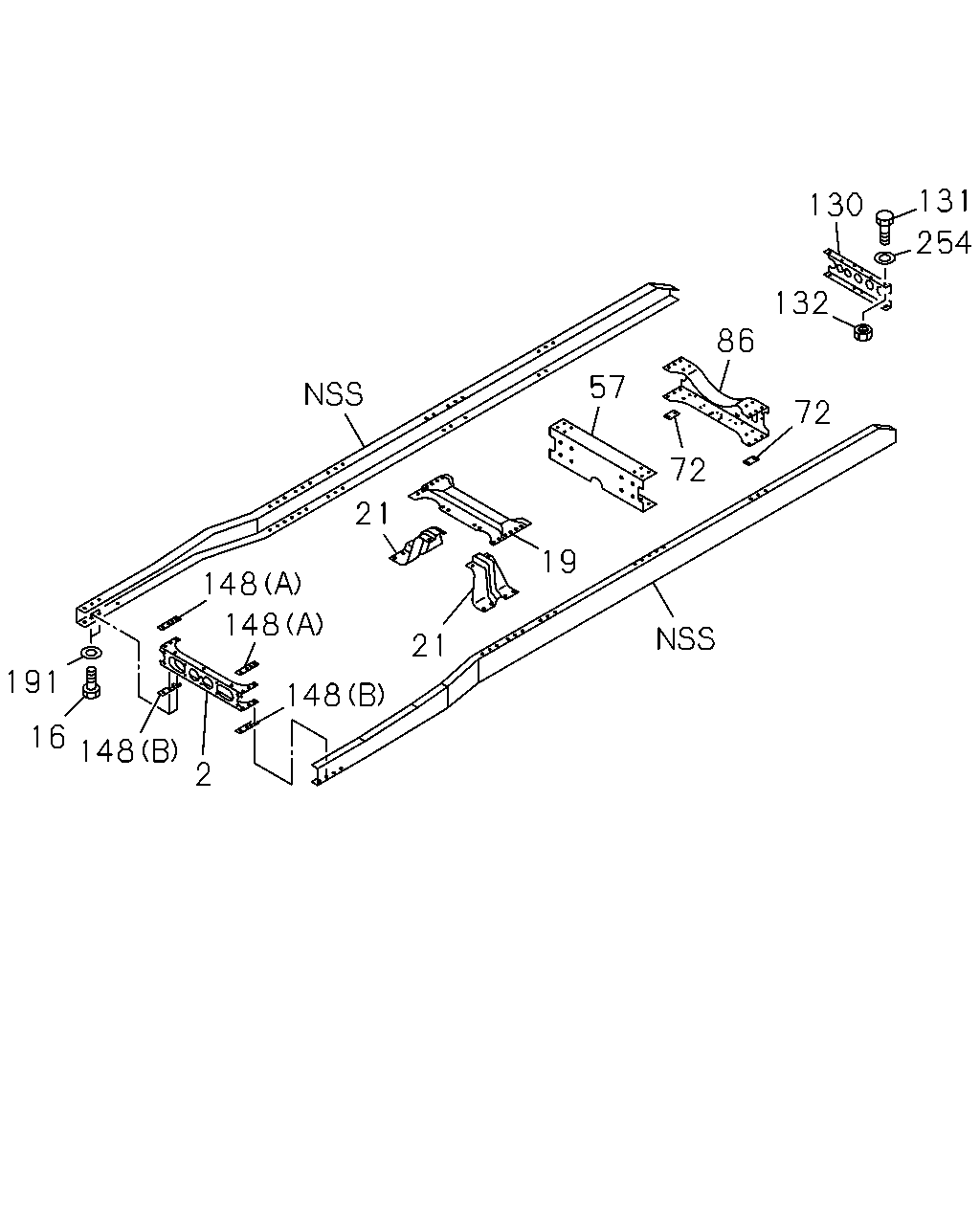

[501A] CROSS MEMBER (15 parça)
[501A] OUTRIGGER (5 parça)

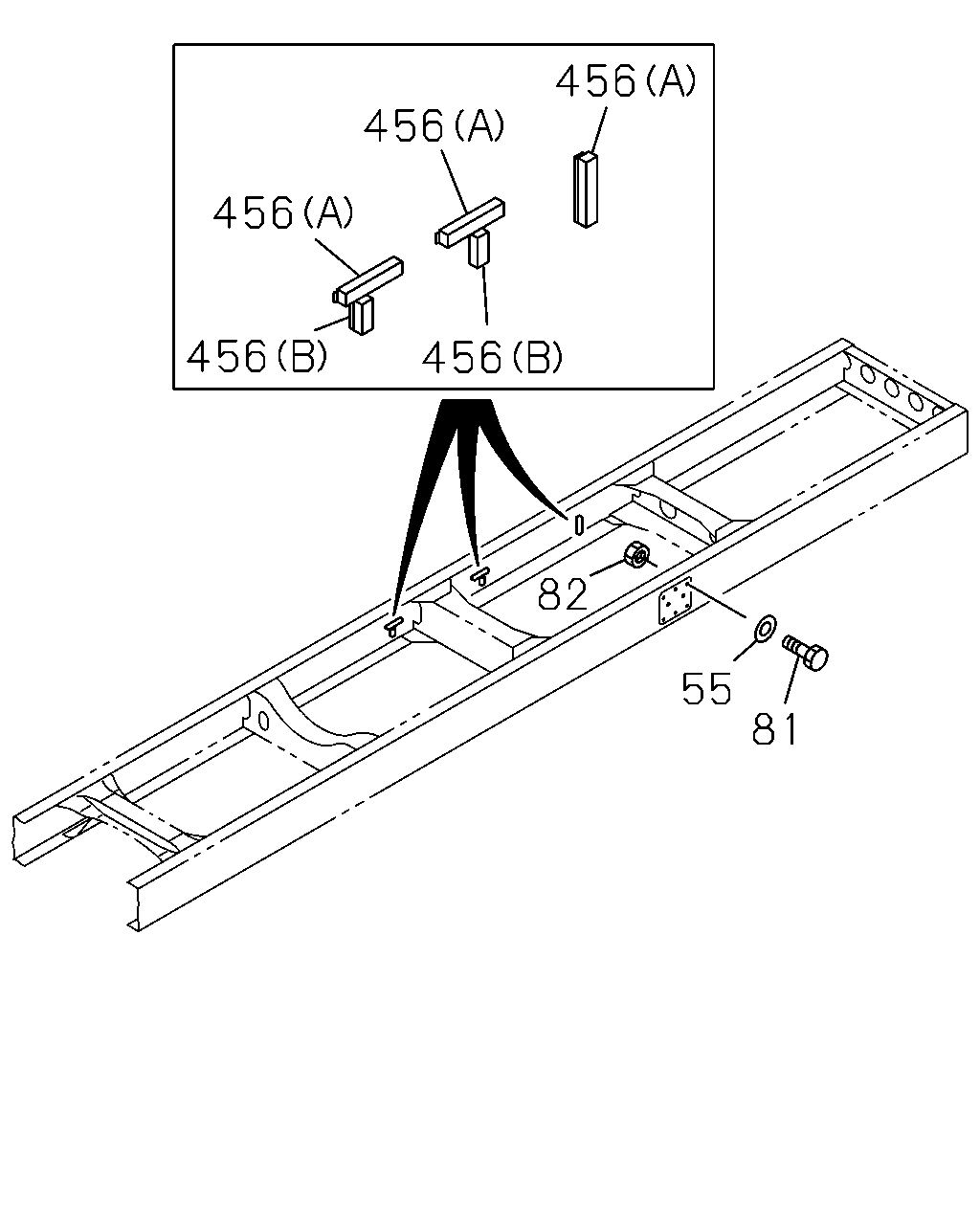

[501A] BRACKET;REAR (6 parça)
▶
25
25
26
26
39
25
46
46
26
25
25
23
24
26
25
23
25
23
255
13
11
11
255
13
35
36
37
44
23
26
24
25
23
25
23
26
25
25
255
255
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(B)
8-98055-432-1
01
1
1401-
11
BRACKET; ENG MTG
(B)
8-98055-433-0
01
1
1401-
11
BRACKET; ENG MTG
(A)
8-98059-445-1
01
1
1401-
11
BRACKET; ENG MTG
(A)
8-98059-446-1
01
1
1401-
13
BOLT; BRKT,ENG MTG
M14X35
0-20951-435-0
04
1
1401-
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
10
1
1401-
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
04
1
1401-
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
04
1
1401-
23
BOLT; BRKT,SPR
(C) M14X43
8-98097-159-0
04
1
1401-
24
BRACKET; FRT SPR,FRT
8-98052-580-0
02
1
1401-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1401-
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
20
1
1401-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
16
1
1401-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
1401-
35
MEMBER; UNDER
1-53174-263-2
01
1
1401-
36
WASHER; PL,UNDER MBR
ID=17
0-91614-516-0
04
1
1401-
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
1401-
39
BRACKET; FRT SPR,RR
1-53352-152-0
01
1
1401-
39
BRACKET; FRT SPR,RR
1-53352-153-0
01
1
1401-
44
BOLT; UNDER MBR
M16X60
0-20951-660-0
04
1
1401-
46
BOLT; BRKT FIX
(A) M14X40
0-20951-440-0
04
1
1401-
46
BOLT; BRKT FIX
(B) M14X40
8-98097-157-0
04
1
1401-
255
WASHER; PL,BRKT
ID=15
8-98010-627-1
18
1
1401-
21
19
21
148
148
2
57
72
72
86
132
130
131
254
148
16
191
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97623-017-3
01
1
1401-
16
BOLT; 1ST C/MBR TO S/MBR
M16X45
0-20951-645-0
02
1
1401-
19
MEMBER; CROSS,2ND
8-98098-303-0
01
1
1401-
21
GUSSET; 2ND CROSS
8-98202-398-0
01
1
1401-
21
GUSSET; 2ND CROSS
8-98202-399-0
01
1
1401-
57
MEMBER; CROSS,RR SUSP FRT
8-97624-344-1
01
1
1401-
72
SPACER; TRUNNION
8-98191-613-0
02
1
1401-
86
MEMBER; CROSS,RR SUSP RR
8-97624-484-1
01
1
1401-
130
MEMBER; CROSS,END
FRAME RR OVER HANG SHOTENING<7QS>
8-98105-203-0
01
1
1401-
131
BOLT; END C/MBR
FRAME RR OVER HANG SHOTENING<7QS> M14X40
0-20951-440-0
04
1
1401-
132
NUT; END C/MBR
FRAME RR OVER HANG SHOTENING<7QS> M14
0-91110-514-0
04
1
1401-
148
SPACER; C/MBR
(A)
8-98118-884-2
02
1
1401-
148
SPACER; C/MBR
(B)
8-98118-885-0
02
1
1401-
191
WASHER; PL,1ST C/MBR TO S/MBR
ID=16.2
1-09503-316-0
02
1
1401-
254
WASHER; PL,C/MBR
FRAME RR OVER HANG SHOTENING<7QS> ID=15
8-98010-627-1
04
1
1401-
152
152
151
155
155
268
151
268
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
151
NUT; OUTRIGGER
M16
0-91110-516-0
28
1
1401-
152
OUTRIGGER
8-97639-349-0
01
1
1401-
152
OUTRIGGER
8-97640-396-0
01
1
1401-
155
BOLT; OUTRIGGER
M16X40
0-20951-640-0
28
1
1401-
268
WASHER; PL,OUTRIGGER
ID=17 OD=30
9-09851-935-0
28
1
1401-
456
456
456
456
456
82
81
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
55
WASHER; PL
ID=16.2
1-09503-316-0
08
1
1401-
55
WASHER; PL
ID=15
8-98010-627-1
04
1
1401-
81
BOLT; BRKT
M14X50
0-20951-450-0
02
1
1401-
82
NUT; BRKT
M14
0-91110-514-0
02
1
1401-
456
PATCH; STOPPER
(A)
8-97642-212-0
06
1
1401-
456
PATCH; STOPPER
(B)
8-97642-213-0
04
1
1401-
