Isuzu WW
▶
TRUCKS
▶
GXR
▶
11568 - GXR(MALAYSIA)EURO3
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

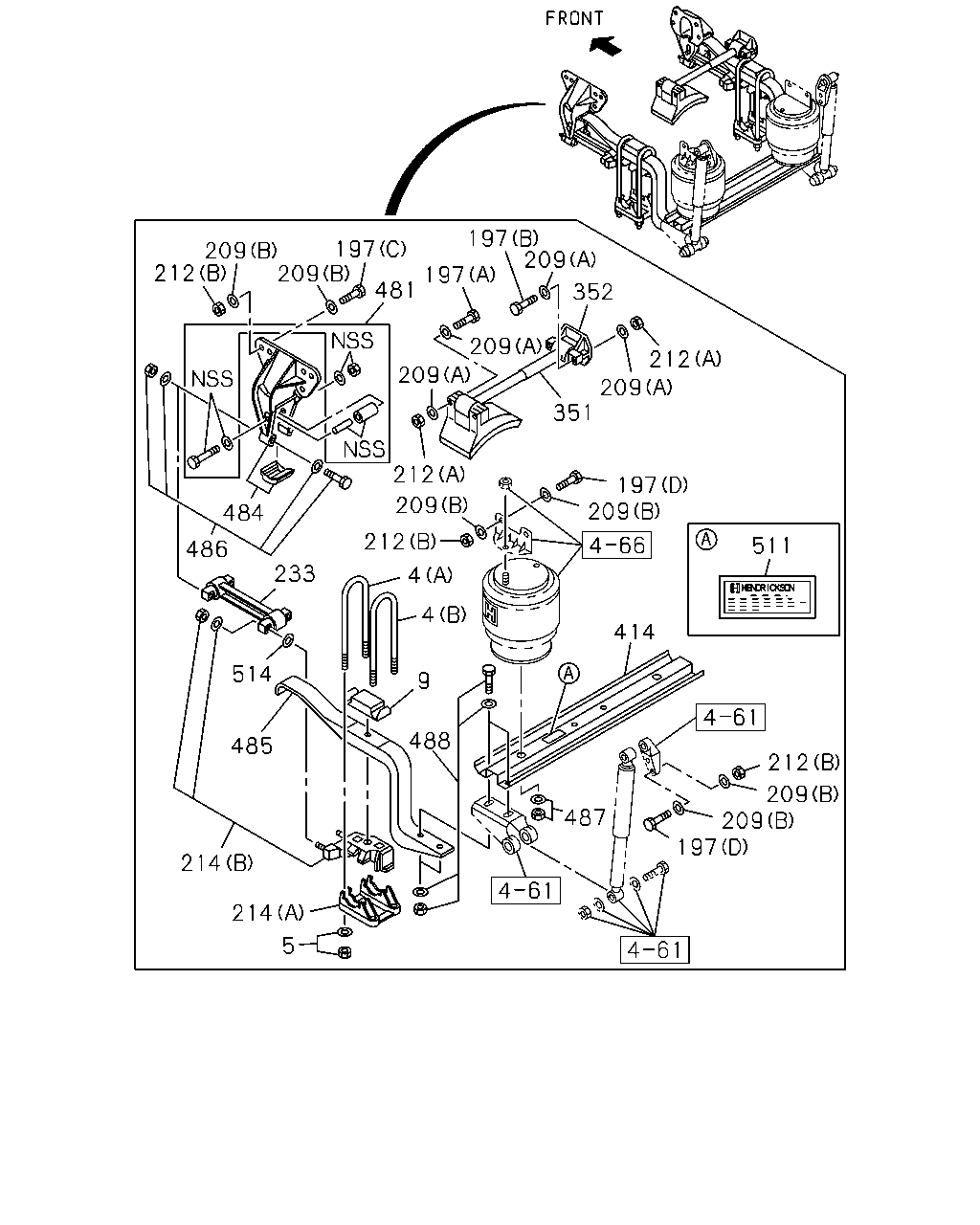

4-60 — REAR SUSPENSION
(#132241) — 35 parça
◀
[460A] NO.2 (9 parça)
[460A] NO.1 (26 parça)
▶
512
197
209
209
212
209
209
197
212
209
212
209
197
197
209
209
212
212
209
209
197
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
197
BOLT
(A)
1-09000-767-0
02
1
1401-
197
BOLT
(B)
1-09000-768-0
02
1
1401-
197
BOLT
(C) M20X65
1-09000-769-0
12
1
1401-
197
BOLT
(D)
1-09000-771-0
08
1
1401-
209
WASHER; PL
(A) ID=16
1-09503-314-0
08
1
1401-
209
WASHER; PL
(B) ID=20
1-09503-315-0
40
1
1401-
212
NUT
(A) M16
1-09400-160-0
04
1
1401-
212
NUT
(B) M20
1-09400-161-0
20
1
1401-

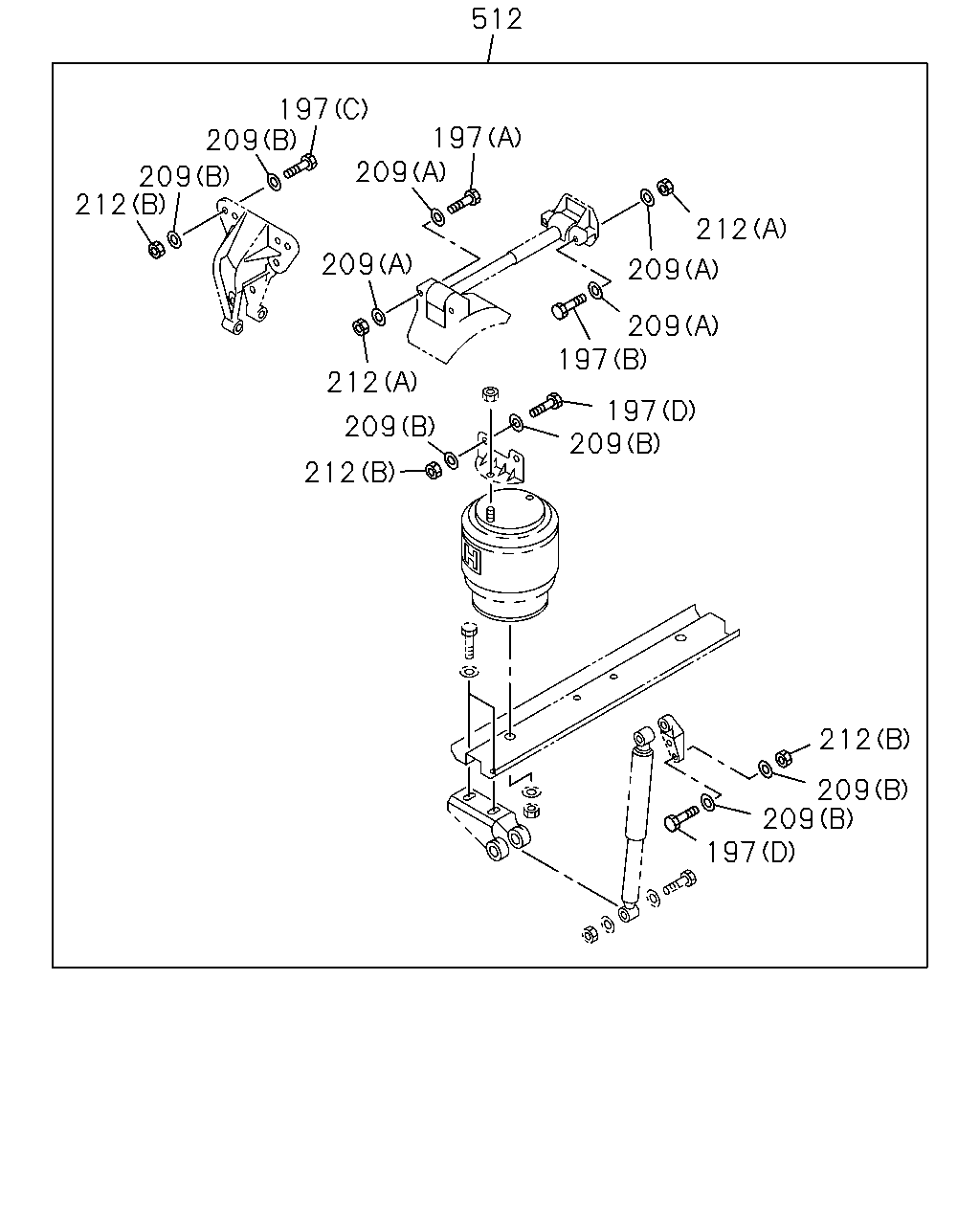

512
FIXING KIT; BRKT TO FRAME
8-98049-197-0
01
1
1401-
209
212
484
486
514
485
214
214
5
209
197
481
209
212
209
212
233
4
4
9
488
197
197
209
352
209
212
209
351
197
209
414
511
212
209
209
197
487
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
U-BOLT; RR SPR
(A) L=356
1-51371-229-0
02
1
1401-
4
U-BOLT; RR SPR
(B) L=381
1-51371-230-0
02
1
1401-
5
NUT; U-BOLT,RR SPR
1-52179-039-0
01
1
1401-
9
PAD; U BOLT,RR SPR
1-51372-073-0
02
1
1401-
197
BOLT
(A)
1-09000-767-0
02
1
1401-
197
BOLT
(B)
1-09000-768-0
02
1
1401-
197
BOLT
(C) M20X65
1-09000-769-0
12
1
1401-
197
BOLT
(D)
1-09000-771-0
08
1
1401-
209
WASHER; PL
(A) ID=16
1-09503-314-0
08
1
1401-
209
WASHER; PL
(B) ID=20
1-09503-315-0
40
1
1401-
212
NUT
(A) M16
1-09400-160-0
04
1
1401-
212
NUT
(B) M20
1-09400-161-0
20
1
1401-
214
SEAT; SPR
(A)
1-51385-103-0
02
1
1401-
214
SEAT; SPR
(B)
1-51385-105-0
02
1
1401-
233
ROD ASM; TORQUE,RR SUSP
L=366
1-51510-855-0
02
1
1401-
351
ROD ASM; RADIUS
1-51510-867-0
01
1
1401-
352
BRACKET; RADIUS ROD,FRAME
1-53353-132-0
01
1
1401-
414
BEAM; AIR SPR
1-52172-036-0
01
1
1401-
481
ROLLER; REBOUND
1-53357-043-0
01
1
1401-
484
BRACKET; REAR SPRING
1-53353-131-0
02
1
1401-
485
SPRING; LEAF
1-51410-259-0
02
1
1401-
486
FIXING KIT; TORQUE ROD
1-52000-165-0
01
1
1401-
487
FIXING KIT; AIR SPRING
1-52000-163-0
01
1
1401-
488
FIXING KIT; BEAM
1-52000-164-0
01
1
1401-
511
LABEL
1-51399-034-0
01
1
1401-
514
SPACER; TORQUE ROD
1-09503-299-0
08
1
1401-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
