4-40 — STEERING UNIT (#132237) — 58 parça

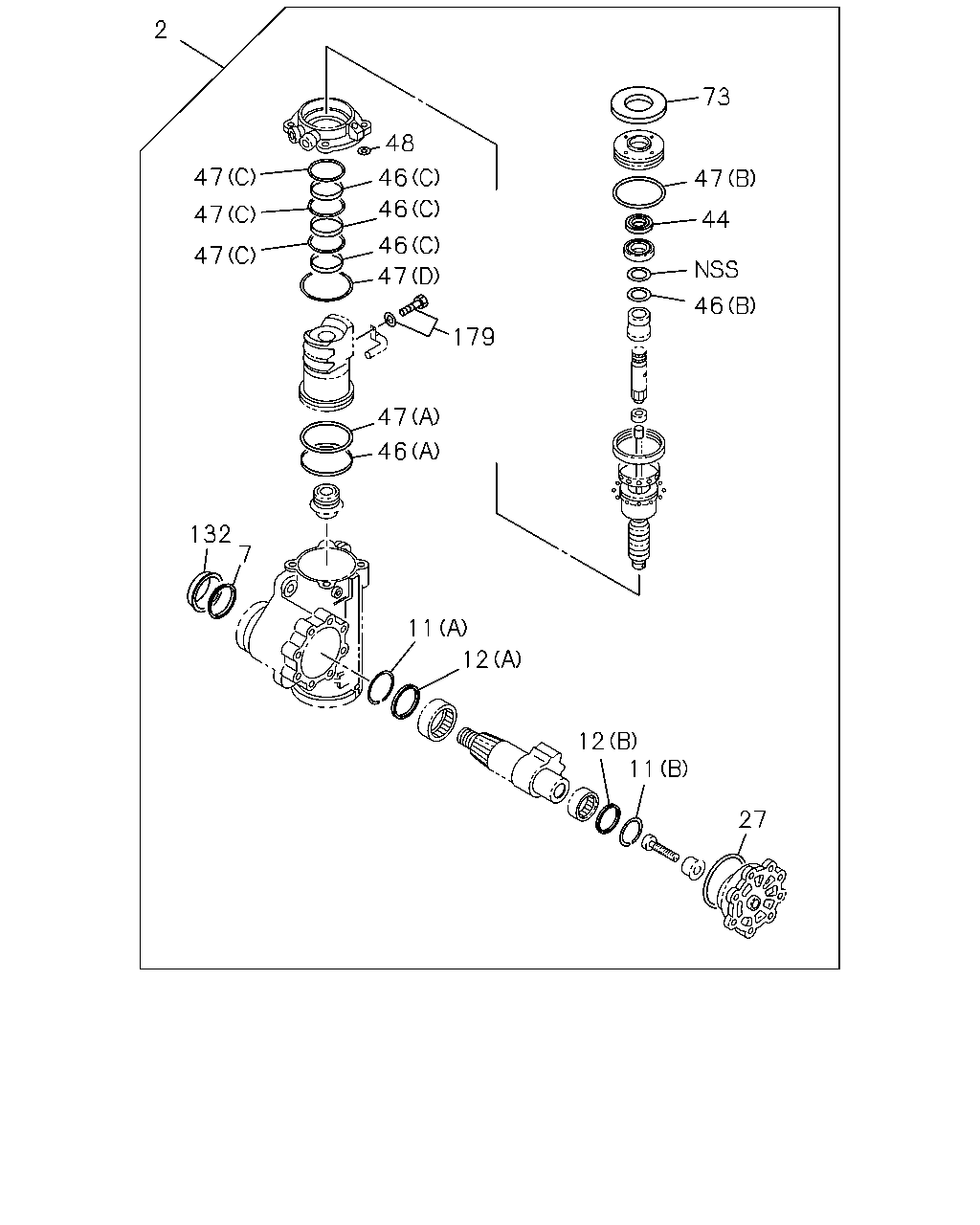

çizim 401566
2 73 47 47 47 47 48 46 46 46 47 179 47 46 132 7 11 12 12 11 27 44 46
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 8-98252-876-0 		8-98166-304-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-98252-876-0 		8-98159-116-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 8-98252-876-0 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 8-98252-876-0 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 8-98252-876-0 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 8-98252-876-0 		1-44519-265-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 8-98252-876-0 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 8-98252-876-0 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 8-98252-876-0 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 8-98252-876-0 		1-44519-255-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 8-98252-876-0 		1-44519-302-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 8-98252-876-0 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 8-98252-876-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 8-98252-876-0 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 8-98252-876-0 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 8-98252-876-0 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 8-98252-876-0 		8-98166-307-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 8-98252-876-0 		1-44519-227-0 01 1 -
179 SCREW; CLIP STRG UNIT
ASM PART: A = 8-98252-876-0 		1-09000-610-0 02 1 -

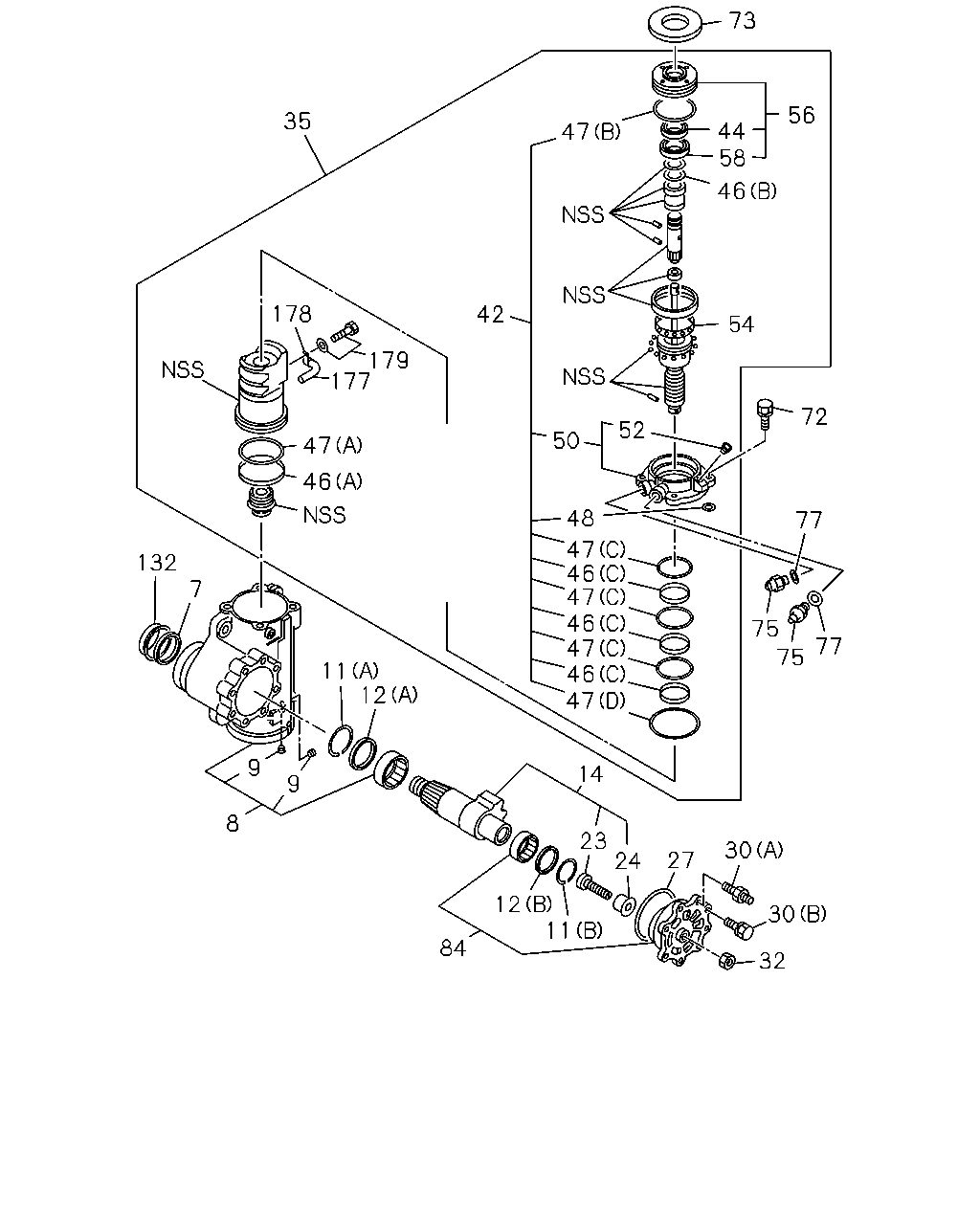

çizim 401931
73 56 44 58 47 46 35 42 54 72 77 77 75 75 52 50 178 179 177 47 46 132 7 9 9 8 11 12 14 23 24 27 12 11 84 30 30 32 48 46 47 46 47 47 46 47
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-98252-876-0 		8-98159-116-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 8-98252-876-0 		1-44240-148-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-98252-876-0 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 8-98252-876-0 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 8-98252-876-0 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 8-98252-876-0 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 8-98252-876-0 		1-44519-265-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-98252-876-0 		8-98257-705-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-98252-876-0 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 8-98252-876-0 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 8-98252-876-0 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 8-98252-876-0 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 8-98252-876-0 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-98252-876-0 		1-44269-037-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-98252-876-0 		8-98257-703-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 8-98252-876-0 		1-44560-080-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 8-98252-876-0 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 8-98252-876-0 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 8-98252-876-0 		1-44519-255-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 8-98252-876-0 		1-44519-302-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 8-98252-876-0 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 8-98252-876-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 8-98252-876-0 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 8-98252-876-0 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 8-98252-876-0 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 8-98252-876-0 		1-44560-076-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 8-98252-876-0 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 8-98252-876-0 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 8-98252-876-0 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 8-98252-876-0 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 8-98252-876-0 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 8-98252-876-0 		8-98166-307-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
M22X1.5 ASM PART: A = 8-98252-876-0 		1-44259-035-1 02 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 8-98252-876-0 		9-89970-787-0 02 1 -
84 COVER ASM; STRG UNIT
ASM PART: A = 8-98252-876-0 		1-44260-030-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 8-98252-876-0 		1-44519-227-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
ASM PART: A = 8-98252-876-0 		8-98245-543-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
ASM PART: A = 8-98252-876-0 		1-44159-034-0 01 1 -
179 SCREW; CLIP STRG UNIT
ASM PART: A = 8-98252-876-0 		1-09000-610-0 02 1 -
