4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#132235) — 70 parça

280 41 41 157 266 257 111 195 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1401-
111	BRACKET; OIL PIPE	8-98086-991-0	01	1	1401-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	1401-
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1401-
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1401-
256	NUT; UNION M22	0-91111-522-0	01	1	1401-
256	NUT; UNION M22	0-91111-522-0	01	1	1401-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1401-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1401-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1401-
280	HOSE; P/S OIL PUMP,INL	1-21437-995-0	01	1	1401-

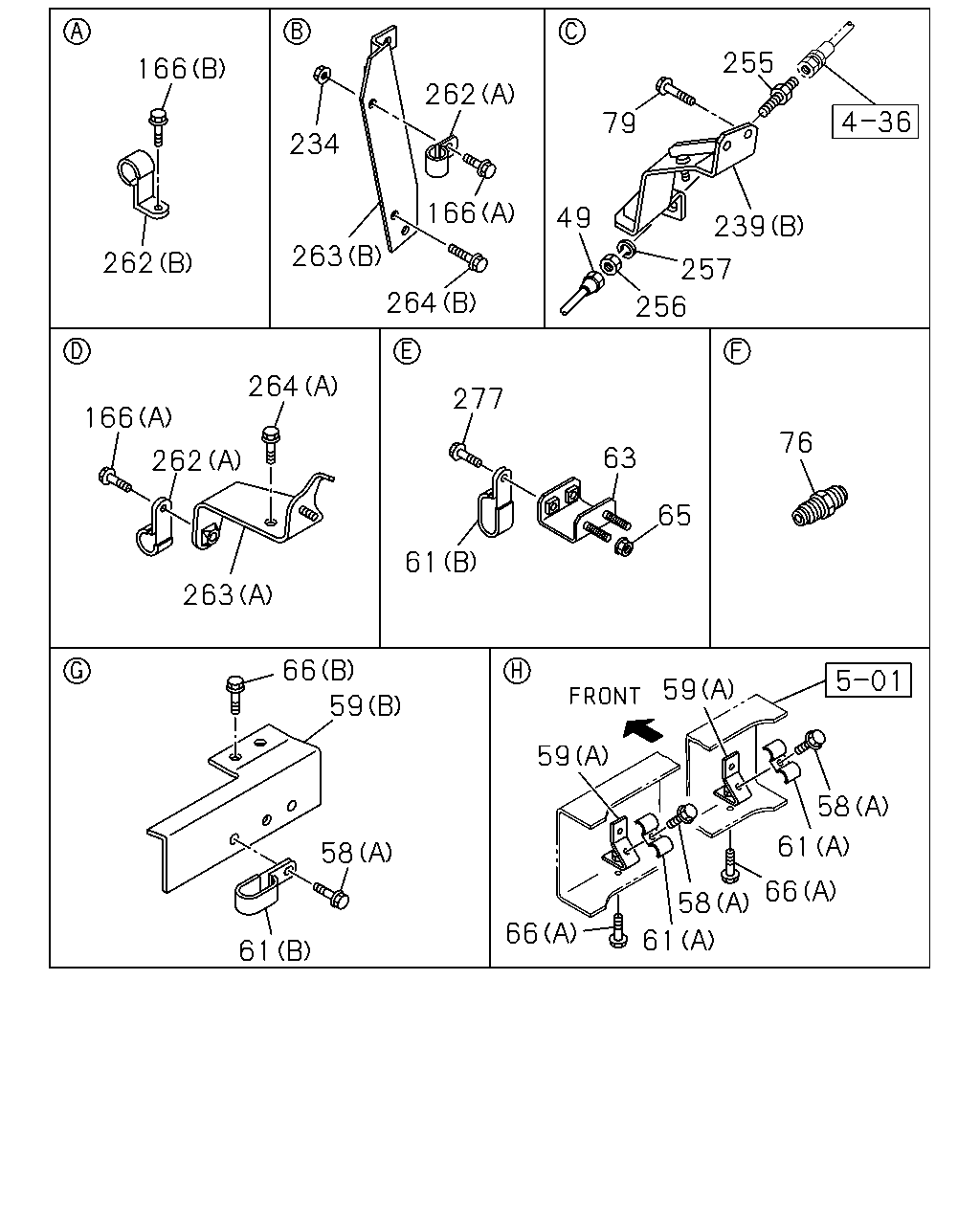

58 61 66 58 61 66 59 59 59 66 58 61 61 63 76 65 277 264 262 263 166 264 256 257 239 255 79 262 166 263 262 166 234 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION	8-98240-633-0	01	1	1401-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1401-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1401-
59	BRACKET; CLIP,OIL PIPE (A)	1-47479-521-0	02	1	1401-
59	BRACKET; CLIP,OIL PIPE (B)	8-98169-340-0	01	1	1401-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1401-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1401-
63	BRACKET; CLIP,P/S	8-98191-966-0	01	1	1401-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1401-
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28050-820-0	02	1	1401-
66	BOLT; BRKT,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1401-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	1401-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1401-
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1401-
166	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1401-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1401-
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1401-
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1401-
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1401-
256	NUT; UNION M22	0-91111-522-0	01	1	1401-
256	NUT; UNION M22	0-91111-522-0	01	1	1401-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1401-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1401-
262	CLIP; P/S PIPE (A) ID=16 L=20	0-95235-535-0	02	1	1401-
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1401-
263	BRACKET; P/S PIPE (A)	8-98089-895-2	01	1	1401-
263	BRACKET; P/S PIPE (B)	8-98090-366-0	01	1	1401-
264	BOLT; PIPE BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1401-
264	BOLT; PIPE BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1401-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1401-

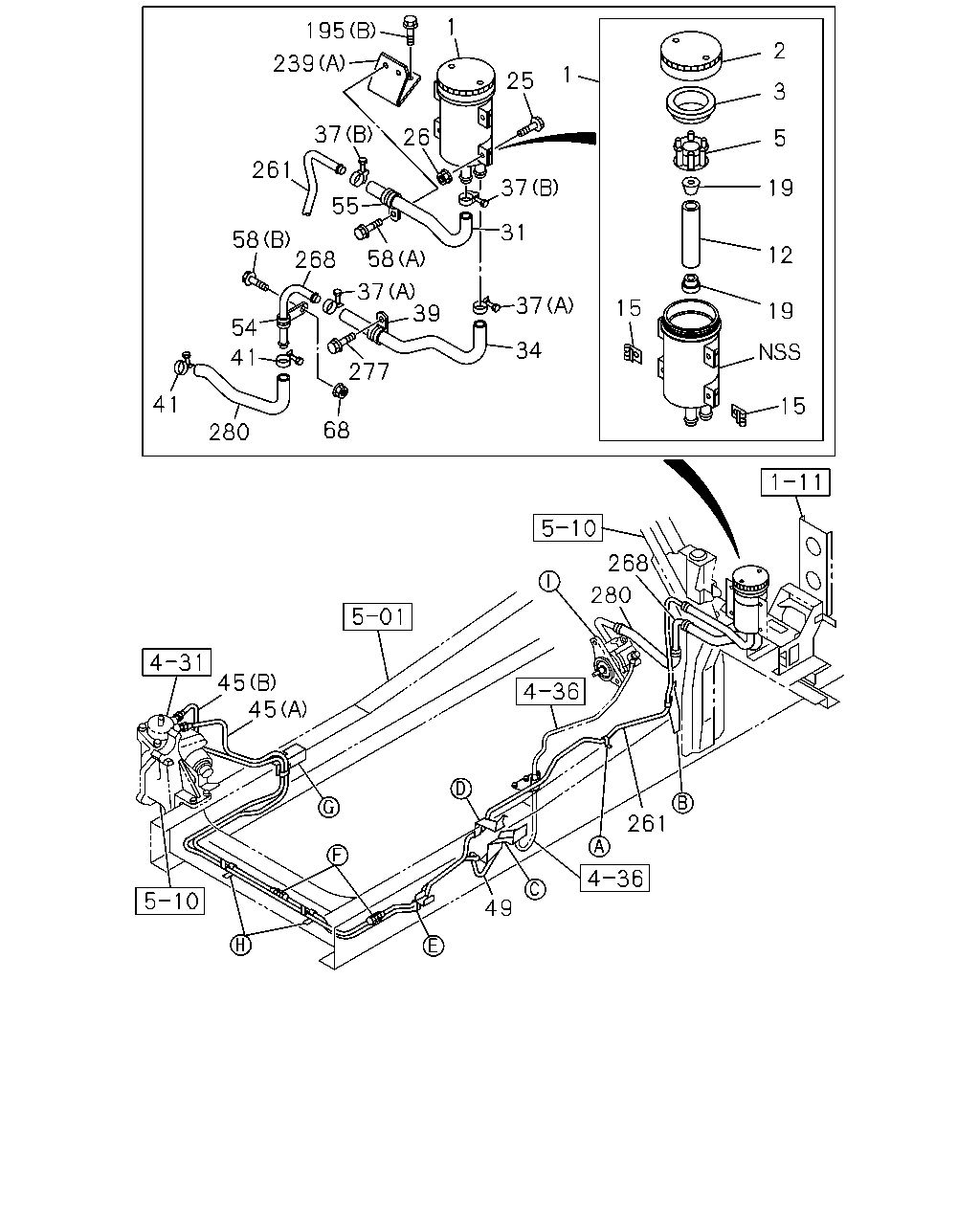

195 23 26 25 1 1 37 37 31 34 39 277 37 58 55 37 261 58 54 268 41 68 280 41 2 5 3 19 12 19 15 15 268 280 261 49 45 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-958-0	01	1	1401-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1401-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1401-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1401-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1401-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1401-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1401-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	1401-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	04	1	1401-
31	HOSE; P/S OIL TANK,INL	8-97618-666-1	01	1	1401-
34	HOSE; P/S OIL TANK,OUTLET	8-97618-665-1	01	1	1401-
37	CLIP; HOSE,P/S (A) ID=32	1-09704-085-0	02	1	1401-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1401-
39	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	1401-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1401-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98123-061-0	01	1	1401-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98123-062-0	01	1	1401-
49	PIPE; OIL,FLEX HOSE TO UNION	8-98240-633-0	01	1	1401-
54	CLIP; OIL PIPE ID=19 L=60	0-95235-896-0	01	1	1401-
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1401-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1401-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1401-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1401-
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1401-
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1401-
261	PIPE; OIL,UNION TO HOSE	8-98191-965-0	01	1	1401-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-97618-672-0	01	1	1401-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1401-
280	HOSE; P/S OIL PUMP,INL	1-21437-995-0	01	1	1401-
