◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11568 - GXR(MALAYSIA)EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#132231) — 50 parça

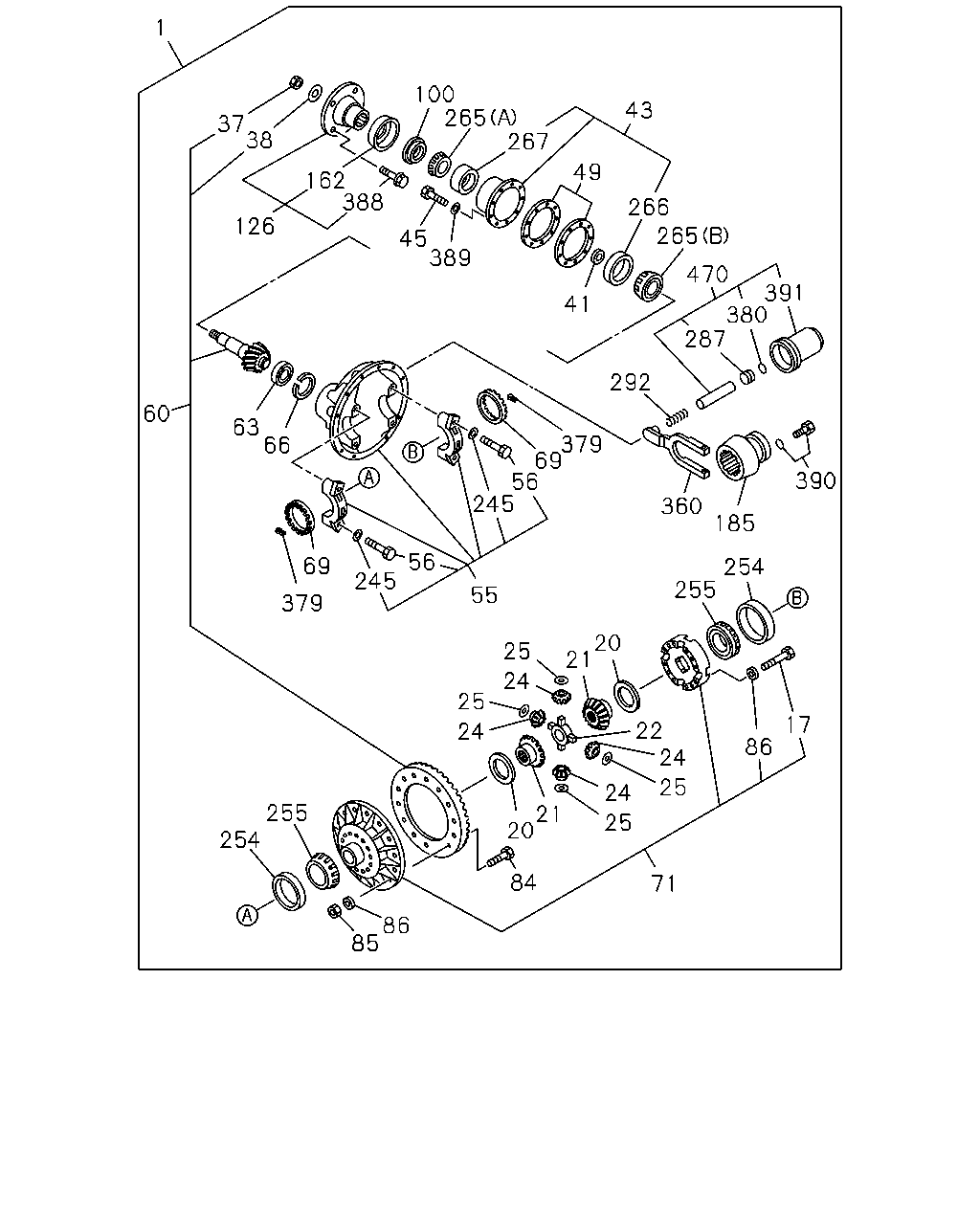

çizim 402134
1 37 38 162 126 388 100 43 267 49 266 265 470 391 380 287 292 41 389 45 265 60 63 66 379 69 245 55 56 245 56 69 379 360 390 185 254 255 20 21 25 24 25 24 17 86 25 24 22 24 25 21 20 71 84 255 254 85 86
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
44/9 		1-41003-348-0 01 1 1401- ●
1 DRIVE ASM; FINAL,RR
43/8 		1-41002-743-0 01 1 1401- ●
17 BOLT; DIFF CAGE SETTING 1-41519-095-0 12 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 02 1 1401- ● ●
21 GEAR; SIDE,DIFF 1-41561-116-0 02 1 1401- ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 1401- ● ●
24 GEAR; PINION,DIFF 1-41551-035-0 04 1 1401- ● ●
25 WASHER; THRUST,PINION 1-41552-037-0 04 1 1401- ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 1401- ● ●
38 WASHER; PL,DRIVING PINION 1-41349-058-0 01 1 1401- ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-360-0 01 1 1401- ● ●
43 CAGE; FINAL PINION 1-41151-098-0 01 1 1401- ● ●
45 BOLT; FINAL PINION CAGE 1-41159-008-0 08 1 1401- ● ●
49 SHIM; FINAL PINION CAGE 1-41154-114-0 01 1 1401- ● ●
55 CARRIER; DIFF 1-41110-126-0 01 1 1401- ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 1401- ● ●
60 GEAR SET; FINAL DRIVE,RR
44/9 		1-41210-662-0 01 1 1401- ●
60 GEAR SET; FINAL DRIVE,RR
43/8 		1-41210-650-0 01 1 1401- ●
63 BEARING; PINION PILOT 1-41219-036-0 01 1 1401- ● ●
66 RING; SNAP,PILOT BRG 1-41219-037-0 01 1 1401- ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-040-0 01 1 1401- ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-049-0 01 1 1401- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-286-0 01 1 1401- ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-039-0 12 1 1401- ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 1401- ● ●
86 WASHER; PL,DIFF CAGE SETTING 1-41229-168-0 24 1 1401- ● ●
100 SEAL; OIL,FINAL PINION 1-41349-184-0 01 1 1401- ● ●
126 COUPLING; DRIVING PINION 1-37245-364-0 01 1 1401- ● ●
162 COVER; DUST,INPUT FLANGE 1-37249-190-0 01 1 1401- ● ●
185 COLLAR; SHIFT FORK 1-41379-004-0 01 1 1401- ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 04 1 1401- ● ●
254 CUP; DIFF BRG 1-41229-131-0 01 1 1401- ● ●
254 CUP; DIFF BRG 1-41519-083-0 01 1 1401- ● ●
255 CONE; DIFF BRG 1-41519-032-0 01 1 1401- ● ●
255 CONE; DIFF BRG 1-41519-084-0 01 1 1401- ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-033-0 01 1 1401- ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-124-0 01 1 1401- ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER 1-41219-032-0 01 1 1401- ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER 1-41349-050-0 01 1 1401- ● ●
287 PISTON; SHIFT UNIT 1-48262-013-0 01 1 1401- ● ●
292 SPRING; PISTON 1-48265-008-0 01 1 1401- ● ●
360 FORK; SHIFT 1-41371-008-0 01 1 1401- ● ●
379 PIN; SPLIT 1-41129-012-0 01 1 1401- ● ●
379 PIN; SPLIT 1-41129-013-0 01 1 1401- ● ●
380 GASKET; PISTON 1-48269-075-0 01 1 1401- ● ●
388 BOLT; COUPLING 1-37249-204-0 04 1 1401- ● ●
389 WASHER; FINAL PINION CAGE 1-41329-084-0 08 1 1401- ● ●
390 BOLT; CAGING 1-48269-071-0 01 1 1401- ● ●
391 CYLINDER; SHIFT 1-48269-070-0 01 1 1401- ● ●
470 SHIFT KIT 1-48269-258-0 01 1 1401- ● ●
