Isuzu WW
▶
TRUCKS
▶
GXR
▶
11568 - GXR(MALAYSIA)EURO3
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

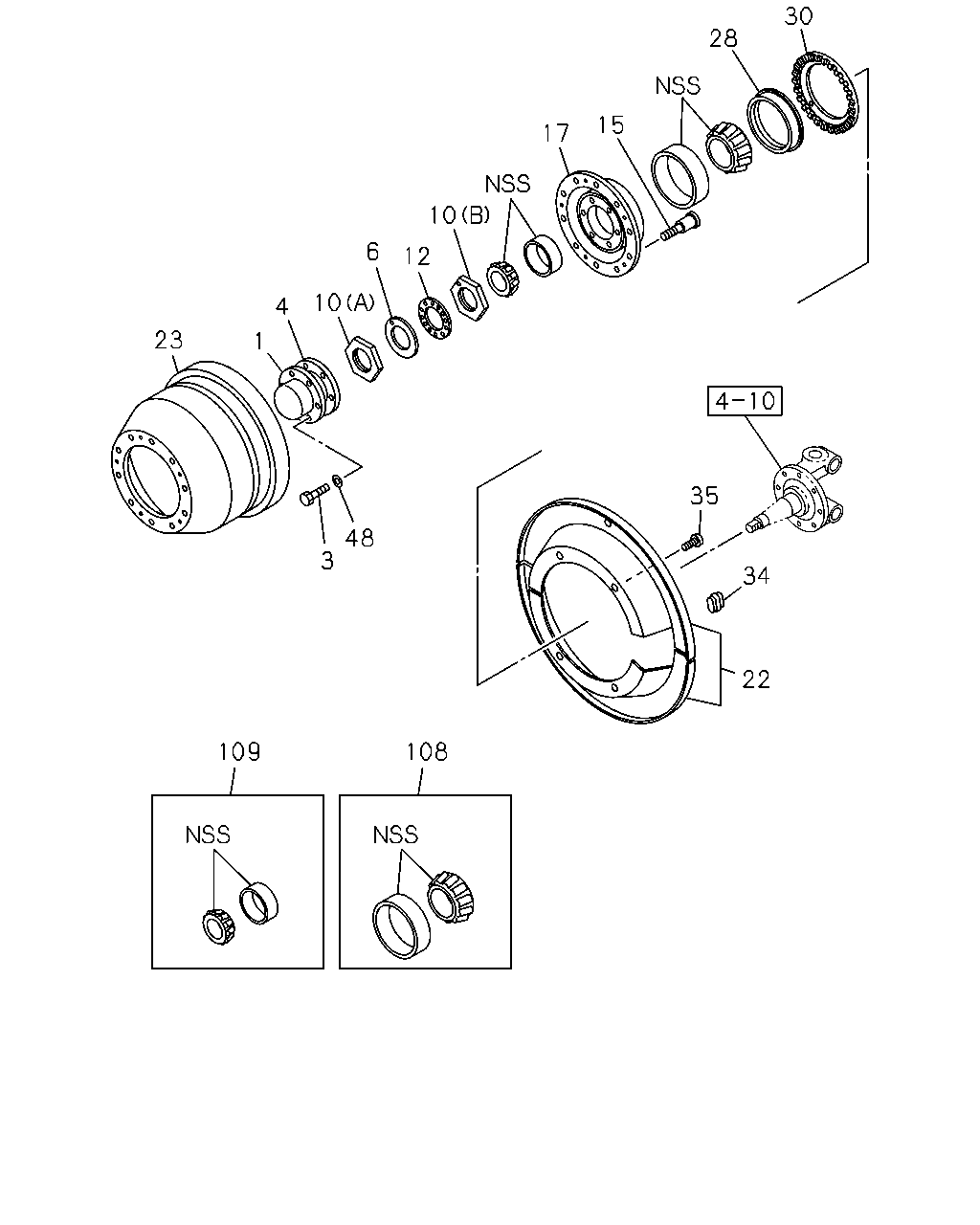

4-11 — FRONT HUB AND DRUM OR ROTOR
(#132229) — 21 parça
108
109
22
34
35
48
3
30
28
15
17
10
12
6
10
4
1
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
1-42313-028-0
02
1
1401-1507
1
CAP; HUB,FRT AXLE
8-98329-296-0
02
1
1508-
3
BOLT; HUB CAP,FRT WHEEL
1-42319-189-0
12
1
1401-
4
GASKET; HUB CAP,FRT WHEEL
1-42319-186-0
02
1
1401-1507
4
GASKET; HUB CAP,FRT WHEEL
8-98329-302-0
02
1
1508-
6
WASHER; LK,FRT HUB
1-42329-018-0
02
1
1401-
10
NUT; FRT HUB BRG
(A)
1-42329-016-0
02
1
1401-
10
NUT; FRT HUB BRG
(B)
1-42329-017-0
02
1
1401-
12
WASHER; LK,FRT HUB BRG
1-42329-015-0
02
1
1401-
15
PIN; WHEEL,FRT AXLE
1-42337-063-0
20
1
1401-
17
HUB; FRT AXLE
1-42311-163-0
02
1
1401-
22
COVER SET; FRT BRK DRUM
1-47151-708-0
02
1
1401-
23
DRUM; BRK,FRT
1-42315-420-0
02
1
1401-
28
SEAL; OIL,FRT HUB
1-09625-636-0
02
1
1401-
30
RING; EXCITER,FRT HUB
1-42319-223-0
02
1
1401-
34
COVER; CHECK HOLE,DRUM COVER
1-87050-011-0
04
1
1401-
35
BOLT; DRUM COVER
1-47159-176-0
12
1
1401-
48
WASHER; LK,HUB CAP,FRT WHEEL
1-42319-190-0
12
1
1401-1507
48
WASHER; LK,HUB CAP,FRT WHEEL
1-41519-055-0
12
1
1508-
108
BEARING SET; HUB,INNER
1-85573-010-0
02
1
1401-
109
BEARING SET; HUB,OUTER
1-85573-011-0
02
1
1401-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
