3-78 — FIXING PARTS; AIR PIPING (#132224) — 62 parça

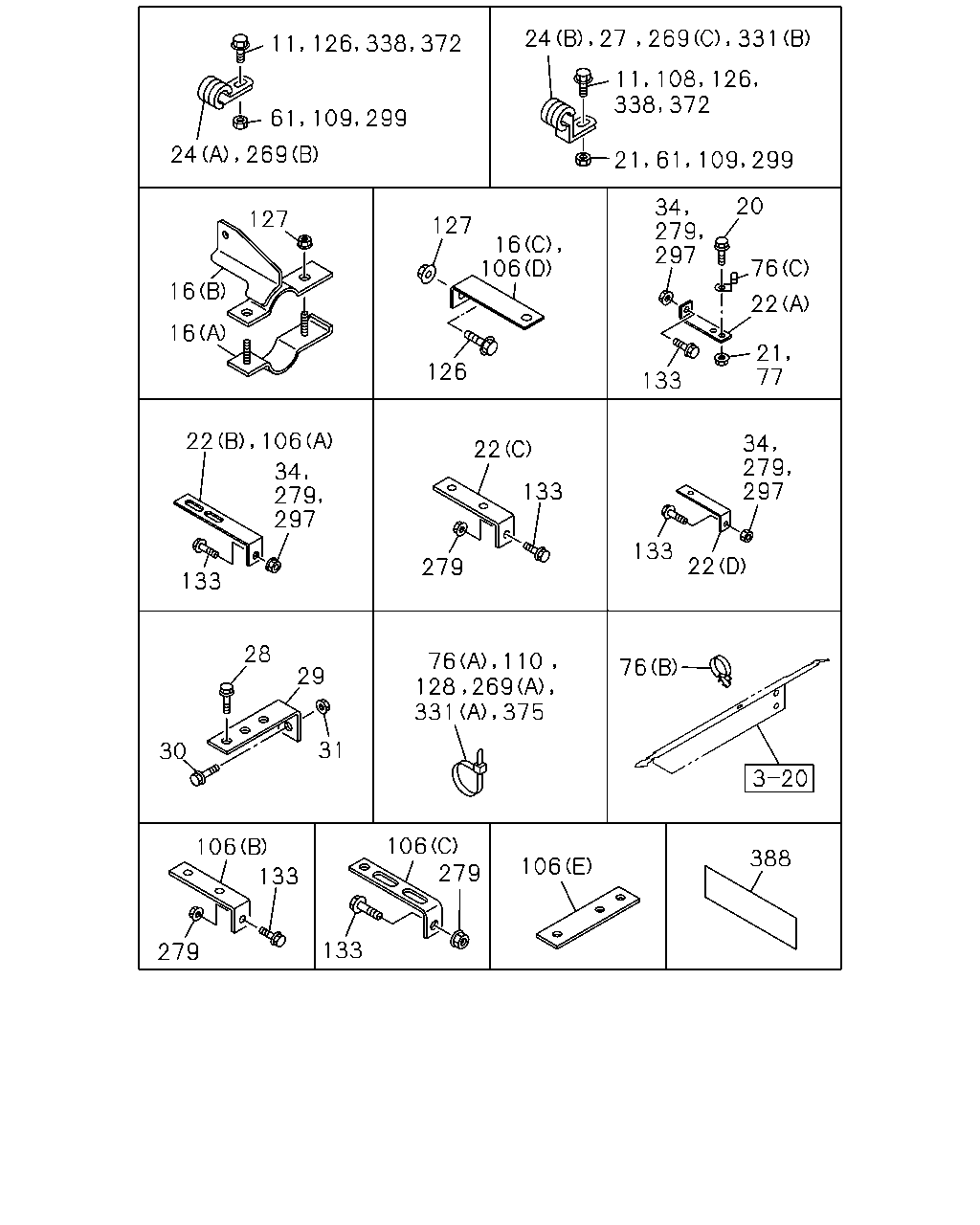

çizim 401935
11 126 338 372 61 109 299 24 269 127 16 16 22 106 34 279 297 133 28 29 31 30 106 279 133 133 106 279 106 388 76 76 110 128 269 331 375 279 22 133 133 22 34 279 297 133 34 279 297 20 76 22 21 77 126 16 106 127 24 27 269 331 11 108 126 338 372 21 61 109 299
BalonParca AdiParca NoAdetTipApplied Date
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1401-
16 BRACKET; PIPE CLIP
(C) L=95 		1-82699-085-0 01 1 1401-
16 BRACKET; PIPE CLIP
(A) 		8-98212-967-0 01 1 1401-
16 BRACKET; PIPE CLIP
(B) 		8-98212-968-0 01 1 1401-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1401-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1401-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1401-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1401-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1401-
22 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 01 1 1401-
22 BRACKET; CLIP
(D) L=145 		1-47475-655-0 01 1 1401-
22 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 1401-
22 BRACKET; CLIP
(A) L=95 		1-82698-557-0 01 1 1401-
24 CLIP; PIPE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1401-
24 CLIP; PIPE
(A) ID=25 L=50 		1-09701-019-0 03 1 1401-
27 CLIP; FLEX HOSE
ID=25 H=30 L=35 		1-09700-875-0 01 1 1401-
28 BOLT; CLIP,FLEX HOSE
BATTERY 80D26L<TM1> M8X20 FLANGE 		0-28650-820-0 01 1 1401-
29 BRACKET; CLIP,AIR PIPE
BATTERY 80D26L<TM1> L=145 B=25 		1-47479-123-0 01 1 1401-
30 BOLT; CLIP BRKT
BATTERY 80D26L<TM1> M8X25 FLANGE 		0-28650-825-0 01 1 1401-
31 NUT; CLIP BRKT
BATTERY 80D26L<TM1> M8 FLANGE 		0-91180-108-0 01 1 1401-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1401-
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 03 1 1401-
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 07 1 1401-
76 CLIP; NYLON TUBE
(B) ID=24-30 L=18 		1-09709-297-0 01 1 1401-
76 CLIP; NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 01 1 1401-
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1401-
106 BRACKET; TUBE CLIP
(E) L=150 		1-47471-217-0 02 1 1401-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 1401-
106 BRACKET; TUBE CLIP
(D) L=60 H=30 		1-47477-716-1 03 1 1401-
106 BRACKET; TUBE CLIP
(B) L=90 		1-47477-755-1 02 1 1401-
106 BRACKET; TUBE CLIP
(C) 		1-47479-598-0 02 1 1401-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 1401-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1401-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1401-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1401-
110 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 02 1 1401-1403
110 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 1404-
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1401-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 1401-
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 06 1 1401-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 1401-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1401-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1401-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1401-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1401-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 1401-
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 24 1 1401-1403
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 1404-
269 CLIP; BAND,NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 01 1 1401-
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 02 1 1401-
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 02 1 1401-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1401-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1401-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1401-
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1401-
331 CLIP; NYLON TUBE
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 1401-
331 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 04 1 1401-
338 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1401-
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1401-
372 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1401-
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1401-
388 SEAL
100X40 		1-72498-022-1 04 1 1401-
