3-77 — BRAKE PIPING; AIR,REAR
(#132223) — 37 parça
◀

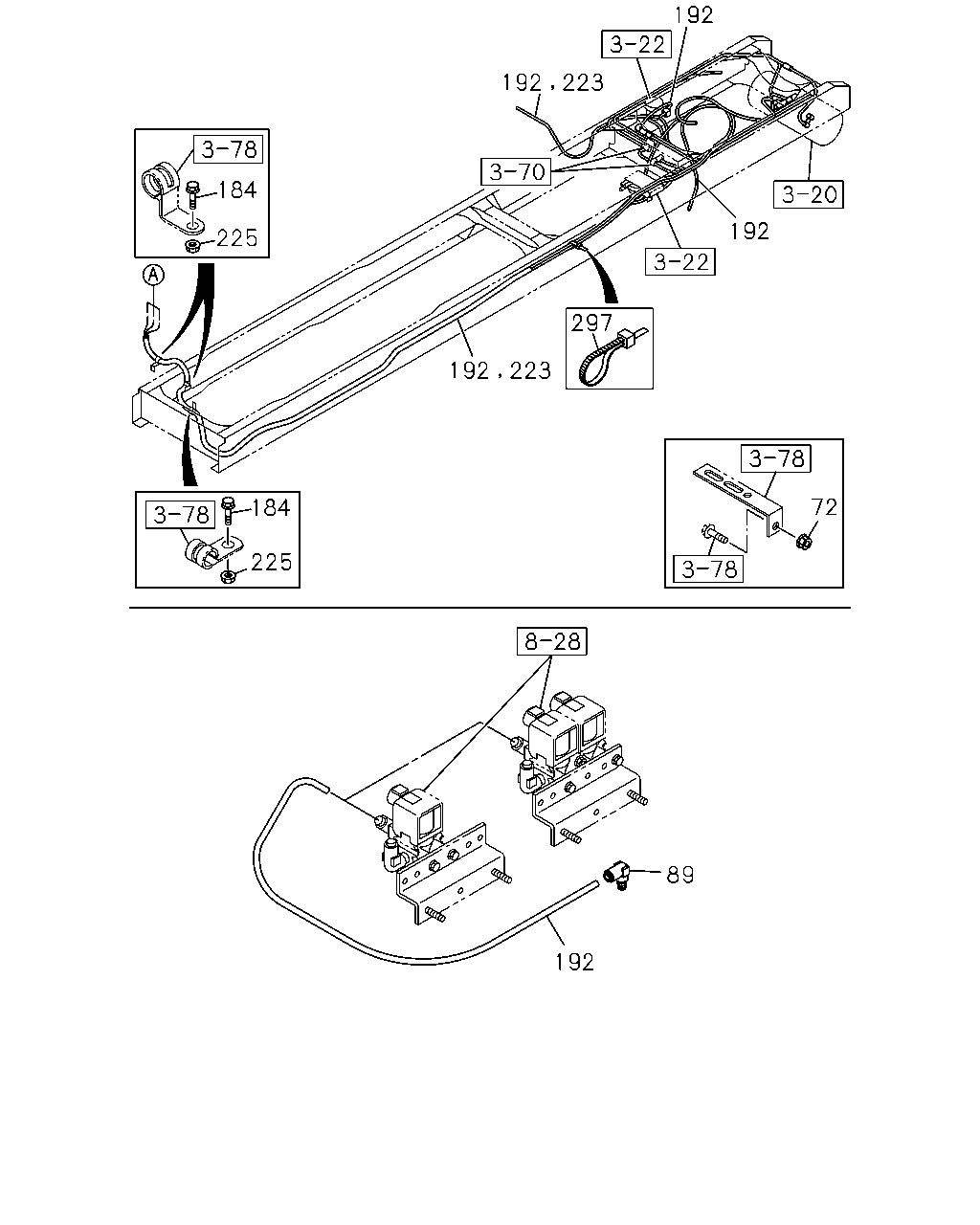

[377A] FRAME SIDE (20 parça)

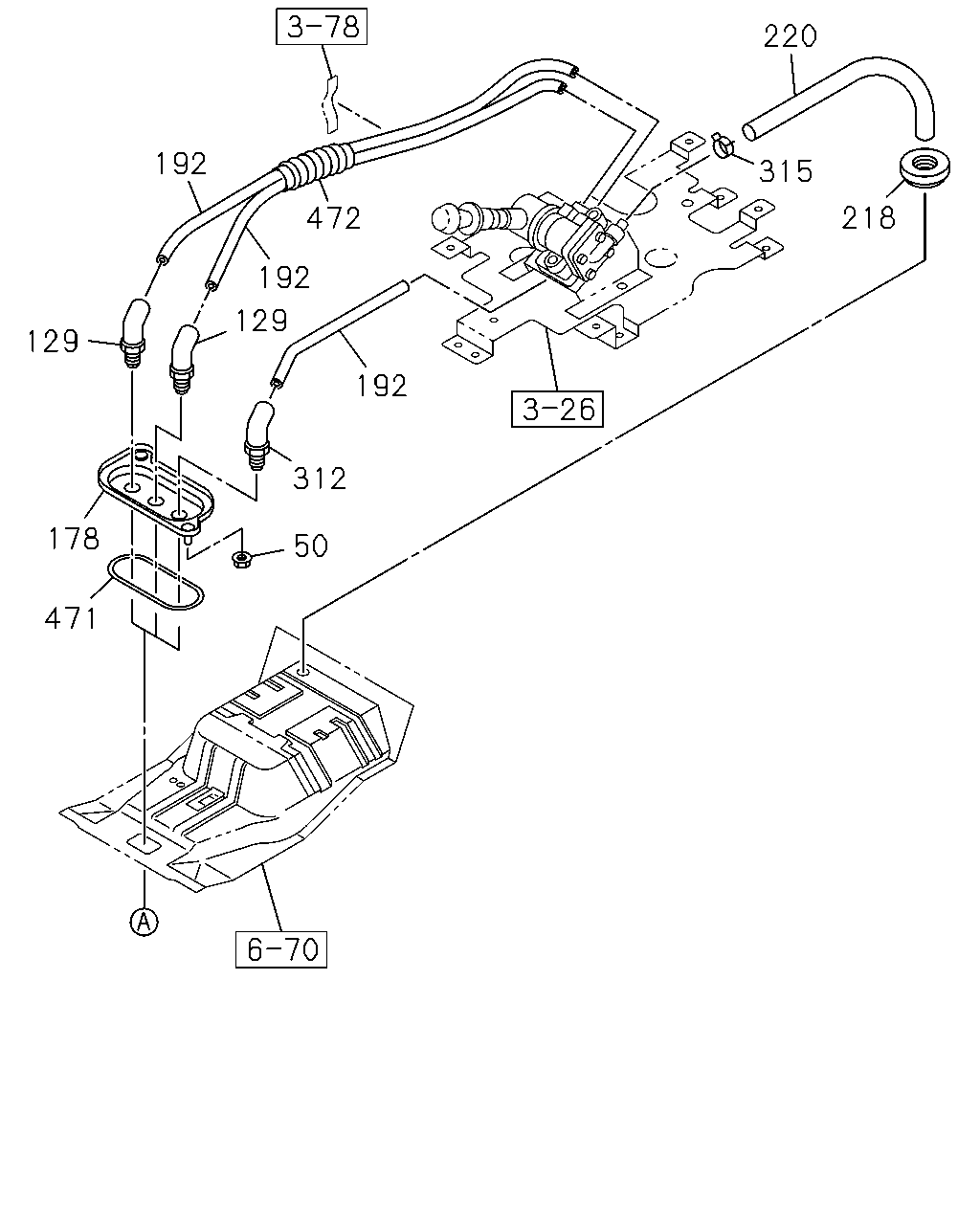

[377A] CAB SIDE (17 parça)
▶
184
225
184
225
192
223
89
192
192
223
192
192
72
297
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
72
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1401-
89
CONNECTOR; NYLON TUBE
DIN8 & R1/4 ELBOW
1-09661-209-0
01
1
1401-
184
BOLT; TUBE CLIP
M8X25 FLANGE
0-28650-825-0
01
1
1401-
184
BOLT; TUBE CLIP
M8X35 FLANGE
0-28650-835-0
02
1
1401-
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
02
1
1404-
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1404-
192
TUBE; NYLON
SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
1401-
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1401-
192
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1401-
192
TUBE; NYLON
SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1401-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1401-
192
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1401-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1401-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1401-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=15
1-87411-025-0
AR
1
1401-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=19
1-87411-027-0
AR
1
1401-
223
TUBE; CORRUGATE
SERVICED BY L=4000 ID=19
1-87411-028-0
AR
1
1401-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
1401-
225
NUT; TUBE CLIP
M8 FLANGE
0-91180-108-0
03
1
1401-
297
CLIP; BAND
L=350
1-09707-183-0
01
1
1401-
192
129
178
471
50
312
192
129
192
472
315
218
220
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
NUT; UNION BRKT
M8 FLANGE
0-91180-108-0
02
1
1401-
129
CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW
8-97611-963-1
02
1
1401-
178
BRACKET; UNION
8-98017-056-1
01
1
1401-
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
02
1
1404-
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1404-
192
TUBE; NYLON
SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
1401-
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1401-
192
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1401-
192
TUBE; NYLON
SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1401-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1401-
192
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1401-
218
GROMMET; VINYL HOSE
OD=24
9-61166-007-0
01
1
1401-
220
HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000
9-09914-701-0
01
1
1401-
312
CONNECTOR; SUPPLY
DIN13 & M18 ELBOW
8-97611-963-1
01
1
1401-
315
CLIP
ID=14
8-94238-572-0
01
1
1401-
471
SEAL; BRKT
1-79738-832-0
01
1
1401-
472
TUBE; SPUTTER
8-98108-051-0
02
1
1401-
