Isuzu WW
▶
TRUCKS
▶
GXR
▶
11568 - GXR(MALAYSIA)EURO3
▶
3 - Brakes, Brake System
▶
3-70 - BRAKE PIPING; AIR,AIR MASTER
▶
3-70 — BRAKE PIPING; AIR,AIR MASTER
(#132221) — 59 parça
◀

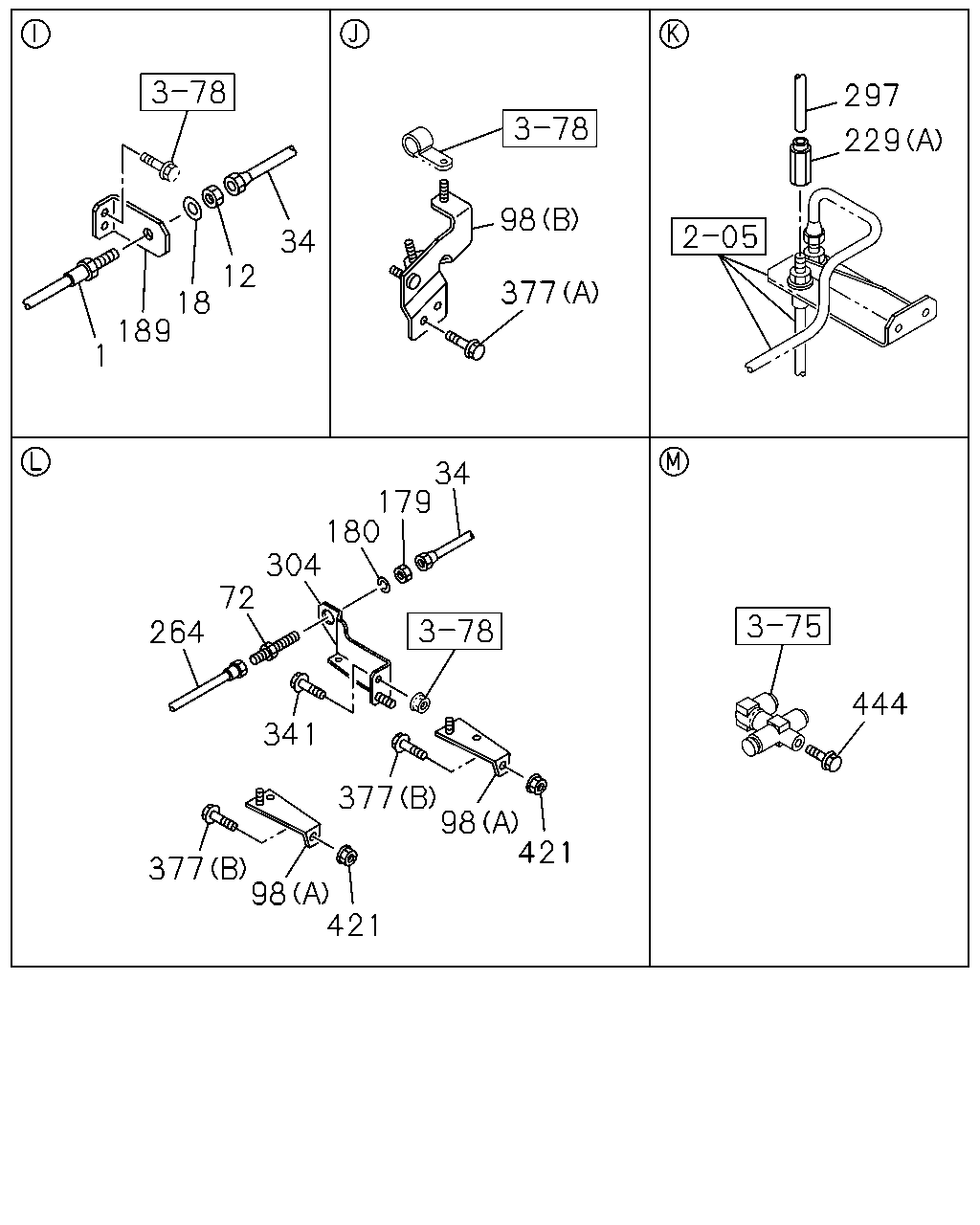

[370A] NO.3 (24 parça)
[370A] NO.1 (11 parça)
[370A] NO.2 (24 parça)
▶
1
189
18
12
34
98
377
297
229
264
72
304
180
179
34
341
377
98
421
377
98
421
444
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,AIR TANK
BATTERY 115E41L<8MA>
8-98100-332-0
01
1
1401-
1
HOSE; FLEX,AIR TANK
BATTERY 80D26L<TM1>
1-09363-940-0
01
1
1401-
12
NUT; UNION
M22
0-91111-522-0
01
1
1401-
18
WASHER; LK,UNION
ID=22.5
0-91510-522-0
01
1
1401-
34
PIPE; AIR
L=1258
8-97618-580-0
01
1
1401-
72
UNION; AIR PIPE
M22
0-92123-315-0
01
1
1401-
98
BRACKET; AIR PIPE
(A)
8-97609-096-0
02
1
1401-
98
BRACKET; AIR PIPE
(B)
8-97610-999-0
01
1
1401-
179
NUT; UNION
M22
0-91111-522-0
01
1
1401-
180
WASHER; LK,UNION
ID=22.5
0-91510-522-0
01
1
1401-
189
BRACKET; FLEX HOSE
1-47479-473-0
01
1
1401-
229
ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1401-
229
ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT
1-09661-379-0
01
1
1401-
264
HOSE; FLEX
L=1150
1-09363-791-0
01
1
1401-
297
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1401-
297
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1401-
304
BRACKET; UNION
8-97610-362-1
01
1
1401-
341
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
1401-
377
BOLT; BRKT FIX
(A) M8X25 FLANGE
0-28650-825-0
02
1
1401-
377
BOLT; BRKT FIX
(B) M8X30 FLANGE
0-28650-830-0
02
1
1401-
421
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1401-
444
BOLT; UNION
M8X20 FLANGE
0-28650-820-0
01
1
1401-
444
BOLT; UNION
M8X20 FLANGE
0-28650-820-0
01
1
1401-
444
BOLT; UNION
M8X20 FLANGE
0-28650-820-0
01
1
1401-

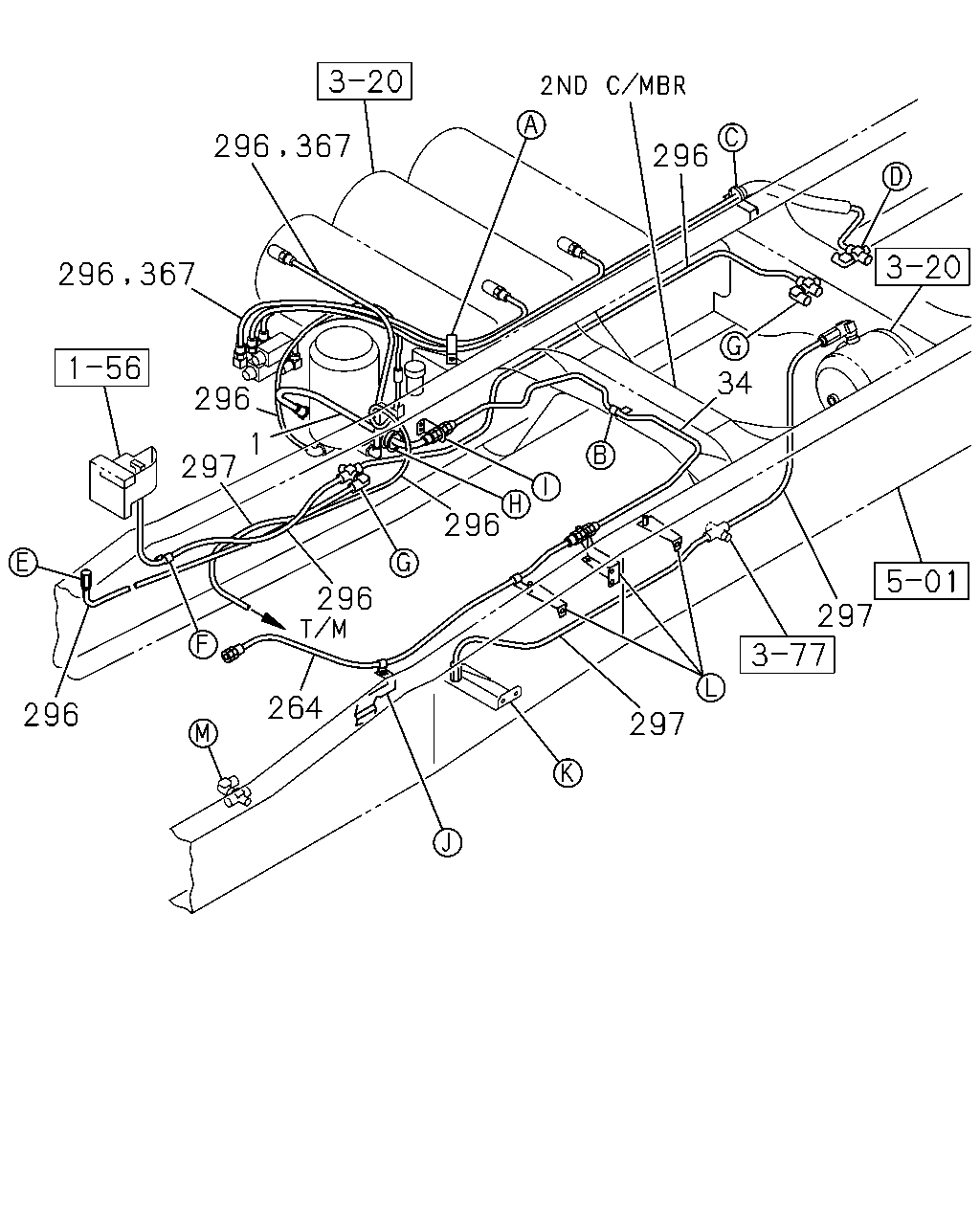

296
367
296
367
296
297
296
264
296
296
296
34
297
297
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,AIR TANK
BATTERY 115E41L<8MA>
8-98100-332-0
01
1
1401-
1
HOSE; FLEX,AIR TANK
BATTERY 80D26L<TM1>
1-09363-940-0
01
1
1401-
34
PIPE; AIR
L=1258
8-97618-580-0
01
1
1401-
264
HOSE; FLEX
L=1150
1-09363-791-0
01
1
1401-
296
TUBE; NYLON
SERVICED BY L=2000 OD=6
1-87411-001-0
AR
1
1401-
296
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1401-
296
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1401-
296
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1401-
297
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1401-
297
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1401-
367
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
02
1
1401-

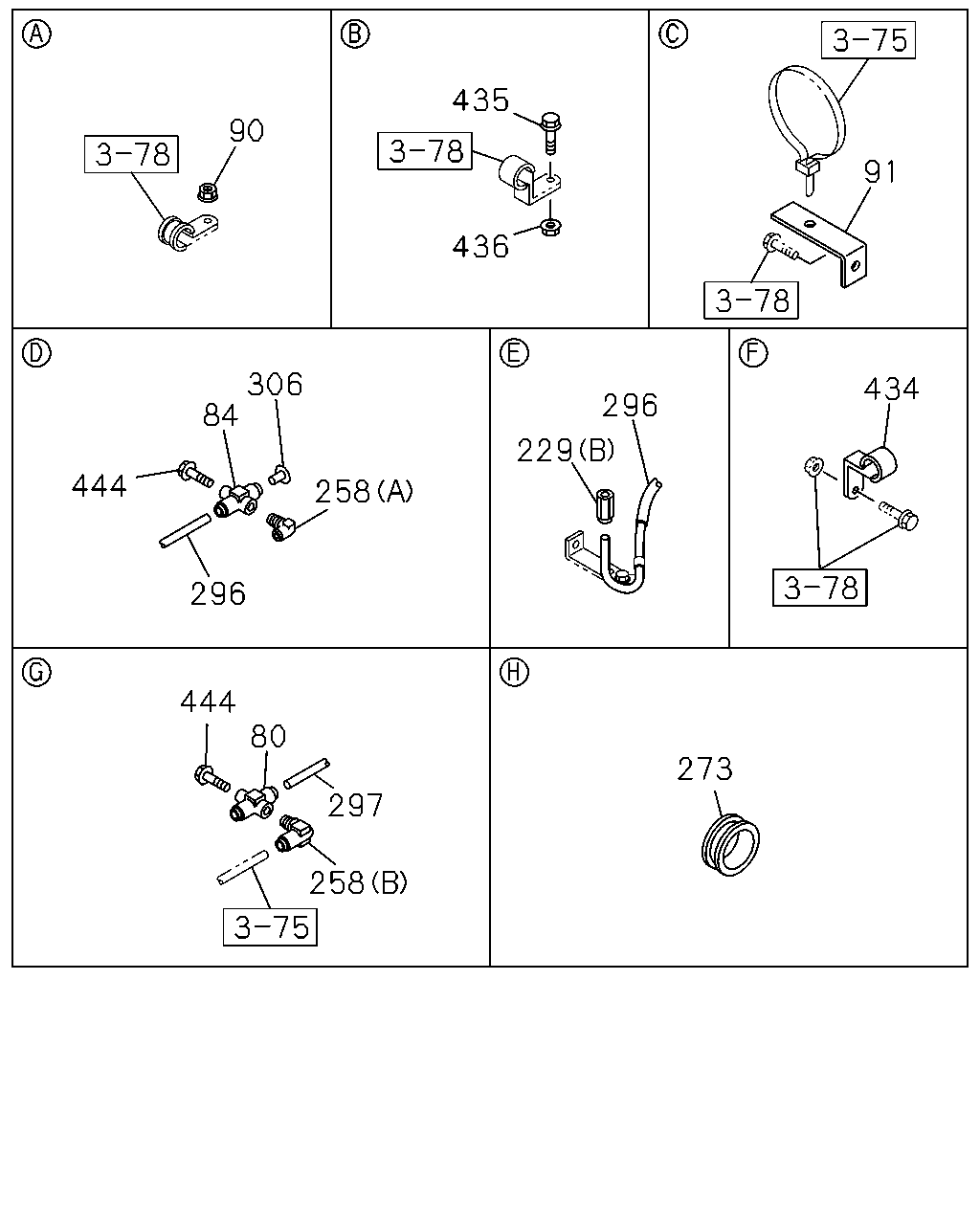

90
435
436
91
434
229
296
306
258
84
444
296
444
80
297
258
273
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
80
UNION; 3 WAY
DIN8 & RC3/8 3WAY
1-09661-129-0
01
1
1401-
80
UNION; 3 WAY
DIN8 & RC3/8 3WAY
1-09661-129-0
01
1
1401-
84
UNION; NYLON TUBE
DIN12X2 & R3/8 3WAY
1-09661-131-0
01
1
1401-
90
NUT; TUBE CLIP
M8 FLANGE
0-91180-108-0
01
1
1401-
91
BRACKET; TUBE CLIP
L=60 H=30
1-47477-716-1
02
1
1401-
229
ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1401-
229
ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT
1-09661-379-0
01
1
1401-
258
CONNECTOR; NYLON TUBE
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1401-
258
CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1401-
258
CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1401-
273
GROMMET
ID=32 OD=40 T=18
1-09891-003-0
01
1
1401-
296
TUBE; NYLON
SERVICED BY L=2000 OD=6
1-87411-001-0
AR
1
1401-
296
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1401-
296
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1401-
296
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1401-
297
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1401-
297
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1401-
306
PLUG; NYLON TUBE
OD=12
1-09661-617-0
01
1
1401-
434
CLIP
ID=8 H=20 L=20
1-09700-604-0
01
1
1401-
435
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
1401-
436
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1401-
444
BOLT; UNION
M8X20 FLANGE
0-28650-820-0
01
1
1401-
444
BOLT; UNION
M8X20 FLANGE
0-28650-820-0
01
1
1401-
444
BOLT; UNION
M8X20 FLANGE
0-28650-820-0
01
1
1401-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
