3-46 — AIR DRYER (#132219) — 27 parça

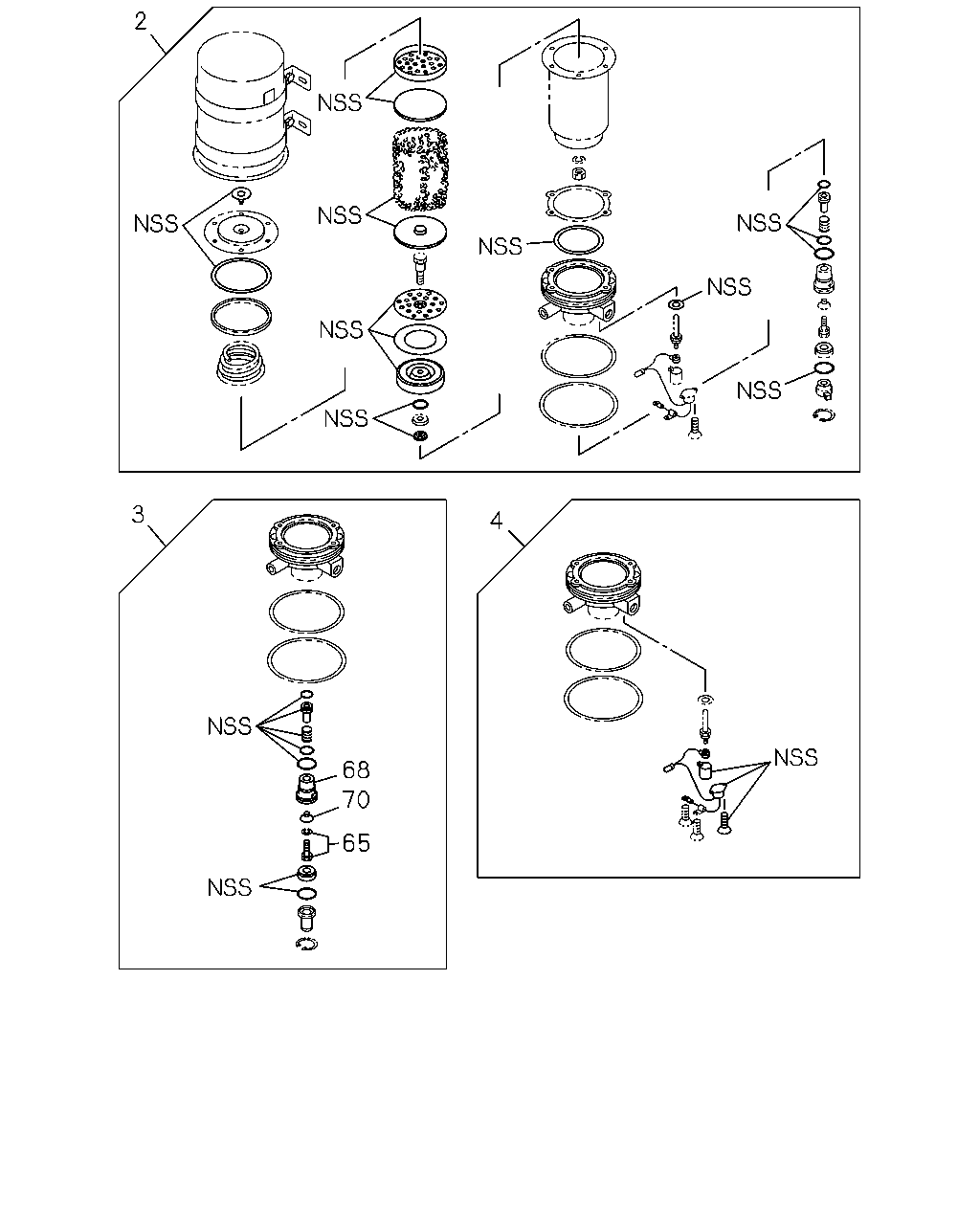

çizim 401482
2 3 4 68 70 65
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; AIR DRYER 1-85576-226-0 01 1 1401-
3 PISTON KIT; AIR DRYER 1-85576-057-1 01 1 1401-
4 THERMOSTAT KIT; AIR DRYER 1-85576-254-0 01 1 1401-
65 BOLT; PURGE VLV 1-48199-393-0 01 1 1401-
68 BODY; VALVE 1-48199-216-0 01 1 1401-
70 VALVE; AIR DRYER 1-48199-105-0 01 1 1401-

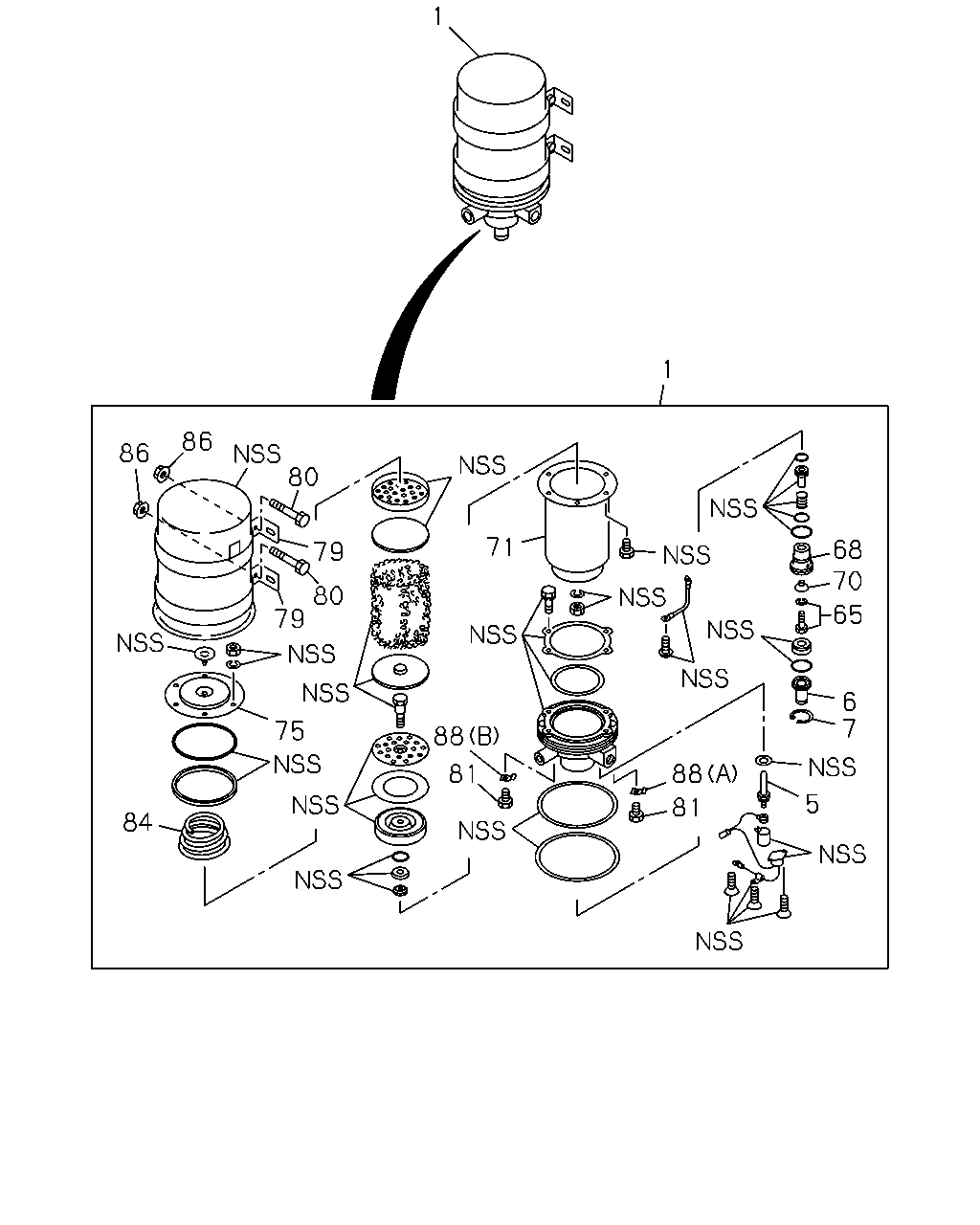

çizim 401488
1 1 86 86 80 79 80 79 84 75 81 88 71 81 88 5 6 7 65 70 68
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR 1-48190-277-1 01 1 1401-
5 HEATER ASM; AIR DRYER 1-48199-085-0 02 1 1401-
6 COVER; EXH,AIR DRYER 1-48199-101-0 01 1 1401-
7 RING; SNAP,AIR DRYER 1-48199-154-0 01 1 1401-
65 BOLT; PURGE VLV 1-48199-393-0 01 1 1401-
68 BODY; VALVE 1-48199-216-0 01 1 1401-
70 VALVE; AIR DRYER 1-48199-105-0 01 1 1401-
71 CASE; INNER,AIR DRYER 1-48199-156-1 01 1 1401-
75 COVER; CASE,AIR DRYER 1-48199-167-0 01 1 1401-
79 BRACKET; AIR DRYER 1-48199-189-0 02 1 1401-
80 BOLT; BRKT 1-48199-190-0 02 1 1401-
81 BOLT; CASE,AIR DRYER 1-48199-177-0 02 1 1401-
84 SPRING; AIR DRYER 1-48199-166-0 01 1 1401-
86 NUT; BRKT 1-48199-320-0 02 1 1401-
88 PLATE; STOPPER
(A) 		1-48199-178-0 01 1 1401-
88 PLATE; STOPPER
(B) 		1-48199-179-0 01 1 1401-

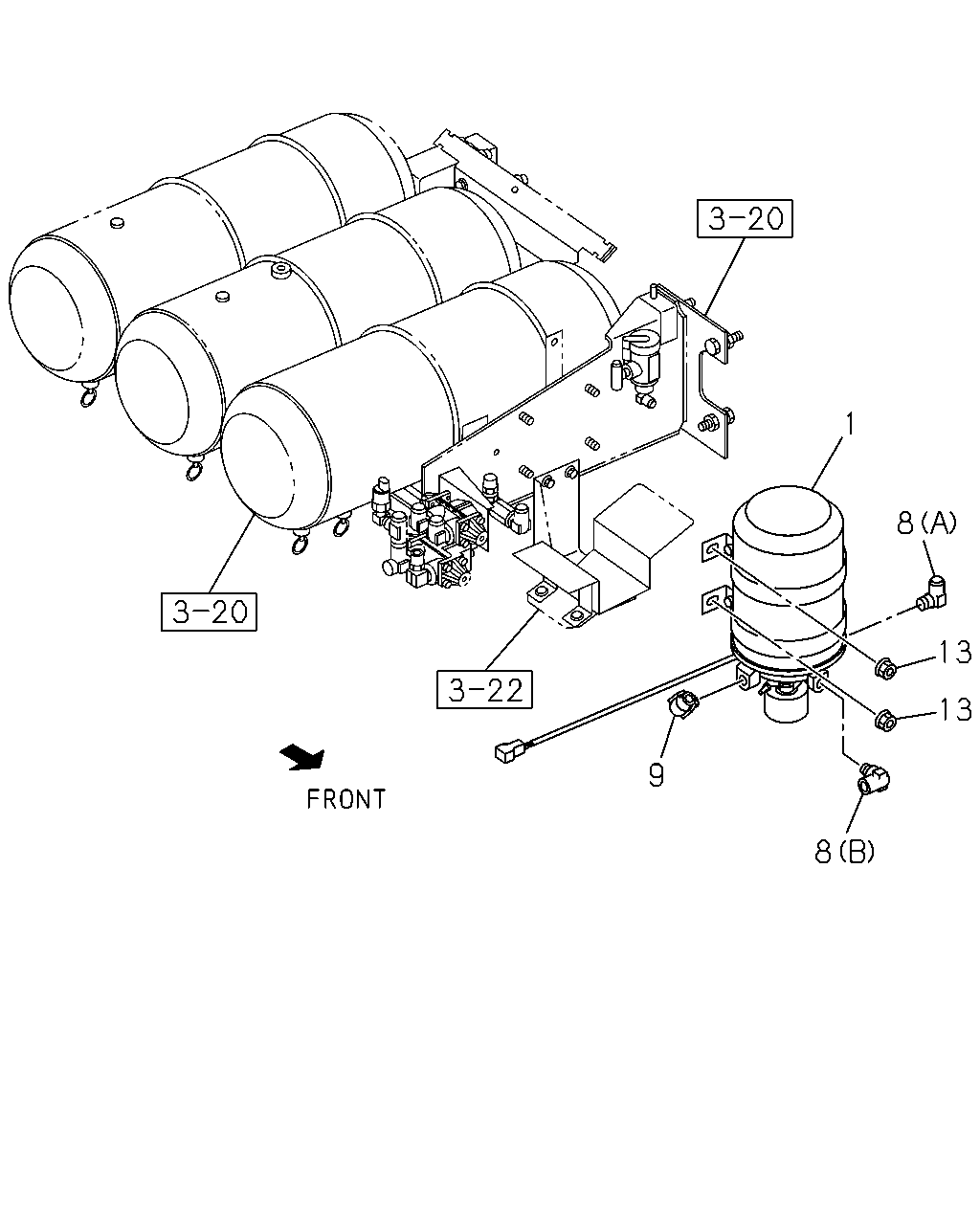

çizim 401499
9 1 8 13 13 8
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR 1-48190-277-1 01 1 1401-
8 CONNECTOR; OUT,AIR DRYER
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 1401-
8 CONNECTOR; OUT,AIR DRYER
(B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1401-
9 CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1401-
13 NUT; AIR DRYER
M10 FLANGE 		0-91180-210-0 04 1 1401-
