3-41 — REAR BRAKE POWER CHAMBER (#132217) — 14 parça

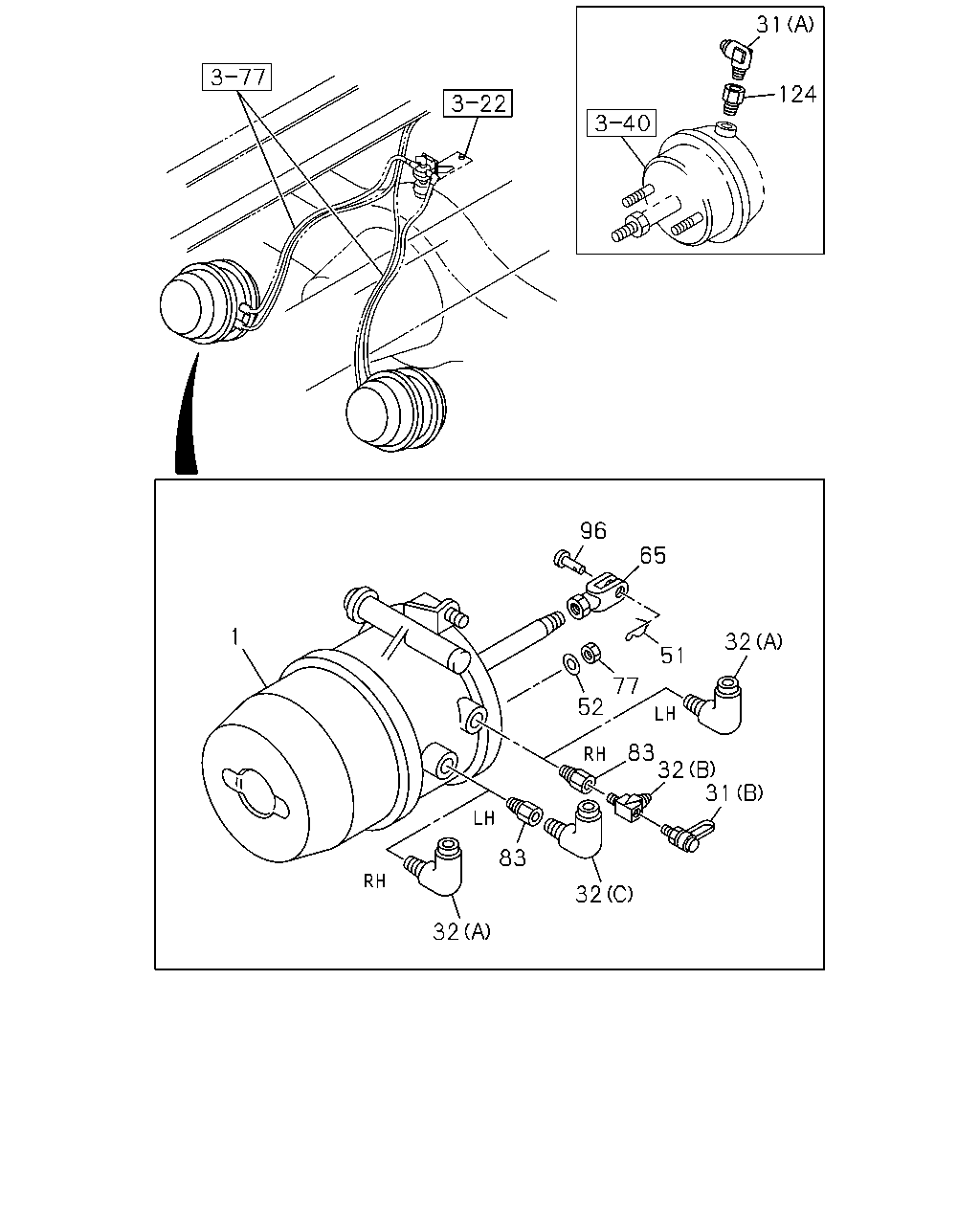

çizim 401497
31 124 96 1 65 51 32 77 52 83 32 31 32 83 32
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING 1-48250-957-0 01 1 1401-
1 CHAMBER ASM; SPRING 1-48250-958-0 01 1 1401-
31 CONNECTOR
(A) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 1401-
31 CONNECTOR
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1401-
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 1401-
32 CONNECTOR; SPR CHAMBER
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1401-
32 CONNECTOR; SPR CHAMBER
(A) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 1401-
51 PIN; SPLIT 1-48259-275-0 02 1 1401-
52 WASHER; PL 1-41519-038-0 04 1 1401-
65 JOINT; JAW 1-48259-326-0 02 1 1401-
77 NUT; SPR CHAMBER BRK 1-87050-052-0 04 1 1401-
83 ADAPTER; SPR CHAMBER
NPTF3/8 & RC3/8 		1-09660-548-0 02 1 1401-
96 PIN; JAW JOINT 1-48259-328-0 02 1 1401-
124 ADAPTER
R1/4 & PT3/8 		8-98113-889-0 01 1 1401-
