Isuzu WW
▶
TRUCKS
▶
GXR
▶
11568 - GXR(MALAYSIA)EURO3
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#132214) — 63 parça
◀
[326A] FIXING;CONT VALVE (14 parça)
[326A] VALVE;TRAILER CONT (17 parça)
[326A] REPAIR KIT;TRAILER CONT VALVE (1 parça)
[326A] REPAIR KIT;BRK,HAND CONT VALVE (1 parça)
[326A] COMPONENT;BRK,HAND CONT VALVE (30 parça)
▶

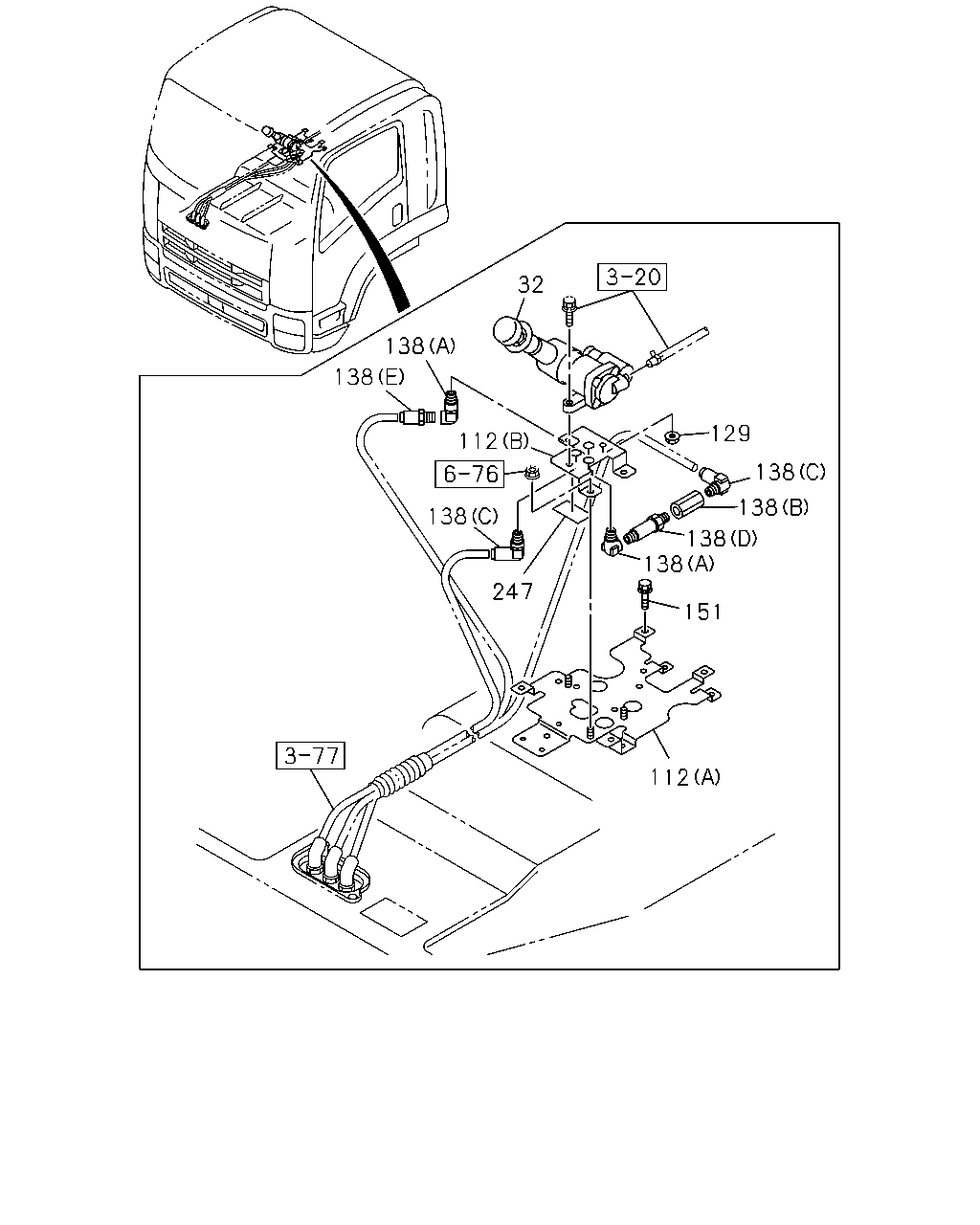

138
138
32
112
138
247
112
151
138
138
138
138
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
1-48460-316-0
01
1
1401-
112
BRACKET; CONT VLV
(A)
1-73908-294-2
01
1
1401-
112
BRACKET; CONT VLV
(B)
1-73908-295-0
01
1
1401-
129
NUT; VLV
M8 FLANGE
0-91180-108-0
03
1
1401-
129
NUT; VLV
M8 FLANGE
0-91180-108-0
01
1
1401-
138
CONNECTOR; DELIVERY
(F) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
1401-
138
CONNECTOR; DELIVERY
(D) PT1/4 & M16 STRAIGHT
1-09650-352-1
01
1
1401-
138
CONNECTOR; DELIVERY
(A) PT1/4 2WAY
1-09660-693-0
02
1
1401-
138
CONNECTOR; DELIVERY
(B) M16 & RC1/4 STRAIGHT
1-09660-886-0
01
1
1401-
138
CONNECTOR; DELIVERY
(C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1401-
138
CONNECTOR; DELIVERY
(C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1401-
138
CONNECTOR; DELIVERY
(E) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
1401-
151
BOLT; VLV BRKT
M6X16
0-52000-616-0
04
1
1401-
247
SEAL; HOSE
100X40
1-72498-022-1
01
1
1401-
258
115
143
129
106
65
88
138
215
115
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
65
NUT; RELAY VLV
M10 FLANGE
0-91180-210-0
02
1
1401-
88
CONNECTOR; ELBOW
PT3/8 ELBOW
1-09660-696-0
03
1
1401-
106
BRACKET; VLV
8-98110-679-1
01
1
1401-
115
CONNECTOR; DUAL RELAY VLV
PT3/8 ELBOW
1-09660-696-0
02
1
1401-
129
NUT; VLV
M8 FLANGE
0-91180-108-0
03
1
1401-
129
NUT; VLV
M8 FLANGE
0-91180-108-0
01
1
1401-
137
CONNECTOR; SUPPLY
DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1401-
138
CONNECTOR; DELIVERY
(F) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
1401-
138
CONNECTOR; DELIVERY
(D) PT1/4 & M16 STRAIGHT
1-09650-352-1
01
1
1401-
138
CONNECTOR; DELIVERY
(A) PT1/4 2WAY
1-09660-693-0
02
1
1401-
138
CONNECTOR; DELIVERY
(B) M16 & RC1/4 STRAIGHT
1-09660-886-0
01
1
1401-
138
CONNECTOR; DELIVERY
(C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1401-
138
CONNECTOR; DELIVERY
(C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1401-
138
CONNECTOR; DELIVERY
(E) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
1401-
143
CONNECTOR; CONT
DIN8 & R3/8 STRAIGHT
1-09660-964-0
02
1
1401-
215
VALVE; TRAILER CONT
8-98091-694-0
01
1
1401-
258
CONNECTOR; 3 WAY
DIN8X2 & PT3/8 DOUBLE ELBOW
1-09661-025-0
01
1
1401-
180
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
180
REPAIR KIT; RELAY VLV
1-85576-449-0
01
1
1401-

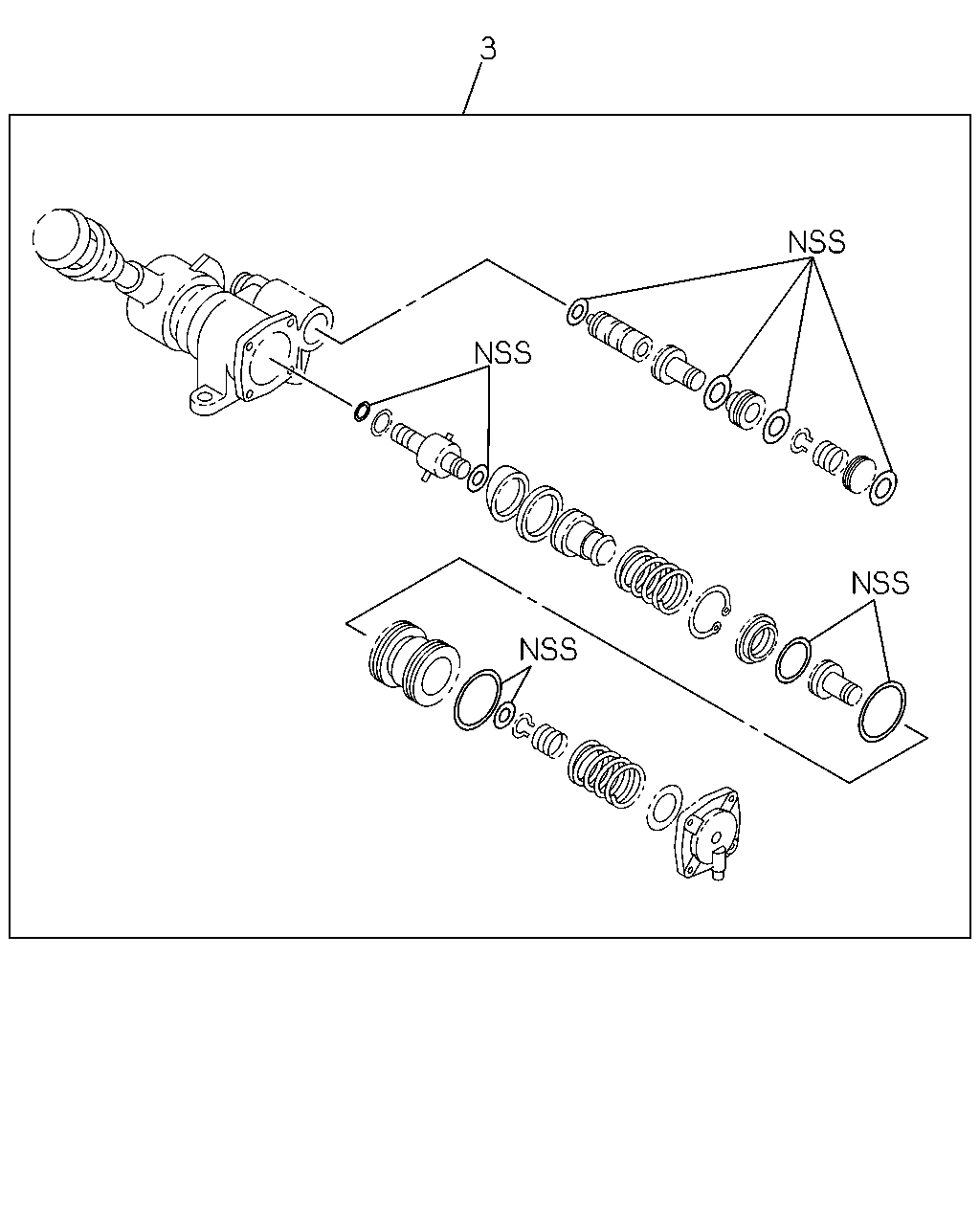

3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; HAND BRK VLV
1-48469-083-0
01
1
1401-

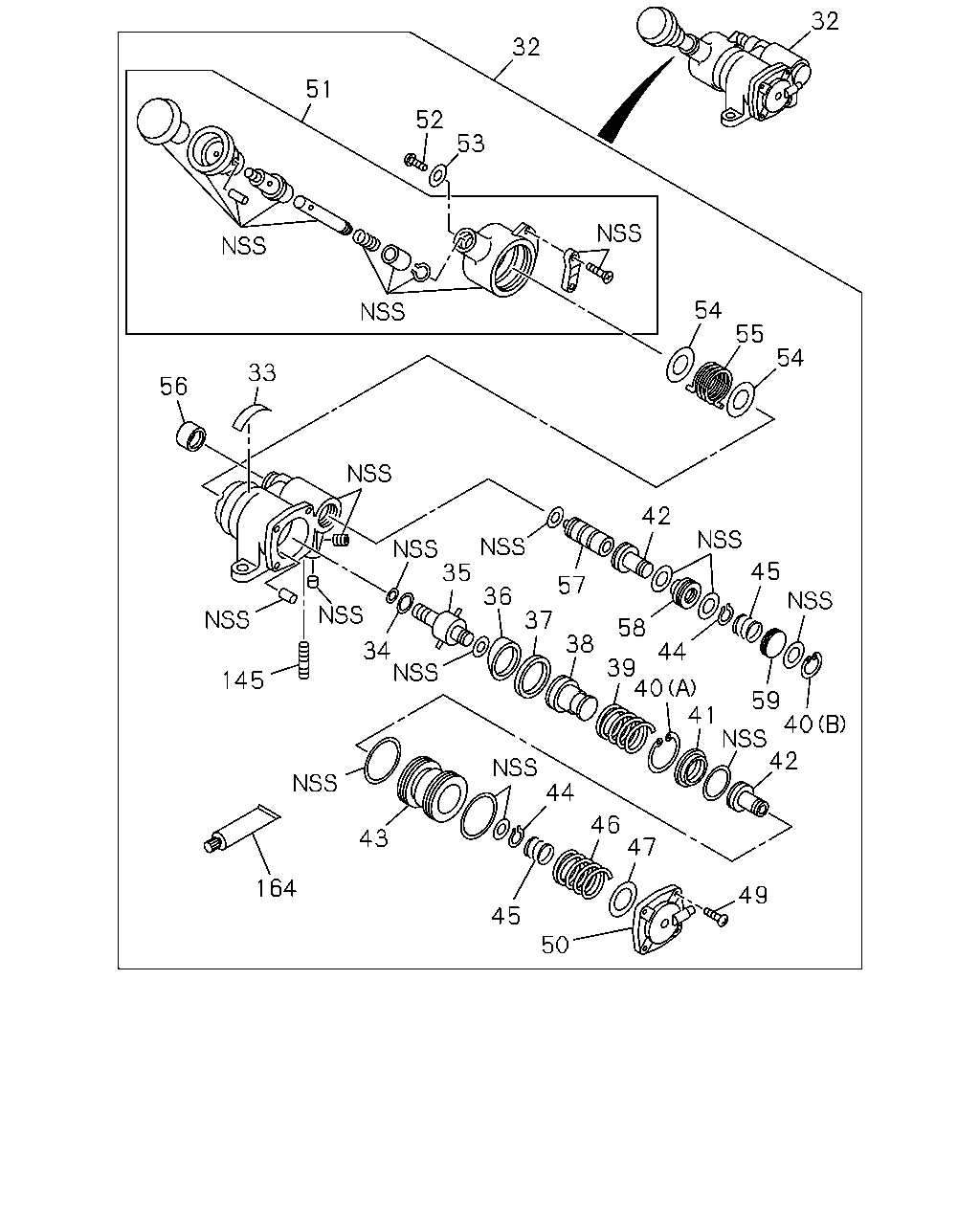

32
32
51
53
52
54
55
54
42
45
40
59
44
58
57
36
35
33
56
145
164
43
45
50
49
47
46
44
34
37
38
39
40
41
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
1-48460-316-0
01
1
1401-
33
PLATE; CAUTION
1-48469-121-0
01
1
1401-
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
1401-
35
HOLDER; CAM
1-48469-054-0
01
1
1401-
36
RING; CAM
1-48469-056-0
01
1
1401-
37
GUIDE; CAM RING
1-48469-058-0
01
1
1401-
38
SEAT; EXH VLV
1-48469-057-0
01
1
1401-
39
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
1401-
40
RING; SNAP
(A)
1-48469-067-0
01
1
1401-
40
RING; SNAP
(B)
1-48469-079-0
01
1
1401-
41
SEAT; FEED VLV
1-48469-066-0
01
1
1401-
42
VALVE; FEED
1-48469-065-0
02
1
1401-
43
PISTON; HAND BRK VLV
1-48469-064-0
01
1
1401-
44
RING; SNAP,FEED VLV
1-48469-068-0
02
1
1401-
45
SPRING; FEED VLV
1-48469-070-0
02
1
1401-
46
SPRING; MAIN,PISTON
1-48469-119-0
01
1
1401-
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
1401-
49
SCREW; COVER
1-48469-120-0
04
1
1401-
50
COVER; HAND BRK VLV
1-48469-073-0
01
1
1401-
51
HANDLE ASM; HAND BRK VLV
1-48469-060-0
01
1
1401-
52
SCREW; HANDLE
1-48469-062-0
01
1
1401-
53
WASHER; HANDLE
1-48469-061-0
01
1
1401-
54
SEAT; SPRING
1-48469-082-0
02
1
1401-
55
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
1401-
56
BOOT; PLUNGER
1-48469-080-0
01
1
1401-
57
PLUNGER; HAND BRK VLV
1-48469-076-0
01
1
1401-
58
HOLDER; FEED VLV
1-48469-077-0
01
1
1401-
59
HOLDER; SPRING
1-48469-078-0
01
1
1401-
145
STUD; HAND BRK VLV
1-48469-069-0
01
1
1401-
164
GREASE; HAND BRK VLV
1-48469-084-0
01
1
1401-
