◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11568 - GXR(MALAYSIA)EURO3 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶

3-20 — AIR TANK (#132212) — 198 parça

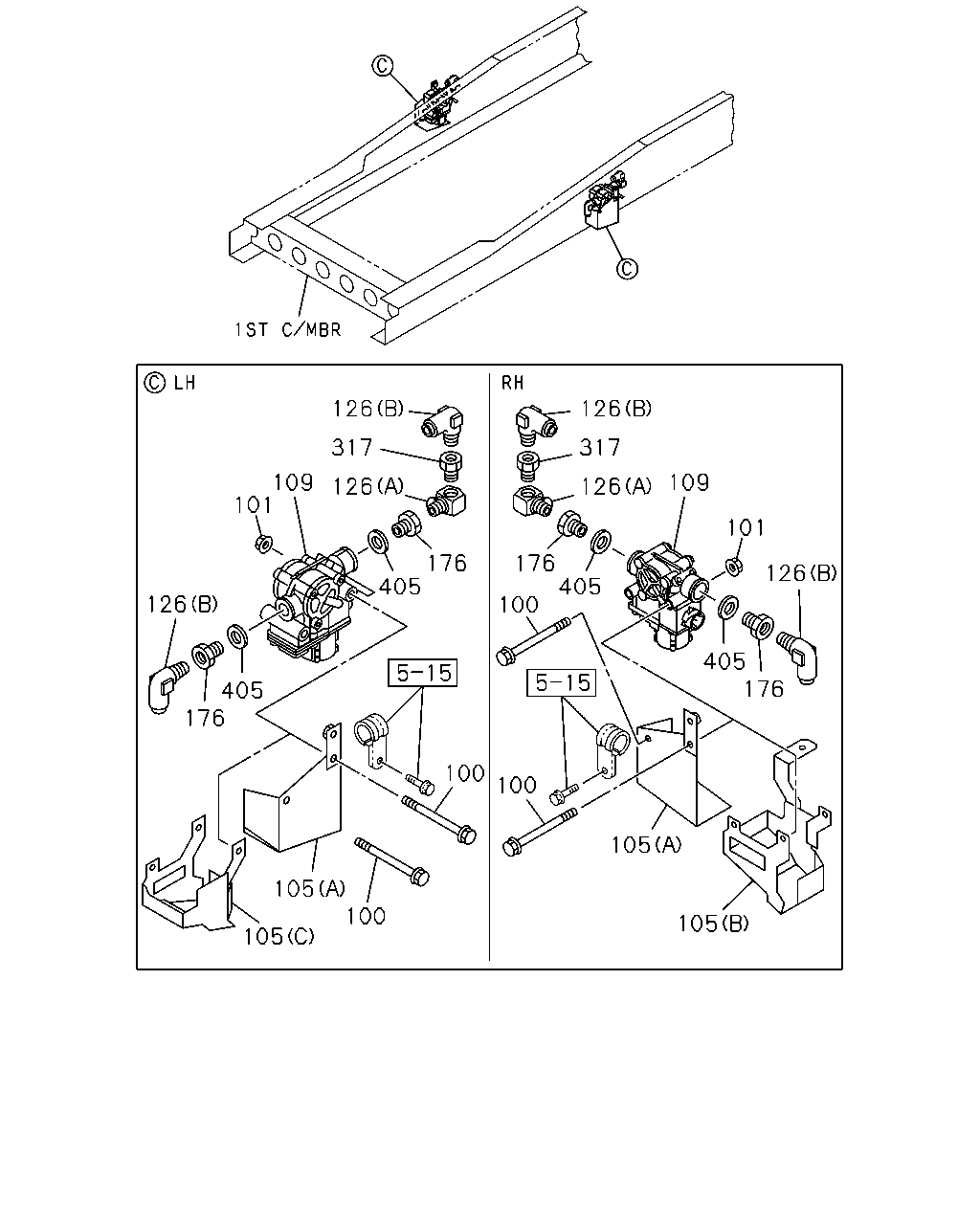

126 317 126 317 101 109 126 126 405 176 405 176 100 100 105 105 100 100 105 105 176 126 101 126 109 405 405 176

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	BOLT; MODULATOR M8X85	1-09044-074-0	04	1	1505-
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	04	1	1401-1504
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	04	1	1401-1504
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	04	1	1505-
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	04	1	1401-
105	COVER; MODULATOR (A)	8-98061-815-0	01	1	1401-1504
105	COVER; MODULATOR (B)	8-98300-152-0	01	1	1505-
105	COVER; MODULATOR (A)	8-98164-196-0	01	1	1401-1504
105	COVER; MODULATOR (C)	8-98300-155-0	01	1	1505-
109	MODULATOR; FRT	1-48240-115-0	02	1	1401-1504
109	MODULATOR; FRT	8-98215-454-0	02	1	1505-
126	CONNECTOR; ELBOW (F)	1-09660-778-1	01	1	1401-
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1401-1403
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	1404-
126	CONNECTOR; ELBOW (D) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1401-
126	CONNECTOR; ELBOW (E) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1401-
126	CONNECTOR; ELBOW (A) PT3/8 ELBOW	1-09660-696-0	02	1	1401-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1401-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1401-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1401-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1401-
176	ADAPTER INNER PT3/8,OUTER M22	1-09650-494-1	06	1	1401-
317	CONNECTOR; MODULATOR PT3/8	1-09664-210-0	01	1	1401-
405	GASKET ID=22.5	9-09571-422-0	06	1	1401-

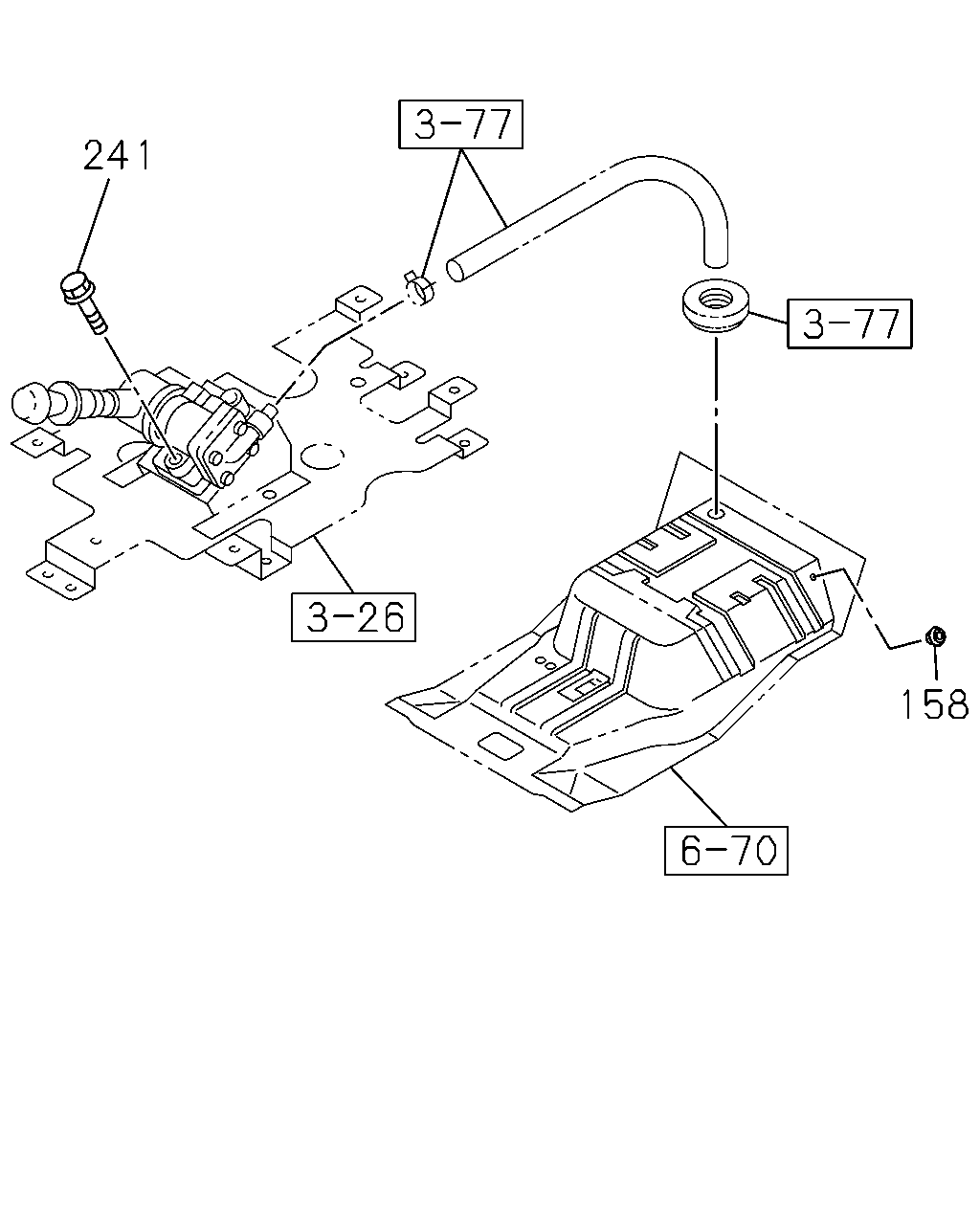

158 241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	158	GROMMET; PIPE OD=35	8-94122-971-0	01	1	1401-
	241	BOLT; SET,CONT VLV M8X29.5 W/LK+PL WASHER	8-94279-218-0	01	1	1401-

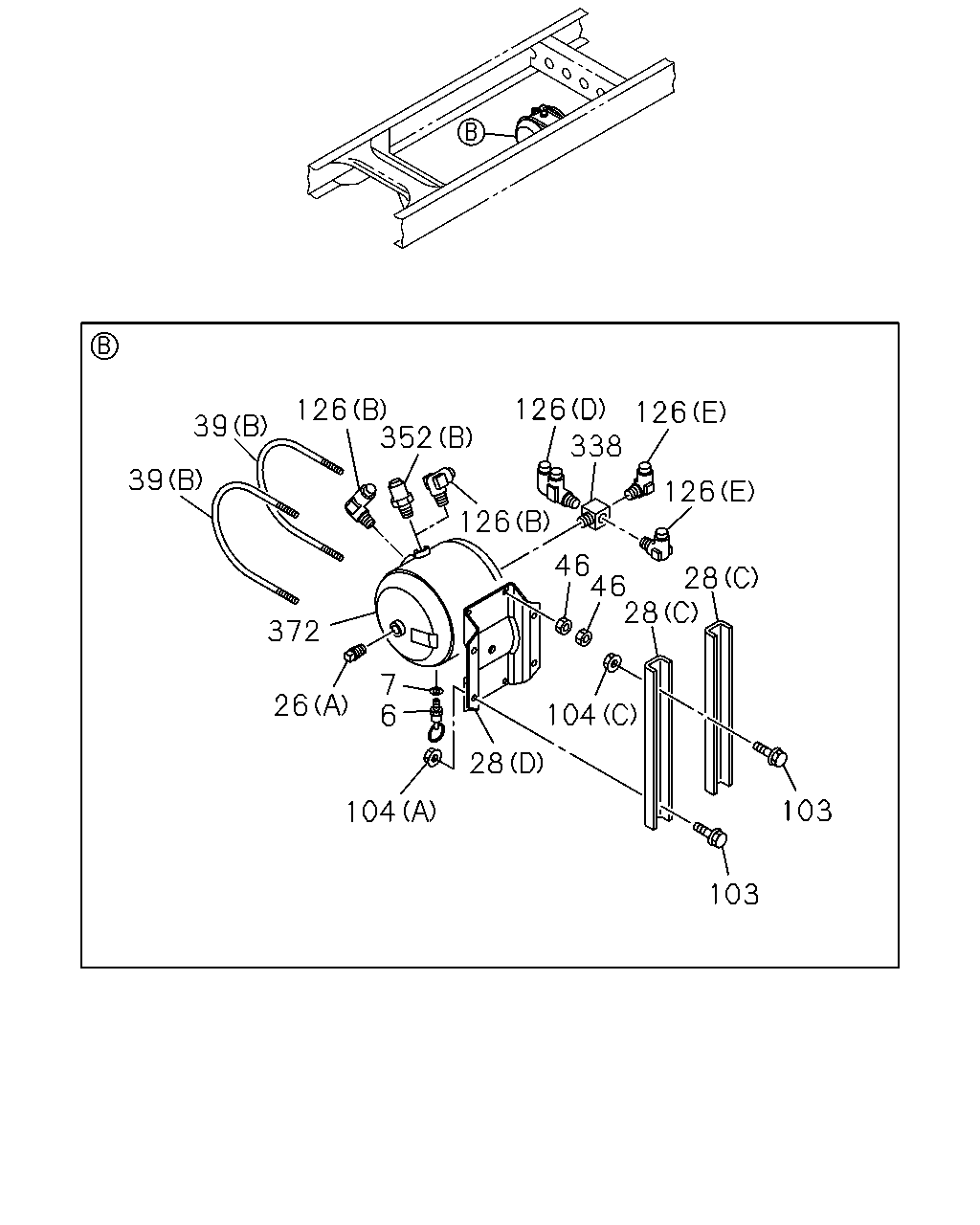

126 126 126 338 28 28 46 46 126 352 126 39 39 372 26 104 28 103 103 104 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1401-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1401-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1401-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1401-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1401-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1401-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1401-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1401-
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	04	1	1401-
26	PLUG; SUB AIR TANK (B) PT1/4	9-99204-513-0	01	1	1401-
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1401-
28	BRACKET; AIR TANK (C)	8-98100-973-1	02	1	1401-
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1401-
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1401-
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1401-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1401-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1401-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1401-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1401-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1401-
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1401-
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1401-
103	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1401-
103	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1401-
103	BOLT; BRKT M12X35 FLANGE	0-28651-235-0	04	1	1401-
104	NUT; BRKT (A) M10	0-91110-510-0	04	1	1401-
104	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	04	1	1401-
104	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	1401-
104	NUT; BRKT (C) M12 FLANGE	0-91180-212-0	02	1	1401-
126	CONNECTOR; ELBOW (F)	1-09660-778-1	01	1	1401-
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1401-1403
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	1404-
126	CONNECTOR; ELBOW (D) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1401-
126	CONNECTOR; ELBOW (E) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1401-
126	CONNECTOR; ELBOW (A) PT3/8 ELBOW	1-09660-696-0	02	1	1401-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1401-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1401-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1401-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1401-
338	CONNECTOR; 3WAY VLV PT3/8 4WAY	1-09661-489-0	01	1	1401-
352	CONNECTOR; STRAIGHT (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1401-1403
352	CONNECTOR; STRAIGHT (A) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1401-
372	TANK; AIR,ACCESORY	8-98090-803-1	01	1	1401-

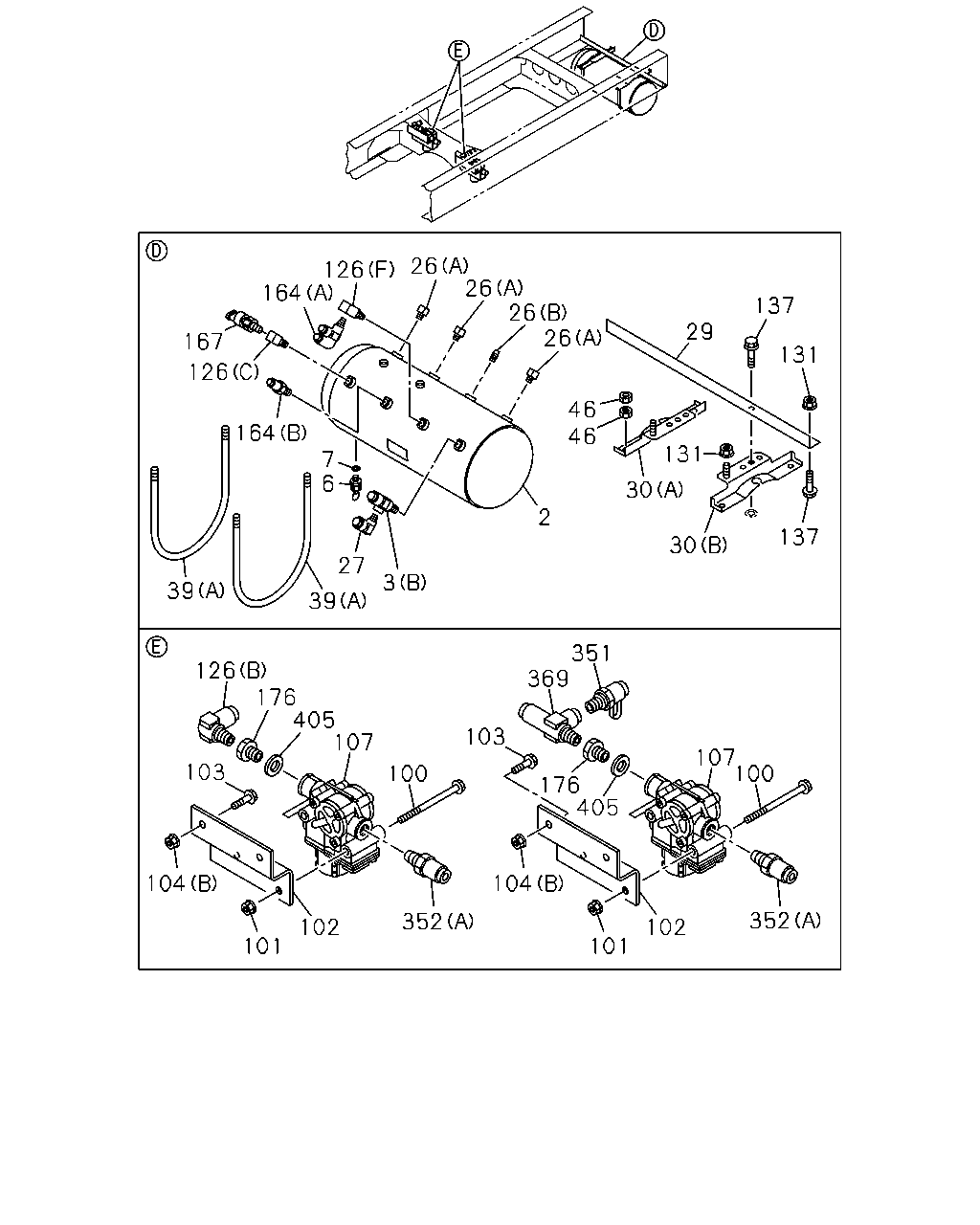

164 167 126 164 7 6 27 39 3 39 2 26 26 26 26 126 46 46 29 137 131 131 30 30 137 351 369 100 103 176 405 107 100 352 102 101 104 352 102 101 104 103 126 176 405 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR	8-98187-713-0	01	1	1401-
3	VALVE; CHECK,AIR TANK (A)	1-48320-031-1	01	1	1401-
3	VALVE; CHECK,AIR TANK (B) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1401-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1401-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1401-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1401-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1401-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1401-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1401-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1401-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1401-
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	04	1	1401-
26	PLUG; SUB AIR TANK (B) PT1/4	9-99204-513-0	01	1	1401-
27	UNION; ELBOW,AIR TANK DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1401-
29	BRACKET; AIR TANK	8-97620-998-0	01	1	1401-
30	BRACKET; AIR TANK,SUB (A)	8-97618-390-1	01	1	1401-
30	BRACKET; AIR TANK,SUB (B)	8-97618-391-1	01	1	1401-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1401-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1401-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1401-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1401-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1401-
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1401-
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1401-
100	BOLT; MODULATOR M8X85	1-09044-074-0	04	1	1505-
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	04	1	1401-1504
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	04	1	1401-1504
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	04	1	1505-
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	04	1	1401-
102	BRACKET; MODULATOR	1-47471-180-0	02	1	1401-1504
102	BRACKET; MODULATOR	8-98300-018-0	02	1	1505-
103	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1401-
103	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1401-
103	BOLT; BRKT M12X35 FLANGE	0-28651-235-0	04	1	1401-
104	NUT; BRKT (A) M10	0-91110-510-0	04	1	1401-
104	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	04	1	1401-
104	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	1401-
104	NUT; BRKT (C) M12 FLANGE	0-91180-212-0	02	1	1401-
107	MODULATOR; RR	1-48240-115-0	02	1	1401-1504
107	MODULATOR; RR	8-98215-454-0	02	1	1505-
126	CONNECTOR; ELBOW (F)	1-09660-778-1	01	1	1401-
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1401-1403
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	1404-
126	CONNECTOR; ELBOW (D) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1401-
126	CONNECTOR; ELBOW (E) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1401-
126	CONNECTOR; ELBOW (A) PT3/8 ELBOW	1-09660-696-0	02	1	1401-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1401-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1401-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1401-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1401-
131	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	03	1	1401-
137	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	04	1	1401-
164	CONNECTOR; SUB AIR TANK (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1401-
164	CONNECTOR; SUB AIR TANK (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1401-
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB STAMP 5.5	8-97609-249-0	01	1	1401-
176	ADAPTER INNER PT3/8,OUTER M22	1-09650-494-1	06	1	1401-
351	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1401-
352	CONNECTOR; STRAIGHT (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1401-1403
352	CONNECTOR; STRAIGHT (A) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1401-
369	CONNECTOR; 3WAY DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1401-
405	GASKET ID=22.5	9-09571-422-0	06	1	1401-

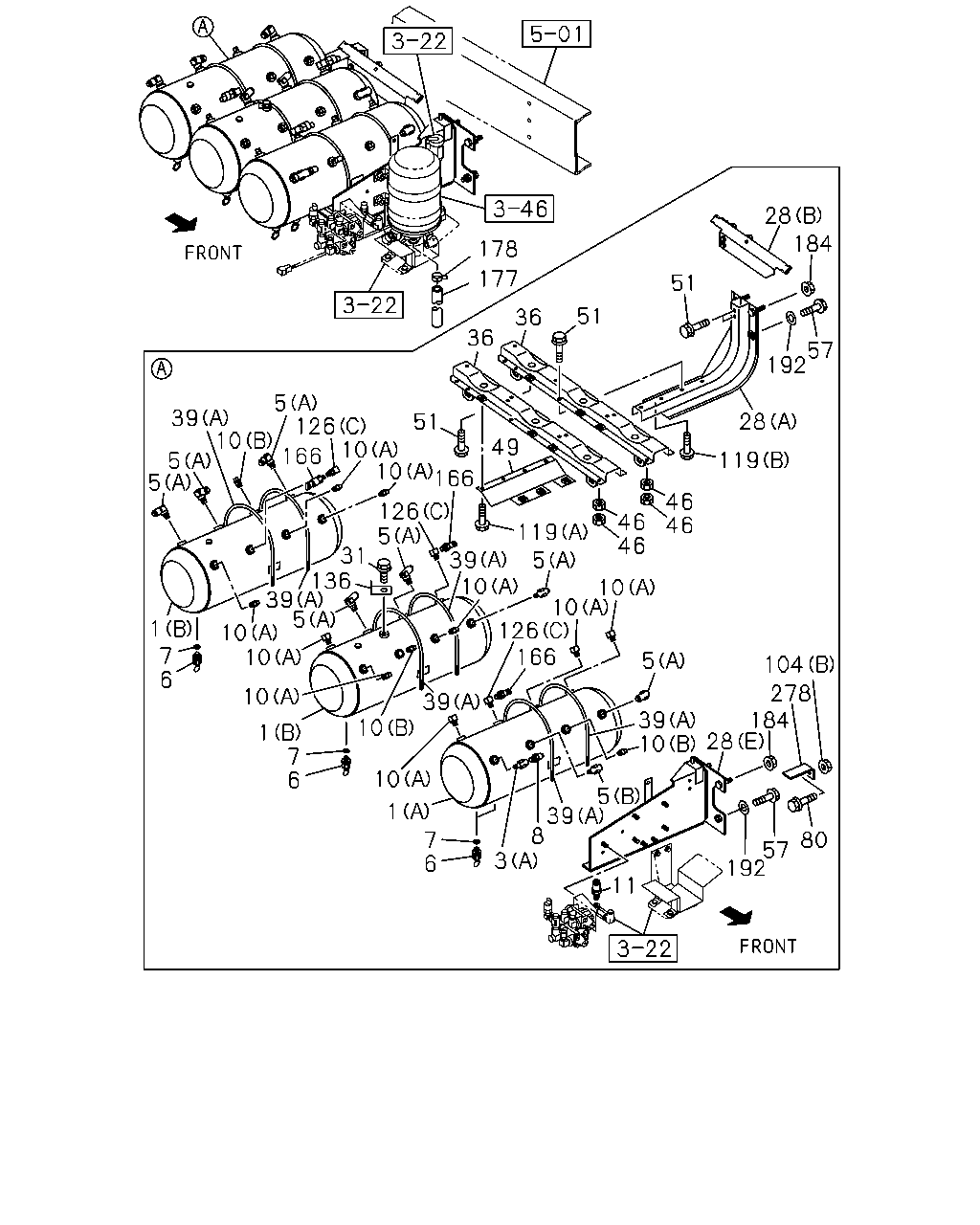

178 177 36 36 51 51 28 184 57 192 28 119 46 46 46 46 119 49 51 5 39 10 5 5 126 166 10 10 166 126 5 31 136 39 5 1 7 6 10 10 10 1 10 10 1 7 6 7 6 39 39 10 5 10 10 126 166 5 39 10 3 8 39 5 28 184 278 104 192 57 80 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1401-
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1401-
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1401-
3	VALVE; CHECK,AIR TANK (A)	1-48320-031-1	01	1	1401-
3	VALVE; CHECK,AIR TANK (B) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1401-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1401-
5	UNION; AIR TANK (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1401-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1401-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1401-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1401-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1401-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1401-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1401-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1401-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1401-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1401-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1401-
8	CONNECTOR; AIR TANK DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1401-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1401-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1401-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1401-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1401-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1401-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1401-
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	1401-
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1401-
28	BRACKET; AIR TANK (C)	8-98100-973-1	02	1	1401-
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1401-
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1401-
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1401-
31	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	01	1	1401-
36	STAY; MAIN TANK	8-97618-091-1	02	1	1401-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1401-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1401-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1401-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1401-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1401-
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1401-
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1401-
49	BRACKET; AIR TANK	8-98110-683-0	01	1	1401-
51	BOLT; STAY TO BRKT M8X20 FLANGE	0-28650-820-0	10	1	1401-
57	BOLT; BRKT,AIR TANK TO FRAME M14X45	1-09000-764-0	04	1	1401-
80	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1401-
104	NUT; BRKT (A) M10	0-91110-510-0	04	1	1401-
104	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	04	1	1401-
104	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	1401-
104	NUT; BRKT (C) M12 FLANGE	0-91180-212-0	02	1	1401-
119	BOLT; STAY (A) M8X20 FLANGE	0-28650-820-0	04	1	1401-
119	BOLT; STAY (B) M8X25 FLANGE	0-28650-825-0	03	1	1401-
126	CONNECTOR; ELBOW (F)	1-09660-778-1	01	1	1401-
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1401-1403
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	1404-
126	CONNECTOR; ELBOW (D) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1401-
126	CONNECTOR; ELBOW (E) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1401-
126	CONNECTOR; ELBOW (A) PT3/8 ELBOW	1-09660-696-0	02	1	1401-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1401-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1401-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1401-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1401-
136	BRACKET; CLIP L=55 B=25	1-47478-439-0	01	1	1401-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1401-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1401-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1401-
177	HOSE; RUBBER,DRAIN L=55 SERVICED BY L=3000	0-03566-300-0	01	1	1401-
178	CLIP; HOSE ID=21	8-94242-034-0	01	1	1401-
184	NUT; BRKT M14	1-09440-072-0	04	1	1401-
192	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1401-
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	1401-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
