◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11568 - GXR(MALAYSIA)EURO3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#132203) — 54 parça

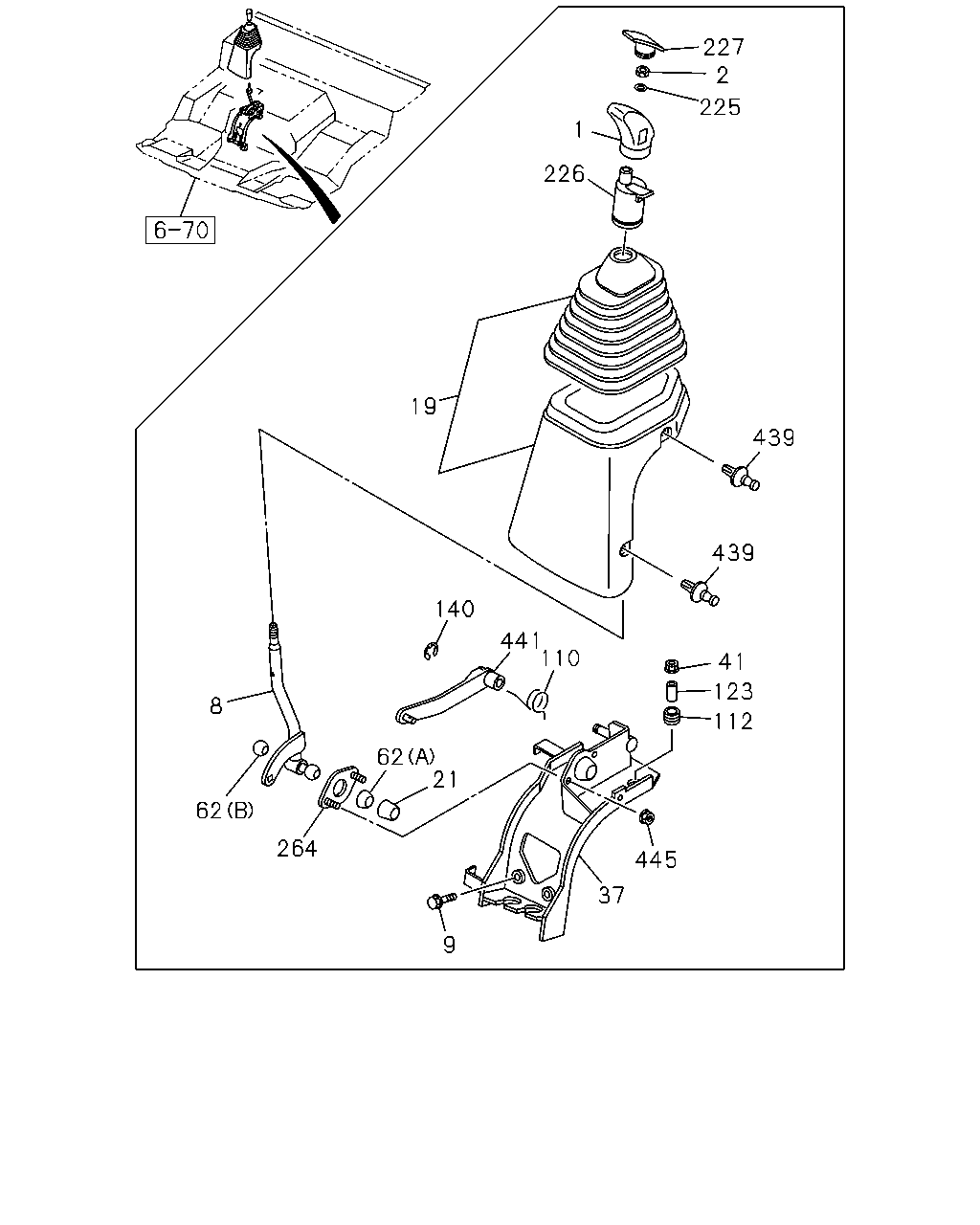

çizim 401400
9 264 62 8 62 140 441 110 41 123 112 445 37 21 19 227 225 2 1 226 439 439
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33611-099-1 01 1 1401-
1 KNOB; CHANGE LEVER
SHIFT PATTERN SINGLE-H<EDY> 		1-33611-038-0 01 1 1401-
2 NUT; KNOB
SHIFT PATTERN SINGLE-H<EDY> M10 FLANGE 		0-91180-210-0 01 1 1401-
8 LEVER; CHANGE
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98079-299-0 01 1 1401-1502
8 LEVER; CHANGE
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98296-343-0 01 1 1503-
8 LEVER; CHANGE
SHIFT PATTERN SINGLE-H<EDY> 		8-98079-300-0 01 1 1401-1502
8 LEVER; CHANGE
SHIFT PATTERN SINGLE-H<EDY> 		8-98221-569-0 01 1 1503-
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1401-
19 COVER; CHANGE LEVER
GRAY 		8-97416-183-2 01 1 1401-
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1401-
37 BRACKET; CHANGE LEVER SUPPORT
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98245-919-0 01 1 1401-1502
37 BRACKET; CHANGE LEVER SUPPORT
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98296-341-0 01 1 1503-
37 BRACKET; CHANGE LEVER SUPPORT
SHIFT PATTERN SINGLE-H<EDY> 		8-98245-920-0 01 1 1401-1502
37 BRACKET; CHANGE LEVER SUPPORT
SHIFT PATTERN SINGLE-H<EDY> 		8-98296-342-0 01 1 1503-
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1401-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1401-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1401-
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 1401-
112 RUBBER; CUSHION 1-33619-442-0 04 1 1401-
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 1401-
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 1401-
225 WASHER; PL,KNOB
SHIFT PATTERN SINGLE-H<EDY> ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1401-
226 VALVE; SELECTOR
SHIFT PATTERN SINGLE-H<EDY> 		1-33710-008-0 01 1 1401-
227 COVER; KNOB
SHIFT PATTERN SINGLE-H<EDY> 		8-98013-168-0 01 1 1401-
264 PLATE; COVER 1-33619-430-0 01 1 1401-
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1401-
441 LEVER; SELECT 8-98079-302-0 01 1 1401-
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 1401-

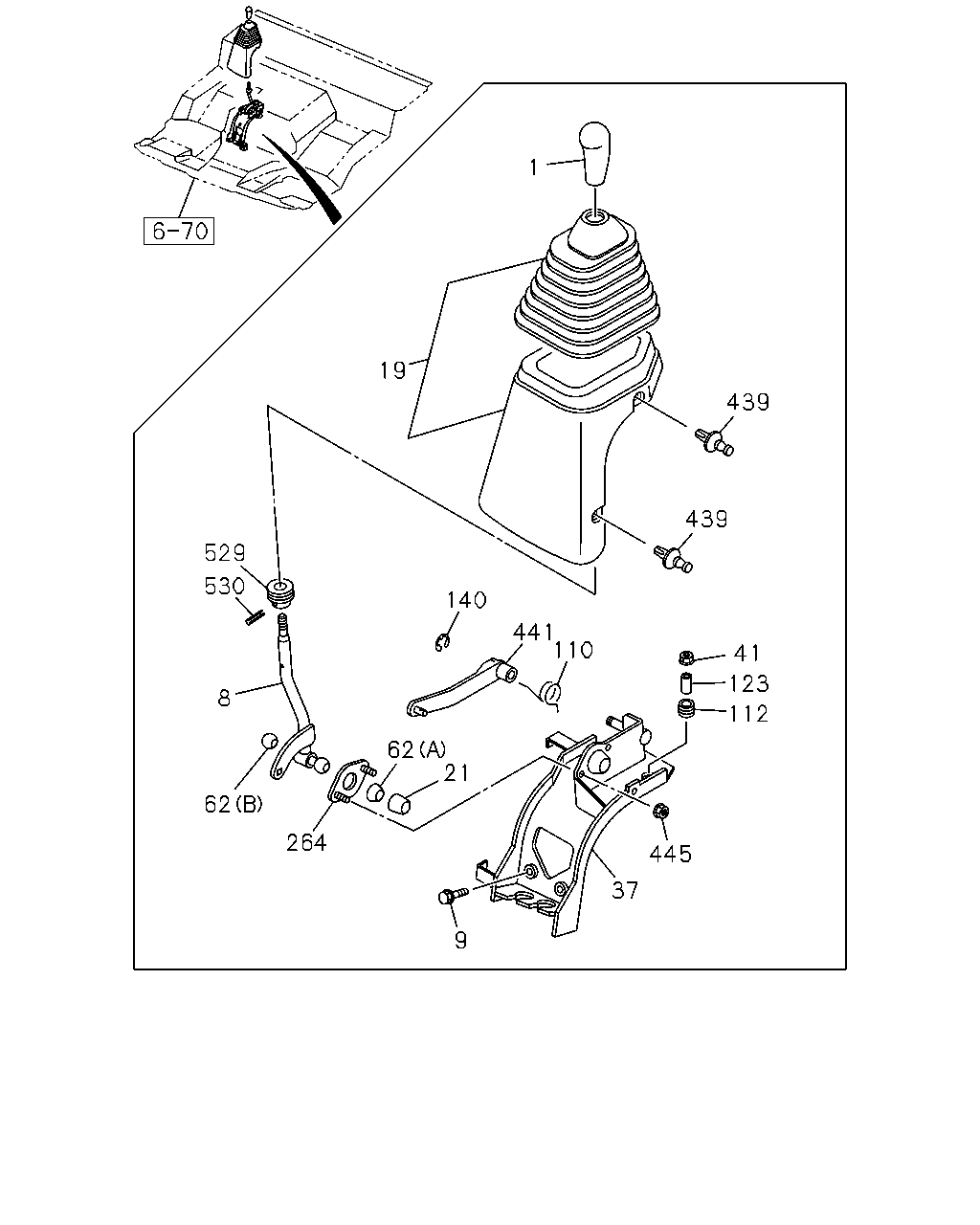

çizim 401407
1 19 529 530 8 62 264 21 62 140 441 110 9 37 445 112 123 439 439 41
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33611-099-1 01 1 1401-
1 KNOB; CHANGE LEVER
SHIFT PATTERN SINGLE-H<EDY> 		1-33611-038-0 01 1 1401-
8 LEVER; CHANGE
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98079-299-0 01 1 1401-1502
8 LEVER; CHANGE
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98296-343-0 01 1 1503-
8 LEVER; CHANGE
SHIFT PATTERN SINGLE-H<EDY> 		8-98079-300-0 01 1 1401-1502
8 LEVER; CHANGE
SHIFT PATTERN SINGLE-H<EDY> 		8-98221-569-0 01 1 1503-
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1401-
19 COVER; CHANGE LEVER
GRAY 		8-97416-183-2 01 1 1401-
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1401-
37 BRACKET; CHANGE LEVER SUPPORT
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98245-919-0 01 1 1401-1502
37 BRACKET; CHANGE LEVER SUPPORT
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98296-341-0 01 1 1503-
37 BRACKET; CHANGE LEVER SUPPORT
SHIFT PATTERN SINGLE-H<EDY> 		8-98245-920-0 01 1 1401-1502
37 BRACKET; CHANGE LEVER SUPPORT
SHIFT PATTERN SINGLE-H<EDY> 		8-98296-342-0 01 1 1503-
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1401-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1401-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1401-
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 1401-
112 RUBBER; CUSHION 1-33619-442-0 04 1 1401-
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 1401-
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 1401-
264 PLATE; COVER 1-33619-430-0 01 1 1401-
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1401-
441 LEVER; SELECT 8-98079-302-0 01 1 1401-
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 1401-
529 RING; BOOT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33619-504-0 01 1 1401-
530 PIN; SPRING
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33619-505-0 01 1 1401-
