2-30 — GEAR SHIFTER AND QUADRANT BOX (#132202) — 385 parça

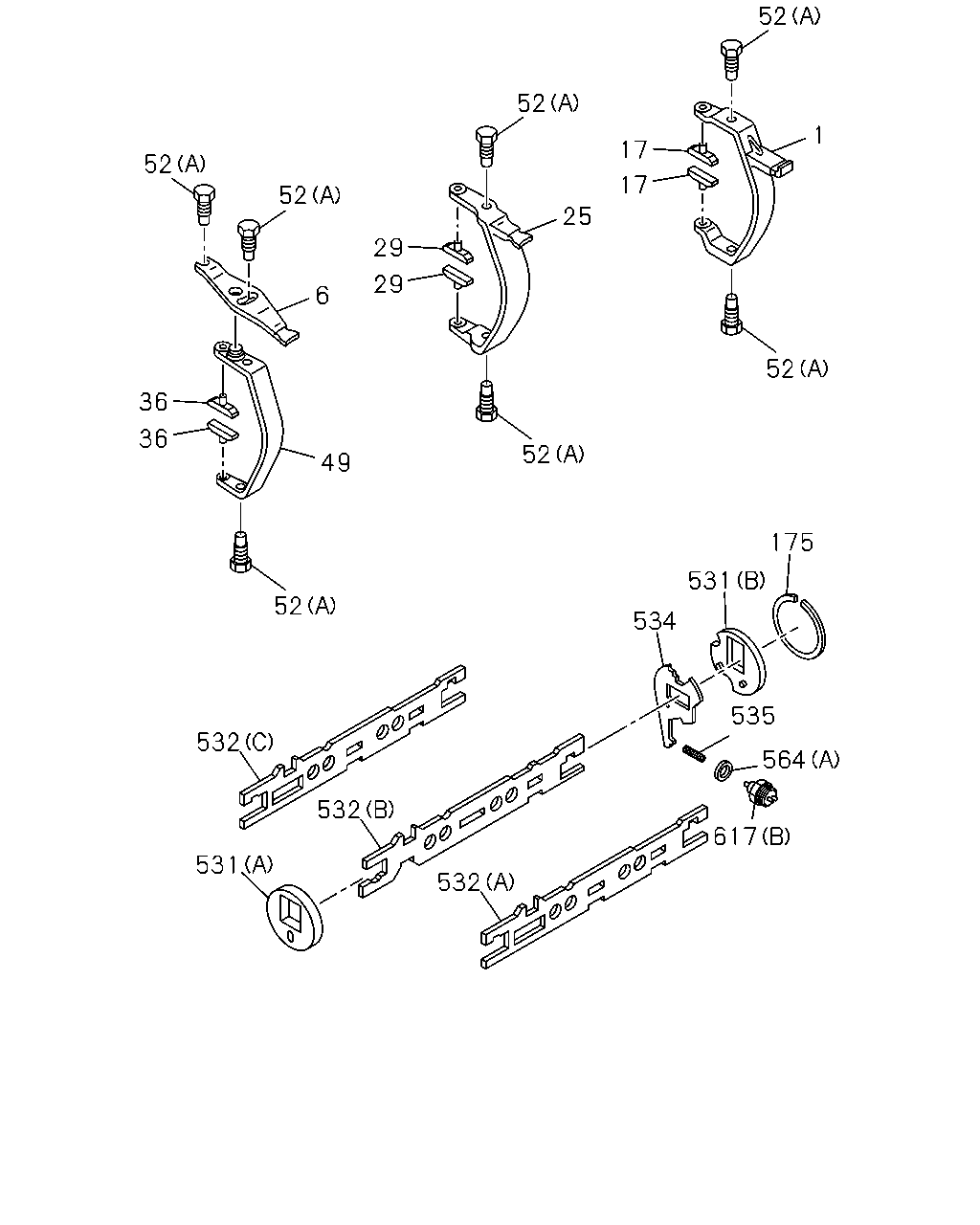

çizim 401363
52 52 29 29 6 52 25 17 17 1 52 52 52 49 36 36 52 175 531 534 535 564 617 532 532 532 531
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-657-0 01 1 1401-
6 LEVER; RELAY 1-33511-658-0 01 1 1401-
17 BLOCK; SHIFT,1ST & REV 1-33519-172-0 02 1 1401-
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1401-
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 1401-
36 BLOCK; SHIFT,4TH & 5TH 1-33519-170-0 02 1 1401-
49 ARM; SHIFT,4TH & 5TH 1-33511-640-0 01 1 1401-
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1401-
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1401-
175 RING; STOPPER,SHIFT LEVER 1-33539-103-0 01 1 1401-
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 1401-
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 1401-
532 PLATE; SHIFT FORK
(A) 		1-33531-492-0 01 1 1401-
532 PLATE; SHIFT FORK
(B) 		1-33531-493-0 01 1 1401-
532 PLATE; SHIFT FORK
(C) 		1-33531-494-0 01 1 1401-
534 LEVER; LOCK,SHIFT PLATE 1-33539-087-0 01 1 1401-
535 SPRING; LEVER 1-33539-049-0 01 1 1401-
564 SEAL; RING
(A) 		1-33549-578-0 01 1 1401-
564 SEAL; RING
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33119-249-0 02 1 1401-
564 SEAL; RING
SHIFT PATTERN SINGLE-H<EDY> (B) T=2.0 		1-82449-010-0 01 1 1401-
617 PLUG
(B) 		1-33539-109-0 01 1 1401-
617 PLUG
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33119-619-0 02 1 1401-
617 PLUG
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33119-619-0 01 1 1401-

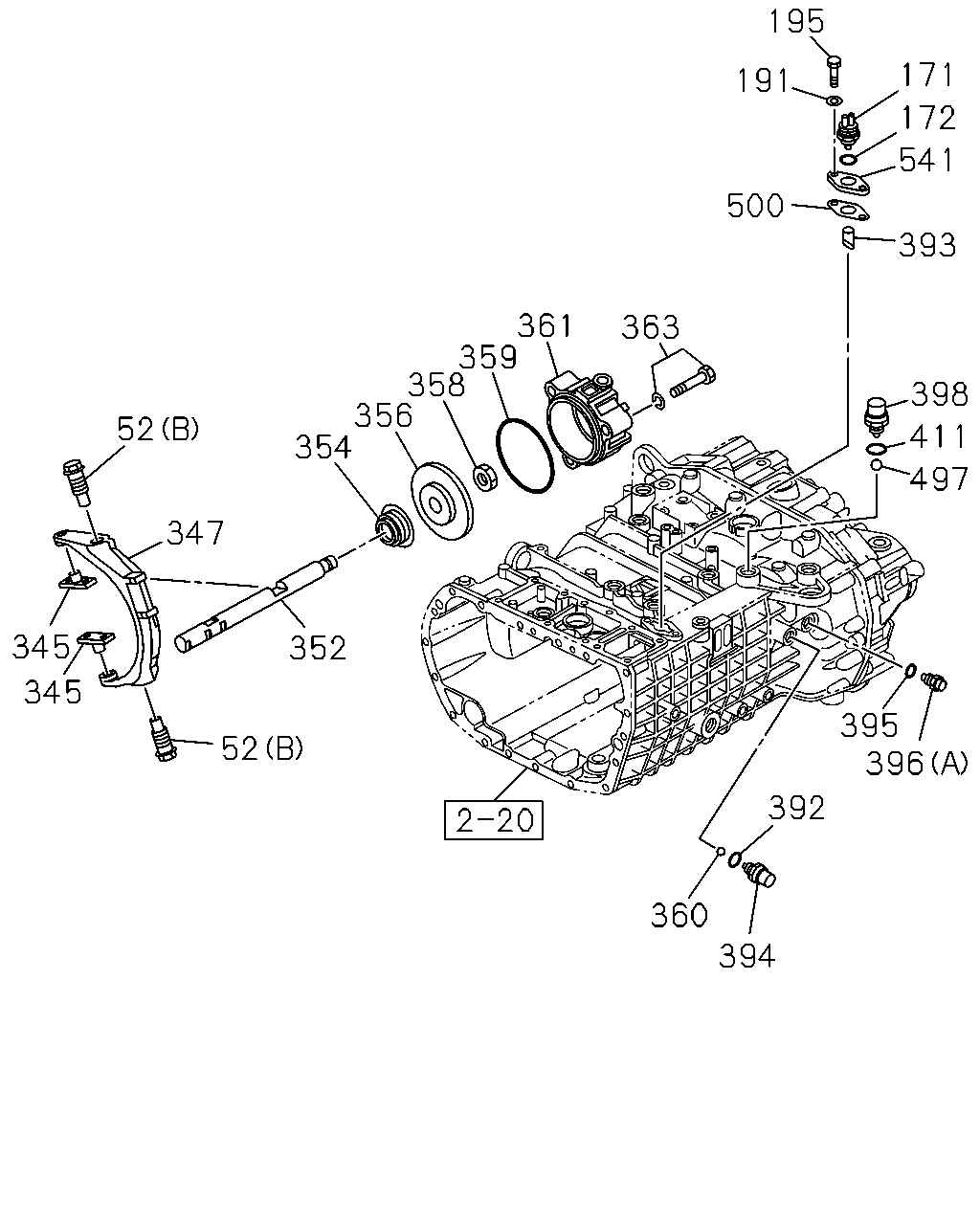

çizim 401367
394 360 392 395 497 411 398 393 541 172 171 195 191 500 363 361 359 358 356 354 352 52 347 52 345 345 396
BalonParca AdiParca NoAdetTipApplied Date
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1401-
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1401-
171 SWITCH; NEUTRAL
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-627-0 01 1 1401-
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-249-0 01 1 1401-
191 WASHER; LK
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-583-0 02 1 1401-
195 BOLT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-593-0 02 1 1401-
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 1401-
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 1401-
352 ROD; SHIFT,RANGE CHANGE 1-33531-497-0 01 1 1401-
354 SEAL; AIR CYL 1-33519-045-0 01 1 1401-
356 PISTON; AIR CYL 1-33519-197-0 01 1 1401-
358 NUT; SHIFT ROD 1-33519-188-0 01 1 1401-
359 GASKET; AIR CYL 1-33519-093-0 01 1 1401-
360 BALL; AIR CYL 1-33119-252-0 01 1 1401-
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 1401-
363 BOLT; AIR CYL
M10X70 		1-33119-616-0 03 1 1401-
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 1401-
393 PIN; SW
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-298-0 01 1 1401-
394 SWITCH; RANGE CHANGE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-627-0 01 1 1401-
394 SWITCH; RANGE CHANGE
SHIFT PATTERN SINGLE-H<EDY> 		1-33119-587-0 01 1 1401-
395 GASKET; PLUNGER 1-33549-497-0 01 1 1401-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1401-
396 PLUNGER; SHIFT ROD
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33529-085-0 02 1 1401-
396 PLUNGER; SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33529-132-0 01 1 1401-
398 SWITCH; REV LAMP 1-38119-062-0 01 1 1401-
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 1401-
497 BALL; SWITCH 1-33119-252-0 01 1 1401-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-299-0 01 1 1401-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN SINGLE-H<EDY> 		1-33119-249-0 01 1 1401-
541 PLATE; SWITCH
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-300-0 01 1 1401-

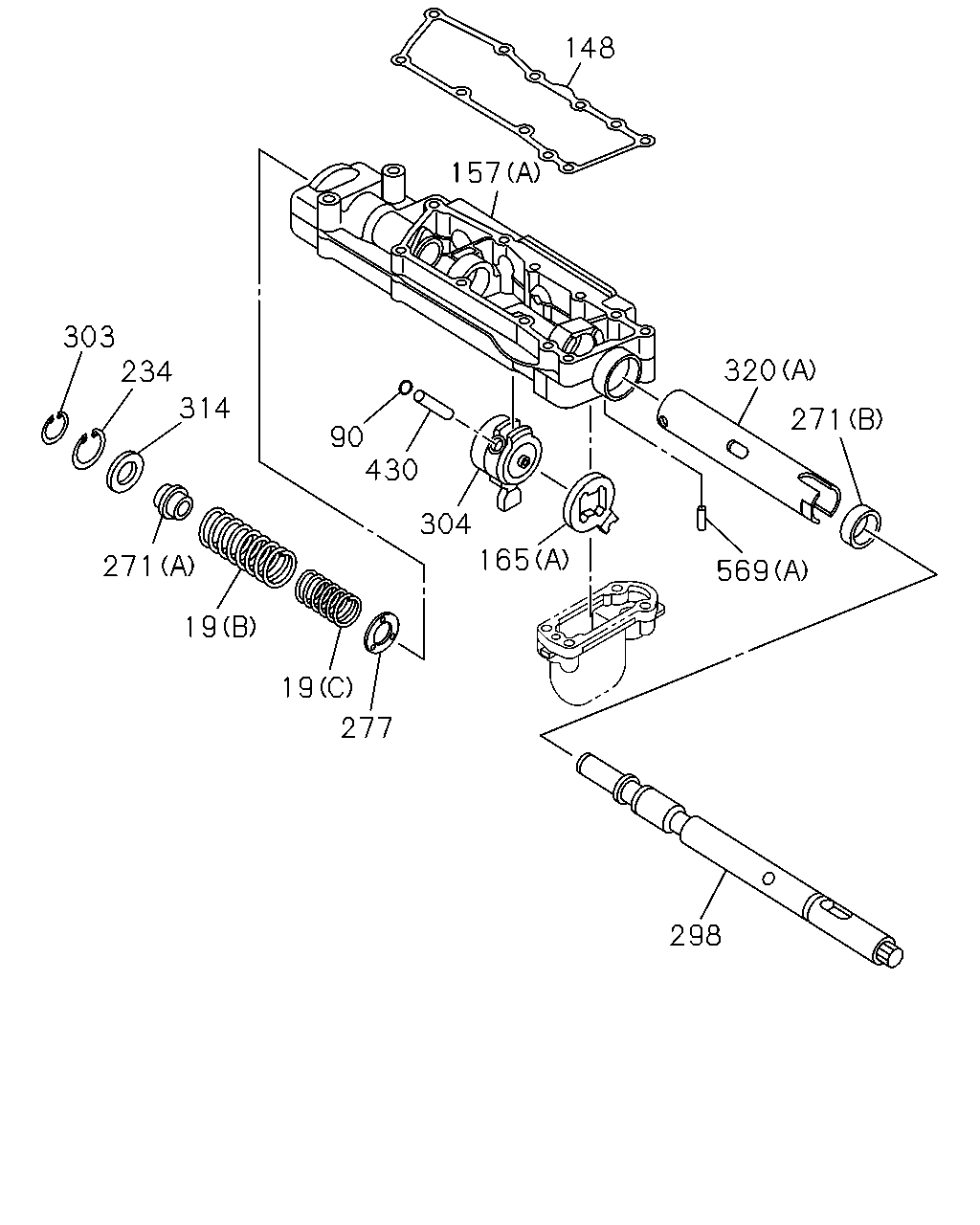

çizim 401378
298 277 19 19 271 314 234 303 90 430 304 165 569 271 320 148 157
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33539-028-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33539-030-0 02 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33539-092-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-221-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-022-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33539-027-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33539-098-0 01 1 1401-
90 RING; SNAP,SHIFT ROD
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-494-0 02 1 1401-
90 RING; SNAP,SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> 		1-33529-109-0 01 1 1401-
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ> 		1-33542-064-0 01 1 1401-
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN SINGLE-H<EDY> 		1-33544-056-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-570-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-604-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-445-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-612-0 01 1 1401-
165 LEVER; SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-488-0 01 1 1401-
165 LEVER; SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-489-0 01 1 1401-
165 LEVER; SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-603-0 01 1 1401-
165 LEVER; SHIFT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-533-0 01 1 1401-
234 RING; SNAP
SHIFT PATTERN SINGLE-H<EDY> 		1-44519-224-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-124-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-537-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-099-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-318-0 01 1 1401-
277 PLATE; SPRING SEAT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33539-107-0 02 1 1401-
277 PLATE; SPRING SEAT
SHIFT PATTERN SINGLE-H<EDY> 		1-33539-112-0 01 1 1401-
298 SHAFT; SHIFT LEVER
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33522-211-0 01 1 1401-
298 SHAFT; SHIFT LEVER
SHIFT PATTERN SINGLE-H<EDY> 		1-33522-207-0 01 1 1401-
303 RING; SNAP,SHAFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33539-040-0 02 1 1401-
303 RING; SNAP,SHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33539-101-0 01 1 1401-
304 BLOCK; SHIFT SHAFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-492-0 01 1 1401-
304 BLOCK; SHIFT SHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-532-0 01 1 1401-
314 WASHER; SHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33539-100-0 01 1 1401-
320 SHAFT; LEVER
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		8-98065-840-0 01 1 1401-
320 SHAFT; LEVER
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-447-0 01 1 1401-
320 SHAFT; LEVER
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33619-524-0 01 1 1401-
430 PIN; SPR,SHIFT ROD
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-493-0 01 1 1401-
430 PIN; SPR,SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-449-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33529-128-0 02 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33529-106-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-452-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33549-468-0 01 1 1401-

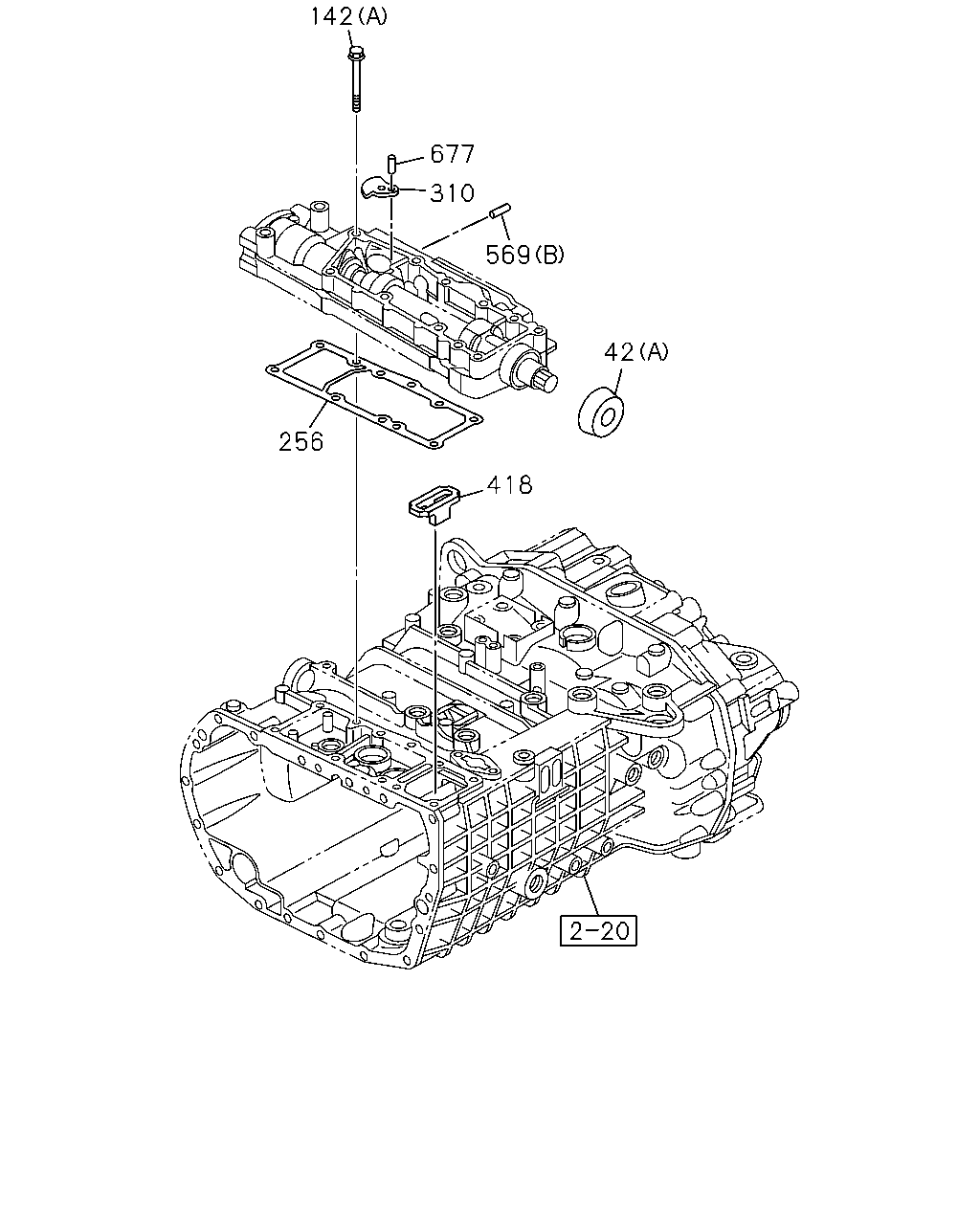

çizim 401380
42 418 256 569 310 677 142
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-538-0 01 1 1401-
42 CAP; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-589-0 01 1 1401-
42 CAP; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-548-0 01 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) M8X100 		1-33549-582-0 06 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) M8X75 		1-33549-584-0 02 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) M8X40 		1-33549-587-0 04 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) M8X80 		1-33549-614-0 17 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) M8X70 		1-33549-616-0 05 1 1401-
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ> 		1-33542-065-0 01 1 1401-
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN SINGLE-H<EDY> 		1-33542-062-0 01 1 1401-
310 PLATE; LOCK,SHIFT LEVER
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-453-0 01 1 1401-
418 PIECE; DIST,QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-454-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33529-128-0 02 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33529-106-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-452-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33549-468-0 01 1 1401-
677 PIN; PLATE
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-452-0 01 1 1401-

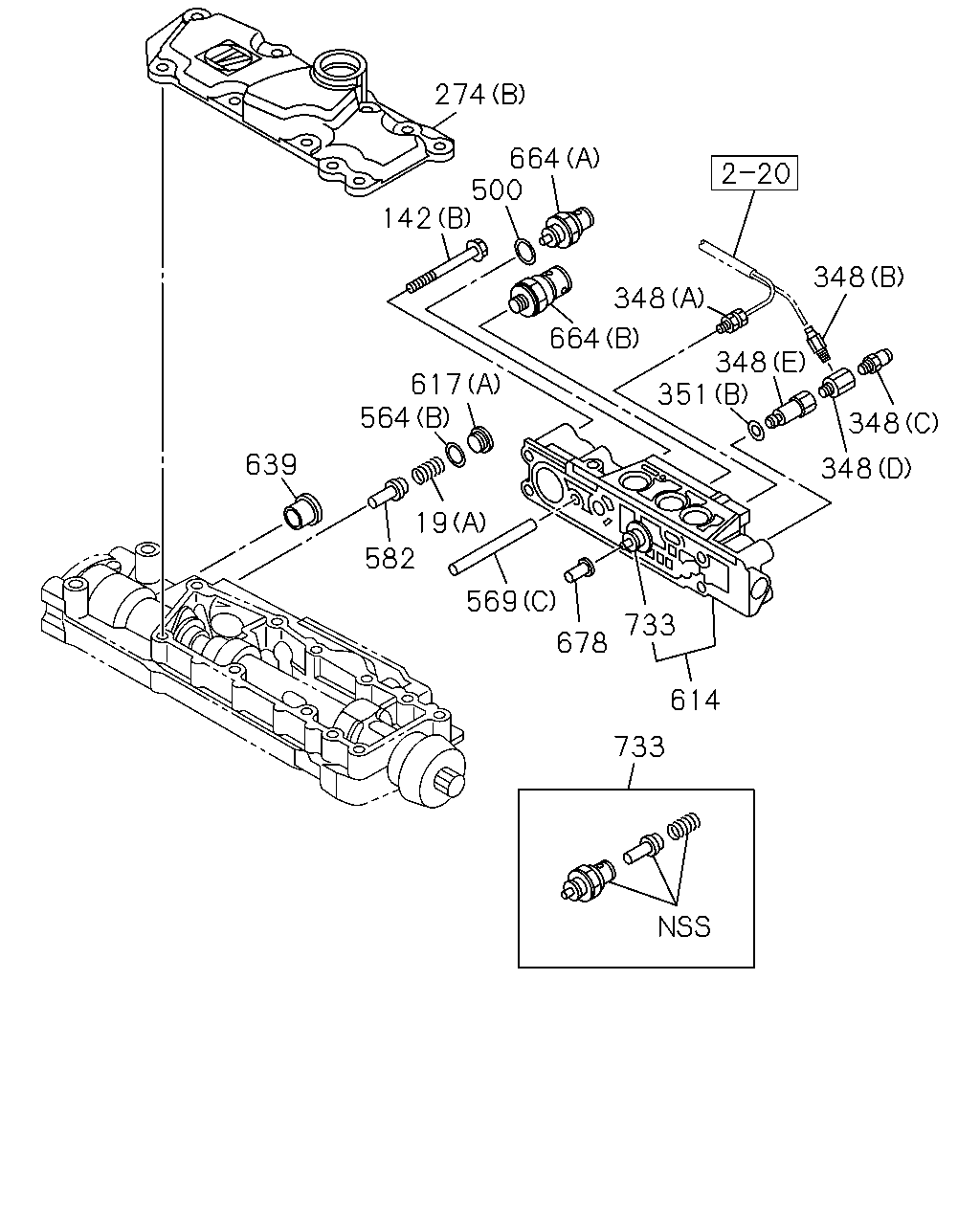

çizim 401382
733 614 733 678 569 582 19 564 617 639 664 348 351 348 348 348 348 664 500 142 274
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33539-028-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33539-030-0 02 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33539-092-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-221-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-022-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33539-027-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33539-098-0 01 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) M8X100 		1-33549-582-0 06 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) M8X75 		1-33549-584-0 02 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) M8X40 		1-33549-587-0 04 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) M8X80 		1-33549-614-0 17 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) M8X70 		1-33549-616-0 05 1 1401-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-579-0 01 1 1401-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-531-0 01 1 1401-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-535-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-593-0 02 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (A) M12 STRAIGHT 		1-09654-246-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-09660-466-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-09661-174-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-09661-481-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (D) 		8-94338-417-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (E) 		8-98068-125-0 01 1 1401-
351 GASKET; CONNECTOR
(B) ID=12.2 		1-09630-084-0 01 1 1401-1401
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-554-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-578-0 08 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-578-0 04 1 1401-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-299-0 01 1 1401-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN SINGLE-H<EDY> 		1-33119-249-0 01 1 1401-
564 SEAL; RING
(A) 		1-33549-578-0 01 1 1401-
564 SEAL; RING
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33119-249-0 02 1 1401-
564 SEAL; RING
SHIFT PATTERN SINGLE-H<EDY> (B) T=2.0 		1-82449-010-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33529-128-0 02 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33529-106-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-452-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33549-468-0 01 1 1401-
582 BOLT; SPRING GUIDE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-487-0 02 1 1401-
582 BOLT; SPRING GUIDE
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-471-0 01 1 1401-
614 VALVE ASM
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-549-0 01 1 1401-
617 PLUG
(B) 		1-33539-109-0 01 1 1401-
617 PLUG
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33119-619-0 02 1 1401-
617 PLUG
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33119-619-0 01 1 1401-
639 CAP
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-576-0 01 1 1401-
664 SWITCH
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33119-587-0 01 1 1401-
664 SWITCH
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-470-0 01 1 1401-
678 TAPPET
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-466-0 01 1 1401-
733 REPAIR KIT
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-617-0 01 1 1401-

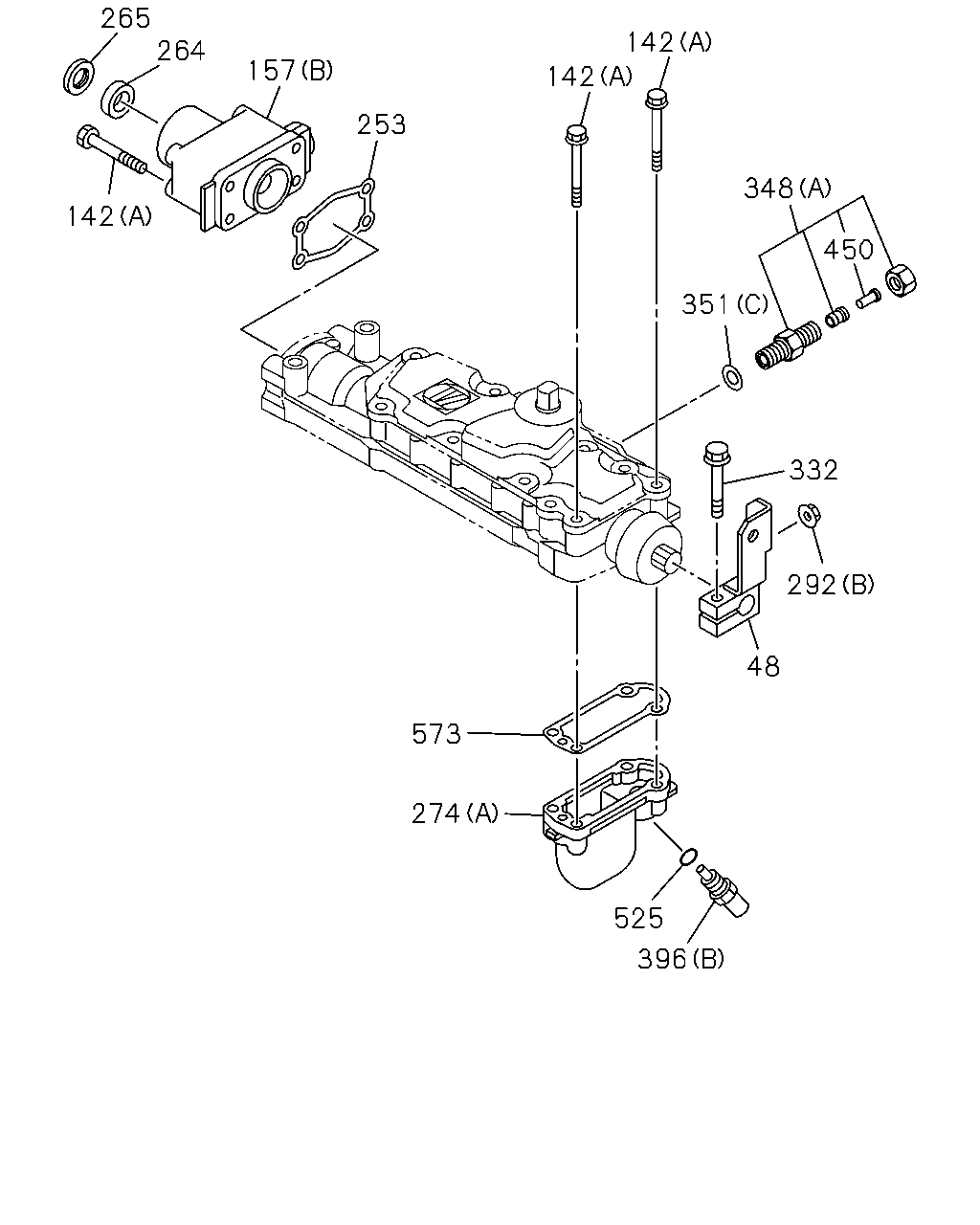

çizim 401384
396 525 274 573 48 292 332 450 348 351 142 142 253 157 264 265 142
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33651-661-1 01 1 1401-
48 LEVER; 4TH,SHIFT
SHIFT PATTERN SINGLE-H<EDY> 		8-98081-185-1 01 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) M8X100 		1-33549-582-0 06 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) M8X75 		1-33549-584-0 02 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) M8X40 		1-33549-587-0 04 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) M8X80 		1-33549-614-0 17 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) M8X70 		1-33549-616-0 05 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-570-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-604-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-445-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-612-0 01 1 1401-
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-054-0 01 1 1401-
264 SEAL; DUST,SHAFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-327-0 01 1 1401-
264 SEAL; DUST,SHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-119-0 01 1 1401-
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-328-0 01 1 1401-
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN SINGLE-H<EDY> 		1-33549-118-0 01 1 1401-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-579-0 01 1 1401-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-531-0 01 1 1401-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-535-0 01 1 1401-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1401-
292 NUT; LINK ROD
SHIFT PATTERN DOUBLE-H<EDZ> (A) M8 		0-91111-508-0 02 1 1401-
332 BOLT; 4TH,SHIFT LEVER
SHIFT PATTERN DOUBLE-H<EDZ> M8X40 FLANGE 		0-28650-840-0 01 1 1401-
332 BOLT; 4TH,SHIFT LEVER
SHIFT PATTERN SINGLE-H<EDY> M10X45 W/PL WASHER 		8-98038-710-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-593-0 02 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (A) M12 STRAIGHT 		1-09654-246-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-09660-466-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-09661-174-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-09661-481-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (D) 		8-94338-417-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (E) 		8-98068-125-0 01 1 1401-
351 GASKET; CONNECTOR
(B) ID=12.2 		1-09630-084-0 01 1 1401-1401
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-554-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-578-0 08 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-578-0 04 1 1401-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1401-
396 PLUNGER; SHIFT ROD
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33529-085-0 02 1 1401-
396 PLUNGER; SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33529-132-0 01 1 1401-
450 INSERT; SHIFT ARM
SHIFT PATTERN SINGLE-H<EDY> ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 1401-
525 RING; DETENT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-286-0 01 1 1401-
525 RING; DETENT
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-497-0 01 1 1401-
573 GASKET; SERVO UNIT
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-332-0 01 1 1401-

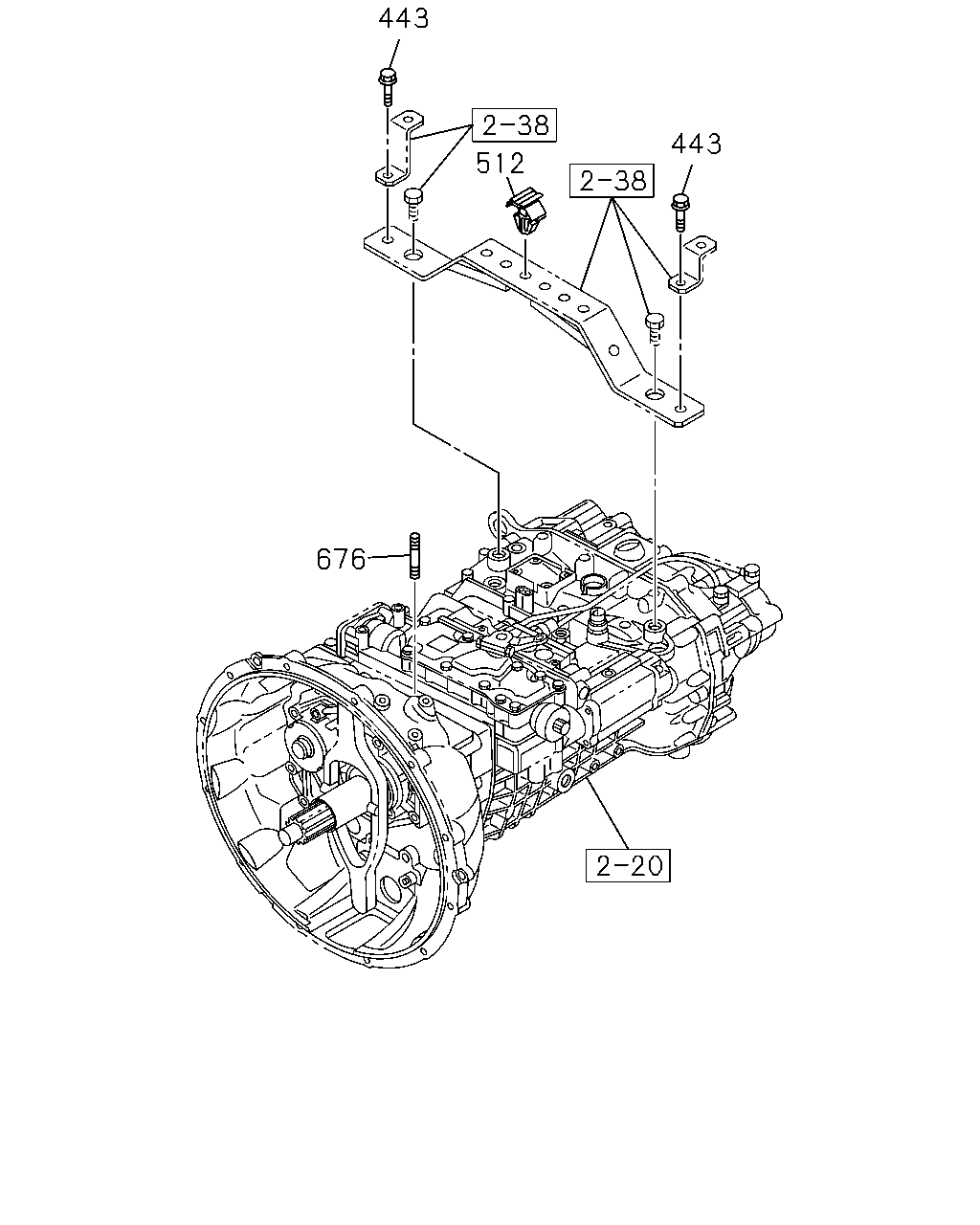

çizim 401388
676 443 512 443
BalonParca AdiParca NoAdetTipApplied Date
443 BOLT; CLIP
SHIFT PATTERN SINGLE-H<EDY> M8X20 FLANGE 		0-28650-820-0 02 1 1401-
512 CLIP; PIPE
SHIFT PATTERN DOUBLE-H<EDZ> OD=9 H=6 		1-09709-178-0 04 1 1401-
512 CLIP; PIPE
SHIFT PATTERN SINGLE-H<EDY> OD=9 H=6 		1-09709-178-0 05 1 1401-
676 STUD
SHIFT PATTERN SINGLE-H<EDY> M8X14,M8X14 L=33 		1-09300-058-1 01 1 1401-

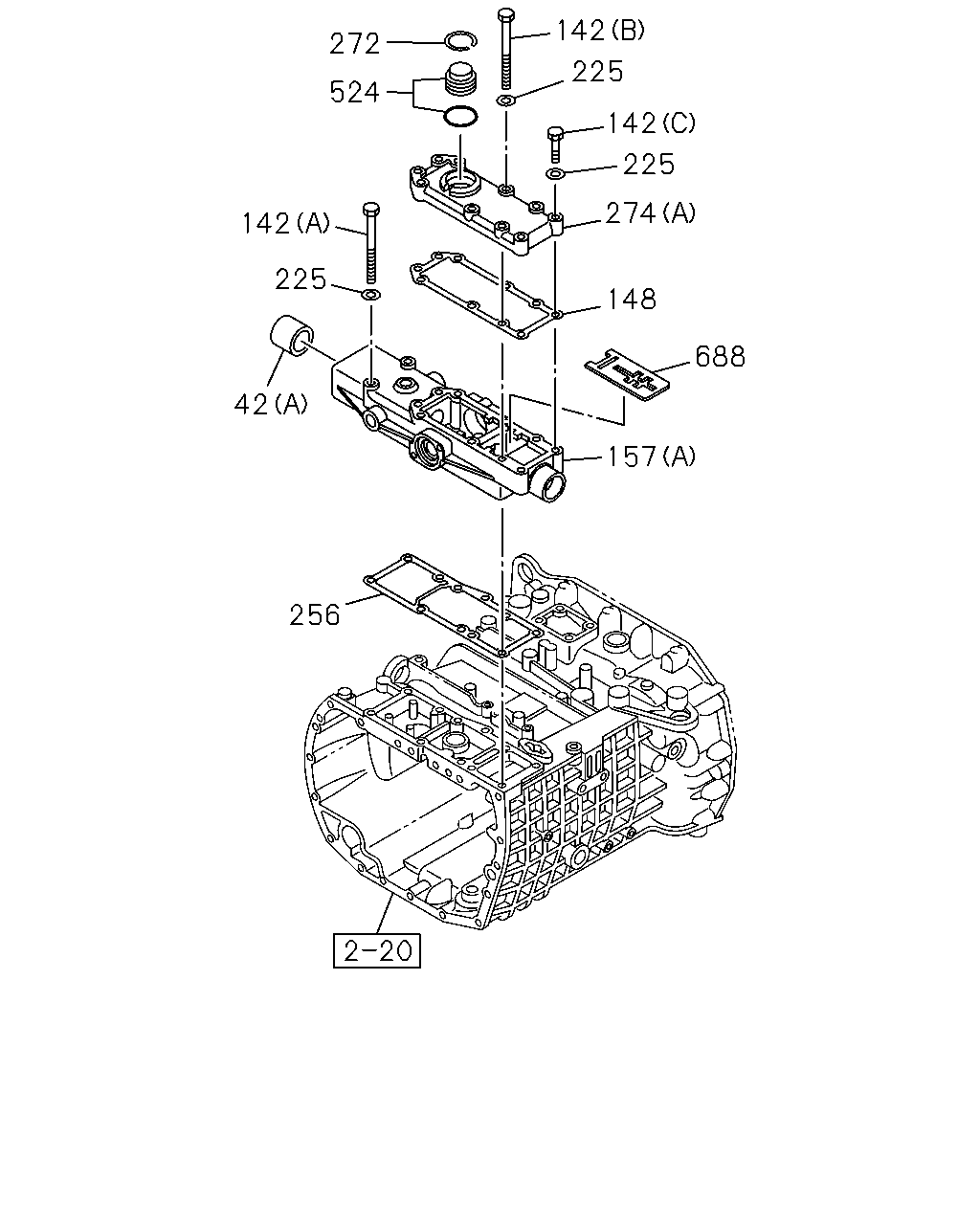

çizim 401390
272 142 142 225 524 142 225 42 256 157 688 225 274 148
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-538-0 01 1 1401-
42 CAP; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-589-0 01 1 1401-
42 CAP; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-548-0 01 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) M8X100 		1-33549-582-0 06 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) M8X75 		1-33549-584-0 02 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) M8X40 		1-33549-587-0 04 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) M8X80 		1-33549-614-0 17 1 1401-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) M8X70 		1-33549-616-0 05 1 1401-
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ> 		1-33542-064-0 01 1 1401-
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN SINGLE-H<EDY> 		1-33544-056-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-570-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-604-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-445-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-612-0 01 1 1401-
225 WASHER; LK,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-583-0 14 1 1401-
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ> 		1-33542-065-0 01 1 1401-
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN SINGLE-H<EDY> 		1-33542-062-0 01 1 1401-
272 RING; SNAP,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> 		1-44519-217-0 01 1 1401-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-579-0 01 1 1401-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-531-0 01 1 1401-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-535-0 01 1 1401-
524 DETENT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-501-0 01 1 1401-
688 SHIFT; INTERLOCK
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-572-0 01 1 1401-

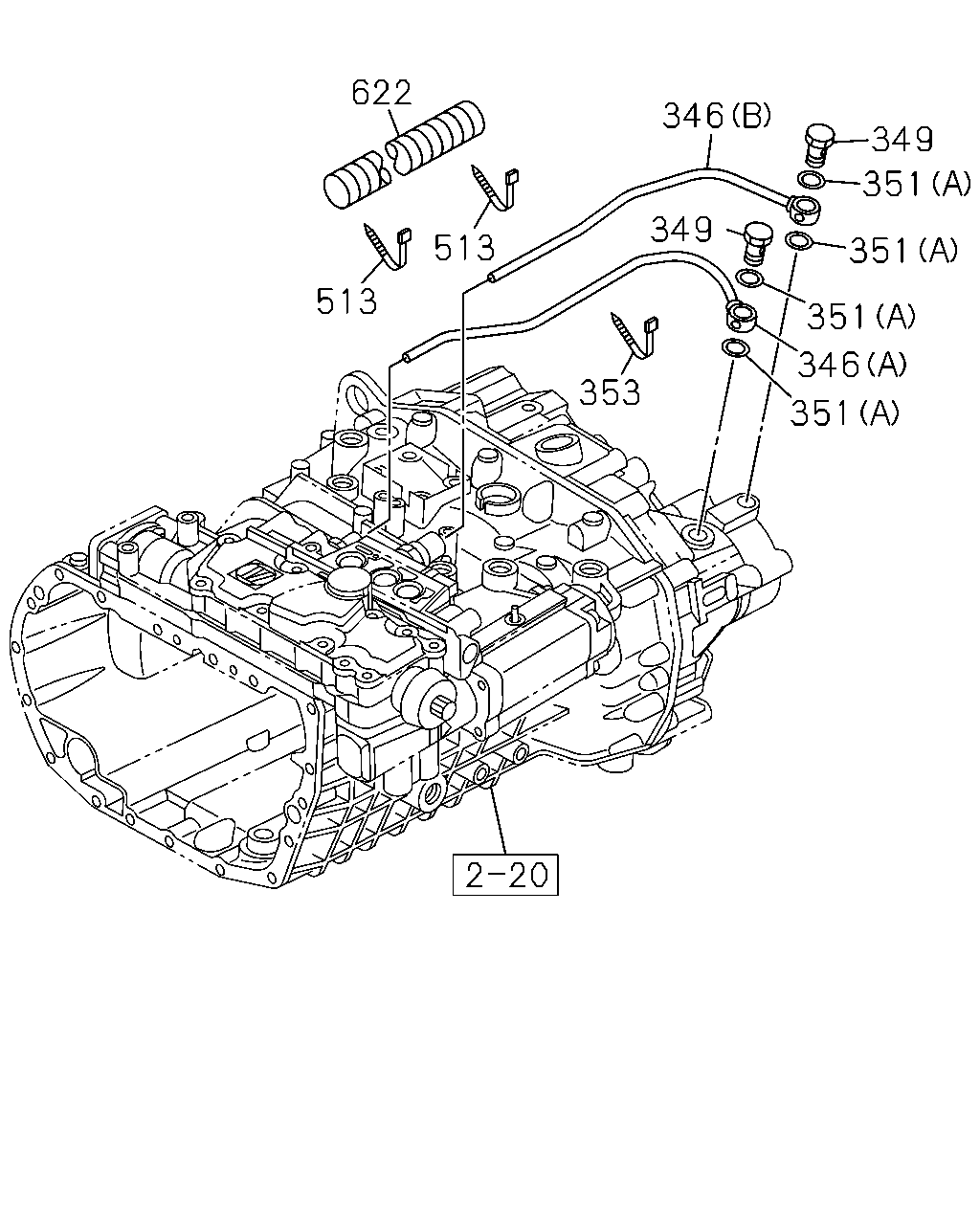

çizim 401391
351 346 351 351 351 349 346 349 353 513 513 622
BalonParca AdiParca NoAdetTipApplied Date
346 HOSE; AIR
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-598-0 01 1 1401-
346 HOSE; AIR
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-618-0 01 1 1401-
346 HOSE; AIR
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-473-0 01 1 1401-
346 HOSE; AIR
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-474-0 01 1 1401-
349 BOLT; EYE,AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> M14 		1-33549-592-0 04 1 1401-
349 BOLT; EYE,AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> M14 		1-33549-592-0 02 1 1401-
351 GASKET; CONNECTOR
(B) ID=12.2 		1-09630-084-0 01 1 1401-1401
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-554-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-578-0 08 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-578-0 04 1 1401-
353 CLIP; AIR HOSE 1-33549-530-0 02 1 1401-
513 CLIP; BAND
SHIFT PATTERN DOUBLE-H<EDZ> L=250 		5-09707-030-1 06 1 1401-
513 CLIP; BAND
SHIFT PATTERN SINGLE-H<EDY> L=250 		5-09707-030-1 05 1 1401-
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1401-

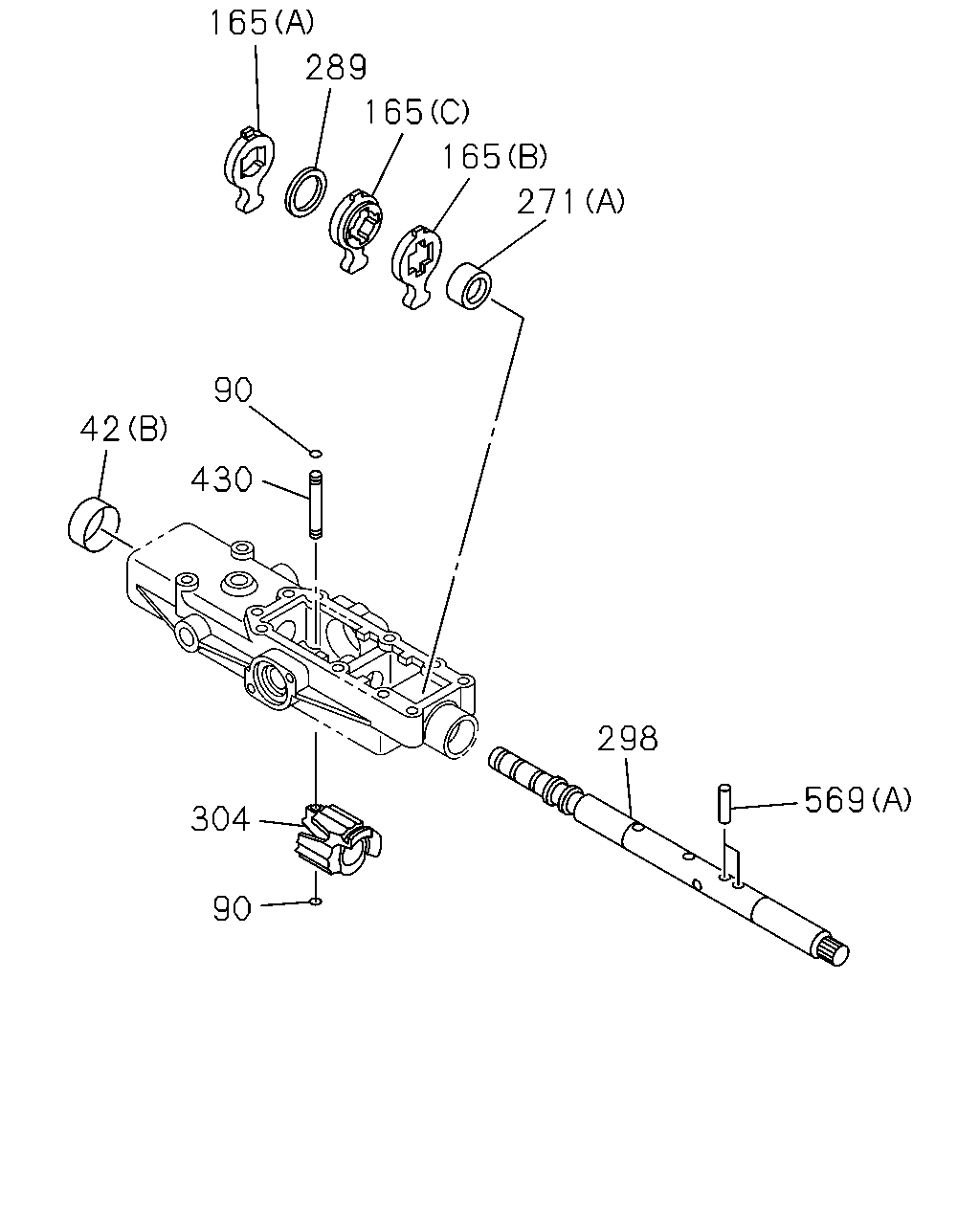

çizim 401394
165 165 289 165 90 271 42 304 430 90 298 569
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-538-0 01 1 1401-
42 CAP; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-589-0 01 1 1401-
42 CAP; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-548-0 01 1 1401-
90 RING; SNAP,SHIFT ROD
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-494-0 02 1 1401-
90 RING; SNAP,SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> 		1-33529-109-0 01 1 1401-
165 LEVER; SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-488-0 01 1 1401-
165 LEVER; SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-489-0 01 1 1401-
165 LEVER; SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-603-0 01 1 1401-
165 LEVER; SHIFT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-533-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-124-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-537-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-099-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-318-0 01 1 1401-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-491-0 01 1 1401-
298 SHAFT; SHIFT LEVER
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33522-211-0 01 1 1401-
298 SHAFT; SHIFT LEVER
SHIFT PATTERN SINGLE-H<EDY> 		1-33522-207-0 01 1 1401-
304 BLOCK; SHIFT SHAFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-492-0 01 1 1401-
304 BLOCK; SHIFT SHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-532-0 01 1 1401-
430 PIN; SPR,SHIFT ROD
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-493-0 01 1 1401-
430 PIN; SPR,SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-449-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33529-128-0 02 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33529-106-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-452-0 01 1 1401-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33549-468-0 01 1 1401-

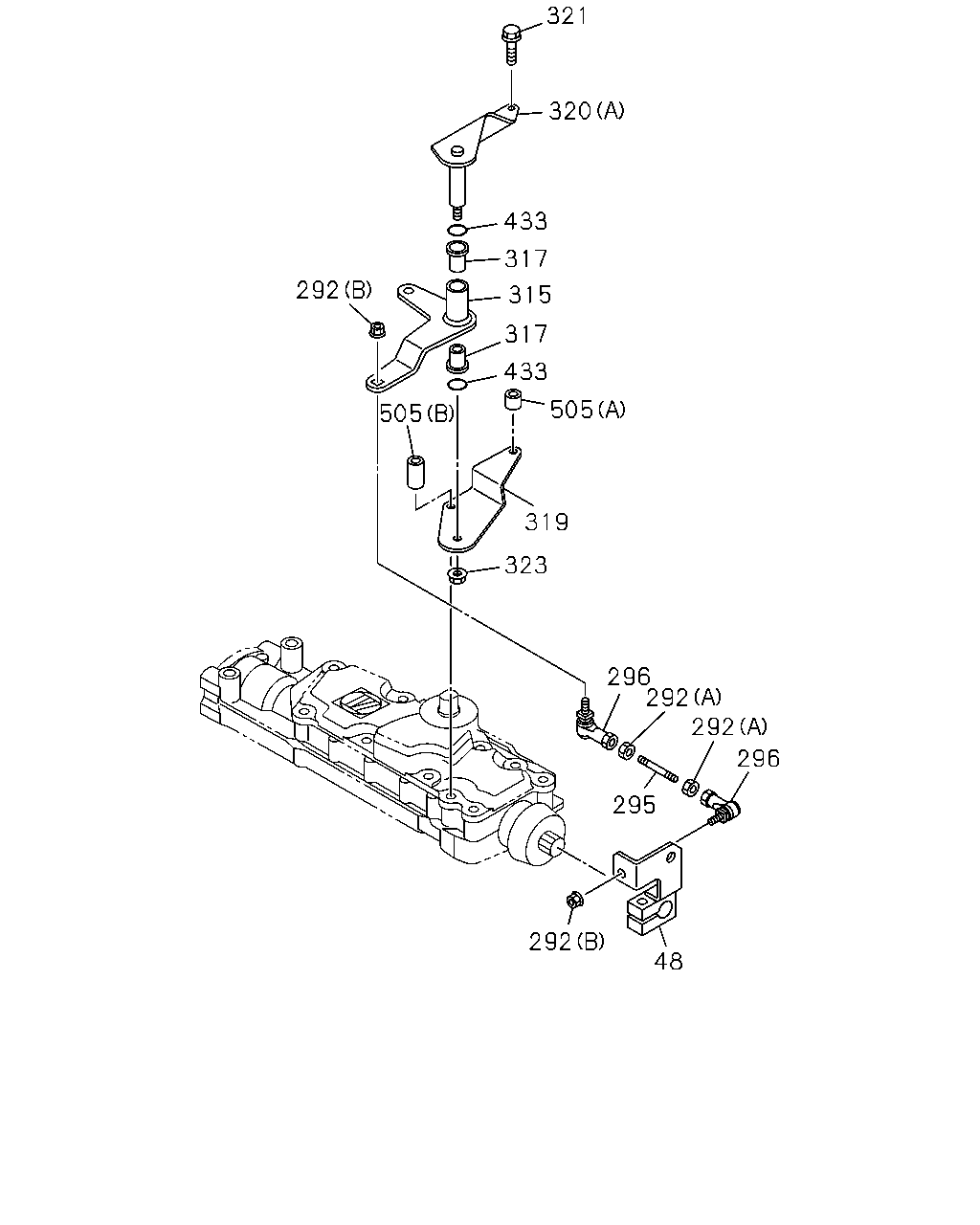

çizim 401396
321 320 292 433 315 317 317 505 505 433 319 323 296 292 292 296 48 292 295
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33651-661-1 01 1 1401-
48 LEVER; 4TH,SHIFT
SHIFT PATTERN SINGLE-H<EDY> 		8-98081-185-1 01 1 1401-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1401-
292 NUT; LINK ROD
SHIFT PATTERN DOUBLE-H<EDZ> (A) M8 		0-91111-508-0 02 1 1401-
295 ROD; LINK,RELAY LEVER
SHIFT PATTERN DOUBLE-H<EDZ> M8 L=50 		9-08400-805-0 01 1 1401-
296 ROD END
SHIFT PATTERN DOUBLE-H<EDZ> L=45.5 		1-09760-118-1 02 1 1401-
315 LEVER; SELECT
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98061-898-0 01 1 1401-
315 LEVER; SELECT
SHIFT PATTERN SINGLE-H<EDY> 		8-98087-673-0 01 1 1401-
317 BUSHING; LEVER 1-09330-119-0 02 1 1401-
319 BRACKET; SELECT LEVER
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98065-843-0 01 1 1401-
319 BRACKET; SELECT LEVER
SHIFT PATTERN SINGLE-H<EDY> 		1-33657-612-0 01 1 1401-
320 SHAFT; LEVER
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		8-98065-840-0 01 1 1401-
320 SHAFT; LEVER
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-447-0 01 1 1401-
320 SHAFT; LEVER
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33619-524-0 01 1 1401-
321 BOLT; BRKT,RELAY LEVER
M8X110 FLANGE 		0-28055-811-0 02 1 1401-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1401-
433 GASKET; BUSHING 1-09623-594-0 02 1 1401-
505 SPACER; BRKT
SHIFT PATTERN DOUBLE-H<EDZ> (B) ID=9 OD=18 T=5 		9-14149-173-0 01 1 1401-
505 SPACER; BRKT
SHIFT PATTERN DOUBLE-H<EDZ> (A) L=28 		9-83625-376-0 01 1 1401-
505 SPACER; BRKT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-11349-149-0 02 1 1401-

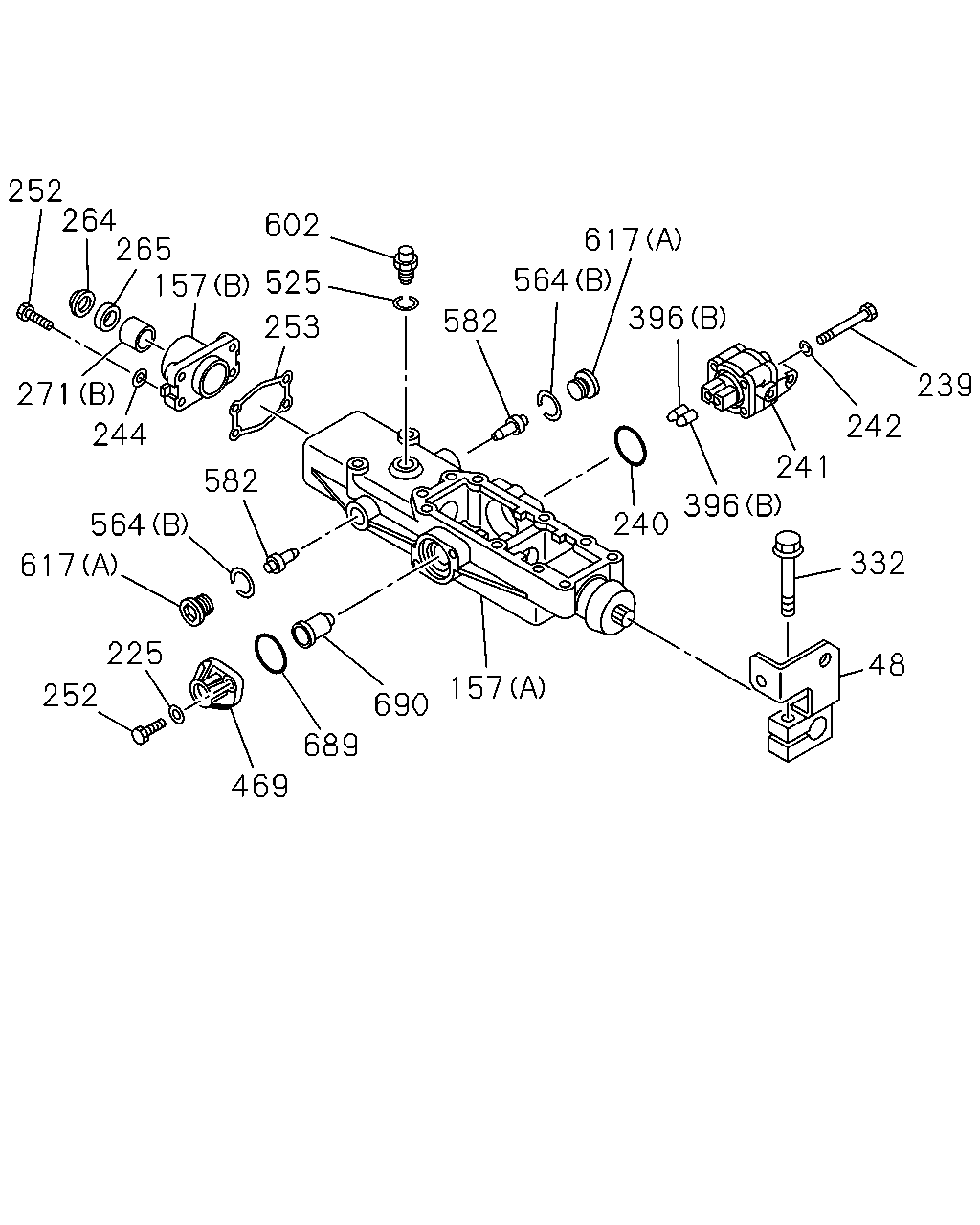

çizim 401398
252 271 264 244 265 564 617 225 252 582 689 469 157 602 525 582 253 690 157 240 564 617 396 396 241 242 239 332 48
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33651-661-1 01 1 1401-
48 LEVER; 4TH,SHIFT
SHIFT PATTERN SINGLE-H<EDY> 		8-98081-185-1 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-570-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-604-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-445-0 01 1 1401-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-612-0 01 1 1401-
225 WASHER; LK,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-583-0 14 1 1401-
239 BOLT; CUT OFF VALVE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-585-0 04 1 1401-
240 GASKET; CUT OFF VALVE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-198-0 01 1 1401-
241 VALVE; CUT OFF
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-495-0 01 1 1401-
242 WASHER; CUT OFF VALVE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-583-0 04 1 1401-
244 WASHER; LK,COVER
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-583-0 04 1 1401-
252 BOLT; SIDE COVER
SHIFT PATTERN DOUBLE-H<EDZ> M8X30 		1-33549-581-0 02 1 1401-
252 BOLT; SIDE COVER
SHIFT PATTERN DOUBLE-H<EDZ> M8X35 		1-33549-586-0 04 1 1401-
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-054-0 01 1 1401-
264 SEAL; DUST,SHAFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-327-0 01 1 1401-
264 SEAL; DUST,SHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-119-0 01 1 1401-
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-328-0 01 1 1401-
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN SINGLE-H<EDY> 		1-33549-118-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-124-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-537-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-099-0 01 1 1401-
271 BUSHING; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-318-0 01 1 1401-
332 BOLT; 4TH,SHIFT LEVER
SHIFT PATTERN DOUBLE-H<EDZ> M8X40 FLANGE 		0-28650-840-0 01 1 1401-
332 BOLT; 4TH,SHIFT LEVER
SHIFT PATTERN SINGLE-H<EDY> M10X45 W/PL WASHER 		8-98038-710-0 01 1 1401-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1401-
396 PLUNGER; SHIFT ROD
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33529-085-0 02 1 1401-
396 PLUNGER; SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33529-132-0 01 1 1401-
469 COVER; SPRING,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-216-0 01 1 1401-
525 RING; DETENT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-286-0 01 1 1401-
525 RING; DETENT
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-497-0 01 1 1401-
564 SEAL; RING
(A) 		1-33549-578-0 01 1 1401-
564 SEAL; RING
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33119-249-0 02 1 1401-
564 SEAL; RING
SHIFT PATTERN SINGLE-H<EDY> (B) T=2.0 		1-82449-010-0 01 1 1401-
582 BOLT; SPRING GUIDE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-487-0 02 1 1401-
582 BOLT; SPRING GUIDE
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-471-0 01 1 1401-
602 PLUNGER; DETENT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-618-0 01 1 1401-
617 PLUG
(B) 		1-33539-109-0 01 1 1401-
617 PLUG
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33119-619-0 02 1 1401-
617 PLUG
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33119-619-0 01 1 1401-
689 GASKET; COVER
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33542-063-0 01 1 1401-
690 PIN; STOP
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-496-0 01 1 1401-

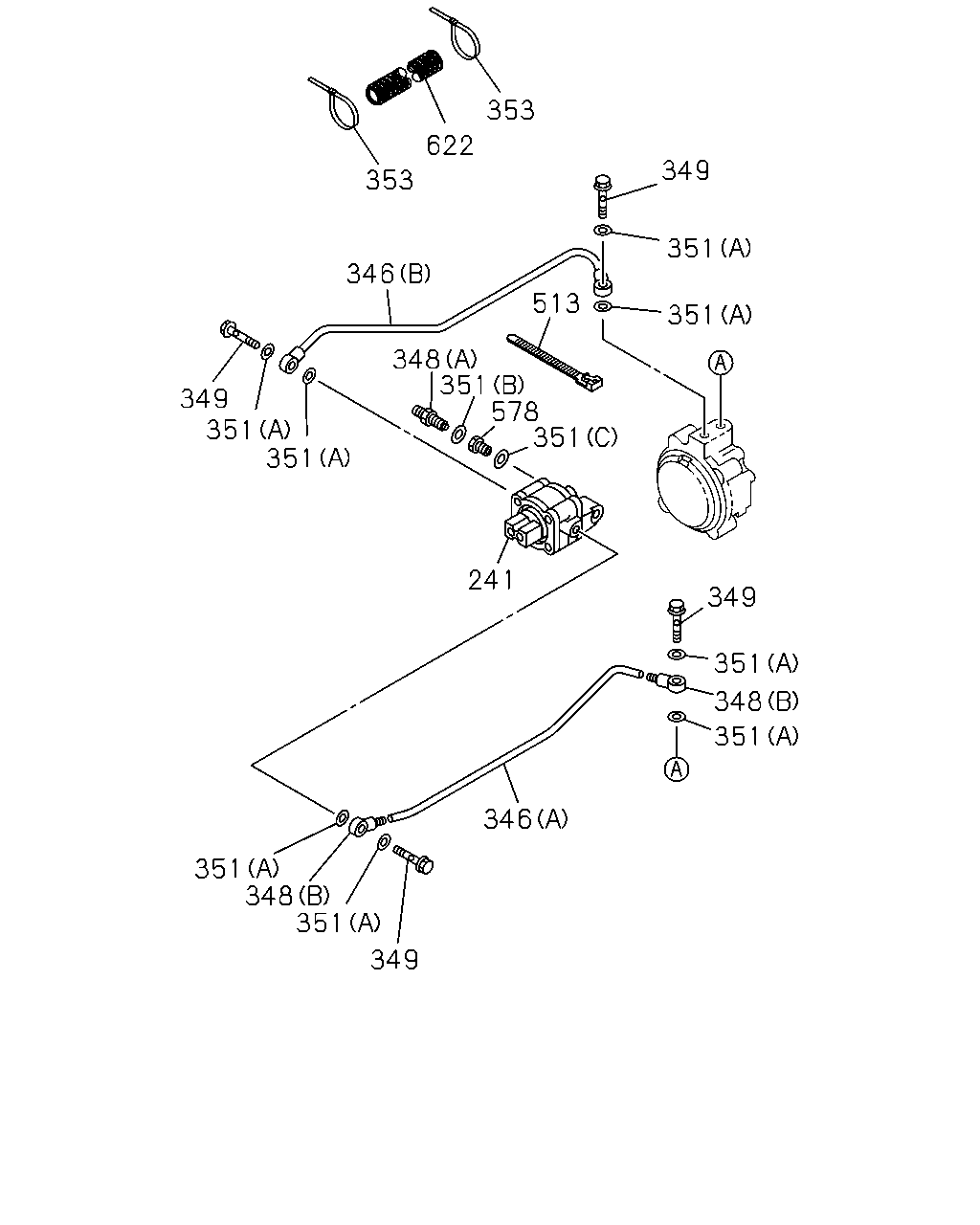

çizim 401405
353 622 353 346 349 351 351 348 513 349 351 351 351 578 351 349 241 351 348 351 346 351 348 351 349
BalonParca AdiParca NoAdetTipApplied Date
241 VALVE; CUT OFF
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-495-0 01 1 1401-
346 HOSE; AIR
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-598-0 01 1 1401-
346 HOSE; AIR
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-618-0 01 1 1401-
346 HOSE; AIR
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-473-0 01 1 1401-
346 HOSE; AIR
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-474-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-593-0 02 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (A) M12 STRAIGHT 		1-09654-246-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-09660-466-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-09661-174-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-09661-481-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (D) 		8-94338-417-0 01 1 1401-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (E) 		8-98068-125-0 01 1 1401-
349 BOLT; EYE,AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> M14 		1-33549-592-0 04 1 1401-
349 BOLT; EYE,AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> M14 		1-33549-592-0 02 1 1401-
351 GASKET; CONNECTOR
(B) ID=12.2 		1-09630-084-0 01 1 1401-1401
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-554-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-578-0 08 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-578-0 04 1 1401-
353 CLIP; AIR HOSE 1-33549-530-0 02 1 1401-
513 CLIP; BAND
SHIFT PATTERN DOUBLE-H<EDZ> L=250 		5-09707-030-1 06 1 1401-
513 CLIP; BAND
SHIFT PATTERN SINGLE-H<EDY> L=250 		5-09707-030-1 05 1 1401-
578 CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-553-0 01 1 1401-
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1401-
çizim 401740
303 303 277 19 19 277 19 19 19
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33539-028-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33539-030-0 02 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33539-092-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-221-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-022-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33539-027-0 01 1 1401-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33539-098-0 01 1 1401-
277 PLATE; SPRING SEAT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33539-107-0 02 1 1401-
277 PLATE; SPRING SEAT
SHIFT PATTERN SINGLE-H<EDY> 		1-33539-112-0 01 1 1401-
303 RING; SNAP,SHAFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33539-040-0 02 1 1401-
303 RING; SNAP,SHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33539-101-0 01 1 1401-

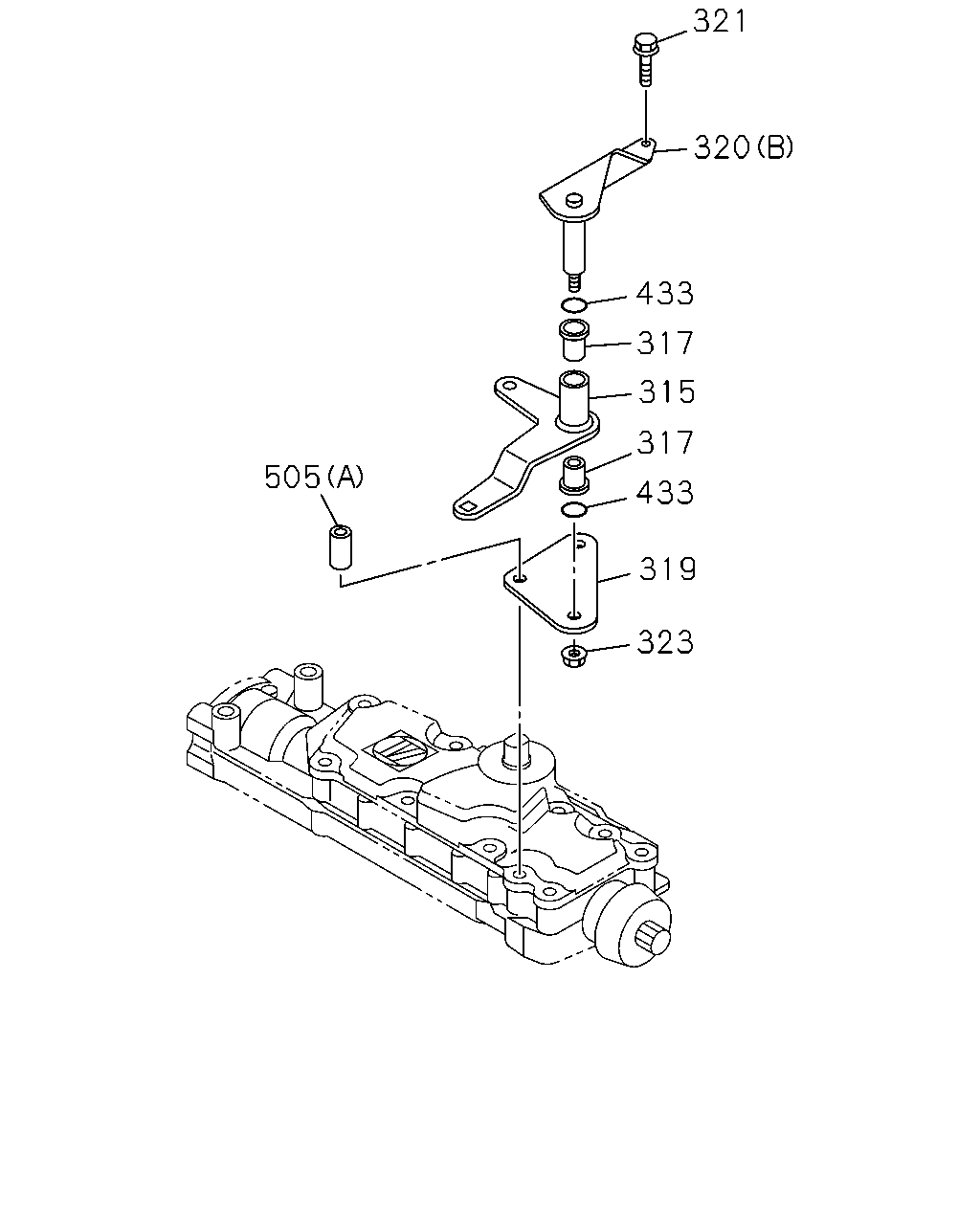

çizim 401878
323 319 433 317 315 317 433 320 321 505
BalonParca AdiParca NoAdetTipApplied Date
315 LEVER; SELECT
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98061-898-0 01 1 1401-
315 LEVER; SELECT
SHIFT PATTERN SINGLE-H<EDY> 		8-98087-673-0 01 1 1401-
317 BUSHING; LEVER 1-09330-119-0 02 1 1401-
319 BRACKET; SELECT LEVER
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98065-843-0 01 1 1401-
319 BRACKET; SELECT LEVER
SHIFT PATTERN SINGLE-H<EDY> 		1-33657-612-0 01 1 1401-
320 SHAFT; LEVER
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		8-98065-840-0 01 1 1401-
320 SHAFT; LEVER
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-447-0 01 1 1401-
320 SHAFT; LEVER
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33619-524-0 01 1 1401-
321 BOLT; BRKT,RELAY LEVER
M8X110 FLANGE 		0-28055-811-0 02 1 1401-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1401-
433 GASKET; BUSHING 1-09623-594-0 02 1 1401-
505 SPACER; BRKT
SHIFT PATTERN DOUBLE-H<EDZ> (B) ID=9 OD=18 T=5 		9-14149-173-0 01 1 1401-
505 SPACER; BRKT
SHIFT PATTERN DOUBLE-H<EDZ> (A) L=28 		9-83625-376-0 01 1 1401-
505 SPACER; BRKT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-11349-149-0 02 1 1401-

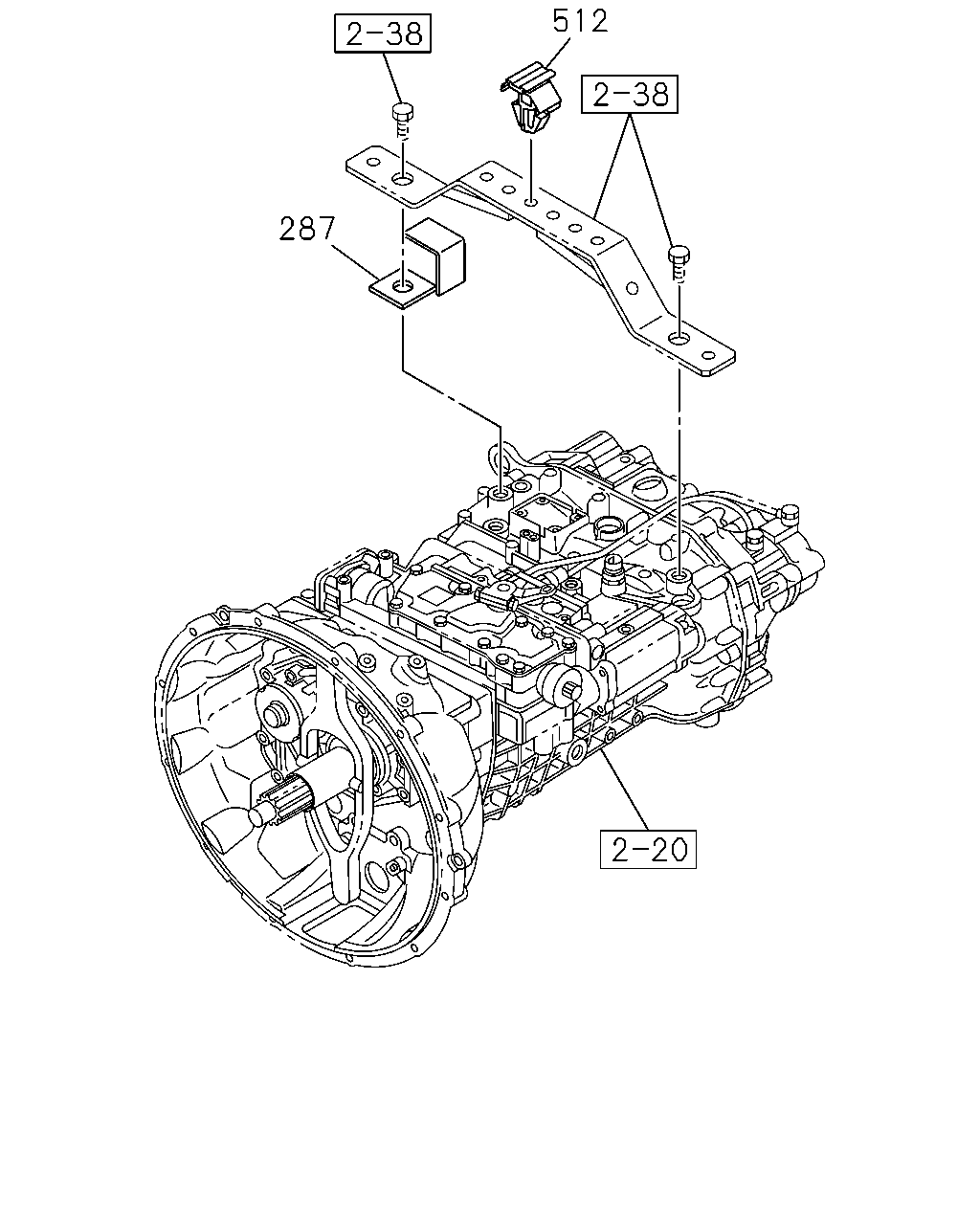

çizim 401977
512 287
BalonParca AdiParca NoAdetTipApplied Date
287 COVER; AIR BREATHER
SHIFT PATTERN DOUBLE-H<EDZ> 		1-34141-026-0 01 1 1401-
512 CLIP; PIPE
SHIFT PATTERN DOUBLE-H<EDZ> OD=9 H=6 		1-09709-178-0 04 1 1401-
512 CLIP; PIPE
SHIFT PATTERN SINGLE-H<EDY> OD=9 H=6 		1-09709-178-0 05 1 1401-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
