Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#132197) — 66 parça

235 101 210 42 30 42 207 16 210 27 106 51 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE ID=16 L=28	1-09700-872-0	03	1	1401-
27	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1401-
27	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	03	1	1401-
30	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1401-
30	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	03	1	1401-
30	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1401-
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	1401-1402
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	1401-
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98179-878-0	01	1	1401-
51	WASHER; LK ID=14.2	0-91510-514-0	01	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE	8-98180-779-0	01	1	1401-
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1401-
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1401-
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1401-
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	1401-
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1401-
210	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1401-
235	GASKET; FLEX HOSE ID=10.2 OD=16.0	9-09571-410-0	01	1	1401-

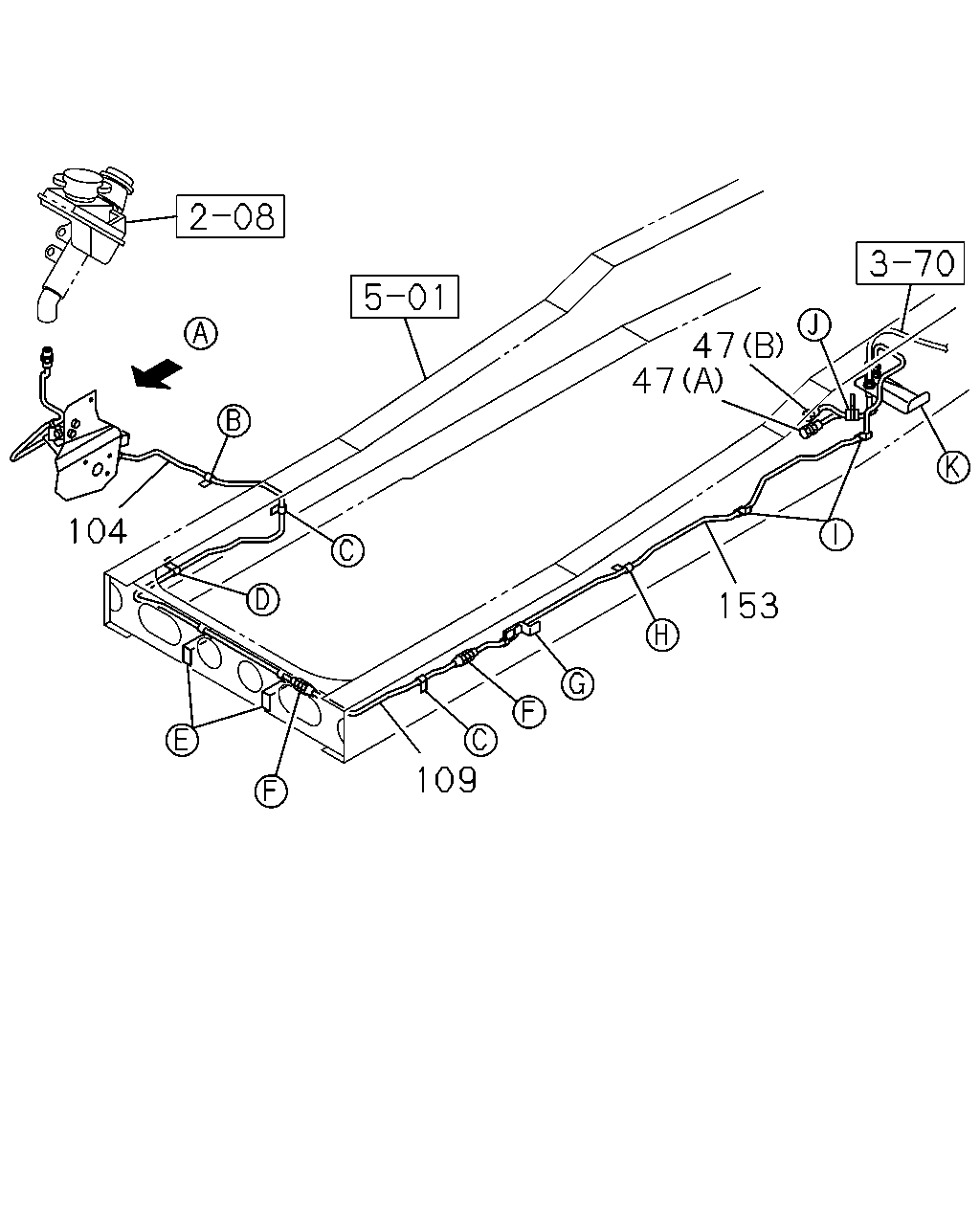

153 109 104 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT (A) L=580	1-09363-692-0	01	1	1401-
47	HOSE; FLEX,CLU CONT (B) L=620	8-98072-333-0	01	1	1401-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1783 SERVICED BY L=1800	1-47428-768-0	01	1	1401-
109	PIPE; AIR,UNION TO UNION L=1682 SERVICED BY L=1700	1-47428-767-0	01	1	1401-
153	PIPE ASM; CLU,UNION TO FLEX L=1485 SERVICED BY L=1550	1-47428-766-0	01	1	1401-

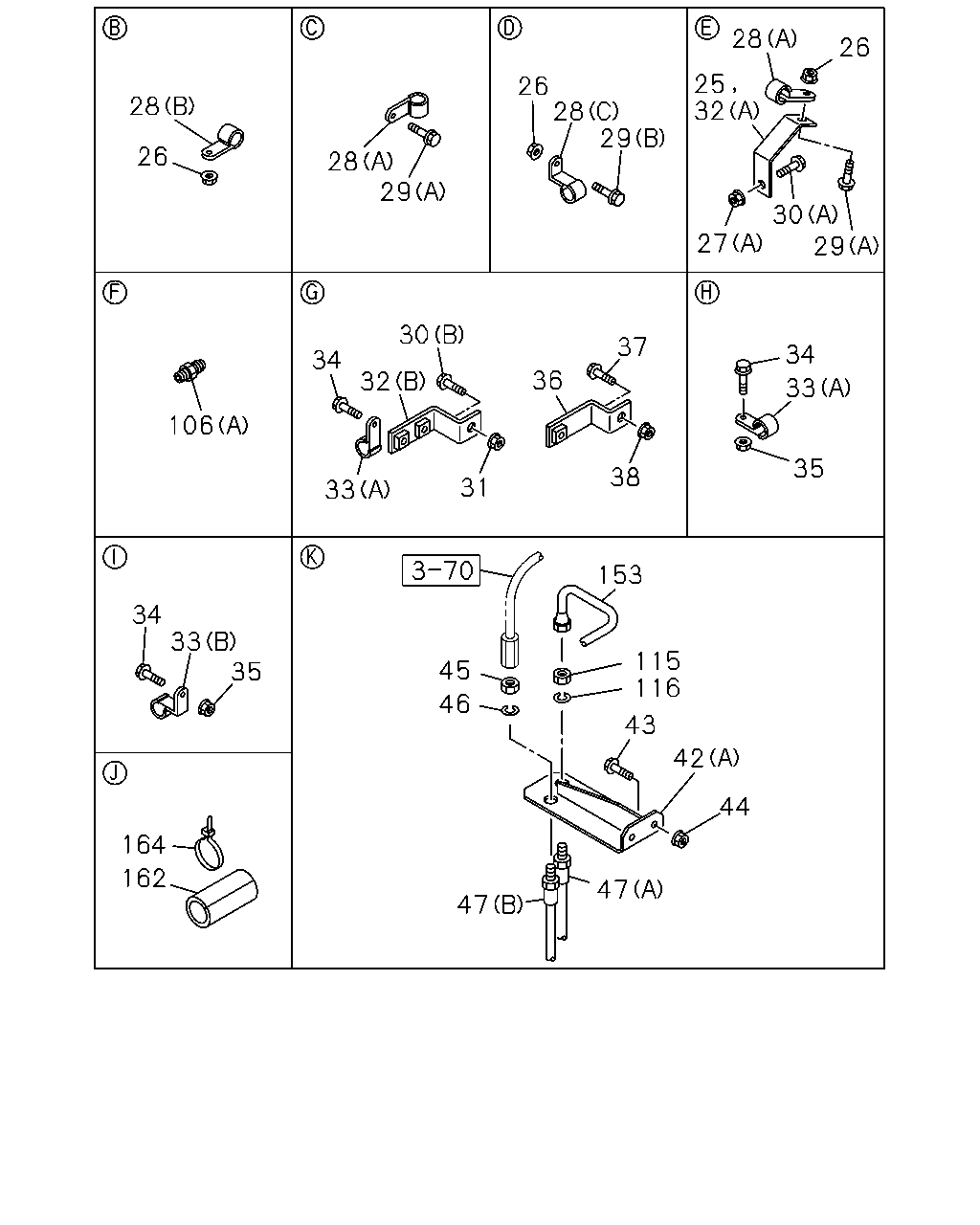

47 47 44 42 43 116 115 153 46 45 162 164 35 33 34 35 33 34 38 37 36 31 33 30 32 34 106 29 30 27 26 28 25 32 29 28 26 29 28 26 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE	8-98123-057-0	01	1	1401-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	1401-
27	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1401-
27	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	03	1	1401-
28	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	02	1	1401-
28	CLIP; OIL PIPE (B) ID=9 L=40	0-95234-875-0	01	1	1401-
28	CLIP; OIL PIPE (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1401-
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	02	1	1401-
29	BOLT; CLIP,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	1401-
30	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1401-
30	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	03	1	1401-
30	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1401-
31	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1401-
32	BRACKET; CLIP OIL PIPE (B)	1-47479-482-0	01	1	1401-
32	BRACKET; CLIP OIL PIPE (A)	8-98123-057-0	01	1	1401-
33	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	04	1	1401-
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1401-
34	BOLT; PIPE CLIP M8X16 FLANGE	0-28050-816-0	01	1	1401-
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	04	1	1401-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	02	1	1401-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	1401-
36	BRACKET; CLIP L=80 H=20	1-82699-304-0	01	1	1401-
37	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1401-
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1401-
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	1401-1402
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	1401-
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98179-878-0	01	1	1401-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1401-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1401-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1401-
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	1401-
47	HOSE; FLEX,CLU CONT (A) L=580	1-09363-692-0	01	1	1401-
47	HOSE; FLEX,CLU CONT (B) L=620	8-98072-333-0	01	1	1401-
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1401-
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1401-
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1401-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1401-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1401-
153	PIPE ASM; CLU,UNION TO FLEX L=1485 SERVICED BY L=1550	1-47428-766-0	01	1	1401-
162	COVER; RUBBER,FLEX HOSE L=175	1-09707-178-0	01	1	1401-
164	CLIP; BAND,FLEX HOSE L=350	1-09707-183-0	01	1	1401-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
