11568 - GXR(MALAYSIA)EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#132195) — 55 parça
◀

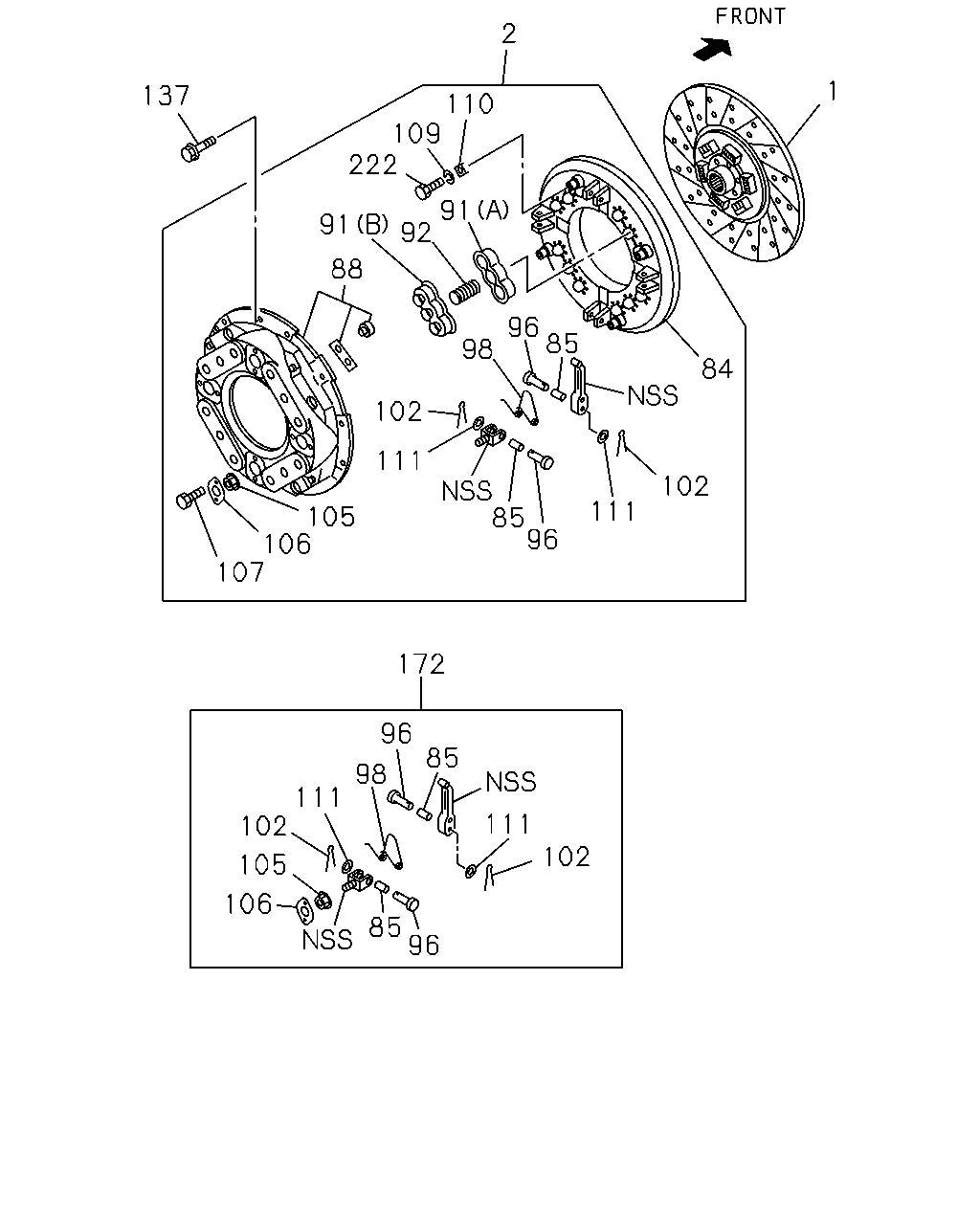

[201A] DISC AND PLATE (23 parça)

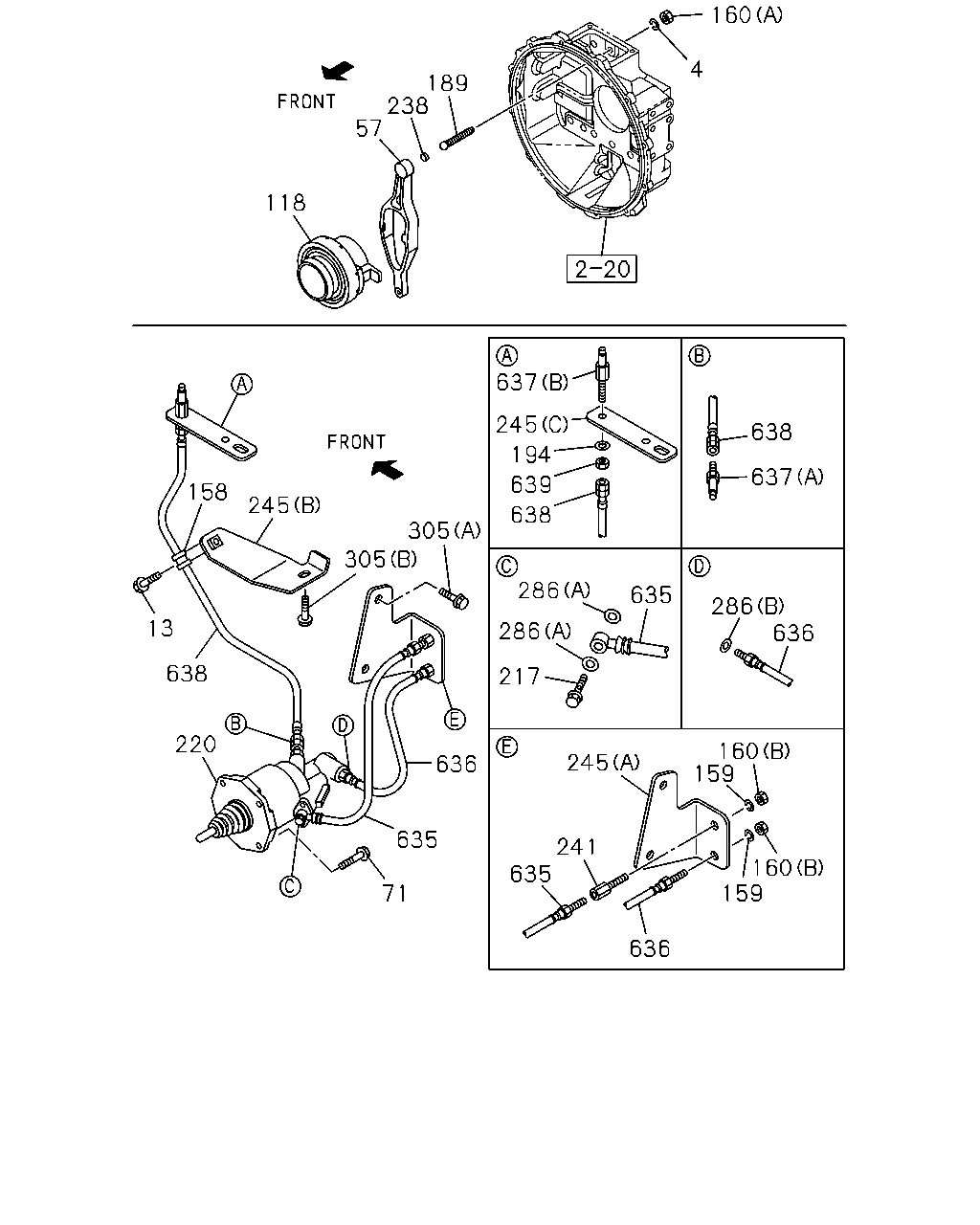

[201A] BOOSTER FIXING (32 parça)
▶
1
84
102
111
96
85
111
102
88
98
85
96
91
92
91
109
222
2
110
137
105
106
107
172
96
85
111
102
96
85
106
102
105
98
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
17"
1-31240-862-0
01
1
1401-
2
PLATE ASM; PRESSURE,CLU
1-31220-321-2
01
1
1401-1408
2
PLATE ASM; PRESSURE,CLU
1-31220-457-0
01
1
1409-
84
PLATE; PRESSURE
17"
1-31221-128-0
01
1
1401-
85
BUSHING; RELEASE LEVER
1-31239-053-0
08
1
1401-1408
85
BUSHING; RELEASE LEVER
8-98281-693-0
08
1
1409-
88
COVER SUB ASM; CLU
1-31210-024-0
01
1
1401-
91
SEAT; SPR
(A)
1-31219-032-0
04
1
1401-
91
SEAT; SPR
(B)
1-31219-033-0
04
1
1401-
92
SPRING; CLU
1-31214-040-0
12
1
1401-1408
92
SPRING; CLU
8-98281-694-0
10
1
1409-
96
PIN; RELEASE LEVER
1-31232-017-0
08
1
1401-
98
SPRING; RETURN
1-31233-007-0
04
1
1401-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08113-022-0
08
1
1401-
105
NUT; SUPPORT
1-31235-014-0
04
1
1401-
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
1401-
107
BOLT; LK PLATE
1-31239-061-0
08
1
1401-
109
WASHER; LK,STRAP
ID=12.2
0-91510-512-0
04
1
1401-
110
WASHER; SPECIAL,STRAP
ID=12
1-31229-006-0
04
1
1401-
111
WASHER; PL,STRAP
ID=14
9-09651-098-0
08
1
1401-
137
BOLT; CLU COVER
M10X20 FLANGE
0-28151-020-0
12
1
1401-
172
LEVER KIT; RELEASE,CLU
1-87831-182-2
01
1
1401-
222
BOLT; STRAP
1-09040-102-0
04
1
1401-
160
4
189
238
57
118
158
245
305
305
13
638
220
71
635
636
637
245
194
639
638
638
637
286
286
217
635
286
636
160
159
160
159
636
241
635
245
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
WASHER; FORK STUD
SHIFT PATTERN DOUBLE-H<EDZ>
1-33519-198-0
01
1
1401-
4
WASHER; FORK STUD
SHIFT PATTERN SINGLE-H<EDY>
1-33519-052-0
01
1
1401-
13
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1401-
57
FORK; SHIFT,CLU
1-31340-075-0
01
1
1401-
71
BOLT
SHIFT PATTERN DOUBLE-H<EDZ> M8X30 HEX SOCKET
0-58330-830-0
04
1
1401-1401
71
BOLT
SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) M8X30 HEX SOCKET
0-58330-830-0
04
1
1401-1401
71
BOLT
M8X30 HEX SOCKET
0-58330-830-0
04
1
1401-
118
BEARING; CLU RELEASE
1-31310-022-0
01
1
1401-
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-161-0
01
1
1401-
158
CLIP; FLEX HOSE
ID=16 L=50
1-09701-158-0
01
1
1401-
159
WASHER; LK
ID=12.2
0-91510-812-0
02
1
1401-
160
NUT
(A)
1-31119-053-0
01
1
1401-
160
NUT
(B) M12
9-09840-280-0
02
1
1401-
189
PIN; JOINT
1-31119-060-0
01
1
1401-
194
WASHER; LK
ID=12.2
0-91510-812-0
01
1
1401-
217
BOLT; EYE
M16X30
1-09675-026-0
01
1
1401-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-552-0
01
1
1401-
238
CUP; SUPPORT,CLU FORK
1-31349-025-0
01
1
1401-
241
CONNECTOR
1-09661-823-0
01
1
1401-
245
BRACKET; HOSE
(A)
1-31429-491-1
01
1
1401-
245
BRACKET; HOSE
(B)
1-31429-498-2
01
1
1401-
245
BRACKET; HOSE
(C)
1-31429-499-1
01
1
1401-
286
GASKET; BOLT,EYE
(A) ID=16.2
1-09630-086-0
02
1
1401-
286
GASKET; BOLT,EYE
(B) ID=14.2 OD=20.0
9-09571-414-0
01
1
1401-
305
BOLT; BRACKET
(A) M10X20 FLANGE
0-28151-020-0
02
1
1401-
305
BOLT; BRACKET
(B) M16X30 FLANGE
0-28951-630-0
01
1
1401-
635
HOSE; AIR
1-09365-398-0
01
1
1401-
636
HOSE; OIL
1-09365-414-1
01
1
1401-
637
UNION
(A) M8 & M12 STRAIGHT
1-09654-383-0
01
1
1401-
637
UNION
(B)
1-09654-384-0
01
1
1401-
638
HOSE
1-09365-402-2
01
1
1401-
639
NUT; UNION
M12
9-09840-280-0
01
1
1401-
