1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#132190) — 25 parça
◀

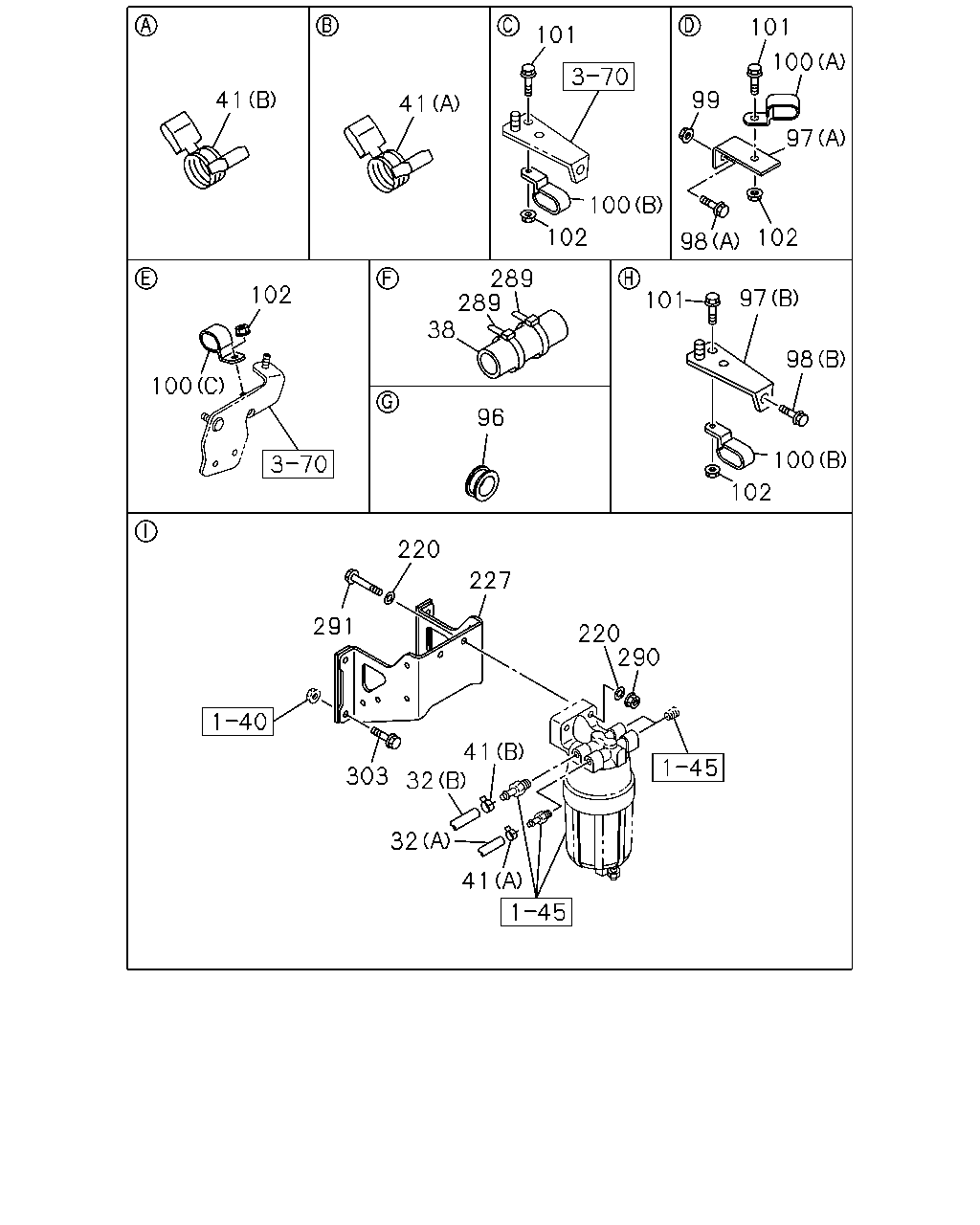

[141A] FUEL SEDIMENTER FIXING AND OTHER PARTS (22 parça)

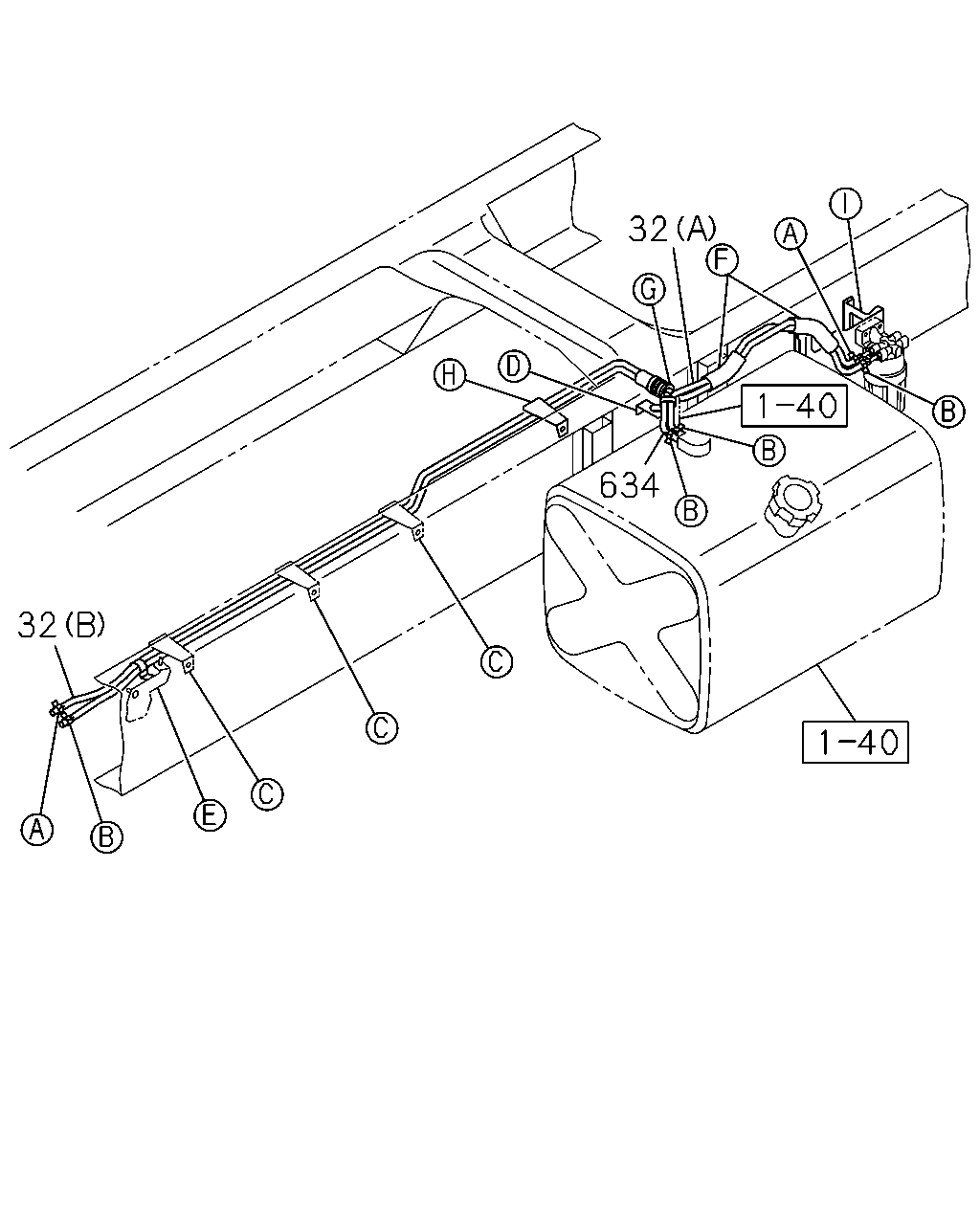

[141A] PIPING (3 parça)
▶
41
102
100
291
41
303
38
289
289
96
220
227
32
32
41
41
101
100
102
220
290
101
99
100
97
98
102
101
97
98
100
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(A) L=900 SERVICED BY L=3000
0-01260-300-0
01
1
1401-
32
PIPE; DELIVERY,FUEL TANK
(B) L=2100 SERVICED BY L=3000
0-01262-300-0
01
1
1401-
38
SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300
1-09360-677-1
02
1
1401-
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=14
1-09704-102-0
04
1
1401-
41
CLIP; FUEL PIPE,FUEL TANK
(B) ID=19
8-94238-569-0
02
1
1401-
96
GROMMET; PIPE,FUEL TANK
ID=32 OD=40 T=18
1-09891-003-0
01
1
1401-
97
BRACKET; CLIP
(A) L=68
1-47475-525-0
01
1
1401-
97
BRACKET; CLIP
(B)
8-97609-096-0
01
1
1401-
98
BOLT; BRKT,FUEL PIPE
(A) M8X25 FLANGE
0-28650-825-0
01
1
1401-
98
BOLT; BRKT,FUEL PIPE
(B) M8X30 FLANGE
0-28650-830-0
01
1
1401-
99
NUT; BRKT,CLIP,FUEL TANK
M8 FLANGE
0-91180-108-0
01
1
1401-
100
CLIP; FUEL PIPE
(A) ID=14X29 H=15 L=20
1-09700-744-0
01
1
1401-
100
CLIP; FUEL PIPE
(C) ID=19X32 H=17.5 L=22.5
1-09701-315-0
01
1
1401-
100
CLIP; FUEL PIPE
(B) ID=19X32 H=17.5 L=50.5
1-09701-320-0
04
1
1401-
101
BOLT; CLIP,FUEL PIPE
M8X20 FLANGE
0-28650-820-0
05
1
1401-
102
NUT; CLIP,FUEL PIPE
M8 FLANGE
0-91180-108-0
06
1
1401-
220
WASHER; PL
ID=10.5 OD=26
0-91614-710-0
04
1
1401-
227
BRACKET; FUEL SEDIMENTER
8-98184-814-0
01
1
1401-
289
CLIP; BAND,HOSE
L=250
5-09707-030-1
04
1
1401-
290
NUT; FILTER TO BRKT
M10 FLANGE
0-91180-210-0
02
1
1401-
291
BOLT; FILER TO BRKT
M10X60 FLANGE
0-28051-060-0
02
1
1401-
303
BOLT; BRKT
M10X40 FLANGE
0-28051-040-0
04
1
1401-
32
32
634
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(A) L=900 SERVICED BY L=3000
0-01260-300-0
01
1
1401-
32
PIPE; DELIVERY,FUEL TANK
(B) L=2100 SERVICED BY L=3000
0-01262-300-0
01
1
1401-
634
HOSE; RUBBER RETURN
L=1800 SERVICED BY L=3000
0-01260-300-0
01
1
1401-
