◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11568 - GXR(MALAYSIA)EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶
0-66 — GENERATOR (#132181) — 72 parça

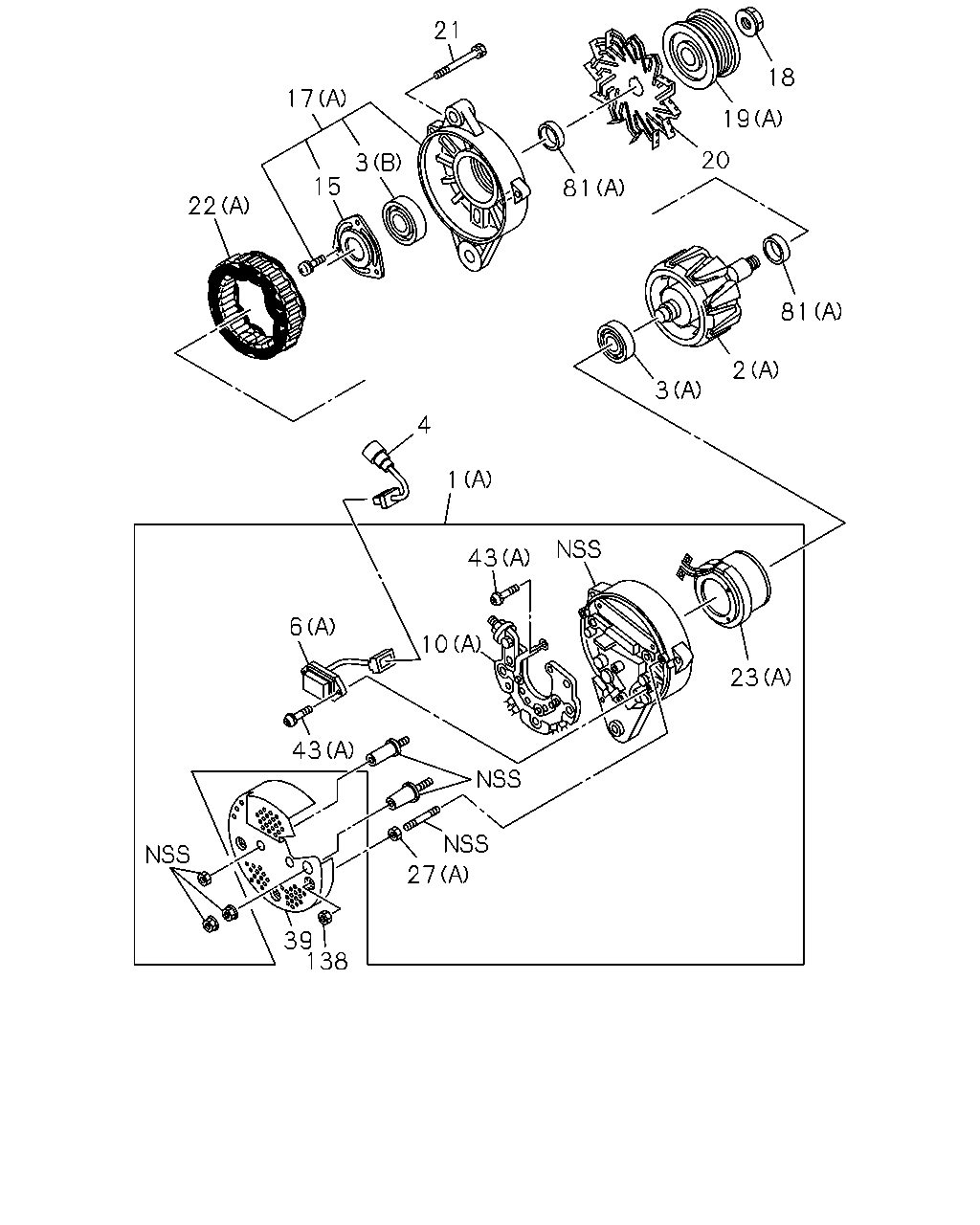

çizim 401222
22 17 21 15 3 81 20 19 18 4 1 3 2 81 6 43 10 43 23 39 27 138
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
(B) ASM PART: A = 8-98013-617-3 		8-98047-076-1 01 1 -
1 COVER ASM; RR,GEN
(A) ASM PART: B = 8-98169-360-1 		8-98181-100-1 01 1 -
2 ROTOR; GEN
(B) ASM PART: A = 8-98013-617-3 		1-81221-106-0 01 1 -
2 ROTOR; GEN
(A) ASM PART: B = 8-98169-360-1 		8-98040-638-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: B = 8-98169-360-1 		1-81229-723-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: B = 8-98169-360-1 		1-81229-758-0 01 1 -
3 BEARING; ROTOR,GEN
(C) ASM PART: A = 8-98013-617-3 		1-81229-815-0 01 1 -
3 BEARING; ROTOR,GEN
(D) ASM PART: A = 8-98013-617-3 		1-81229-816-0 01 1 -
4 TERMINAL; BRUSH,GEN
ASM PART: B = 8-98169-360-1 		8-98181-104-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
(A) ASM PART: B = 8-98169-360-1 		8-98040-688-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
(B) ASM PART: A = 8-98013-617-3 		8-98047-080-0 01 1 -
10 RECTIFIER; GEN
(B) ASM PART: A = 8-98013-617-3 		8-98047-083-0 01 1 -
10 RECTIFIER; GEN
(C) ASM PART: A = 8-98013-617-3 		8-98047-084-0 01 1 -
10 RECTIFIER; GEN
(A) ASM PART: B = 8-98169-360-1 		8-98181-102-0 01 1 -
15 RETAINER; ROTOR,GEN
ASM PART: B = 8-98169-360-1 		1-81229-760-1 01 1 -
17 COVER ASM; FRT,GEN
(B) ASM PART: A = 8-98013-617-3 		1-81213-115-1 01 1 -
17 COVER ASM; FRT,GEN
(A) ASM PART: B = 8-98169-360-1 		8-97382-872-0 01 1 -
18 NUT; PULLEY,GEN
ASM PART: B = 8-98169-360-1 		8-98040-643-0 01 1 -
19 PULLEY; GEN
(B) ASM PART: A = 8-98013-617-3 		1-81222-162-3 01 1 -
19 PULLEY; GEN
(A) ASM PART: B = 8-98169-360-1 		8-98181-099-0 01 1 -
20 FAN; GEN
ASM PART: B = 8-98169-360-1 		8-97382-874-0 01 1 -
21 BOLT; THROUGH,GEN
ASM PART: B = 8-98169-360-1 		1-81229-382-0 03 1 -
22 STATOR; GEN
(B) ASM PART: A = 8-98013-617-3 		1-81211-132-1 01 1 -
22 STATOR; GEN
(A) ASM PART: B = 8-98169-360-1 		8-98040-640-0 01 1 -
23 COIL; ROTOR GEN
(B) ASM PART: A = 8-98013-617-3 		1-81212-025-1 01 1 -
23 COIL; ROTOR GEN
(A) ASM PART: B = 8-98169-360-1 		8-98040-645-0 01 1 -
27 NUT; RECTIFIER,GEN
(B) ASM PART: A = 8-98013-617-3 		1-81229-821-0 01 1 -
27 NUT; RECTIFIER,GEN
(A) ASM PART: B = 8-98169-360-1 		8-98040-687-0 01 1 -
39 COVER; END,RR COVER,GEN
ASM PART: B = 8-98169-360-1 		8-98181-103-0 01 1 -
43 SCREW; RR END COVER
(A) ASM PART: B = 8-98169-360-1 		1-81229-476-0 03 1 -
43 SCREW; RR END COVER
(C) ASM PART: A = 8-98013-617-3 		1-81229-774-0 01 1 -
43 SCREW; RR END COVER
(B) ASM PART: A = 8-98013-617-3 		1-81229-817-0 01 1 -
81 SPACER; ROTOR,GEN
(B) ASM PART: A = 8-98013-617-3 		1-81229-813-0 01 1 -
81 SPACER; ROTOR,GEN
(A) ASM PART: B = 8-98169-360-1 		8-97382-870-0 02 1 -
138 NUT; COVER,GENERATOR
ASM PART: B = 8-98169-360-1 		8-98040-690-0 03 1 -

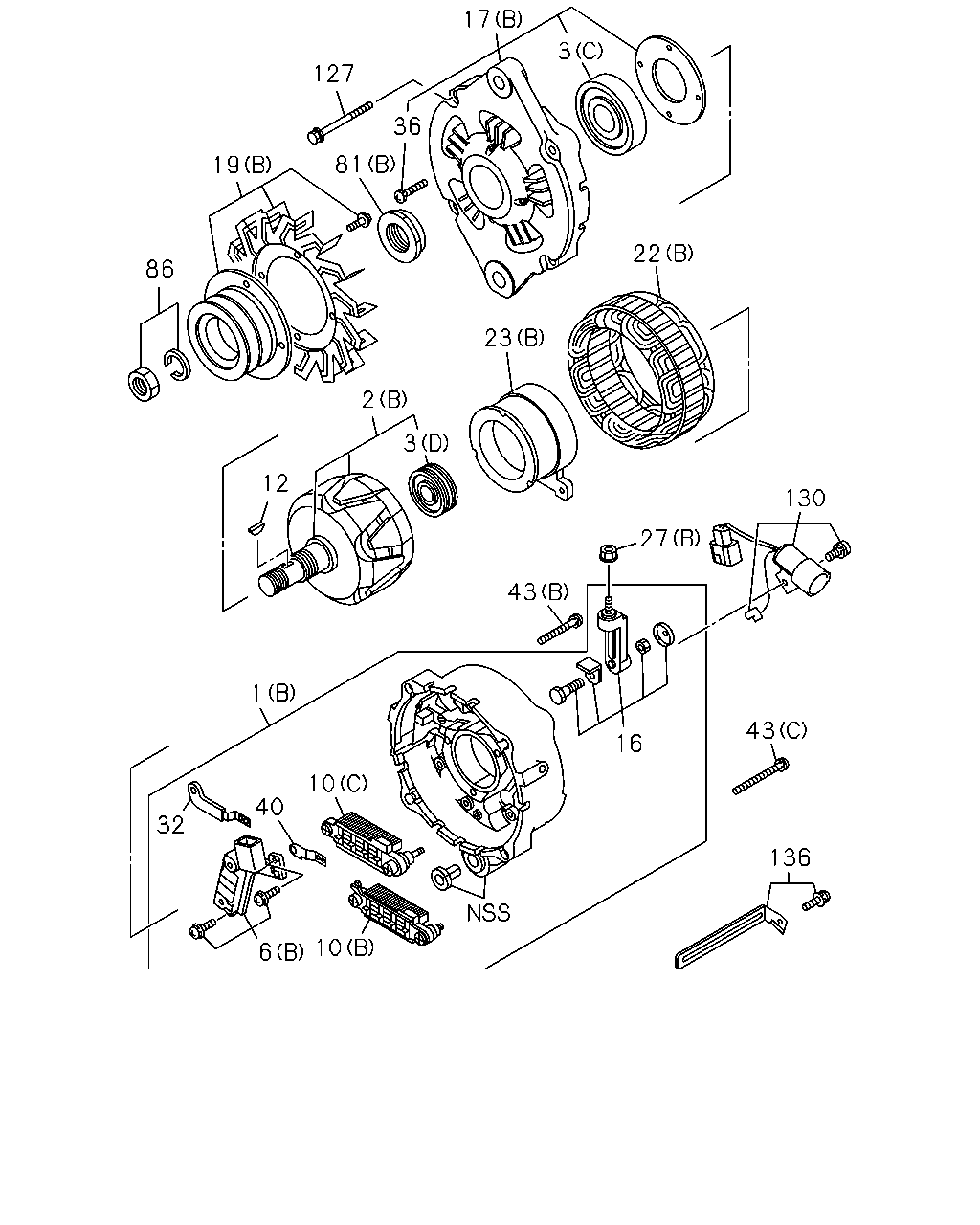

çizim 401229
17 3 127 19 81 36 86 2 12 23 22 3 1 32 10 40 6 10 16 43 27 130 43 136
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
(B) ASM PART: A = 8-98013-617-3 		8-98047-076-1 01 1 -
1 COVER ASM; RR,GEN
(A) ASM PART: B = 8-98169-360-1 		8-98181-100-1 01 1 -
2 ROTOR; GEN
(B) ASM PART: A = 8-98013-617-3 		1-81221-106-0 01 1 -
2 ROTOR; GEN
(A) ASM PART: B = 8-98169-360-1 		8-98040-638-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: B = 8-98169-360-1 		1-81229-723-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: B = 8-98169-360-1 		1-81229-758-0 01 1 -
3 BEARING; ROTOR,GEN
(C) ASM PART: A = 8-98013-617-3 		1-81229-815-0 01 1 -
3 BEARING; ROTOR,GEN
(D) ASM PART: A = 8-98013-617-3 		1-81229-816-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
(A) ASM PART: B = 8-98169-360-1 		8-98040-688-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
(B) ASM PART: A = 8-98013-617-3 		8-98047-080-0 01 1 -
10 RECTIFIER; GEN
(B) ASM PART: A = 8-98013-617-3 		8-98047-083-0 01 1 -
10 RECTIFIER; GEN
(C) ASM PART: A = 8-98013-617-3 		8-98047-084-0 01 1 -
10 RECTIFIER; GEN
(A) ASM PART: B = 8-98169-360-1 		8-98181-102-0 01 1 -
12 KEY; ROTOR,GEN
ASM PART: A = 8-98013-617-3 		1-81229-822-0 01 1 -
16 TERMINAL ASM; RECTIFIER,GEN
ASM PART: A = 8-98013-617-3 		1-81229-806-0 01 1 -
17 COVER ASM; FRT,GEN
(B) ASM PART: A = 8-98013-617-3 		1-81213-115-1 01 1 -
17 COVER ASM; FRT,GEN
(A) ASM PART: B = 8-98169-360-1 		8-97382-872-0 01 1 -
19 PULLEY; GEN
(B) ASM PART: A = 8-98013-617-3 		1-81222-162-3 01 1 -
19 PULLEY; GEN
(A) ASM PART: B = 8-98169-360-1 		8-98181-099-0 01 1 -
22 STATOR; GEN
(B) ASM PART: A = 8-98013-617-3 		1-81211-132-1 01 1 -
22 STATOR; GEN
(A) ASM PART: B = 8-98169-360-1 		8-98040-640-0 01 1 -
23 COIL; ROTOR GEN
(B) ASM PART: A = 8-98013-617-3 		1-81212-025-1 01 1 -
23 COIL; ROTOR GEN
(A) ASM PART: B = 8-98169-360-1 		8-98040-645-0 01 1 -
27 NUT; RECTIFIER,GEN
(B) ASM PART: A = 8-98013-617-3 		1-81229-821-0 01 1 -
27 NUT; RECTIFIER,GEN
(A) ASM PART: B = 8-98169-360-1 		8-98040-687-0 01 1 -
32 TERMINAL; RECTIFIER,GEN
ASM PART: A = 8-98013-617-3 		8-98047-089-0 01 1 -
36 SCREW; FRT COVER
ASM PART: A = 8-98013-617-3 		1-81229-814-0 01 1 -
40 PLATE; RR COVER
ASM PART: A = 8-98013-617-3 		1-81222-163-0 01 1 -
43 SCREW; RR END COVER
(A) ASM PART: B = 8-98169-360-1 		1-81229-476-0 03 1 -
43 SCREW; RR END COVER
(C) ASM PART: A = 8-98013-617-3 		1-81229-774-0 01 1 -
43 SCREW; RR END COVER
(B) ASM PART: A = 8-98013-617-3 		1-81229-817-0 01 1 -
81 SPACER; ROTOR,GEN
(B) ASM PART: A = 8-98013-617-3 		1-81229-813-0 01 1 -
81 SPACER; ROTOR,GEN
(A) ASM PART: B = 8-98169-360-1 		8-97382-870-0 02 1 -
86 NUT SET; PULLEY,GEN
ASM PART: A = 8-98013-617-3 		8-97178-134-0 01 1 -
127 BOLT SET; GEN
ASM PART: A = 8-98013-617-3 		1-81229-812-0 01 1 -
130 CONNECTOR; GEN
ASM PART: A = 8-98013-617-3 		1-81229-892-0 01 1 -
136 CLAMP; GENERATOR
ASM PART: A = 8-98013-617-3 		1-81229-775-0 01 1 -
