Isuzu WW
▶
TRUCKS
▶
GXR
▶
11568 - GXR(MALAYSIA)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-38 - AIR COMPRESSOR PIPING; ENGINE SIDE
▶
0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE
(#132169) — 60 parça
◀

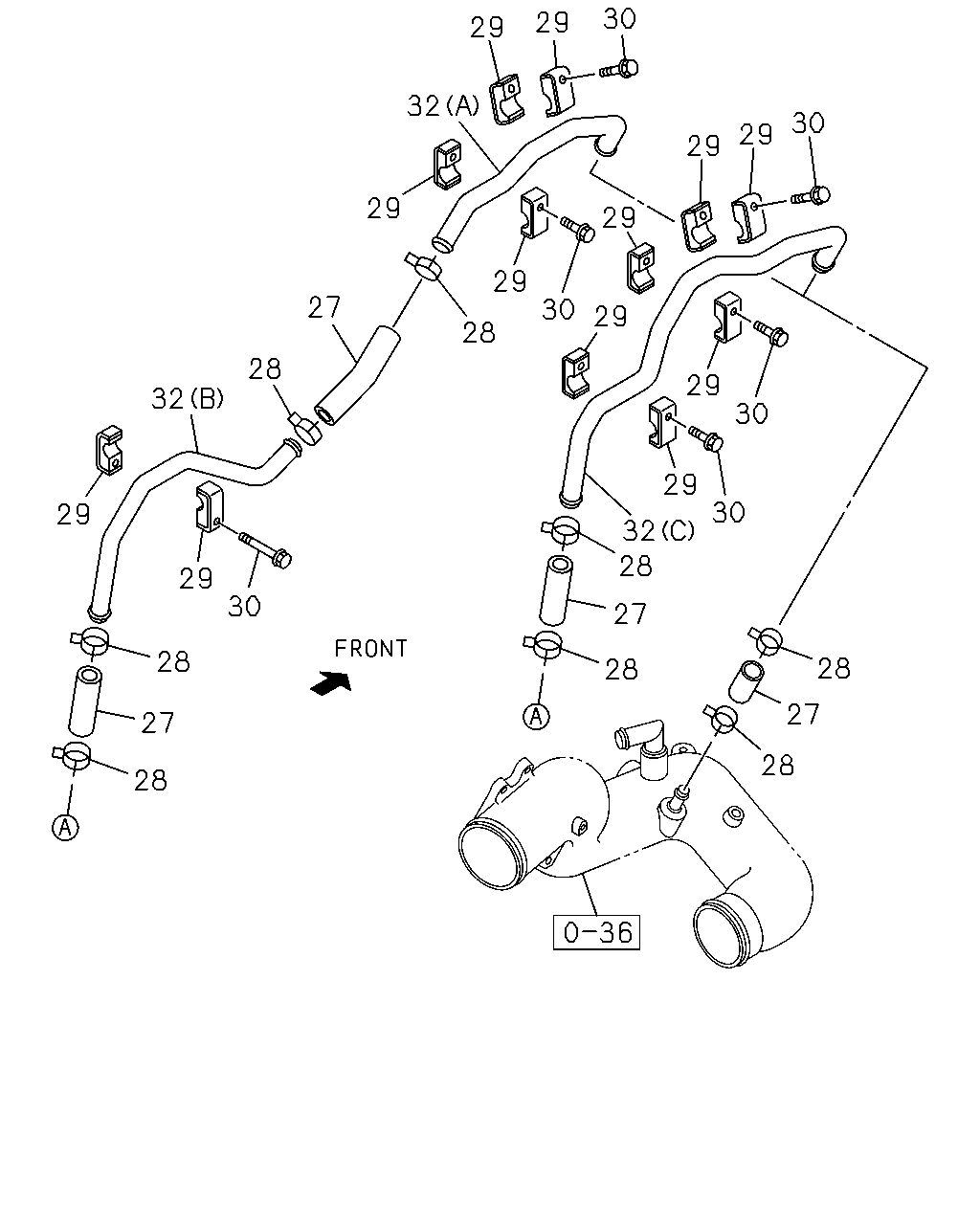

[038A] AIR CHAMBER AND HOSE (9 parça)

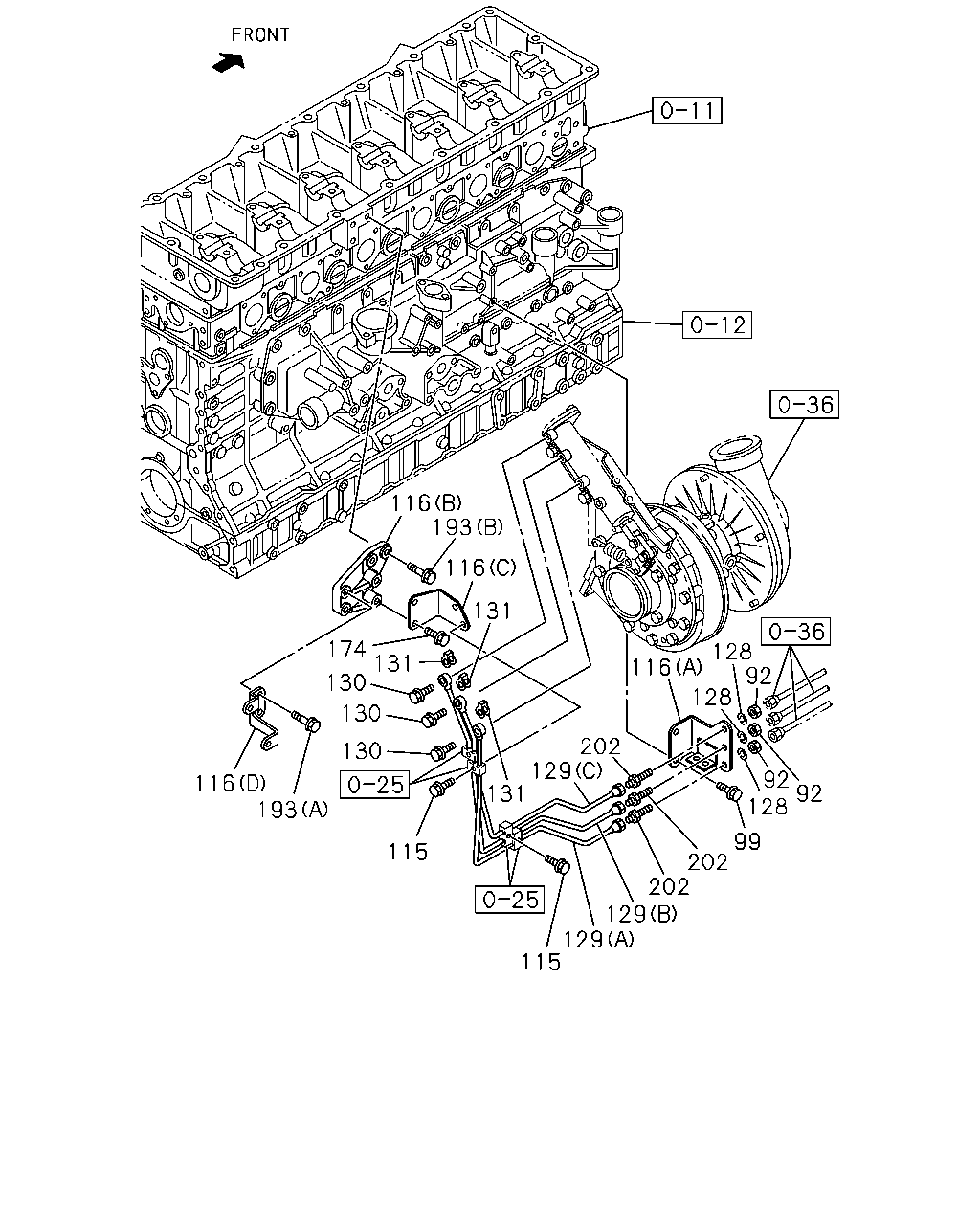

[038A] VGS AIR PIPE AND BRACKET (17 parça)

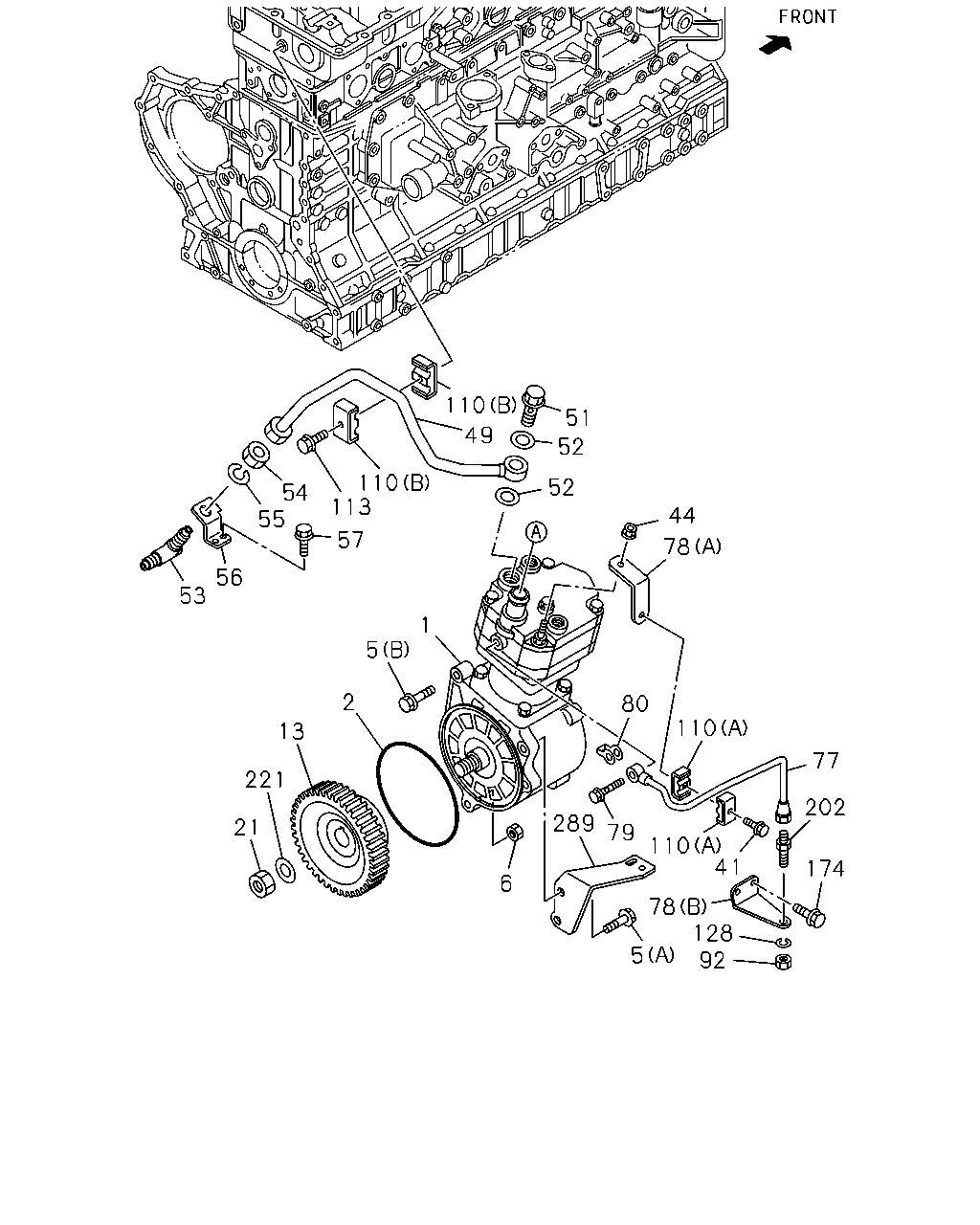

[038A] AIR COMPRESSOR ASM (34 parça)
▶
28
27
28
28
27
28
32
30
29
30
29
30
29
29
29
29
30
29
28
30
29
28
27
28
29
32
28
27
29
32
29
29
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; AIR CMPR,SUCTION
8-97613-266-0
03
1
1401-1409
27
HOSE; AIR CMPR,SUCTION
8-97613-266-0
02
1
1410-
28
CLIP; HOSE,AIR CMPR
ID=31.2
8-97237-146-0
06
1
1401-1409
28
CLIP; HOSE,AIR CMPR
ID=31.2
8-97237-146-0
04
1
1410-
29
CLIP; AIR PIPE
ID=24.5 L=22
8-97603-362-1
06
1
1401-
30
BOLT; PIPE CLIP
M8X50 FLANGE
0-28050-850-0
03
1
1401-
32
PIPE; AIR,AIR CMPR
(A)
8-97613-954-0
01
1
1401-1409
32
PIPE; AIR,AIR CMPR
(C)
8-98277-382-0
01
1
1410-
32
PIPE; AIR,AIR CMPR
(B)
8-97613-955-0
01
1
1401-1409
116
193
116
131
174
130
130
130
131
116
193
115
115
129
129
202
202
128
92
92
92
128
116
128
202
129
131
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
92
NUT; UNION
M12
9-09840-280-0
04
1
1401-
99
BOLT; BRKT AIR PIPE
M10X20 FLANGE
0-28151-020-0
02
1
1401-
115
BOLT; AIR PIPE
M6X30 FLANGE
0-28050-630-0
04
1
1401-
116
BRACKET; AIR PIPE
(A)
8-97603-755-2
01
1
1401-
116
BRACKET; AIR PIPE
(B)
8-97605-948-0
01
1
1401-
116
BRACKET; AIR PIPE
(C)
8-97605-950-0
01
1
1401-
116
BRACKET; AIR PIPE
(D)
8-98052-306-0
01
1
1401-
128
WASHER; LK,UNION
ID=12.2
0-91510-512-0
04
1
1401-
129
PIPE; AIR,VGS
(A)
8-97604-865-0
01
1
1401-
129
PIPE; AIR,VGS
(B)
8-97604-866-0
01
1
1401-
129
PIPE; AIR,VGS
(C)
8-97604-867-0
01
1
1401-
130
BOLT; EYE,AIR PIPE
M10X21 FLANGE
8-94396-711-0
03
1
1401-
131
GASKET; AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2
8-97365-390-0
03
1
1401-
174
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
04
1
1401-
193
BOLT; BRKT
(A) M8X20 FLANGE
0-28050-820-0
02
1
1401-
193
BOLT; BRKT
(B) M10X35 FLANGE
0-28751-035-0
03
1
1401-
202
UNION; AIR PIPE
M12 L=62.5
0-92113-206-0
04
1
1401-
51
52
52
44
78
77
202
174
128
92
5
78
110
110
79
289
6
80
1
5
2
13
221
21
53
56
57
55
54
113
110
49
110
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98249-115-0
01
1
1401-1401
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98271-053-1
01
1
1402-1508
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98302-838-0
01
1
1509-
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6
1-09623-449-0
01
1
1401-
5
BOLT; AIR CMPR FIX
(A) M12X50 FLANGE
0-28151-250-0
02
1
1401-
5
BOLT; AIR CMPR FIX
(B) M12X140 FLANGE
0-28156-214-0
01
1
1401-
6
NUT; AIR CMPR
M12 FLANGE
0-91180-112-0
01
1
1401-
13
GEAR; AIR CMPR DRIVE
Z=46
8-97603-053-2
01
1
1401-
21
NUT; PUMP GEAR
M24
0-91110-524-0
01
1
1401-
41
BOLT; CLIP
M6X30 FLANGE
0-28050-630-0
01
1
1401-
44
NUT
M10 FLANGE
0-91180-110-0
01
1
1401-
49
PIPE; AIR,CHARGE
8-98216-696-0
01
1
1401-
51
BOLT; EYE,AIR PIPE TO CMPR
M24X39
1-09675-175-2
01
1
1401-
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32
9-09571-424-0
02
1
1401-
53
UNION; CHARGE PIPE
M22 & M26 ELBOW
8-98008-887-2
01
1
1401-
54
NUT; PIPE UNION
M26
8-98049-390-0
01
1
1401-
55
WASHER; LK,PIPE UNION
ID=27.5
0-91510-527-0
01
1
1401-
56
BRACKET; AIR PIPE FIX
8-97603-937-2
01
1
1401-
57
BOLT; BRKT,AIR PIPE
M10X20 FLANGE
0-28151-020-0
01
1
1401-
77
PIPE; AIR,GOV
8-98145-567-0
01
1
1401-
78
BRACKET; PIPE,AIR GOV
(B)
8-97605-218-1
01
1
1401-
78
BRACKET; PIPE,AIR GOV
(A)
8-97613-275-1
01
1
1401-
79
BOLT; EYE,AIR PIPE TO CMPR
M10X25
9-09906-173-1
01
1
1401-
80
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.6
8-98231-393-0
01
1
1401-
92
NUT; UNION
M12
9-09840-280-0
04
1
1401-
110
CLIP; AIR PIPE
(B) ID=17 L=17
1-09701-284-0
02
1
1401-
110
CLIP; AIR PIPE
(A) ID=11 & 11 L=19
8-98039-293-0
02
1
1401-1405
110
CLIP; AIR PIPE
(A) ID=11 & 11 L=19
8-98148-996-2
02
1
1406-
113
BOLT; CLIP,AIR PIPE
M8X40 FLANGE
0-28050-840-0
01
1
1401-
128
WASHER; LK,UNION
ID=12.2
0-91510-512-0
04
1
1401-
174
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
04
1
1401-
202
UNION; AIR PIPE
M12 L=62.5
0-92113-206-0
04
1
1401-
221
WASHER; PL,GEAR
ID=24
9-09164-624-0
01
1
1401-
289
BRACKET; CABLE
8-98055-448-3
01
1
1401-
