Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11570 - FVZ(MIDDLE EAST)EU2
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#132150) — 56 parça
◀

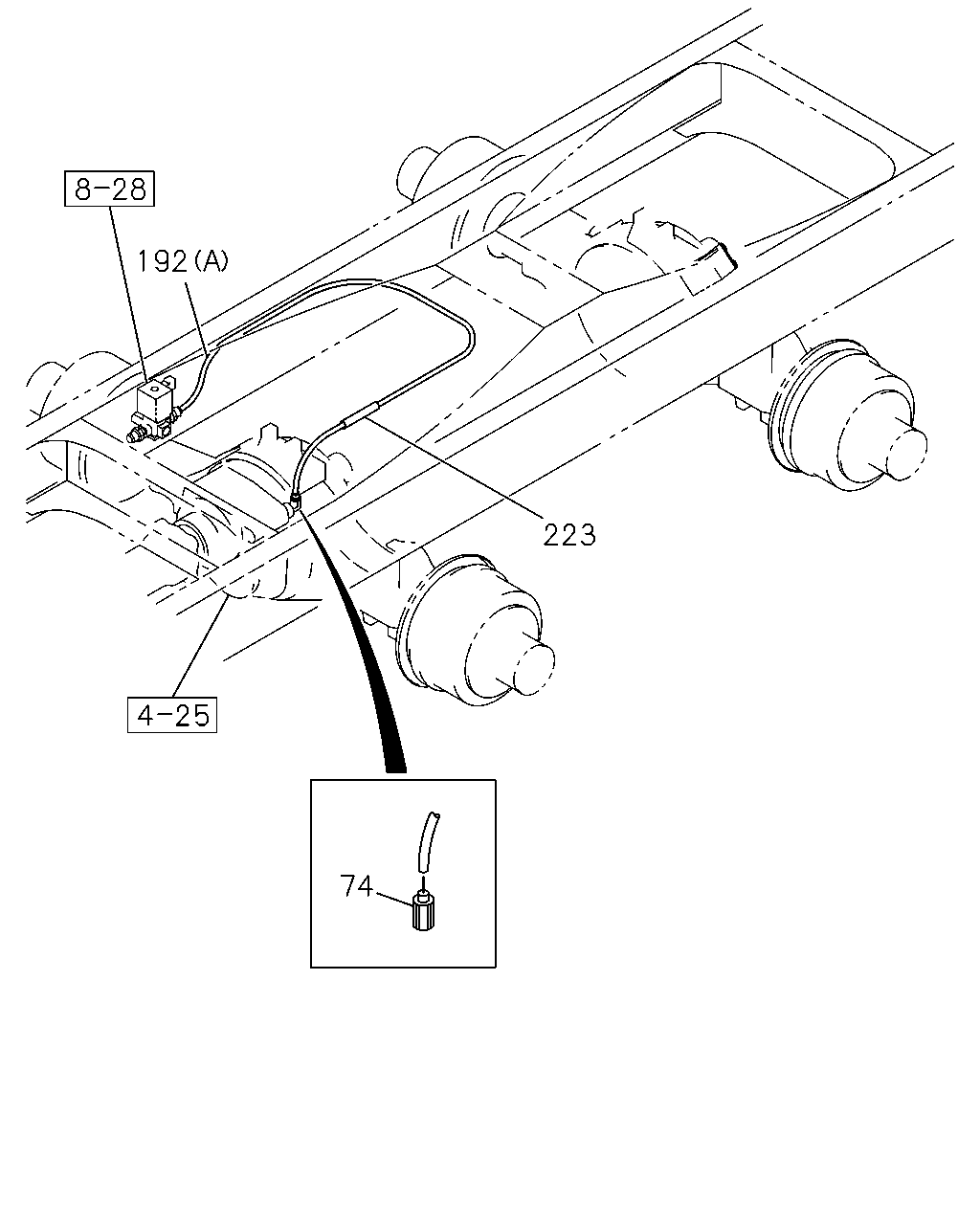

[377A] REAR AXLE SIDE NO.1 (13 parça)

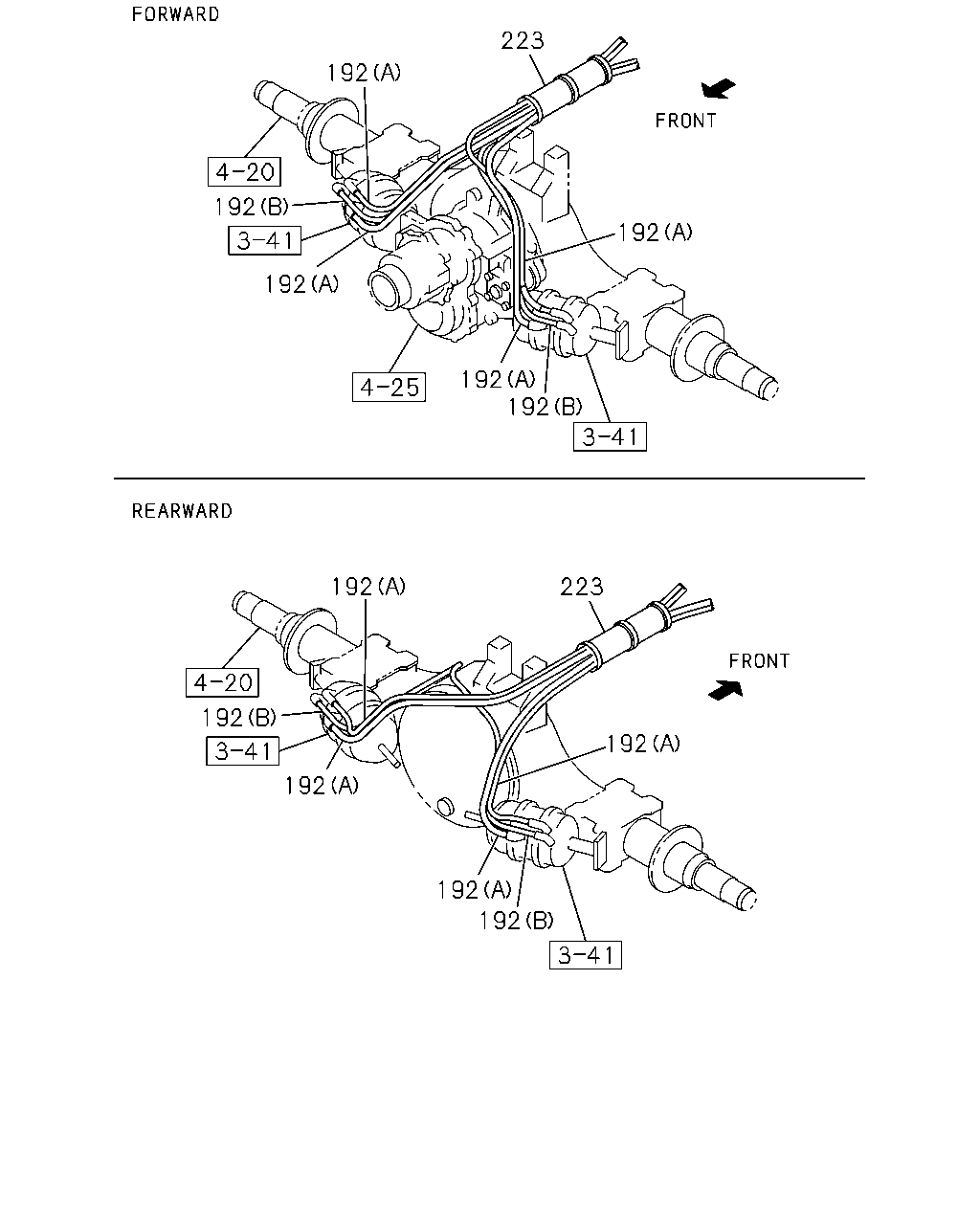

[377A] REAR AXLE SIDE NO.2 (12 parça)

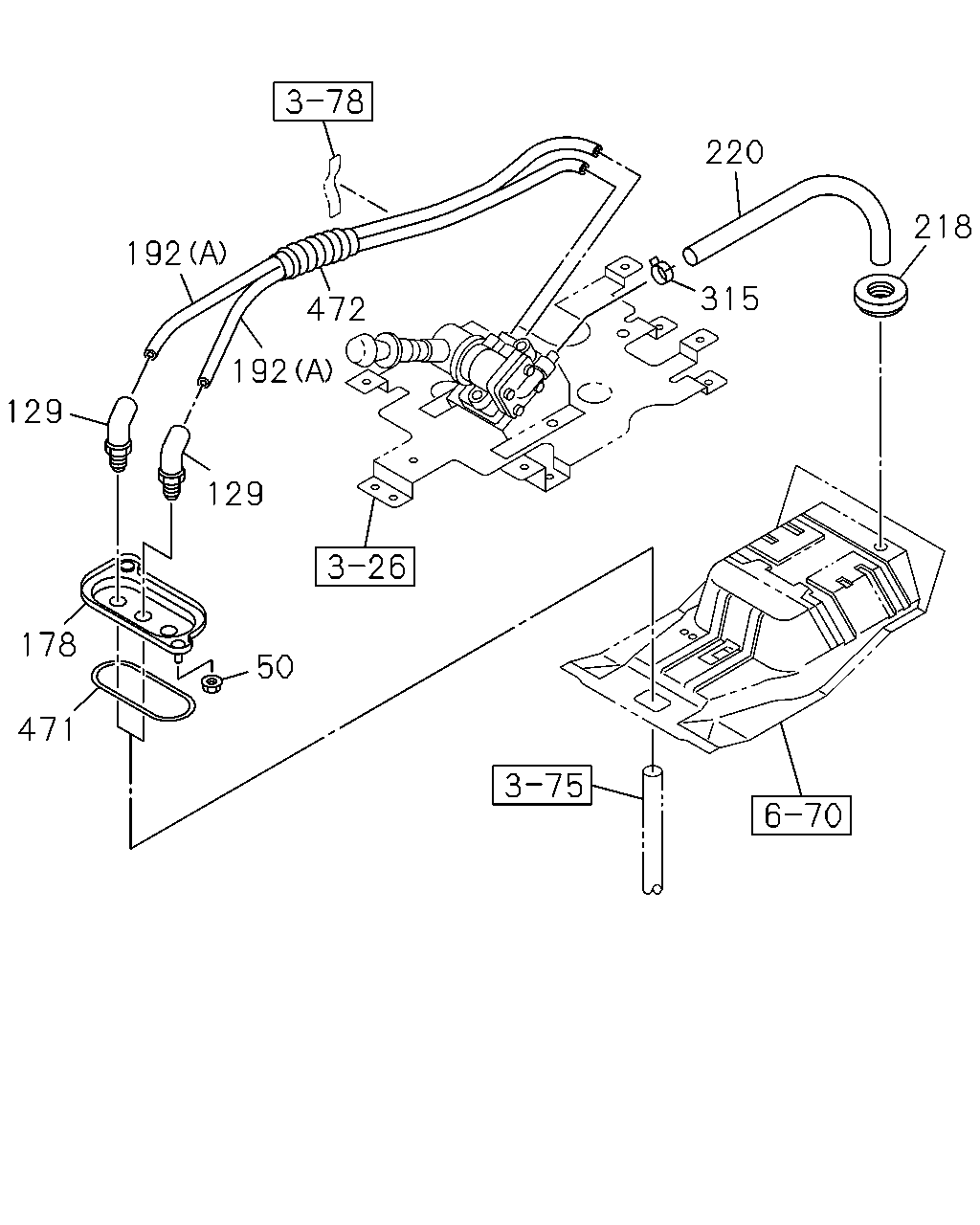

[377A] CAB SIDE (17 parça)

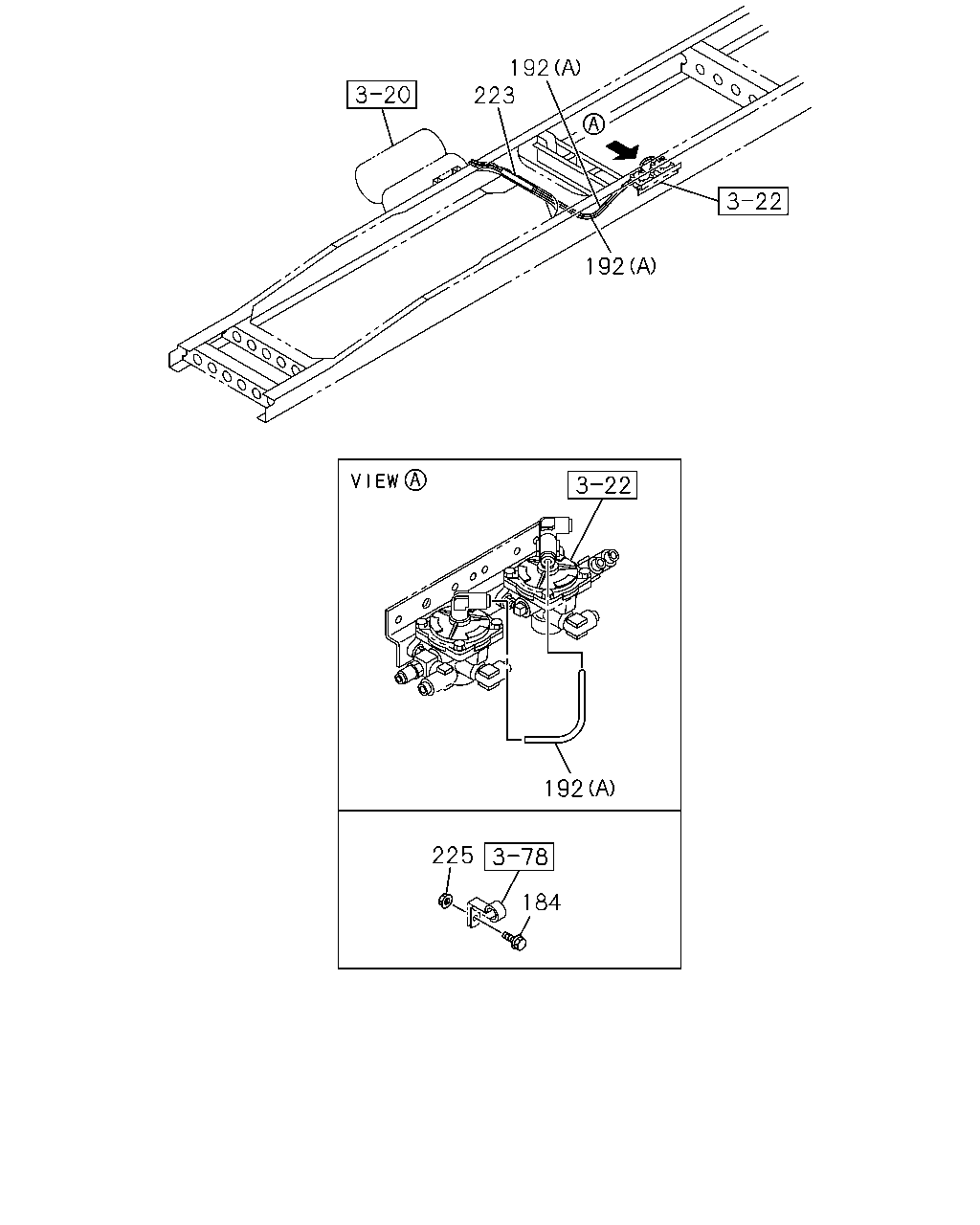

[377A] FRAME SIDE (14 parça)
▶
192
223
74
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
74
ADAPTER; UNION TO NYLON TUBE
DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1401-
192
TUBE; NYLON
(B) REARWARD L=1140 OD=8
1-49218-622-1
01
1
1401-
192
TUBE; NYLON
(B) FORWARD L=915 OD=8
1-49221-696-0
01
1
1401-
192
TUBE; NYLON
(B) FORWARD L=1125 OD=8
1-49221-697-0
01
1
1401-
192
TUBE; NYLON
(B) REARWARD L=800 OD=8
8-98130-326-0
01
1
1401-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1401-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1401-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1401-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1401-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1401-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
1401-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
1401-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
1-87411-035-0
AR
1
1401-
192
223
192
192
192
192
192
192
192
192
192
223
192
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
192
TUBE; NYLON
(B) REARWARD L=1140 OD=8
1-49218-622-1
01
1
1401-
192
TUBE; NYLON
(B) FORWARD L=915 OD=8
1-49221-696-0
01
1
1401-
192
TUBE; NYLON
(B) FORWARD L=1125 OD=8
1-49221-697-0
01
1
1401-
192
TUBE; NYLON
(B) REARWARD L=800 OD=8
8-98130-326-0
01
1
1401-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1401-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1401-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1401-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1401-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1401-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
1401-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
1401-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
1-87411-035-0
AR
1
1401-
192
129
178
471
50
129
192
472
220
218
315
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
NUT; UNION BRKT
M8 FLANGE
0-91180-108-0
02
1
1401-
129
CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW
8-97611-963-1
01
1
1401-
129
CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW
8-97611-963-1
01
1
1401-
178
BRACKET; UNION
8-98017-054-1
01
1
1401-
192
TUBE; NYLON
(B) REARWARD L=1140 OD=8
1-49218-622-1
01
1
1401-
192
TUBE; NYLON
(B) FORWARD L=915 OD=8
1-49221-696-0
01
1
1401-
192
TUBE; NYLON
(B) FORWARD L=1125 OD=8
1-49221-697-0
01
1
1401-
192
TUBE; NYLON
(B) REARWARD L=800 OD=8
8-98130-326-0
01
1
1401-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1401-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1401-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1401-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1401-
218
GROMMET; VINYL HOSE
OD=24
9-61166-007-0
01
1
1401-
220
HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000
9-09914-701-0
01
1
1401-
315
CLIP
ID=14
8-94238-572-0
01
1
1401-
471
SEAL; BRKT
1-79738-832-0
01
1
1401-
472
TUBE; SPUTTER
8-98067-708-0
01
1
1401-
223
192
192
192
225
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
184
BOLT; TUBE CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1401-
192
TUBE; NYLON
(B) REARWARD L=1140 OD=8
1-49218-622-1
01
1
1401-
192
TUBE; NYLON
(B) FORWARD L=915 OD=8
1-49221-696-0
01
1
1401-
192
TUBE; NYLON
(B) FORWARD L=1125 OD=8
1-49221-697-0
01
1
1401-
192
TUBE; NYLON
(B) REARWARD L=800 OD=8
8-98130-326-0
01
1
1401-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1401-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1401-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1401-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1401-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1401-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
1401-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
1401-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
1-87411-035-0
AR
1
1401-
225
NUT; TUBE CLIP
M8 FLANGE
0-91180-108-0
01
1
1401-
