Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11570 - FVZ(MIDDLE EAST)EU2
▶
3 - Brakes, Brake System
▶
3-01 - FRONT WHEEL BRAKE
▶
3-01 — FRONT WHEEL BRAKE
(#132136) — 53 parça
◀

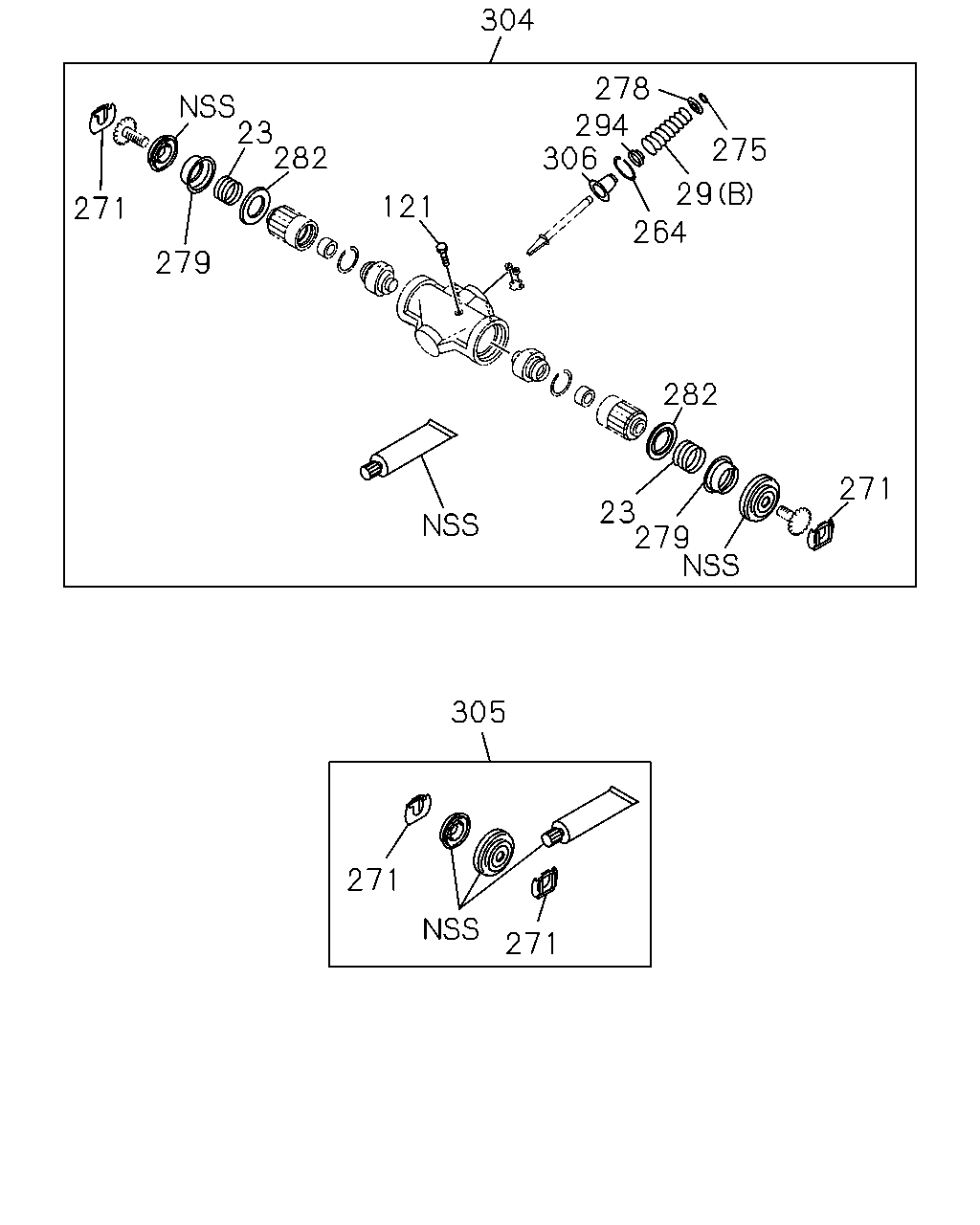

[301A] NO.2 (14 parça)

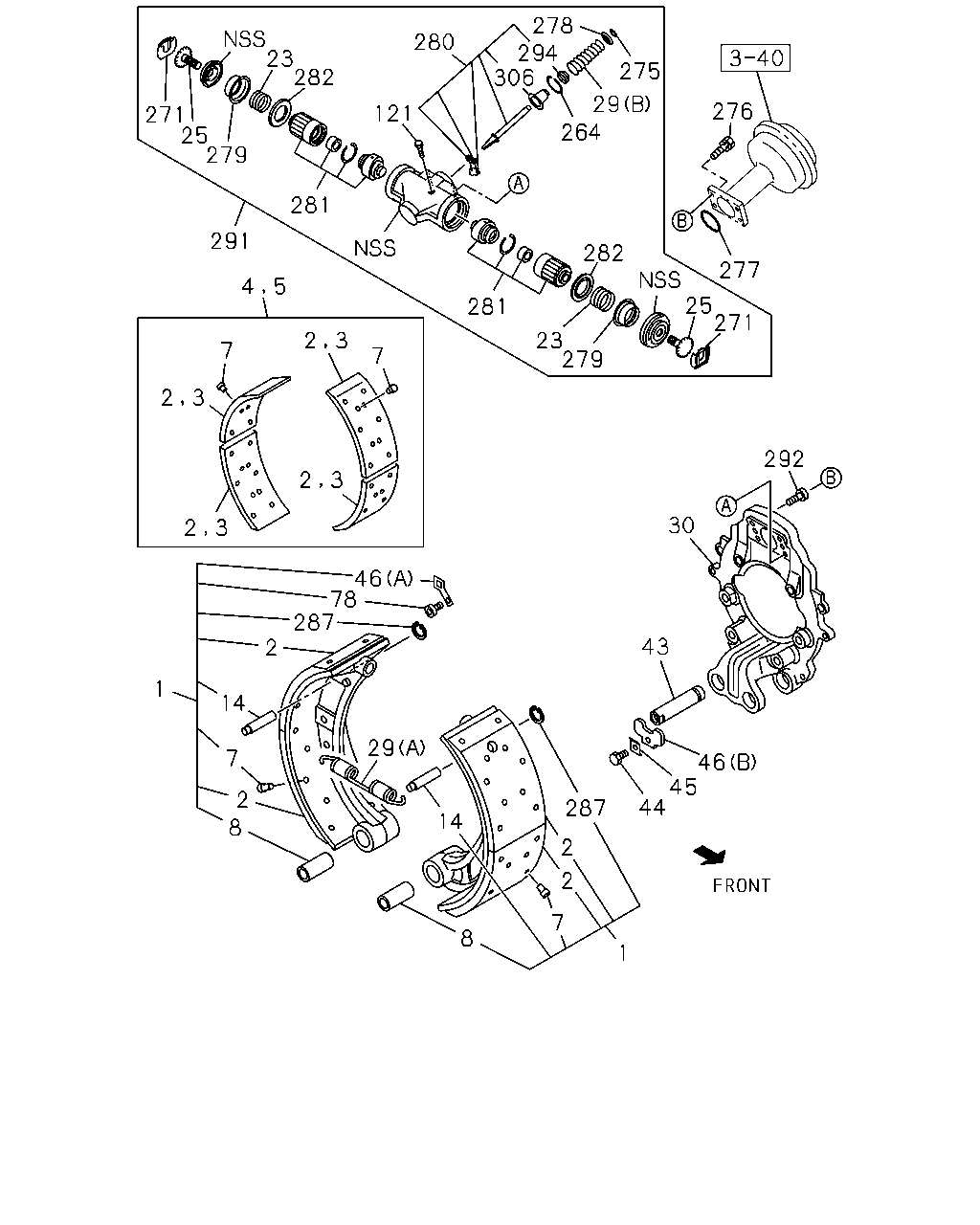

[301A] NO.1 (39 parça)
▶
271
279
23
282
121
304
278
294
306
264
29
275
282
271
279
23
305
271
271
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
SPRING; COIL
1-47629-196-0
04
1
1401-
29
SPRING; RETURN,FRT BRK SHOE
(A)
1-09583-365-1
02
1
1401-
29
SPRING; RETURN,FRT BRK SHOE
(B)
1-47649-041-0
02
1
1401-
121
SCREW; LK SPR FRT WHEEL CYL
1-47619-149-1
04
1
1401-
264
RING; SNAP,SPR PIN
1-47649-034-1
02
1
1401-
271
CLIP; ADJ
1-47621-017-0
04
1
1401-
275
RING; RETAINER
1-47649-031-0
02
1
1401-
278
RETAINER; SPRING
1-47649-020-0
02
1
1401-
279
CAGE; SPRING
1-47629-192-0
04
1
1401-
282
RING; DRIVE
1-47629-200-0
04
1
1401-
294
BOOT; WEDGE
1-47649-042-0
02
1
1401-
304
REPAIR KIT; EXPANDER
1-85576-403-0
02
1
1401-
305
REPAIR KIT; BOOT,EXPANDER
1-85576-404-0
02
1
1401-
306
CAP; EXPANDER
1-47649-044-0
02
1
1401-
292
30
43
46
45
44
287
2
2
7
1
8
14
29
8
2
7
14
1
2
287
78
46
2
3
2
3
7
3
2
7
3
2
4
5
291
281
281
279
23
271
25
277
282
276
29
264
275
306
294
278
280
121
282
23
279
25
271
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,FRT
LEADING
1-47170-316-0
01
1
1401-
1
SHOE; BRK,FRT
TRAILING
1-47170-317-0
01
1
1401-
1
SHOE; BRK,FRT
LEADING
1-47170-318-0
01
1
1401-
1
SHOE; BRK,FRT
TRAILING
1-47170-319-0
01
1
1401-
2
LINING; FRT BRK SHOE,STANDARD
1-47126-698-0
08
1
1401-
3
LINING; FRT BRK SHOE,OVER SIZE
1-47126-699-0
08
1
1401-
4
LINING SET; FRT BRK,STANDARD
BEST VALUE PARTS
1-87610-128-0
01
1
1401-
4
LINING SET; FRT BRK,STANDARD
1-88311-314-0
02
1
1401-
5
LINING SET; FRT BRK,OVER SIZE
1-88311-315-0
02
1
1401-
7
RIVET; LINING,FRT BRK
L=15.5
1-09732-053-0
80
1
1401-
8
BUSHING; BRK SHOE
1-47112-020-0
04
1
1401-
14
PIN; SHOE RETURN SPR
1-47119-177-1
04
1
1401-
23
SPRING; COIL
1-47629-196-0
04
1
1401-
25
SCREW; ADJ,FRT WHEEL CYL
1-47623-035-2
04
1
1401-
29
SPRING; RETURN,FRT BRK SHOE
(A)
1-09583-365-1
02
1
1401-
29
SPRING; RETURN,FRT BRK SHOE
(B)
1-47649-041-0
02
1
1401-
30
BRACKET; ANCHOR,FRT
8-98091-252-0
02
1
1401-
43
PIN; ANCHOR
L=115.5
1-47131-044-0
04
1
1401-
44
BOLT; LOCK,ANCHOR PIN
M10X16
1-47139-173-0
02
1
1401-
45
WASHER; LK
1-47133-011-0
02
1
1401-
46
PLATE; LOCK
(A)
1-47119-152-0
04
1
1401-
46
PLATE; LOCK
(B)
1-47133-010-0
02
1
1401-
78
BOLT; LK,PLATE
1-47119-153-0
04
1
1401-
121
SCREW; LK SPR FRT WHEEL CYL
1-47619-149-1
04
1
1401-
264
RING; SNAP,SPR PIN
1-47649-034-1
02
1
1401-
271
CLIP; ADJ
1-47621-017-0
04
1
1401-
275
RING; RETAINER
1-47649-031-0
02
1
1401-
276
BOLT; CHAMBER
M10X42.5
1-47139-163-0
08
1
1401-
277
RING; CHAMBER
1-48259-231-0
02
1
1401-
278
RETAINER; SPRING
1-47649-020-0
02
1
1401-
279
CAGE; SPRING
1-47629-192-0
04
1
1401-
280
WEDGE; FRT WHEEL CYL
1-47640-012-0
02
1
1401-
281
SLEEVE
1-47629-247-1
04
1
1401-
282
RING; DRIVE
1-47629-200-0
04
1
1401-
287
RING; SNAP
ID=10
0-91805-510-0
08
1
1401-
291
EXPANDER
1-47601-087-0
02
1
1401-
292
BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET
1-47634-008-0
04
1
1401-
294
BOOT; WEDGE
1-47649-042-0
02
1
1401-
306
CAP; EXPANDER
1-47649-044-0
02
1
1401-
