2-30 — GEAR SHIFTER AND QUADRANT BOX (#132129) — 133 parça

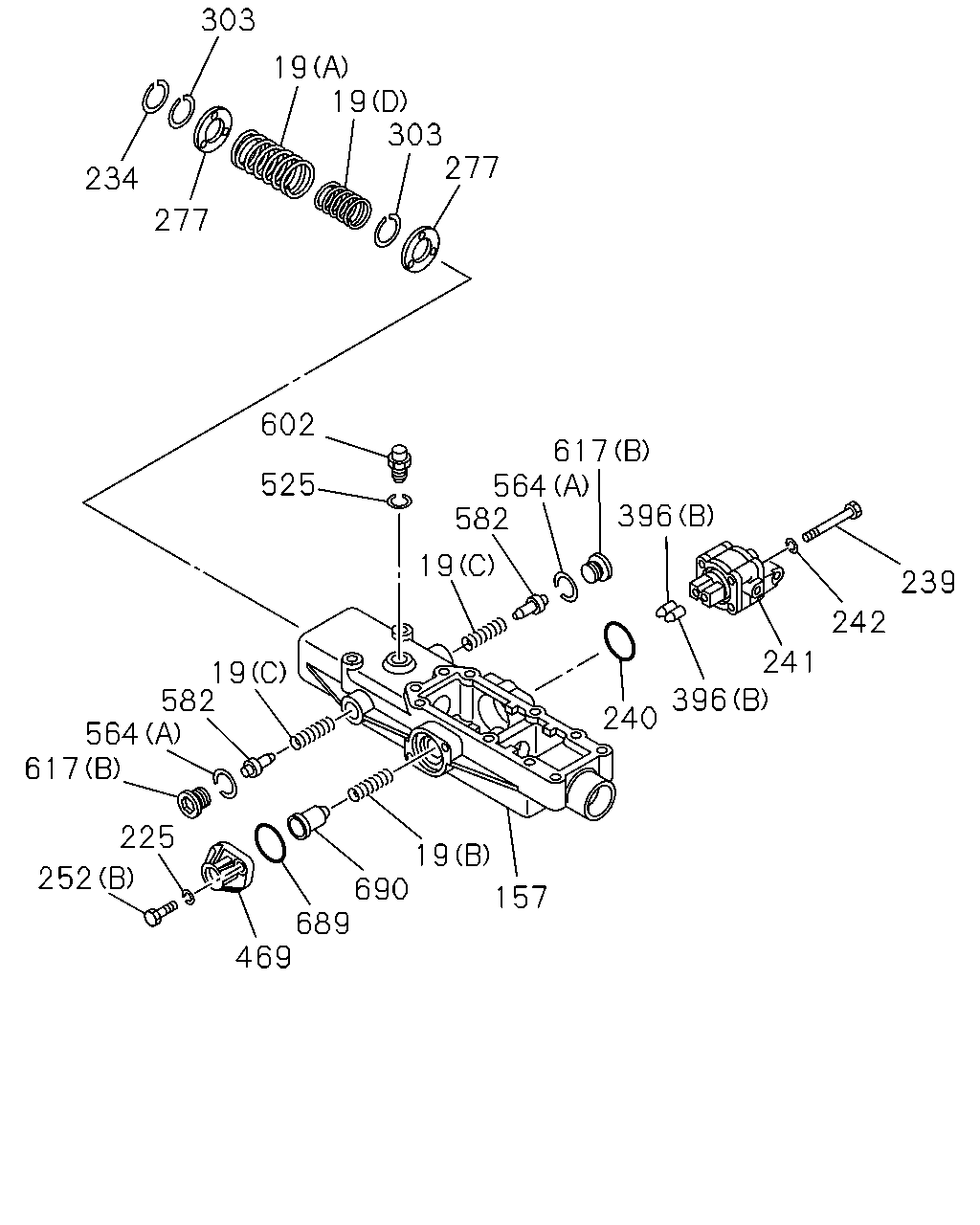

çizim 401355
239 242 241 369 240 157 19 690 689 469 252 617 582 564 19 19 582 564 617 396 525 602 277 303 19 19 303 277 234 225
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-027-0 01 1 1401-
19 SPRING; COIL COMP
(C) 		1-33539-030-0 02 1 1401-
19 SPRING; COIL COMP
(D) 		1-33539-104-0 01 1 1401-
19 SPRING; COIL COMP
(B) 		1-33549-221-0 01 1 1401-
157 BOX; QUAD,TRANS 1-33549-570-0 01 1 1401-
225 WASHER; LK,QUAD BOX 1-33549-583-0 14 1 1401-
234 RING; SNAP 1-44519-224-0 01 1 1401-
239 BOLT; CUT OFF VALVE 1-33549-585-0 04 1 1401-
240 GASKET; CUT OFF VALVE 1-33549-198-0 01 1 1401-
241 VALVE; CUT OFF 1-33549-495-0 01 1 1401-
242 WASHER; CUT OFF VALVE 1-33549-583-0 04 1 1401-
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-581-0 02 1 1401-
252 BOLT; SIDE COVER
(A) M8X20 		1-33549-591-0 04 1 1401-
277 PLATE; SPRING SEAT 1-33539-107-0 02 1 1401-
303 RING; SNAP,SHAFT 1-33539-040-0 02 1 1401-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1401-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 1401-
469 COVER; SPRING,QUAD BOX 1-33549-216-0 01 1 1401-
525 RING; DETENT 1-33119-286-0 01 1 1401-
564 SEAL; RING
(A) 		1-33119-249-0 02 1 1401-
564 SEAL; RING
(B) 		1-33549-578-0 01 1 1401-
582 BOLT; SPRING GUIDE 1-33549-487-0 02 1 1401-
602 PLUNGER; DETENT 1-33119-618-0 01 1 1401-
617 PLUG
(B) 		1-33119-619-0 02 1 1401-
617 PLUG
(A) 		1-33539-109-0 01 1 1401-
689 GASKET; COVER 1-33542-063-0 01 1 1401-
690 PIN; STOP 1-33549-496-0 01 1 1401-

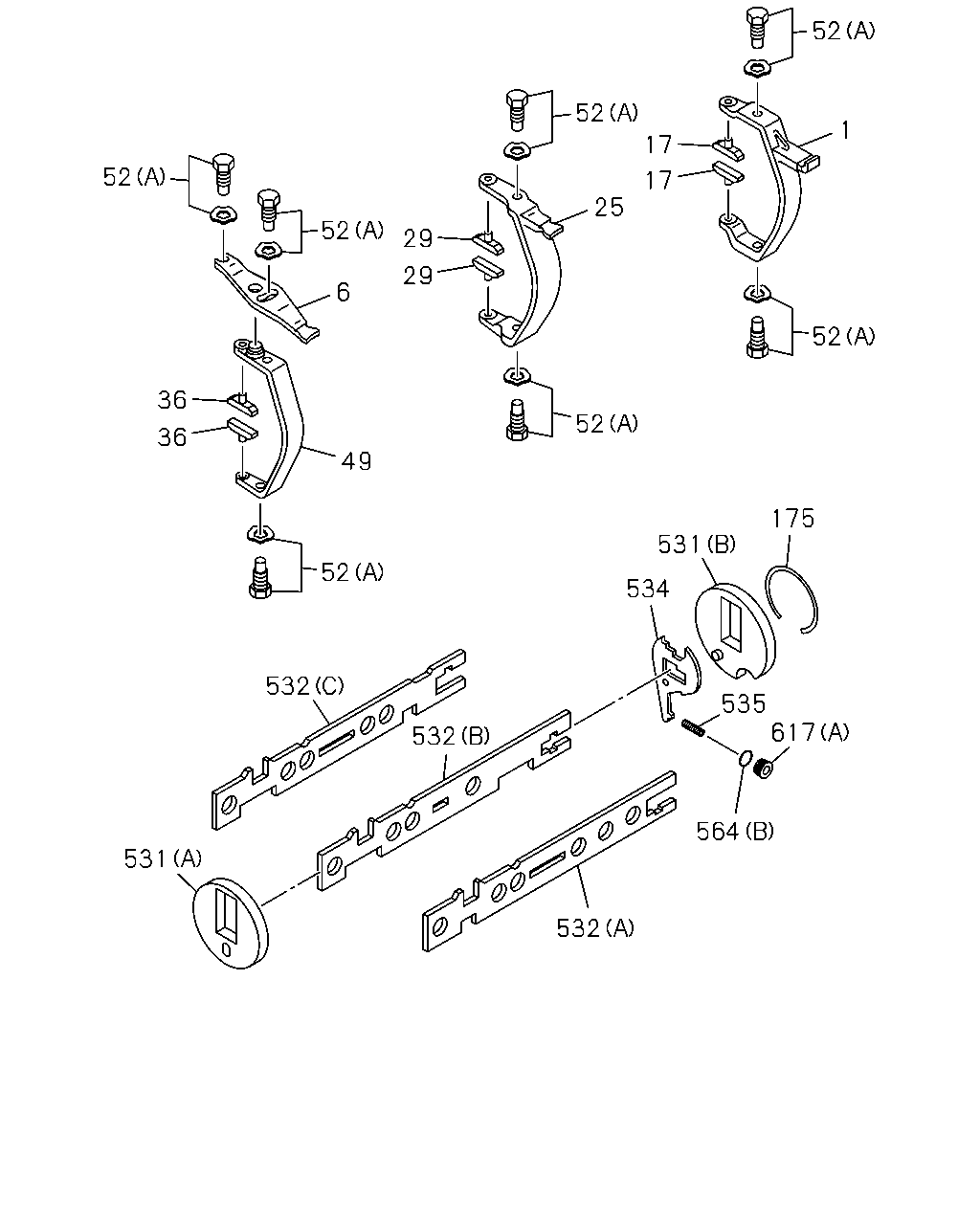

çizim 401376
532 564 617 535 175 531 534 52 52 1 52 17 17 25 52 29 29 6 52 49 52 532 532 531 36 36 52
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-657-0 01 1 1401-
6 LEVER; RELAY 1-33511-658-0 01 1 1401-
17 BLOCK; SHIFT,1ST & REV 1-33519-172-0 02 1 1401-
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1401-
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 1401-
36 BLOCK; SHIFT,4TH & 5TH 1-33519-170-0 02 1 1401-
49 ARM; SHIFT,4TH & 5TH 1-33511-640-0 01 1 1401-
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1401-
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1401-
175 RING; STOPPER,SHIFT LEVER 1-33539-103-0 01 1 1401-
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 1401-
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 1401-
532 PLATE; SHIFT FORK
(A) 		1-33531-492-0 01 1 1401-
532 PLATE; SHIFT FORK
(B) 		1-33531-493-0 01 1 1401-
532 PLATE; SHIFT FORK
(C) 		1-33531-494-0 01 1 1401-
534 LEVER; LOCK,SHIFT PLATE 1-33539-087-0 01 1 1401-
535 SPRING; LEVER 1-33539-049-0 01 1 1401-
564 SEAL; RING
(A) 		1-33119-249-0 02 1 1401-
564 SEAL; RING
(B) 		1-33549-578-0 01 1 1401-
617 PLUG
(B) 		1-33119-619-0 02 1 1401-
617 PLUG
(A) 		1-33539-109-0 01 1 1401-

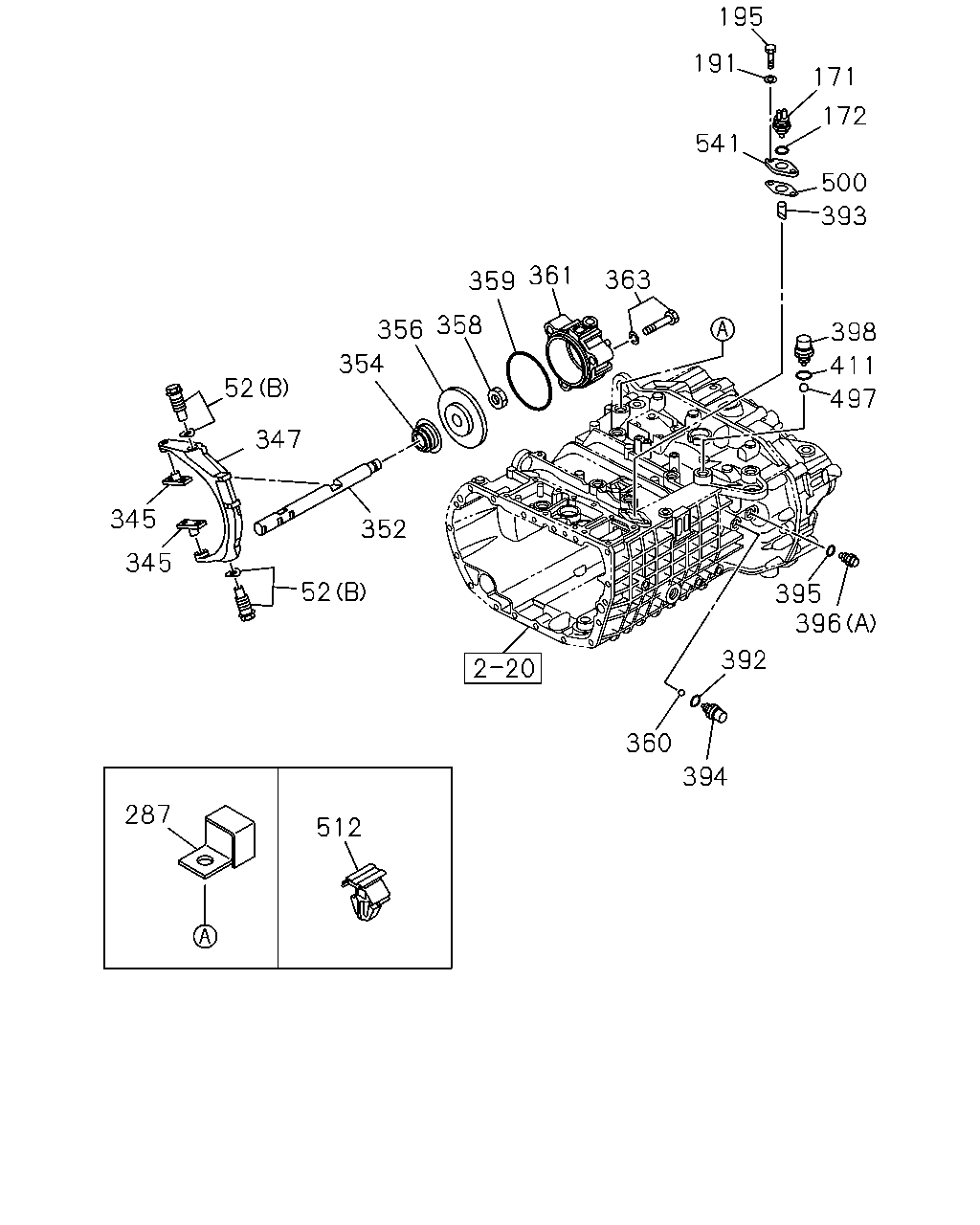

çizim 401377
512 287 52 352 394 360 392 396 395 497 411 398 393 500 172 171 195 191 541 363 361 359 358 356 354 347 52 345 345
BalonParca AdiParca NoAdetTipApplied Date
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1401-
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1401-
171 SWITCH; NEUTRAL 1-33119-627-0 01 1 1401-
172 GASKET; NEUTRAL SW 1-33119-249-0 01 1 1401-
191 WASHER; LK 1-33549-583-0 02 1 1401-
195 BOLT 1-33119-593-0 02 1 1401-
287 COVER; AIR BREATHER 1-34141-026-0 01 1 1401-
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 1401-
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 1401-
352 ROD; SHIFT,RANGE CHANGE
PTO ZF TRANS RR(BDM) 		1-33531-495-0 01 1 1401-
352 ROD; SHIFT,RANGE CHANGE
EXC. PTO ZF TRANS RR(BDM) 		1-33531-047-0 01 1 1401-
354 SEAL; AIR CYL 1-33519-045-0 01 1 1401-
356 PISTON; AIR CYL 1-33519-197-0 01 1 1401-
358 NUT; SHIFT ROD 1-33519-188-0 01 1 1401-
359 GASKET; AIR CYL 1-33519-093-0 01 1 1401-
360 BALL; AIR CYL 1-33119-252-0 01 1 1401-
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 1401-
363 BOLT; AIR CYL
M10X70 		1-33119-616-0 03 1 1401-
392 GASKET; PLUG & SW 1-33119-249-0 01 1 1401-
393 PIN; SW 1-33119-298-0 01 1 1401-
394 SWITCH; RANGE CHANGE 1-33119-627-0 01 1 1401-
395 GASKET; PLUNGER 1-33519-171-0 01 1 1401-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1401-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 1401-
398 SWITCH; REV LAMP 1-38119-062-0 01 1 1401-
411 GASKET; REV LAMP SW 1-33119-249-0 01 1 1401-
497 BALL; SWITCH 1-33119-252-0 01 1 1401-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-299-0 01 1 1401-
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 04 1 1401-
541 PLATE; SWITCH 1-33119-300-0 01 1 1401-

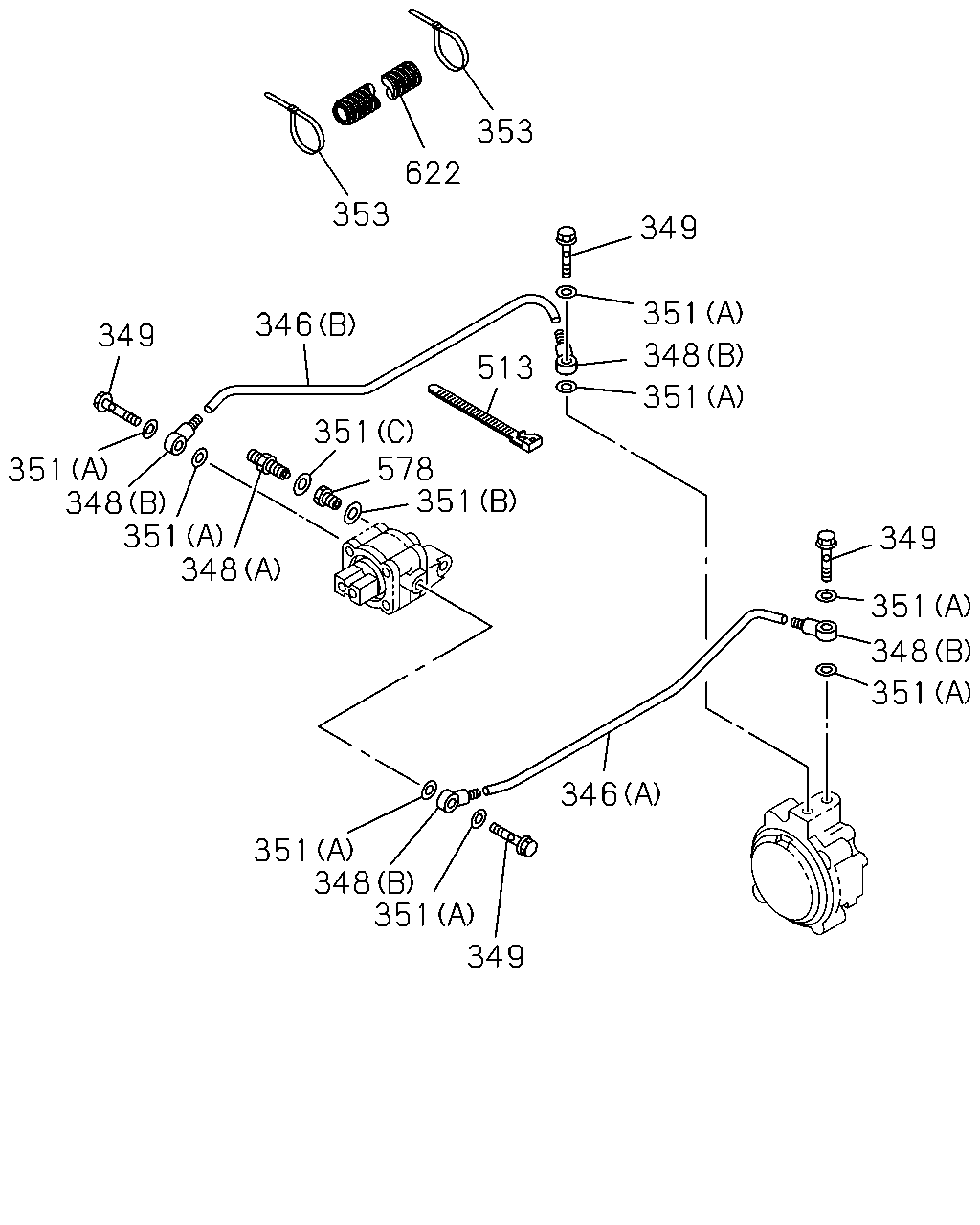

çizim 401386
351 348 351 349 346 349 351 348 351 348 351 348 351 349 346 351 351 578 513 351 348 351 349 353 622 353
BalonParca AdiParca NoAdetTipApplied Date
346 HOSE; AIR
(B) 		1-33549-598-0 01 1 1401-
346 HOSE; AIR
(A) 		1-33549-618-0 01 1 1401-
348 CONNECTOR; AIR HOSE
(A) M12 STRAIGHT 		1-09654-246-0 01 1 1401-
348 CONNECTOR; AIR HOSE
(B) 		1-33549-593-0 04 1 1401-
349 BOLT; EYE,AIR HOSE
M14 		1-33549-592-0 04 1 1401-
351 GASKET; CONNECTOR
(C) ID=12.2 		1-09630-084-0 01 1 1401-1401
351 GASKET; CONNECTOR
(C) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
(B) 		1-33549-554-0 01 1 1401-
351 GASKET; CONNECTOR
(A) 		1-33549-578-0 08 1 1401-
353 CLIP; AIR HOSE 1-33549-475-0 02 1 1401-
513 CLIP; BAND
L=250 		5-09707-030-1 06 1 1401-
513 CLIP; BAND
L=140 		5-09707-031-1 01 1 1401-
578 CONNECTOR 1-33549-553-0 01 1 1401-
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1401-

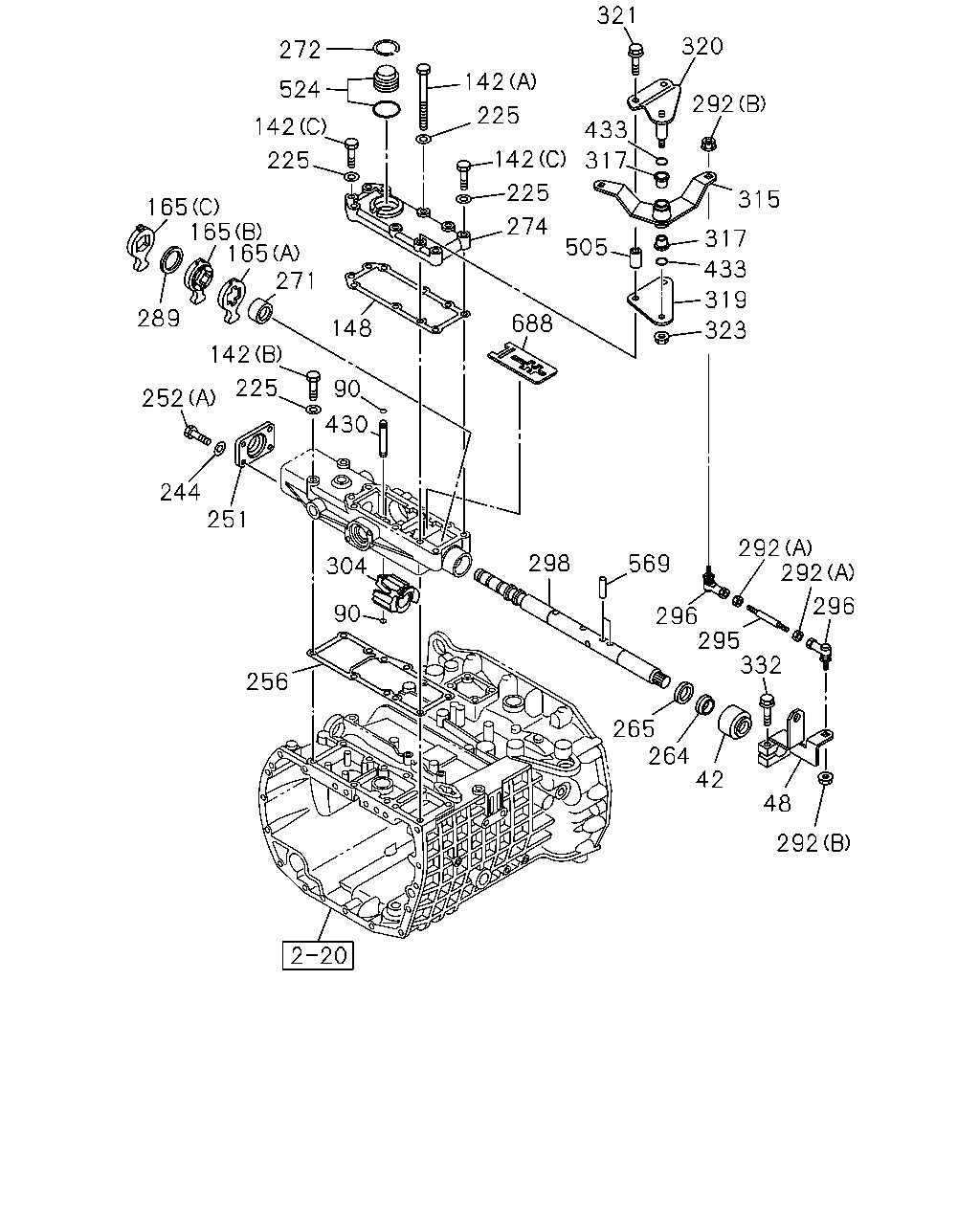

çizim 402648
292 48 42 264 265 332 295 296 298 296 292 292 256 90 304 251 244 252 430 90 225 142 289 148 271 165 165 165 225 142 524 272 688 505 274 225 142 225 142 317 433 323 319 433 317 315 292 320 321 569
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX 1-33549-589-0 01 1 1401-
48 LEVER; 4TH,SHIFT 8-98085-725-0 01 1 1401-
90 RING; SNAP,SHIFT ROD 1-33549-494-0 02 1 1401-
142 BOLT; QUAD BOX
(A) M8X100 		1-33549-582-0 06 1 1401-
142 BOLT; QUAD BOX
(B) M8X75 		1-33549-584-0 02 1 1401-
142 BOLT; QUAD BOX
(C) M8X40 		1-33549-587-0 04 1 1401-
148 GASKET; QUAD BOX 1-33542-064-0 01 1 1401-
165 LEVER; SHIFT
(A) 		1-33549-488-0 01 1 1401-
165 LEVER; SHIFT
(B) 		1-33549-489-0 01 1 1401-
165 LEVER; SHIFT
(C) 		1-33549-603-0 01 1 1401-
225 WASHER; LK,QUAD BOX 1-33549-583-0 14 1 1401-
244 WASHER; LK,COVER 1-33549-583-0 04 1 1401-
251 COVER; SIDE 1-33549-590-0 01 1 1401-
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-581-0 02 1 1401-
252 BOLT; SIDE COVER
(A) M8X20 		1-33549-591-0 04 1 1401-
256 GASKET; QUAD BOX TO TRANS CASE 1-33542-065-0 01 1 1401-
264 SEAL; DUST,SHAFT 1-33549-119-0 01 1 1401-
265 SEAL; OIL,SHIFT 1-33549-118-0 01 1 1401-
271 BUSHING; QUAD BOX 1-33549-124-0 01 1 1401-
272 RING; SNAP,QUAD BOX 1-44519-217-0 01 1 1401-
274 COVER; SHAFT,QUAD BOX 1-33549-579-0 01 1 1401-
289 SEAL; OIL,CONT SHAFT,QUAD BOX 1-33549-491-0 01 1 1401-
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 1401-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1401-
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 1401-
296 ROD END 1-09760-108-0 02 1 1401-
298 SHAFT; SHIFT LEVER 1-33522-205-0 01 1 1401-
304 BLOCK; SHIFT SHAFT 1-33549-492-0 01 1 1401-
315 LEVER; SELECT 8-98085-738-0 01 1 1401-
317 BUSHING; LEVER 1-09330-119-0 02 1 1401-
319 BRACKET; SELECT LEVER 8-98085-740-0 01 1 1401-
320 SHAFT; LEVER 8-98085-739-0 01 1 1401-
321 BOLT; BRKT,RELAY LEVER
M8X130 FLANGE 		0-28065-813-0 02 1 1401-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1401-
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28650-840-0 01 1 1401-
430 PIN; SPR,SHIFT ROD 1-33549-493-0 01 1 1401-
433 GASKET; BUSHING 1-09623-594-0 02 1 1401-
505 SPACER; BRKT
L=24.5 		1-33659-186-1 02 1 1401-
524 DETENT; QUAD BOX 1-33549-501-0 01 1 1401-
569 PIN; QUADRANT BOX 1-33529-128-0 02 1 1401-
688 SHIFT; INTERLOCK 1-33549-572-0 01 1 1401-
