2-20 — MANUAL TRANSMISSION ASM AND CASE (#132126) — 75 parça

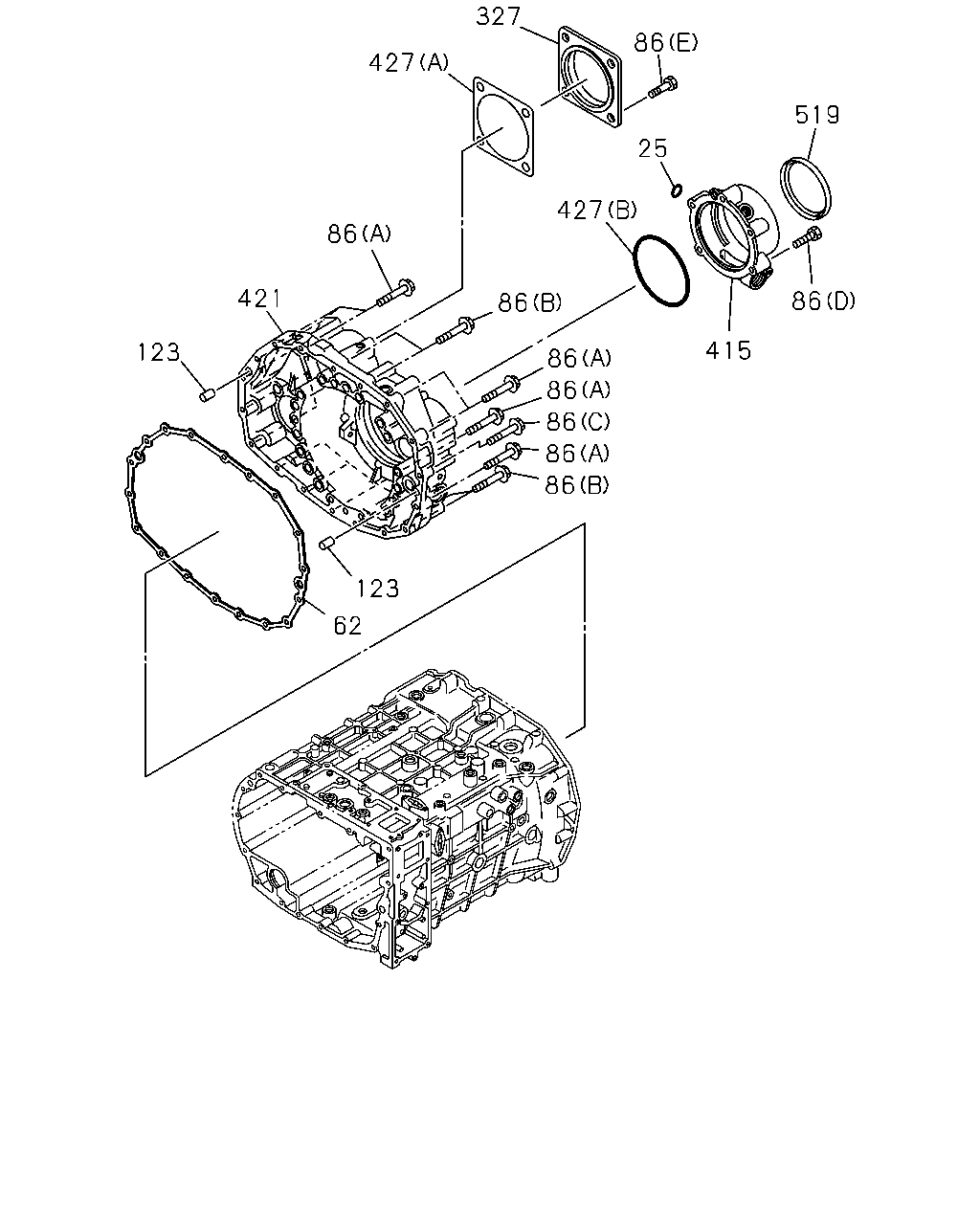

327 86 519 25 427 427 86 86 415 86 86 86 123 86 62 123 421 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	GASKET; COVER	1-33139-060-0	01	1	1401-
62	GASKET; RR COVER	1-33132-087-0	01	1	1401-
86	BOLT; RR COVER (A) M10X70	1-33119-616-0	12	1	1401-
86	BOLT; RR COVER (B) M10X110	1-33139-235-0	05	1	1401-
86	BOLT; RR COVER (C) M10X50	1-33139-236-0	01	1	1401-
86	BOLT; RR COVER (D) M10X60	1-33139-237-0	05	1	1401-
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM) (E) M12X25	1-33119-594-0	04	1	1401-
123	DOWEL; TRANS CASE	1-33119-292-0	04	1	1401-
327	COVER; RR,COUNTER EXC. PTO ZF TRANS RR(BDM)	1-33131-273-0	01	1	1401-
415	COVER; BRG	1-33131-269-0	01	1	1401-
421	COVER; RR,TRANS	1-33131-275-0	01	1	1401-
427	GASKET; RR COVER (B)	1-33132-088-0	01	1	1401-
427	GASKET; RR COVER EXC. PTO ZF TRANS RR(BDM) (A)	1-33132-054-0	01	1	1401-
519	GASKET; SHAFT	1-33139-059-0	01	1	1401-

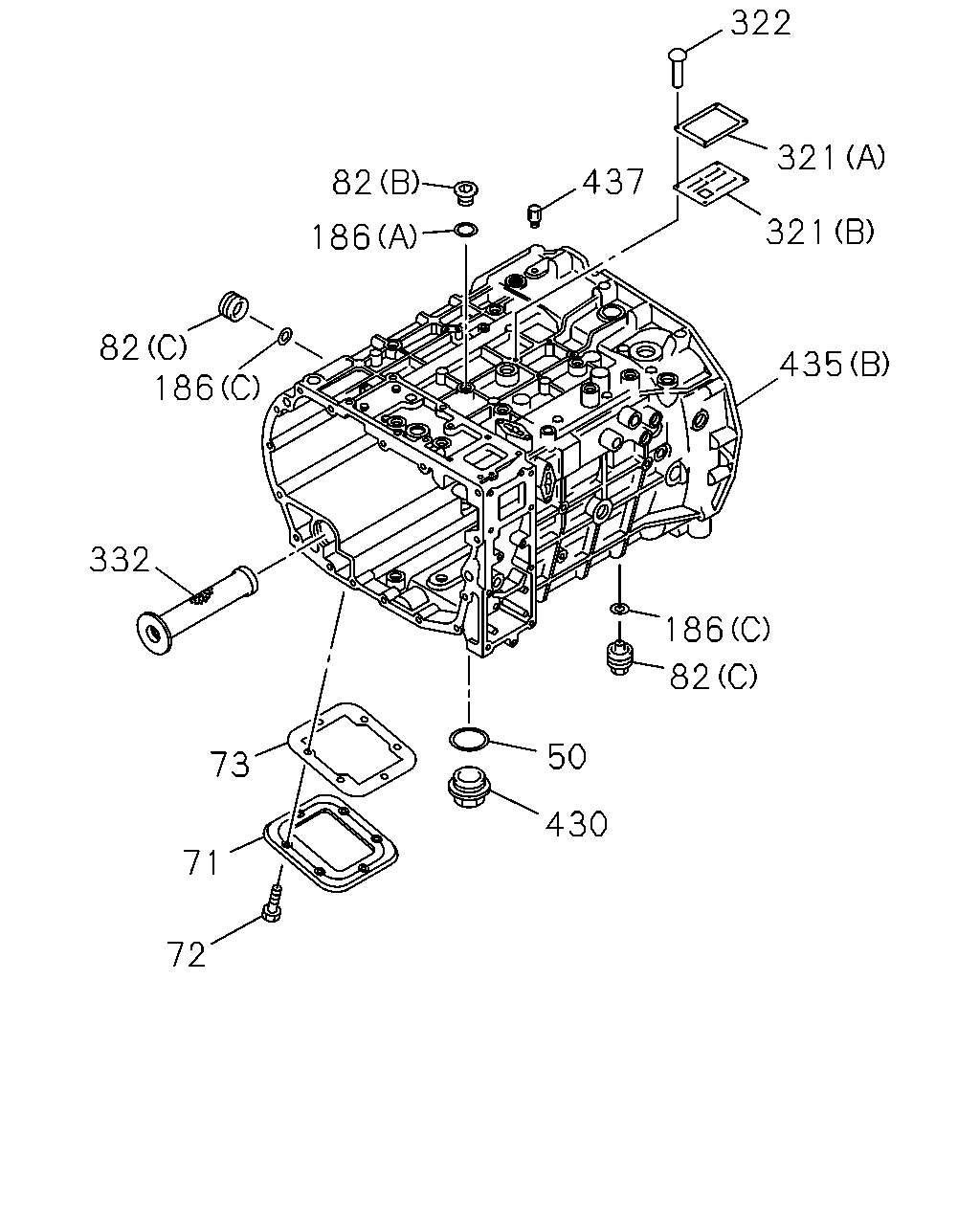

435 186 82 50 430 72 71 73 332 186 82 186 82 437 322 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	GASKET; DRAIN PLUG	1-33119-293-0	01	1	1401-
71	COVER; SIDE,TRANS CASE	1-33119-622-0	01	1	1401-
72	BOLT; SIDE COVER M10X22	1-33119-592-0	06	1	1401-
73	GASKET; SIDE COVER TO TRANS CASE	1-33119-237-0	01	1	1401-
82	PLUG; SCREW,CASE (A)	1-33119-618-0	02	1	1401-
82	PLUG; SCREW,CASE (B)	1-33119-619-0	01	1	1401-
82	PLUG; SCREW,CASE (C)	1-33119-620-0	02	1	1401-
186	RING; SEAL (A)	1-33119-249-0	01	1	1401-
186	RING; SEAL (B)	1-33119-286-0	02	1	1401-
186	RING; SEAL (C)	1-33119-435-0	02	1	1401-
321	PLATE; NAME (A)	1-33119-519-0	01	1	1401-
321	PLATE; NAME (B)	1-33119-520-0	01	1	1401-
322	RIVET; NAME PLATE	1-33119-617-0	04	1	1401-
332	FILTER; OIL	1-33119-437-0	01	1	1401-
430	PLUG; OIL DRAIN	1-33119-621-0	01	1	1401-
435	CASE; TRANS (B)	1-33111-372-0	01	1	1401-
435	CASE; TRANS (A)	1-33111-380-0	01	1	1401-
437	BREATHER; TRANS	1-36122-006-0	01	1	1401-

468 329 477 478 27 24 2 412 561 343 37 36 36 561 413 463 28 113 33 315 435 314 330 561 561 245 29 82 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	1-31111-183-0	01	1	1401-
24	COVER; CHECK HOLE,DUST	1-31119-059-0	01	1	1401-
27	BOLT; COVER TO CLU HSG	1-31119-058-0	04	1	1401-
28	COVER; FRT,TRANS CASE	1-33121-166-0	01	1	1401-
29	BOLT; FRT COVER M8X30	1-33549-581-0	06	1	1401-
33	SEAL; OIL,FRT COVER,T/M	1-33219-321-0	01	1	1401-
36	BEARING; NEEDLE,CLU HSG	1-09811-396-0	04	1	1401-
37	SEAL; DUST,CLU HSG	1-09625-002-0	02	1	1401-
82	PLUG; SCREW,CASE (A)	1-33119-618-0	02	1	1401-
82	PLUG; SCREW,CASE (B)	1-33119-619-0	01	1	1401-
82	PLUG; SCREW,CASE (C)	1-33119-620-0	02	1	1401-
113	GASKET; FRT COVER TO TRANS CASE	1-33122-024-0	01	1	1401-
186	RING; SEAL (A)	1-33119-249-0	01	1	1401-
186	RING; SEAL (B)	1-33119-286-0	02	1	1401-
186	RING; SEAL (C)	1-33119-435-0	02	1	1401-
245	PIPE; OIL	1-33119-517-0	01	1	1401-
314	GASKET; CASE	1-33112-052-0	01	1	1401-
315	BOLT; CASE M10X70	1-33119-616-0	17	1	1401-
329	PUMP ASM; OIL	1-34150-123-0	01	1	1401-
330	RING; RET	1-33129-005-0	01	1	1401-
343	BOLT; CLU HSG TO PLATE M10X75 FLANGE	8-94399-669-1	01	1	1401-
412	CAP; CLU HSG	1-31119-026-0	01	1	1401-
413	BALL; CLU HSG	1-31119-014-0	04	1	1401-
435	CASE; TRANS (B)	1-33111-372-0	01	1	1401-
435	CASE; TRANS (A)	1-33111-380-0	01	1	1401-
463	COVER; DUST,FRT COVER	1-33129-018-0	01	1	1401-
468	GASKET; OIL PUMP	1-34159-122-0	01	1	1401-
477	BOLT; OIL PUMP M8X30	1-33549-581-0	08	1	1401-
478	WASHER; LK,OIL PUMP	1-33549-583-0	08	1	1401-
561	PLUG (A)	1-31119-044-0	02	1	1401-
561	PLUG (B)	1-31119-045-0	03	1	1401-
561	PLUG (C)	1-31119-046-0	02	1	1401-
561	PLUG (D)	1-31119-047-0	01	1	1401-

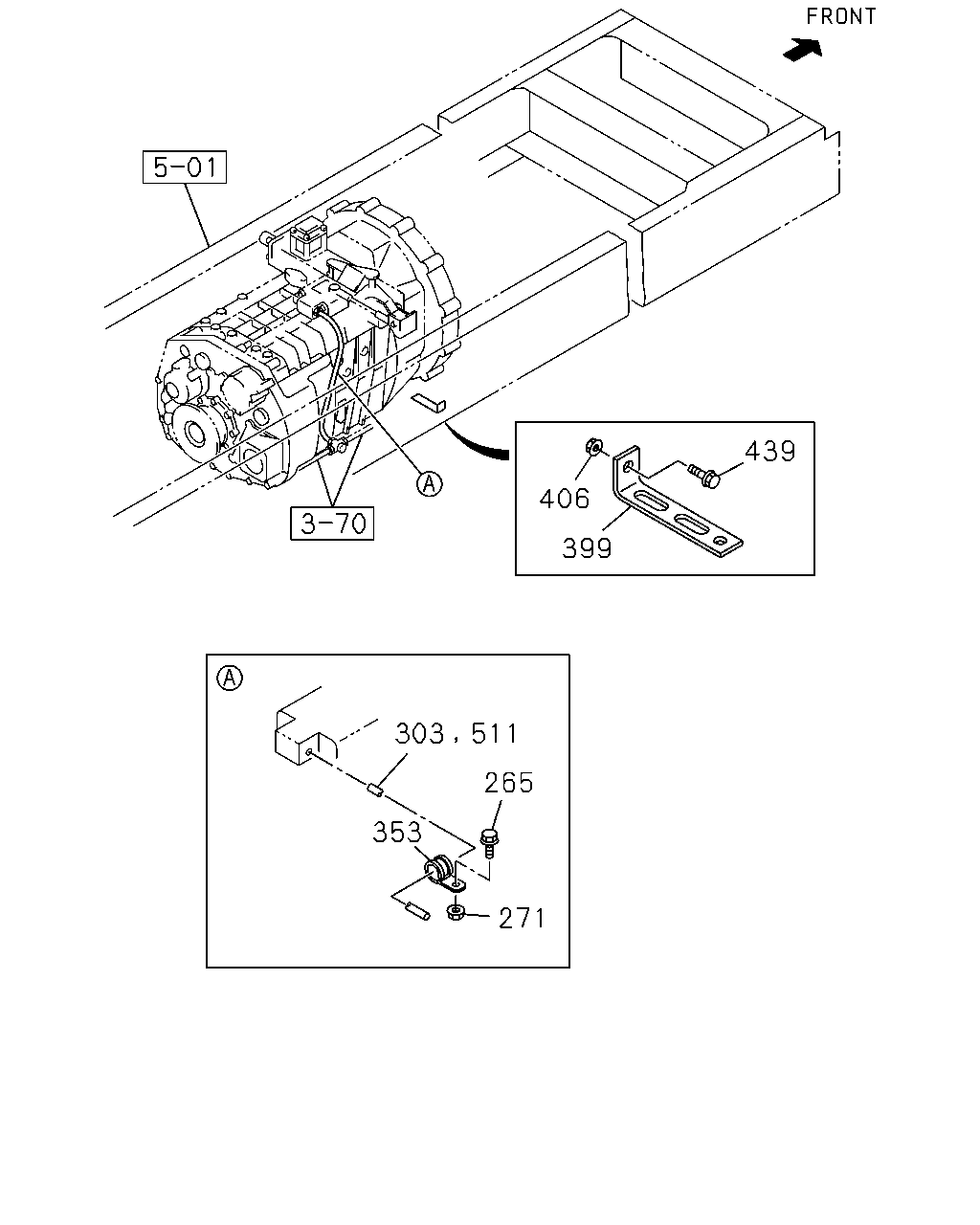

406 399 439 303 511 265 271 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1401-
271	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1401-
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1401-
353	CLIP; NYLON TUBE ID=18 L=28	1-09701-067-0	02	1	1401-
399	BRACKET; CLIP	1-47479-598-0	01	1	1401-
406	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1401-
439	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1401-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1401-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM)	8-98083-335-2	01	1	1401-
	1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM)	8-98083-334-2	01	1	1401-
