2-05 — CLUTCH PIPING (#132123) — 44 parça
çizim 401980
109 153 47 131 47
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
(A) L=500 		1-09363-720-0 01 1 1401-
47 HOSE; FLEX,CLU CONT
(B) L=500 		1-09364-329-0 01 1 1401-
109 PIPE; AIR,UNION TO UNION
L=719 SERVICED BY L=730 		1-47428-758-0 01 1 1401-
131 PIPE; AIR,UNION TO FLEX HOSE
RIGID SEAT WO/ARM REST<TAZ> L=262 		8-98108-925-0 01 1 1401-
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. RIGID SEAT WO/ARM REST<TAZ> L=244 		8-98092-621-0 01 1 1401-
153 PIPE ASM; CLU,UNION TO FLEX
L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 1401-

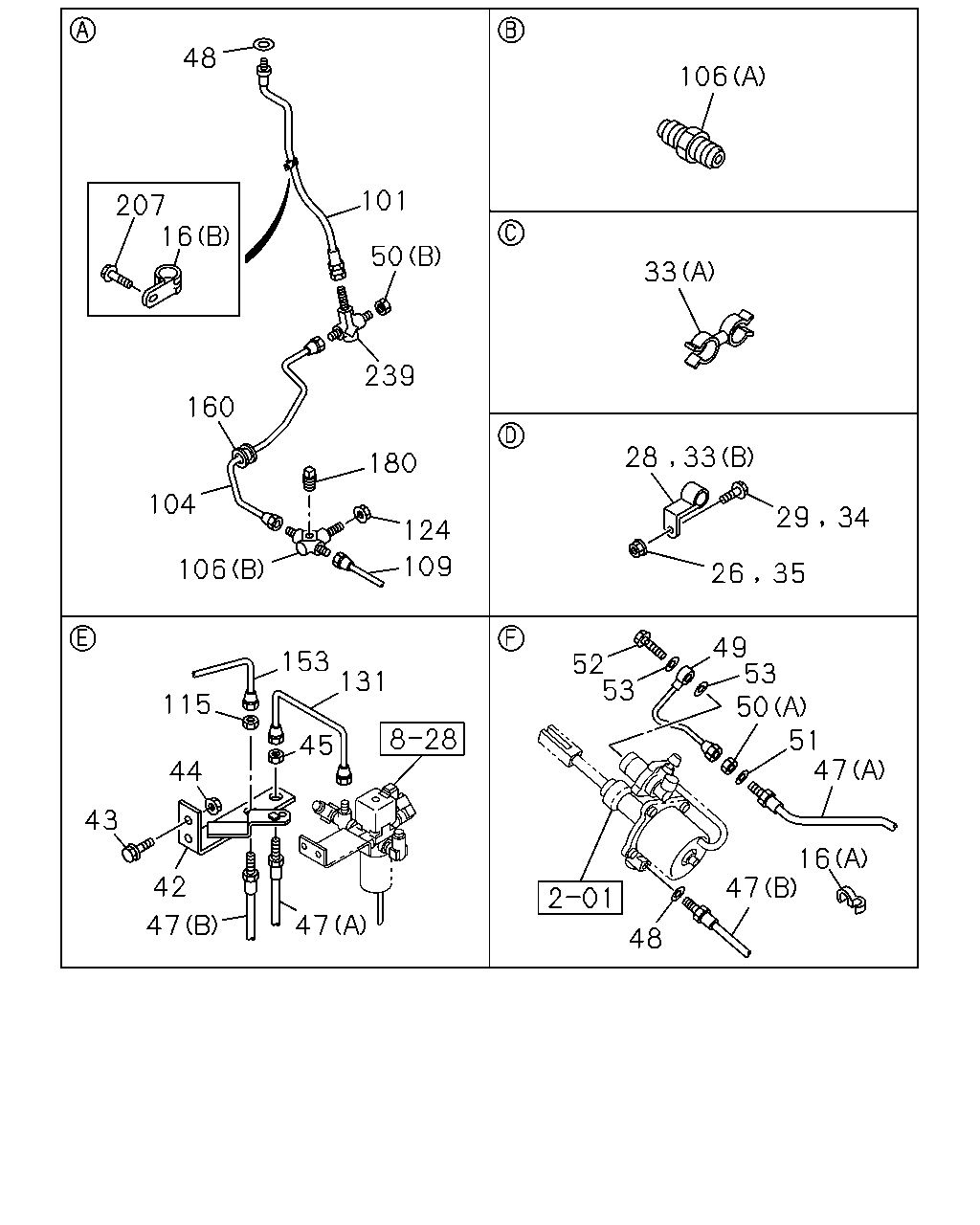

çizim 402647
48 47 47 51 50 49 53 52 47 47 43 42 44 115 131 153 16 45 109 124 106 104 180 160 239 50 101 16 207 48 35 26 34 29 33 28 33 106 53
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
(B) ID=18 L=28 		1-09701-067-0 01 1 1401-
16 CLIP; FLEX HOSE
(A) ID=10 & 12 		1-09709-278-1 01 1 1401-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 1401-
28 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 01 1 1401-
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 01 1 1401-
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 03 1 1401-
33 CLIP; OIL PIPE
(A) ID=8.3 & 10 		8-94176-792-0 01 1 1401-
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 1401-
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1401-
42 BRACKET; FLEX HOSE,CLU CONT 8-98099-521-1 01 1 1401-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 1401-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 1401-
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 1401-
47 HOSE; FLEX,CLU CONT
(A) L=500 		1-09363-720-0 01 1 1401-
47 HOSE; FLEX,CLU CONT
(B) L=500 		1-09364-329-0 01 1 1401-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1401-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1401-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=232 		1-49124-795-0 01 1 1401-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1401-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1401-
51 WASHER; LK
ID=12.2 		0-91510-812-0 01 1 1401-
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 1401-
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 1401-1401
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=480 		8-98072-349-0 01 1 1401-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=512 SERVICED BY L=550 		1-47428-753-0 01 1 1401-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1401-
106 UNION; OIL PIPE
(B) M12 & M14 & PT1/4 3WAY 		1-09656-286-2 01 1 1401-
109 PIPE; AIR,UNION TO UNION
L=719 SERVICED BY L=730 		1-47428-758-0 01 1 1401-
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1401-
124 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 1401-
131 PIPE; AIR,UNION TO FLEX HOSE
RIGID SEAT WO/ARM REST<TAZ> L=262 		8-98108-925-0 01 1 1401-
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. RIGID SEAT WO/ARM REST<TAZ> L=244 		8-98092-621-0 01 1 1401-
153 PIPE ASM; CLU,UNION TO FLEX
L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 1401-
160 GROMMET; OIL PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1401-
180 PLUG; PIPE
PT1/4 		9-99204-513-0 01 1 1401-
207 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1401-
239 UNION; CLU HOSE
M12 & M14 2WAY 		1-09654-141-2 01 1 1401-
