8-75 — CONDENSER
(#132074) — 25 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀

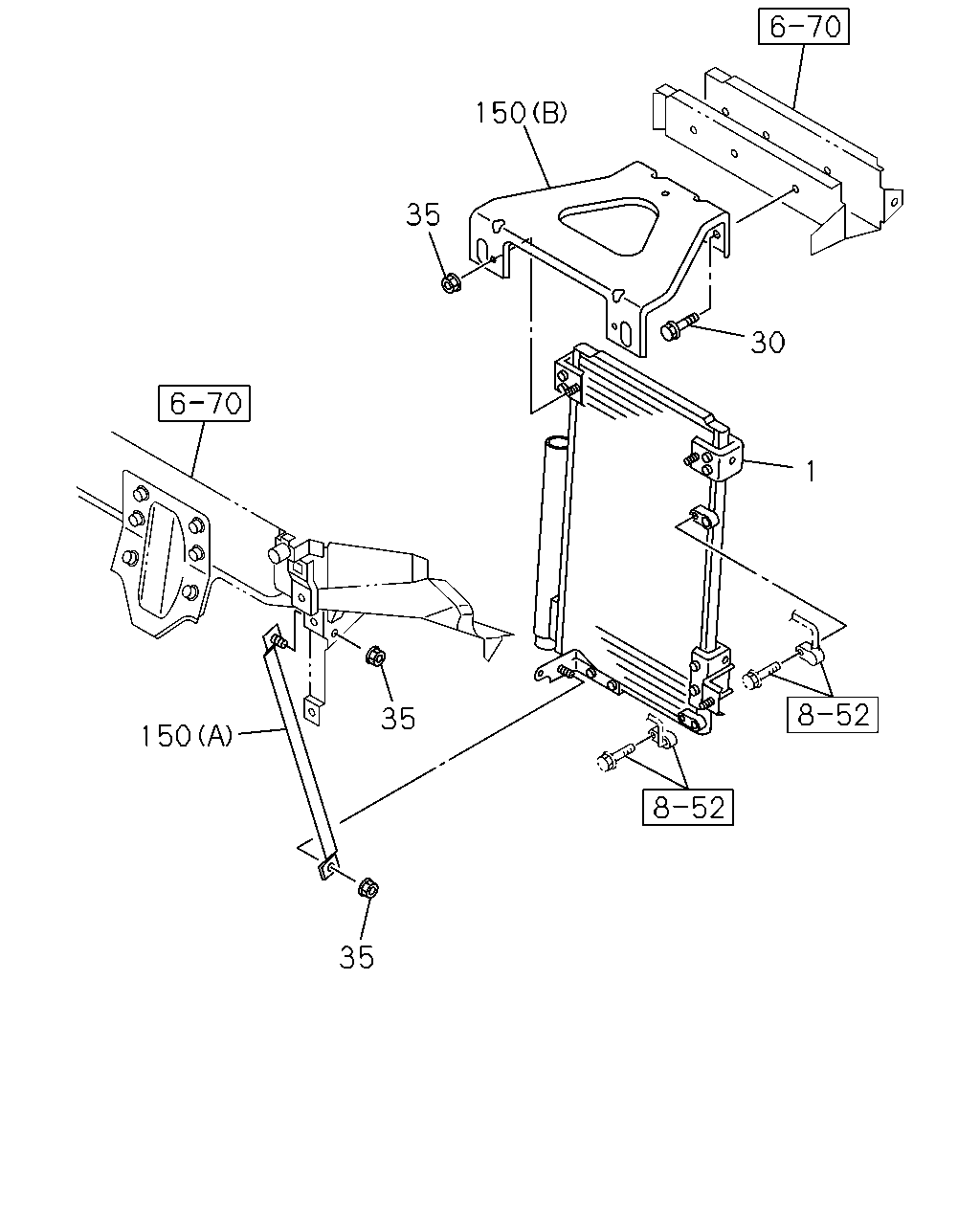

[875A] FIXING (7 parça)

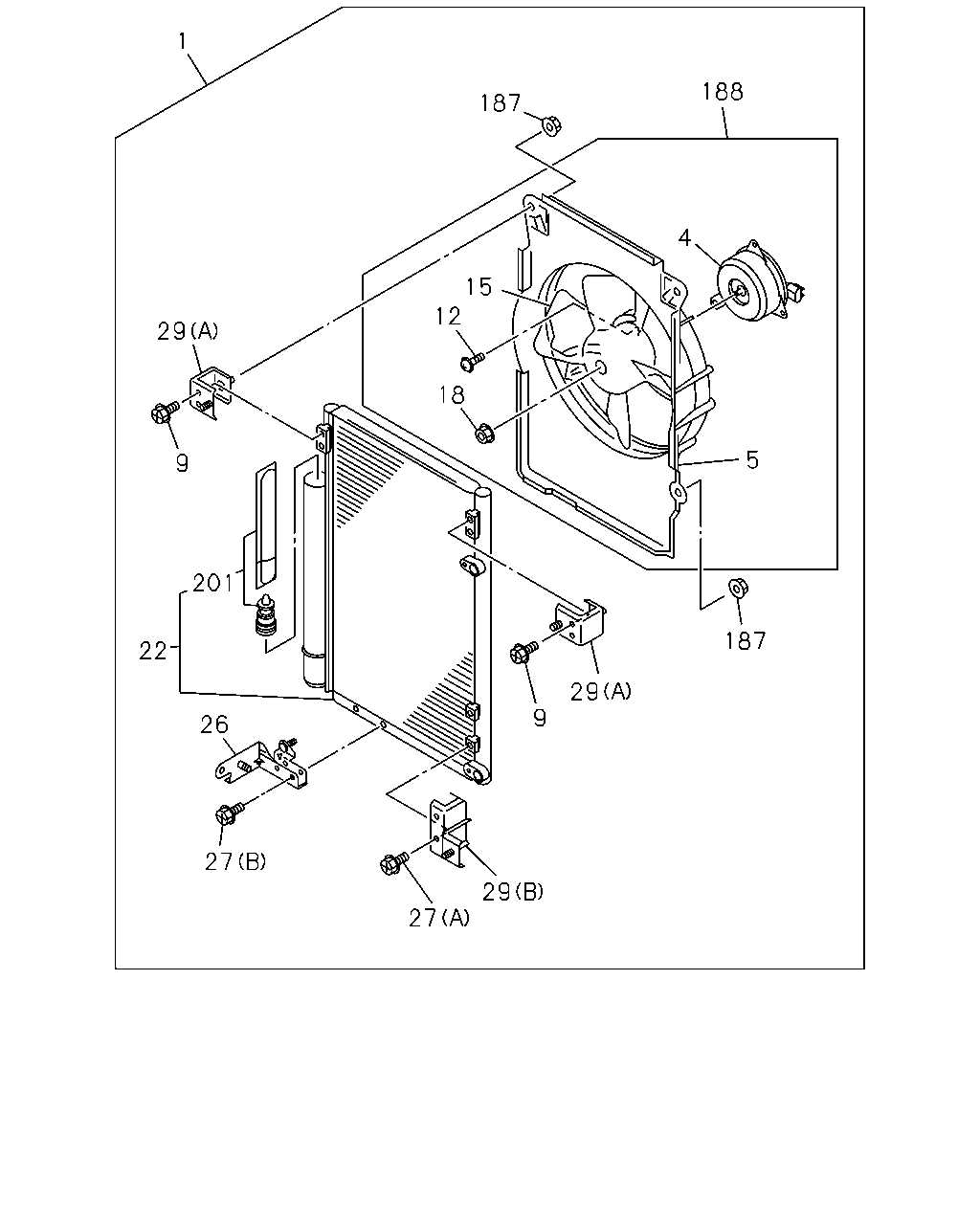

[875A] COMPONENT (18 parça)
▶
150
35
30
1
35
150
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
8-98164-844-1
01
1
1401-
●
●
30
BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE
0-28650-820-0
02
1
1401-
●
●
35
NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
05
1
1401-
●
●
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98041-321-0
01
1
1401-1405
●
●
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98270-947-0
01
1
1406-
●
●
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98041-322-0
01
1
1401-1409
●
●
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98242-412-0
01
1
1410-
●
●
187
1
188
15
4
5
187
29
9
29
27
27
26
22
201
29
18
12
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
8-98164-844-1
01
1
1401-
●
●
4
MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60)
8-98076-091-0
01
1
1401-
●
●
5
SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
8-98076-093-0
01
1
1401-
●
●
9
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M6X14
1-83539-382-0
04
1
1401-
●
●
12
BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
8-97180-269-0
03
1
1401-
●
●
15
FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
8-98152-861-0
01
1
1401-
●
●
18
NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) M5 FLANGE
8-94157-075-0
01
1
1401-
●
●
22
CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83534-261-0
01
1
1401-1409
●
●
22
CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
8-98275-189-0
01
1
1410-
●
●
26
BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60)
1-83573-281-0
01
1
1401-
●
●
27
BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X14
1-83539-382-0
02
1
1401-
●
●
27
BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X25
8-97178-770-0
02
1
1401-
●
●
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98065-914-0
02
1
1401-
●
●
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98065-915-0
01
1
1401-
●
●
187
NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6
1-83539-354-0
04
1
1401-
●
●
188
BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60)
8-98166-696-0
01
1
1401-
●
●
201
DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
1-83535-097-0
01
1
1401-1409
●
●
201
DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
8-98282-482-0
01
1
1410-
●
●
