◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11569 - FXZ/GXZ MALAYSIA EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#132070) — 128 parça

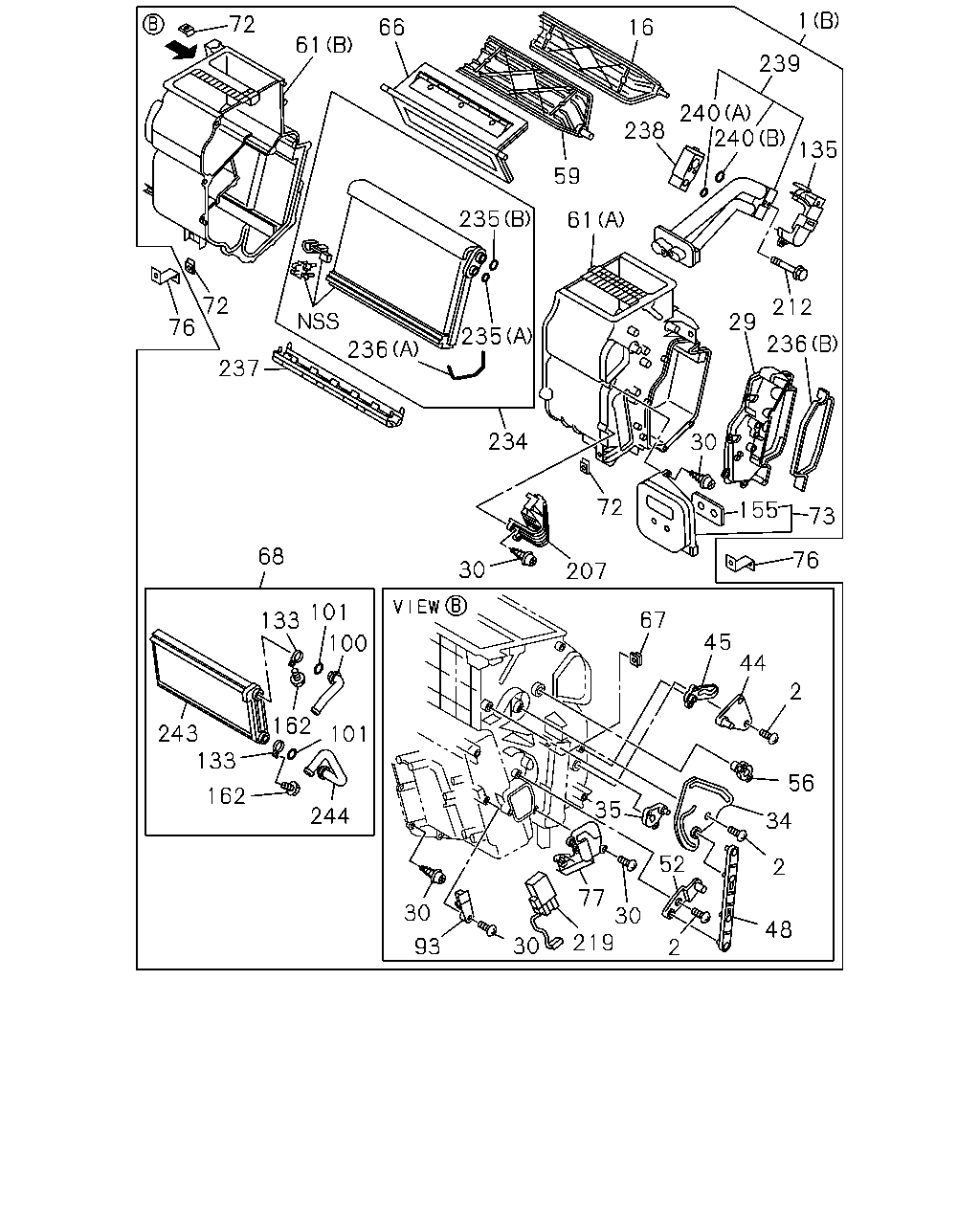

çizim 402016
66 61 72 72 76 237 236 235 235 59 61 238 240 239 1 135 240 234 72 207 30 67 45 44 2 56 34 2 48 2 52 35 77 30 219 30 93 30 244 101 162 100 101 133 68 243 133 162 29 212 236 30 155 73 76 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98021-972-4 01 1 1401- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98062-756-1 01 1 1401- ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98214-400-1 01 1 1401- ● ●
2 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-98047-416-0 03 1 1401- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-387-0 01 1 1401- ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-119-0 01 1 1401- ● ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98231-367-0 01 1 1401- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1401- ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 1401- ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 20 1 1401- ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 1401- ● ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-392-0 01 1 1401- ● ●
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-394-0 01 1 1401- ● ●
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-395-0 01 1 1401- ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 1401- ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-390-0 01 1 1401- ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-393-0 01 1 1401- ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-386-0 01 1 1401- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 1401- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-376-0 01 1 1401- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-422-0 01 1 1401- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-423-0 01 1 1401- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-385-0 01 1 1401- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 1401- ● ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 1401- ● ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-380-0 01 1 1401- ● ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 		8-98047-428-0 03 1 1401- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-118-0 01 1 1401- ● ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 1401- ● ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98009-742-1 02 1 1401- ● ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-414-0 01 1 1401- ● ●
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-427-0 01 1 1401- ● ●
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-528-0 01 1 1401- ● ●
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-531-0 02 1 1401- ● ●
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-530-0 02 1 1401- ● ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-384-0 01 1 1401- ● ●
155 GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-431-0 01 1 1401- ● ●
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-529-0 02 1 1401- ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-379-0 01 1 1401- ● ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M5X61 		8-98047-415-0 02 1 1401- ● ●
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-429-0 01 1 1401- ● ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-116-1 01 1 1401- ● ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 01 1 1401- ● ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 01 1 1401- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-420-0 01 1 1401- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-421-0 01 1 1401- ● ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-382-0 01 1 1401- ● ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-383-0 01 1 1401- ● ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-115-0 01 1 1401- ● ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4 		8-97095-906-0 01 1 1401- ● ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 01 1 1401- ● ●
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-508-0 01 1 1401- ● ●
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-510-0 01 1 1401- ● ●

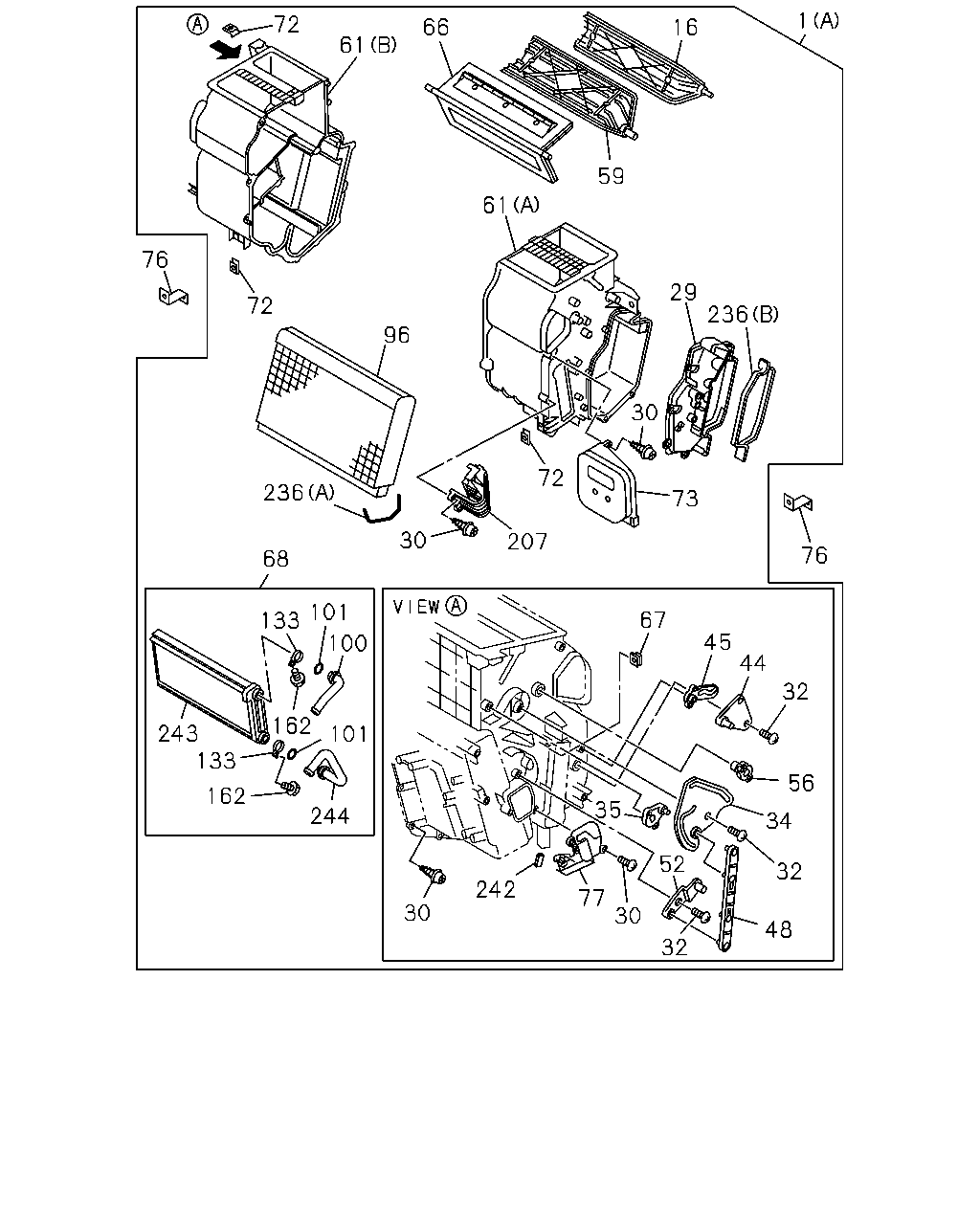

çizim 402091
72 76 61 66 16 1 59 61 96 72 236 68 133 100 101 101 162 244 162 133 243 30 242 77 30 32 52 32 48 34 35 67 45 44 32 56 207 30 72 30 73 76 236 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98021-972-4 01 1 1401- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98062-756-1 01 1 1401- ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98214-400-1 01 1 1401- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-387-0 01 1 1401- ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-119-0 01 1 1401- ● ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98231-367-0 01 1 1401- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1401- ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 1401- ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 20 1 1401- ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 1401- ● ●
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-98047-416-0 02 1 1401- ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 1401- ● ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-392-0 01 1 1401- ● ●
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-394-0 01 1 1401- ● ●
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-395-0 01 1 1401- ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 1401- ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-390-0 01 1 1401- ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-393-0 01 1 1401- ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-386-0 01 1 1401- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 1401- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-376-0 01 1 1401- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-422-0 01 1 1401- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-423-0 01 1 1401- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-385-0 01 1 1401- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 1401- ● ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 1401- ● ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-380-0 01 1 1401- ● ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 		8-98047-428-0 03 1 1401- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-118-0 01 1 1401- ● ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 1401- ● ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98009-742-1 02 1 1401- ● ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-414-0 01 1 1401- ● ●
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1401- ● ●
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-528-0 01 1 1401- ● ●
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-531-0 02 1 1401- ● ●
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-530-0 02 1 1401- ● ●
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-529-0 02 1 1401- ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-379-0 01 1 1401- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-420-0 01 1 1401- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-421-0 01 1 1401- ● ●
242 GASKET; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98048-816-0 01 1 1401-1411 ● ●
242 GASKET; CASE
HEATER & DEFROSTER(C41) 		8-98048-816-0 01 1 1412- ● ●
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-508-0 01 1 1401- ● ●
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-510-0 01 1 1401- ● ●

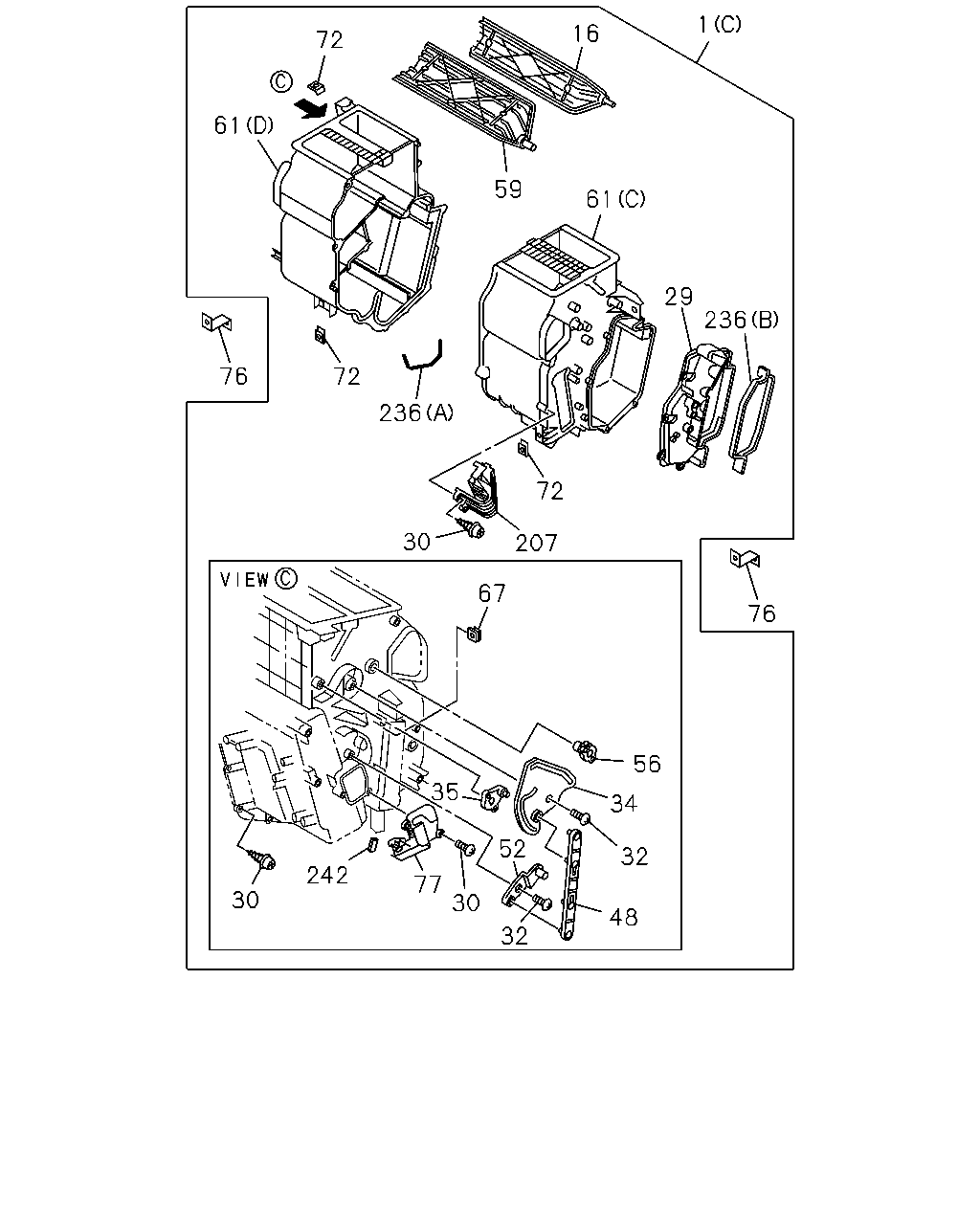

çizim 402507
236 29 61 59 1 16 72 61 72 76 236 72 207 30 67 56 34 32 48 32 52 35 77 30 242 30 76
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98021-972-4 01 1 1401- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98062-756-1 01 1 1401- ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98214-400-1 01 1 1401- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-387-0 01 1 1401- ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-119-0 01 1 1401- ● ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98231-367-0 01 1 1401- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1401- ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 1401- ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 20 1 1401- ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 1401- ● ●
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-98047-416-0 02 1 1401- ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 1401- ● ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-392-0 01 1 1401- ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 1401- ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-390-0 01 1 1401- ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-393-0 01 1 1401- ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-386-0 01 1 1401- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 1401- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-376-0 01 1 1401- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-422-0 01 1 1401- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-423-0 01 1 1401- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 1401- ● ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 1401- ● ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 		8-98047-428-0 03 1 1401- ● ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98009-742-1 02 1 1401- ● ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-414-0 01 1 1401- ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-379-0 01 1 1401- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-420-0 01 1 1401- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-421-0 01 1 1401- ● ●
242 GASKET; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98048-816-0 01 1 1401-1411 ● ●
242 GASKET; CASE
HEATER & DEFROSTER(C41) 		8-98048-816-0 01 1 1412- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
