Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#132065) — 89 parça

531 115 769

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1401-	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	1401-	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1401-1402	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●
769	RELAY; TURBO CONT 24V 10A PANASONIC	8-97173-035-1	01	1	1401-	●	●

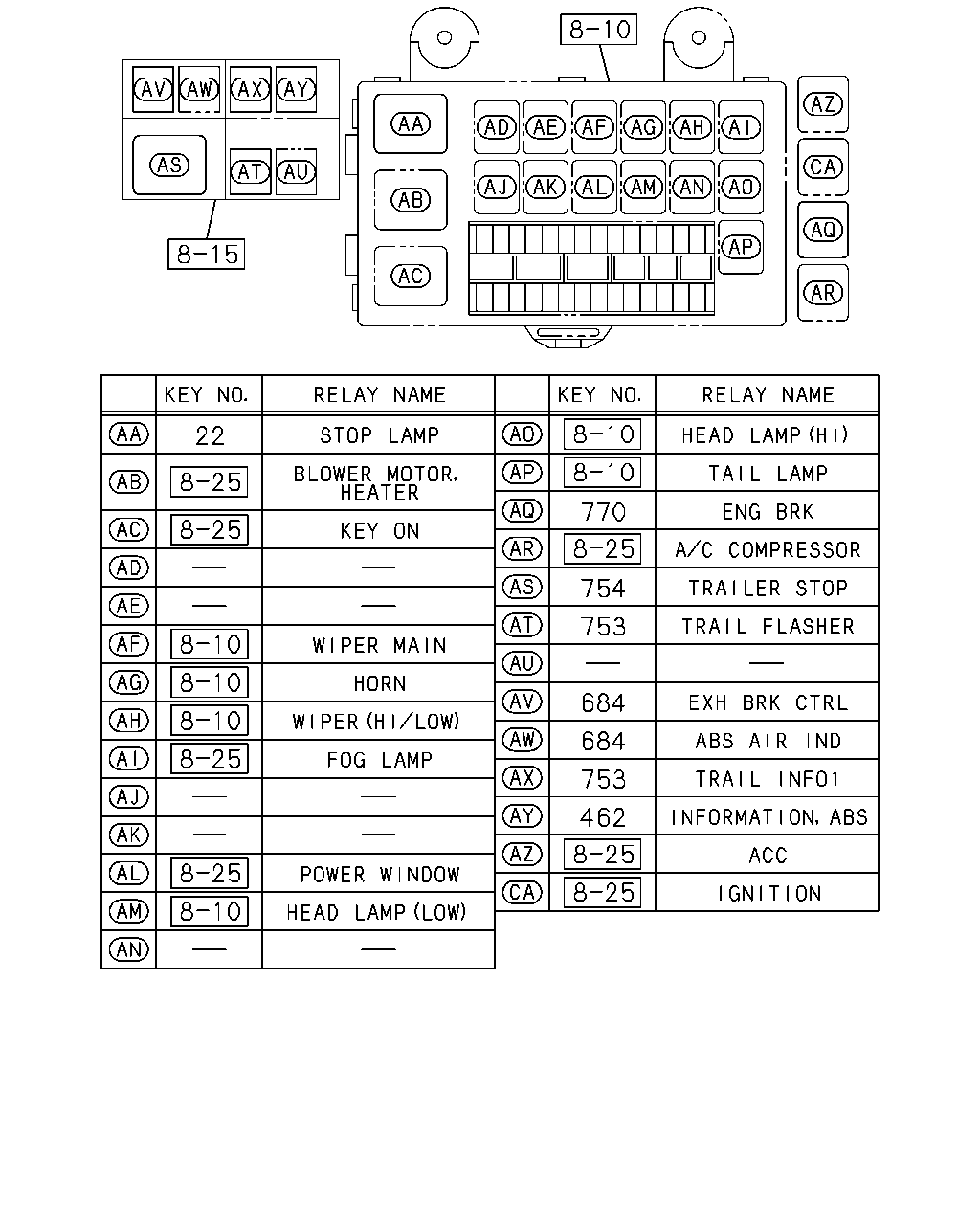

66 65 65 64 64 84 85 116 115 117 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

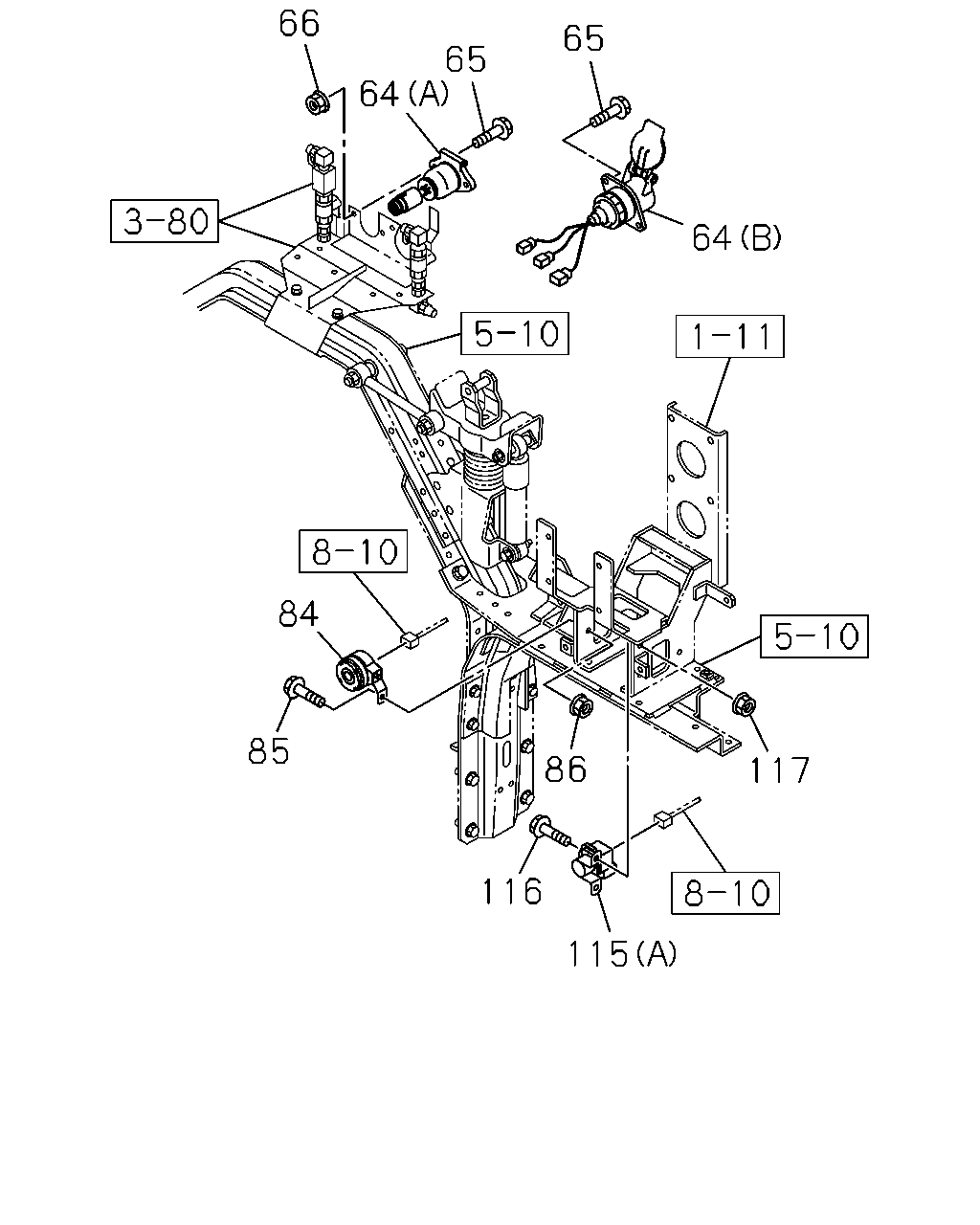

64	SOCKET; TRAILER (A) 7P	1-82523-014-0	01	1	1401-		●
64	SOCKET; TRAILER (B) L=860	8-98172-008-0	01	1	1401-		●
65	BOLT; SOCKET FIX M8X25 FLANGE	0-28650-825-0	02	1	1401-		●
65	BOLT; SOCKET FIX M8X25 FLANGE	0-28650-825-0	02	1	1401-		●
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	02	1	1401-		●
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	02	1	1401-		●
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	1401-	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1401-	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	1401-	●	●
116	BOLT; RELAY FIX M8X25 FLANGE	0-28650-825-0	02	1	1401-	●	●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	1401-	●	●

34 132 132 132 285 210 261 89 602 210 284 89 39 89 746 40 90 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

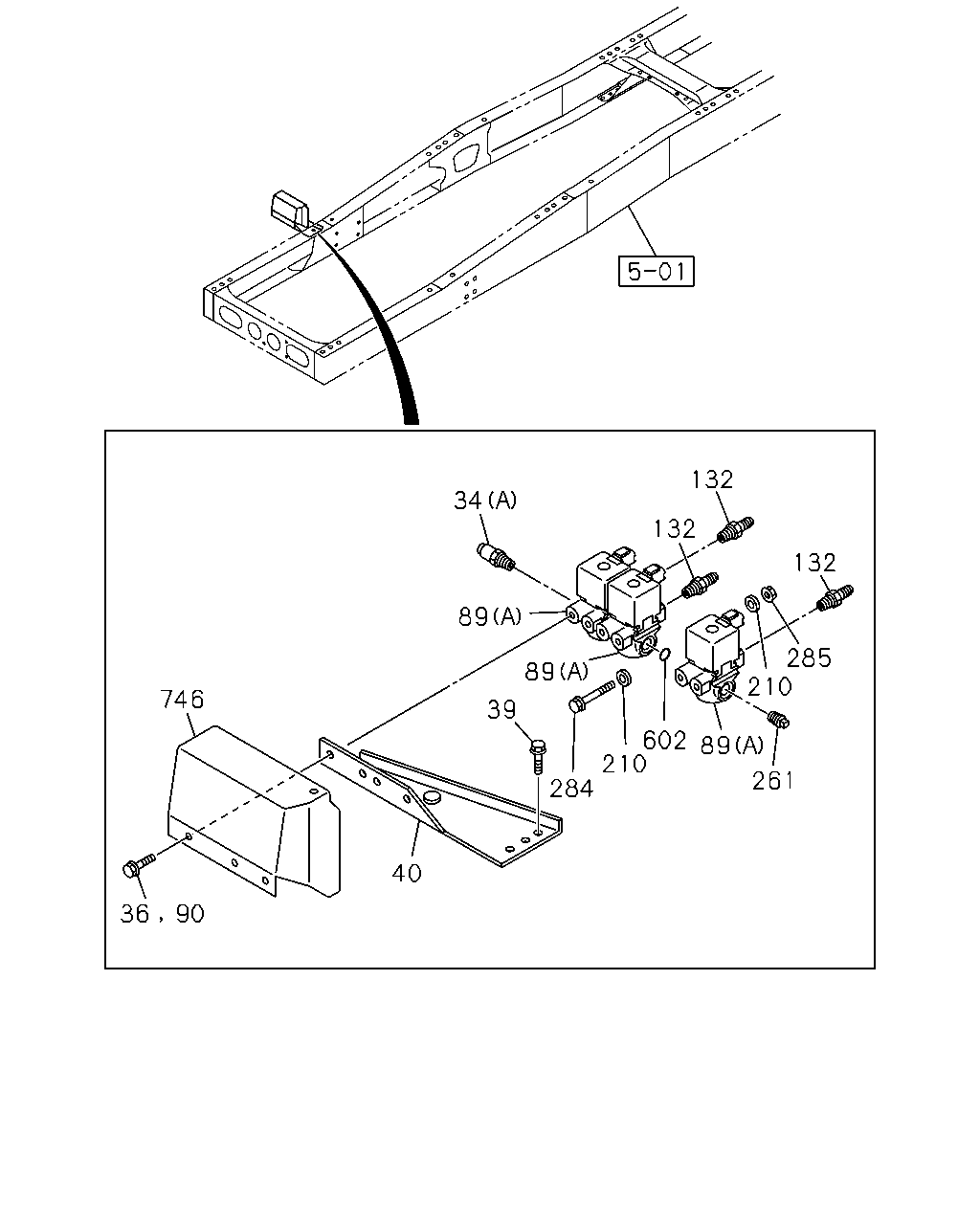

34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1401-	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1401-	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1401-	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1401-		●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	04	1	1401-	●	●
39	BOLT; BRKT,MAG VLV M8X30 FLANGE	0-28650-830-0	02	1	1401-	●	●
40	BRACKET; MAG VLV	8-98100-335-0	01	1	1401-	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	1401-	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR(BDM) (A)	1-82563-871-2	01	1	1401-		●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	03	1	1401-	●	●
89	VALVE; MAG,DIFF LOCK (B)	8-97641-594-0	01	1	1401-	●	●
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	1401-	●	●
132	CONNECTOR; OUTLET,MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1401-	●	●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1401-	●
210	WASHER; PL,BRKT PTO ZF TRANS RR(BDM)	1-82569-266-0	02	1	1401-		●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	1401-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1401-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1401-	●
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	01	1	1401-	●
284	BOLT; MAG VLV PTO ZF TRANS RR(BDM) M6X50 FLANGE	0-28050-650-0	01	1	1401-		●
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	02	1	1401-	●	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	1401-	●
285	NUT; MAG VLV PTO ZF TRANS RR(BDM) M6 FLANGE	0-91180-106-0	01	1	1401-		●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	02	1	1401-	●	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1401-	●
602	GASKET; MAG VLV PTO ZF TRANS RR(BDM) ID=16.8	9-09565-117-0	01	1	1401-		●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	1401-	●	●
746	COVER; NOISE,MAG VLV	8-98096-340-0	01	1	1401-	●	●

34 89 261 34 89 210 284 89 602 34 34 34 285 261 34 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1401-	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1401-	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1401-	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1401-		●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	1401-	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR(BDM) (A)	1-82563-871-2	01	1	1401-		●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	03	1	1401-	●	●
89	VALVE; MAG,DIFF LOCK (B)	8-97641-594-0	01	1	1401-	●	●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1401-	●
210	WASHER; PL,BRKT PTO ZF TRANS RR(BDM)	1-82569-266-0	02	1	1401-		●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	1401-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1401-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1401-	●
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	01	1	1401-	●
284	BOLT; MAG VLV PTO ZF TRANS RR(BDM) M6X50 FLANGE	0-28050-650-0	01	1	1401-		●
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	02	1	1401-	●	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	1401-	●
285	NUT; MAG VLV PTO ZF TRANS RR(BDM) M6 FLANGE	0-91180-106-0	01	1	1401-		●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	02	1	1401-	●	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1401-	●
602	GASKET; MAG VLV PTO ZF TRANS RR(BDM) ID=16.8	9-09565-117-0	01	1	1401-		●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	1401-	●	●

22 770 754 753 684 684 753 462

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1401-	●	●
462	RELAY; INFORMATION,ABS 24V 10A PANASONIC	8-97173-035-1	01	1	1401-		●
684	RELAY; BRAKE 24V 10A PANASONIC	8-97173-035-1	02	1	1401-		●
753	RELAY; TRAILER FLASHER 24V 10A PANASONIC	8-97173-035-1	02	1	1401-		●
754	RELAY; TRAILER STOP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1401-		●
770	RELAY; ENG BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1401-	●	●

540 440 468 1 2 573 2 4 584 744 584

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

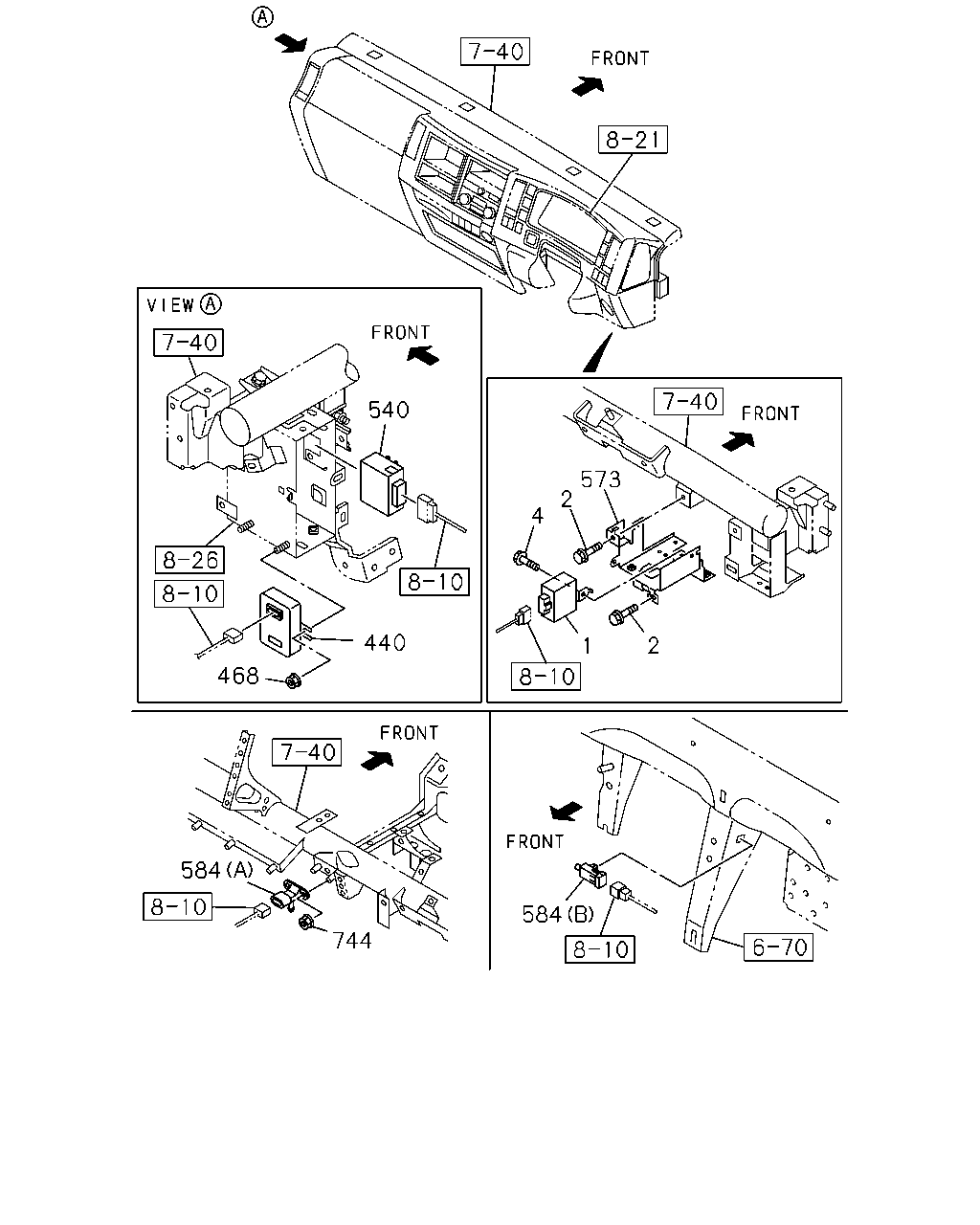

1	UNIT; FLASHER	8-98025-533-1	01	1	1401-	●
1	UNIT; FLASHER	8-97613-970-1	01	1	1401-		●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1401-	●	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	1401-	●	●
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	1401-		●
468	NUT; MODULE M6 FLANGE	0-91180-106-0	02	1	1401-		●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1401-	●	●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1401-	●	●
584	SENSOR; PRESSURE (A)	8-98020-514-0	01	1	1401-	●	●
584	SENSOR; PRESSURE (B)	8-98214-375-0	01	1	1401-	●	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1401-	●	●

51 44 51 45 50 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

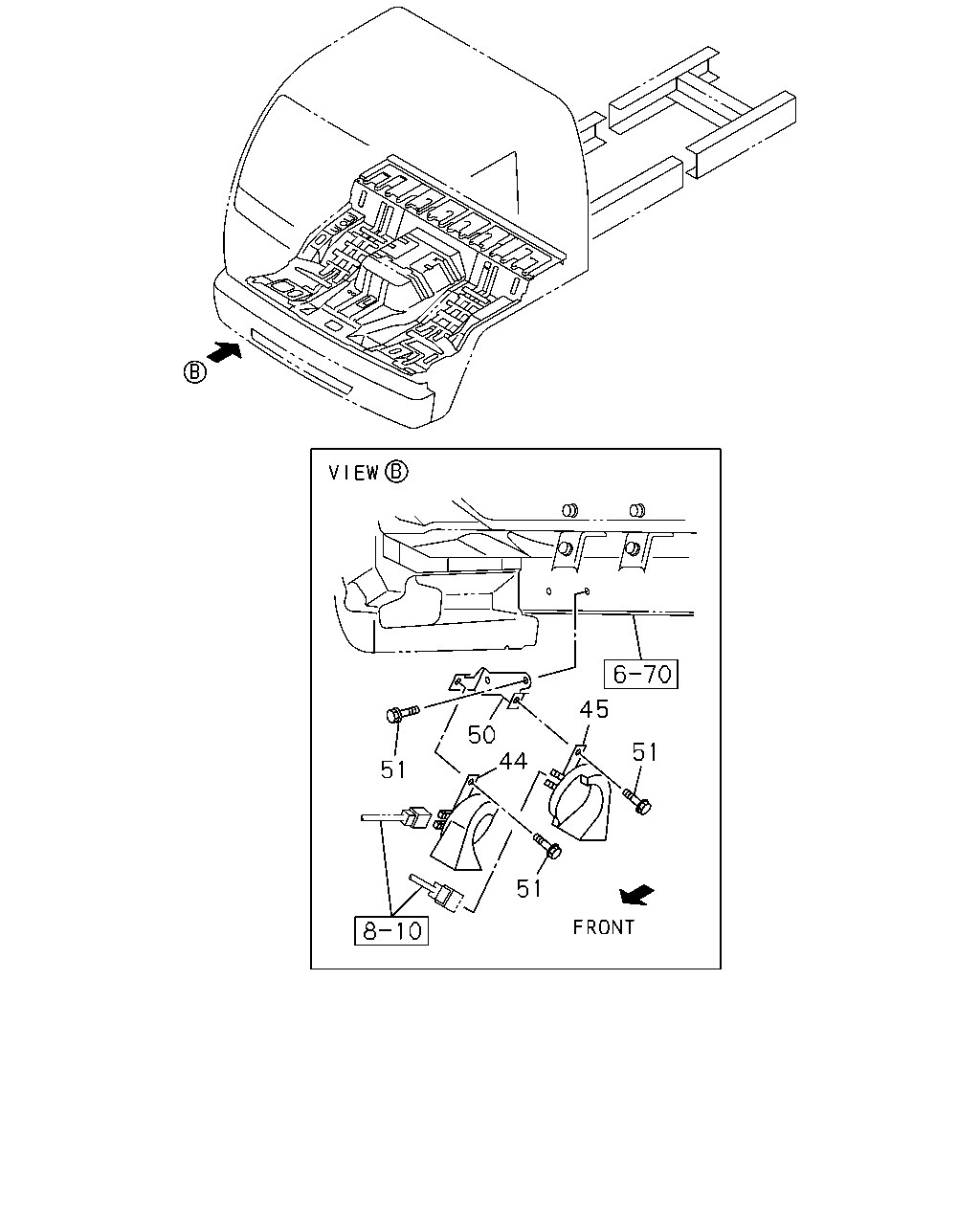

44	HORN; HIGH NOTE	8-97611-677-2	01	1	1401-	●	●
45	HORN; LOW NOTE	8-97611-676-2	01	1	1401-	●	●
50	BRACKET; HORN	8-97613-300-2	01	1	1401-	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	1401-	●	●
