Sayfa 8-26 - Isuzu EPC

8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#132064) — 43 parça

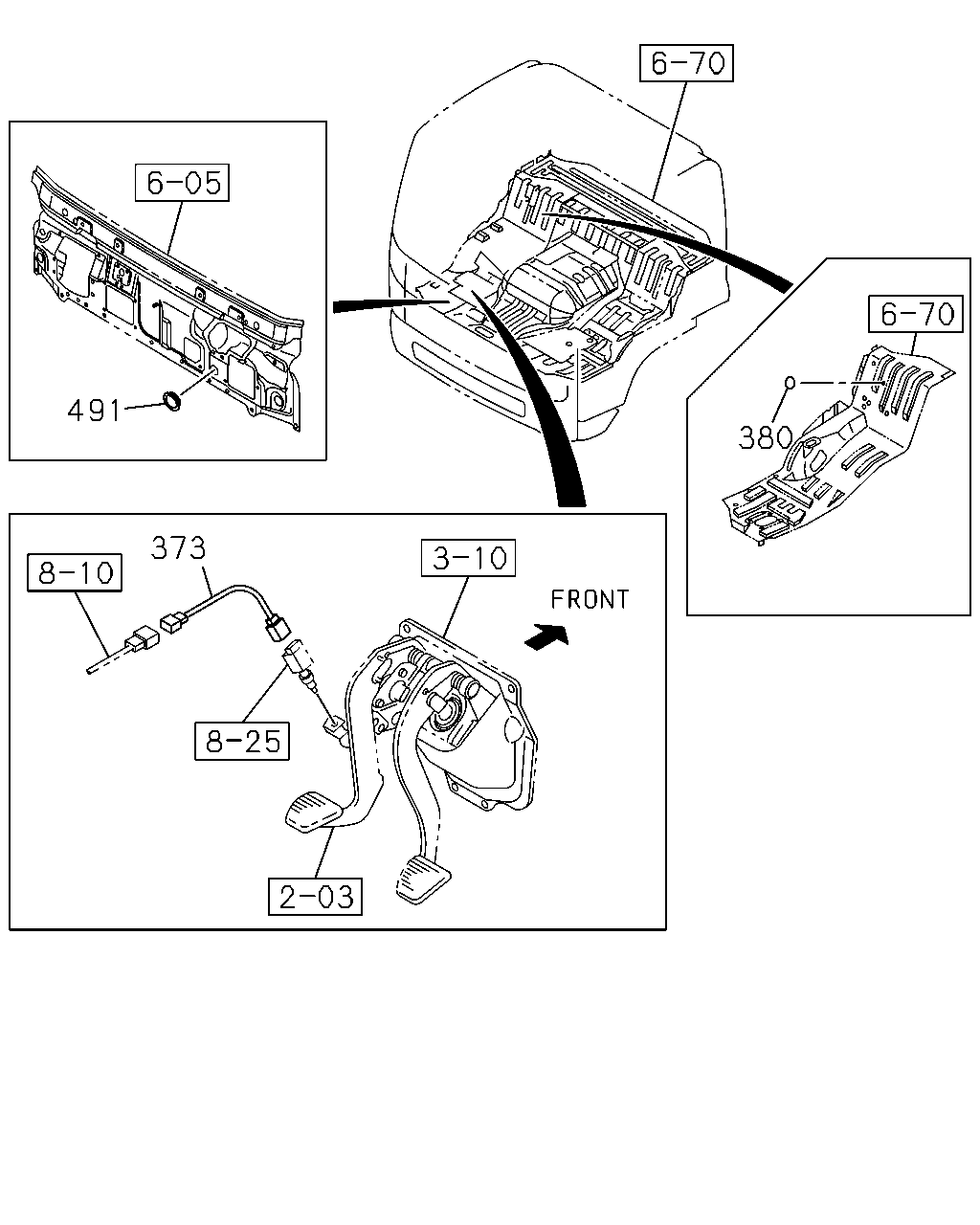

491 373 380

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
373	HARNESS; CLU SWITCH	8-98059-419-2	01	1	1401-	●	●
380	SEAL OD=25 BLACK	1-76798-019-0	01	1	1401-	●	●
491	PLUG; HOLE,CONT UNIT OD=60	8-98054-651-0	01	1	1401-	●	●

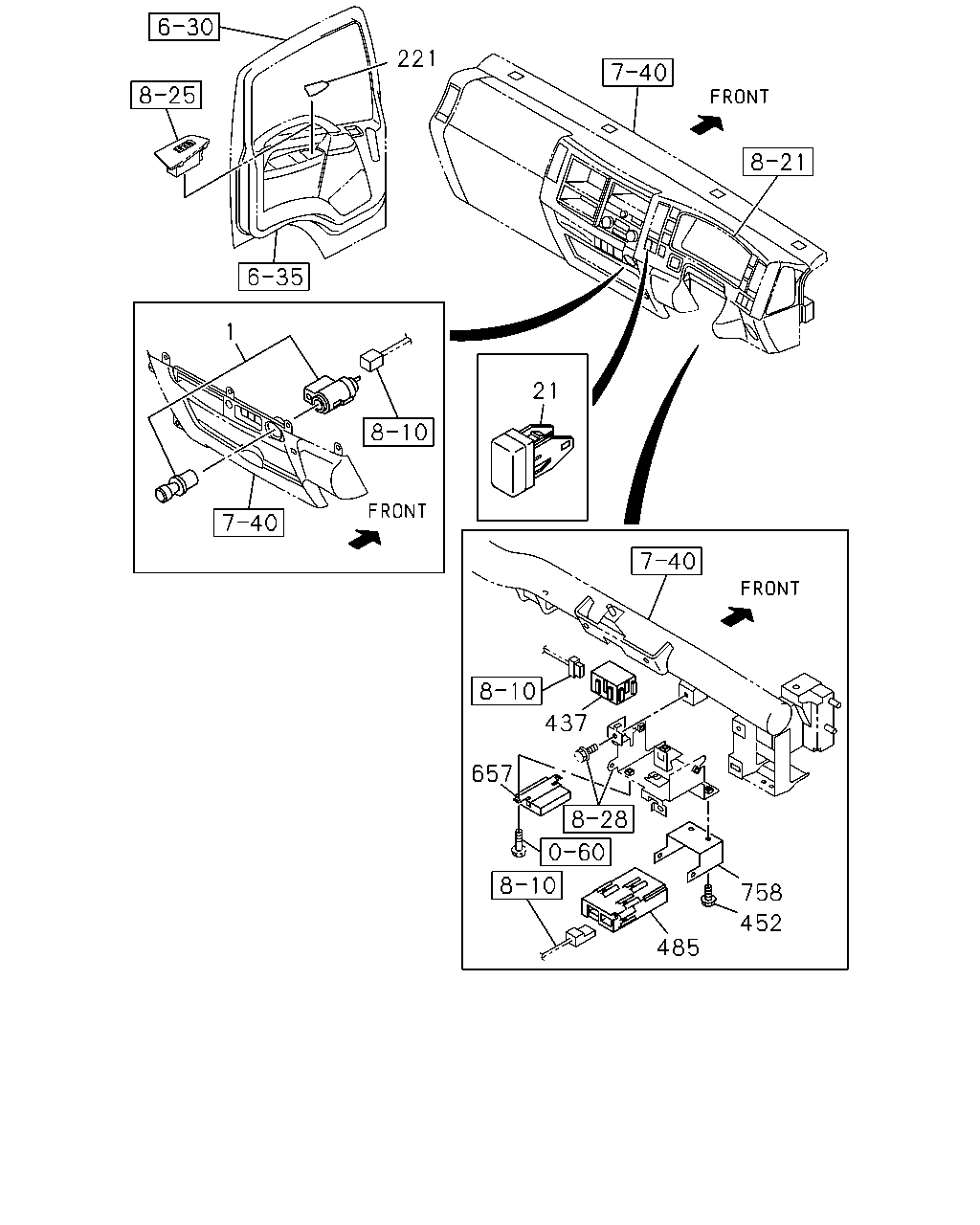

221 21 437 485 758 452 657 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LIGHTER; CIGAR	8-98142-962-0	01	1	1401-	●	●
21	COVER; HOLE	8-98025-954-1	01	1	1401-	●	●
221	COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-915-2	01	1	1401-	●	●
221	COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-916-2	01	1	1401-	●	●
437	CONVERTER; DC HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO	8-97359-129-0	01	1	1401-	●	●
452	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	02	1	1401-	●	●
485	CONTROL UNIT; SPEED SENSOR	1-80190-063-0	01	1	1401-	●	●
657	CONTROL UNIT; MIMAMORI	8-98013-144-8	01	1	1401-1401	●	●
657	CONTROL UNIT; MIMAMORI	8-98260-912-1	01	1	1402-	●	●
758	BRACKET; ELEC CONT UNIT,SPEED SENSOR	8-98048-743-1	01	1	1401-	●	●

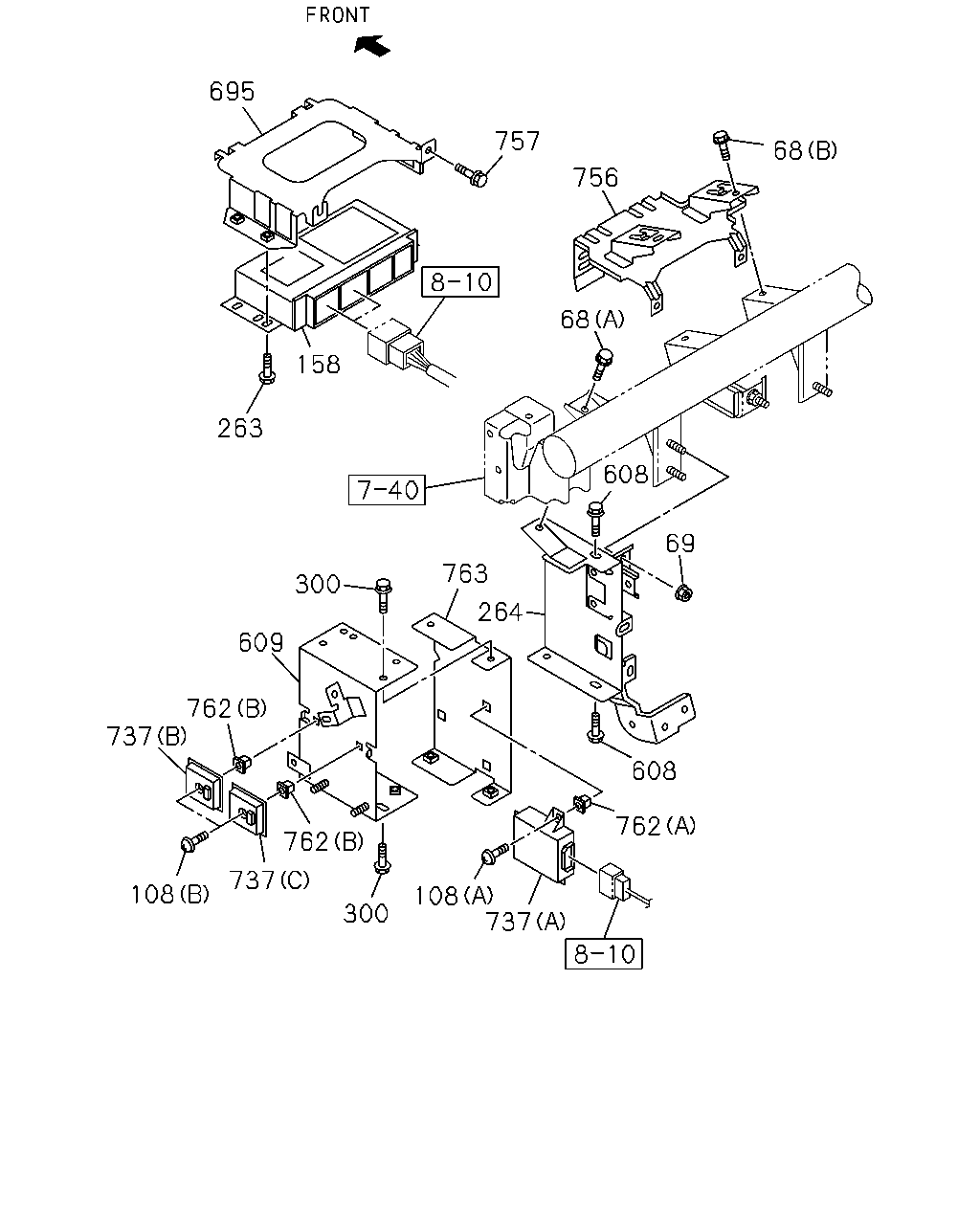

695 757 68 68 756 158 263 608 69 763 608 762 737 108 300 762 737 108 737 609 762 300 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
68	BOLT; BRKT (A) M6X16 FLANGE	0-28650-616-0	01	1	1401-	●	●
68	BOLT; BRKT (B) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	1401-		●
69	NUT; BRKT M6 FLANGE	0-91180-106-0	01	1	1401-	●	●
108	BOLT; TRANS CONT MODULE SHIFT PATTERN SINGLE-H<EDY> (A) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1401-	●	●
108	BOLT; TRANS CONT MODULE SHIFT PATTERN SINGLE-H<EDY> (B) M4X25 TAPPING	0-74160-425-0	02	1	1401-	●	●
158	CONTROLLER; ABS	8-98220-159-0	01	1	1401-		●
263	BOLT; CONT UNIT M6X16 FLANGE	0-28650-616-0	04	1	1401-		●
264	BRACKET; CONT UNIT	8-97609-985-9	01	1	1401-	●	●
300	BOLT; CONT UNIT BRKT SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE	0-28650-616-0	04	1	1401-	●	●
608	BOLT; CONT UNIT,AIR SUS AUTO DOOR LOCK<AU4> EXC. SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE	0-28650-616-0	05	1	1401-1401	●
608	BOLT; CONT UNIT,AIR SUS M6X16 FLANGE	0-28650-616-0	05	1	1401-1401		●
608	BOLT; CONT UNIT,AIR SUS AUTO DOOR LOCK<AU4> EXC. SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE	0-28650-616-0	05	1	1402-	●
608	BOLT; CONT UNIT,AIR SUS SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE	0-28650-616-0	05	1	1402-	●
608	BOLT; CONT UNIT,AIR SUS M6X16 FLANGE	0-28650-616-0	05	1	1402-		●
609	BRACKET ASM; ELEC UNIT,AIR SUS AUTO DOOR LOCK<AU4> EXC. SHIFT PATTERN SINGLE-H<EDY>	8-98169-737-0	01	1	1401-1401	●
609	BRACKET ASM; ELEC UNIT,AIR SUS	8-98169-737-0	01	1	1401-1401		●
609	BRACKET ASM; ELEC UNIT,AIR SUS AUTO DOOR LOCK<AU4> EXC. SHIFT PATTERN SINGLE-H<EDY>	8-98169-737-1	01	1	1402-	●
609	BRACKET ASM; ELEC UNIT,AIR SUS SHIFT PATTERN SINGLE-H<EDY>	8-98169-737-1	01	1	1402-	●
609	BRACKET ASM; ELEC UNIT,AIR SUS	8-98169-737-1	01	1	1402-		●
695	BRACKET; CONT UNIT,ABS	8-98045-016-1	01	1	1401-		●
737	CONTROL UNIT; TRANSMISSION SHIFT PATTERN SINGLE-H<EDY> (A)	1-80111-271-0	01	1	1401-	●	●
737	CONTROL UNIT; TRANSMISSION SHIFT PATTERN SINGLE-H<EDY> (B)	8-98095-040-0	01	1	1401-	●	●
737	CONTROL UNIT; TRANSMISSION SHIFT PATTERN SINGLE-H<EDY> (C)	8-98095-041-0	01	1	1401-	●	●
756	BRACKET; ECU,BCM	8-98056-411-3	01	1	1401-		●
757	BOLT; BRKT,BCM M6X16 FLANGE	0-28650-616-0	02	1	1401-		●
762	GROMMET; TRANS CONT MODULE SHIFT PATTERN SINGLE-H<EDY> (A) D=8.6X7.7 L=7.5	8-94279-078-0	03	1	1401-	●	●
762	GROMMET; TRANS CONT MODULE SHIFT PATTERN SINGLE-H<EDY> (B) D=7.5X7.5 L=7	8-94430-147-0	02	1	1401-	●	●
763	BRACKET; TRANS CONT MODULE SHIFT PATTERN SINGLE-H<EDY>	8-98085-587-0	01	1	1401-	●	●

726 497 726 497

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	497	SWITCH; CAB TILT STAMP NO	1-82380-172-1	02	1	1401-	●	●
	726	BOLT; SW,CAB TILT M6X25 FLANGE	0-28050-625-0	04	1	1401-	●	●
