Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#132060) — 405 parça

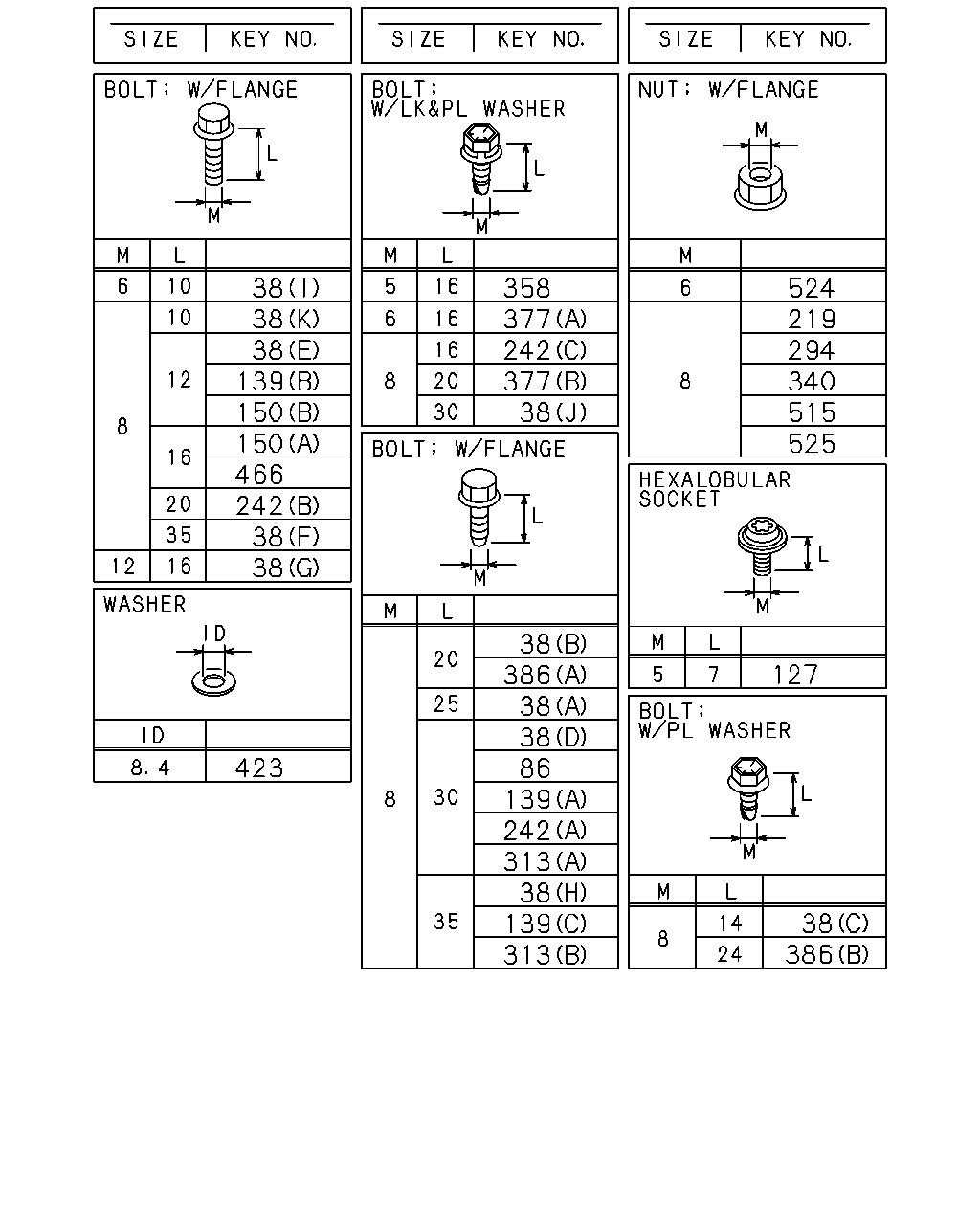

524 219 294 340 515 525 127 38 386 313 139 38 313 242 139 86 38 38 386 38 38 377 242 377 358 38 38 242 466 150 150 139 38 38 38 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; CLIP,HARNESS GENERATOR 24V90A(K44) (K) M8X10 FLANGE	0-28050-810-0	01	1	1401-	●	●
38	BOLT; CLIP,HARNESS EXC. GENERATOR 24V90A(K44) (I) M6X10 FLANGE	0-28050-610-0	01	1	1401-	●	●
38	BOLT; CLIP,HARNESS (E) M8X12 FLANGE	0-28050-812-0	02	1	1401-	●	●
38	BOLT; CLIP,HARNESS (F) M8X35 FLANGE	0-28050-835-0	01	1	1401-	●	●
38	BOLT; CLIP,HARNESS (F) M8X35 FLANGE	0-28050-835-0	03	1	1401-	●	●
38	BOLT; CLIP,HARNESS (G) M12X16 FLANGE	0-28051-216-0	01	1	1401-	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	08	1	1401-	●	●
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28650-825-0	03	1	1401-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1401-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1401-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1401-		●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	05	1	1401-	●	●
38	BOLT; CLIP,HARNESS (H) M8X35 FLANGE	0-28650-835-0	02	1	1401-	●	●
38	BOLT; CLIP,HARNESS (C) M8X14 W/PL WASHER	8-98164-837-0	03	1	1401-	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	02	1	1401-		●
38	BOLT; CLIP,HARNESS (J) M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	1401-		●
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1401-	●
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	02	1	1401-		●
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1401-	●	●
139	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	01	1	1401-	●	●
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	08	1	1401-	●	●
139	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	01	1	1401-	●	●
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1401-		●
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1401-		●
150	BOLT; CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	1401-	●	●
150	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1401-	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
219	NUT M8 FLANGE	0-91180-108-0	07	1	1401-	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1401-		●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1401-		●
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28050-820-0	01	1	1401-	●	●
242	BOLT; BRKT,HARNESS (A) M8X30 FLANGE	0-28650-830-0	01	1	1401-	●	●
242	BOLT; BRKT,HARNESS (C) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1401-	●	●
294	NUT M8 FLANGE	0-91180-108-0	09	1	1401-	●	●
294	NUT M8 FLANGE	0-91180-108-0	02	1	1401-		●
294	NUT M8 FLANGE	0-91180-108-0	01	1	1401-		●
294	NUT M8 FLANGE	0-91180-108-0	01	1	1401-		●
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	07	1	1401-	●	●
313	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	1401-	●	●
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91180-108-0	03	1	1401-	●	●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1401-	●	●
377	BOLT; CAB EARTH (A) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1401-	●	●
377	BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1401-	●	●
386	BOLT; GRAND HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
386	BOLT; GRAND HARNESS (B) M8X24 W/PL WASHER	8-98141-256-1	02	1	1401-	●	●
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	03	1	1401-	●	●
466	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	1401-	●	●
515	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1401-	●	●
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1401-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1401-	●	●

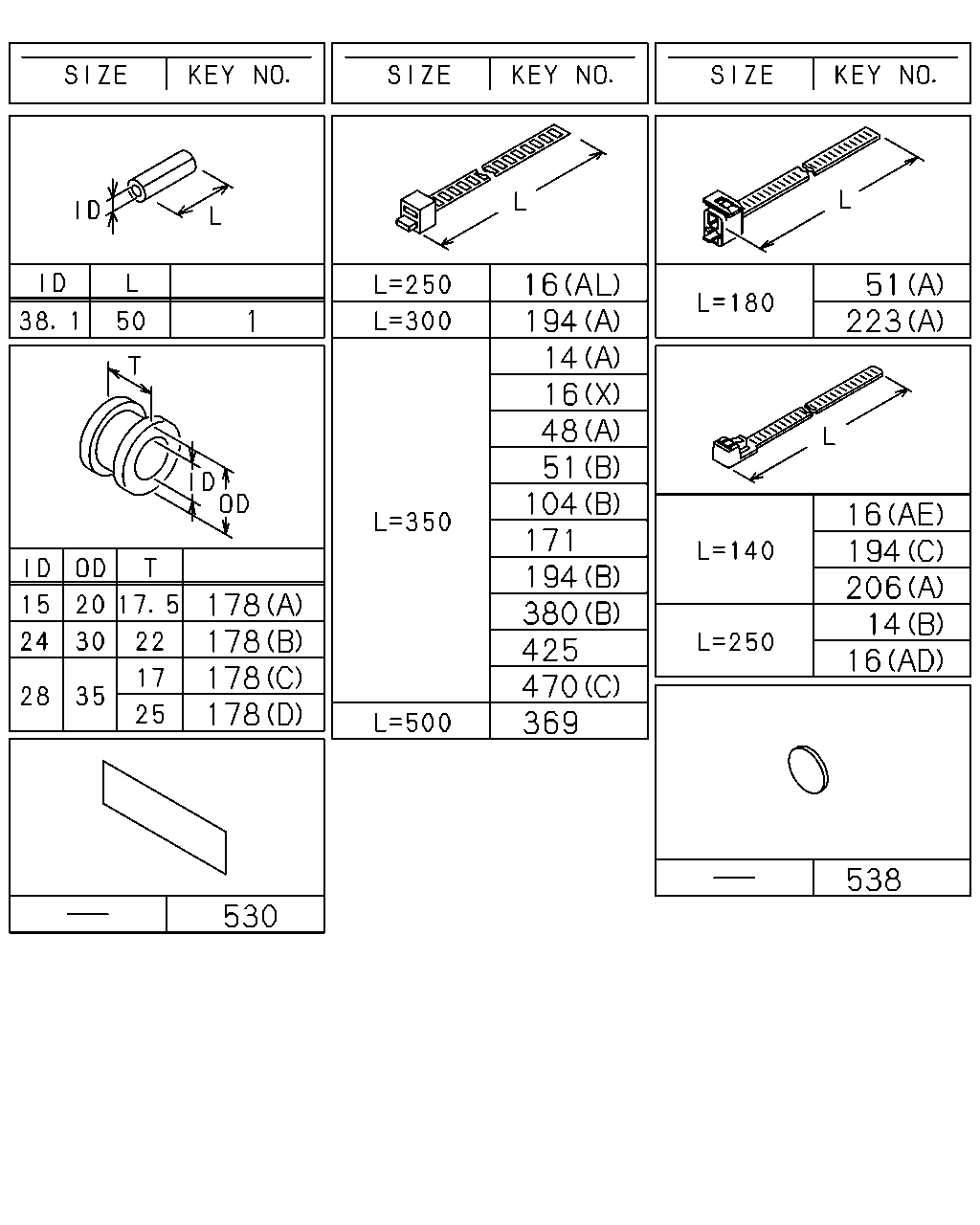

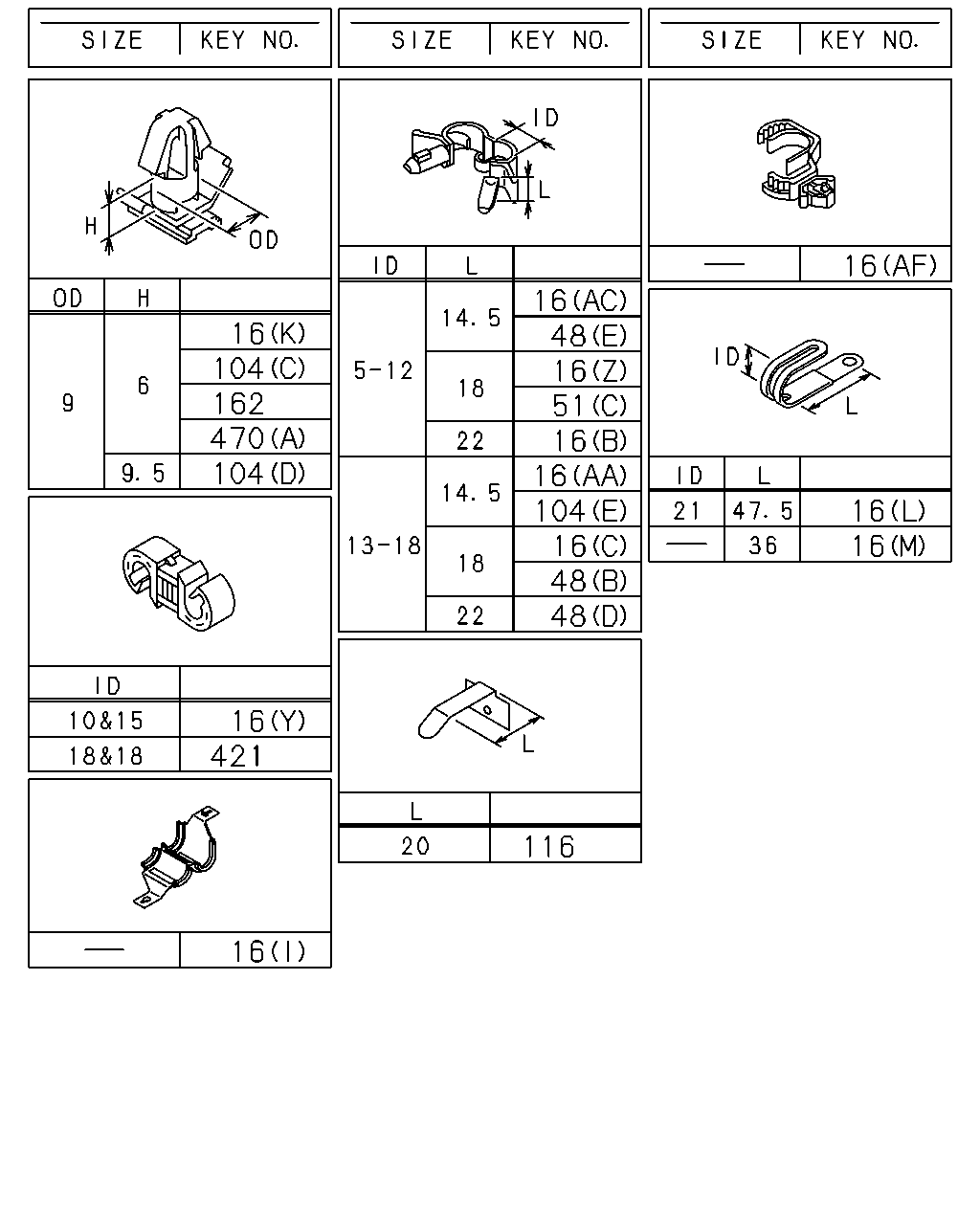

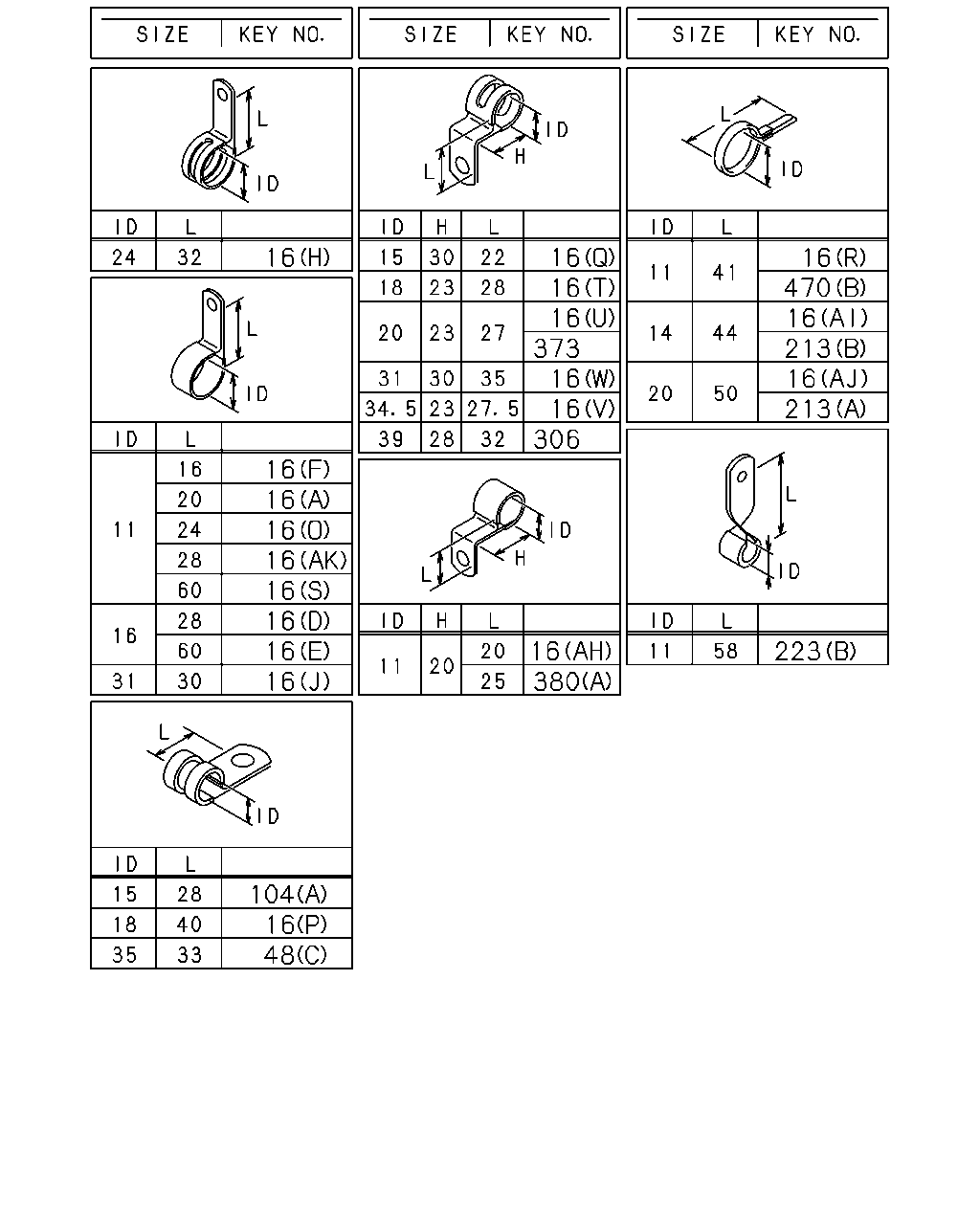

48 16 104 16 16 16 16 16 16 16 16 16 306 16 16 373 16 16 16 380 223 213 16 213 16 470 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS WHEEL BASE 5300MM(53W) (C) ID=13-18 L=18	1-09709-291-0	13	1	1501-	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1401-1412	●
16	CLIP; HARNESS WHEEL BASE 5300MM(53W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1501-	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1501-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	05	1	1401-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (C) ID=13-18 L=18	1-09709-291-0	16	1	1401-	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1401-	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1401-	●	●
16	CLIP; HARNESS (O) ID=11 L=24	0-95235-045-0	01	1	1401-	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1401-	●	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1401-	●	●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1401-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1401-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1401-	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1401-	●	●
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1401-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1401-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1401-	●	●
16	CLIP; HARNESS (P) ID=18 L=40	1-09701-111-0	01	1	1401-	●	●
16	CLIP; HARNESS (Q) ID=15 L=22 H=30	1-09701-215-1	01	1	1401-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1401-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	05	1	1401-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	03	1	1401-	●	●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1401-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1401-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1401-	●	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	01	1	1401-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	02	1	1401-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1401-	●	●
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1401-	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1401-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1401-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1401-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1401-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1401-	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1401-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1401-	●	●
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AM) L=155	8-97173-307-0	18	1	1401-	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155	8-97173-307-0	18	1	1401-	●	●
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (N) L=40.6	8-97229-357-0	02	1	1401-	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (N) L=40.6	8-97229-357-0	02	1	1401-	●	●
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AG)	8-98052-679-0	02	1	1401-	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG)	8-98052-679-0	02	1	1401-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1401-	●	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1401-	●	●
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (AK) ID=11 L=28	0-95235-055-0	01	1	1401-	●	●
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (S) ID=11 L=60	0-95235-096-0	02	1	1401-	●	●
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (D) ID=16 L=28	0-95235-556-0	01	1	1401-	●	●
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (E) ID=16 L=60	0-95235-596-0	02	1	1401-	●	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	02	1	1401-		●
16	CLIP; HARNESS (AL) L=250	1-09707-126-0	01	1	1401-		●
16	CLIP; HARNESS (G) L=175	1-09707-176-1	01	1	1401-		●
16	CLIP; HARNESS (I) W/SPONGE RUBBER	1-09709-150-0	01	1	1401-		●
16	CLIP; HARNESS (Y) ID=10 & 15	1-09709-279-1	01	1	1401-		●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	03	1	1401-		●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	01	1	1401-		●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	02	1	1401-		●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	04	1	1401-		●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	04	1	1401-		●
48	CLIP; FRAME HARNESS (D) ID=13-18 L=22	1-09709-292-0	03	1	1401-	●
48	CLIP; FRAME HARNESS (E) ID=5-12 L=14.5	1-09987-221-0	01	1	1401-	●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1401-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1401-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	08	1	1401-	●	●
48	CLIP; FRAME HARNESS (B) ID=13-18 L=18	1-09709-291-0	01	1	1401-		●
48	CLIP; FRAME HARNESS (D) ID=13-18 L=22	1-09709-292-0	02	1	1401-		●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1401-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1401-	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1401-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1401-	●	●
213	CLIP; END CROSS HARNESS (B) ID=14 L=44	9-09917-427-0	03	1	1401-	●
213	CLIP; END CROSS HARNESS (A) ID=20 L=50	9-09917-430-0	03	1	1401-		●
223	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	1401-	●	●
223	CLIP; AIR TANK HARNESS (B) ID=11 L=58	9-09917-135-2	01	1	1401-		●
306	CLIP; HARNESS,ELEC GOV ID=39 H=28 L=32	1-09701-263-0	03	1	1401-	●	●
373	CLIP; BAND,GEN HARNESS ID=20 H=23 L=27	1-09700-861-0	02	1	1401-	●	●
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1401-	●	●
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	01	1	1401-	●	●
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	02	1	1401-	●	●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	1401-		●
470	CLIP; HARNESS,LICENSE LAMP (C) L=350	1-09707-183-0	01	1	1401-		●

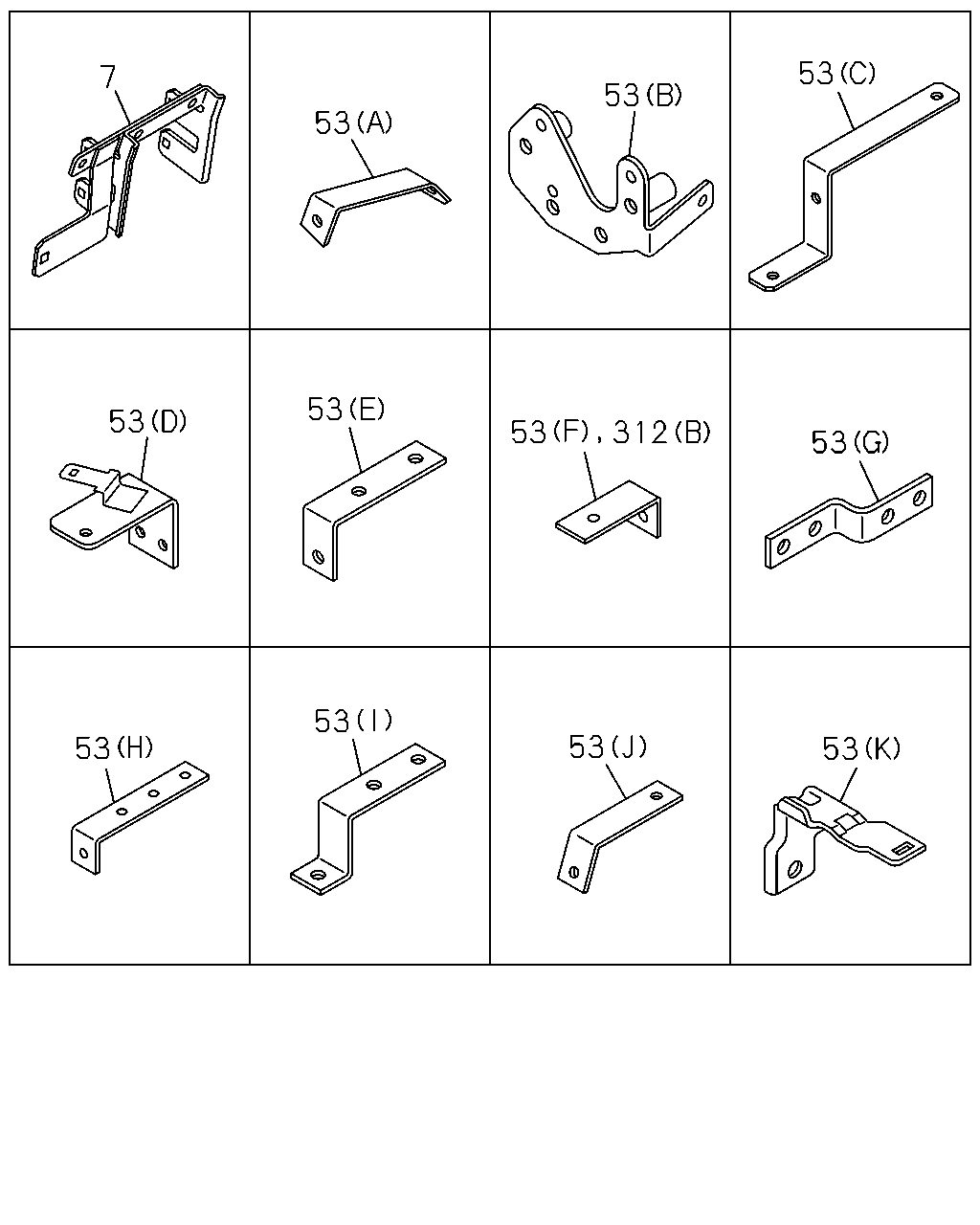

7 53 53 53 53 312 53 53 53 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1401-	●	●
53	BRACKET; HARNESS (E) L=82 B=20	1-47478-420-0	01	1	1401-1404	●	●
53	BRACKET; HARNESS (E) L=82 B=20	8-98259-390-0	01	1	1405-	●	●
53	BRACKET; HARNESS (F) L=65	1-47479-064-1	01	1	1401-	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	06	1	1401-	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	08	1	1401-	●	●
53	BRACKET; HARNESS (G)	1-82569-278-0	01	1	1401-	●	●
53	BRACKET; HARNESS (H) L=120 H=35	1-82698-088-0	01	1	1401-	●	●
53	BRACKET; HARNESS (J)	1-82698-514-0	01	1	1401-	●	●
53	BRACKET; HARNESS (B)	8-97611-413-0	01	1	1401-	●	●
53	BRACKET; HARNESS (K)	8-98052-458-0	01	1	1401-	●	●
53	BRACKET; HARNESS (C)	8-98078-801-0	01	1	1401-	●	●
53	BRACKET; HARNESS (D)	8-98102-490-0	01	1	1401-	●	●
53	BRACKET; HARNESS (I)	8-98124-778-0	01	1	1401-	●	●
312	BRACKET; CLIP HARNESS (A) L=120	8-97619-440-0	01	1	1401-	●	●
312	BRACKET; CLIP HARNESS (B) L=65	1-47479-064-1	01	1	1401-		●

211 312 375 335 375 375 335 600

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
211	BRACKET; AXLE HARNESS	8-97621-353-1	01	1	1401-		●
211	BRACKET; AXLE HARNESS	8-97621-352-1	01	1	1401-		●
312	BRACKET; CLIP HARNESS (A) L=120	8-97619-440-0	01	1	1401-	●	●
312	BRACKET; CLIP HARNESS (B) L=65	1-47479-064-1	01	1	1401-		●
335	BRACKET; CONNECTOR (B)	1-82698-358-0	01	1	1401-	●	●
335	BRACKET; CONNECTOR (A)	1-82698-167-0	01	1	1401-		●
375	BRACKET; AC GEN HARNESS CLIP (A) L=120 H=35	1-82698-088-0	01	1	1401-	●	●
375	BRACKET; AC GEN HARNESS CLIP (B)	1-82698-569-0	01	1	1401-	●	●
375	BRACKET; AC GEN HARNESS CLIP (C)	1-82698-583-1	01	1	1401-	●	●
600	PROTECTOR; HEAT	8-97608-456-0	01	1	1401-	●	●

116 48 48 16 104 16 16 51 16 48 16 16 16 16 421 104 470 162 104 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS WHEEL BASE 5300MM(53W) (C) ID=13-18 L=18	1-09709-291-0	13	1	1501-	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1401-1412	●
16	CLIP; HARNESS WHEEL BASE 5300MM(53W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1501-	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1501-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	05	1	1401-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (C) ID=13-18 L=18	1-09709-291-0	16	1	1401-	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1401-	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1401-	●	●
16	CLIP; HARNESS (O) ID=11 L=24	0-95235-045-0	01	1	1401-	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1401-	●	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1401-	●	●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1401-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1401-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1401-	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1401-	●	●
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1401-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1401-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1401-	●	●
16	CLIP; HARNESS (P) ID=18 L=40	1-09701-111-0	01	1	1401-	●	●
16	CLIP; HARNESS (Q) ID=15 L=22 H=30	1-09701-215-1	01	1	1401-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1401-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	05	1	1401-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	03	1	1401-	●	●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1401-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1401-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1401-	●	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	01	1	1401-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	02	1	1401-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1401-	●	●
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1401-	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1401-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1401-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1401-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1401-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1401-	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1401-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1401-	●	●
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AM) L=155	8-97173-307-0	18	1	1401-	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155	8-97173-307-0	18	1	1401-	●	●
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (N) L=40.6	8-97229-357-0	02	1	1401-	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (N) L=40.6	8-97229-357-0	02	1	1401-	●	●
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AG)	8-98052-679-0	02	1	1401-	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG)	8-98052-679-0	02	1	1401-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1401-	●	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1401-	●	●
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (AK) ID=11 L=28	0-95235-055-0	01	1	1401-	●	●
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (S) ID=11 L=60	0-95235-096-0	02	1	1401-	●	●
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (D) ID=16 L=28	0-95235-556-0	01	1	1401-	●	●
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (E) ID=16 L=60	0-95235-596-0	02	1	1401-	●	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	02	1	1401-		●
16	CLIP; HARNESS (AL) L=250	1-09707-126-0	01	1	1401-		●
16	CLIP; HARNESS (G) L=175	1-09707-176-1	01	1	1401-		●
16	CLIP; HARNESS (I) W/SPONGE RUBBER	1-09709-150-0	01	1	1401-		●
16	CLIP; HARNESS (Y) ID=10 & 15	1-09709-279-1	01	1	1401-		●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	03	1	1401-		●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	01	1	1401-		●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	02	1	1401-		●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	04	1	1401-		●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	04	1	1401-		●
48	CLIP; FRAME HARNESS (D) ID=13-18 L=22	1-09709-292-0	03	1	1401-	●
48	CLIP; FRAME HARNESS (E) ID=5-12 L=14.5	1-09987-221-0	01	1	1401-	●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1401-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1401-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	08	1	1401-	●	●
48	CLIP; FRAME HARNESS (B) ID=13-18 L=18	1-09709-291-0	01	1	1401-		●
48	CLIP; FRAME HARNESS (D) ID=13-18 L=22	1-09709-292-0	02	1	1401-		●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	1401-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350	1-09707-183-0	01	1	1401-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=5-12 L=18	1-09709-287-0	01	1	1401-	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1401-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1401-	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1401-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1401-	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1401-	●	●
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
421	CLIP; FLOOR HARNESS ID=18 & 18	8-94323-068-0	02	1	1401-	●	●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	1401-		●
470	CLIP; HARNESS,LICENSE LAMP (C) L=350	1-09707-183-0	01	1	1401-		●

16 16 206 16 16 142 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS WHEEL BASE 5300MM(53W) (C) ID=13-18 L=18	1-09709-291-0	13	1	1501-	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1401-1412	●
16	CLIP; HARNESS WHEEL BASE 5300MM(53W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1501-	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1501-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	05	1	1401-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (C) ID=13-18 L=18	1-09709-291-0	16	1	1401-	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1401-	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1401-	●	●
16	CLIP; HARNESS (O) ID=11 L=24	0-95235-045-0	01	1	1401-	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1401-	●	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1401-	●	●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1401-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1401-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1401-	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1401-	●	●
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1401-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1401-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1401-	●	●
16	CLIP; HARNESS (P) ID=18 L=40	1-09701-111-0	01	1	1401-	●	●
16	CLIP; HARNESS (Q) ID=15 L=22 H=30	1-09701-215-1	01	1	1401-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1401-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	05	1	1401-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	03	1	1401-	●	●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1401-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1401-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1401-	●	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	01	1	1401-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	02	1	1401-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1401-	●	●
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1401-	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1401-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1401-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1401-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1401-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1401-	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1401-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1401-	●	●
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AM) L=155	8-97173-307-0	18	1	1401-	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155	8-97173-307-0	18	1	1401-	●	●
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (N) L=40.6	8-97229-357-0	02	1	1401-	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (N) L=40.6	8-97229-357-0	02	1	1401-	●	●
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AG)	8-98052-679-0	02	1	1401-	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG)	8-98052-679-0	02	1	1401-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1401-	●	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1401-	●	●
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (AK) ID=11 L=28	0-95235-055-0	01	1	1401-	●	●
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (S) ID=11 L=60	0-95235-096-0	02	1	1401-	●	●
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (D) ID=16 L=28	0-95235-556-0	01	1	1401-	●	●
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (E) ID=16 L=60	0-95235-596-0	02	1	1401-	●	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	02	1	1401-		●
16	CLIP; HARNESS (AL) L=250	1-09707-126-0	01	1	1401-		●
16	CLIP; HARNESS (G) L=175	1-09707-176-1	01	1	1401-		●
16	CLIP; HARNESS (I) W/SPONGE RUBBER	1-09709-150-0	01	1	1401-		●
16	CLIP; HARNESS (Y) ID=10 & 15	1-09709-279-1	01	1	1401-		●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	03	1	1401-		●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	01	1	1401-		●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	02	1	1401-		●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	04	1	1401-		●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	04	1	1401-		●
142	CLIP; HARNESS,ENG L=170.3	8-97209-720-0	01	1	1401-	●	●
206	CLIP; FUEL TANK HARNESS (A) L=140	5-09707-031-1	02	1	1401-	●	●
206	CLIP; FUEL TANK HARNESS (B) ID=8.3 & 10	8-94176-792-0	01	1	1401-	●	●

1 178 178 178 178 530 369 16 14 194 48 16 51 104 380 194 171 425 470 51 223 16 16 14 206 194 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) ID=38.1 OD=48.1 L=50	5-09360-835-0	01	1	1401-	●	●
14	CLIP; BAND,HARNESS (B) L=250	1-09707-126-0	02	1	1401-		●
14	CLIP; BAND,HARNESS (A) L=350	1-09707-183-0	01	1	1401-		●
14	CLIP; BAND,HARNESS (A) L=350	1-09707-183-0	05	1	1401-		●
16	CLIP; HARNESS WHEEL BASE 5300MM(53W) (C) ID=13-18 L=18	1-09709-291-0	13	1	1501-	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1401-1412	●
16	CLIP; HARNESS WHEEL BASE 5300MM(53W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1501-	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1501-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	05	1	1401-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (C) ID=13-18 L=18	1-09709-291-0	16	1	1401-	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1401-	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1401-	●	●
16	CLIP; HARNESS (O) ID=11 L=24	0-95235-045-0	01	1	1401-	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1401-	●	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1401-	●	●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1401-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1401-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1401-	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1401-	●	●
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1401-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1401-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1401-	●	●
16	CLIP; HARNESS (P) ID=18 L=40	1-09701-111-0	01	1	1401-	●	●
16	CLIP; HARNESS (Q) ID=15 L=22 H=30	1-09701-215-1	01	1	1401-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1401-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	05	1	1401-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	03	1	1401-	●	●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1401-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1401-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1401-	●	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	01	1	1401-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	02	1	1401-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1401-	●	●
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1401-	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1401-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1401-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1401-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1401-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1401-	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1401-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1401-	●	●
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AM) L=155	8-97173-307-0	18	1	1401-	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155	8-97173-307-0	18	1	1401-	●	●
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (N) L=40.6	8-97229-357-0	02	1	1401-	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (N) L=40.6	8-97229-357-0	02	1	1401-	●	●
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AG)	8-98052-679-0	02	1	1401-	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG)	8-98052-679-0	02	1	1401-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1401-	●	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1401-	●	●
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (AK) ID=11 L=28	0-95235-055-0	01	1	1401-	●	●
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (S) ID=11 L=60	0-95235-096-0	02	1	1401-	●	●
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (D) ID=16 L=28	0-95235-556-0	01	1	1401-	●	●
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (E) ID=16 L=60	0-95235-596-0	02	1	1401-	●	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	02	1	1401-		●
16	CLIP; HARNESS (AL) L=250	1-09707-126-0	01	1	1401-		●
16	CLIP; HARNESS (G) L=175	1-09707-176-1	01	1	1401-		●
16	CLIP; HARNESS (I) W/SPONGE RUBBER	1-09709-150-0	01	1	1401-		●
16	CLIP; HARNESS (Y) ID=10 & 15	1-09709-279-1	01	1	1401-		●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	03	1	1401-		●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	01	1	1401-		●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	02	1	1401-		●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	04	1	1401-		●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	04	1	1401-		●
48	CLIP; FRAME HARNESS (D) ID=13-18 L=22	1-09709-292-0	03	1	1401-	●
48	CLIP; FRAME HARNESS (E) ID=5-12 L=14.5	1-09987-221-0	01	1	1401-	●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1401-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1401-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	08	1	1401-	●	●
48	CLIP; FRAME HARNESS (B) ID=13-18 L=18	1-09709-291-0	01	1	1401-		●
48	CLIP; FRAME HARNESS (D) ID=13-18 L=22	1-09709-292-0	02	1	1401-		●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	1401-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350	1-09707-183-0	01	1	1401-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=5-12 L=18	1-09709-287-0	01	1	1401-	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1401-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1401-	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1401-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1401-	●	●
171	CLIP; STARTER HARNESS L=350	1-09707-183-0	03	1	1401-	●	●
178	GROMMET; HARNESS (B) ID=24 OD=30 T=22	1-09332-104-0	01	1	1401-	●	●
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1401-	●	●
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	02	1	1401-	●	●
178	GROMMET; HARNESS (D) ID=28 OD=35 T=25	1-09332-011-1	03	1	1401-		●
194	CLIP; BAND (A) L=300	1-09707-001-1	02	1	1401-	●	●
194	CLIP; BAND (B) L=350	1-09707-183-0	06	1	1401-	●	●
194	CLIP; BAND (C) L=140	5-09707-031-1	02	1	1401-	●	●
206	CLIP; FUEL TANK HARNESS (A) L=140	5-09707-031-1	02	1	1401-	●	●
206	CLIP; FUEL TANK HARNESS (B) ID=8.3 & 10	8-94176-792-0	01	1	1401-	●	●
223	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	1401-	●	●
223	CLIP; AIR TANK HARNESS (B) ID=11 L=58	9-09917-135-2	01	1	1401-		●
369	CLIP; BAND EDS HARNESS L=500	1-09707-082-1	01	1	1401-	●	●
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1401-	●	●
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	01	1	1401-	●	●
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	02	1	1401-	●	●
425	CLIP; MODULATOR L=350	1-09707-183-0	04	1	1401-		●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	1401-		●
470	CLIP; HARNESS,LICENSE LAMP (C) L=350	1-09707-183-0	01	1	1401-		●
530	SEAL; HARNESS 180X40	1-72498-019-1	23	1	1401-	●	●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1401-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
