◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11569 - FXZ/GXZ MALAYSIA EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#132059) — 129 parça

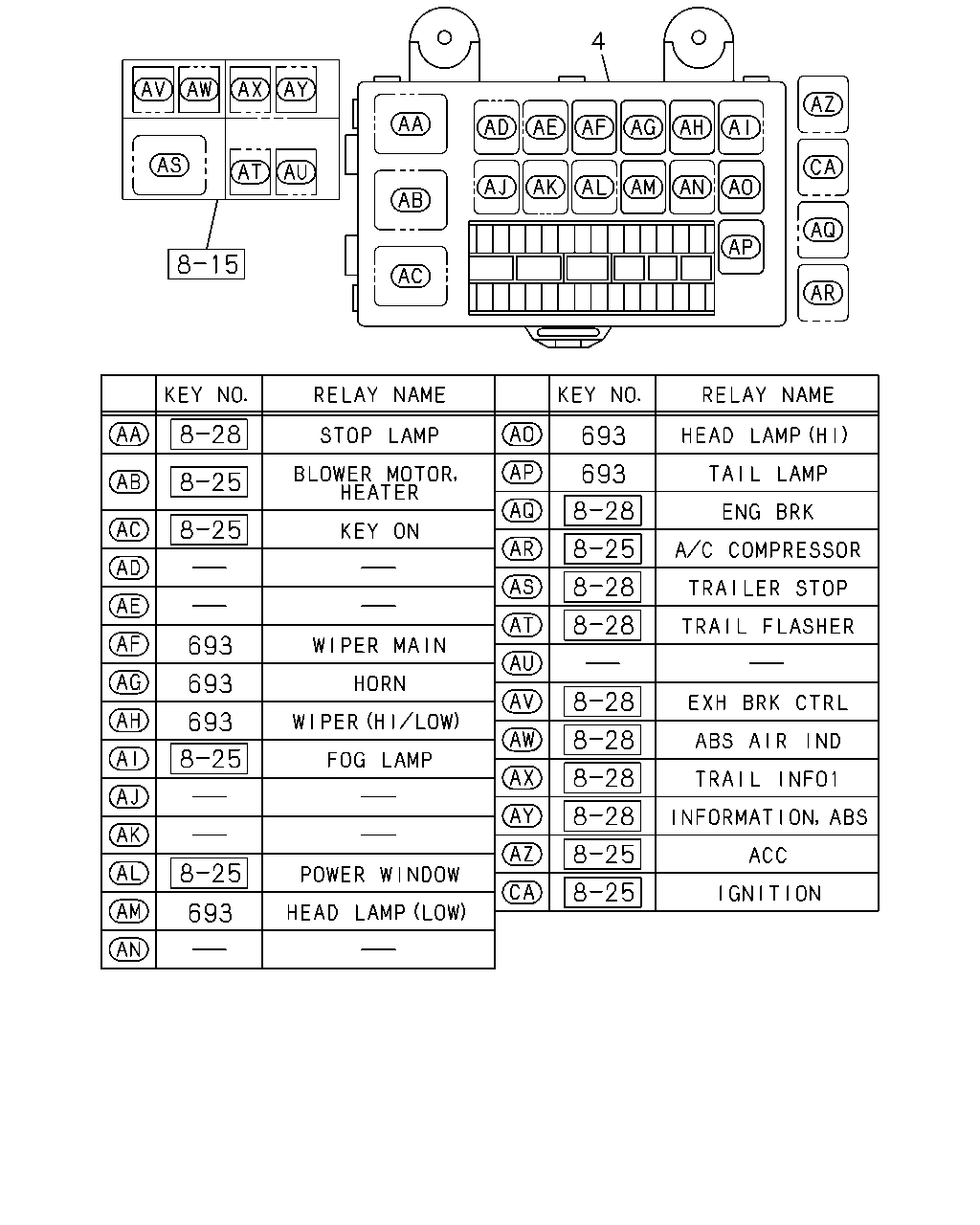

çizim 401720
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1401- ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1401- ● ●

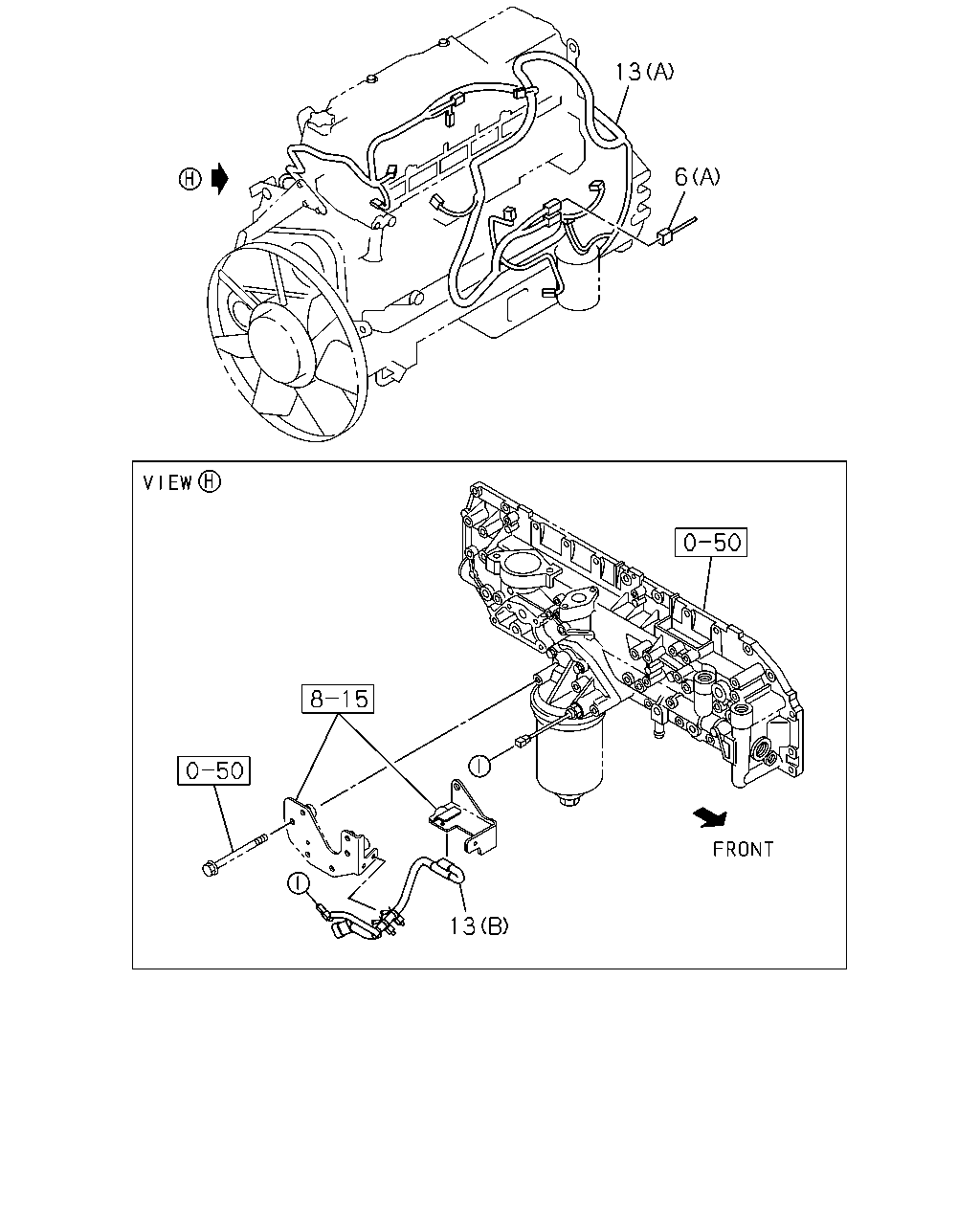

çizim 401763
13 6 13
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
(B) 		8-98075-634-3 01 1 1401- ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98235-460-0 01 1 1401- ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98235-459-0 01 1 1401- ●
6 HARNESS; FRAME
(B) 		8-98116-180-1 01 1 1401- ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98237-178-0 01 1 1401- ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98237-177-0 01 1 1401- ●
13 HARNESS; ENG
(A) 		8-97609-178-1 01 1 1401- ● ●
13 HARNESS; ENG
(B) 		8-98172-215-0 01 1 1401- ● ●
çizim 401994
1 2 2 2 2 533 536 534 668 535
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> 		8-98251-960-1 01 1 1401- ●
1 HARNESS; CAB
EXC. SHIFT PATTERN SINGLE-H<EDY> 		8-98234-813-5 01 1 1401- ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> 		8-98251-961-2 01 1 1401- ●
1 HARNESS; CAB
EXC. SHIFT PATTERN SINGLE-H<EDY> 		8-98253-293-2 01 1 1401- ●
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1401- ● ●
2 DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A 		8-94416-438-1 01 1 1401- ● ●
2 DIODE; CABLE HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 02 1 1401- ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 01 1 1401- ● ●
533 CLIP
ID=31 L=35 		1-09700-329-1 01 1 1401- ● ●
534 BOLT
M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ●
535 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ●
536 NUT; BRKT FIX
M8 		8-98041-929-0 01 1 1401- ● ●
668 BRACKET; HARNESS
(A) 		8-98095-653-2 01 1 1401- ● ●
668 BRACKET; HARNESS
(B) 		8-98117-572-0 01 1 1401- ● ●
çizim 402087
570 1 253 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> 		8-98251-960-1 01 1 1401- ●
1 HARNESS; CAB
EXC. SHIFT PATTERN SINGLE-H<EDY> 		8-98234-813-5 01 1 1401- ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> 		8-98251-961-2 01 1 1401- ●
1 HARNESS; CAB
EXC. SHIFT PATTERN SINGLE-H<EDY> 		8-98253-293-2 01 1 1401- ●
253 HARNESS; EXT,HORN 8-98074-081-2 01 1 1401- ● ●
570 HARNESS; SPEED SENSOR
(A) 		8-98058-327-1 01 1 1401- ● ●
570 HARNESS; SPEED SENSOR
(B) 		8-98148-602-0 01 1 1401- ● ●

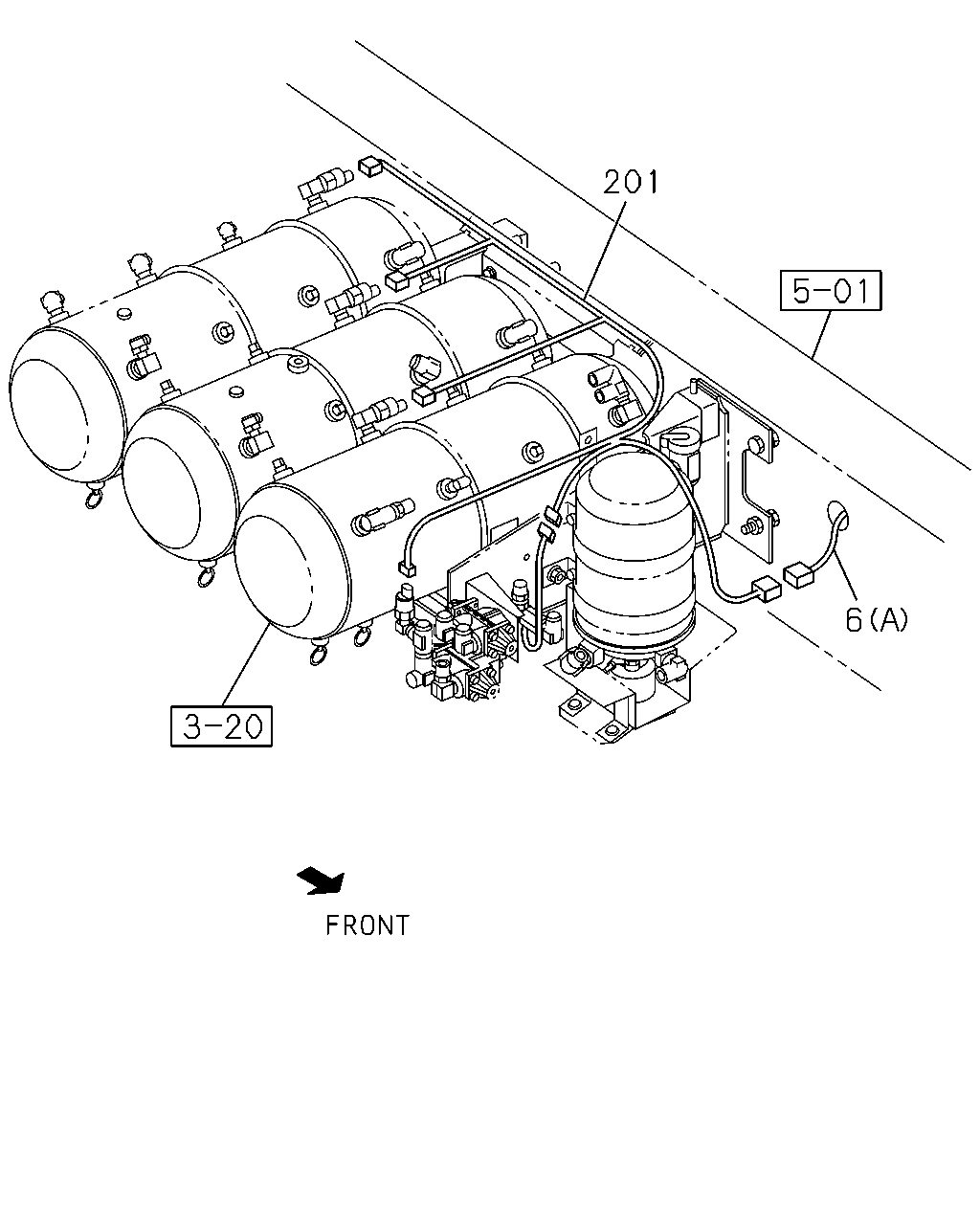

çizim 402101
201 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
(B) 		8-98075-634-3 01 1 1401- ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98235-460-0 01 1 1401- ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98235-459-0 01 1 1401- ●
6 HARNESS; FRAME
(B) 		8-98116-180-1 01 1 1401- ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98237-178-0 01 1 1401- ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98237-177-0 01 1 1401- ●
201 HARNESS; AIR TANK 8-98248-215-0 01 1 1401- ●
201 HARNESS; AIR TANK 8-98079-765-5 01 1 1401- ●
çizim 402463
6 706 6 7
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
(B) 		8-98075-634-3 01 1 1401- ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98235-460-0 01 1 1401- ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98235-459-0 01 1 1401- ●
6 HARNESS; FRAME
(B) 		8-98116-180-1 01 1 1401- ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98237-178-0 01 1 1401- ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98237-177-0 01 1 1401- ●
7 LINK ASM; FUSIBLE
GENERATOR 24V90A(K44) 		8-98103-000-0 01 1 1401- ● ●
7 LINK ASM; FUSIBLE
EXC. GENERATOR 24V90A(K44) 		8-98088-132-0 01 1 1401- ● ●
706 HARNESS; EXT,SEDIMENTER 8-98235-494-1 01 1 1401- ● ●

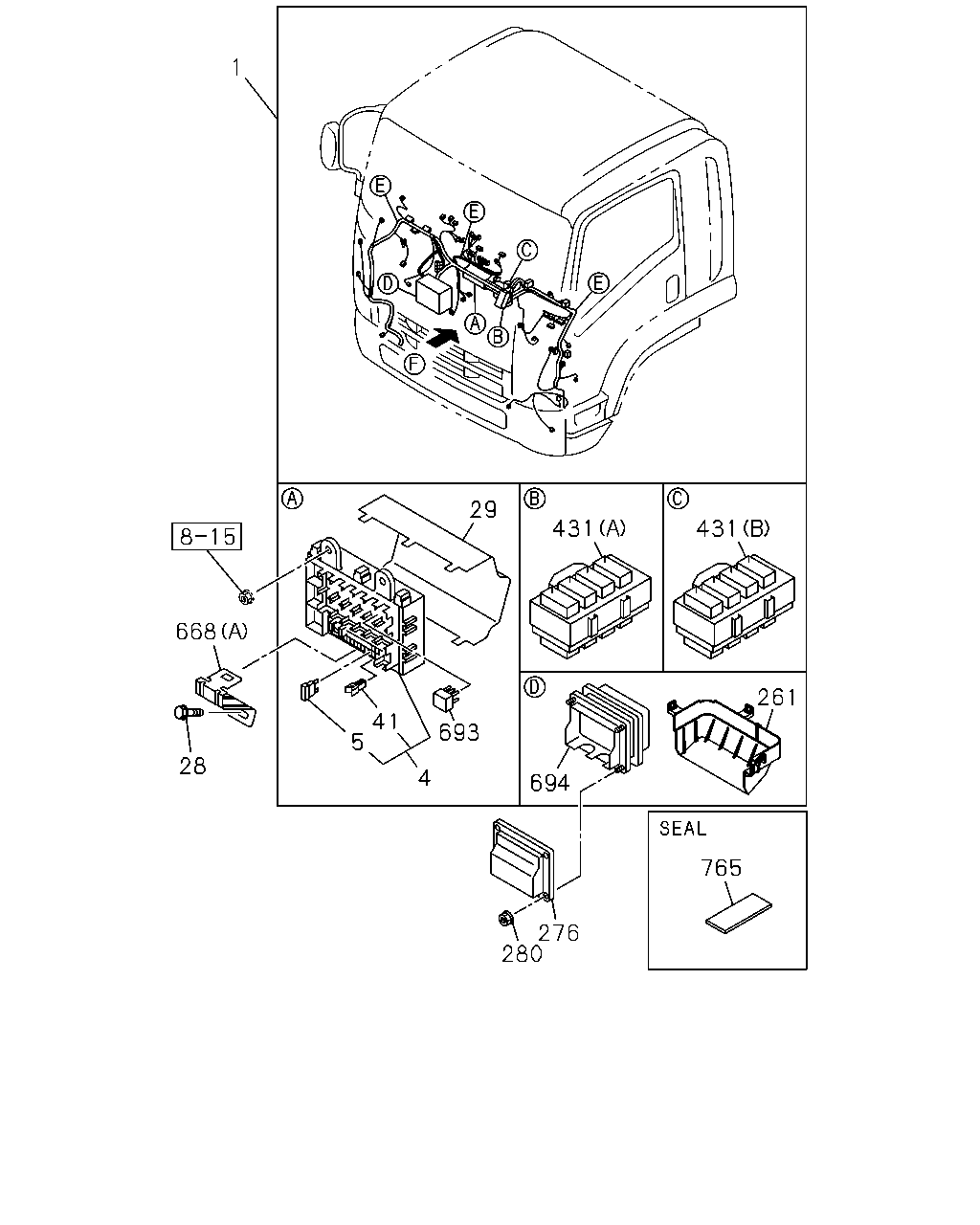

çizim 402512
1 668 28 5 4 41 693 29 694 431 276 280 431 261 765
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> 		8-98251-960-1 01 1 1401- ●
1 HARNESS; CAB
EXC. SHIFT PATTERN SINGLE-H<EDY> 		8-98234-813-5 01 1 1401- ●
1 HARNESS; CAB
SHIFT PATTERN SINGLE-H<EDY> 		8-98251-961-2 01 1 1401- ●
1 HARNESS; CAB
EXC. SHIFT PATTERN SINGLE-H<EDY> 		8-98253-293-2 01 1 1401- ●
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1401- ● ●
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1401- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1401- ● ●
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1401- ● ●
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1401- ● ●
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 1401- ● ●
29 COVER; FUSE BOX 8-98056-968-0 01 1 1401- ● ●
41 PULLER; FUSE 8-98054-260-0 01 1 1401- ● ●
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1401- ● ●
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1401- ● ●
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1401- ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1401- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1401- ● ●
668 BRACKET; HARNESS
(A) 		8-98095-653-2 01 1 1401- ● ●
668 BRACKET; HARNESS
(B) 		8-98117-572-0 01 1 1401- ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1401- ● ●
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1401- ● ●
765 TAPE
100X40 		1-72498-022-1 01 1 1409- ● ●

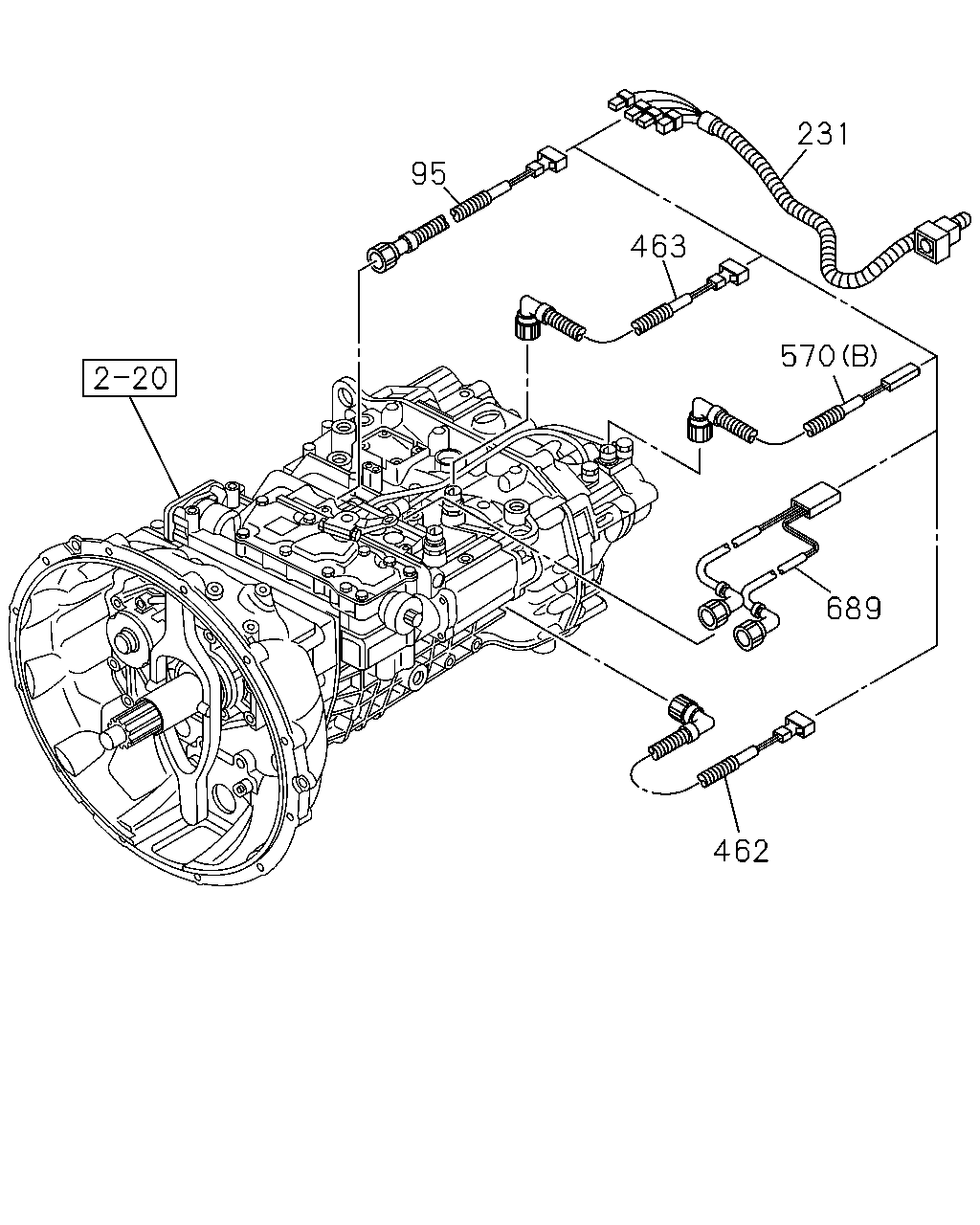

çizim 402513
463 231 570 689 462 95
BalonParca AdiParca NoAdetTipApplied Date A B
95 HARNESS; NEUTRAL SW
SHIFT PATTERN DOUBLE-H<EDZ> RED 		8-98145-855-0 01 1 1401- ● ●
95 HARNESS; NEUTRAL SW
SHIFT PATTERN SINGLE-H<EDY> RED 		8-98145-854-0 01 1 1401- ● ●
231 HARNESS; TRANS
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98172-096-0 01 1 1401- ● ●
231 HARNESS; TRANS
SHIFT PATTERN SINGLE-H<EDY> 		8-98163-093-0 01 1 1401- ● ●
462 HARNESS; SW,RANGE
BLUE 		8-98145-857-0 01 1 1401- ● ●
463 HARNESS; SW,BACK UP
BLACK 		8-98145-856-0 01 1 1401- ● ●
570 HARNESS; SPEED SENSOR
(A) 		8-98058-327-1 01 1 1401- ● ●
570 HARNESS; SPEED SENSOR
(B) 		8-98148-602-0 01 1 1401- ● ●
689 HARNESS; PRESSURE & ECU SWITCH
SHIFT PATTERN SINGLE-H<EDY> 		8-98148-603-0 01 1 1401- ● ●

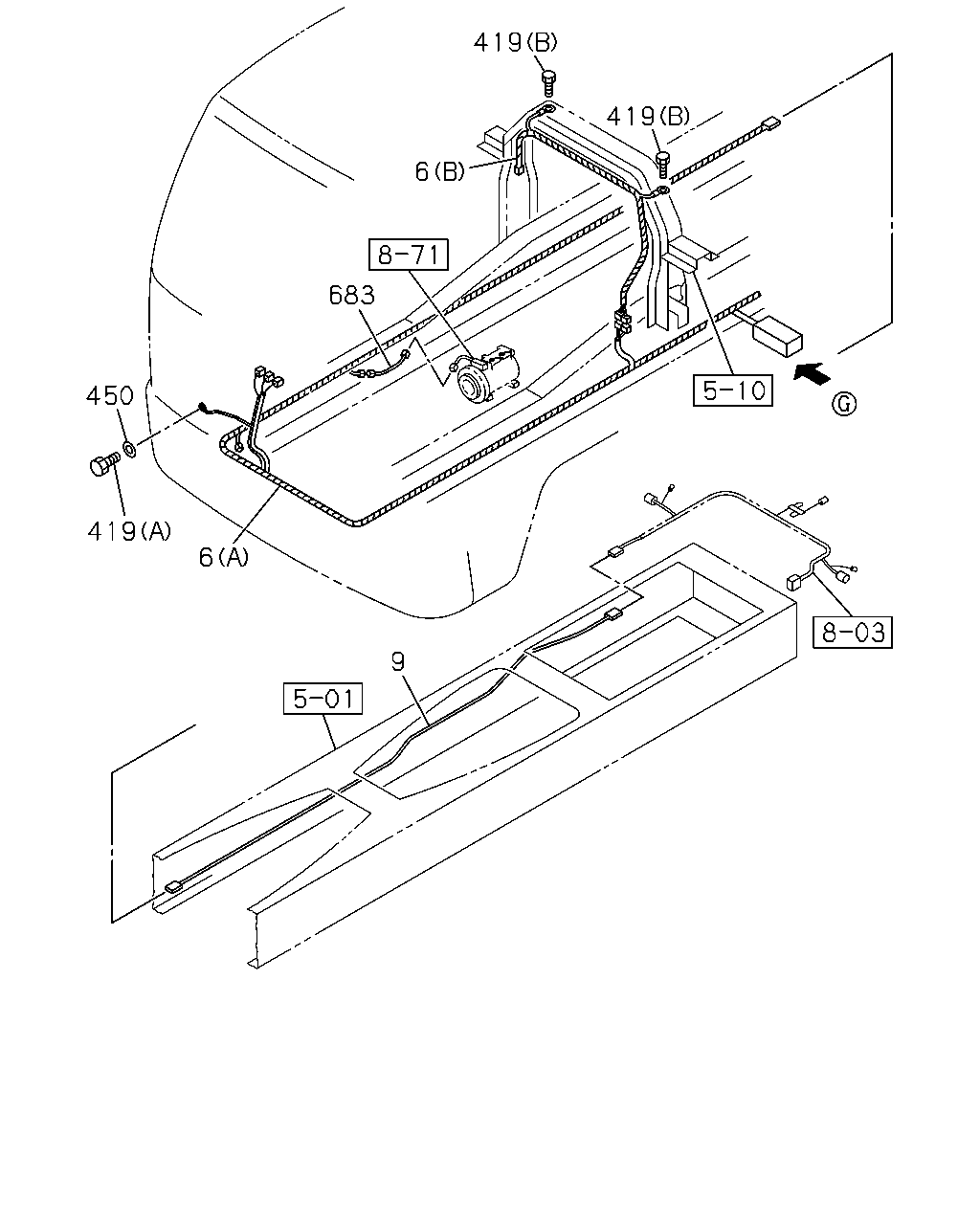

çizim 402556
419 419 6 683 6 9 419 450
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
(B) 		8-98075-634-3 01 1 1401- ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98235-460-0 01 1 1401- ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98235-459-0 01 1 1401- ●
6 HARNESS; FRAME
(B) 		8-98116-180-1 01 1 1401- ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98237-178-0 01 1 1401- ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98237-177-0 01 1 1401- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5300MM(53W) 		8-98299-323-0 01 1 1501- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) 		8-98235-480-0 01 1 1401- ●
9 HARNESS; FRAME,RR
PTO ZF TRANS RR(BDM) 		8-98235-485-0 01 1 1401- ●
9 HARNESS; FRAME,RR
EXC. PTO ZF TRANS RR(BDM) 		8-98236-592-0 01 1 1401- ●
419 BOLT; CAB EARTH
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1401- ● ●
419 BOLT; CAB EARTH
(B) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1401- ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 01 1 1401- ● ●
683 HARNESS; EXT,COOLER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97609-020-1 01 1 1401- ● ●
çizim 402596
6 720 389 53 267 290 184 10 388 184 174 27
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
(B) 		8-98075-634-3 01 1 1401- ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98235-460-0 01 1 1401- ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98235-459-0 01 1 1401- ●
6 HARNESS; FRAME
(B) 		8-98116-180-1 01 1 1401- ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98237-178-0 01 1 1401- ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98237-177-0 01 1 1401- ●
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1401- ● ●
27 FUSE UNIT
10A RED 		8-98054-257-0 03 1 1401- ● ●
27 FUSE UNIT
15A BLUE 		8-98054-258-0 01 1 1401- ● ●
53 BRACKET; FUSE BOX 8-98078-800-1 01 1 1401- ● ●
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1401- ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1401- ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1401- ● ●
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1401- ● ●
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1401- ● ●
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 02 1 1401- ●
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1401- ● ●
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1401- ● ●
267 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 1401- ● ●
290 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1401- ● ●
388 DIODE; RELAY BOX
BLACK 4P-1.5A 		8-94381-730-0 01 1 1401- ● ●
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1401- ● ●
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1401- ● ●
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1401- ● ●

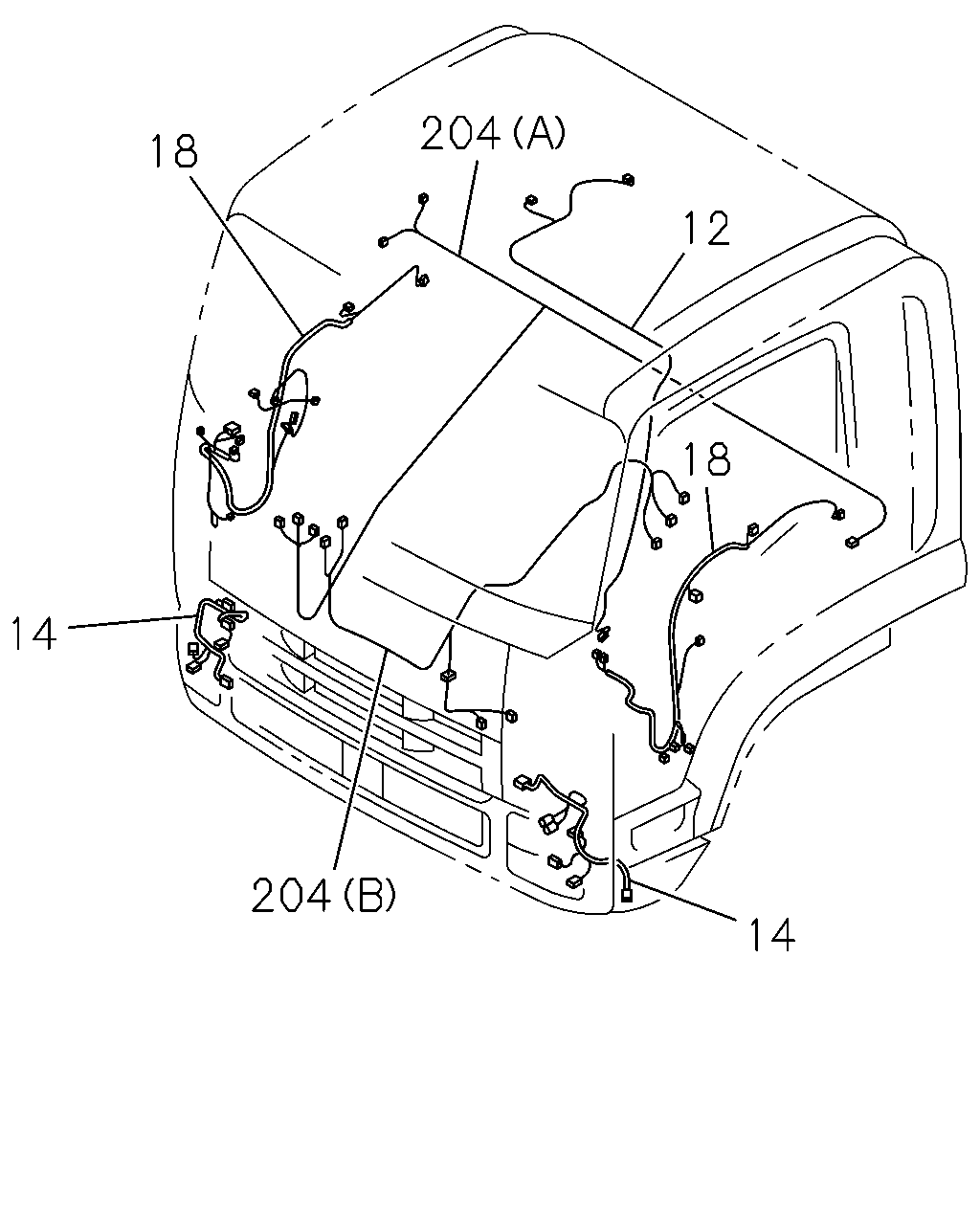

çizim 402613
204 12 18 14 204 14 18
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98048-931-2 01 1 1401- ● ●
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98041-949-2 01 1 1401- ● ●
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98103-680-1 02 1 1401- ● ●
14 HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98075-629-3 02 1 1401- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98108-440-1 01 1 1401- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98108-439-1 01 1 1401- ● ●
18 HARNESS; DOOR
DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> 		8-98076-305-3 01 1 1401- ● ●
18 HARNESS; DOOR
DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> 		8-98076-304-3 01 1 1401- ● ●
204 HARNESS; CABLE,FLOOR
(A) 		8-98226-474-0 01 1 1401-1401 ●
204 HARNESS; CABLE,FLOOR
(A) 		8-98226-474-0 01 1 1401- ● ●
204 HARNESS; CABLE,FLOOR
(B) 		8-98188-517-0 01 1 1401- ● ●
204 HARNESS; CABLE,FLOOR
(A) 		8-98234-723-0 01 1 1401-1401 ●
