◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11569 - FXZ/GXZ MALAYSIA EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#132056) — 60 parça

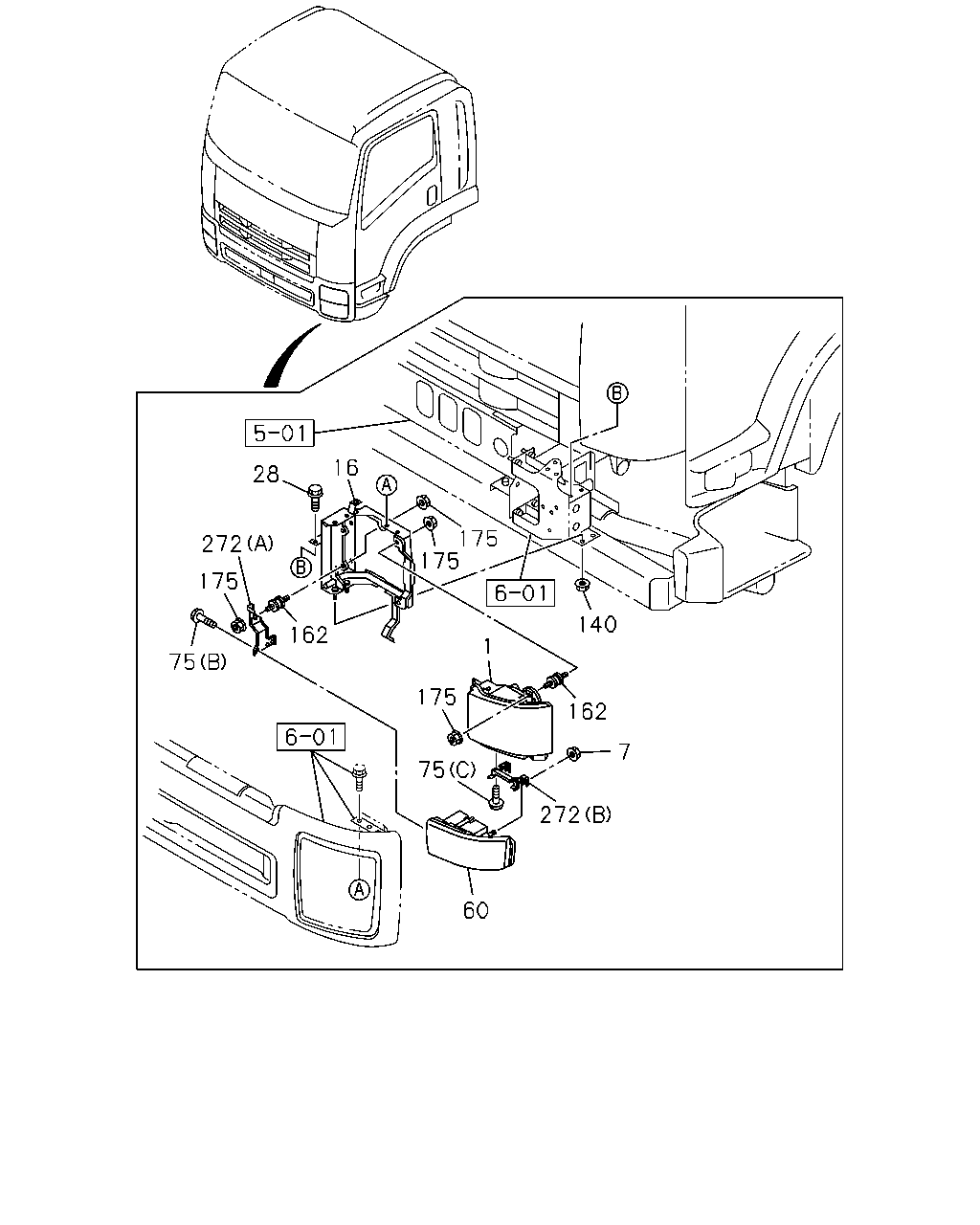

çizim 402240
28 16 175 175 140 162 7 272 60 75 175 1 162 75 175 272
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-311-0 01 1 1401- ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-310-0 01 1 1401- ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98241-313-0 01 1 1401- ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98241-312-0 01 1 1401- ● ●
7 NUT; FRT COMB LAMP
M6 FLANGE 		0-91180-106-0 04 1 1401- ● ●
16 BRACKET; HEADLAMP 8-98013-015-2 01 1 1401- ● ●
16 BRACKET; HEADLAMP 8-98013-016-2 01 1 1401- ● ●
28 BOLT; HEADLAMP
M10X25 FLANGE 		0-28651-025-0 04 1 1401- ● ●
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98238-631-0 01 1 1401- ● ●
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98238-630-0 01 1 1401- ● ●
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98238-633-0 01 1 1401- ● ●
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98238-632-0 01 1 1401- ● ●
75 SCREW; FRT COMB LAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 1401- ● ●
75 SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1401- ● ●
75 SCREW; FRT COMB LAMP
FOG LAMP<T96> (A) 		8-98074-439-0 02 1 1401- ● ●
140 NUT
M10 FLANGE 		0-91180-210-0 04 1 1401- ● ●
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 1401- ● ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 1401- ● ●
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-935-0 01 1 1401- ● ●
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-938-0 01 1 1401- ● ●
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-934-0 01 1 1401- ● ●
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-937-0 01 1 1401- ● ●

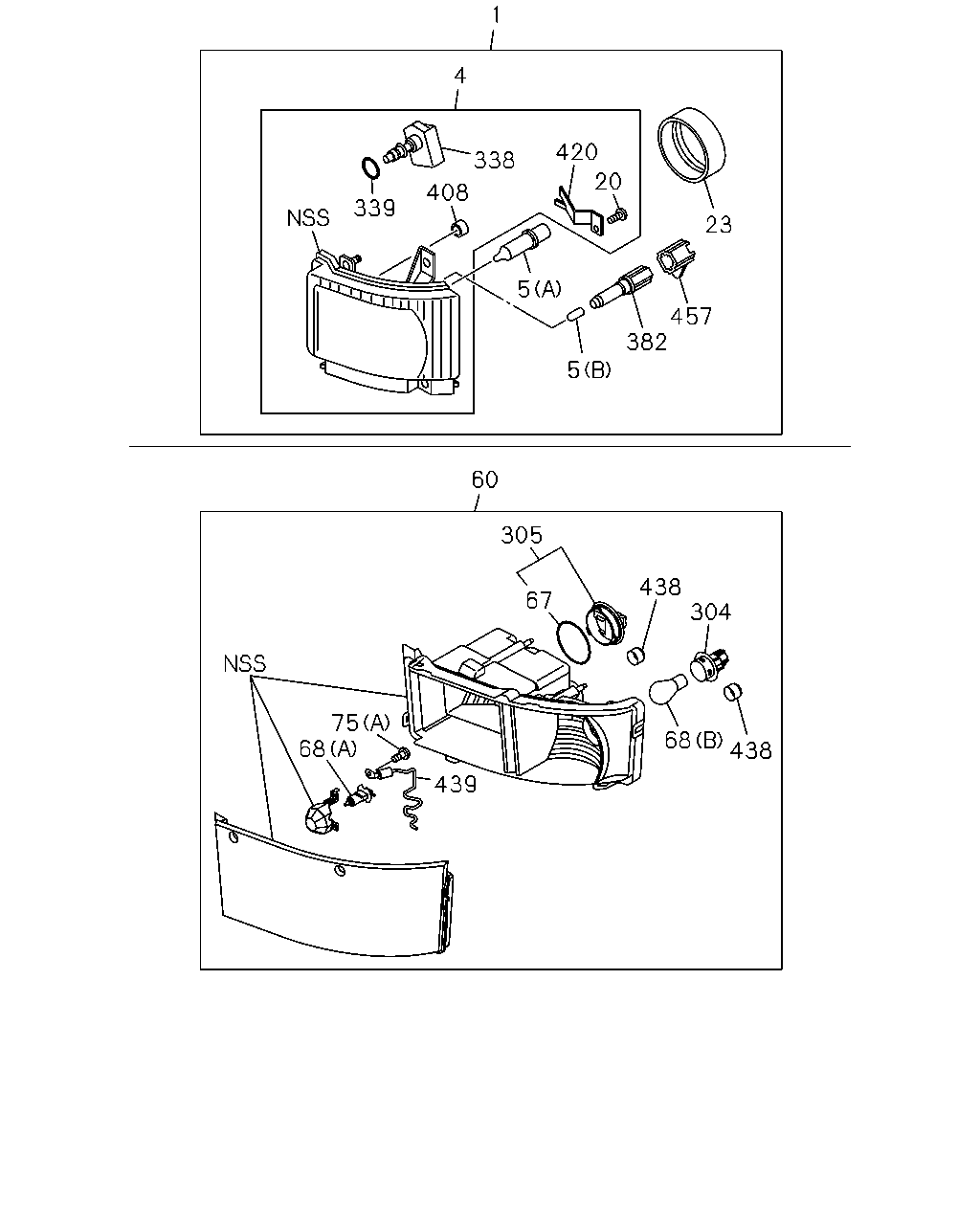

çizim 402510
1 4 339 408 338 420 20 5 5 382 457 23 60 305 67 438 304 438 68 439 75 68
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-311-0 01 1 1401- ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-310-0 01 1 1401- ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98241-313-0 01 1 1401- ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98241-312-0 01 1 1401- ● ●
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-565-0 01 1 1401- ● ●
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-564-0 01 1 1401- ● ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98199-567-0 01 1 1401- ● ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98199-566-0 01 1 1401- ● ●
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> (B) 24V 5W 		1-82194-042-0 02 1 1401- ● ●
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> (A) 24V 75/70W 		1-82194-063-0 02 1 1401- ● ●
20 SCREW; HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-97378-871-0 06 1 1401- ● ●
23 COVER; BULB,HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-97232-491-0 02 1 1401- ● ●
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98238-631-0 01 1 1401- ● ●
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98238-630-0 01 1 1401- ● ●
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98238-633-0 01 1 1401- ● ●
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98238-632-0 01 1 1401- ● ●
67 GASKET; FRT COMB LAMP 8-98238-656-0 02 1 1401- ● ●
68 BULB; FRT COMB LAMP
(B) 24V 21W 		8-98051-495-0 02 1 1401- ● ●
68 BULB; FRT COMB LAMP
FOG LAMP<T96> (A) 24V 70W 		1-82194-106-0 02 1 1401- ● ●
75 SCREW; FRT COMB LAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 1401- ● ●
75 SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1401- ● ●
75 SCREW; FRT COMB LAMP
FOG LAMP<T96> (A) 		8-98074-439-0 02 1 1401- ● ●
304 PLUG; SOCKET,FRT COMB LAMP 8-98051-390-0 02 1 1401- ● ●
305 COVER; FRT COMB LAMP
FOG LAMP<T96> 		8-98240-559-0 02 1 1401- ● ●
305 COVER; FRT COMB LAMP
EXC. FOG LAMP<T96> 		8-98240-560-0 02 1 1401- ● ●
338 LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98010-256-0 02 1 1401- ● ●
339 GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		1-86830-158-0 02 1 1401- ● ●
382 PLUG; SOCKET,HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-98225-685-0 02 1 1401- ● ●
408 CAP; BREATHER,HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-97378-874-0 02 1 1401- ● ●
420 SPRING; BULB,HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-98218-601-0 02 1 1401- ● ●
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 02 1 1401- ● ●
439 SPRING SET; COMB LAMP
FOG LAMP<T96> 		8-98075-644-0 02 1 1401- ● ●
457 GRIP; HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-98241-354-0 02 1 1401- ● ●
çizim 402542
427 437 327 91
BalonParca AdiParca NoAdetTipApplied Date A B
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1401- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1401- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1401- ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1401- ● ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1401- ● ●
