7-50 — FRONT SEAT (#132053) — 271 parça

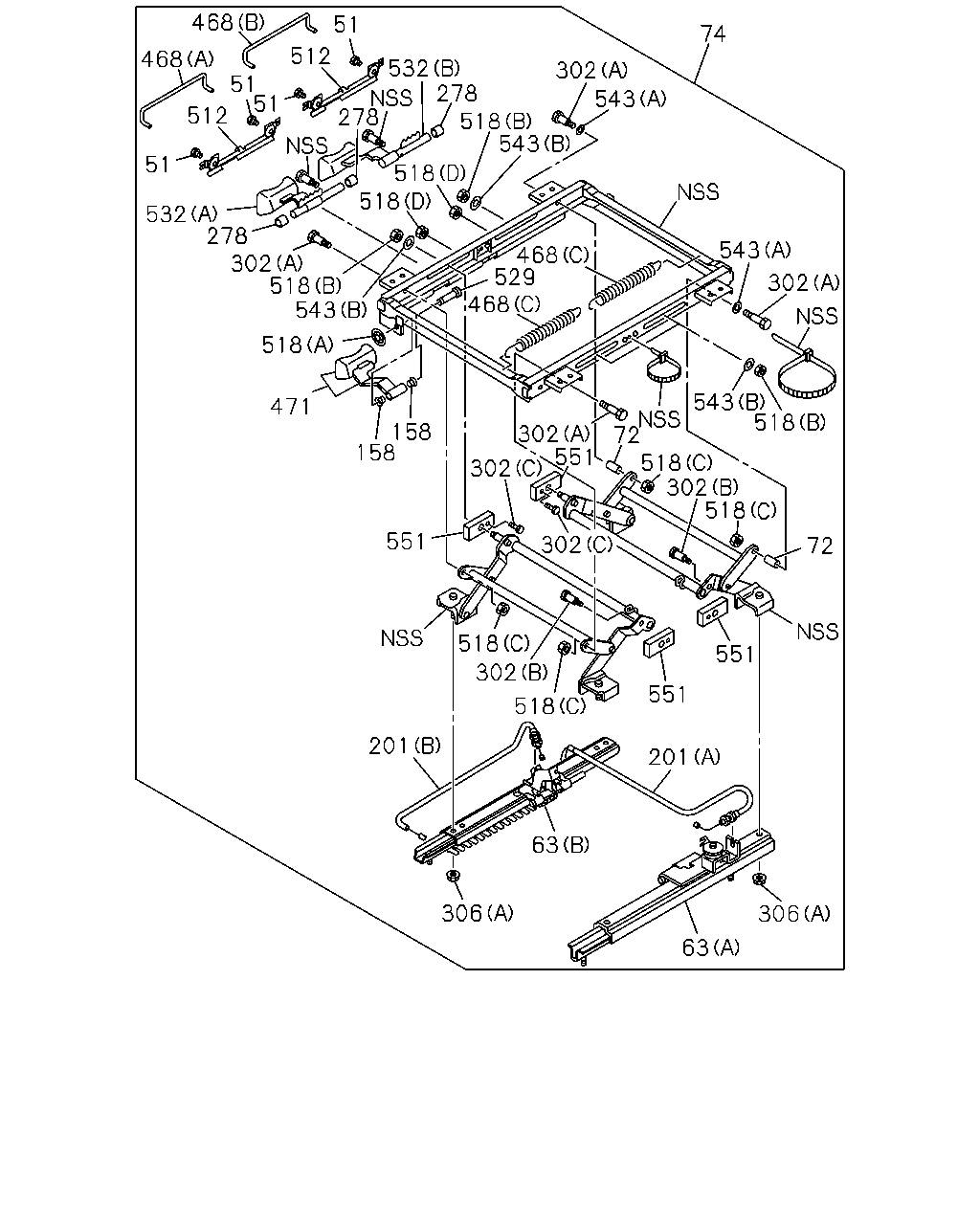

çizim 401881
468 468 51 51 512 51 532 278 302 518 543 518 471 158 158 551 201 306 63 518 302 518 302 302 302 551 468 529 468 518 518 278 512 51 532 278 518 543 302 543 74 543 302 543 518 518 302 72 518 72 551 551 201 306 63
BalonParca AdiParca NoAdetTipApplied Date A B
51 SCREW; COVER 1-75518-325-1 04 1 1401-1502 ● ●
51 SCREW; COVER
DELUXE SEAT(PQ8) 		1-75518-325-1 04 1 1503-1509 ● ●
51 SCREW; COVER 1-75518-325-1 04 1 1510- ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-199-1 01 1 1401-1502 ● ●
63 ADJUSTER; SEAT SLIDE
DELUXE SEAT(PQ8) (A) 		1-75518-199-1 01 1 1503-1509 ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-199-1 01 1 1510- ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-323-0 01 1 1401-1502 ● ●
63 ADJUSTER; SEAT SLIDE
DELUXE SEAT(PQ8) (B) 		1-75518-323-0 01 1 1503-1509 ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-323-0 01 1 1510- ● ●
72 SPACER; SEAT ADJ 1-75518-334-1 02 1 1401-1502 ● ●
72 SPACER; SEAT ADJ
DELUXE SEAT(PQ8) 		8-98291-668-0 02 1 1503-1509 ● ●
72 SPACER; SEAT ADJ 8-98291-668-0 02 1 1510- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98003-678-0 01 1 1401-1502 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE SEAT(PQ8) 		8-98291-640-0 01 1 1503-1509 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98291-640-0 01 1 1510- ● ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1401-1502 ● ●
158 BUSHING; LINK ARM
DELUXE SEAT(PQ8) 		1-75518-209-0 02 1 1503-1509 ● ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1510- ● ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1401-1502 ● ●
201 CABLE; ADJ
DELUXE SEAT(PQ8) (A) L=667 		1-75518-288-0 01 1 1503-1509 ● ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1510- ● ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1401-1502 ● ●
201 CABLE; ADJ
DELUXE SEAT(PQ8) (B) L=605 		1-75518-289-1 01 1 1503-1509 ● ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1510- ● ●
278 COLLAR; FRT SEAT 1-75518-244-0 03 1 1401-1502 ● ●
278 COLLAR; FRT SEAT
DELUXE SEAT(PQ8) 		1-75518-244-0 03 1 1503-1509 ● ●
278 COLLAR; FRT SEAT 1-75518-244-0 03 1 1510- ● ●
302 BOLT; ADJ,HEIGHT CONT
(B) 		1-75518-266-2 02 1 1401-1502 ● ●
302 BOLT; ADJ,HEIGHT CONT
DELUXE SEAT(PQ8) (B) 		1-75518-266-2 02 1 1503-1509 ● ●
302 BOLT; ADJ,HEIGHT CONT
(B) 		1-75518-266-2 02 1 1510- ● ●
302 BOLT; ADJ,HEIGHT CONT
(A) 		1-75518-270-1 04 1 1401-1502 ● ●
302 BOLT; ADJ,HEIGHT CONT
DELUXE SEAT(PQ8) (A) 		8-98291-667-0 04 1 1503-1509 ● ●
302 BOLT; ADJ,HEIGHT CONT
(A) 		8-98291-667-0 04 1 1510- ● ●
302 BOLT; ADJ,HEIGHT CONT
(C) 		1-75518-336-1 02 1 1401-1502 ● ●
302 BOLT; ADJ,HEIGHT CONT
DELUXE SEAT(PQ8) (C) 		1-75518-336-1 02 1 1503-1509 ● ●
302 BOLT; ADJ,HEIGHT CONT
(C) 		1-75518-336-1 02 1 1510- ● ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1401- ● ●
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 06 1 1401-1502 ● ●
306 NUT; SEAT ADJ
DELUXE SEAT(PQ8) (A) M8 FLANGE 		1-75538-207-0 06 1 1503-1509 ● ●
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 06 1 1510- ● ●
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 1401-1502 ● ●
468 SPRING; RETURN
DELUXE SEAT(PQ8) (A) 		1-75518-206-0 01 1 1503-1509 ● ●
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 1510- ● ●
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 1401-1502 ● ●
468 SPRING; RETURN
DELUXE SEAT(PQ8) (B) 		1-75518-207-0 01 1 1503-1509 ● ●
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 1510- ● ●
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 1401-1502 ● ●
468 SPRING; RETURN
DELUXE SEAT(PQ8) (C) 		1-75518-208-0 02 1 1503-1509 ● ●
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 1510- ● ●
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 1401-1502 ● ●
468 SPRING; RETURN
DELUXE SEAT(PQ8) (D) 		1-75538-132-0 01 1 1503-1509 ● ●
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 1510- ● ●
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1401-1502 ● ●
471 LEVER; SEAT ADJ
DELUXE SEAT(PQ8) 		8-98107-869-0 01 1 1503-1509 ● ●
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1510- ● ●
512 COVER; LEVER 1-75518-243-1 02 1 1401-1502 ● ●
512 COVER; LEVER
DELUXE SEAT(PQ8) 		1-75518-243-1 02 1 1503-1509 ● ●
512 COVER; LEVER 1-75518-243-1 02 1 1510- ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1401-1502 ● ●
518 NUT; TILT ADJ
DELUXE SEAT(PQ8) (A) 		1-75518-263-0 01 1 1503-1509 ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1510- ● ●
518 NUT; TILT ADJ
(C) M8 		1-75518-264-0 04 1 1401-1502 ● ●
518 NUT; TILT ADJ
DELUXE SEAT(PQ8) (C) M8 		1-75518-264-0 04 1 1503-1509 ● ●
518 NUT; TILT ADJ
(C) M8 		1-75518-264-0 04 1 1510- ● ●
518 NUT; TILT ADJ
(E) M8 FLANGE 		1-75538-207-0 04 1 1401-1502 ● ●
518 NUT; TILT ADJ
DELUXE SEAT(PQ8) (E) M8 FLANGE 		1-75538-207-0 04 1 1503-1509 ● ●
518 NUT; TILT ADJ
(E) M8 FLANGE 		1-75538-207-0 04 1 1510- ● ●
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 1401-1502 ● ●
518 NUT; TILT ADJ
DELUXE SEAT(PQ8) (D) M6 LOCK NUT 		5-09984-020-0 02 1 1503-1509 ● ●
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 1510- ● ●
518 NUT; TILT ADJ
(B) M8 FLANGE 		8-94152-886-0 04 1 1401-1502 ● ●
518 NUT; TILT ADJ
DELUXE SEAT(PQ8) (B) M8 FLANGE 		8-94152-886-0 04 1 1503-1509 ● ●
518 NUT; TILT ADJ
(B) M8 FLANGE 		8-94152-886-0 04 1 1510- ● ●
529 PIN; LINK 1-75518-262-0 01 1 1401-1502 ● ●
529 PIN; LINK
DELUXE SEAT(PQ8) 		1-75518-262-0 01 1 1503-1509 ● ●
529 PIN; LINK 1-75518-262-0 01 1 1510- ● ●
532 LEVER ASM; TILT
(A) 		1-75518-203-0 01 1 1401-1502 ● ●
532 LEVER ASM; TILT
DELUXE SEAT(PQ8) (A) 		1-75518-203-0 01 1 1503-1509 ● ●
532 LEVER ASM; TILT
(A) 		1-75518-203-0 01 1 1510- ● ●
532 LEVER ASM; TILT
(B) 		1-75518-204-1 01 1 1401-1502 ● ●
532 LEVER ASM; TILT
DELUXE SEAT(PQ8) (B) 		1-75518-204-1 01 1 1503-1509 ● ●
532 LEVER ASM; TILT
(B) 		1-75518-204-1 01 1 1510- ● ●
543 WASHER; HEIGHT ADJUSTER
(A) 		1-75518-335-0 02 1 1401-1502 ● ●
543 WASHER; HEIGHT ADJUSTER
DELUXE SEAT(PQ8) (A) ID=13 OD=19 		8-98291-669-0 02 1 1503-1509 ● ●
543 WASHER; HEIGHT ADJUSTER
(A) ID=13 OD=19 		8-98291-669-0 02 1 1510- ● ●
543 WASHER; HEIGHT ADJUSTER
(B) ID=8.4 		9-09160-508-0 04 1 1401-1502 ● ●
543 WASHER; HEIGHT ADJUSTER
DELUXE SEAT(PQ8) (B) ID=8.4 		9-09160-508-0 04 1 1503-1509 ● ●
543 WASHER; HEIGHT ADJUSTER
(B) ID=8.4 		9-09160-508-0 04 1 1510- ● ●
551 SLIDER; HEIGHT ADJ 1-75518-265-0 04 1 1401-1502 ● ●
551 SLIDER; HEIGHT ADJ
DELUXE SEAT(PQ8) 		1-75518-265-0 04 1 1503-1509 ● ●
551 SLIDER; HEIGHT ADJ 1-75518-265-0 04 1 1510- ● ●

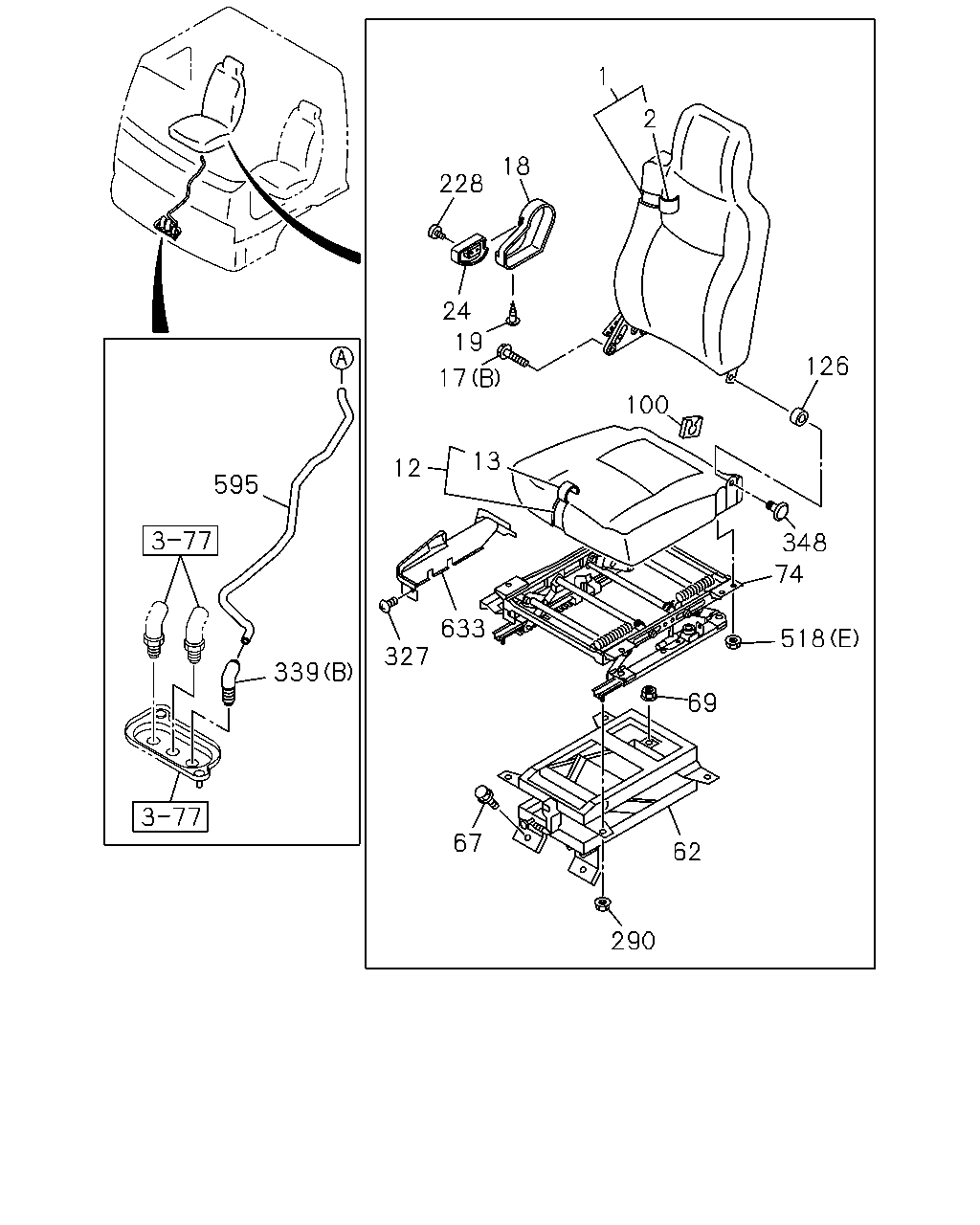

çizim 402237
1 18 228 2 126 100 24 17 12 13 348 74 518 69 633 327 595 339 67 62 19 290
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DELUXE SEAT(PQ8) DARK GRAY 		8-97421-406-1 01 1 1401-1512 ● ●
1 BACK ASM; SEAT
DELUXE SEAT(PQ8) DARK GRAY 		8-97466-620-0 01 1 1601- ● ●
1 BACK ASM; SEAT
VINYL SEAT(A83) DARK GRAY 		8-97409-955-5 01 1 1401-1502 ● ●
1 BACK ASM; SEAT
VINYL SEAT(A83) DARK GRAY 		8-97409-955-5 01 1 1510-1512 ● ●
1 BACK ASM; SEAT
VINYL SEAT(A83) DARK GRAY 		8-97466-618-0 01 1 1601- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE SEAT(PQ8) DARK GRAY 		8-97421-411-0 01 1 1401- ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) DARK GRAY 		8-97411-910-2 01 1 1401-1502 ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) DARK GRAY 		8-97411-910-2 01 1 1510- ● ●
12 CUSHION; SEAT,FRT
DELUXE SEAT(PQ8) DARK GRAY 		8-97421-397-2 01 1 1401-1512 ● ●
12 CUSHION; SEAT,FRT
DELUXE SEAT(PQ8) DARK GRAY 		8-97466-610-0 01 1 1601- ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT(A83) DARK GRAY 		8-97409-954-2 01 1 1401-1502 ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT(A83) DARK GRAY 		8-97409-954-2 01 1 1510-1512 ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT(A83) DARK GRAY 		8-97466-606-0 01 1 1601- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE SEAT(PQ8) DARK GRAY 		8-97421-401-2 01 1 1401- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT(A83) DARK GRAY 		8-97411-909-1 01 1 1401-1502 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT(A83) DARK GRAY 		8-97411-909-1 01 1 1510- ● ●
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1401-1502 ● ●
17 BOLT; RECLINING
DELUXE SEAT(PQ8) (B) M10X20 		8-98062-661-0 02 1 1503-1509 ● ●
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1510- ● ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1401- ● ●
18 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1401-1502 ● ●
18 COVER; RECLINING
DELUXE SEAT(PQ8) GRAY 		8-97409-332-0 01 1 1503-1509 ● ●
18 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1510- ● ●
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1401-1502 ● ●
19 SCREW; COVER
DELUXE SEAT(PQ8) M5 		8-98062-663-0 01 1 1503-1509 ● ●
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1510- ● ●
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1401-1502 ● ●
24 KNOB; RECLINING,FRT,SEAT
DELUXE SEAT(PQ8) GRAY 		8-97409-333-0 01 1 1503-1509 ● ●
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1510- ● ●
62 DAMPER ASM; SEAT SUSP 1-75538-183-8 01 1 1401-1403 ● ●
62 DAMPER ASM; SEAT SUSP 8-98261-448-0 01 1 1404-1502 ● ●
62 DAMPER ASM; SEAT SUSP
DELUXE SEAT(PQ8) 		8-98261-448-0 01 1 1503-1509 ● ●
62 DAMPER ASM; SEAT SUSP 8-98261-448-0 01 1 1510- ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1401- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1401- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98003-678-0 01 1 1401-1502 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE SEAT(PQ8) 		8-98291-640-0 01 1 1503-1509 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98291-640-0 01 1 1510- ● ●
100 COVER; HINGE 8-98203-070-0 01 1 1401-1502 ● ●
100 COVER; HINGE
DELUXE SEAT(PQ8) 		8-98203-070-0 01 1 1503-1509 ● ●
100 COVER; HINGE 8-98203-070-0 01 1 1510-1512 ● ●
100 COVER; HINGE 8-98286-009-0 01 1 1601- ● ●
126 BUSHING; HINGE,RECLINING 8-98063-218-0 01 1 1401-1502 ● ●
126 BUSHING; HINGE,RECLINING
DELUXE SEAT(PQ8) 		8-98063-218-0 01 1 1503-1509 ● ●
126 BUSHING; HINGE,RECLINING 8-98063-218-0 01 1 1510-1512 ● ●
126 BUSHING; HINGE,RECLINING 8-98286-007-0 01 1 1601- ● ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1401-1502 ● ●
228 SCREW; KNOB
DELUXE SEAT(PQ8) M4 		8-98062-662-0 01 1 1503-1509 ● ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1510- ● ●
290 NUT; ADJ TO SUSP
M8 FLANGE 		1-75538-207-0 04 1 1401-1502 ● ●
290 NUT; ADJ TO SUSP
DELUXE SEAT(PQ8) M8 FLANGE 		1-75538-207-0 04 1 1503-1509 ● ●
290 NUT; ADJ TO SUSP
M8 FLANGE 		1-75538-207-0 04 1 1510- ● ●
327 CLIP; COVER
ID=459 		1-09987-273-0 02 1 1401- ● ●
339 UNION; DRIVER SEAT
(A) 		1-75538-131-3 01 1 1401-1502 ● ●
339 UNION; DRIVER SEAT
DELUXE SEAT(PQ8) (A) 		1-75538-131-3 01 1 1503-1509 ● ●
339 UNION; DRIVER SEAT
(A) 		1-75538-131-3 01 1 1510- ● ●
339 UNION; DRIVER SEAT
(B) 		8-98014-971-0 01 1 1401- ● ●
348 BOLT; HINGE,SEAT 8-98286-008-0 01 1 1601- ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1401-1502 ● ●
518 NUT; TILT ADJ
DELUXE SEAT(PQ8) (A) 		1-75518-263-0 01 1 1503-1509 ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1510- ● ●
518 NUT; TILT ADJ
(C) M8 		1-75518-264-0 04 1 1401-1502 ● ●
518 NUT; TILT ADJ
DELUXE SEAT(PQ8) (C) M8 		1-75518-264-0 04 1 1503-1509 ● ●
518 NUT; TILT ADJ
(C) M8 		1-75518-264-0 04 1 1510- ● ●
518 NUT; TILT ADJ
(E) M8 FLANGE 		1-75538-207-0 04 1 1401-1502 ● ●
518 NUT; TILT ADJ
DELUXE SEAT(PQ8) (E) M8 FLANGE 		1-75538-207-0 04 1 1503-1509 ● ●
518 NUT; TILT ADJ
(E) M8 FLANGE 		1-75538-207-0 04 1 1510- ● ●
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 1401-1502 ● ●
518 NUT; TILT ADJ
DELUXE SEAT(PQ8) (D) M6 LOCK NUT 		5-09984-020-0 02 1 1503-1509 ● ●
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 1510- ● ●
518 NUT; TILT ADJ
(B) M8 FLANGE 		8-94152-886-0 04 1 1401-1502 ● ●
518 NUT; TILT ADJ
DELUXE SEAT(PQ8) (B) M8 FLANGE 		8-94152-886-0 04 1 1503-1509 ● ●
518 NUT; TILT ADJ
(B) M8 FLANGE 		8-94152-886-0 04 1 1510- ● ●
595 TUBE; NYLON 8-98067-762-0 01 1 1401- ● ●
633 COVER; ADJ,TILT
GRAY 		8-97409-956-0 01 1 1401-1502 ● ●
633 COVER; ADJ,TILT
DELUXE SEAT(PQ8) GRAY 		8-97409-956-0 01 1 1503-1509 ● ●
633 COVER; ADJ,TILT
GRAY 		8-97409-956-0 01 1 1510- ● ●

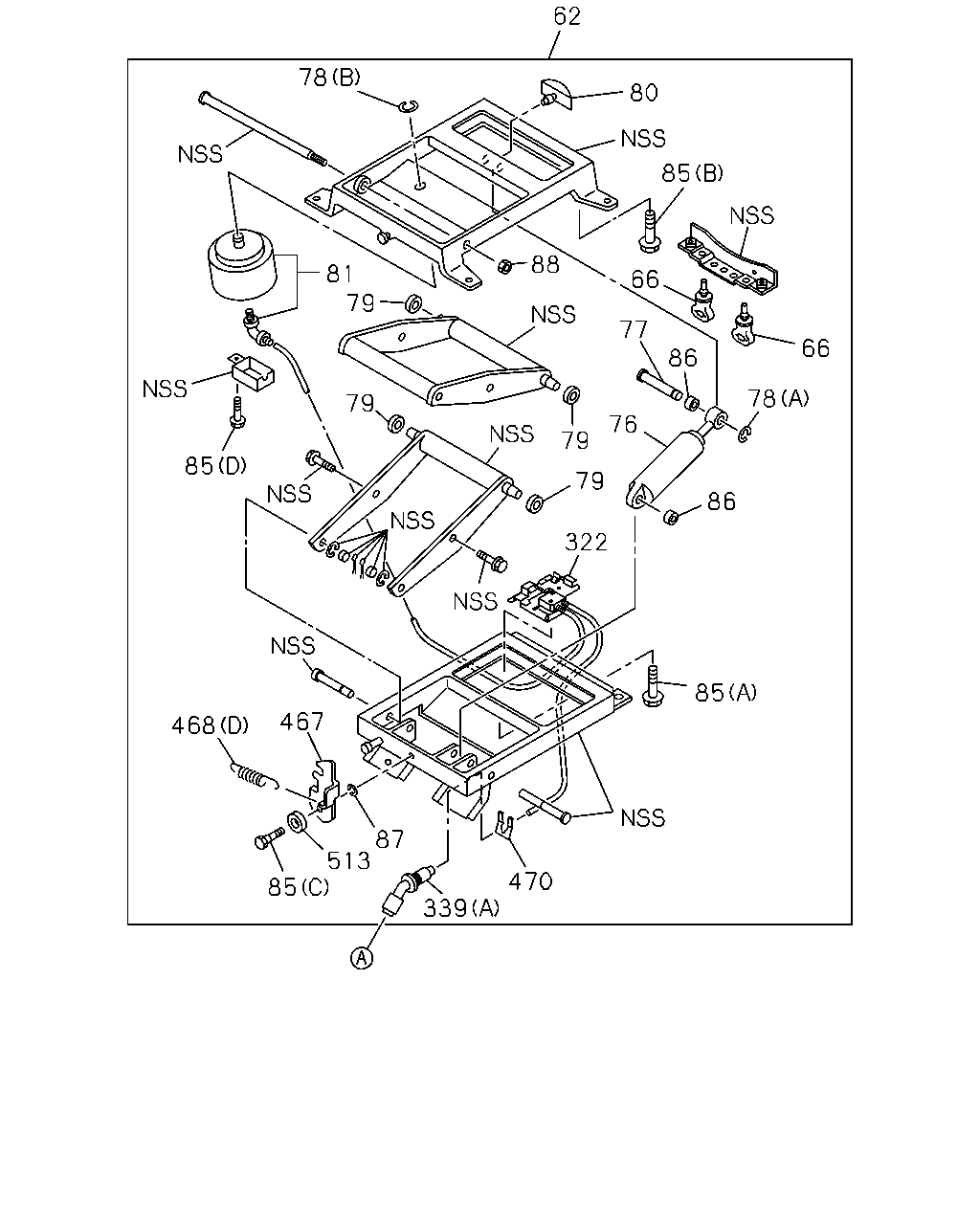

çizim 402339
78 81 79 79 85 468 467 87 513 85 339 470 85 322 79 79 76 86 77 66 88 62 80 85 66 78 86
BalonParca AdiParca NoAdetTipApplied Date A B
62 DAMPER ASM; SEAT SUSP 1-75538-183-8 01 1 1401-1403 ● ●
62 DAMPER ASM; SEAT SUSP 8-98261-448-0 01 1 1404-1502 ● ●
62 DAMPER ASM; SEAT SUSP
DELUXE SEAT(PQ8) 		8-98261-448-0 01 1 1503-1509 ● ●
62 DAMPER ASM; SEAT SUSP 8-98261-448-0 01 1 1510- ● ●
66 RUBBER; LWR STOPPER 1-75538-145-0 02 1 1401-1502 ● ●
66 RUBBER; LWR STOPPER
DELUXE SEAT(PQ8) 		1-75538-145-0 02 1 1503-1509 ● ●
66 RUBBER; LWR STOPPER 1-75538-145-0 02 1 1510- ● ●
76 DAMPER; AIR SUSP 1-75538-139-0 01 1 1401-1502 ● ●
76 DAMPER; AIR SUSP
DELUXE SEAT(PQ8) 		1-75538-139-0 01 1 1503-1509 ● ●
76 DAMPER; AIR SUSP 1-75538-139-0 01 1 1510- ● ●
77 PIN; DAMPER 1-75538-138-2 01 1 1401-1502 ● ●
77 PIN; DAMPER
DELUXE SEAT(PQ8) 		1-75538-138-2 01 1 1503-1509 ● ●
77 PIN; DAMPER 1-75538-138-2 01 1 1510- ● ●
78 RING; SNAP
(A) ID=8 		9-09185-408-0 01 1 1401-1502 ● ●
78 RING; SNAP
DELUXE SEAT(PQ8) (A) ID=8 		9-09185-408-0 01 1 1503-1509 ● ●
78 RING; SNAP
(A) ID=8 		9-09185-408-0 01 1 1510- ● ●
78 RING; SNAP
(B) ID=15 		9-09185-415-0 01 1 1401-1502 ● ●
78 RING; SNAP
DELUXE SEAT(PQ8) (B) ID=15 		9-09185-415-0 01 1 1503-1509 ● ●
78 RING; SNAP
(B) ID=15 		9-09185-415-0 01 1 1510- ● ●
79 ROLLER ASM; AIR SUSP 1-75538-159-0 04 1 1401-1403 ● ●
79 ROLLER ASM; AIR SUSP 8-98261-489-0 04 1 1404-1502 ● ●
79 ROLLER ASM; AIR SUSP
DELUXE SEAT(PQ8) 		8-98261-489-0 04 1 1503-1509 ● ●
79 ROLLER ASM; AIR SUSP 8-98261-489-0 04 1 1510- ● ●
80 RUBBER; STOPPER 1-09987-123-0 01 1 1401-1502 ● ●
80 RUBBER; STOPPER
DELUXE SEAT(PQ8) 		1-09987-123-0 01 1 1503-1509 ● ●
80 RUBBER; STOPPER 1-09987-123-0 01 1 1510- ● ●
81 SPRING; AIR 1-75538-151-2 01 1 1401-1401 ● ●
81 SPRING; AIR 8-98242-816-0 01 1 1401-1502 ● ●
81 SPRING; AIR
DELUXE SEAT(PQ8) 		8-98242-816-0 01 1 1503-1509 ● ●
81 SPRING; AIR 8-98242-816-0 01 1 1510- ● ●
85 BOLT; AIR SUSP
(C) 		1-09980-577-1 01 1 1401-1502 ● ●
85 BOLT; AIR SUSP
DELUXE SEAT(PQ8) (C) 		1-09980-577-1 01 1 1503-1509 ● ●
85 BOLT; AIR SUSP
(C) 		1-09980-577-1 01 1 1510- ● ●
85 BOLT; AIR SUSP
(A) M6X12 		1-75538-208-1 02 1 1401-1502 ● ●
85 BOLT; AIR SUSP
DELUXE SEAT(PQ8) (A) M6X12 		1-75538-208-1 02 1 1503-1509 ● ●
85 BOLT; AIR SUSP
(A) M6X12 		1-75538-208-1 02 1 1510- ● ●
85 BOLT; AIR SUSP
(B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 1401-1401 ● ●
85 BOLT; AIR SUSP
(B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401-1502 ● ●
85 BOLT; AIR SUSP
DELUXE SEAT(PQ8) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1503-1509 ● ●
85 BOLT; AIR SUSP
(B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1510- ● ●
85 BOLT; AIR SUSP
(D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401-1502 ● ●
85 BOLT; AIR SUSP
DELUXE SEAT(PQ8) (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1503-1509 ● ●
85 BOLT; AIR SUSP
(D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1510- ● ●
86 BUSHING; GUIDE
OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1401-1502 ● ●
86 BUSHING; GUIDE
DELUXE SEAT(PQ8) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1503-1509 ● ●
86 BUSHING; GUIDE
OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1510- ● ●
87 WASHER; AIR SUSP
ID=8.2 		0-91510-508-0 01 1 1401-1502 ● ●
87 WASHER; AIR SUSP
DELUXE SEAT(PQ8) ID=8.2 		0-91510-508-0 01 1 1503-1509 ● ●
87 WASHER; AIR SUSP
ID=8.2 		0-91510-508-0 01 1 1510- ● ●
88 NUT; AIR SUSP
M10 		1-75537-273-1 01 1 1401-1502 ● ●
88 NUT; AIR SUSP
DELUXE SEAT(PQ8) M10 		1-75537-273-1 01 1 1503-1509 ● ●
88 NUT; AIR SUSP
M10 		1-75537-273-1 01 1 1510- ● ●
322 VALVE; AIR SPRING 1-75538-186-3 01 1 1401-1502 ● ●
322 VALVE; AIR SPRING
DELUXE SEAT(PQ8) 		1-75538-186-3 01 1 1503-1509 ● ●
322 VALVE; AIR SPRING 1-75538-186-3 01 1 1510- ● ●
339 UNION; DRIVER SEAT
(A) 		1-75538-131-3 01 1 1401-1502 ● ●
339 UNION; DRIVER SEAT
DELUXE SEAT(PQ8) (A) 		1-75538-131-3 01 1 1503-1509 ● ●
339 UNION; DRIVER SEAT
(A) 		1-75538-131-3 01 1 1510- ● ●
339 UNION; DRIVER SEAT
(B) 		8-98014-971-0 01 1 1401- ● ●
467 LEVER; LOCK 1-75538-134-0 01 1 1401-1502 ● ●
467 LEVER; LOCK
DELUXE SEAT(PQ8) 		1-75538-134-0 01 1 1503-1509 ● ●
467 LEVER; LOCK 1-75538-134-0 01 1 1510- ● ●
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 1401-1502 ● ●
468 SPRING; RETURN
DELUXE SEAT(PQ8) (A) 		1-75518-206-0 01 1 1503-1509 ● ●
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 1510- ● ●
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 1401-1502 ● ●
468 SPRING; RETURN
DELUXE SEAT(PQ8) (B) 		1-75518-207-0 01 1 1503-1509 ● ●
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 1510- ● ●
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 1401-1502 ● ●
468 SPRING; RETURN
DELUXE SEAT(PQ8) (C) 		1-75518-208-0 02 1 1503-1509 ● ●
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 1510- ● ●
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 1401-1502 ● ●
468 SPRING; RETURN
DELUXE SEAT(PQ8) (D) 		1-75538-132-0 01 1 1503-1509 ● ●
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 1510- ● ●
470 CLIP; HOSE 1-75538-137-0 01 1 1401-1502 ● ●
470 CLIP; HOSE
DELUXE SEAT(PQ8) 		1-75538-137-0 01 1 1503-1509 ● ●
470 CLIP; HOSE 1-75538-137-0 01 1 1510- ● ●
513 SPACER; LEVER 1-75538-133-0 01 1 1401-1502 ● ●
513 SPACER; LEVER
DELUXE SEAT(PQ8) 		1-75538-133-0 01 1 1503-1509 ● ●
513 SPACER; LEVER 1-75538-133-0 01 1 1510- ● ●

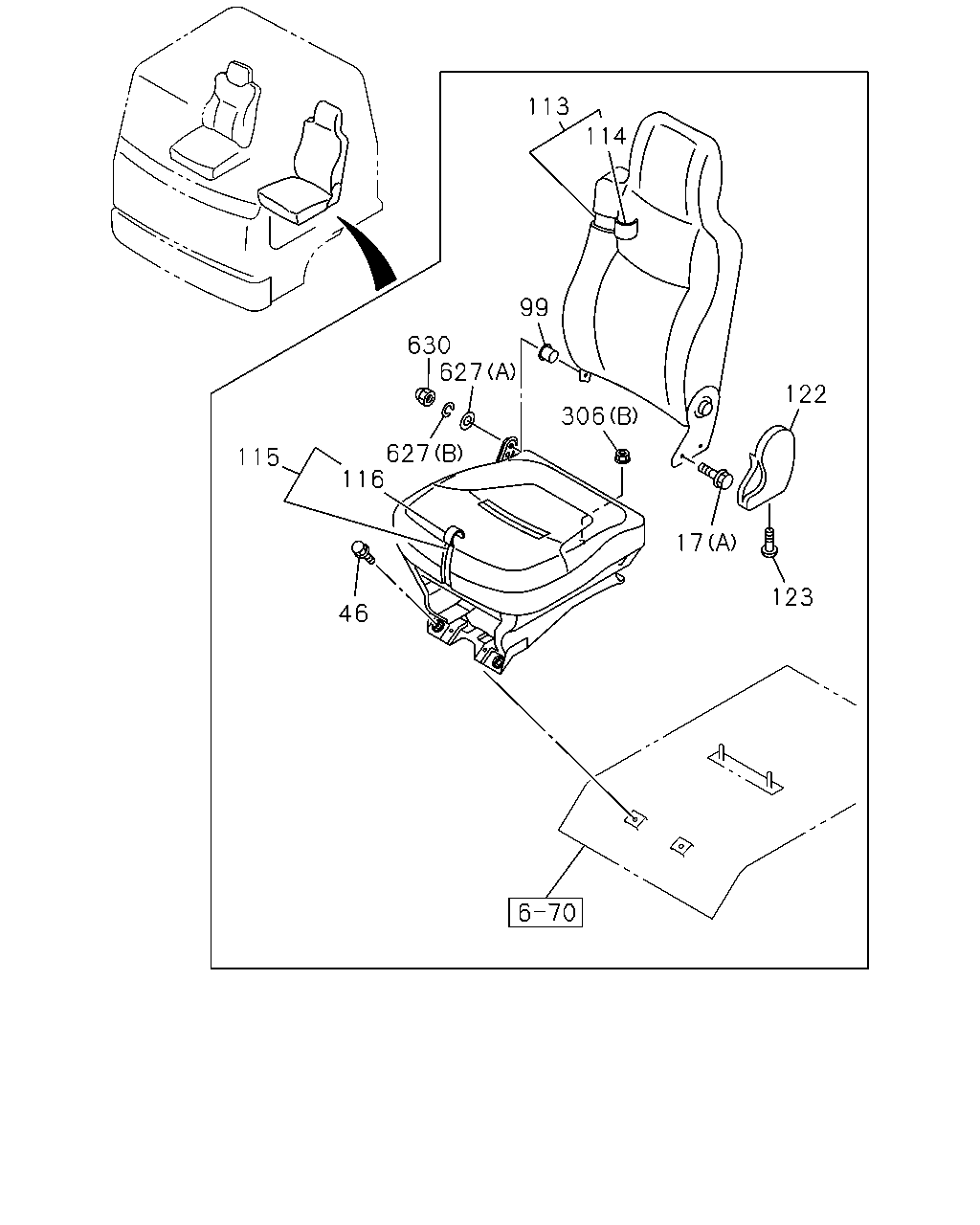

çizim 402341
113 114 99 630 627 306 627 116 115 46 123 17 122
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1401-1502 ● ●
17 BOLT; RECLINING
DELUXE SEAT(PQ8) (B) M10X20 		8-98062-661-0 02 1 1503-1509 ● ●
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1510- ● ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1401- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1401- ● ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1401- ● ●
113 BACK ASM; SEAT
DELUXE SEAT(PQ8) DARK GRAY 		8-97421-422-0 01 1 1401- ● ●
113 BACK ASM; SEAT
VINYL SEAT(A83) DARK GRAY 		8-97409-966-1 01 1 1401- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DELUXE SEAT(PQ8) DARK GRAY 		8-97421-424-0 01 1 1401- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) DARK GRAY 		8-97411-916-0 01 1 1401- ● ●
115 CUSHION ASM; PASSENGER SEAT
DELUXE SEAT(PQ8) DARK GRAY 		8-97421-418-2 01 1 1401- ● ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT(A83) DARK GRAY 		8-97409-965-1 01 1 1401- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DELUXE SEAT(PQ8) DARK GRAY 		8-97421-420-1 01 1 1401- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT(A83) DARK GRAY 		8-97411-915-0 01 1 1401- ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1401- ● ●
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1401- ● ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1401- ● ●
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 06 1 1401-1502 ● ●
306 NUT; SEAT ADJ
DELUXE SEAT(PQ8) (A) M8 FLANGE 		1-75538-207-0 06 1 1503-1509 ● ●
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 06 1 1510- ● ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1401- ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1401- ● ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
