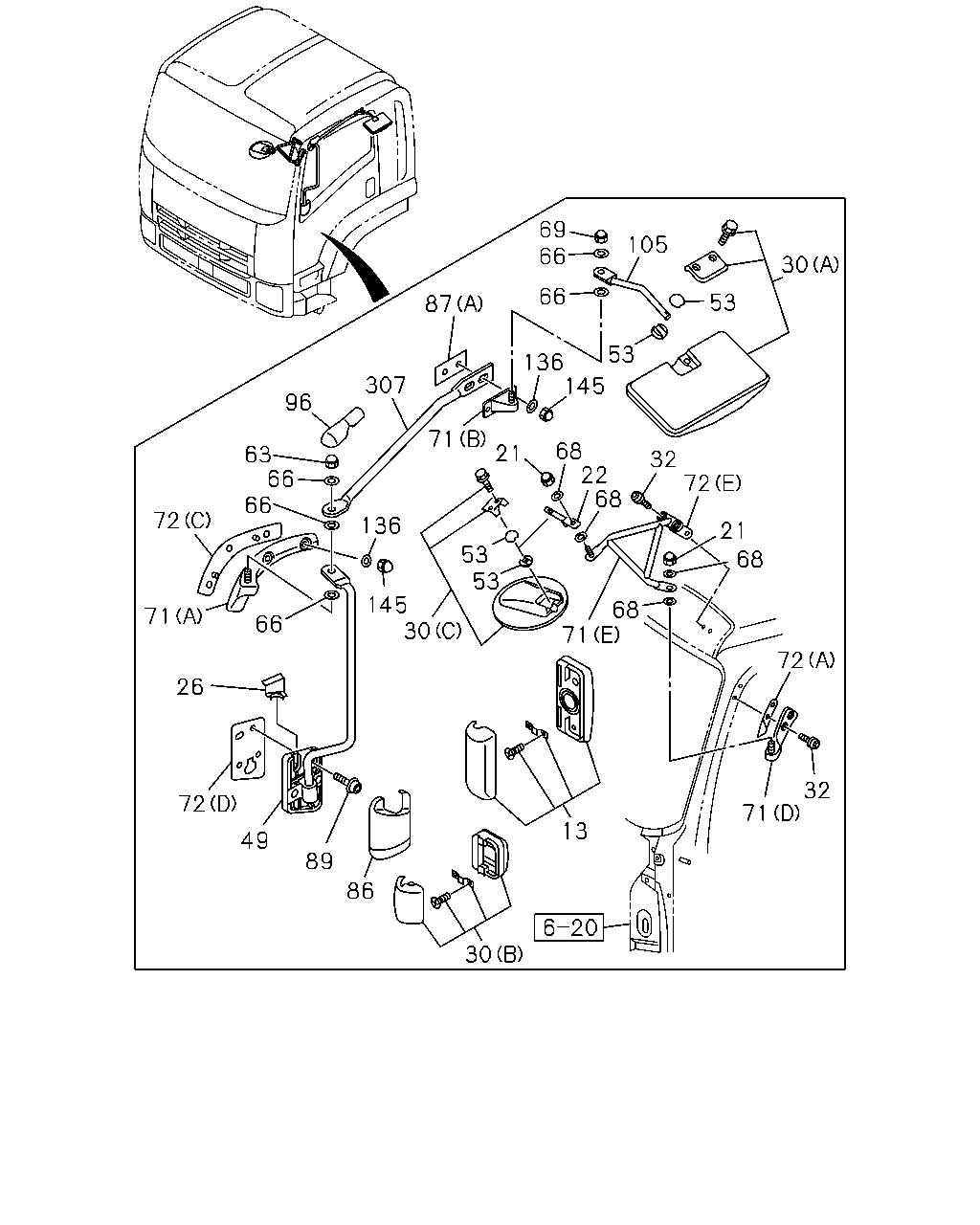

7-20 — MIRROR AND MIRROR STAY (#132047) — 79 parça

87 307 96 63 66 66 72 66 71 26 72 49 89 86 13 71 30 32 72 68 21 72 32 68 22 68 68 71 53 53 136 145 30 71 21 145 136 53 53 30 105 69 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW	8-98055-992-1	01	1	1401-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW	8-98055-991-1	01	1	1401-	●	●
21	NUT; MIRROR M10 CAP NUT	1-09984-134-0	02	1	1401-	●	●
22	STAY; OUTSIDE MIRROR	8-98092-493-0	01	1	1401-	●	●
26	COVER; OUTSIDE MIRROR	8-98031-806-0	01	1	1401-	●	●
26	COVER; OUTSIDE MIRROR	8-98031-805-0	01	1	1401-	●	●
30	MIRROR; UNDER (B)	8-98043-061-0	02	1	1401-	●	●
30	MIRROR; UNDER (A)	8-98043-065-0	01	1	1401-	●	●
30	MIRROR; UNDER (C)	8-98055-994-0	01	1	1401-1504	●	●
30	MIRROR; UNDER (C)	8-98309-725-0	01	1	1505-	●	●
32	SCREW; UNDER MIRROR M8X26 W/PL WASHER	8-98067-249-2	04	1	1401-	●	●
49	STAY; MIRROR SIDE	8-98166-195-0	01	1	1401-	●	●
49	STAY; MIRROR SIDE	8-98166-194-0	01	1	1401-	●	●
53	PIVOT; SIDE MIRROR ID=19.1	1-71737-633-2	04	1	1401-	●	●
63	NUT; STAY M10 CAP NUT	1-09984-134-0	02	1	1401-	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	1401-	●	●
68	WASHER; STAY ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1401-	●	●
69	NUT; CAP M10 CAP NUT	1-09984-134-0	01	1	1401-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	01	1	1401-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	1401-	●	●
71	BRACKET; OUTSIDE MIRROR (D)	8-98060-240-0	01	1	1401-	●	●
71	BRACKET; OUTSIDE MIRROR (E)	8-98092-492-3	01	1	1401-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	1401-	●	●
72	SHEET (C)	8-98031-797-0	01	1	1401-	●	●
72	SHEET (E)	8-98060-245-1	01	1	1401-	●	●
72	SHEET (A)	8-98064-776-0	01	1	1401-	●	●
72	SHEET (D)	8-98116-605-0	01	1	1401-	●	●
72	SHEET (B)	8-98031-796-0	01	1	1401-	●	●
72	SHEET (D)	8-98116-604-0	01	1	1401-	●	●
86	COVER; STAY,OUTSIDE MIRROR	8-98031-803-2	01	1	1401-	●	●
86	COVER; STAY,OUTSIDE MIRROR	8-98031-802-2	01	1	1401-	●	●
87	SPACER (A)	8-98063-786-0	02	1	1401-	●	●
87	SPACER (B)	8-98063-789-0	01	1	1401-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR M8X23	8-97310-216-1	08	1	1401-	●	●
96	CAP; MIRROR STAY	8-98080-173-0	02	1	1401-	●	●
105	STAY; SUB UNDER MIRROR	8-98080-109-2	01	1	1401-	●	●
136	WASHER; LK,BRKT,MIRROR STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1401-	●	●
145	NUT; CAP,SUB STAY M8 CAP NUT	8-98059-914-0	10	1	1401-	●	●
307	STAY; MIRROR SUPPORT	8-98063-785-2	01	1	1401-	●	●
307	STAY; MIRROR SUPPORT	8-98063-784-2	01	1	1401-	●	●

145 136 87 87 307 145 136 96 63 66 66 72 71 66 26 72 49 89 86 13 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW	8-98055-992-1	01	1	1401-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW	8-98055-991-1	01	1	1401-	●	●
26	COVER; OUTSIDE MIRROR	8-98031-806-0	01	1	1401-	●	●
26	COVER; OUTSIDE MIRROR	8-98031-805-0	01	1	1401-	●	●
30	MIRROR; UNDER (B)	8-98043-061-0	02	1	1401-	●	●
30	MIRROR; UNDER (A)	8-98043-065-0	01	1	1401-	●	●
30	MIRROR; UNDER (C)	8-98055-994-0	01	1	1401-1504	●	●
30	MIRROR; UNDER (C)	8-98309-725-0	01	1	1505-	●	●
49	STAY; MIRROR SIDE	8-98166-195-0	01	1	1401-	●	●
49	STAY; MIRROR SIDE	8-98166-194-0	01	1	1401-	●	●
63	NUT; STAY M10 CAP NUT	1-09984-134-0	02	1	1401-	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	1401-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	01	1	1401-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	1401-	●	●
71	BRACKET; OUTSIDE MIRROR (D)	8-98060-240-0	01	1	1401-	●	●
71	BRACKET; OUTSIDE MIRROR (E)	8-98092-492-3	01	1	1401-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	1401-	●	●
72	SHEET (C)	8-98031-797-0	01	1	1401-	●	●
72	SHEET (E)	8-98060-245-1	01	1	1401-	●	●
72	SHEET (A)	8-98064-776-0	01	1	1401-	●	●
72	SHEET (D)	8-98116-605-0	01	1	1401-	●	●
72	SHEET (B)	8-98031-796-0	01	1	1401-	●	●
72	SHEET (D)	8-98116-604-0	01	1	1401-	●	●
86	COVER; STAY,OUTSIDE MIRROR	8-98031-803-2	01	1	1401-	●	●
86	COVER; STAY,OUTSIDE MIRROR	8-98031-802-2	01	1	1401-	●	●
87	SPACER (A)	8-98063-786-0	02	1	1401-	●	●
87	SPACER (B)	8-98063-789-0	01	1	1401-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR M8X23	8-97310-216-1	08	1	1401-	●	●
96	CAP; MIRROR STAY	8-98080-173-0	02	1	1401-	●	●
136	WASHER; LK,BRKT,MIRROR STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1401-	●	●
145	NUT; CAP,SUB STAY M8 CAP NUT	8-98059-914-0	10	1	1401-	●	●
307	STAY; MIRROR SUPPORT	8-98063-785-2	01	1	1401-	●	●
307	STAY; MIRROR SUPPORT	8-98063-784-2	01	1	1401-	●	●

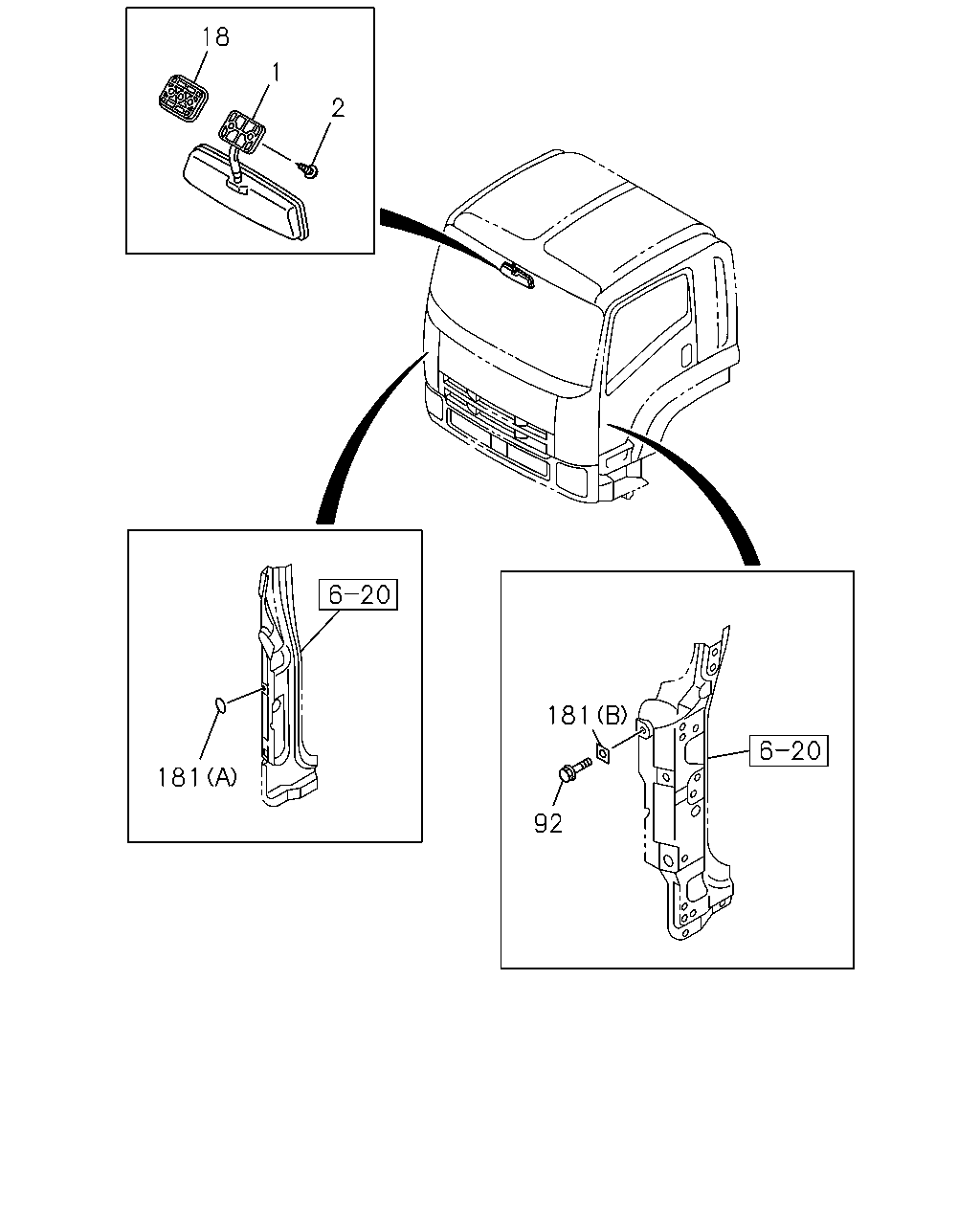

1 18 2 181 92 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MIRROR; ROOM DARK GRAY	8-98097-534-1	01	1	1401-	●	●
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	1401-	●	●
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	1401-	●	●
92	BOLT; STAY BRKT,MIRROR M8X16 FLANGE	8-98076-109-0	01	1	1401-	●	●
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1401-	●	●
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	01	1	1401-	●	●
