◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11569 - FXZ/GXZ MALAYSIA EURO3 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#132046) — 12 parça
çizim 401726
35 160 49
BalonParca AdiParca NoAdetTipApplied Date A B
35 PLATE; CAUTION,CAB 8-98017-667-1 01 1 1401- ● ●
49 PLATE; CAUTION,FUSE BOX 8-98076-221-0 01 1 1401- ● ●
160 PLATE; CAUTION,TOWING 1-85888-737-1 01 1 1401- ● ●

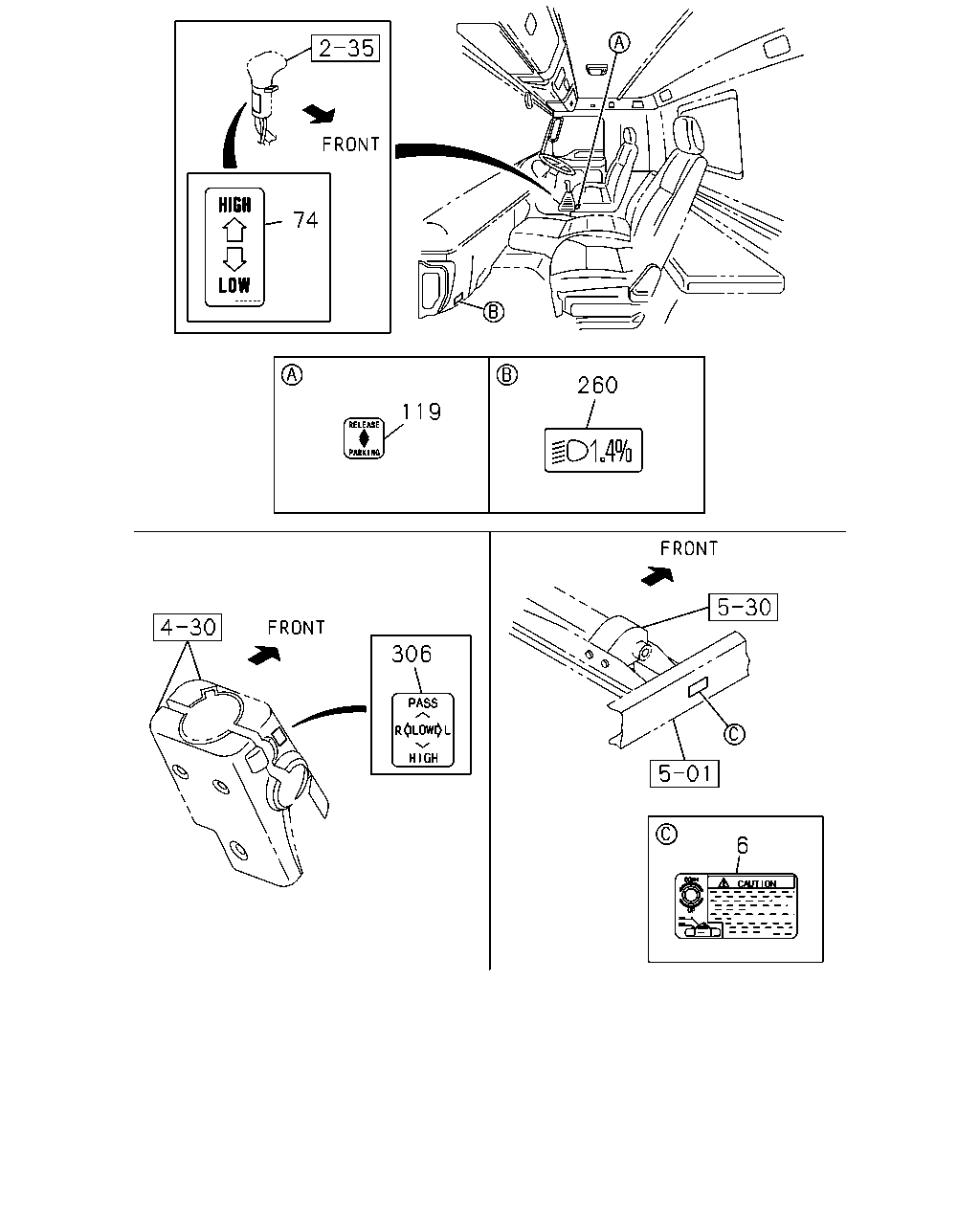

çizim 401803
74 119 260 6 306
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		8-98082-437-0 01 1 1401- ●
74 PLATE; CAUTION,CHANGE LEV
SHIFT PATTERN SINGLE-H<EDY> 		8-98118-493-0 01 1 1401- ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 1401- ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-791-0 01 1 1401- ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 1401- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1401- ● ●
çizim 402015
4 4 181
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 1401- ● ●
4 LABEL; ENG MAINTENANCE
(A) 		8-98164-931-1 01 1 1401- ● ●
181 PLATE; CAUTION,AIR CLEANER 1-85886-796-1 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
