◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11569 - FXZ/GXZ MALAYSIA EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#132026) — 194 parça

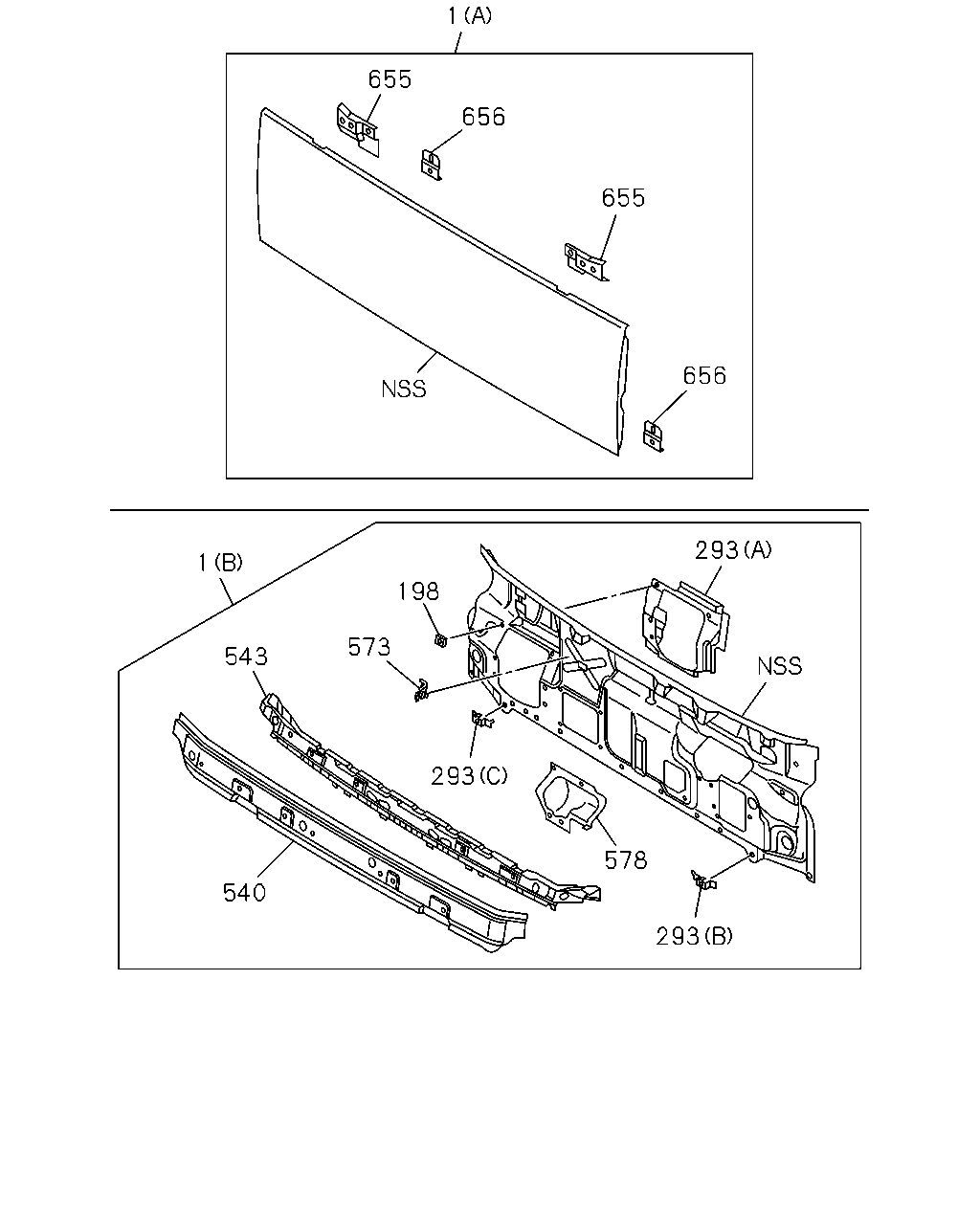

çizim 402227
1 656 655 655 656 1 543 573 198 293 578 293 293 540
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1401- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1401- ● ●
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1401- ● ●
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1401- ● ●
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1401- ● ●
293 BRACKET; PANEL
(C) 		8-98008-126-1 01 1 1401- ● ●
540 PANEL; FRONT,OUTER 8-97585-966-2 01 1 1401- ● ●
543 CLOSING; FRT MTG RAIL 8-97585-990-4 01 1 1401- ● ●
573 BRACKET; SUPPORT 8-98017-700-2 01 1 1401- ● ●
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1401- ● ●
655 PATCH; HINGE 8-98031-263-0 01 1 1401- ● ●
655 PATCH; HINGE 8-98031-264-0 01 1 1401- ● ●
656 PATCH; STRIKER 8-98031-265-0 02 1 1401- ● ●

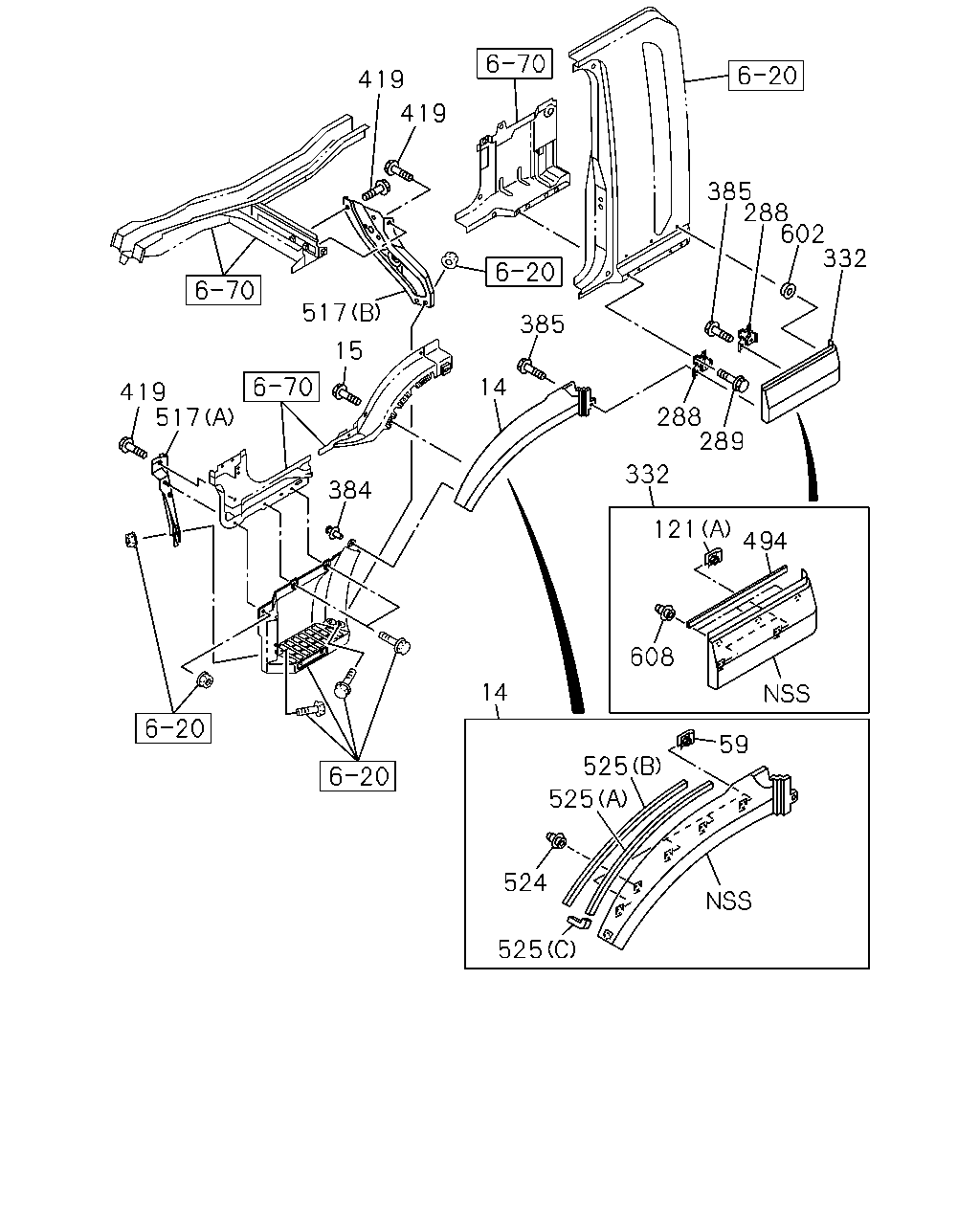

çizim 402255
419 419 517 517 419 384 14 385 15 385 288 602 332 289 288 332 121 494 608 14 59 525 525 524 525
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
CAB ALL PAINTING<TFD> BLACK 		8-98041-399-3 01 1 1401- ● ●
14 FENDER; FRT
CAB ALL PAINTING<TFD> BLACK 		8-98041-398-3 01 1 1401- ● ●
14 FENDER; FRT
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98041-399-3 01 1 1401- ● ●
14 FENDER; FRT
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98041-398-3 01 1 1401- ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1401- ● ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1401- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1401- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1401- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1401- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 1401- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1401- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1401- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1401- ● ●
288 BRACKET; FENDER SKIRT 8-98059-770-1 04 1 1401- ● ●
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE 		0-28650-616-0 08 1 1401- ● ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-507-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-506-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-310-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-304-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-313-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-307-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-314-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-308-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-612-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-602-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-311-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-305-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-769-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-768-2 01 1 1401- ● ●
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-435-2 01 1 1401- ● ●
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-434-2 01 1 1401- ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1401- ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1401- ● ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1401- ● ●
494 FINISHER; FENDER 8-98072-723-0 01 1 1401- ● ●
494 FINISHER; FENDER 8-98041-172-1 01 1 1401- ● ●
517 SUPPORT; STEP PANEL
(A) 		8-98037-336-1 01 1 1401- ● ●
517 SUPPORT; STEP PANEL
(B) 		8-98037-351-2 01 1 1401- ● ●
517 SUPPORT; STEP PANEL
(A) 		8-98037-335-1 01 1 1401- ● ●
517 SUPPORT; STEP PANEL
(B) 		8-98037-350-2 01 1 1401- ● ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1401- ● ●
525 SEAL; FENDER
(A) 		8-98061-760-0 02 1 1401- ● ●
525 SEAL; FENDER
(B) 		8-98061-761-0 02 1 1401- ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1401- ● ●
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1401- ● ●
608 CLIP
D5.4X8 		1-09983-154-0 06 1 1401- ● ●

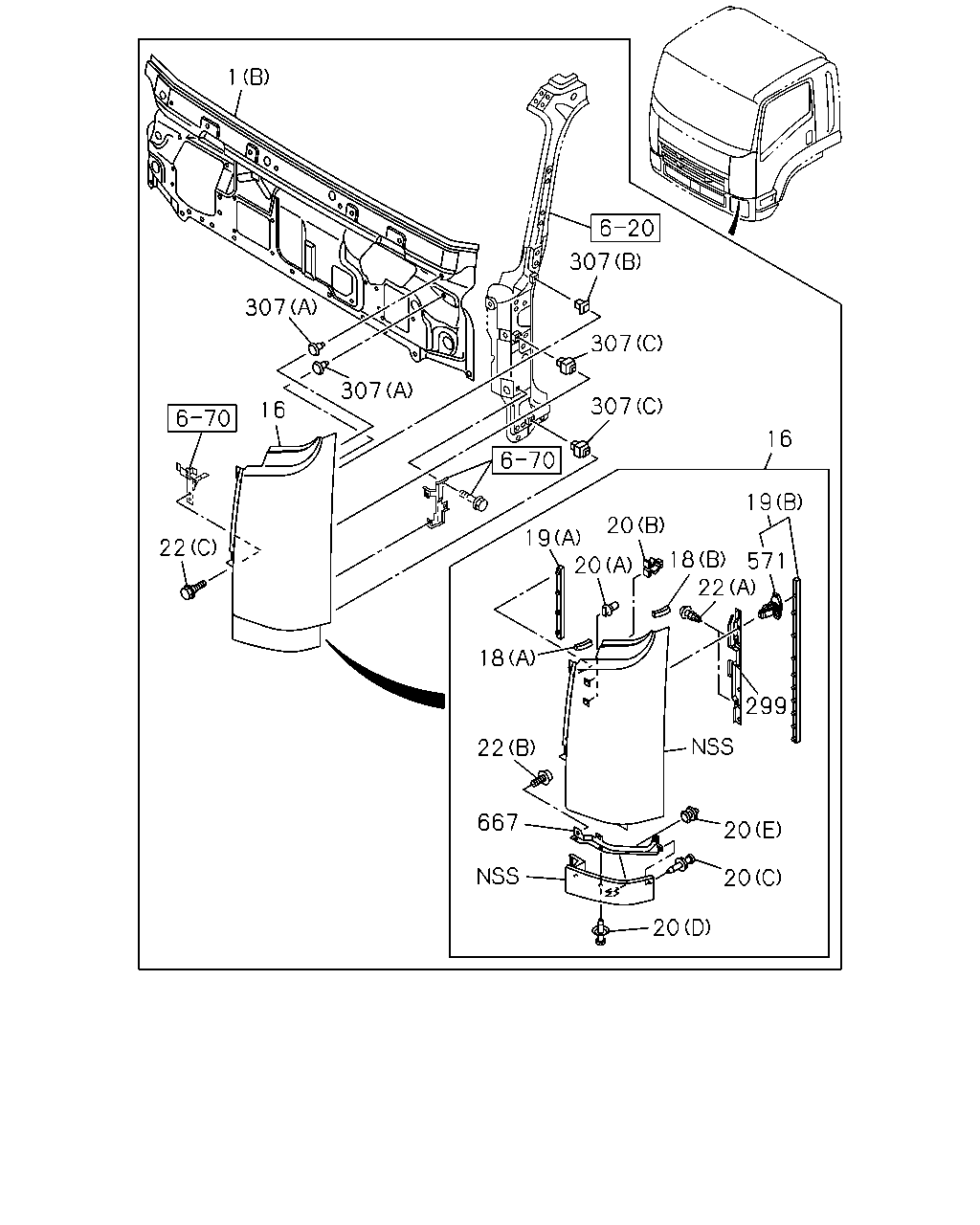

çizim 402270
1 307 307 16 22 307 307 307 16 19 571 18 22 20 20 19 18 22 667 20 299 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1401- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97413-088-2 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97413-087-2 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. CAB ALL PAINTING<TFD> WHITE 		8-97421-836-0 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. CAB ALL PAINTING<TFD> WHITE 		8-97421-820-0 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97418-360-2 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97418-354-2 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. CAB ALL PAINTING<TFD> RED 		8-97421-834-0 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. CAB ALL PAINTING<TFD> RED 		8-97421-818-0 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97418-365-2 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97418-359-2 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. CAB ALL PAINTING<TFD> RED 		8-97421-835-0 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. CAB ALL PAINTING<TFD> RED 		8-97421-819-0 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97418-363-2 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97418-357-2 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. CAB ALL PAINTING<TFD> YELLOW 		8-97421-838-0 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. CAB ALL PAINTING<TFD> YELLOW 		8-97421-822-0 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97418-362-2 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97418-356-2 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. CAB ALL PAINTING<TFD> BLUE 		8-97421-840-0 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. CAB ALL PAINTING<TFD> BLUE 		8-97421-824-0 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97418-361-2 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97418-355-2 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. CAB ALL PAINTING<TFD> BEIGE 		8-97421-839-0 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. CAB ALL PAINTING<TFD> BEIGE 		8-97421-823-0 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-765-2 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-764-2 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) EXC. CAB ALL PAINTING<TFD> GREEN 		8-97423-767-0 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) EXC. CAB ALL PAINTING<TFD> GREEN 		8-97423-766-0 01 1 1401- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1401- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1401- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1401- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1401- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 1401- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 1401- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 1401- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 1401- ● ●
20 CLIP; FRT PANEL SIDE
(D) D8X13.5 		1-09987-248-1 02 1 1401- ● ●
20 CLIP; FRT PANEL SIDE
(D) D8X13.5 		1-09987-248-1 02 1 1401- ● ●
20 CLIP; FRT PANEL SIDE
(C) 		8-97013-997-0 01 1 1401- ● ●
20 CLIP; FRT PANEL SIDE
(C) 		8-97013-997-0 01 1 1401- ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1401- ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1401- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1401- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1401- ● ●
20 CLIP; FRT PANEL SIDE
(E) H=15.3 		8-97804-778-0 01 1 1401- ● ●
20 CLIP; FRT PANEL SIDE
(E) H=15.3 		8-97804-778-0 01 1 1401- ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1401- ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1401- ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1401- ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1401- ● ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98061-108-0 06 1 1401-1505 ● ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98314-627-0 06 1 1506- ● ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1401- ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1401- ● ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1401- ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1401- ● ●
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1401- ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1401- ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1401- ● ●
667 STAY; EXT,SIDE PANEL 8-98054-092-1 01 1 1401- ● ●
667 STAY; EXT,SIDE PANEL 8-98054-091-1 01 1 1401- ● ●

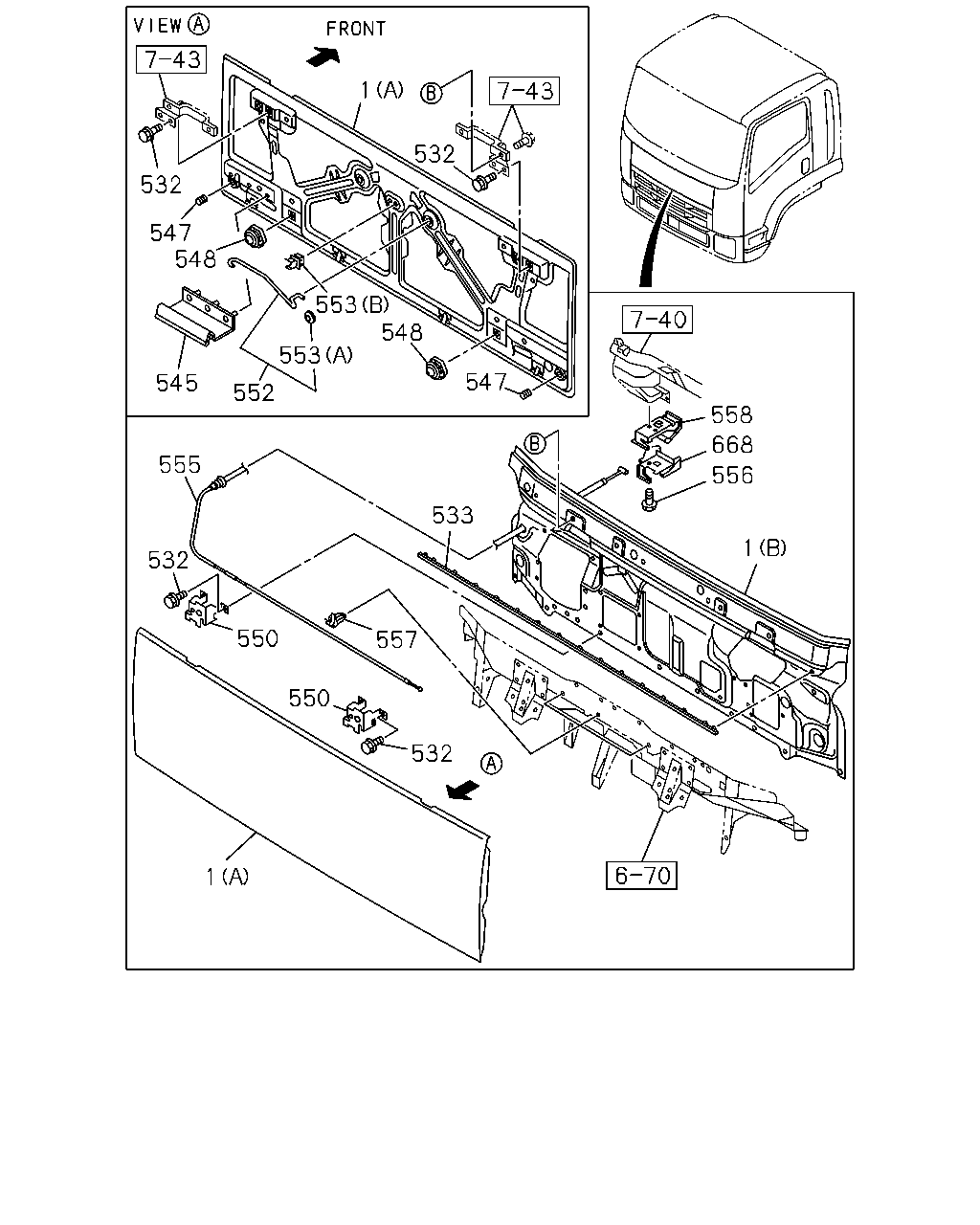

çizim 402388
532 547 548 545 552 553 553 548 547 532 1 555 532 550 550 1 557 533 532 558 668 556 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1401- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1401- ● ●
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 1401- ● ●
533 SEAL; FRT PANEL 8-98096-289-0 01 1 1401- ● ●
545 SEAL; FRT LID 8-98123-265-0 01 1 1401- ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1401- ● ●
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1401- ● ●
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1401- ● ●
552 STAY; FRT LID 8-98089-838-0 01 1 1401- ● ●
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1401- ● ●
553 CLIP; STAY
(A) 		8-98071-399-0 01 1 1401- ● ●
555 CABLE; FRT LID 8-98036-574-1 01 1 1401- ● ●
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1401- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1401- ● ●
558 LEVER; FRT LID 1-79338-007-1 01 1 1401- ● ●
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1401- ● ●

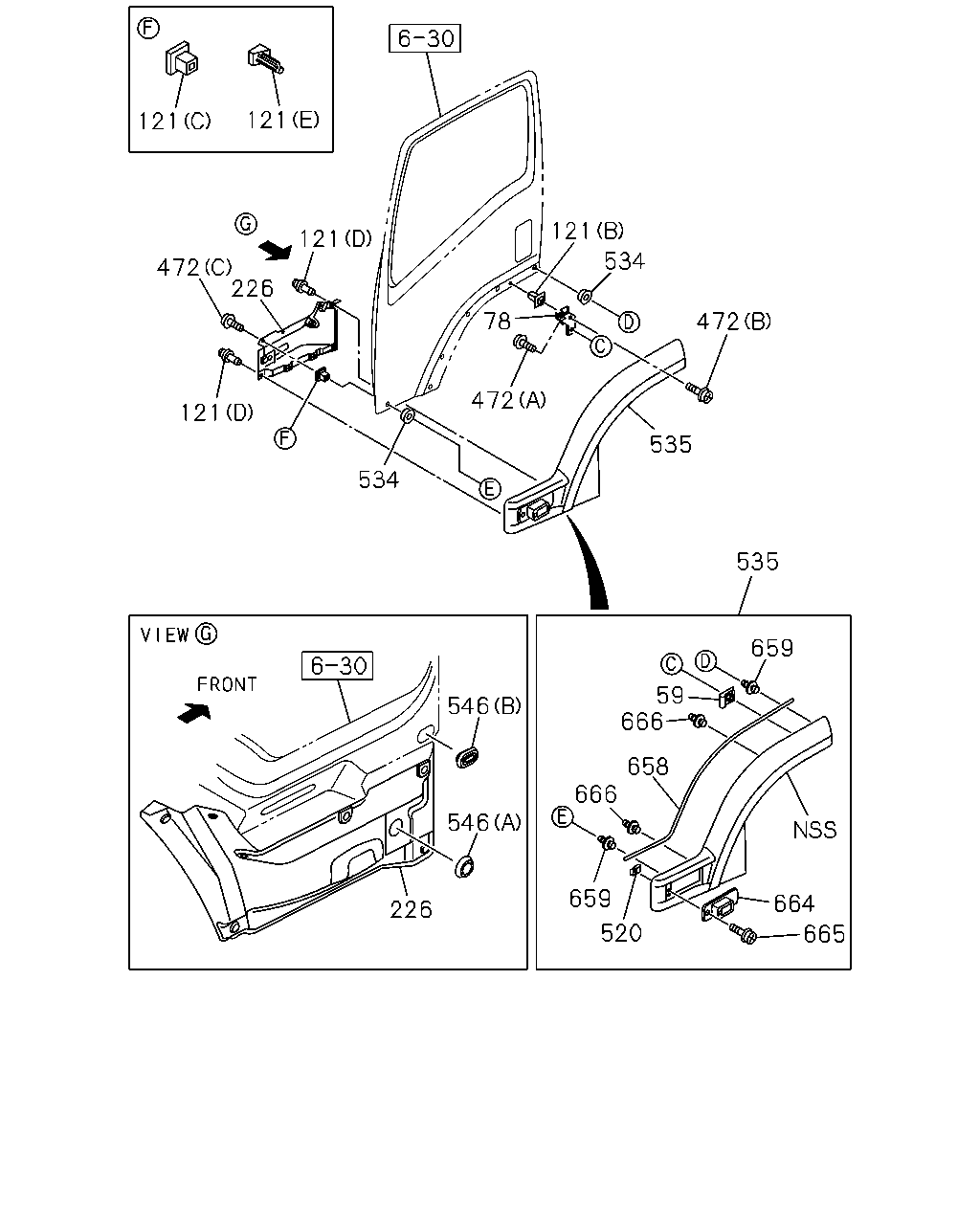

çizim 402389
121 121 121 226 472 121 534 472 78 121 534 472 535 535 659 59 666 658 666 659 520 664 665 546 546 226
BalonParca AdiParca NoAdetTipApplied Date A B
59 GROMMET; SCREW 8-94279-723-0 08 1 1401- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1401- ● ●
78 BRACKET; FENDER 8-98041-166-1 01 1 1401- ● ●
78 BRACKET; FENDER 8-98041-165-1 01 1 1401- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1401- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1401- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 1401- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1401- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1401- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1401- ● ●
226 PROTECTOR; FRT 8-98037-715-2 01 1 1401- ● ●
226 PROTECTOR; FRT 8-98037-714-2 01 1 1401- ● ●
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1401- ● ●
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1401- ● ●
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1401- ● ●
520 NUT; FENDER 8-94279-501-0 02 1 1401- ● ●
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1401- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-394-1 01 1 1401- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-393-1 01 1 1401- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97418-323-1 01 1 1401- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97418-309-1 01 1 1401- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97418-371-1 01 1 1401- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97418-368-1 01 1 1401- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97418-369-1 01 1 1401- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97418-366-1 01 1 1401- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97418-329-1 01 1 1401- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97418-315-1 01 1 1401- ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97418-328-1 01 1 1401- ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97418-314-1 01 1 1401- ● ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-771-1 01 1 1401- ● ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-770-1 01 1 1401- ● ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> 		8-98166-375-0 01 1 1401- ● ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> 		8-98166-374-0 01 1 1401- ● ●
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1401- ● ●
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1401- ● ●
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1401- ● ●
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1401- ● ●
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 1401- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-597-0 01 1 1401- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-469-0 01 1 1401- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-637-0 01 1 1401- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-471-0 01 1 1401- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-481-0 01 1 1401- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-477-0 01 1 1401- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-479-0 01 1 1401- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-475-0 01 1 1401- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-626-0 01 1 1401- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-615-0 01 1 1401- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-640-0 01 1 1401- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-473-0 01 1 1401- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-785-0 01 1 1401- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-784-0 01 1 1401- ● ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98075-507-0 01 1 1401- ● ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98075-506-0 01 1 1401- ● ●
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1401- ● ●
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
